Create an EPC network with PointToPoint links in the backhaul network. More...

#include "point-to-point-epc-helper.h"

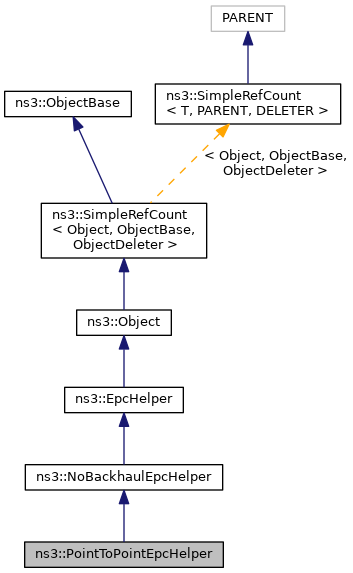

Inheritance diagram for ns3::PointToPointEpcHelper:

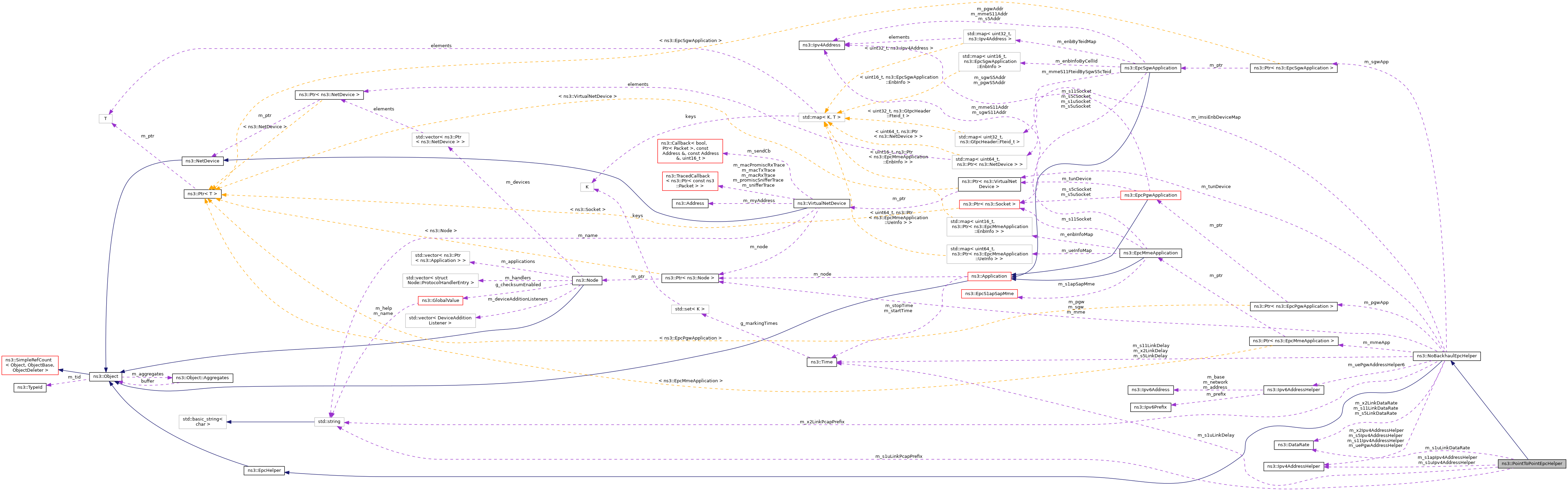

Collaboration diagram for ns3::PointToPointEpcHelper:

Public Member Functions
	PointToPointEpcHelper ()
	Constructor. More...

virtual	~PointToPointEpcHelper ()
	Destructor. More...

virtual void	AddEnb (Ptr< Node > enbNode, Ptr< NetDevice > lteEnbNetDevice, uint16_t cellId)
	Add an eNB to the EPC. More...

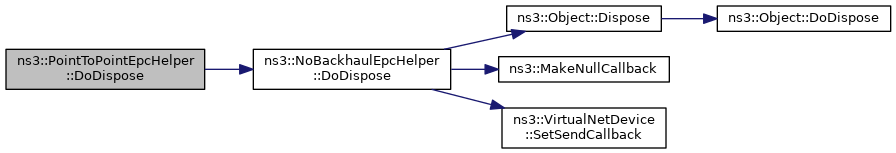

virtual void	DoDispose ()
	Destructor implementation. More...

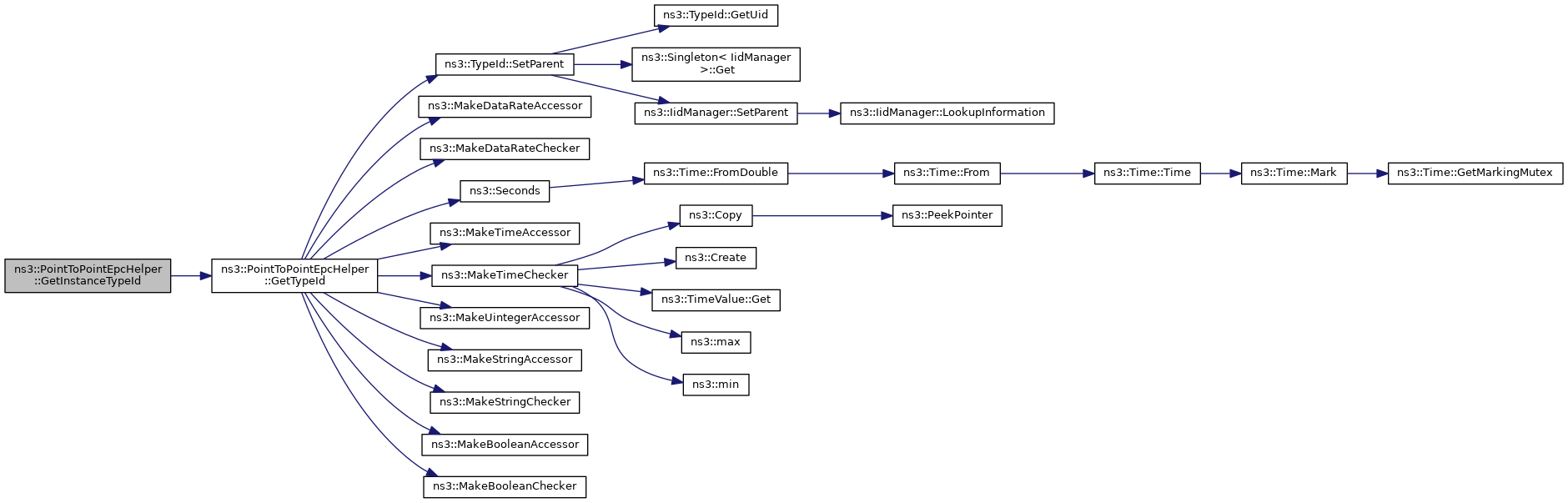

TypeId	GetInstanceTypeId () const
	Get the most derived TypeId for this Object. More...

Public Member Functions inherited from ns3::NoBackhaulEpcHelper
	NoBackhaulEpcHelper ()
	Constructor. More...

virtual	~NoBackhaulEpcHelper ()
	Destructor. More...

virtual uint8_t	ActivateEpsBearer (Ptr< NetDevice > ueLteDevice, uint64_t imsi, Ptr< EpcTft > tft, EpsBearer bearer)
	Activate an EPS bearer, setting up the corresponding S1-U tunnel. More...

virtual void	AddS1Interface (Ptr< Node > enb, Ipv4Address enbAddress, Ipv4Address sgwAddress, uint16_t cellId=0)
	Add an S1 interface between an eNB and a SGW. More...

virtual void	AddUe (Ptr< NetDevice > ueLteDevice, uint64_t imsi)
	Notify the EPC of the existence of a new UE which might attach at a later time. More...

virtual void	AddX2Interface (Ptr< Node > enbNode1, Ptr< Node > enbNode2)
	Add an X2 interface between two eNB. More...

virtual Ipv4InterfaceContainer	AssignUeIpv4Address (NetDeviceContainer ueDevices)
	Assign IPv4 addresses to UE devices. More...

virtual Ipv6InterfaceContainer	AssignUeIpv6Address (NetDeviceContainer ueDevices)
	Assign IPv6 addresses to UE devices. More...

virtual Ptr< Node >	GetPgwNode () const
	Get the PGW node. More...

virtual Ptr< Node >	GetSgwNode () const
	Get the SGW node. More...

virtual Ipv4Address	GetUeDefaultGatewayAddress ()

virtual Ipv6Address	GetUeDefaultGatewayAddress6 ()

Public Member Functions inherited from ns3::EpcHelper
	EpcHelper ()
	Constructor. More...

virtual	~EpcHelper ()
	Destructor. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const

template<>
Ptr< Object >	GetObject (TypeId tid) const

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

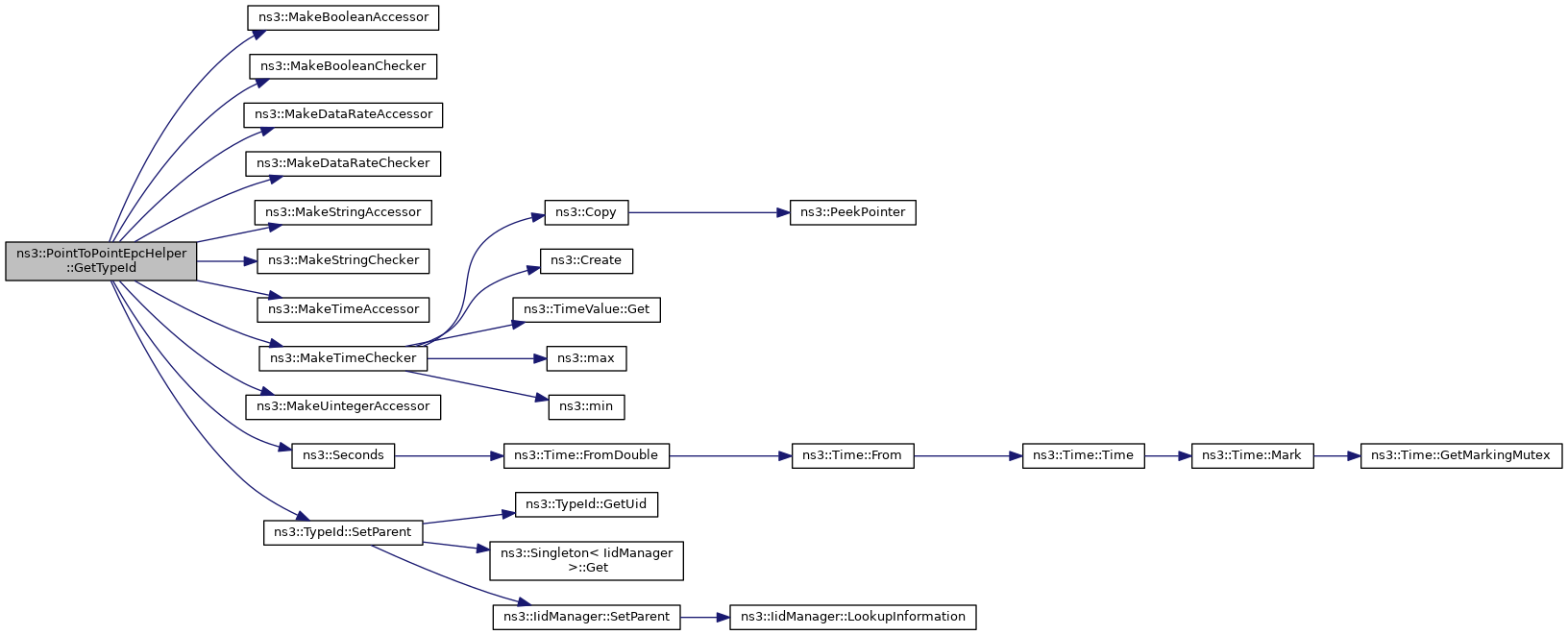

static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::NoBackhaulEpcHelper
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::EpcHelper
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ipv4AddressHelper	m_s1apIpv4AddressHelper
	Helper to assign addresses to S1-MME NetDevices. More...

Ipv4AddressHelper	m_s1uIpv4AddressHelper
	S1-U interfaces. More...

DataRate	m_s1uLinkDataRate
	The data rate to be used for the next S1-U link to be created. More...

Time	m_s1uLinkDelay
	The delay to be used for the next S1-U link to be created. More...

bool	m_s1uLinkEnablePcap
	Enable PCAP generation for S1 link. More...

uint16_t	m_s1uLinkMtu
	The MTU of the next S1-U link to be created. More...

std::string	m_s1uLinkPcapPrefix
	Prefix for the PCAP file for the S1 link. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::NoBackhaulEpcHelper
virtual void	DoActivateEpsBearerForUe (const Ptr< NetDevice > &ueDevice, const Ptr< EpcTft > &tft, const EpsBearer &bearer) const
	DoActivateEpsBearerForUe: Schedule ActivateEpsBearer on the UE. More...

virtual void	DoAddX2Interface (const Ptr< EpcX2 > &enb1X2, const Ptr< NetDevice > &enb1LteDev, const Ipv4Address &enb1X2Address, const Ptr< EpcX2 > &enb2X2, const Ptr< NetDevice > &enb2LteDev, const Ipv4Address &enb2X2Address) const
	DoAddX2Interface: Call AddX2Interface on top of the Enb device pointers. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Create an EPC network with PointToPoint links in the backhaul network.

Introspection did not find any typical Config paths.

This Helper extends NoBackhaulEpcHelper creating PointToPoint links in the backhaul network (i.e. in the S1-U and S1-MME interfaces)

Attributes

S1uLinkDataRate: The data rate to be used for the next S1-U link to be created
- Set with class: DataRateValue
- Underlying type: DataRate
- Initial value: 10000000000bps
- Flags: construct write read
S1uLinkDelay: The delay to be used for the next S1-U link to be created
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read
S1uLinkMtu: The MTU of the next S1-U link to be created. Note that, because of the additional GTP/UDP/IP tunneling overhead, you need a MTU larger than the end-to-end MTU that you want to support.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 2000
- Flags: construct write read
S1uLinkPcapPrefix: Prefix for Pcap generated by S1-U link
- Set with class: StringValue
- Underlying type:
- Initial value: s1u
- Flags: construct write read
S1uLinkEnablePcap: Enable Pcap for X2 link
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

Attributes defined in parent class ns3::NoBackhaulEpcHelper

S5LinkDataRate: The data rate to be used for the next S5 link to be created
- Set with class: DataRateValue
- Underlying type: DataRate
- Initial value: 10000000000bps
- Flags: construct write read
S5LinkDelay: The delay to be used for the next S5 link to be created
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read
S5LinkMtu: The MTU of the next S5 link to be created
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 2000
- Flags: construct write read
S11LinkDataRate: The data rate to be used for the next S11 link to be created
- Set with class: DataRateValue
- Underlying type: DataRate
- Initial value: 10000000000bps
- Flags: construct write read
S11LinkDelay: The delay to be used for the next S11 link to be created
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read
S11LinkMtu: The MTU of the next S11 link to be created.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 2000
- Flags: construct write read
X2LinkDataRate: The data rate to be used for the next X2 link to be created
- Set with class: DataRateValue
- Underlying type: DataRate
- Initial value: 10000000000bps
- Flags: construct write read
X2LinkDelay: The delay to be used for the next X2 link to be created
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read
X2LinkMtu: The MTU of the next X2 link to be created. Note that, because of some big X2 messages, you need a big MTU.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 3000
- Flags: construct write read
X2LinkPcapPrefix: Prefix for Pcap generated by X2 link
- Set with class: StringValue
- Underlying type:
- Initial value: x2
- Flags: construct write read
X2LinkEnablePcap: Enable Pcap for X2 link
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 464 bytes (on a 64-bit architecture).

Definition at line 38 of file point-to-point-epc-helper.h.

Constructor & Destructor Documentation

◆ PointToPointEpcHelper()

ns3::PointToPointEpcHelper::PointToPointEpcHelper ( )

Constructor.

Definition at line 38 of file point-to-point-epc-helper.cc.

References ns3::ObjectBase::ConstructSelf(), m_s1apIpv4AddressHelper, m_s1uIpv4AddressHelper, NS_LOG_FUNCTION, and ns3::Ipv4AddressHelper::SetBase().

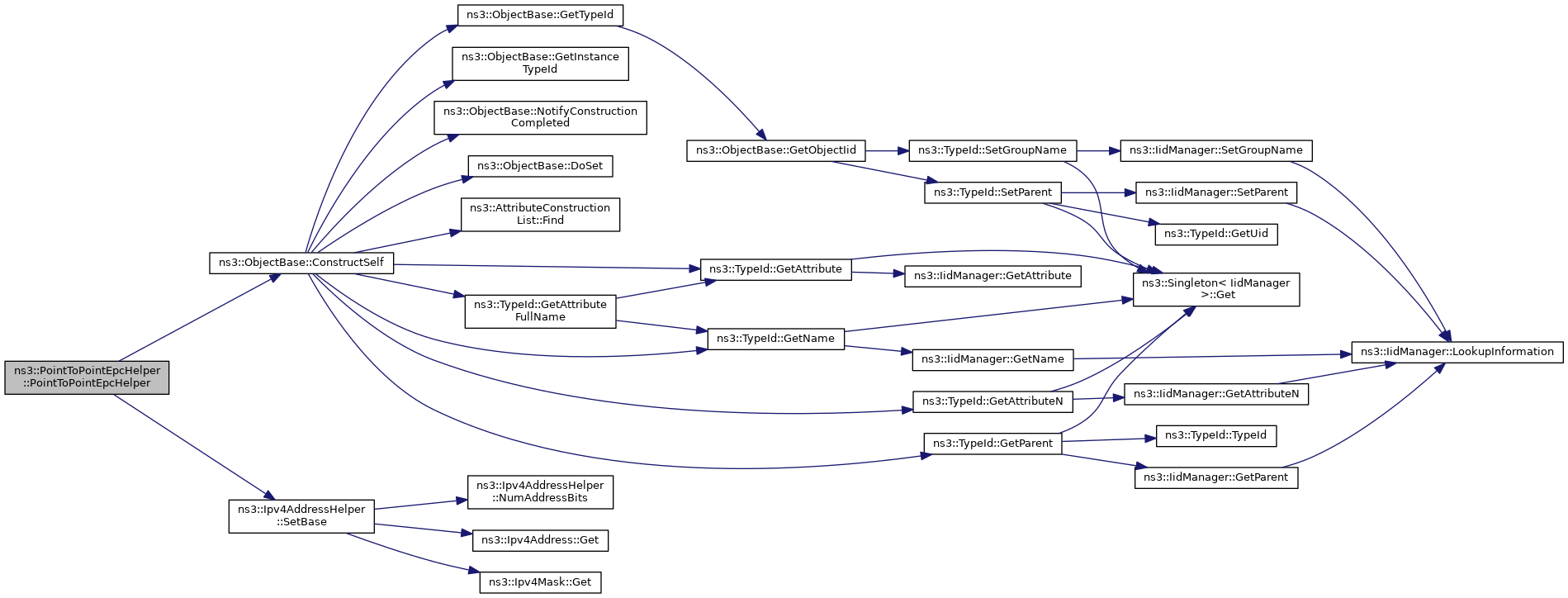

Here is the call graph for this function:

◆ ~PointToPointEpcHelper()

ns3::PointToPointEpcHelper::~PointToPointEpcHelper ( )

virtual

Destructor.

Definition at line 52 of file point-to-point-epc-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

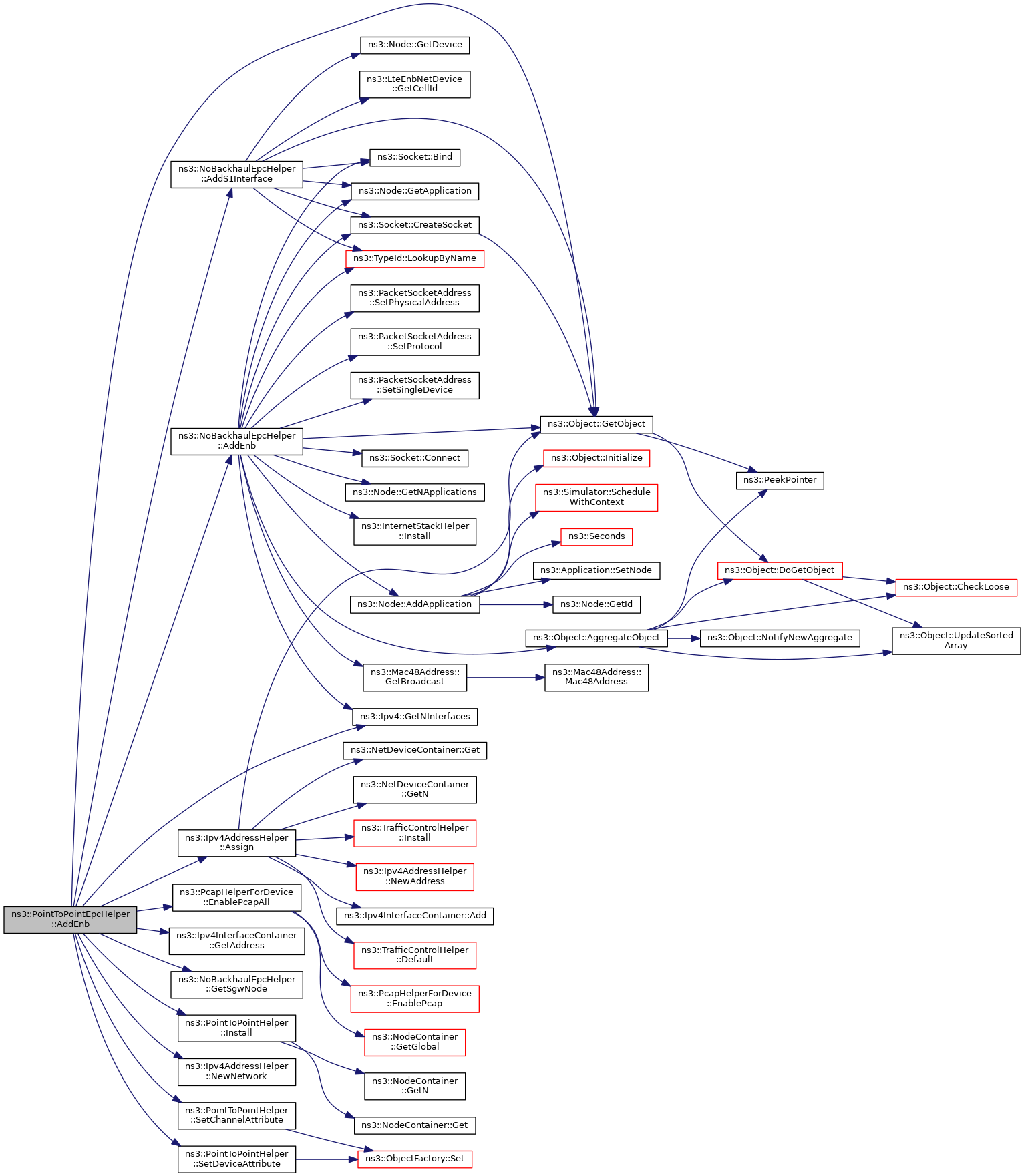

◆ AddEnb()

void ns3::PointToPointEpcHelper::AddEnb	(	Ptr< Node >	enbNode,
		Ptr< NetDevice >	lteEnbNetDevice,
		uint16_t	cellId
	)

virtual

Add an eNB to the EPC.

Parameters

enbNode	the previously created eNB node which is to be added to the EPC
lteEnbNetDevice	the LteEnbNetDevice of the eNB node
cellId	ID of the eNB

Reimplemented from ns3::NoBackhaulEpcHelper.

Definition at line 109 of file point-to-point-epc-helper.cc.

References ns3::NoBackhaulEpcHelper::AddEnb(), ns3::NoBackhaulEpcHelper::AddS1Interface(), ns3::Ipv4AddressHelper::Assign(), ns3::PcapHelperForDevice::EnablePcapAll(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::Ipv4::GetNInterfaces(), ns3::Object::GetObject(), ns3::NoBackhaulEpcHelper::GetSgwNode(), ns3::PointToPointHelper::Install(), m_s1uIpv4AddressHelper, m_s1uLinkDataRate, m_s1uLinkDelay, m_s1uLinkEnablePcap, m_s1uLinkMtu, m_s1uLinkPcapPrefix, ns3::Ipv4AddressHelper::NewNetwork(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::PointToPointHelper::SetChannelAttribute(), and ns3::PointToPointHelper::SetDeviceAttribute().

Referenced by EpcS1uDlTestCase::DoRun(), and EpcS1uUlTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::PointToPointEpcHelper::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::NoBackhaulEpcHelper.

Definition at line 101 of file point-to-point-epc-helper.cc.

References ns3::NoBackhaulEpcHelper::DoDispose(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::PointToPointEpcHelper::GetInstanceTypeId ( ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
