ns3::RandomVariableStream Class Referenceabstract

The basic uniform Random Number Generator (RNG). More...

#include "random-variable-stream.h"

+ Inheritance diagram for ns3::RandomVariableStream:
+ Collaboration diagram for ns3::RandomVariableStream:

Public Member Functions

 RandomVariableStream ()
 Default constructor. More...

virtual ~RandomVariableStream ()
 Destructor. More...

virtual uint32_t GetInteger (void)=0
 Get the next random value as an integer drawn from the distribution. More...

int64_t GetStream (void) const
 Returns the stream number for the RngStream. More...

virtual double GetValue (void)=0
 Get the next random value as a double drawn from the distribution. More...

bool IsAntithetic (void) const
 Check if antithetic values will be generated. More...

void SetAntithetic (bool isAntithetic)
 Specify whether antithetic values should be generated. More...

void SetStream (int64_t stream)
 Specifies the stream number for the RngStream. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject () const

template<>
Ptr< ObjectGetObject (TypeId tid) const

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

RngStreamPeek (void) const
 Get the pointer to the underlying RngStream. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Private Member Functions

 RandomVariableStream (const RandomVariableStream &o)
 Copy constructor. More...

RandomVariableStreamoperator= (const RandomVariableStream &o)
 Assignment operator. More...


Private Attributes

bool m_isAntithetic
 Indicates if antithetic values should be generated by this RNG stream. More...

RngStreamm_rng
 Pointer to the underlying RngStream. More...

int64_t m_stream
 The stream number for the RngStream. More...


Additional Inherited Members

Detailed Description

The basic uniform Random Number Generator (RNG).


Note
The underlying random number generation method used by ns-3 is the RngStream code by Pierre L'Ecuyer at the University of Montreal.

ns-3 has a rich set of random number generators that allow stream numbers to be set deterministically if desired. Class RandomVariableStream defines the base class functionality required for all such random number generators.

By default, the underlying generator is seeded all the time with the same seed value and run number coming from the ns3::GlobalValue RngSeed and RngRun. Also by default, the stream number value for the underlying RngStream is automatically allocated.

Instances can be configured to return "antithetic" values. See the documentation for the specific distributions to see how this modifies the returned values.

Config Paths

ns3::RandomVariableStream is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::SixLowPanNetDevice/MeshUnderJitter"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::RateErrorModel/RanVar"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstStart"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstSize"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/PostReceptionErrorModel/$ns3::RateErrorModel/RanVar"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstStart"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstSize"
  • "/NodeList/[i]/ApplicationList/[i]/$ns3::DhcpClient/Transactions"
  • "/NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OnTime"
  • "/NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OffTime"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanVelocity"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanDirection"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanPitch"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Speed"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Pause"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Direction"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Speed"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Speed"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Pause"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/X"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/Y"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/X"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Y"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Z"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Theta"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Rho"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/X"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/Y"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/Z"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dOutdoorMobilityModel/Direction"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dOutdoorMobilityModel/Speed"
  • "/NodeList/[i]/$ns3::ArpL3Protocol/RequestJitter"
  • "/NodeList/[i]/$ns3::Icmpv6L4Protocol/SolicitationJitter"
  • "/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable"

Attributes

  • Stream: The stream number for this RNG stream. -1 means "allocate a stream automatically". Note that if -1 is set, Get will return -1 so that it is not possible to know which value was automatically allocated.
    • Set with class: ns3::IntegerValue
    • Underlying type: int64_t -9223372036854775808:9223372036854775807
    • Initial value: -1
    • Flags: construct write read
  • Antithetic: Set this RNG stream to generate antithetic values
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 97 of file random-variable-stream.h.

Constructor & Destructor Documentation

◆ RandomVariableStream() [1/2]

ns3::RandomVariableStream::RandomVariableStream ( )

Default constructor.

Definition at line 76 of file random-variable-stream.cc.

References NS_LOG_FUNCTION.

◆ ~RandomVariableStream()

ns3::RandomVariableStream::~RandomVariableStream ( )
virtual

Destructor.

Definition at line 81 of file random-variable-stream.cc.

References m_rng, and NS_LOG_FUNCTION.

◆ RandomVariableStream() [2/2]

ns3::RandomVariableStream::RandomVariableStream ( const RandomVariableStream o)
private

Copy constructor.

These objects are not copyable.

Parameters
[in]oThe RandomVariableStream to copy in construction.
Internal:
Theoretically, it is possible to give them good copy semantics but not enough time to iron out the details.

Member Function Documentation

◆ GetInteger()

virtual uint32_t ns3::RandomVariableStream::GetInteger ( void  )
pure virtual

◆ GetStream()

int64_t ns3::RandomVariableStream::GetStream ( void  ) const

Returns the stream number for the RngStream.

Returns
The stream number for the RngStream. -1 means this stream was allocated automatically.

Definition at line 129 of file random-variable-stream.cc.

References m_stream, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

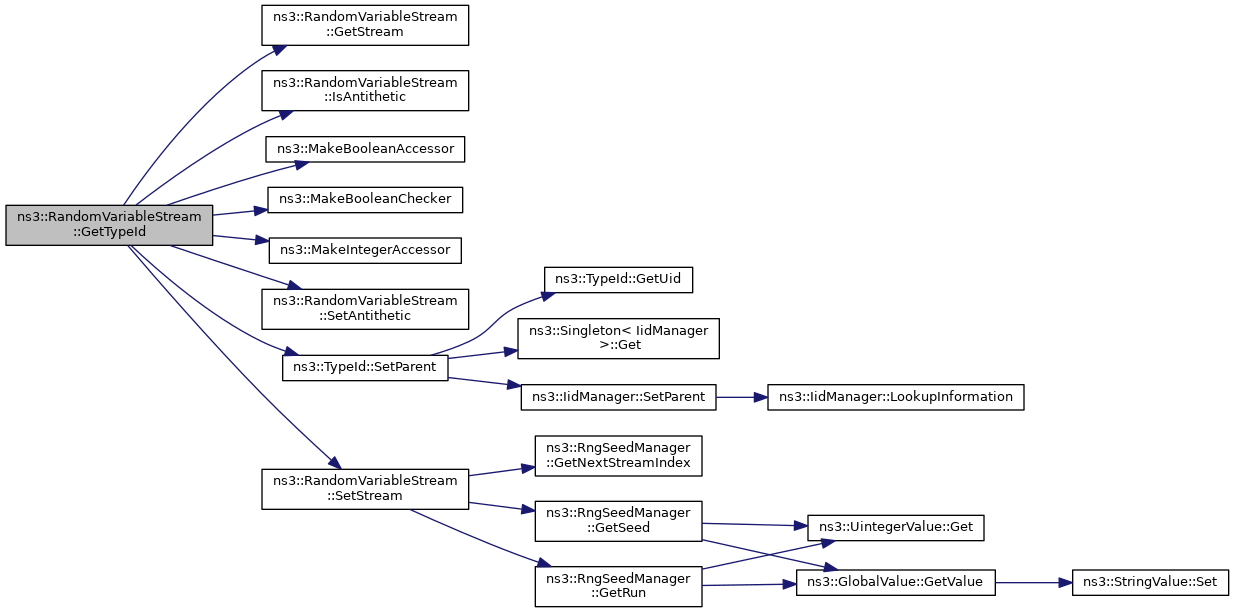

◆ GetTypeId()

TypeId ns3::RandomVariableStream::GetTypeId ( void  )
static

Register this type.

Returns
The object TypeId.

Definition at line 54 of file random-variable-stream.cc.

References GetStream(), IsAntithetic(), ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeIntegerAccessor(), SetAntithetic(), ns3::TypeId::SetParent(), and SetStream().

+ Here is the call graph for this function:

◆ GetValue()

virtual double ns3::RandomVariableStream::GetValue ( void  )
pure virtual

Get the next random value as a double drawn from the distribution.

Returns
A floating point random value.

Implemented in ns3::EmpiricalRandomVariable, ns3::DeterministicRandomVariable, ns3::ZetaRandomVariable, ns3::ZipfRandomVariable, ns3::TriangularRandomVariable, ns3::ErlangRandomVariable, ns3::GammaRandomVariable, ns3::LogNormalRandomVariable, ns3::NormalRandomVariable, ns3::WeibullRandomVariable, ns3::ParetoRandomVariable, ns3::ExponentialRandomVariable, ns3::SequentialRandomVariable, ns3::ConstantRandomVariable, and ns3::UniformRandomVariable.

Referenced by ns3::RandomWalk2dOutdoorMobilityModel::AvoidBuilding(), ns3::RandomDirection2dMobilityModel::BeginPause(), ns3::RandomWaypointMobilityModel::BeginWalk(), ns3::DhcpClient::Boot(), ns3::BasicEnergyHarvester::CalculateHarvestedPower(), ns3::RandomPropagationLossModel::DoCalcRxPower(), ns3::BurstErrorModel::DoCorrupt(), ns3::RateErrorModel::DoCorruptBit(), ns3::RateErrorModel::DoCorruptByte(), ns3::RateErrorModel::DoCorruptPkt(), ns3::Icmpv6L4Protocol::DoDAD(), ns3::RandomWaypointMobilityModel::DoInitializePrivate(), ns3::RandomWalk2dMobilityModel::DoInitializePrivate(), ns3::RandomWalk2dOutdoorMobilityModel::DoInitializePrivate(), ns3::RandomPropagationDelayModel::GetDelay(), ns3::OutdoorPositionAllocator::GetNext(), ns3::RandomRectanglePositionAllocator::GetNext(), ns3::RandomBoxPositionAllocator::GetNext(), ns3::RandomDiscPositionAllocator::GetNext(), ns3::SequentialRandomVariable::GetValue(), ns3::ArpL3Protocol::Lookup(), ns3::SixLowPanNetDevice::ReceiveFromDevice(), ns3::DhcpClient::Request(), ns3::OnOffApplication::ScheduleStartEvent(), ns3::OnOffApplication::ScheduleStopEvent(), ns3::Icmpv6L4Protocol::SendNS(), ns3::Icmpv6L4Protocol::SendRS(), ns3::RandomDirection2dMobilityModel::SetDirectionAndSpeed(), ns3::GaussMarkovMobilityModel::Start(), and ns3::ApplicationContainer::StartWithJitter().

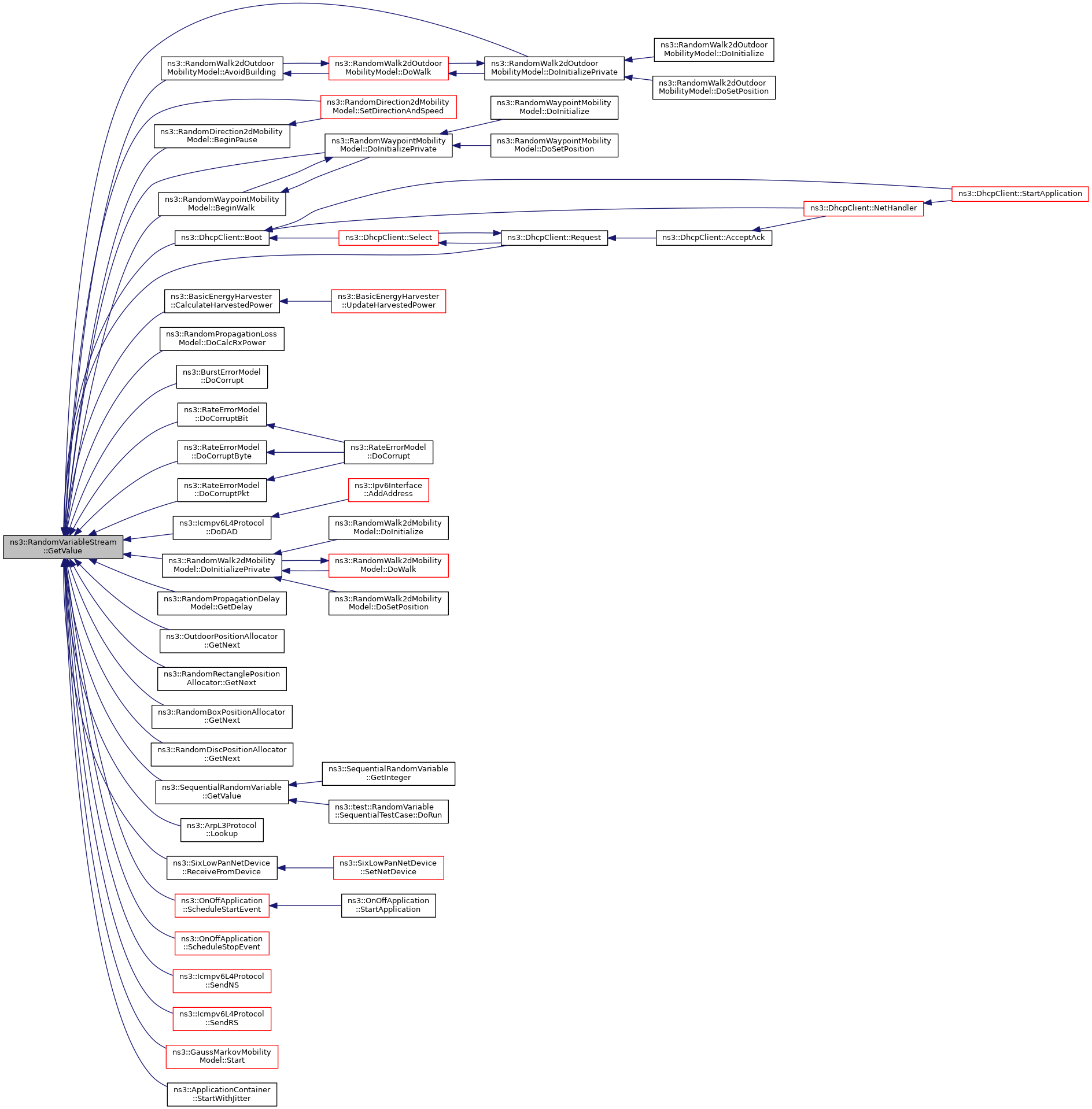

+ Here is the caller graph for this function:

◆ IsAntithetic()

◆ operator=()

RandomVariableStream& ns3::RandomVariableStream::operator= ( const RandomVariableStream o)
private

Assignment operator.

These objects can't be copied by assignment.

Parameters
[in]oThe RandomVariableStream to copy.
Returns
lvalue RandomVariableStream.
Internal:
Theoretically, it is possible to give them good copy semantics but not enough time to iron out the details.

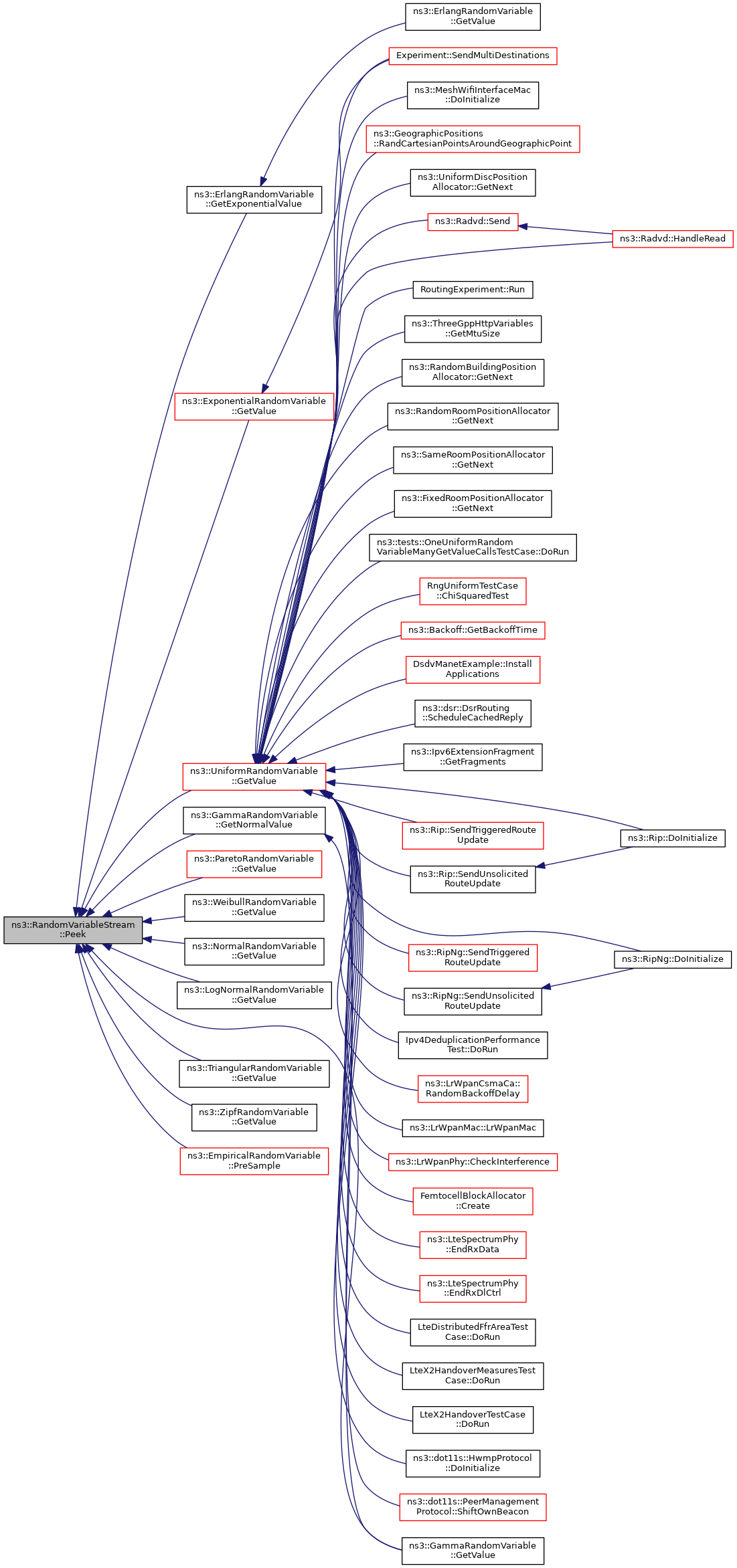

◆ Peek()

◆ SetAntithetic()

void ns3::RandomVariableStream::SetAntithetic ( bool  isAntithetic)

Specify whether antithetic values should be generated.

Parameters
[in]isAntitheticIf true antithetic value will be generated.

Definition at line 88 of file random-variable-stream.cc.

References m_isAntithetic, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

◆ SetStream()

void ns3::RandomVariableStream::SetStream ( int64_t  stream)

Specifies the stream number for the RngStream.

Parameters
[in]streamThe stream number for the RngStream. -1 means "allocate a stream number automatically".

Definition at line 100 of file random-variable-stream.cc.

References ns3::RngSeedManager::GetNextStreamIndex(), ns3::RngSeedManager::GetRun(), ns3::RngSeedManager::GetSeed(), m_rng, m_stream, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::RandomBuildingPositionAllocator::AssignStreams(), ns3::RandomVariableStreamHelper::AssignStreams(), ns3::BasicEnergyHarvester::AssignStreams(), ns3::BriteTopologyHelper::AssignStreams(), ns3::DhcpClient::AssignStreams(), ns3::UanMacCw::AssignStreams(), ns3::PieQueueDisc::AssignStreams(), ns3::BsmApplication::AssignStreams(), ns3::Radvd::AssignStreams(), ns3::RrpaaWifiManager::AssignStreams(), ns3::Backoff::AssignStreams(), ns3::OutdoorPositionAllocator::AssignStreams(), ns3::ArpL3Protocol::AssignStreams(), ns3::ApWifiMac::AssignStreams(), ns3::CobaltQueueDisc::AssignStreams(), ns3::LteUeMac::AssignStreams(), ns3::ThreeGppChannelModel::AssignStreams(), ns3::OnOffApplication::AssignStreams(), ns3::dsdv::RoutingProtocol::AssignStreams(), ns3::SixLowPanNetDevice::AssignStreams(), ns3::dot11s::HwmpProtocol::AssignStreams(), ns3::Ipv6Extension::AssignStreams(), ns3::RandomRoomPositionAllocator::AssignStreams(), ns3::olsr::RoutingProtocol::AssignStreams(), ns3::MeshWifiInterfaceMac::AssignStreams(), ns3::aodv::RoutingProtocol::AssignStreams(), ns3::MinstrelWifiManager::AssignStreams(), ns3::UanMacRc::AssignStreams(), ns3::RedQueueDisc::AssignStreams(), ns3::SameRoomPositionAllocator::AssignStreams(), ns3::dot11s::PeerManagementProtocol::AssignStreams(), ns3::MinstrelHtWifiManager::AssignStreams(), ns3::ThreeGppHttpVariables::AssignStreams(), ns3::SimpleOfdmWimaxPhy::AssignStreams(), ns3::TvSpectrumTransmitterHelper::AssignStreams(), ns3::Rip::AssignStreams(), ns3::RipNg::AssignStreams(), ns3::Ipv4GlobalRouting::AssignStreams(), ns3::RandomRectanglePositionAllocator::AssignStreams(), ns3::RateErrorModel::AssignStreams(), ns3::LrWpanCsmaCa::AssignStreams(), ns3::FixedRoomPositionAllocator::AssignStreams(), ns3::RandomBoxPositionAllocator::AssignStreams(), ns3::UanPhyGen::AssignStreams(), ns3::ThreeGppChannelConditionModel::AssignStreams(), ns3::RandomDiscPositionAllocator::AssignStreams(), ns3::Txop::AssignStreams(), ns3::BurstErrorModel::AssignStreams(), ns3::Icmpv6L4Protocol::AssignStreams(), ns3::UniformDiscPositionAllocator::AssignStreams(), ns3::LteSpectrumPhy::AssignStreams(), ns3::LrWpanPhy::AssignStreams(), ns3::dsr::DsrRouting::AssignStreams(), ns3::WifiPhy::AssignStreams(), ns3::JakesPropagationLossModel::DoAssignStreams(), ns3::RandomWaypointMobilityModel::DoAssignStreams(), ns3::RandomDirection2dMobilityModel::DoAssignStreams(), ns3::RandomWalk2dMobilityModel::DoAssignStreams(), ns3::SteadyStateRandomWaypointMobilityModel::DoAssignStreams(), ns3::RandomPropagationDelayModel::DoAssignStreams(), ns3::GaussMarkovMobilityModel::DoAssignStreams(), ns3::RandomWalk2dOutdoorMobilityModel::DoAssignStreams(), ns3::RandomPropagationLossModel::DoAssignStreams(), ns3::ThreeGppUmaPropagationLossModel::DoAssignStreams(), LteX2HandoverTestCase::DoRun(), ErrorModelSimple::DoRun(), LteX2HandoverMeasuresTestCase::DoRun(), BurstErrorModelSimple::DoRun(), GetTypeId(), RandCartAroundGeoTestSuite::RandCartAroundGeoTestSuite(), and RoutingHelper::SetupRoutingMessages().

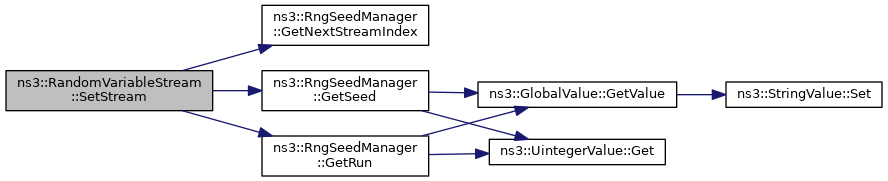

+ Here is the call graph for this function:

Member Data Documentation

◆ m_isAntithetic

bool ns3::RandomVariableStream::m_isAntithetic
private

Indicates if antithetic values should be generated by this RNG stream.

Definition at line 185 of file random-variable-stream.h.

Referenced by IsAntithetic(), and SetAntithetic().

◆ m_rng

RngStream* ns3::RandomVariableStream::m_rng
private

Pointer to the underlying RngStream.

Definition at line 182 of file random-variable-stream.h.

Referenced by Peek(), SetStream(), and ~RandomVariableStream().

◆ m_stream

int64_t ns3::RandomVariableStream::m_stream
private

The stream number for the RngStream.

Definition at line 188 of file random-variable-stream.h.

Referenced by GetStream(), and SetStream().


The documentation for this class was generated from the following files:
