ns3::SimulationSingleton< T > Class Template Reference

This singleton class template ensures that the type for which we want a singleton has a lifetime bounded by the simulation run lifetime. More...

#include "simulation-singleton.h"

Static Public Member Functions
static T *	Get (void)
	Get a pointer to the singleton instance. More...

Private Member Functions
Singleton pattern
Private constructor, copy and assignment operator. Note these do not have to be implemented, since they are never called.
	SimulationSingleton (void)
	Default constructor. More...
	SimulationSingleton (const SimulationSingleton< T > &)
	Copy constructor. More...
SimulationSingleton< T >	operator= (const SimulationSingleton< T > &)
	Assignment. More...

Static Private Member Functions
static void	DeleteObject (void)
	Delete the static instance. More...
static T **	GetObject (void)
	Get the singleton object, creating a new one if it doesn't exist yet. More...

Detailed Description

template<typename T>
class ns3::SimulationSingleton< T >

This singleton class template ensures that the type for which we want a singleton has a lifetime bounded by the simulation run lifetime.

That it, the underlying type will be automatically deleted upon a call to Simulator::Destroy.

For a singleton with a lifetime bounded by the process, not the simulation run, see Singleton.

Definition at line 43 of file simulation-singleton.h.

Constructor & Destructor Documentation

SimulationSingleton() [1/2]

template<typename T>

ns3::SimulationSingleton< T >::SimulationSingleton ( void  )

private

Default constructor.

SimulationSingleton() [2/2]

template<typename T>

ns3::SimulationSingleton< T >::SimulationSingleton ( const SimulationSingleton< T > &  )

private

Copy constructor.

Member Function Documentation

DeleteObject()

template<typename T >

void ns3::SimulationSingleton< T >::DeleteObject ( void  )

staticprivate

Delete the static instance.

Definition at line 128 of file simulation-singleton.h.

Get()

template<typename T >

T * ns3::SimulationSingleton< T >::Get ( void  )

static

Get a pointer to the singleton instance.

This instance will be automatically deleted when the simulation is destroyed by a call to Simulator::Destroy.

Returns

A pointer to the singleton instance.

Definition at line 107 of file simulation-singleton.h.

Referenced by ns3::Ipv4AddressGenerator::AddAllocated(), ns3::Ipv6AddressGenerator::AddAllocated(), ns3::GlobalRouteManager::BuildGlobalRoutingDatabase(), ns3::GlobalRouteManager::DeleteGlobalRoutes(), ns3::Ipv4AddressGenerator::GetAddress(), ns3::Ipv6AddressGenerator::GetAddress(), ns3::Ipv4AddressGenerator::GetNetwork(), ns3::Ipv6AddressGenerator::GetNetwork(), ns3::Ipv4AddressGenerator::Init(), ns3::Ipv6AddressGenerator::Init(), ns3::Ipv4AddressGenerator::InitAddress(), ns3::Ipv6AddressGenerator::InitAddress(), ns3::GlobalRouteManager::InitializeRoutes(), ns3::Ipv4AddressGenerator::IsAddressAllocated(), ns3::Ipv6AddressGenerator::IsAddressAllocated(), ns3::Ipv4AddressGenerator::IsNetworkAllocated(), ns3::Ipv6AddressGenerator::IsNetworkAllocated(), ns3::Ipv4AddressGenerator::NextAddress(), ns3::Ipv6AddressGenerator::NextAddress(), ns3::Ipv4AddressGenerator::NextNetwork(), ns3::Ipv6AddressGenerator::NextNetwork(), ns3::Ipv4AddressGenerator::Reset(), ns3::Ipv6AddressGenerator::Reset(), ns3::Ipv4AddressGenerator::TestMode(), and ns3::Ipv6AddressGenerator::TestMode().

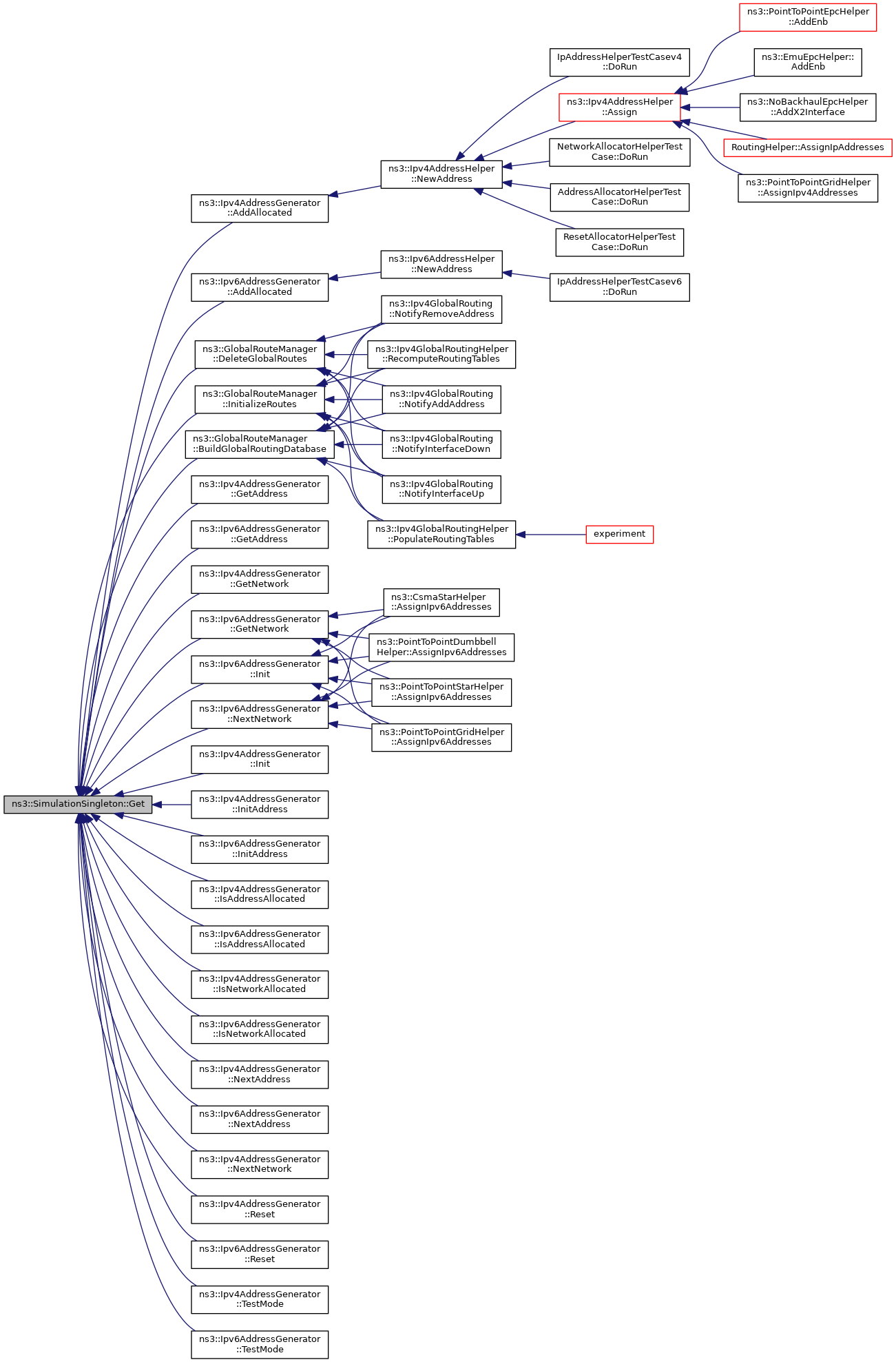

Here is the caller graph for this function:

GetObject()

template<typename T >

T ** ns3::SimulationSingleton< T >::GetObject ( void  )

staticprivate

Get the singleton object, creating a new one if it doesn't exist yet.

Internal:

When a new object is created, this method schedules it's own destruction using Simulator::ScheduleDestroy().

Returns

The address of the pointer holding the static instance.

Definition at line 115 of file simulation-singleton.h.

References ns3::Simulator::ScheduleDestroy().

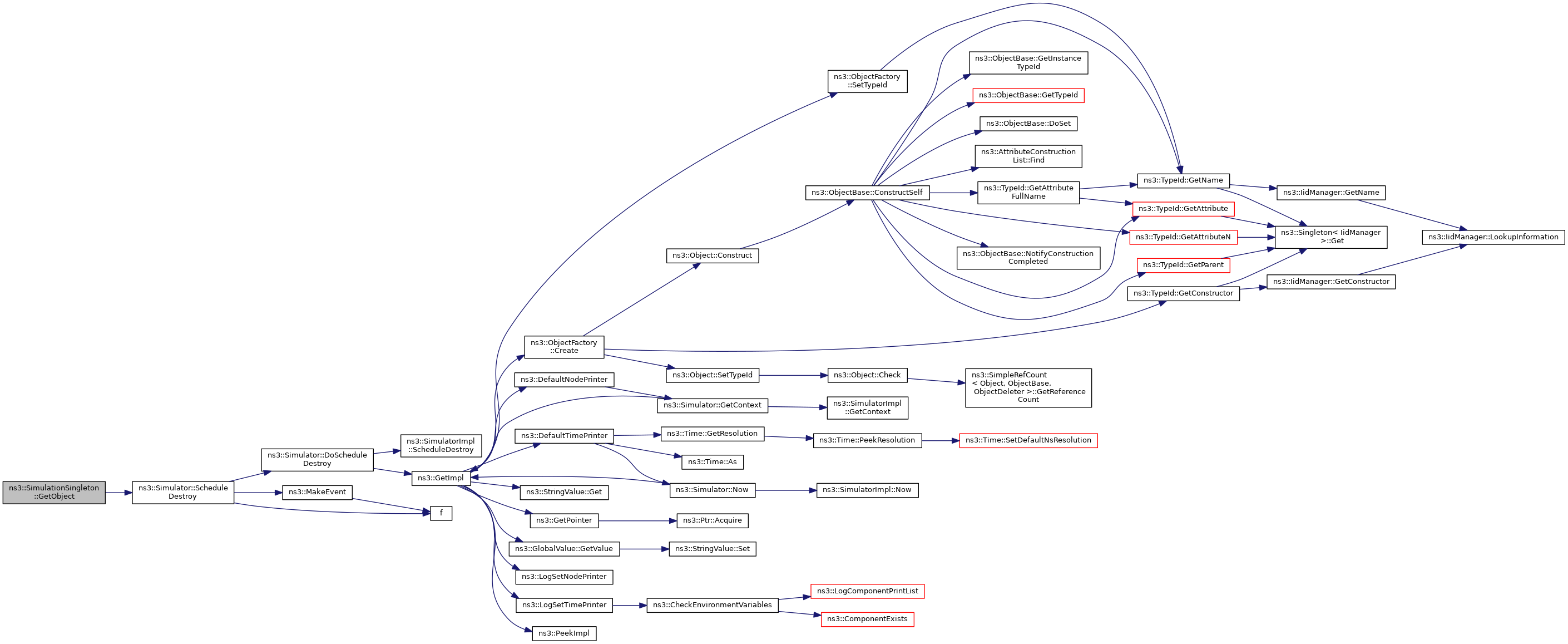

Here is the call graph for this function:

operator=()

template<typename T>

SimulationSingleton<T> ns3::SimulationSingleton< T >::operator= ( const SimulationSingleton< T > &  )

private

Assignment.

Returns

The Singleton.

---

The documentation for this class was generated from the following file:

• src/core/model/simulation-singleton.h
