ns3::ThreeGppChannelConditionModel Class Referenceabstract

Base class for the 3GPP channel condition models. More...

#include "channel-condition-model.h"

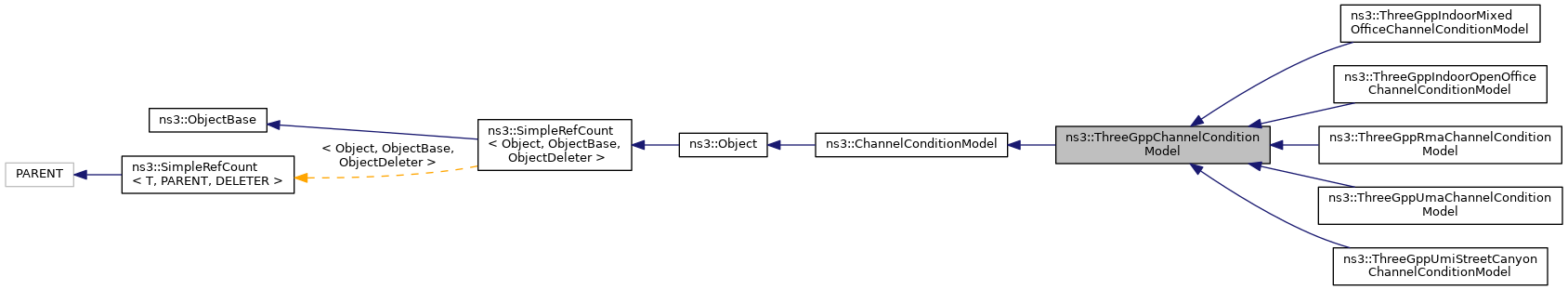

+ Inheritance diagram for ns3::ThreeGppChannelConditionModel:

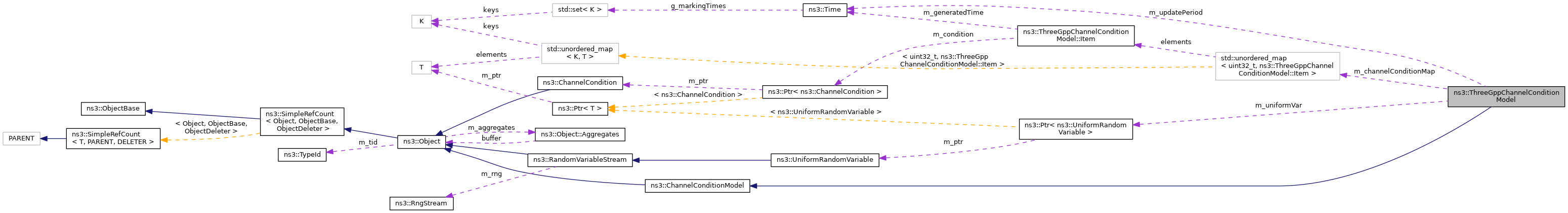

+ Collaboration diagram for ns3::ThreeGppChannelConditionModel:

Classes

struct  Item
 Struct to store the channel condition in the m_channelConditionMap. More...


Public Member Functions

 ThreeGppChannelConditionModel ()
 Constructor for the ThreeGppRmaChannelConditionModel class. More...

virtual ~ThreeGppChannelConditionModel () override
 Destructor for the ThreeGppRmaChannelConditionModel class. More...

virtual int64_t AssignStreams (int64_t stream) override
 If this model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'. More...

virtual Ptr< ChannelConditionGetChannelCondition (Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const override
 Retrieve the condition of the channel between a and b. More...

- Public Member Functions inherited from ns3::ChannelConditionModel
 ChannelConditionModel ()
 Constructor for the ChannelConditionModel class. More...

 ChannelConditionModel (const ChannelConditionModel &)=delete
 Copy constructor. More...

virtual ~ChannelConditionModel ()
 Destructor for the ChannelConditionModel class. More...

ChannelConditionModeloperator= (const ChannelConditionModel &)=delete
 Copy constructor. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject () const

template<>
Ptr< ObjectGetObject (TypeId tid) const

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ChannelConditionModel
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

virtual void DoDispose () override
 Destructor implementation. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Static Protected Member Functions

static double Calculate2dDistance (const Vector &a, const Vector &b)
 Computes the 2D distance between two 3D vectors. More...


Private Member Functions

virtual double ComputePlos (Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const =0
 Compute the LOS probability as specified in Table 7.4.2-1 of 3GPP TR 38.901. More...


Static Private Member Functions

static uint32_t GetKey (Ptr< const MobilityModel > a, Ptr< const MobilityModel > b)
 Returns a unique and reciprocal key for the channel between a and b. More...


Private Attributes

std::unordered_map< uint32_t, Itemm_channelConditionMap
 map to store the channel conditions More...

Ptr< UniformRandomVariablem_uniformVar
 uniform random variable More...

Time m_updatePeriod
 the update period for the channel condition More...


Additional Inherited Members

Detailed Description

Base class for the 3GPP channel condition models.


Config Paths

ns3::ThreeGppChannelConditionModel is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel"
  • "/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel"

Attributes

  • UpdatePeriod: Specifies the time period after which the channel condition is recomputed. If set to 0, the channel condition is never updated.
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 104 bytes (on a 64-bit architecture).

Definition at line 285 of file channel-condition-model.h.

Constructor & Destructor Documentation

◆ ThreeGppChannelConditionModel()

ns3::ThreeGppChannelConditionModel::ThreeGppChannelConditionModel ( )

Constructor for the ThreeGppRmaChannelConditionModel class.

Definition at line 188 of file channel-condition-model.cc.

References m_uniformVar, and ns3::ObjectBase::SetAttribute().

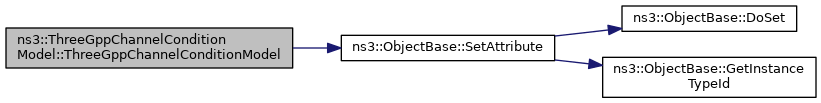

+ Here is the call graph for this function:

◆ ~ThreeGppChannelConditionModel()

ns3::ThreeGppChannelConditionModel::~ThreeGppChannelConditionModel ( )
overridevirtual

Destructor for the ThreeGppRmaChannelConditionModel class.

Definition at line 196 of file channel-condition-model.cc.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::ThreeGppChannelConditionModel::AssignStreams ( int64_t  stream)
overridevirtual

If this model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'.

Return the number of streams (possibly zero) that have been assigned.

Parameters
stream
Returns
the number of stream indices assigned by this model

Implements ns3::ChannelConditionModel.

Definition at line 275 of file channel-condition-model.cc.

References m_uniformVar, and ns3::RandomVariableStream::SetStream().

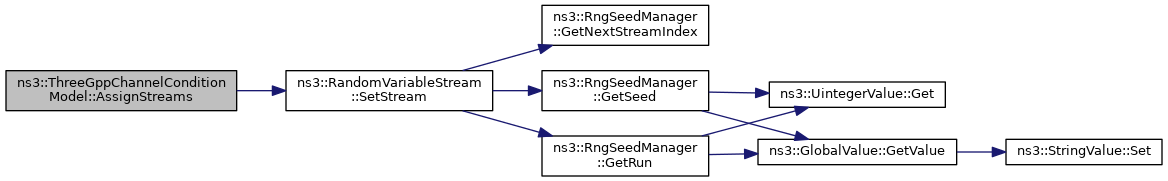

+ Here is the call graph for this function:

◆ Calculate2dDistance()

double ns3::ThreeGppChannelConditionModel::Calculate2dDistance ( const Vector &  a,
const Vector &  b
)
staticprotected

Computes the 2D distance between two 3D vectors.

Parameters
athe first 3D vector
bthe second 3D vector
Returns
the 2D distance between a and b

Definition at line 282 of file channel-condition-model.cc.

References sample-rng-plot::x.

Referenced by ns3::ThreeGppRmaChannelConditionModel::ComputePlos(), ns3::ThreeGppUmaChannelConditionModel::ComputePlos(), ns3::ThreeGppUmiStreetCanyonChannelConditionModel::ComputePlos(), ns3::ThreeGppIndoorMixedOfficeChannelConditionModel::ComputePlos(), and ns3::ThreeGppIndoorOpenOfficeChannelConditionModel::ComputePlos().

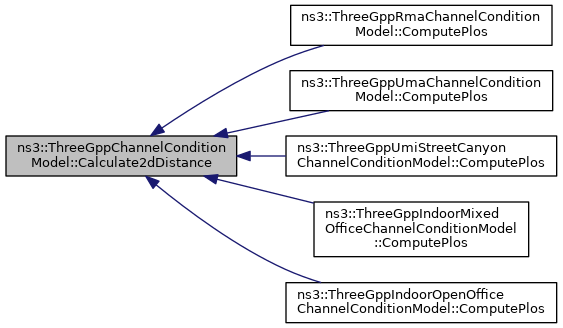

+ Here is the caller graph for this function:

◆ ComputePlos()

virtual double ns3::ThreeGppChannelConditionModel::ComputePlos ( Ptr< const MobilityModel a,
Ptr< const MobilityModel b
) const
privatepure virtual

Compute the LOS probability as specified in Table 7.4.2-1 of 3GPP TR 38.901.

Parameters
atx mobility model
brx mobility model
Returns
the LOS probability

Implemented in ns3::ThreeGppIndoorOpenOfficeChannelConditionModel, ns3::ThreeGppIndoorMixedOfficeChannelConditionModel, ns3::ThreeGppUmiStreetCanyonChannelConditionModel, ns3::ThreeGppUmaChannelConditionModel, and ns3::ThreeGppRmaChannelConditionModel.

Referenced by GetChannelCondition().

+ Here is the caller graph for this function:

◆ DoDispose()

void ns3::ThreeGppChannelConditionModel::DoDispose ( void  )
overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 200 of file channel-condition-model.cc.

References m_channelConditionMap, m_updatePeriod, and ns3::Seconds().

+ Here is the call graph for this function:

◆ GetChannelCondition()

Ptr< ChannelCondition > ns3::ThreeGppChannelConditionModel::GetChannelCondition ( Ptr< const MobilityModel a,
Ptr< const MobilityModel b
) const
overridevirtual

Retrieve the condition of the channel between a and b.

If the channel condition does not exists, the method creates it and store it in a local cache, that will be updated following the "UpdatePeriod" parameter.

Parameters
amobility model
bmobility model
Returns
the condition of the channel between a and b

Implements ns3::ChannelConditionModel.

Definition at line 207 of file channel-condition-model.cc.

References ComputePlos(), GetKey(), ns3::UniformRandomVariable::GetValue(), ns3::Time::IsZero(), m_channelConditionMap, ns3::ThreeGppChannelConditionModel::Item::m_condition, ns3::ThreeGppChannelConditionModel::Item::m_generatedTime, m_uniformVar, m_updatePeriod, ns3::Simulator::Now(), and NS_LOG_DEBUG.

Referenced by ThreeGppChannelConditionModelTestCase::EvaluateChannelCondition().

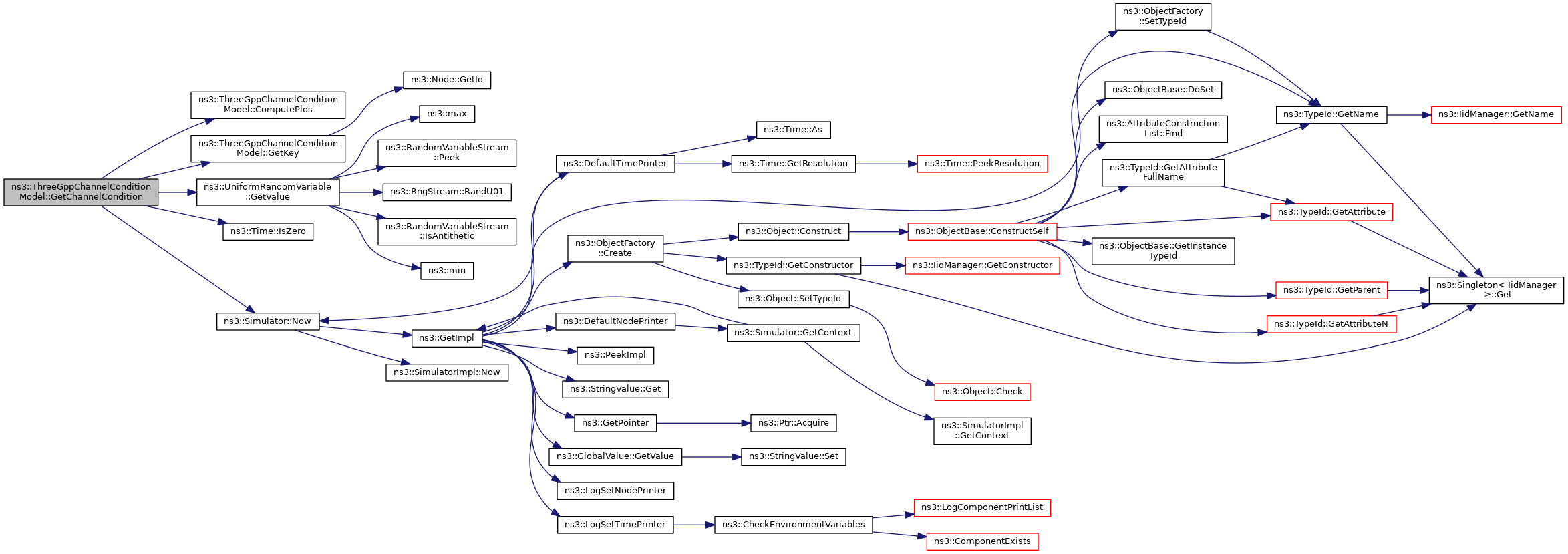

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetKey()

uint32_t ns3::ThreeGppChannelConditionModel::GetKey ( Ptr< const MobilityModel a,
Ptr< const MobilityModel b
)
staticprivate

Returns a unique and reciprocal key for the channel between a and b.

Parameters
atx mobility model
brx mobility model
Returns
channel key

Definition at line 292 of file channel-condition-model.cc.

References ns3::Node::GetId(), max, and min.

Referenced by GetChannelCondition().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::ThreeGppChannelConditionModel::GetTypeId ( void  )
static

Get the type ID.

Get the type ID.

Returns
the object TypeId

Definition at line 175 of file channel-condition-model.cc.

References m_updatePeriod, ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MilliSeconds(), and ns3::TypeId::SetParent().

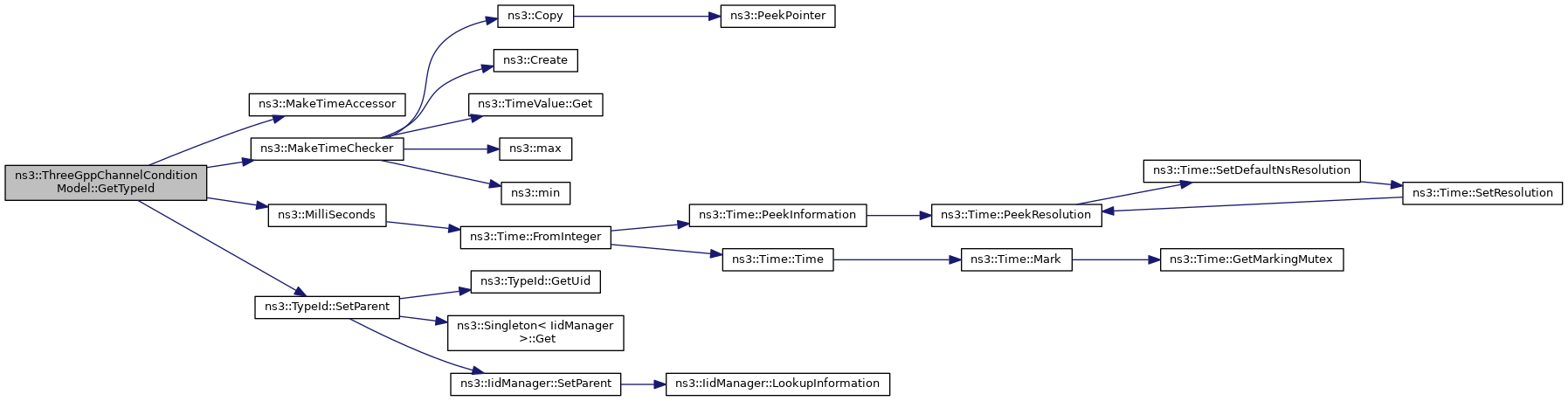

+ Here is the call graph for this function:

Member Data Documentation

◆ m_channelConditionMap

std::unordered_map<uint32_t, Item> ns3::ThreeGppChannelConditionModel::m_channelConditionMap
private

map to store the channel conditions

Definition at line 367 of file channel-condition-model.h.

Referenced by DoDispose(), and GetChannelCondition().

◆ m_uniformVar

Ptr<UniformRandomVariable> ns3::ThreeGppChannelConditionModel::m_uniformVar
private

uniform random variable

Definition at line 369 of file channel-condition-model.h.

Referenced by AssignStreams(), GetChannelCondition(), and ThreeGppChannelConditionModel().

◆ m_updatePeriod

Time ns3::ThreeGppChannelConditionModel::m_updatePeriod
private

the update period for the channel condition

Definition at line 368 of file channel-condition-model.h.

Referenced by DoDispose(), GetChannelCondition(), and GetTypeId().


The documentation for this class was generated from the following files:
