ns3::dsr::DsrLinkStab Class Reference

DsrLinkStab class (DSR link stability) More...

#include "dsr-rcache.h"

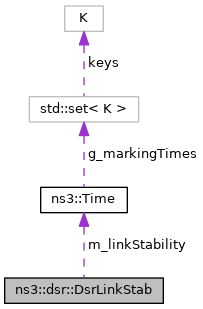

Collaboration diagram for ns3::dsr::DsrLinkStab:

Public Member Functions
	DsrLinkStab (Time linkStab=Simulator::Now())
	Constructor. More...
virtual	~DsrLinkStab ()
	Destructor. More...
Time	GetLinkStability () const
	get the link stability More...
void	Print () const
	Print function. More...
void	SetLinkStability (Time linkStab)
	set the link stability More...

Private Attributes
Time	m_linkStability
	The link stability lifetime expected, when the time is due, the link expires the expiration happens when purge the node and link cache before update them when receiving new information. More...

Detailed Description

DsrLinkStab class (DSR link stability)

Definition at line 140 of file dsr-rcache.h.

Constructor & Destructor Documentation

DsrLinkStab()

ns3::dsr::DsrLinkStab::DsrLinkStab

(

Time

linkStab = Simulator::Now ()

)

Constructor.

Parameters

linkStab

duration of the link stability

Definition at line 90 of file dsr-rcache.cc.

~DsrLinkStab()

ns3::dsr::DsrLinkStab::~DsrLinkStab ( )

virtual

Destructor.

Definition at line 95 of file dsr-rcache.cc.

Member Function Documentation

GetLinkStability()

Time ns3::dsr::DsrLinkStab::GetLinkStability ( ) const

inline

get the link stability

Returns

remaining duration of the link stability

Definition at line 165 of file dsr-rcache.h.

References m_linkStability, and ns3::Simulator::Now().

Referenced by ns3::dsr::DsrRouteCache::AddRoute_Link(), and Print().

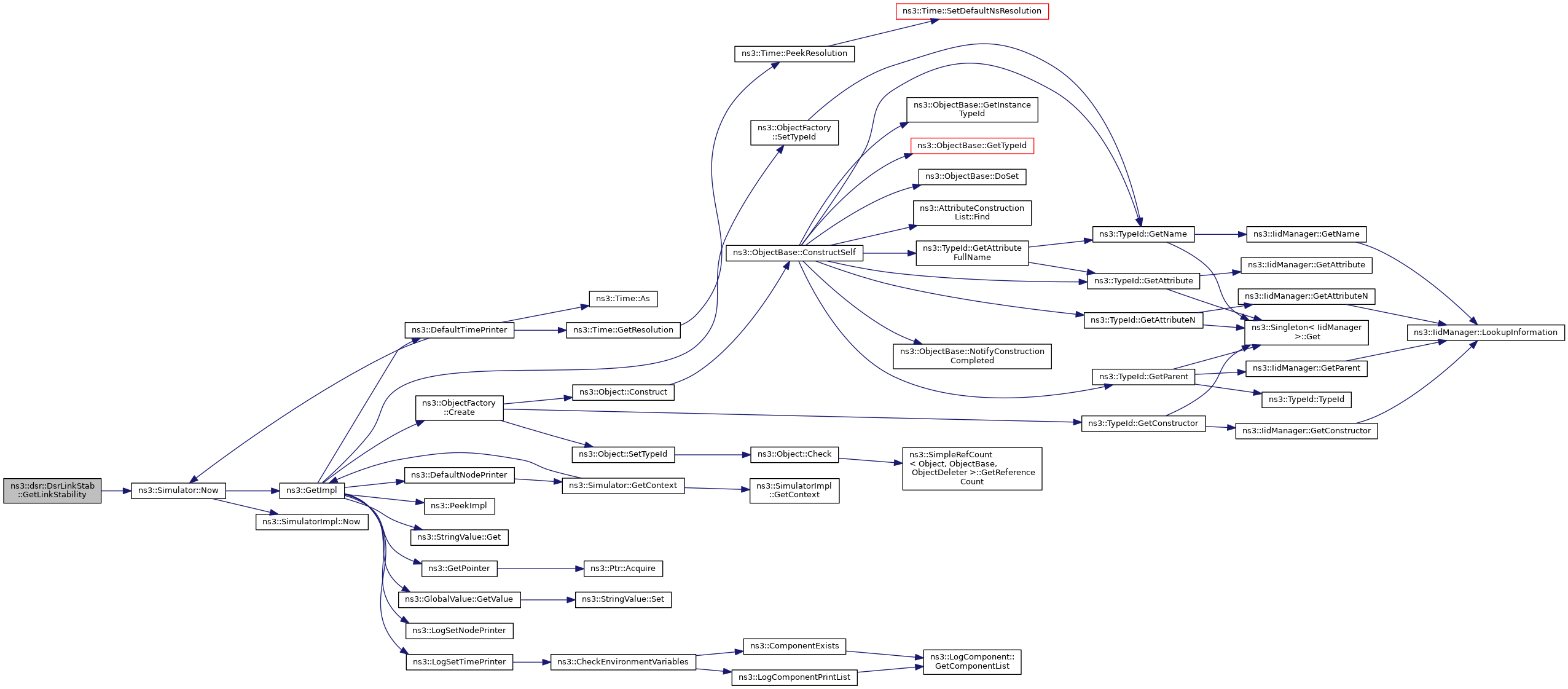

Here is the call graph for this function:

Here is the caller graph for this function:

Print()

void ns3::dsr::DsrLinkStab::Print

(

void

)

const

Print function.

Definition at line 99 of file dsr-rcache.cc.

References GetLinkStability(), NS_LOG_LOGIC, and ns3::Time::S.

Referenced by ns3::dsr::DsrRouteCache::AddRoute_Link().

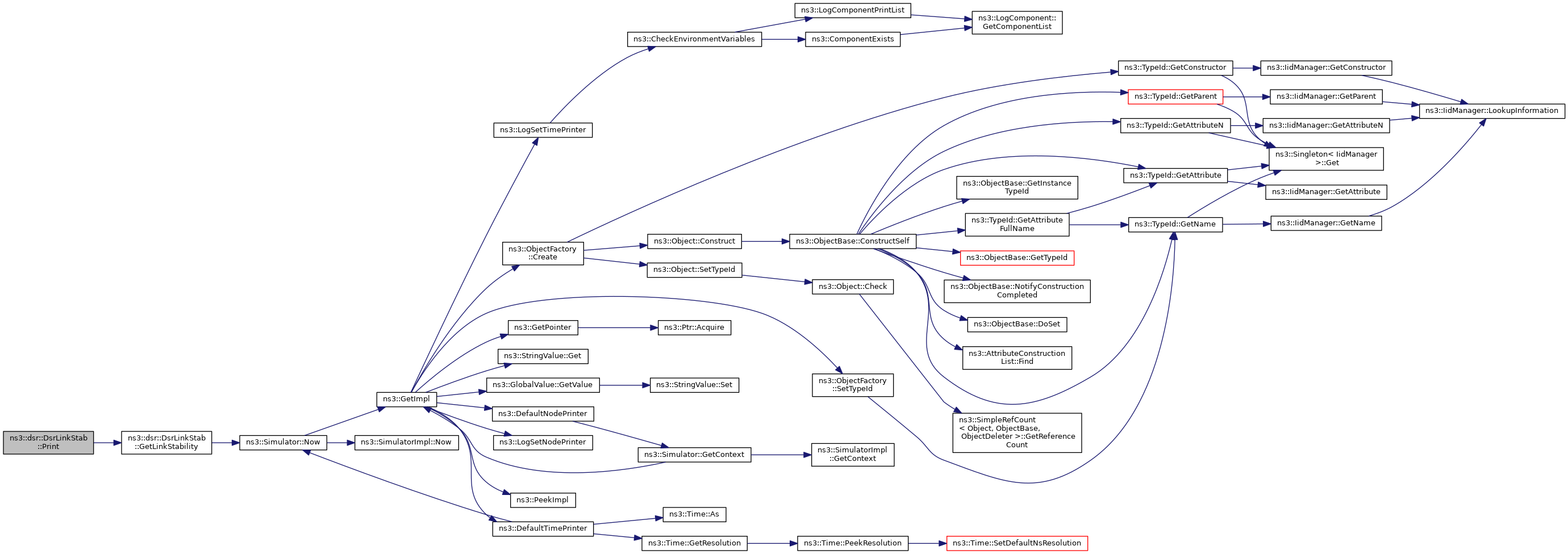

Here is the call graph for this function:

Here is the caller graph for this function:

SetLinkStability()

void ns3::dsr::DsrLinkStab::SetLinkStability ( Time  linkStab )

inline

set the link stability

Parameters

linkStab

duration of the link stability

Definition at line 157 of file dsr-rcache.h.

References m_linkStability, and ns3::Simulator::Now().

Referenced by ns3::dsr::DsrRouteCache::AddRoute_Link().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_linkStability

Time ns3::dsr::DsrLinkStab::m_linkStability

private

The link stability lifetime expected, when the time is due, the link expires the expiration happens when purge the node and link cache before update them when receiving new information.

Definition at line 178 of file dsr-rcache.h.

Referenced by GetLinkStability(), and SetLinkStability().

---

The documentation for this class was generated from the following files:

• src/dsr/model/dsr-rcache.h
• src/dsr/model/dsr-rcache.cc
