ns3::Bar Struct Reference

BlockAckRequest frame information. More...

#include "block-ack-manager.h"

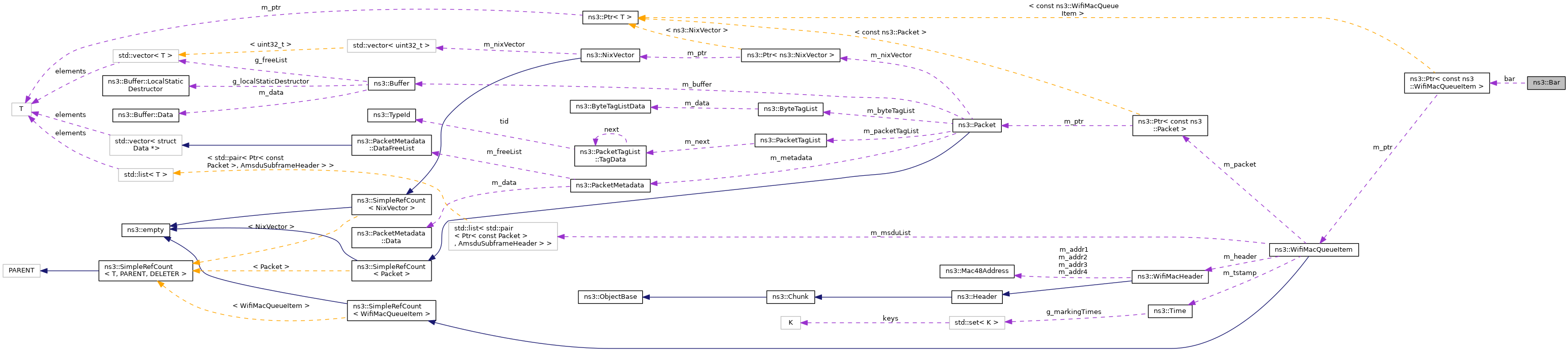

Collaboration diagram for ns3::Bar:

Public Member Functions
	Bar ()
	Bar (Ptr< const WifiMacQueueItem > bar, uint8_t tid, bool skipIfNoDataQueued=false)
	Store a BlockAckRequest along with the corresponding TID. More...

Public Attributes
Ptr< const WifiMacQueueItem >	bar
	BlockAckRequest. More...
bool	skipIfNoDataQueued
	do not send if there is no data queued More...
uint8_t	tid
	TID. More...

Detailed Description

BlockAckRequest frame information.

Definition at line 49 of file block-ack-manager.h.

Constructor & Destructor Documentation

Bar() [1/2]

ns3::Bar::Bar

(

)

Definition at line 36 of file block-ack-manager.cc.

References NS_LOG_FUNCTION.

Bar() [2/2]

ns3::Bar::Bar	(	Ptr< const WifiMacQueueItem >	bar,
		uint8_t	tid,
		bool	skipIfNoDataQueued = false
	)

Store a BlockAckRequest along with the corresponding TID.

Parameters

bar	the BAR
tid	the Traffic ID
skipIfNoDataQueued	true to hold this BAR if there is no data queued

Definition at line 41 of file block-ack-manager.cc.

References bar, NS_LOG_FUNCTION, skipIfNoDataQueued, and tid.

Member Data Documentation

bar

Ptr<const WifiMacQueueItem> ns3::Bar::bar

BlockAckRequest.

Definition at line 60 of file block-ack-manager.h.

Referenced by Bar().

skipIfNoDataQueued

bool ns3::Bar::skipIfNoDataQueued

do not send if there is no data queued

Definition at line 62 of file block-ack-manager.h.

Referenced by Bar().

tid

uint8_t ns3::Bar::tid

TID.

Definition at line 61 of file block-ack-manager.h.

Referenced by Bar().

---

The documentation for this struct was generated from the following files:

• src/wifi/model/block-ack-manager.h
• src/wifi/model/block-ack-manager.cc
