ns3::DlDciListElement_s Struct Reference

See section 4.3.1 dlDciListElement. More...

#include "ff-mac-common.h"

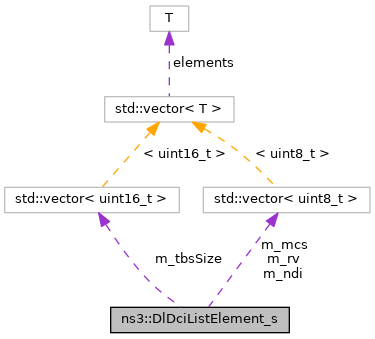

+ Collaboration diagram for ns3::DlDciListElement_s:

Public Types

enum  Format_e {
  ONE, ONE_A, ONE_B, ONE_C,
  ONE_D, TWO, TWO_A, TWO_B
}
 Format enumeration. More...

enum  Ngap_e { GAP1, GAP2 }
 Ngap enum. More...

enum  VrbFormat_e { VRB_DISTRIBUTED, VRB_LOCALIZED }
 Vrb Format enum. More...


Public Attributes

uint8_t m_aggrLevel
 The aggregation level. More...

uint8_t m_cceIndex
 Control Channel Element index. More...

uint8_t m_dai
 DL assignment index. More...

uint8_t m_dlPowerOffset
 DL power offset. More...

enum ns3::DlDciListElement_s::Format_e m_format
 the format More...

uint8_t m_harqProcess
 HARQ process. More...

std::vector< uint8_t > m_mcs
 MCS. More...

std::vector< uint8_t > m_ndi
 New data indicator. More...

enum ns3::DlDciListElement_s::Ngap_e m_nGap
 the gap More...

bool m_pdcchOrder
 cch order? More...

uint8_t m_pdcchPowerOffset
 CCH power offset. More...

uint8_t m_prachMaskIndex
 RACH mask index. More...

uint8_t m_preambleIndex
 preamble index More...

uint8_t m_precodingInfo
 precoding info More...

uint32_t m_rbBitmap
 RB bitmap. More...

uint8_t m_rbShift
 RB shift. More...

uint8_t m_resAlloc
 The type of resource allocation. More...

uint16_t m_rnti
 RNTI. More...

std::vector< uint8_t > m_rv
 Redundancy version. More...

bool m_spsRelease
 release? More...

uint8_t m_tbsIdx
 tbs index More...

std::vector< uint16_t > m_tbsSize
 The TBs size. More...

bool m_tbSwap
 swap? More...

uint8_t m_tpc
 Tx power control command. More...

enum ns3::DlDciListElement_s::VrbFormat_e m_vrbFormat
 the format More...


Detailed Description

See section 4.3.1 dlDciListElement.

Definition at line 93 of file ff-mac-common.h.

Member Enumeration Documentation

◆ Format_e

Format enumeration.

Enumerator
ONE
ONE_A
ONE_B
ONE_C
ONE_D
TWO
TWO_A
TWO_B

Definition at line 107 of file ff-mac-common.h.

◆ Ngap_e

Ngap enum.

Enumerator
GAP1
GAP2

Definition at line 126 of file ff-mac-common.h.

◆ VrbFormat_e

Vrb Format enum.

Enumerator
VRB_DISTRIBUTED
VRB_LOCALIZED

Definition at line 115 of file ff-mac-common.h.

Member Data Documentation

◆ m_aggrLevel

uint8_t ns3::DlDciListElement_s::m_aggrLevel

The aggregation level.

Definition at line 104 of file ff-mac-common.h.

◆ m_cceIndex

uint8_t ns3::DlDciListElement_s::m_cceIndex

Control Channel Element index.

Definition at line 103 of file ff-mac-common.h.

◆ m_dai

uint8_t ns3::DlDciListElement_s::m_dai

DL assignment index.

Definition at line 113 of file ff-mac-common.h.

◆ m_dlPowerOffset

uint8_t ns3::DlDciListElement_s::m_dlPowerOffset

DL power offset.

Definition at line 131 of file ff-mac-common.h.

◆ m_format

enum ns3::DlDciListElement_s::Format_e ns3::DlDciListElement_s::m_format

the format

◆ m_harqProcess

◆ m_mcs

◆ m_ndi

◆ m_nGap

enum ns3::DlDciListElement_s::Ngap_e ns3::DlDciListElement_s::m_nGap

the gap

◆ m_pdcchOrder

bool ns3::DlDciListElement_s::m_pdcchOrder

cch order?

Definition at line 122 of file ff-mac-common.h.

◆ m_pdcchPowerOffset

uint8_t ns3::DlDciListElement_s::m_pdcchPowerOffset

CCH power offset.

Definition at line 132 of file ff-mac-common.h.

◆ m_prachMaskIndex

uint8_t ns3::DlDciListElement_s::m_prachMaskIndex

RACH mask index.

Definition at line 124 of file ff-mac-common.h.

◆ m_preambleIndex

uint8_t ns3::DlDciListElement_s::m_preambleIndex

preamble index

Definition at line 123 of file ff-mac-common.h.

◆ m_precodingInfo

uint8_t ns3::DlDciListElement_s::m_precodingInfo

precoding info

Definition at line 105 of file ff-mac-common.h.

◆ m_rbBitmap

◆ m_rbShift

uint8_t ns3::DlDciListElement_s::m_rbShift

RB shift.

Definition at line 97 of file ff-mac-common.h.

◆ m_resAlloc

◆ m_rnti

◆ m_rv

◆ m_spsRelease

bool ns3::DlDciListElement_s::m_spsRelease

release?

Definition at line 121 of file ff-mac-common.h.

◆ m_tbsIdx

uint8_t ns3::DlDciListElement_s::m_tbsIdx

tbs index

Definition at line 130 of file ff-mac-common.h.

◆ m_tbsSize

◆ m_tbSwap

bool ns3::DlDciListElement_s::m_tbSwap

swap?

Definition at line 120 of file ff-mac-common.h.

◆ m_tpc

◆ m_vrbFormat

enum ns3::DlDciListElement_s::VrbFormat_e ns3::DlDciListElement_s::m_vrbFormat

the format


The documentation for this struct was generated from the following file:
