CarrierAggregationConfigTestCase Class Reference

Carrier aggregation configuration test case. More...

Inheritance diagram for CarrierAggregationConfigTestCase:

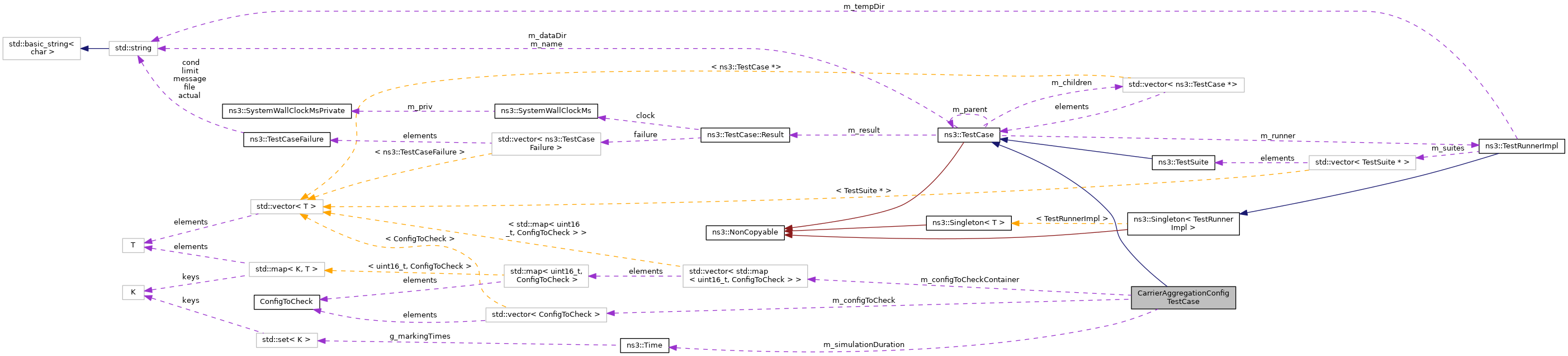

Collaboration diagram for CarrierAggregationConfigTestCase:

Public Member Functions
	CarrierAggregationConfigTestCase (uint32_t numberOfNodes, uint16_t numberOfComponentCarriers, std::vector< ConfigToCheck > configToCheck, Time simulationDuration)
	Constructor. More...
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
std::string	BuildNameString (uint32_t numberOfNodes, uint16_t numberOfComponentCarriers, std::vector< ConfigToCheck > configToCheck, Time simulationDuration)
	Build name string function. More...
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
std::vector< std::map< uint16_t, ConfigToCheck > >	EquallySpacedCcs ()
	Equally spaced component carriers function. More...
void	Evaluate (std::string context, Ptr< LteUeRrc > ueRrc, std::list< LteRrcSap::SCellToAddMod > sCellToAddModList)
	Evaluate function. More...

Private Attributes
std::vector< ConfigToCheck >	m_configToCheck
	Vector containing all the configurations to check. More...
std::vector< std::map< uint16_t, ConfigToCheck > >	m_configToCheckContainer
	Vector of maps containing the per component carrier configuration. More...
uint32_t	m_connectionCounter
	Connection counter. More...
uint16_t	m_numberOfComponentCarriers
	Number of component carriers. More...
uint32_t	m_numberOfNodes
	Numer of nodes. More...
Time	m_simulationDuration
	Simulation duration. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Carrier aggregation configuration test case.

Definition at line 81 of file lte-test-carrier-aggregation-configuration.cc.

Constructor & Destructor Documentation

CarrierAggregationConfigTestCase()

CarrierAggregationConfigTestCase::CarrierAggregationConfigTestCase ( uint32_t  numberOfNodes, uint16_t  numberOfComponentCarriers, std::vector< ConfigToCheck >  configToCheck, Time  simulationDuration  )

inline

Constructor.

Parameters

numberOfNodes	Total Number of eNBs and UEs
numberOfComponentCarriers	Total number of component carriers
configToCheck	Vector containing all the configurations to check
simulationDuration	Duration of the simulation

Definition at line 92 of file lte-test-carrier-aggregation-configuration.cc.

Member Function Documentation

BuildNameString()

std::string CarrierAggregationConfigTestCase::BuildNameString ( uint32_t  numberOfNodes, uint16_t  numberOfComponentCarriers, std::vector< ConfigToCheck >  configToCheck, Time  simulationDuration  )

private

Build name string function.

Parameters

numberOfNodes	Total Number of eNBs and UEs
numberOfComponentCarriers	Total number of component carriers
configToCheck	Vector containing all the configurations to check
simulationDuration	Duration of the simulation

Returns

the name string

Definition at line 139 of file lte-test-carrier-aggregation-configuration.cc.

DoRun()

void CarrierAggregationConfigTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 271 of file lte-test-carrier-aggregation-configuration.cc.

References ns3::LteHelper::ActivateDataRadioBearer(), ns3::ListPositionAllocator::Add(), ns3::NetDeviceContainer::Add(), ns3::LteHelper::AssignStreams(), ns3::LteHelper::Attach(), ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::Simulator::Destroy(), Evaluate(), ns3::EpsBearer::GBR_CONV_VOICE, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::NodeContainer::GetN(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), bianchi11ax::k, ConfigToCheck::m_dlBandwidth, ConfigToCheck::m_dlEarfcn, ConfigToCheck::m_ulBandwidth, ConfigToCheck::m_ulEarfcn, ns3::MakeCallback(), third::mobility, sample-rng-plot::n, NS_TEST_ASSERT_MSG_EQ, ns3::Simulator::Run(), ns3::Config::SetDefault(), ns3::LteHelper::SetEnbDeviceAttribute(), ns3::LteHelper::SetUeDeviceAttribute(), and ns3::Simulator::Stop().

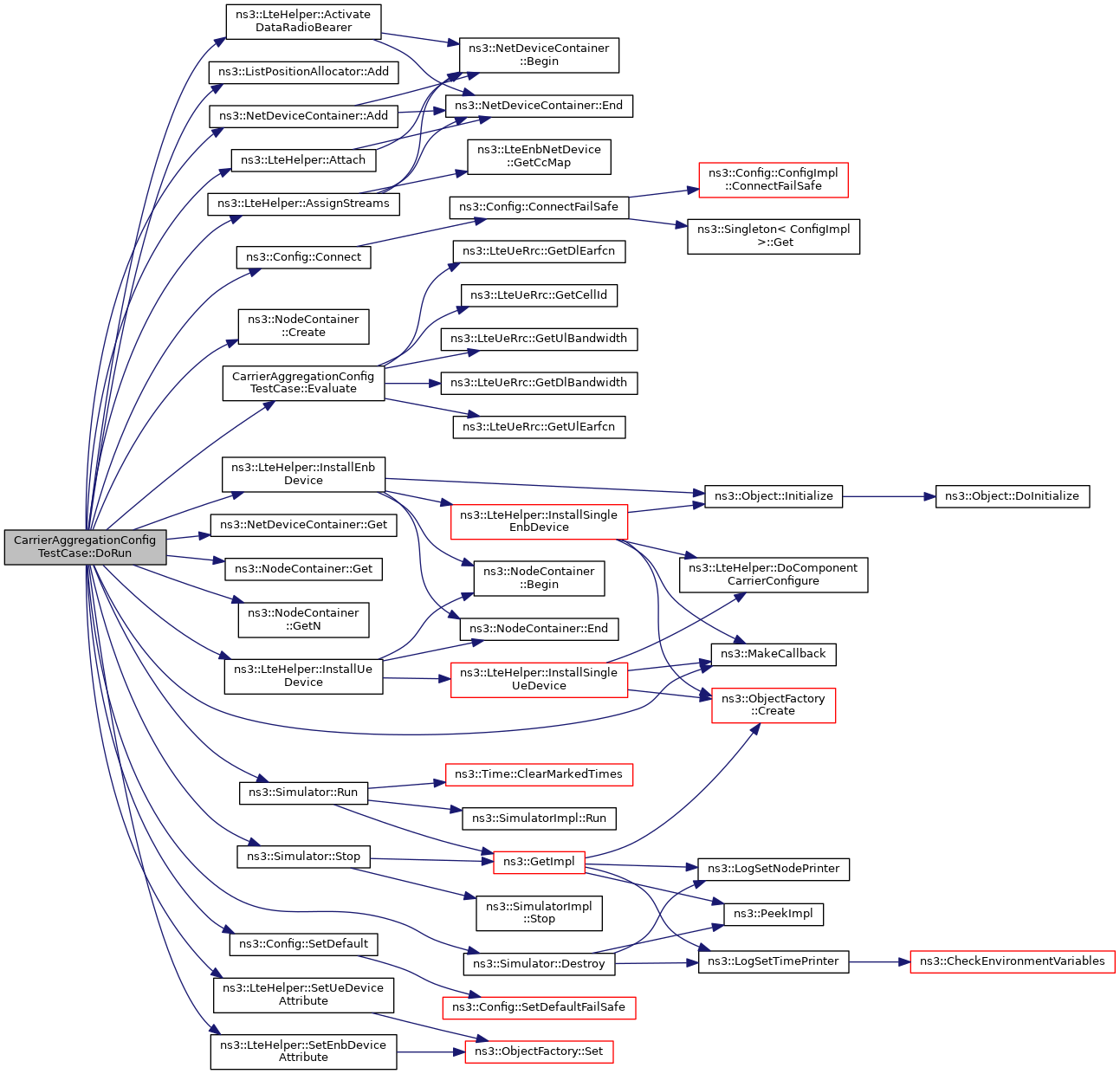

Here is the call graph for this function:

EquallySpacedCcs()

std::vector< std::map< uint16_t, ConfigToCheck > > CarrierAggregationConfigTestCase::EquallySpacedCcs ( )

private

Equally spaced component carriers function.

Returns

Vector of maps containing the per component carrier configuration

Definition at line 149 of file lte-test-carrier-aggregation-configuration.cc.

References ns3::LteSpectrumValueHelper::GetChannelBandwidth(), ns3::LteSpectrumValueHelper::GetDownlinkCarrierBand(), ns3::LteSpectrumValueHelper::GetUplinkCarrierBand(), ConfigToCheck::m_dlBandwidth, ConfigToCheck::m_dlEarfcn, ConfigToCheck::m_ulBandwidth, ConfigToCheck::m_ulEarfcn, NS_FATAL_ERROR, and NS_LOG_INFO.

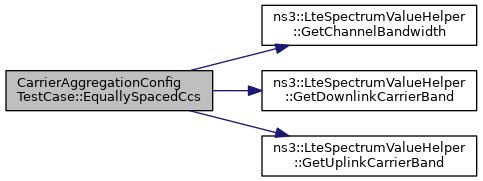

Here is the call graph for this function:

Evaluate()

void CarrierAggregationConfigTestCase::Evaluate ( std::string  context, Ptr< LteUeRrc >  ueRrc, std::list< LteRrcSap::SCellToAddMod >  sCellToAddModList  )

private

Evaluate function.

Parameters

context	The context
ueRrc	Pointer to the UE RRC
sCellToAddModList	List of the configuration parameters for secondary cell

Definition at line 204 of file lte-test-carrier-aggregation-configuration.cc.

References ns3::LteUeRrc::GetCellId(), ns3::LteUeRrc::GetDlBandwidth(), ns3::LteUeRrc::GetDlEarfcn(), ns3::LteUeRrc::GetUlBandwidth(), ns3::LteUeRrc::GetUlEarfcn(), ConfigToCheck::m_dlBandwidth, ConfigToCheck::m_dlEarfcn, ConfigToCheck::m_ulBandwidth, ConfigToCheck::m_ulEarfcn, max, min, NS_LOG_INFO, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

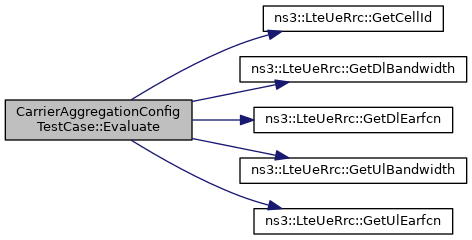

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_configToCheck

std::vector<ConfigToCheck> CarrierAggregationConfigTestCase::m_configToCheck

private

Vector containing all the configurations to check.

Definition at line 132 of file lte-test-carrier-aggregation-configuration.cc.

m_configToCheckContainer

std::vector<std::map<uint16_t, ConfigToCheck> > CarrierAggregationConfigTestCase::m_configToCheckContainer

private

Vector of maps containing the per component carrier configuration.

Definition at line 135 of file lte-test-carrier-aggregation-configuration.cc.

m_connectionCounter

uint32_t CarrierAggregationConfigTestCase::m_connectionCounter

private

Connection counter.

Definition at line 133 of file lte-test-carrier-aggregation-configuration.cc.

m_numberOfComponentCarriers

uint16_t CarrierAggregationConfigTestCase::m_numberOfComponentCarriers

private

Number of component carriers.

Definition at line 131 of file lte-test-carrier-aggregation-configuration.cc.

m_numberOfNodes

uint32_t CarrierAggregationConfigTestCase::m_numberOfNodes

private

Numer of nodes.

Definition at line 130 of file lte-test-carrier-aggregation-configuration.cc.

m_simulationDuration

Time CarrierAggregationConfigTestCase::m_simulationDuration

private

Simulation duration.

Definition at line 134 of file lte-test-carrier-aggregation-configuration.cc.

---

The documentation for this class was generated from the following file:

• src/lte/test/lte-test-carrier-aggregation-configuration.cc
