A Discrete-Event Network Simulator
API
DummyCongControl Class Reference

Behaves as NewReno, except that each time PktsAcked is called, a notification is sent to TcpPktsAckedOpenTest. More...

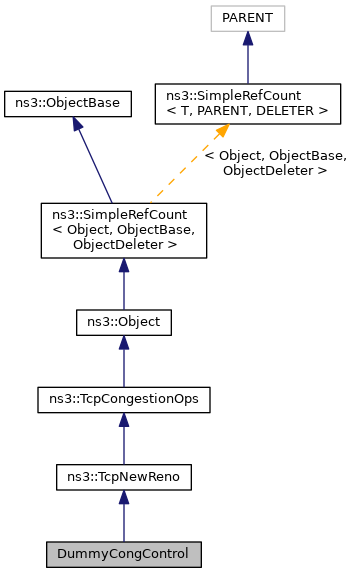

+ Inheritance diagram for DummyCongControl:

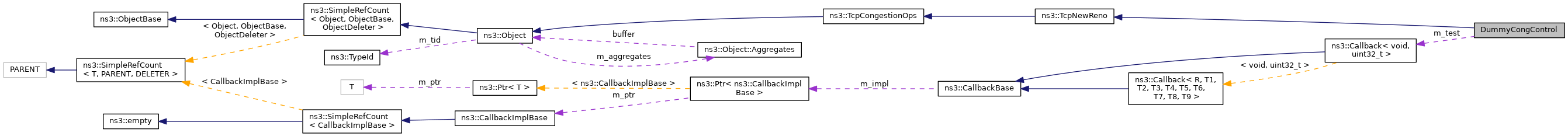

+ Collaboration diagram for DummyCongControl:

Public Member Functions

 DummyCongControl ()

void PktsAcked (Ptr< TcpSocketState > tcb, uint32_t segmentsAcked, const Time &rtt)
 Timing information on received ACK. More...

void SetCallback (Callback< void, uint32_t > test)
 Set the callback to be used when an ACK is received. More...

- Public Member Functions inherited from ns3::TcpNewReno
 TcpNewReno ()

 TcpNewReno (const TcpNewReno &sock)
 Copy constructor. More...

 ~TcpNewReno ()

virtual Ptr< TcpCongestionOpsFork ()
 Copy the congestion control algorithm across sockets. More...

std::string GetName () const
 Get the name of the congestion control algorithm. More...

virtual uint32_t GetSsThresh (Ptr< const TcpSocketState > tcb, uint32_t bytesInFlight)
 Get the slow start threshold after a loss event. More...

virtual void IncreaseWindow (Ptr< TcpSocketState > tcb, uint32_t segmentsAcked)
 Try to increase the cWnd following the NewReno specification. More...

- Public Member Functions inherited from ns3::TcpCongestionOps
 TcpCongestionOps ()

 TcpCongestionOps (const TcpCongestionOps &other)
 Copy constructor. More...

virtual ~TcpCongestionOps ()

virtual void CongControl (Ptr< TcpSocketState > tcb, const TcpRateOps::TcpRateConnection &rc, const TcpRateOps::TcpRateSample &rs)
 Called when packets are delivered to update cwnd and pacing rate. More...

virtual void CongestionStateSet (Ptr< TcpSocketState > tcb, const TcpSocketState::TcpCongState_t newState)
 Trigger events/calculations specific to a congestion state. More...

virtual void CwndEvent (Ptr< TcpSocketState > tcb, const TcpSocketState::TcpCAEvent_t event)
 Trigger events/calculations on occurrence of congestion window event. More...

virtual bool HasCongControl () const
 Returns true when Congestion Control Algorithm implements CongControl. More...

virtual void Init (Ptr< TcpSocketState > tcb)
 Set configuration required by congestion control algorithm. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::TcpNewReno
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::TcpCongestionOps
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Callback< void, uint32_t > m_test
 Callback to be used when an ACK is received. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::TcpNewReno
virtual void CongestionAvoidance (Ptr< TcpSocketState > tcb, uint32_t segmentsAcked)
 NewReno congestion avoidance. More...

virtual uint32_t SlowStart (Ptr< TcpSocketState > tcb, uint32_t segmentsAcked)

Tcp NewReno slow start algorithm More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Behaves as NewReno, except that each time PktsAcked is called, a notification is sent to TcpPktsAckedOpenTest.

Definition at line 84 of file tcp-pkts-acked-test.cc.

Constructor & Destructor Documentation

◆ DummyCongControl()

DummyCongControl::DummyCongControl ( )
inline

Definition at line 93 of file tcp-pkts-acked-test.cc.

Member Function Documentation

◆ GetTypeId()

TypeId DummyCongControl::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 117 of file tcp-pkts-acked-test.cc.

References ns3::TypeId::SetParent().

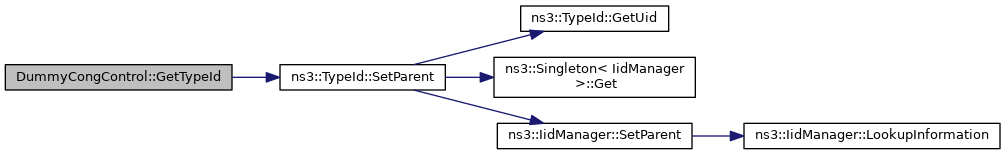

+ Here is the call graph for this function:

◆ PktsAcked()

void DummyCongControl::PktsAcked ( Ptr< TcpSocketState tcb,
uint32_t  segmentsAcked,
const Time rtt
)
inlinevirtual

Timing information on received ACK.

The function is called every time an ACK is received (only one time also for cumulative ACKs) and contains timing information. It is optional (congestion controls need not implement it) and the default implementation does nothing.

Parameters
tcbinternal congestion state
segmentsAckedcount of segments acked
rttlast rtt

Reimplemented from ns3::TcpCongestionOps.

Definition at line 106 of file tcp-pkts-acked-test.cc.

◆ SetCallback()

void DummyCongControl::SetCallback ( Callback< void, uint32_t >  test)
inline

Set the callback to be used when an ACK is received.

Parameters
testThe callback.

Definition at line 101 of file tcp-pkts-acked-test.cc.

Referenced by TcpPktsAckedOpenTest::CreateSenderSocket().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_test

Callback<void, uint32_t> DummyCongControl::m_test
private

Callback to be used when an ACK is received.

Definition at line 113 of file tcp-pkts-acked-test.cc.


The documentation for this class was generated from the following file:
