ns3::TypeId Class Reference

a unique identifier for an interface. More...

#include "type-id.h"

Classes

struct  AttributeInformation
 Attribute implementation. More...

struct  TraceSourceInformation
 TraceSource implementation. More...


Public Types

enum  AttributeFlag { ATTR_GET = 1 << 0, ATTR_SET = 1 << 1, ATTR_CONSTRUCT = 1 << 2, ATTR_SGC = ATTR_GET | ATTR_SET | ATTR_CONSTRUCT }
 Flags describing when a given attribute can be read or written. More...

typedef uint32_t hash_t
 Type of hash values. More...

enum  SupportLevel { SUPPORTED, DEPRECATED, OBSOLETE }
 The level of support or deprecation for attributes or trace sources. More...


Public Member Functions

 TypeId (const char *name)
 Constructor. More...

 TypeId ()
 Default constructor. More...

 TypeId (const TypeId &o)
 Copy constructor. More...

 ~TypeId ()
 Destructor. More...

TypeId AddAttribute (std::string name, std::string help, const AttributeValue &initialValue, Ptr< const AttributeAccessor > accessor, Ptr< const AttributeChecker > checker, SupportLevel supportLevel=SUPPORTED, const std::string &supportMsg="")
 Record in this TypeId the fact that a new attribute exists. More...

TypeId AddAttribute (std::string name, std::string help, uint32_t flags, const AttributeValue &initialValue, Ptr< const AttributeAccessor > accessor, Ptr< const AttributeChecker > checker, SupportLevel supportLevel=SUPPORTED, const std::string &supportMsg="")
 Record in this TypeId the fact that a new attribute exists. More...

template<typename T >
TypeId AddConstructor (void)
 Record in this TypeId the fact that the default constructor is accessible. More...

TypeId AddTraceSource (std::string name, std::string help, Ptr< const TraceSourceAccessor > accessor, std::string callback, SupportLevel supportLevel=SUPPORTED, const std::string &supportMsg="")
 Record a new TraceSource. More...

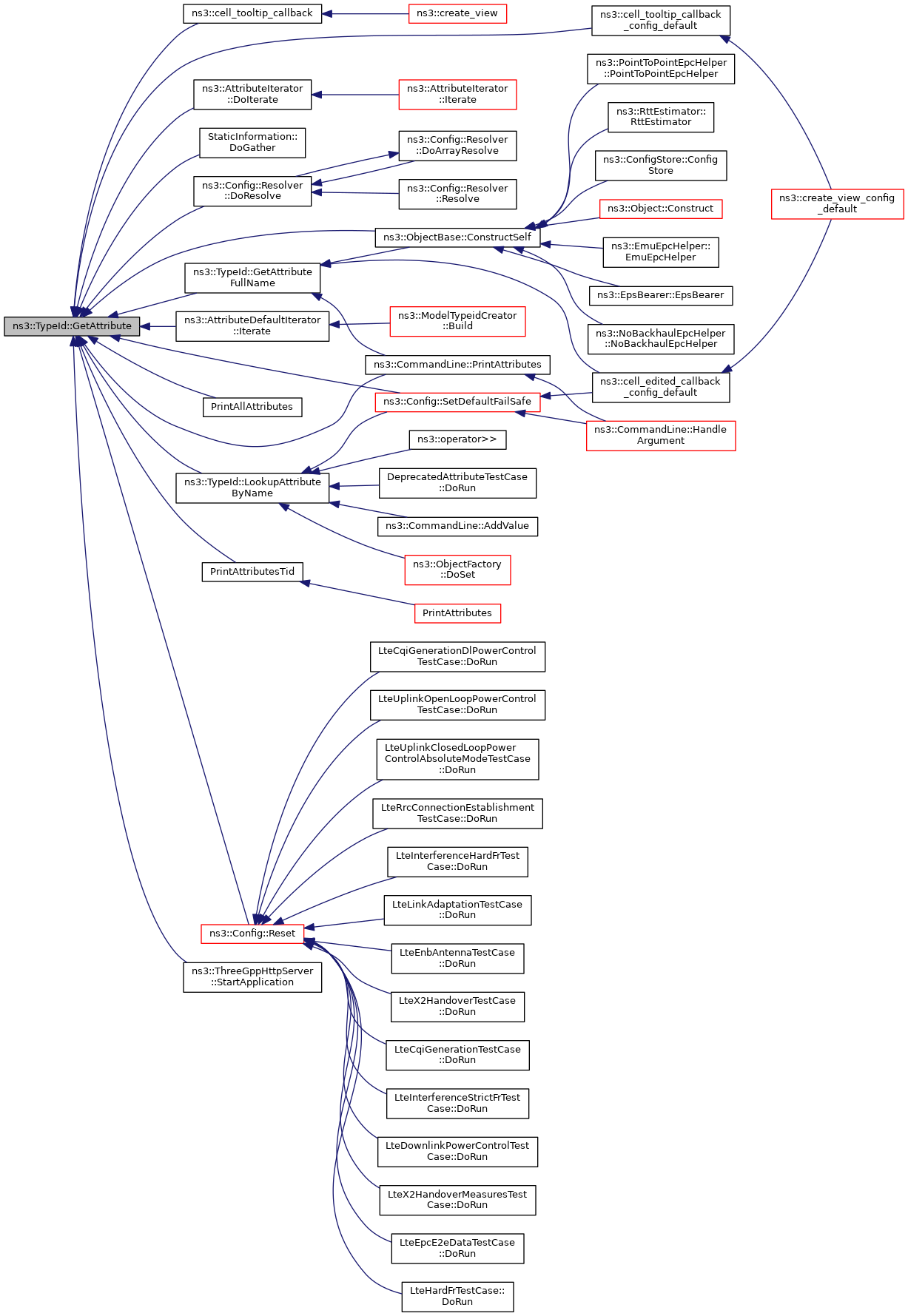

struct TypeId::AttributeInformation GetAttribute (std::size_t i) const
 Get Attribute information by index. More...

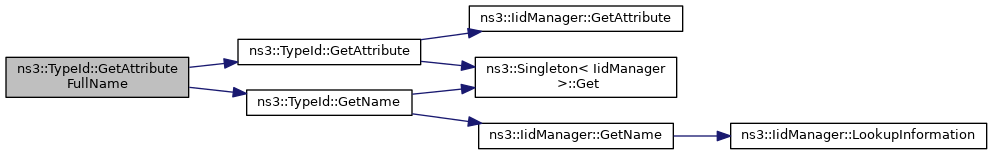

std::string GetAttributeFullName (std::size_t i) const
 Get the Attribute name by index. More...

std::size_t GetAttributeN (void) const
 Get the number of attributes. More...

Callback< ObjectBase * > GetConstructor (void) const
 Get the constructor callback. More...

std::string GetGroupName (void) const
 Get the group name. More...

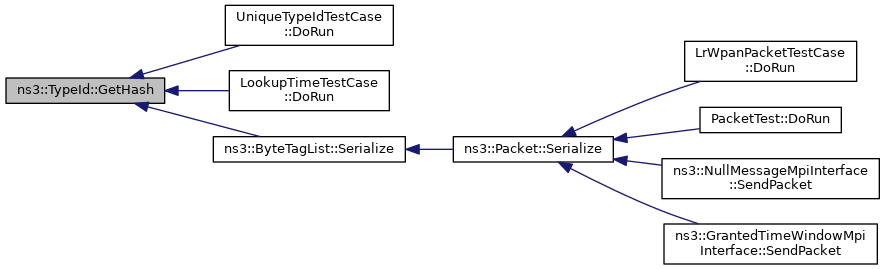

hash_t GetHash (void) const
 Get the hash. More...

std::string GetName (void) const
 Get the name. More...

TypeId GetParent (void) const
 Get the parent of this TypeId. More...

std::size_t GetSize (void) const
 Get the size of this object. More...

struct TypeId::TraceSourceInformation GetTraceSource (std::size_t i) const
 Get the trace source by index. More...

std::size_t GetTraceSourceN (void) const
 Get the number of Trace sources. More...

uint16_t GetUid (void) const
 Get the internal id of this TypeId. More...

bool HasConstructor (void) const
 Check if this TypeId has a constructor. More...

bool HasParent (void) const
 Check if this TypeId has a parent. More...

TypeId HideFromDocumentation (void)
 Hide this TypeId from documentation. More...

bool IsChildOf (TypeId other) const
 Check if this TypeId is a child of another. More...

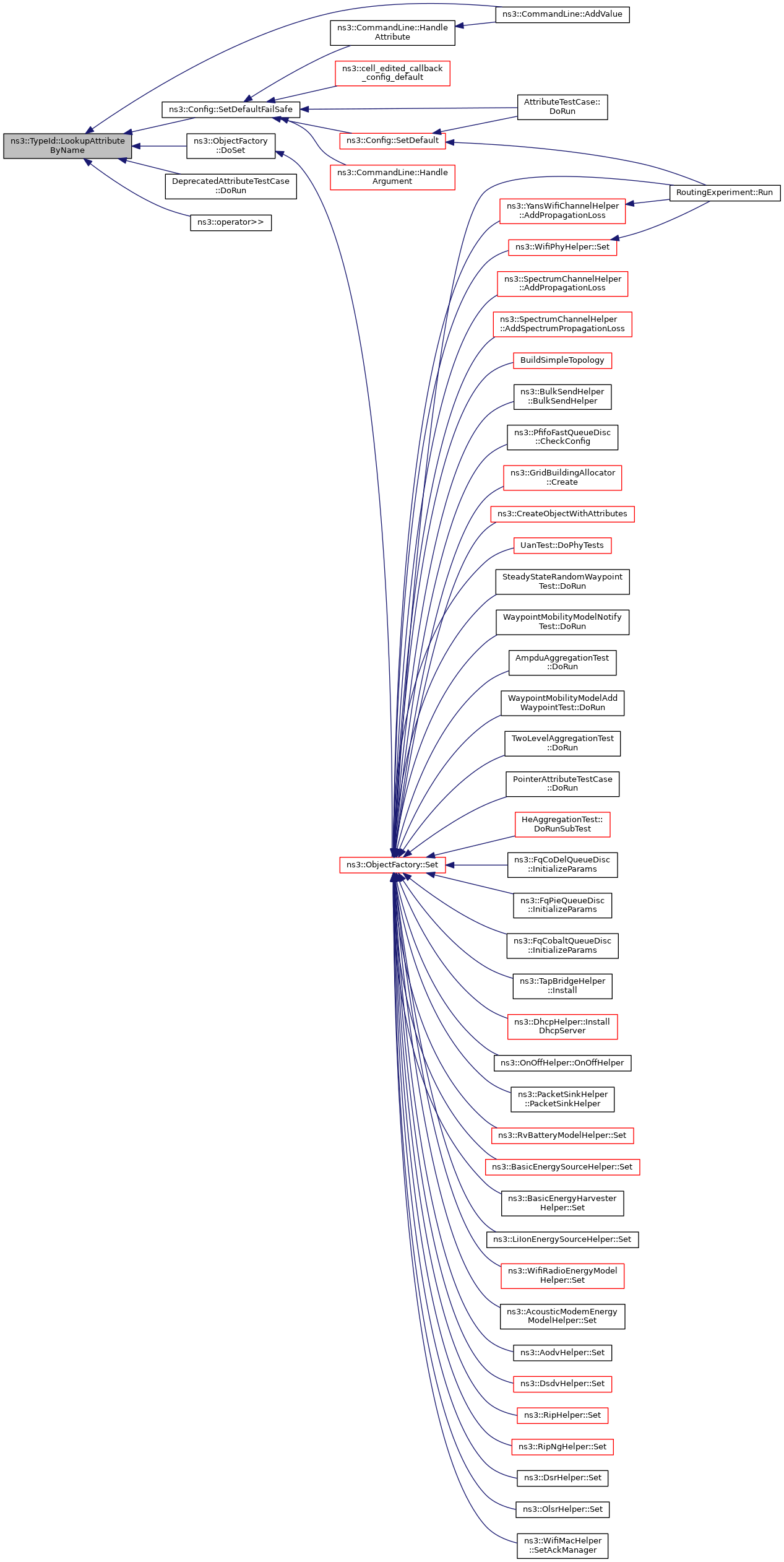

bool LookupAttributeByName (std::string name, struct AttributeInformation *info) const
 Find an Attribute by name, retrieving the associated AttributeInformation. More...

Ptr< const TraceSourceAccessorLookupTraceSourceByName (std::string name) const
 Find a TraceSource by name. More...

Ptr< const TraceSourceAccessorLookupTraceSourceByName (std::string name, struct TraceSourceInformation *info) const
 Find a TraceSource by name, retrieving the associated TraceSourceInformation. More...

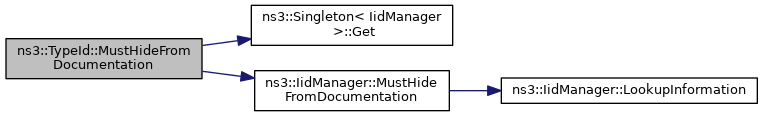

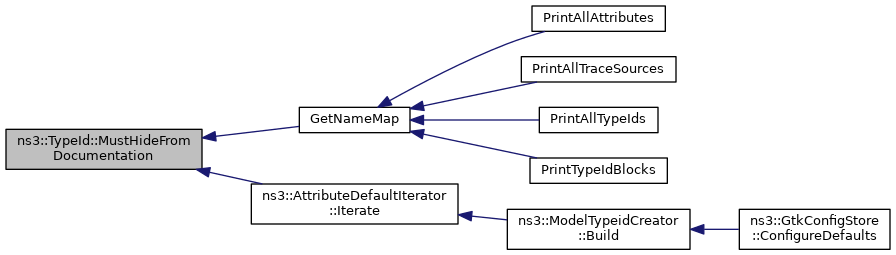

bool MustHideFromDocumentation (void) const
 Check if this TypeId should not be listed in documentation. More...

TypeIdoperator= (const TypeId &o)
 Assignment. More...

bool SetAttributeInitialValue (std::size_t i, Ptr< const AttributeValue > initialValue)
 Set the initial value of an Attribute. More...

TypeId SetGroupName (std::string groupName)
 Set the group name. More...

TypeId SetParent (TypeId tid)
 Set the parent TypeId. More...

template<typename T >
TypeId SetParent (void)
 Set the parent TypeId. More...

TypeId SetSize (std::size_t size)
 Set the size of this type. More...

void SetUid (uint16_t uid)
 Set the internal id of this TypeId. More...


Static Public Member Functions

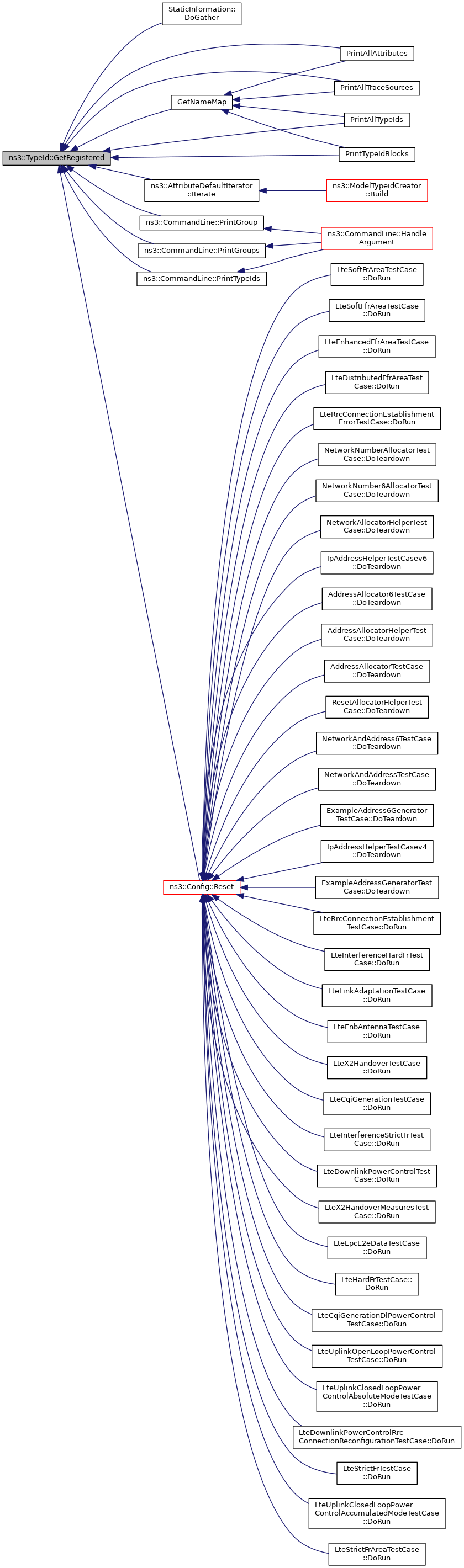

static TypeId GetRegistered (uint16_t i)
 Get a TypeId by index. More...

static uint16_t GetRegisteredN (void)
 Get the number of registered TypeIds. More...

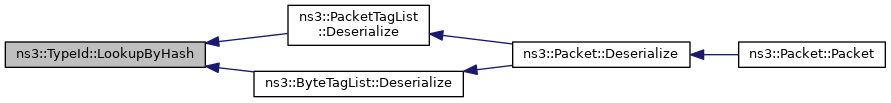

static TypeId LookupByHash (hash_t hash)
 Get a TypeId by hash. More...

static bool LookupByHashFailSafe (hash_t hash, TypeId *tid)
 Get a TypeId by hash. More...

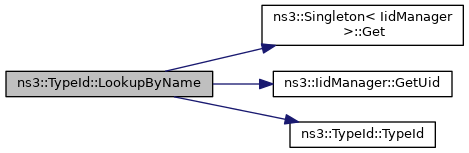

static TypeId LookupByName (std::string name)
 Get a TypeId by name. More...

static bool LookupByNameFailSafe (std::string name, TypeId *tid)
 Get a TypeId by name. More...


Private Member Functions

 TypeId (uint16_t tid)
 Construct from an integer value. More...

void DoAddConstructor (Callback< ObjectBase *> callback)
 Implementation for AddConstructor(). More...


Private Attributes

uint16_t m_tid
 The TypeId value. More...


Friends

Comparison operators.

Standard comparison operators.

bool operator== (TypeId a, TypeId b)
 Comparison operator. More...

bool operator!= (TypeId a, TypeId b)
 Comparison operator. More...

bool operator< (TypeId a, TypeId b)
 Comparison operator. More...


Related Functions

(Note that these are not member functions.)

std::ostream & operator<< (std::ostream &os, TypeId tid)

std::istream & operator>> (std::istream &is, TypeId &tid)


Detailed Description

a unique identifier for an interface.

This class records a lot of meta-information about a subclass of the Object base class:

  • the base class of the subclass
  • the set of accessible constructors in the subclass
  • the set of 'attributes' accessible in the subclass
See also
TypeId Attribute
Internal:
See the discussion in IidManager about hash chaining of TypeId's.

Definition at line 58 of file type-id.h.

Member Typedef Documentation

◆ hash_t

typedef uint32_t ns3::TypeId::hash_t

Type of hash values.

Definition at line 116 of file type-id.h.

Member Enumeration Documentation

◆ AttributeFlag

Flags describing when a given attribute can be read or written.

Enumerator
ATTR_GET

The attribute can be read.

ATTR_SET

The attribute can be written.

ATTR_CONSTRUCT

The attribute can be written at construction-time.

ATTR_SGC

The attribute can be read, and written at any time.

Definition at line 62 of file type-id.h.

◆ SupportLevel

The level of support or deprecation for attributes or trace sources.

Enumerator
SUPPORTED

Attribute or trace source is currently used.

DEPRECATED

Attribute or trace source is deprecated; user is warned.

OBSOLETE

Attribute or trace source is not used anymore; simulation fails.

Definition at line 70 of file type-id.h.

Constructor & Destructor Documentation

◆ TypeId() [1/4]

ns3::TypeId::TypeId ( const char *  name)
explicit

Constructor.

Parameters
[in]nameThe name of the interface to construct.

No two instances can share the same name. The name is expected to be the full c++ typename of associated c++ object.

Definition at line 814 of file type-id.cc.

References ns3::IidManager::AllocateUid(), ns3::Singleton< IidManager >::Get(), m_tid, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

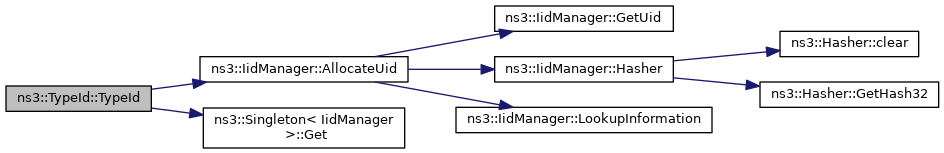

+ Here is the call graph for this function:

◆ TypeId() [2/4]

ns3::TypeId::TypeId ( )
inline

Default constructor.

This produces an invalid TypeId.

Definition at line 601 of file type-id.h.

Referenced by GetParent(), GetRegistered(), LookupByHash(), LookupByHashFailSafe(), LookupByName(), and LookupByNameFailSafe().

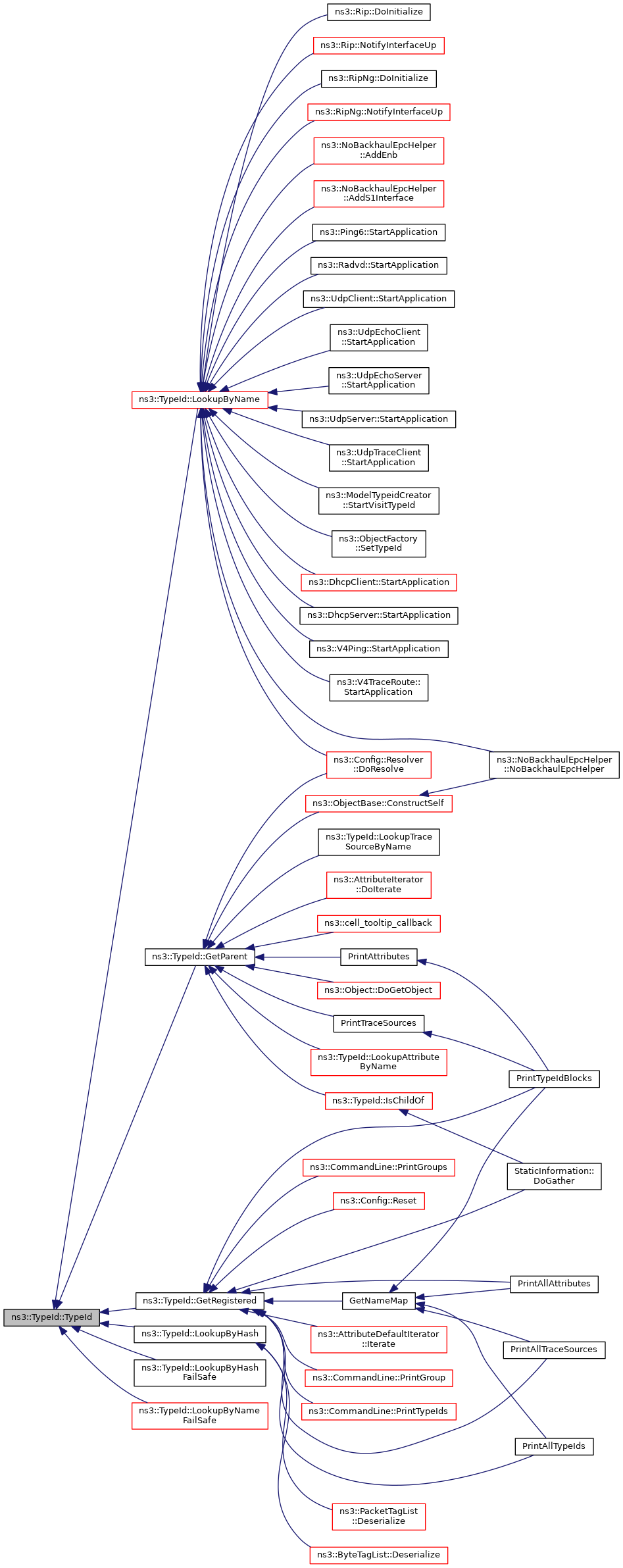

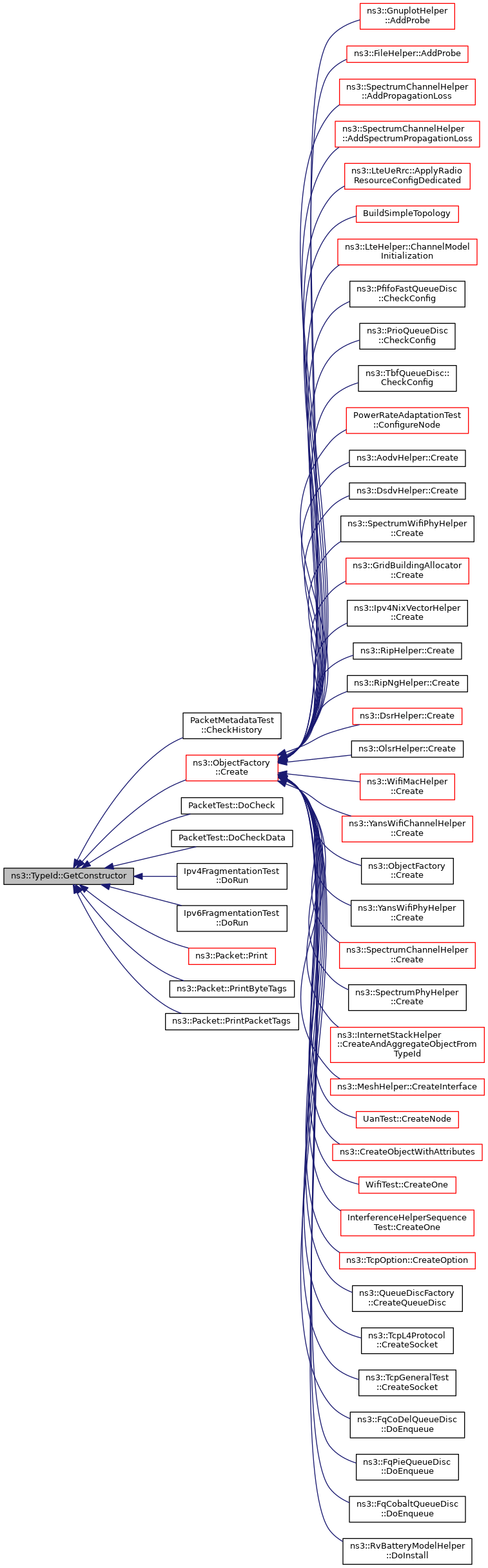

+ Here is the caller graph for this function:

◆ TypeId() [3/4]

ns3::TypeId::TypeId ( const TypeId o)
inline

Copy constructor.

Parameters
[in]oThe other TypeId.

Definition at line 604 of file type-id.h.

◆ ~TypeId()

ns3::TypeId::~TypeId ( )
inline

Destructor.

Definition at line 612 of file type-id.h.

◆ TypeId() [4/4]

ns3::TypeId::TypeId ( uint16_t  tid)
explicitprivate

Construct from an integer value.

Parameters
[in]tidThe TypeId value as an integer.

Definition at line 824 of file type-id.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddAttribute() [1/2]

TypeId ns3::TypeId::AddAttribute ( std::string  name,
std::string  help,
const AttributeValue initialValue,
Ptr< const AttributeAccessor accessor,
Ptr< const AttributeChecker checker,
SupportLevel  supportLevel = SUPPORTED,
const std::string &  supportMsg = ""
)

Record in this TypeId the fact that a new attribute exists.

Parameters
[in]nameThe name of the new attribute
[in]helpSome help text which describes the purpose of this attribute.
[in]initialValueThe initial value for this attribute.
[in]accessorAn instance of the associated AttributeAccessor subclass.
[in]checkerAn instance of the associated AttributeChecker subclass.
[in]supportLevelSupport/deprecation status of the attribute.
[in]supportMsgUpgrade hint if this attribute is no longer supported. If the attribute is DEPRECATED the attribute behavior still exists, but user code should be updated following guidance in the hint. If the attribute is OBSOLETE, the hint should indicate which class the attribute functional has been moved to, or that the functionality is no longer supported. See test file type-id-test-suite.cc for examples.
Returns
This TypeId instance

Definition at line 1014 of file type-id.cc.

References ns3::IidManager::AddAttribute(), ATTR_SGC, ns3::AttributeValue::Copy(), ns3::Singleton< IidManager >::Get(), m_tid, and NS_LOG_FUNCTION.

Referenced by ns3::Ns3NscStack::GetInstanceTypeId().

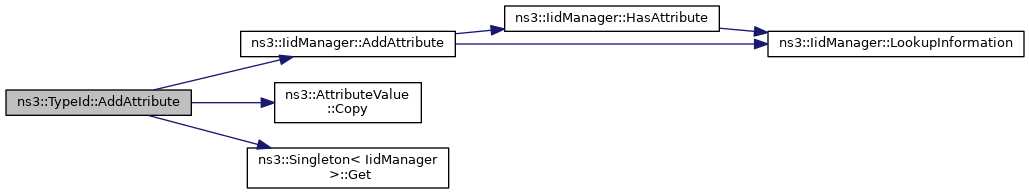

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ AddAttribute() [2/2]

TypeId ns3::TypeId::AddAttribute ( std::string  name,
std::string  help,
uint32_t  flags,
const AttributeValue initialValue,
Ptr< const AttributeAccessor accessor,
Ptr< const AttributeChecker checker,
SupportLevel  supportLevel = SUPPORTED,
const std::string &  supportMsg = ""
)

Record in this TypeId the fact that a new attribute exists.

Parameters
[in]nameThe name of the new attribute
[in]helpSome help text which describes the purpose of this attribute
[in]flagsFlags which describe how this attribute can be read and/or written.
[in]initialValueThe initial value for this attribute.
[in]accessorAn instance of the associated AttributeAccessor subclass.
[in]checkerAn instance of the associated AttributeChecker subclass.
[in]supportLevelSupport/deprecation status of the attribute.
[in]supportMsgUpgrade hint if this attribute is no longer supported. If the attribute is DEPRECATED the attribute behavior still exists, but user code should be updated following guidance in the hint.. If the attribute is OBSOLETE, the hint should indicate which class the attribute functional has been moved to, or that the functionality is no longer supported.
Returns
This TypeId instance

Definition at line 1032 of file type-id.cc.

References ns3::IidManager::AddAttribute(), ns3::AttributeValue::Copy(), ns3::Singleton< IidManager >::Get(), m_tid, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ AddConstructor()

template<typename T >
TypeId ns3::TypeId::AddConstructor ( void  )

Record in this TypeId the fact that the default constructor is accessible.

Template Parameters
T[explicit] The class name represented by this TypeId.
Returns
This TypeId instance

Definition at line 638 of file type-id.h.

Referenced by ns3::Ipv6ExtensionHeader::GetTypeId(), anonymous_namespace{object-test-suite.cc}::BaseA::GetTypeId(), ns3::Ipv6OptionHeader::GetTypeId(), ns3::dsr::DsrOptionHeader::GetTypeId(), Derived::GetTypeId(), ns3::dsr::DsrFsHeader::GetTypeId(), anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::GetTypeId(), AttributeObjectTest::GetTypeId(), anonymous_namespace{packet-metadata-test.cc}::HistoryHeader< N >::GetTypeId(), anonymous_namespace{object-test-suite.cc}::BaseB::GetTypeId(), ns3::dsr::DsrOptionPad1Header::GetTypeId(), ns3::Ipv6OptionPad1Header::GetTypeId(), ns3::dsr::DsrOptionPadnHeader::GetTypeId(), ns3::Ipv6OptionPadnHeader::GetTypeId(), ns3::Ipv6ExtensionHopByHopHeader::GetTypeId(), anonymous_namespace{packet-metadata-test.cc}::HistoryTrailer< N >::GetTypeId(), anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >::GetTypeId(), ns3::Ipv6OptionJumbogramHeader::GetTypeId(), ns3::dsr::DsrOptionRreqHeader::GetTypeId(), ns3::dsr::DsrRoutingHeader::GetTypeId(), ns3::Ipv6ExtensionDestinationHeader::GetTypeId(), anonymous_namespace{packet-test-suite.cc}::ATestTrailer< N >::GetTypeId(), ns3::Ipv6ExtensionFragmentHeader::GetTypeId(), ns3::Ipv6OptionRouterAlertHeader::GetTypeId(), ns3::Ipv6ExtensionRoutingHeader::GetTypeId(), ns3::dsr::DsrOptionRrepHeader::GetTypeId(), ns3::Ipv6ExtensionLooseRoutingHeader::GetTypeId(), ns3::dsr::DsrOptionSRHeader::GetTypeId(), ns3::Ipv6ExtensionESPHeader::GetTypeId(), ns3::Ipv6ExtensionAHHeader::GetTypeId(), ns3::dsr::DsrOptionRerrHeader::GetTypeId(), ns3::dsr::DsrOptionRerrUnreachHeader::GetTypeId(), ns3::dsr::DsrOptionRerrUnsupportHeader::GetTypeId(), ns3::dsr::DsrOptionAckReqHeader::GetTypeId(), and ns3::dsr::DsrOptionAckHeader::GetTypeId().

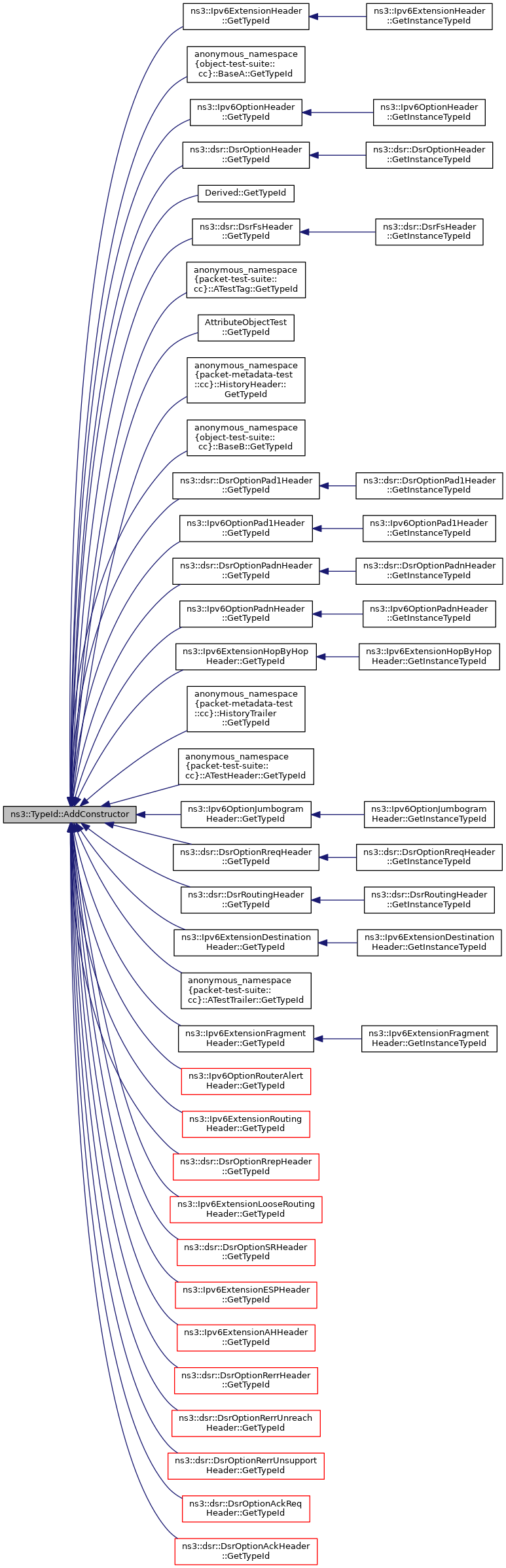

+ Here is the caller graph for this function:

◆ AddTraceSource()

TypeId ns3::TypeId::AddTraceSource ( std::string  name,
std::string  help,
Ptr< const TraceSourceAccessor accessor,
std::string  callback,
SupportLevel  supportLevel = SUPPORTED,
const std::string &  supportMsg = ""
)

Record a new TraceSource.

Parameters
[in]nameThe name of the new trace source
[in]helpSome help text which describes the purpose of this trace source.
[in]accessorA pointer to a TraceSourceAccessor which can be used to connect/disconnect sinks to this trace source.
[in]callbackFully qualified typedef name for the callback signature. Generally this should begin with the "ns3::" namespace qualifier.
[in]supportLevelSupport/deprecation status of the attribute.
[in]supportMsgUpgrade hint if this attribute is no longer supported. If the attribute is DEPRECATED the attribute behavior still exists, but user code should be updated following guidance in the hint.. If the attribute is OBSOLETE, the hint should indicate which class the attribute functional has been moved to, or that the functionality is no longer supported. See test file type-id-test-suite.cc for examples.
Returns
This TypeId instance.

Definition at line 1111 of file type-id.cc.

References ns3::IidManager::AddTraceSource(), ns3::Singleton< IidManager >::Get(), m_tid, and NS_LOG_FUNCTION.

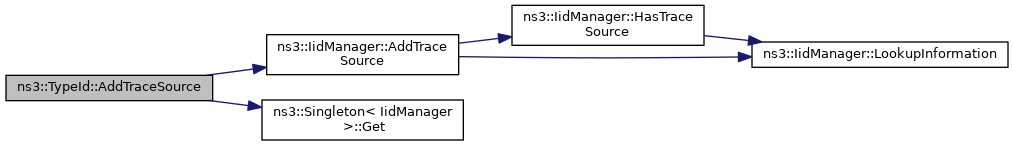

+ Here is the call graph for this function:

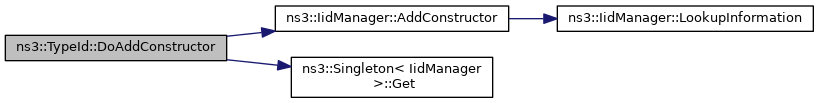

◆ DoAddConstructor()

void ns3::TypeId::DoAddConstructor ( Callback< ObjectBase *>  callback)
private

Implementation for AddConstructor().

Parameters
[in]callbackCallback which constructs an instance of this TypeId.

Definition at line 1007 of file type-id.cc.

References ns3::IidManager::AddConstructor(), ns3::Singleton< IidManager >::Get(), m_tid, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

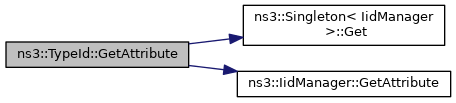

◆ GetAttribute()

struct TypeId::AttributeInformation ns3::TypeId::GetAttribute ( std::size_t  i) const

◆ GetAttributeFullName()

std::string ns3::TypeId::GetAttributeFullName ( std::size_t  i) const

Get the Attribute name by index.

Parameters
[in]iIndex into attribute array
Returns
The full name associated to the attribute whose index is i.

Definition at line 1090 of file type-id.cc.

References GetAttribute(), GetName(), ns3::TypeId::AttributeInformation::name, and NS_LOG_FUNCTION.

Referenced by ns3::cell_edited_callback_config_default(), ns3::ObjectBase::ConstructSelf(), and ns3::CommandLine::PrintAttributes().

+ Here is the call graph for this function:

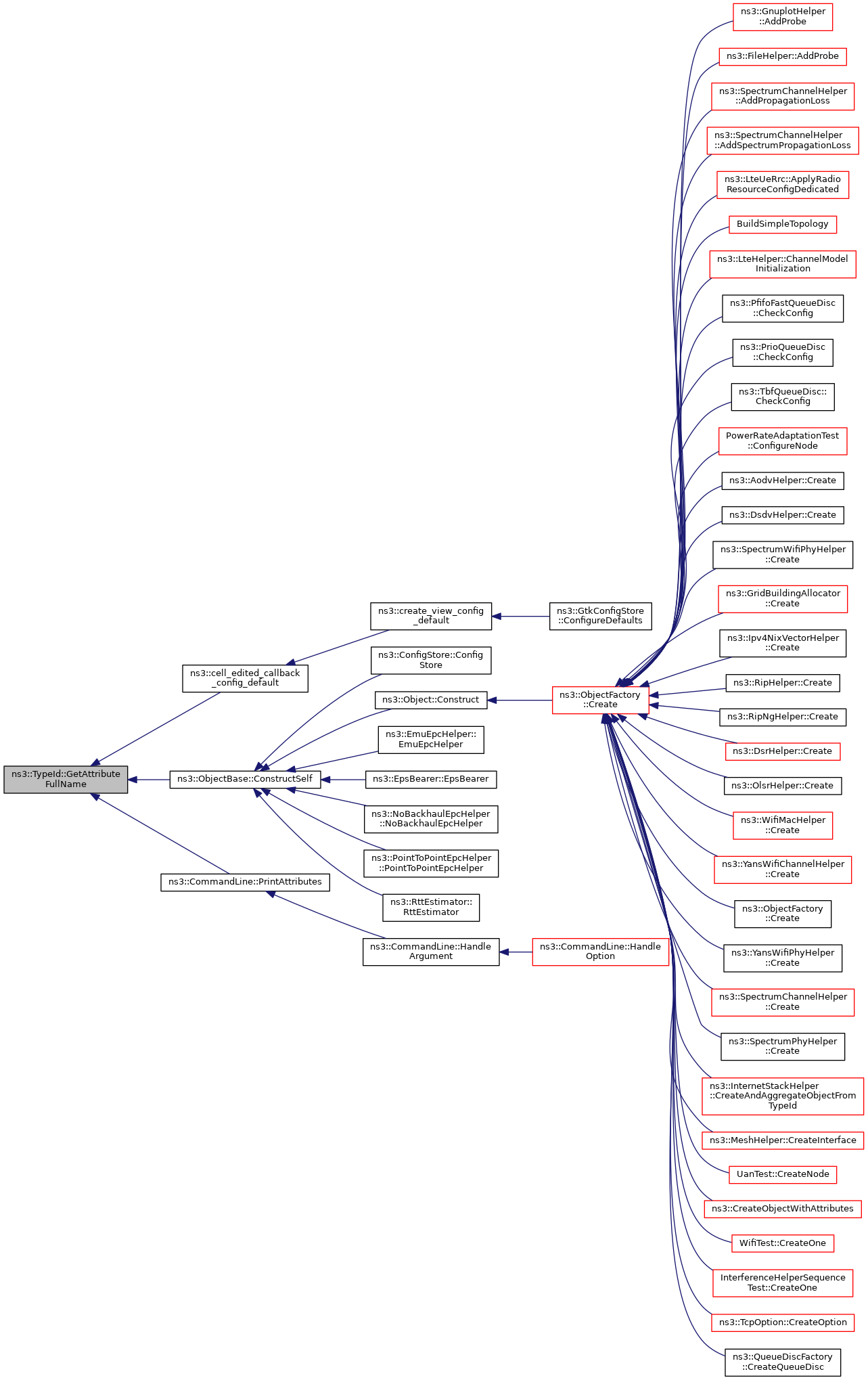

+ Here is the caller graph for this function:

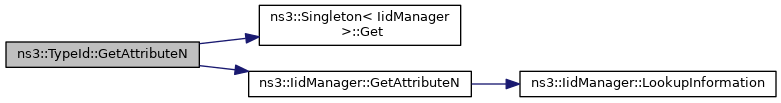

◆ GetAttributeN()

◆ GetConstructor()

Callback< ObjectBase * > ns3::TypeId::GetConstructor ( void  ) const

Get the constructor callback.

Returns
A callback which can be used to instantiate an object of this type.

Definition at line 1061 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), ns3::IidManager::GetConstructor(), m_tid, and NS_LOG_FUNCTION.

Referenced by PacketMetadataTest::CheckHistory(), ns3::ObjectFactory::Create(), PacketTest::DoCheck(), PacketTest::DoCheckData(), Ipv4FragmentationTest::DoRun(), Ipv6FragmentationTest::DoRun(), ns3::Packet::Print(), ns3::Packet::PrintByteTags(), and ns3::Packet::PrintPacketTags().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

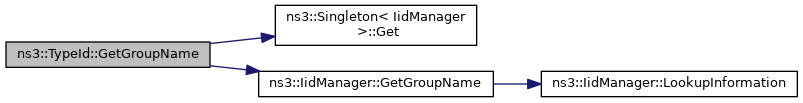

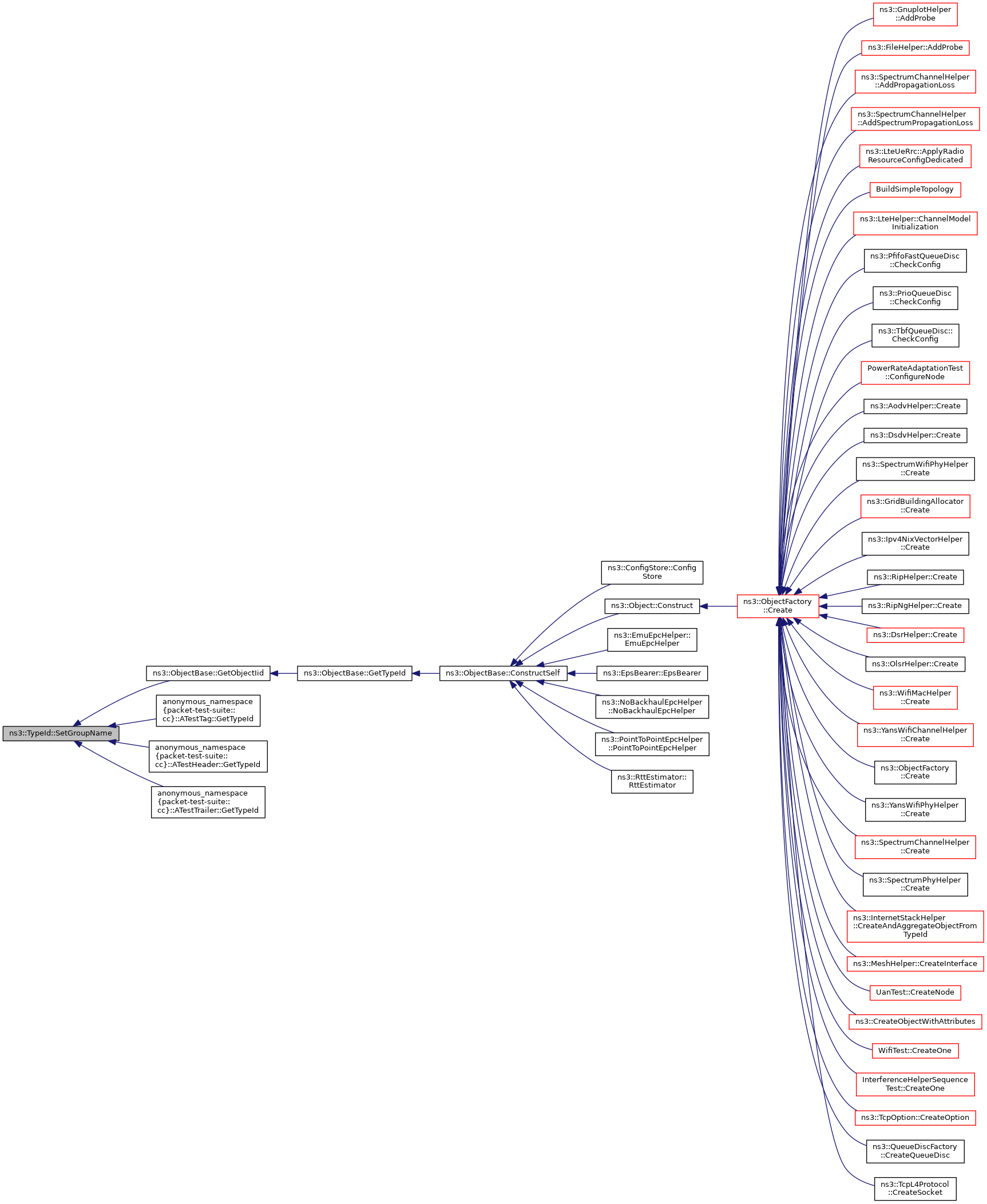

◆ GetGroupName()

std::string ns3::TypeId::GetGroupName ( void  ) const

Get the group name.

Returns
The name of the group associated to this TypeId.

Definition at line 969 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), ns3::IidManager::GetGroupName(), m_tid, and NS_LOG_FUNCTION.

Referenced by ns3::CommandLine::PrintGroup(), and ns3::CommandLine::PrintGroups().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

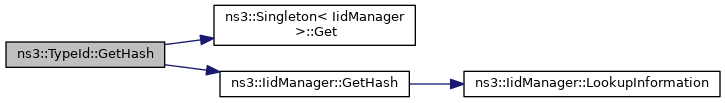

◆ GetHash()

TypeId::hash_t ns3::TypeId::GetHash ( void  ) const

Get the hash.

Returns
The hash of this interface.

Definition at line 985 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), ns3::IidManager::GetHash(), hash, and m_tid.

Referenced by UniqueTypeIdTestCase::DoRun(), LookupTimeTestCase::DoRun(), and ns3::ByteTagList::Serialize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetName()

std::string ns3::TypeId::GetName ( void  ) const

Get the name.

Returns
The name of this interface.

Definition at line 977 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), ns3::IidManager::GetName(), m_tid, and NS_LOG_FUNCTION.

Referenced by ns3::Packet::AddByteTag(), ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::Packet::AddTrailer(), UniformPlanarArrayTestCase::BuildNameString(), ns3::cell_data_function_col_0(), ns3::cell_data_function_col_0_config_default(), ns3::cell_tooltip_callback(), ns3::cell_tooltip_callback_config_default(), ns3::ObjectBase::ConstructSelf(), ns3::TcpL4Protocol::CreateSocket(), PacketTest::DoCheck(), PacketTest::DoCheckData(), StaticInformation::DoGather(), ns3::AttributeIterator::DoIterate(), UniqueTypeIdTestCase::DoRun(), Ipv4FragmentationTest::DoRun(), Ipv6FragmentationTest::DoRun(), LookupTimeTestCase::DoRun(), ns3::ObjectFactory::DoSet(), GetAttributeFullName(), ns3::LteHelper::GetEnbComponentCarrierManagerType(), ns3::LteHelper::GetFfrAlgorithmType(), ns3::LteHelper::GetHandoverAlgorithmType(), ns3::MobilityHelper::GetMobilityModelType(), GetNameMap(), ns3::LteHelper::GetSchedulerType(), ns3::PacketMetadata::GetSerializedSize(), ns3::LteHelper::GetUeComponentCarrierManagerType(), ns3::internal::PointerChecker< T >::GetUnderlyingTypeInformation(), ns3::MobilityHelper::Install(), ns3::AttributeDefaultIterator::Iterate(), ns3::operator<<(), ns3::Packet::PeekHeader(), ns3::Packet::PeekTrailer(), ns3::Packet::Print(), PrintAllAttributes(), PrintAllTraceSources(), PrintAllTypeIds(), ns3::CommandLine::PrintAttributes(), PrintAttributes(), PrintAttributesTid(), ns3::Packet::PrintByteTags(), PrintConfigPaths(), ns3::CommandLine::PrintGroup(), PrintTraceSources(), PrintTypeIdBlocks(), ns3::CommandLine::PrintTypeIds(), ns3::Packet::RemoveHeader(), ns3::Packet::RemovePacketTag(), ns3::Packet::RemoveTrailer(), ns3::Packet::ReplacePacketTag(), ns3::PacketMetadata::Serialize(), ns3::ObjectFactory::SetTypeId(), ns3::AttributeIterator::StartVisitArrayItem(), ns3::AttributeIterator::StartVisitObject(), ns3::AttributeIterator::StartVisitPointerAttribute(), TcpLinuxRenoTestSuite::TcpLinuxRenoTestSuite(), and ns3::AnimationInterface::WriteLinkProperties().

+ Here is the call graph for this function:

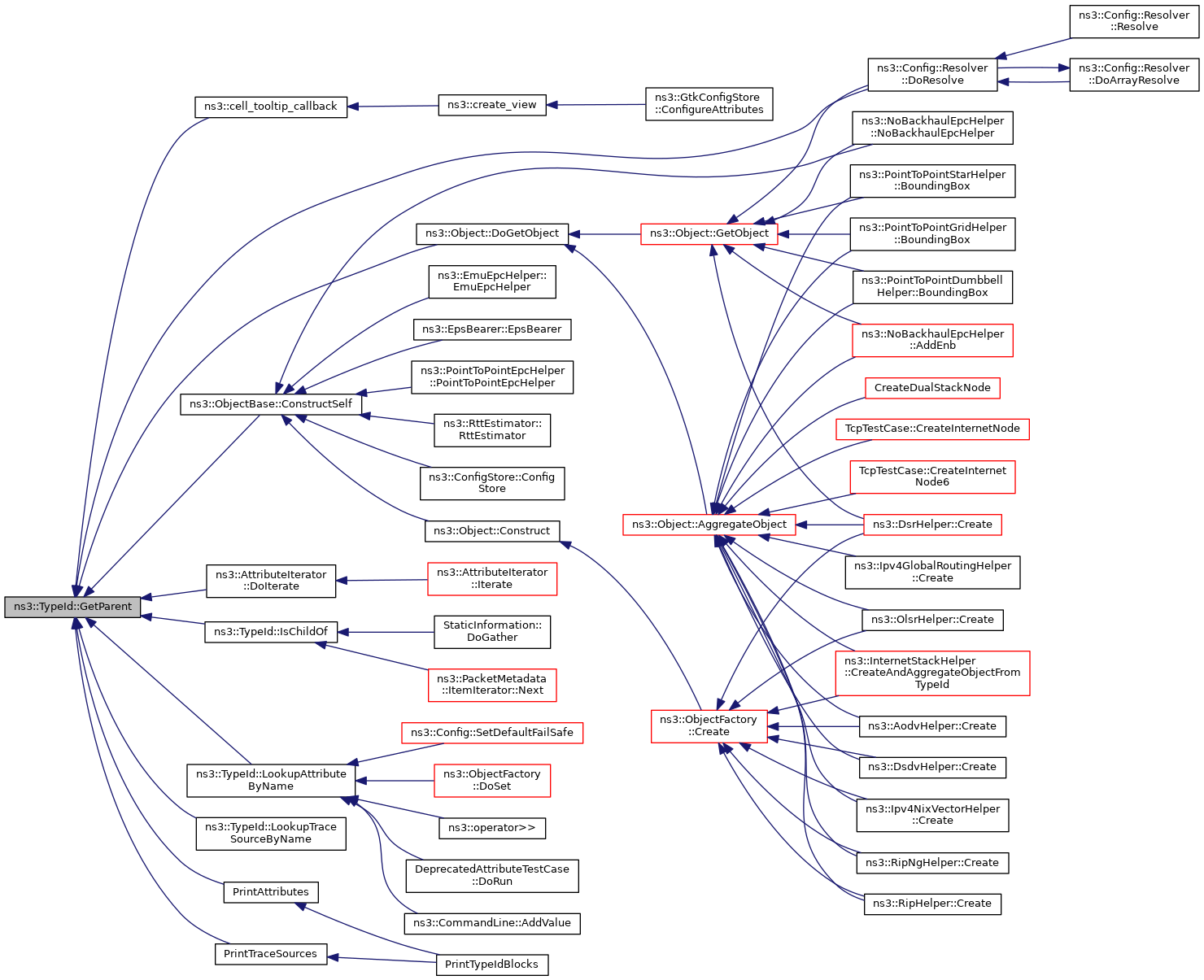

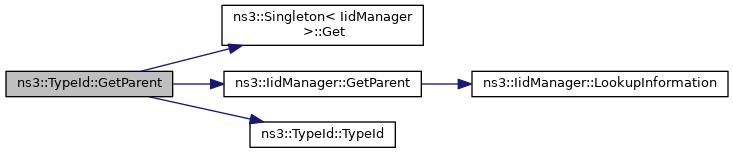

◆ GetParent()

TypeId ns3::TypeId::GetParent ( void  ) const

Get the parent of this TypeId.

Returns
The parent of this TypeId

This method cannot fail. It will return itself if this TypeId has no parent. i.e., it is at the top of the TypeId hierarchy. Currently, this is the case for the TypeId associated to the ns3::ObjectBase class only.

Definition at line 944 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), ns3::IidManager::GetParent(), m_tid, NS_LOG_FUNCTION, and TypeId().

Referenced by ns3::cell_tooltip_callback(), ns3::ObjectBase::ConstructSelf(), ns3::Object::DoGetObject(), ns3::AttributeIterator::DoIterate(), ns3::Config::Resolver::DoResolve(), IsChildOf(), LookupAttributeByName(), LookupTraceSourceByName(), PrintAttributes(), and PrintTraceSources().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetRegistered()

TypeId ns3::TypeId::GetRegistered ( uint16_t  i)
static

Get a TypeId by index.

Parameters
[in]iIndex of the TypeId.
Returns
The TypeId instance whose index is i.

Definition at line 876 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), NS_LOG_FUNCTION, and TypeId().

Referenced by StaticInformation::DoGather(), GetNameMap(), ns3::AttributeDefaultIterator::Iterate(), PrintAllAttributes(), PrintAllTraceSources(), PrintAllTypeIds(), ns3::CommandLine::PrintGroup(), ns3::CommandLine::PrintGroups(), PrintTypeIdBlocks(), ns3::CommandLine::PrintTypeIds(), and ns3::Config::Reset().

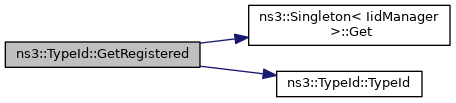

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

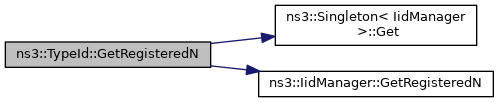

◆ GetRegisteredN()

uint16_t ns3::TypeId::GetRegisteredN ( void  )
static

Get the number of registered TypeIds.

Returns
The number of TypeId instances registered.

Definition at line 870 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), ns3::IidManager::GetRegisteredN(), and NS_LOG_FUNCTION_NOARGS.

Referenced by StaticInformation::DoGather(), GetNameMap(), ns3::AttributeDefaultIterator::Iterate(), ns3::CommandLine::PrintGroup(), ns3::CommandLine::PrintGroups(), ns3::CommandLine::PrintTypeIds(), and ns3::Config::Reset().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetSize()

std::size_t ns3::TypeId::GetSize ( void  ) const

Get the size of this object.

Returns
The size of this interface.

Definition at line 991 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), ns3::IidManager::GetSize(), m_tid, and NS_LOG_FUNCTION.

Referenced by PrintSize().

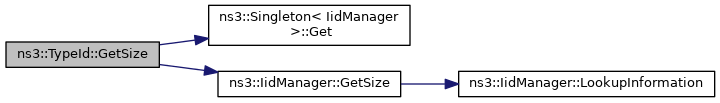

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

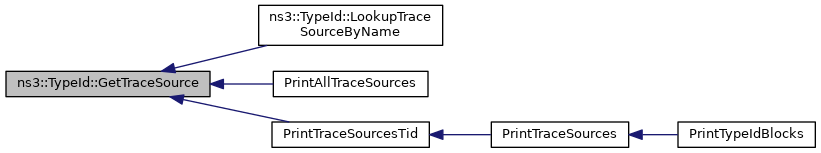

◆ GetTraceSource()

struct TypeId::TraceSourceInformation ns3::TypeId::GetTraceSource ( std::size_t  i) const

Get the trace source by index.

Parameters
[in]iIndex into trace source array.
Returns
Detailed information about the requested trace source.

Definition at line 1104 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), ns3::IidManager::GetTraceSource(), m_tid, and NS_LOG_FUNCTION.

Referenced by LookupTraceSourceByName(), PrintAllTraceSources(), and PrintTraceSourcesTid().

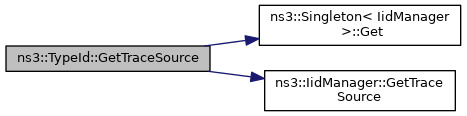

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

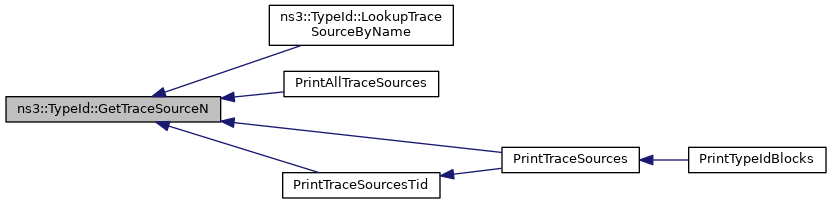

◆ GetTraceSourceN()

std::size_t ns3::TypeId::GetTraceSourceN ( void  ) const

Get the number of Trace sources.

Returns
The number of trace sources defined in this TypeId.

Definition at line 1098 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), ns3::IidManager::GetTraceSourceN(), m_tid, and NS_LOG_FUNCTION.

Referenced by LookupTraceSourceByName(), PrintAllTraceSources(), PrintTraceSources(), and PrintTraceSourcesTid().

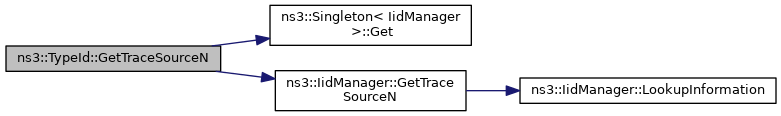

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

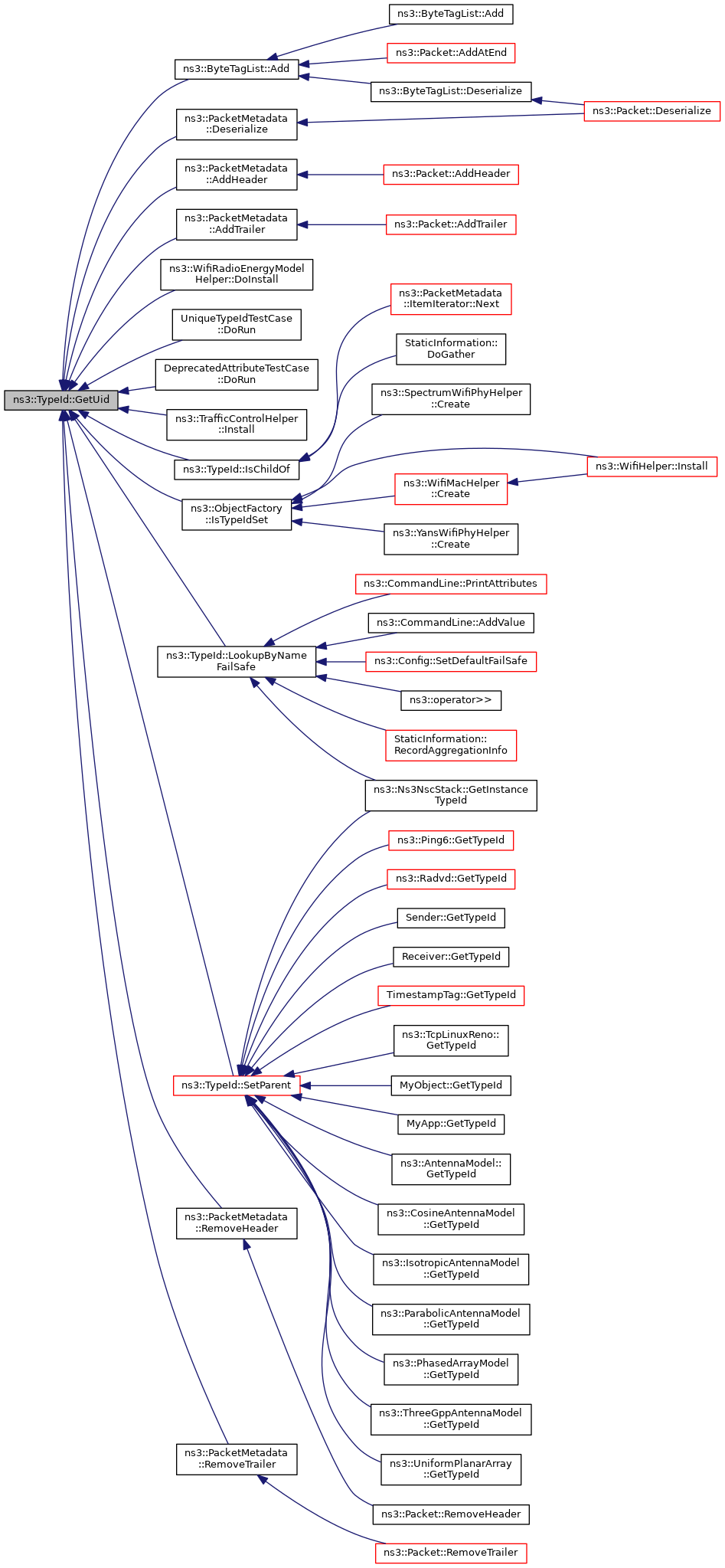

◆ GetUid()

uint16_t ns3::TypeId::GetUid ( void  ) const

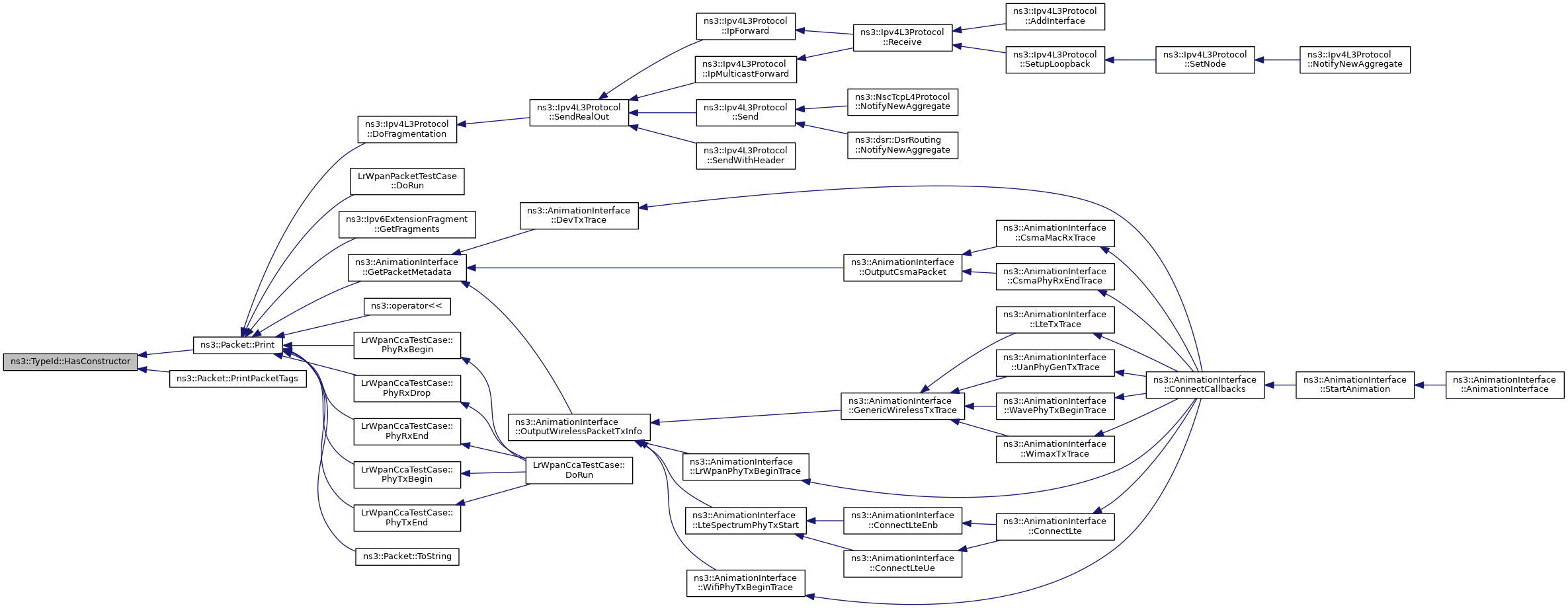

◆ HasConstructor()

bool ns3::TypeId::HasConstructor ( void  ) const

Check if this TypeId has a constructor.

Returns
true if this TypeId has a constructor

Definition at line 999 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), ns3::IidManager::HasConstructor(), m_tid, and NS_LOG_FUNCTION.

Referenced by ns3::Packet::Print(), and ns3::Packet::PrintPacketTags().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

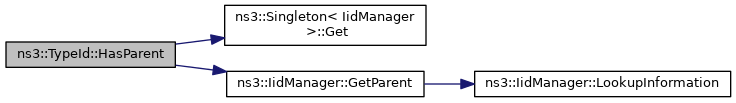

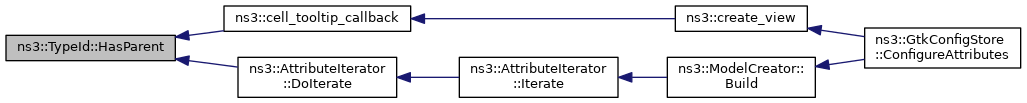

◆ HasParent()

bool ns3::TypeId::HasParent ( void  ) const

Check if this TypeId has a parent.

Returns
true if this TypeId has a parent.

Definition at line 951 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), ns3::IidManager::GetParent(), m_tid, and NS_LOG_FUNCTION.

Referenced by ns3::cell_tooltip_callback(), and ns3::AttributeIterator::DoIterate().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

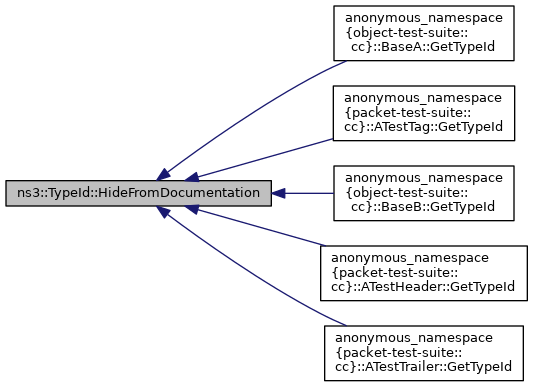

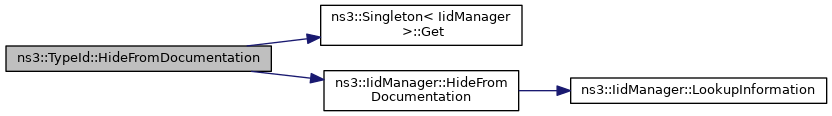

◆ HideFromDocumentation()

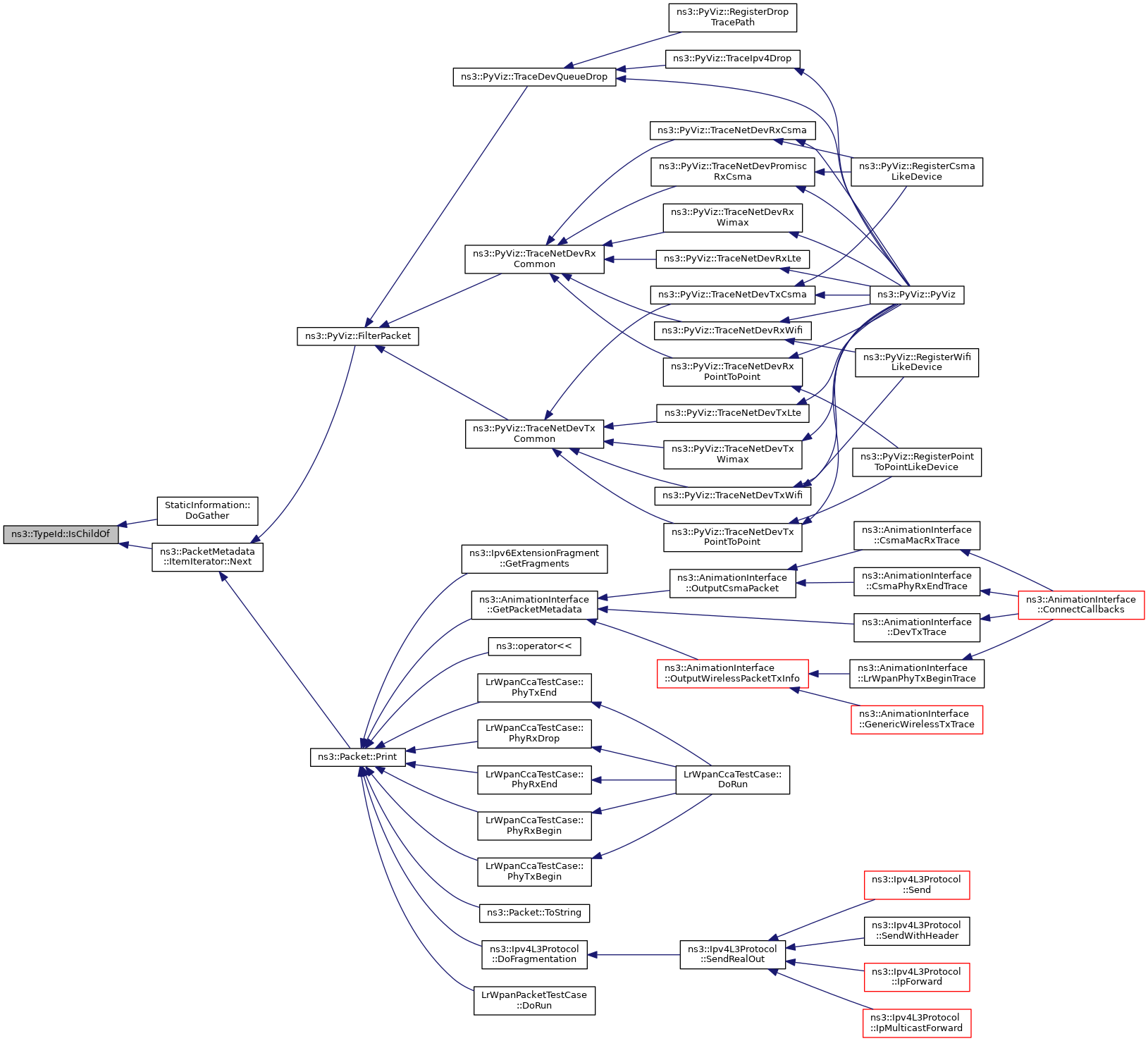

◆ IsChildOf()

bool ns3::TypeId::IsChildOf ( TypeId  other) const

Check if this TypeId is a child of another.

Parameters
[in]otherA parent TypeId
Returns
true if the input TypeId is really a parent of this TypeId.

Calling this method is roughly similar to calling dynamic_cast except that you do not need object instances: you can do the check with TypeId instances instead.

Definition at line 958 of file type-id.cc.

References GetParent(), GetUid(), and NS_LOG_FUNCTION.

Referenced by StaticInformation::DoGather(), and ns3::PacketMetadata::ItemIterator::Next().

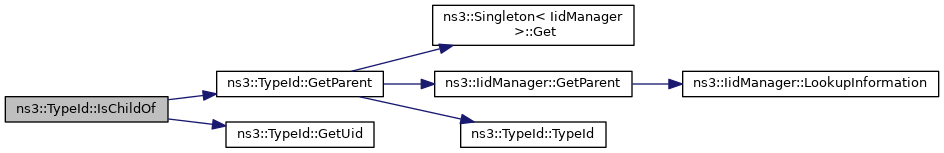

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ LookupAttributeByName()

bool ns3::TypeId::LookupAttributeByName ( std::string  name,
struct AttributeInformation info
) const

Find an Attribute by name, retrieving the associated AttributeInformation.

Parameters
[in]nameThe name of the requested attribute
[in,out]infoA pointer to the TypeId::AttributeInformation data structure where the result value of this method will be stored.
Returns
true if the requested attribute could be found.

Definition at line 883 of file type-id.cc.

References DEPRECATED, GetAttribute(), GetAttributeN(), GetParent(), ns3::TypeId::AttributeInformation::name, NS_FATAL_ERROR, NS_LOG_FUNCTION, OBSOLETE, SUPPORTED, ns3::TypeId::AttributeInformation::supportLevel, and ns3::TypeId::AttributeInformation::supportMsg.

Referenced by ns3::CommandLine::AddValue(), DeprecatedAttributeTestCase::DoRun(), ns3::ObjectFactory::DoSet(), ns3::operator>>(), and ns3::Config::SetDefaultFailSafe().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

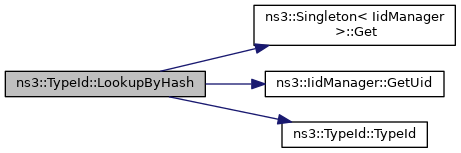

◆ LookupByHash()

TypeId ns3::TypeId::LookupByHash ( hash_t  hash)
static

Get a TypeId by hash.

Parameters
[in]hashThe hash to lookup
Returns
The unique id associated with the requested hash.

This method cannot fail: it will crash if the input hash does not match an existing TypeId.

Definition at line 850 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), ns3::IidManager::GetUid(), hash, NS_ASSERT_MSG, and TypeId().

Referenced by ns3::PacketTagList::Deserialize(), and ns3::ByteTagList::Deserialize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

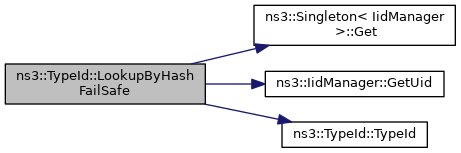

◆ LookupByHashFailSafe()

bool ns3::TypeId::LookupByHashFailSafe ( hash_t  hash,
TypeId tid
)
static

Get a TypeId by hash.

Parameters
[in]hashThe hash of the requested TypeId
[out]tidA pointer to the TypeId instance where the result of this function should be stored.
Returns
true if the requested hash was found.

Definition at line 858 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), ns3::IidManager::GetUid(), hash, and TypeId().

+ Here is the call graph for this function:

◆ LookupByName()

TypeId ns3::TypeId::LookupByName ( std::string  name)
static

Get a TypeId by name.

Parameters
[in]nameThe name of the requested TypeId
Returns
The unique id associated with the requested name.

This method cannot fail: it will crash if the input name is not a valid TypeId name.

Definition at line 830 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), ns3::IidManager::GetUid(), NS_ASSERT_MSG, NS_LOG_FUNCTION, and TypeId().

Referenced by ns3::NoBackhaulEpcHelper::AddEnb(), ns3::NoBackhaulEpcHelper::AddS1Interface(), ns3::EpcX2::AddX2Interface(), ns3::olsr::Bug780Test::CreateNodes(), ns3::PacketMetadata::Deserialize(), ns3::Rip::DoInitialize(), ns3::RipNg::DoInitialize(), ns3::Config::Resolver::DoResolve(), ns3::NoBackhaulEpcHelper::NoBackhaulEpcHelper(), ns3::Rip::NotifyInterfaceUp(), ns3::RipNg::NotifyInterfaceUp(), ns3::PyViz::RegisterCsmaLikeDevice(), ns3::PyViz::RegisterPointToPointLikeDevice(), ns3::PyViz::RegisterWifiLikeDevice(), ns3::ObjectFactory::SetTypeId(), UanExperiment::SetupApplications(), SetupPacketReceive(), ns3::UdpEchoServer::StartApplication(), ns3::V4TraceRoute::StartApplication(), ns3::PacketSocketServer::StartApplication(), ns3::V4Ping::StartApplication(), ns3::UdpClient::StartApplication(), ns3::PacketSocketClient::StartApplication(), ns3::UdpServer::StartApplication(), ns3::Ping6::StartApplication(), ns3::DhcpServer::StartApplication(), ns3::BsmApplication::StartApplication(), ns3::DhcpClient::StartApplication(), ns3::Radvd::StartApplication(), ns3::UdpTraceClient::StartApplication(), ns3::UdpEchoClient::StartApplication(), ns3::ModelTypeidCreator::StartVisitTypeId(), and Tunnel::Tunnel().

+ Here is the call graph for this function:

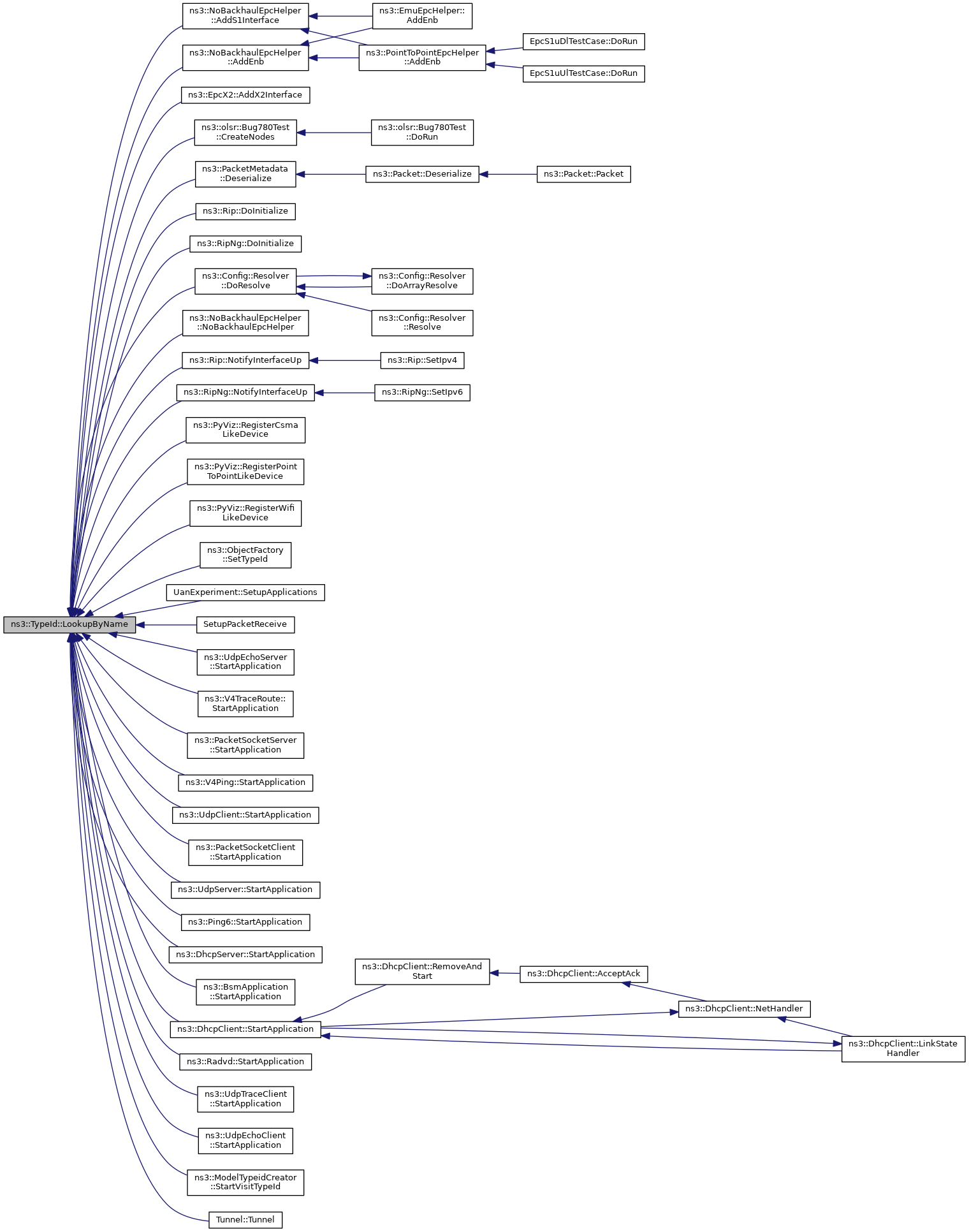

+ Here is the caller graph for this function:

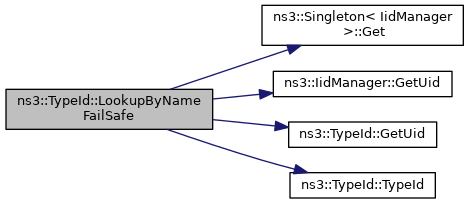

◆ LookupByNameFailSafe()

bool ns3::TypeId::LookupByNameFailSafe ( std::string  name,
TypeId tid
)
static

Get a TypeId by name.

Parameters
[in]nameThe name of the requested TypeId
[out]tidA pointer to the TypeId instance where the result of this function should be stored.
Returns
true if the requested name was found.

Definition at line 838 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), ns3::IidManager::GetUid(), GetUid(), NS_LOG_FUNCTION, and TypeId().

Referenced by ns3::CommandLine::AddValue(), ns3::Ns3NscStack::GetInstanceTypeId(), ns3::operator>>(), ns3::CommandLine::PrintAttributes(), StaticInformation::RecordAggregationInfo(), and ns3::Config::SetDefaultFailSafe().

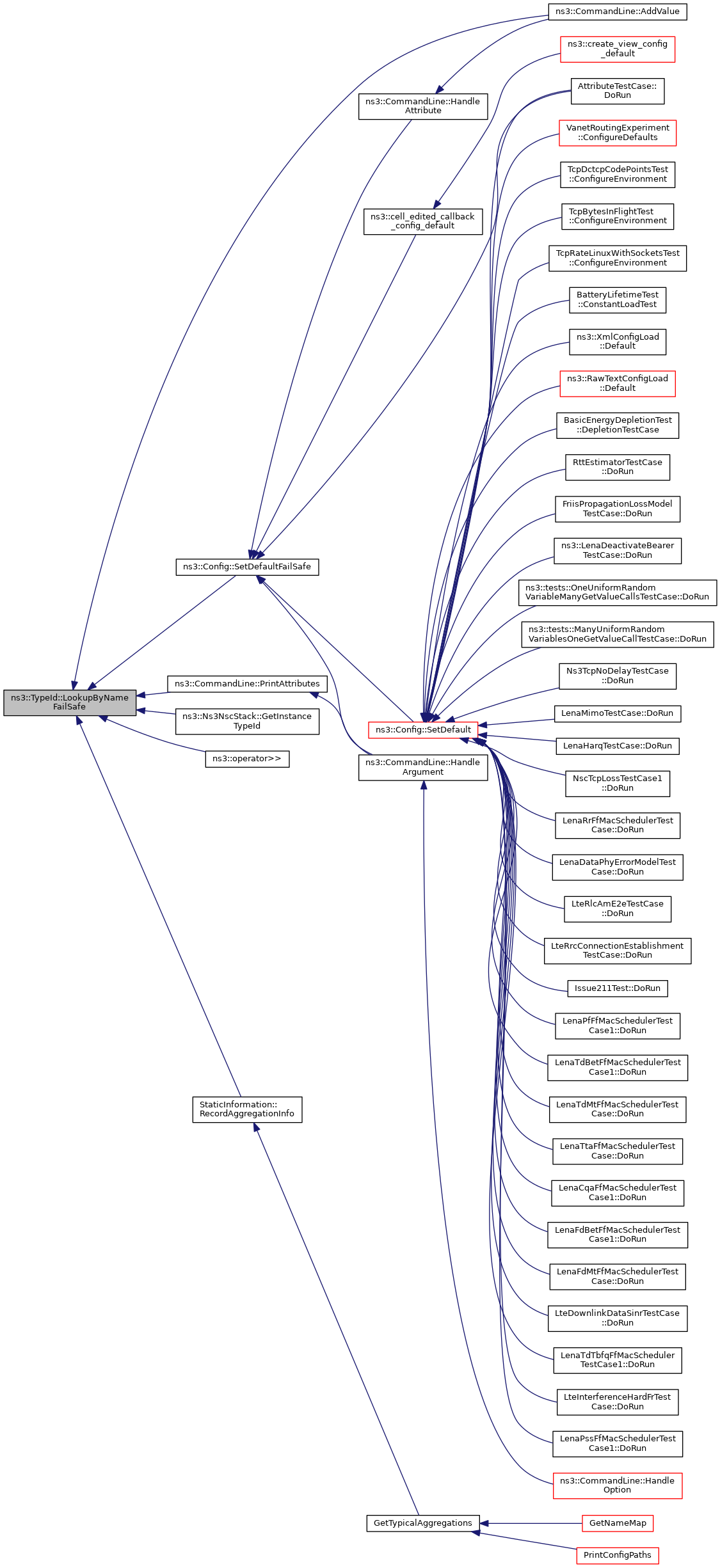

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

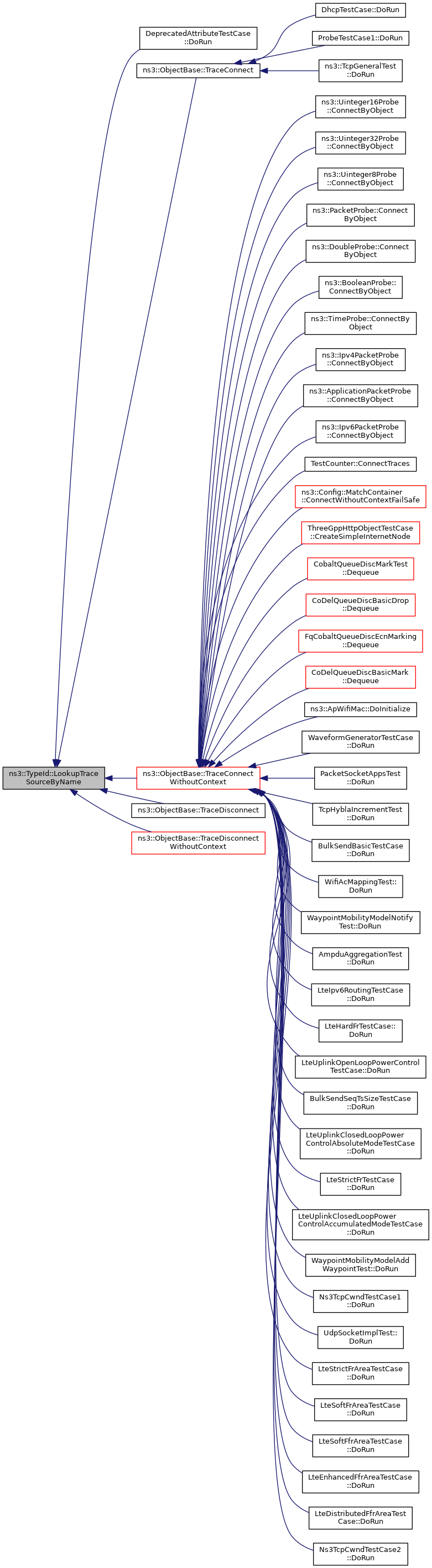

◆ LookupTraceSourceByName() [1/2]

Ptr< const TraceSourceAccessor > ns3::TypeId::LookupTraceSourceByName ( std::string  name) const

Find a TraceSource by name.

If no matching trace source is found, this method returns zero.

Parameters
[in]nameThe name of the requested trace source
Returns
The trace source accessor which can be used to connect and disconnect trace sinks with the requested trace source on an object instance.

Definition at line 1178 of file type-id.cc.

Referenced by DeprecatedAttributeTestCase::DoRun(), ns3::ObjectBase::TraceConnect(), ns3::ObjectBase::TraceConnectWithoutContext(), ns3::ObjectBase::TraceDisconnect(), and ns3::ObjectBase::TraceDisconnectWithoutContext().

+ Here is the caller graph for this function:

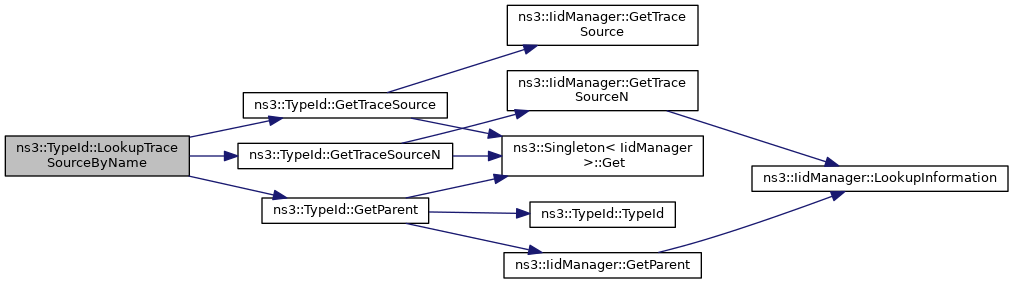

◆ LookupTraceSourceByName() [2/2]

Ptr< const TraceSourceAccessor > ns3::TypeId::LookupTraceSourceByName ( std::string  name,
struct TraceSourceInformation info
) const

Find a TraceSource by name, retrieving the associated TraceSourceInformation.

Parameters
[in]nameThe name of the requested trace source.
[out]infoA pointer to the TypeId::TraceSourceInformation data structure where the result value of this method will be stored.
Returns
The trace source accessor which can be used to connect and disconnect trace sinks with the requested trace source on an object instance.

Definition at line 1136 of file type-id.cc.

References ns3::TypeId::TraceSourceInformation::accessor, DEPRECATED, GetParent(), GetTraceSource(), GetTraceSourceN(), ns3::TypeId::TraceSourceInformation::name, NS_FATAL_ERROR, NS_LOG_FUNCTION, OBSOLETE, SUPPORTED, ns3::TypeId::TraceSourceInformation::supportLevel, and ns3::TypeId::TraceSourceInformation::supportMsg.

+ Here is the call graph for this function:

◆ MustHideFromDocumentation()

bool ns3::TypeId::MustHideFromDocumentation ( void  ) const

Check if this TypeId should not be listed in documentation.

Returns
true if this TypeId should be hidden from the user.

Definition at line 1069 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), m_tid, ns3::IidManager::MustHideFromDocumentation(), and NS_LOG_FUNCTION.

Referenced by GetNameMap(), and ns3::AttributeDefaultIterator::Iterate().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ operator=()

TypeId & ns3::TypeId::operator= ( const TypeId o)
inline

Assignment.

Parameters
[in]oThe other TypeId.
Returns
The copied TypeId.

Definition at line 607 of file type-id.h.

◆ SetAttributeInitialValue()

bool ns3::TypeId::SetAttributeInitialValue ( std::size_t  i,
Ptr< const AttributeValue initialValue
)

Set the initial value of an Attribute.

Parameters
[in]iThe attribute to manipulate
[in]initialValueThe new initial value to use for this attribute.
Returns
true if the call was successfully.

Definition at line 1051 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), m_tid, NS_LOG_FUNCTION, and ns3::IidManager::SetAttributeInitialValue().

Referenced by ns3::Config::Reset(), and ns3::Config::SetDefaultFailSafe().

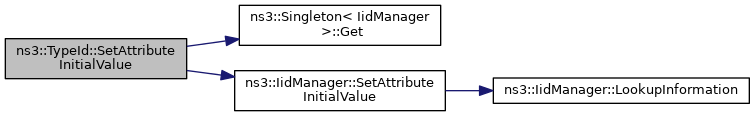

+ Here is the call graph for this function:

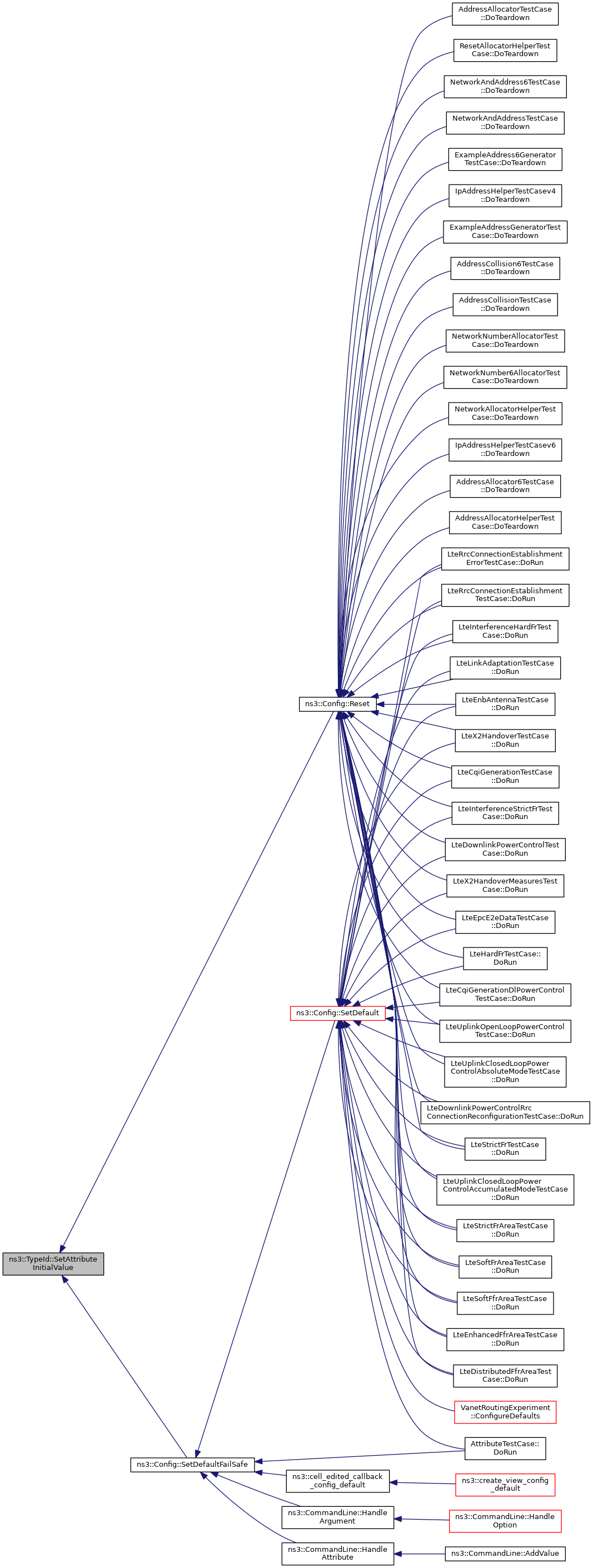

+ Here is the caller graph for this function:

◆ SetGroupName()

TypeId ns3::TypeId::SetGroupName ( std::string  groupName)

Set the group name.

Parameters
[in]groupNameThe name of the group this TypeId belongs to.
Returns
This TypeId instance.

The group name is purely an advisory information used to group together types according to a user-specific grouping scheme.

Definition at line 930 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), m_tid, NS_LOG_FUNCTION, and ns3::IidManager::SetGroupName().

Referenced by ns3::ObjectBase::GetObjectIid(), anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::GetTypeId(), anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >::GetTypeId(), and anonymous_namespace{packet-test-suite.cc}::ATestTrailer< N >::GetTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetParent() [1/2]

TypeId ns3::TypeId::SetParent ( TypeId  tid)

Set the parent TypeId.

Parameters
[in]tidThe TypeId of the base class.
Returns
This TypeId instance.

Record in this TypeId which TypeId is the TypeId of the base class of the subclass.

Definition at line 923 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), GetUid(), m_tid, NS_LOG_FUNCTION, and ns3::IidManager::SetParent().

Referenced by ns3::Ns3NscStack::GetInstanceTypeId(), ns3::ObjectBase::GetObjectIid(), SampleEmitter::GetTypeId(), ConfigExample::GetTypeId(), MyObject::GetTypeId(), ns3::Ipv4RawSocketImpl::GetTypeId(), ns3::FlowIdTag::GetTypeId(), MyHeader::GetTypeId(), ns3::LrWpanLqiTag::GetTypeId(), ns3::SocketWriter::GetTypeId(), ns3::ThreeGppPropagationLossModel::GetTypeId(), ns3::LtePhyTag::GetTypeId(), ns3::ConstantAccelerationMobilityModel::GetTypeId(), ns3::TcpLinuxReno::GetTypeId(), MyTag::GetTypeId(), ns3::DefaultChannelScheduler::GetTypeId(), ns3::ConstantPositionMobilityModel::GetTypeId(), ns3::DropTailQueue< Item >::GetTypeId(), ns3::ThreeGppV2vUrbanPropagationLossModel::GetTypeId(), ns3::BasicEnergySource::GetTypeId(), ns3::FifoQueueDisc::GetTypeId(), ns3::PacketFilter::GetTypeId(), ns3::UanNoiseModel::GetTypeId(), ns3::PreambleDetectionModel::GetTypeId(), ns3::MeshStack::GetTypeId(), ns3::Dot11sStack::GetTypeId(), Sender::GetTypeId(), ns3::SimpleDeviceEnergyModel::GetTypeId(), ns3::IsotropicAntennaModel::GetTypeId(), ns3::ErrorRateModel::GetTypeId(), ns3::BuildingListPriv::GetTypeId(), ns3::LteRadioBearerTag::GetTypeId(), ns3::SnrTag::GetTypeId(), ns3::ThresholdPreambleDetectionModel::GetTypeId(), ns3::VhtFrameExchangeManager::GetTypeId(), ns3::WifiTxCurrentModel::GetTypeId(), ns3::ItuR1238PropagationLossModel::GetTypeId(), ns3::MeshInformationElementVector::GetTypeId(), ns3::Chunk::GetTypeId(), ns3::PacketBurst::GetTypeId(), ns3::PacketSocketFactory::GetTypeId(), ns3::LrWpanErrorModel::GetTypeId(), ns3::MqQueueDisc::GetTypeId(), ns3::AdhocWifiMac::GetTypeId(), ns3::AmpduSubframeHeader::GetTypeId(), ns3::MuSnrTag::GetTypeId(), ns3::ConstantRateWifiManager::GetTypeId(), ns3::FlameStack::GetTypeId(), ns3::Building::GetTypeId(), ns3::ConstantVelocityMobilityModel::GetTypeId(), ns3::PositionAllocator::GetTypeId(), ns3::ThreeGppAntennaModel::GetTypeId(), ns3::DelayJitterEstimationTimestampTag::GetTypeId(), ns3::TcpOptionEnd::GetTypeId(), ns3::JakesPropagationLossModel::GetTypeId(), TcpSocketHalfAck::GetTypeId(), ns3::AlohaNoackMacHeader::GetTypeId(), ns3::ConstantSpectrumPropagationLossModel::GetTypeId(), ns3::EpcX2Header::GetTypeId(), ns3::EpsBearerTag::GetTypeId(), ns3::AmpduTag::GetTypeId(), ns3::AmsduSubframeHeader::GetTypeId(), ns3::FrameCaptureModel::GetTypeId(), ns3::QosFrameExchangeManager::GetTypeId(), ns3::RlcTag::GetTypeId(), ns3::WifiPhyTag::GetTypeId(), ns3::OhBuildingsPropagationLossModel::GetTypeId(), ns3::ChannelListPriv::GetTypeId(), ns3::TcpLp::GetTypeId(), ns3::Tag::GetTypeId(), TcpSocketAdvertisedWindowProxy::GetTypeId(), ns3::PropagationDelayModel::GetTypeId(), ns3::DataCollectionObject::GetTypeId(), ns3::FqCoDelFlow::GetTypeId(), ns3::Ipv4PacketFilter::GetTypeId(), ns3::PdcpTag::GetTypeId(), ns3::NistErrorRateModel::GetTypeId(), ns3::LteRlcUm::GetTypeId(), ns3::SimpleFrameCaptureModel::GetTypeId(), ns3::SeqTsEchoHeader::GetTypeId(), ns3::WifiDefaultAckManager::GetTypeId(), ns3::BurstProfileManager::GetTypeId(), ns3::IpcsClassifier::GetTypeId(), ns3::SSManager::GetTypeId(), ns3::Ipv6PacketFilter::GetTypeId(), ns3::SeqTsSizeHeader::GetTypeId(), ns3::RadiotapHeader::GetTypeId(), ns3::TcpGeneralErrorModel::GetTypeId(), Emitter::GetTypeId(), ns3::LteFfrDistributedAlgorithm::GetTypeId(), ns3::HeConfiguration::GetTypeId(), ns3::Ipv4RawSocketFactory::GetTypeId(), ns3::LteRlcAm::GetTypeId(), ns3::TableBasedErrorRateModel::GetTypeId(), ns3::BSLinkManager::GetTypeId(), ns3::WimaxMacQueue::GetTypeId(), ns3::TcpDctcp::GetTypeId(), ns3::NodeListPriv::GetTypeId(), ns3::TcpOptionTS::GetTypeId(), ns3::PacketCounterCalculator::GetTypeId(), ns3::PcapFileWrapper::GetTypeId(), ns3::UdpEchoClient::GetTypeId(), ns3::LteHexGridEnbTopologyHelper::GetTypeId(), ns3::ComponentCarrier::GetTypeId(), ns3::Probe::GetTypeId(), ns3::Asn1Header::GetTypeId(), ns3::RandomBuildingPositionAllocator::GetTypeId(), ns3::HtConfiguration::GetTypeId(), ns3::Ipv6ExtensionDemux::GetTypeId(), ns3::ThompsonSamplingWifiManager::GetTypeId(), ns3::VhtConfiguration::GetTypeId(), ns3::WifiDefaultProtectionManager::GetTypeId(), ns3::Ipv6OptionDemux::GetTypeId(), ns3::dot11s::MeshHeader::GetTypeId(), ns3::RipRte::GetTypeId(), ns3::MobilityModel::GetTypeId(), ns3::ErrorChannel::GetTypeId(), ns3::TcpOption::GetTypeId(), ns3::SimpleTag::GetTypeId(), ns3::ProbabilisticV2vUrbanChannelConditionModel::GetTypeId(), ns3::SpectrumErrorModel::GetTypeId(), ns3::ComponentCarrierUe::GetTypeId(), ns3::GtpcHeader::GetTypeId(), ns3::UanPropModelIdeal::GetTypeId(), ns3::UanPropModelThorp::GetTypeId(), ns3::BsmApplication::GetTypeId(), ns3::BuildingsChannelConditionModel::GetTypeId(), ns3::WimaxChannel::GetTypeId(), ns3::RipNgRte::GetTypeId(), ns3::Trailer::GetTypeId(), ns3::UdpSocketFactory::GetTypeId(), ns3::V4Ping::GetTypeId(), ns3::BeaconPayloadHeader::GetTypeId(), ns3::DataOutputInterface::GetTypeId(), ns3::OmnetDataOutput::GetTypeId(), ns3::GtpuHeader::GetTypeId(), ns3::UanTransducerHd::GetTypeId(), ns3::LteAmc::GetTypeId(), ns3::LteRlcTm::GetTypeId(), ns3::WifiMacTrailer::GetTypeId(), ns3::WifiSpectrumPhyInterface::GetTypeId(), ns3::WifiProtectionManager::GetTypeId(), PairObject::GetTypeId(), ns3::SSLinkManager::GetTypeId(), ns3::LteSimpleNetDevice::GetTypeId(), ns3::flame::FlameHeader::GetTypeId(), anonymous_namespace{packet-metadata-test.cc}::HistoryHeaderBase::GetTypeId(), ns3::TcpSocketState::GetTypeId(), ns3::QueueLimits::GetTypeId(), ns3::PointToPointRemoteChannel::GetTypeId(), ns3::Kun2600MhzPropagationLossModel::GetTypeId(), ns3::BridgeChannel::GetTypeId(), ns3::MinMaxAvgTotalCalculator< uint64_t >::GetTypeId(), ns3::RrMultiUserScheduler::GetTypeId(), ns3::LteRadioBearerInfo::GetTypeId(), ns3::AarfWifiManager::GetTypeId(), ns3::WifiAckManager::GetTypeId(), ns3::WifiInformationElementVector::GetTypeId(), ns3::Ipv6ListRouting::GetTypeId(), ns3::SSScheduler::GetTypeId(), ns3::WimaxConnection::GetTypeId(), ns3::dot11s::AirtimeLinkMetricCalculator::GetTypeId(), ns3::LoopbackNetDevice::GetTypeId(), ns3::RttEstimator::GetTypeId(), ns3::Header::GetTypeId(), ns3::TcpOptionSackPermitted::GetTypeId(), ns3::TcpPrrRecovery::GetTypeId(), ns3::TcpRateOps::GetTypeId(), ns3::UdpClient::GetTypeId(), ns3::SingleModelSpectrumChannel::GetTypeId(), ns3::Uinteger16Probe::GetTypeId(), ns3::Uinteger32Probe::GetTypeId(), ns3::Uinteger8Probe::GetTypeId(), ns3::FqPieFlow::GetTypeId(), ns3::LteFrHardAlgorithm::GetTypeId(), ns3::LtePdcp::GetTypeId(), ns3::ParfWifiManager::GetTypeId(), ns3::tests::TestObject::GetTypeId(), ns3::ParabolicAntennaModel::GetTypeId(), ns3::Ping6::GetTypeId(), ns3::Channel::GetTypeId(), ns3::EnergySourceContainer::GetTypeId(), ns3::ItuR1411LosPropagationLossModel::GetTypeId(), ns3::ItuR1411NlosOverRooftopPropagationLossModel::GetTypeId(), ns3::NetDeviceQueueLock::GetTypeId(), ns3::DhcpServer::GetTypeId(), ns3::LrWpanMacTrailer::GetTypeId(), ns3::SqliteDataOutput::GetTypeId(), ns3::TimeMinMaxAvgTotalCalculator::GetTypeId(), ns3::UdpEchoServer::GetTypeId(), ns3::FqCobaltFlow::GetTypeId(), ns3::GridBuildingAllocator::GetTypeId(), ns3::VisualSimulatorImpl::GetTypeId(), ns3::Ipv4ListRouting::GetTypeId(), ns3::ConstantObssPdAlgorithm::GetTypeId(), ns3::LteFfrSoftAlgorithm::GetTypeId(), ns3::LteFrSoftAlgorithm::GetTypeId(), ns3::LteFrStrictAlgorithm::GetTypeId(), ns3::AarfcdWifiManager::GetTypeId(), ns3::AmrrWifiManager::GetTypeId(), ns3::CaraWifiManager::GetTypeId(), ns3::ConnectionManager::GetTypeId(), ns3::WimaxMacToMacHeader::GetTypeId(), ns3::PhasedArrayModel::GetTypeId(), ns3::MeshL2RoutingProtocol::GetTypeId(), ns3::RandomDirection2dMobilityModel::GetTypeId(), ns3::EnergyHarvesterContainer::GetTypeId(), ns3::BasicEnergyHarvester::GetTypeId(), ns3::OkumuraHataPropagationLossModel::GetTypeId(), ns3::Icmpv4L4Protocol::GetTypeId(), ns3::ObssPdAlgorithm::GetTypeId(), ns3::LteInterference::GetTypeId(), ns3::AparfWifiManager::GetTypeId(), ns3::YansWifiChannel::GetTypeId(), ns3::SimpleUeComponentCarrierManager::GetTypeId(), ns3::dot11s::PeerLink::GetTypeId(), ns3::DeviceEnergyModel::GetTypeId(), ns3::PacketSocketServer::GetTypeId(), ns3::SimpleChannel::GetTypeId(), ns3::RvBatteryModel::GetTypeId(), ns3::DhcpClient::GetTypeId(), Ipv4TestPacketFilter::GetTypeId(), ns3::AntennaModel::GetTypeId(), ns3::UanPhyCalcSinrDual::GetTypeId(), ns3::LteFfrEnhancedAlgorithm::GetTypeId(), ns3::CosineAntennaModel::GetTypeId(), ns3::IdealWifiManager::GetTypeId(), ns3::OnoeWifiManager::GetTypeId(), anonymous_namespace{object-test-suite.cc}::BaseA::GetTypeId(), ns3::NoOpHandoverAlgorithm::GetTypeId(), ns3::Ipv6Option::GetTypeId(), ns3::RandomWalk2dMobilityModel::GetTypeId(), ns3::TcpBbr::GetTypeId(), ns3::TcpHybla::GetTypeId(), ns3::PacketProbe::GetTypeId(), ns3::EnergyHarvester::GetTypeId(), ns3::Radvd::GetTypeId(), ns3::Ipv4FlowProbe::GetTypeId(), ns3::MockNetDevice::GetTypeId(), ns3::SpectrumPropagationLossModel::GetTypeId(), ns3::TraceFadingLossModel::GetTypeId(), ns3::BooleanProbe::GetTypeId(), ns3::DoubleProbe::GetTypeId(), ns3::GnuplotAggregator::GetTypeId(), ns3::UanMacAloha::GetTypeId(), ns3::HigherLayerTxVectorTag::GetTypeId(), ns3::WaveFrameExchangeManager::GetTypeId(), AttributeContainerObject::GetTypeId(), ns3::MsduAggregator::GetTypeId(), ns3::YansWifiPhy::GetTypeId(), ns3::NscTcpL4Protocol::GetTypeId(), ns3::MpiReceiver::GetTypeId(), ns3::DefaultSimulatorImpl::GetTypeId(), ns3::UniformPlanarArray::GetTypeId(), ns3::TcpSocketFactory::GetTypeId(), ns3::TcpSocket::GetTypeId(), ns3::DpdkNetDevice::GetTypeId(), ns3::UdpSocket::GetTypeId(), ns3::Ipv4FlowProbeTag::GetTypeId(), ns3::Ipv6FlowProbe::GetTypeId(), ns3::UdpServer::GetTypeId(), ns3::LteStatsCalculator::GetTypeId(), ns3::FileAggregator::GetTypeId(), ns3::TimeProbe::GetTypeId(), ns3::TimeSeriesAdaptor::GetTypeId(), ns3::ComponentCarrierEnb::GetTypeId(), Ipv4FqCobaltTestPacketFilter::GetTypeId(), ns3::RocketfuelTopologyReader::GetTypeId(), ns3::PfifoFastQueueDisc::GetTypeId(), ns3::PrioQueueDisc::GetTypeId(), ns3::QueueDiscClass::GetTypeId(), ns3::ArfWifiManager::GetTypeId(), ns3::ApWifiMac::GetTypeId(), ns3::LteNetDevice::GetTypeId(), anonymous_namespace{test-string-value-formatting.cc}::FormattingTestObject::GetTypeId(), ns3::SocketFactory::GetTypeId(), ns3::Ipv6FlowProbeTag::GetTypeId(), ns3::Ipv4PacketProbe::GetTypeId(), ns3::FriisSpectrumPropagationLossModel::GetTypeId(), ns3::SpectrumPhy::GetTypeId(), ns3::SpectrumInterference::GetTypeId(), ns3::PointToPointEpcHelper::GetTypeId(), ns3::OrbisTopologyReader::GetTypeId(), ns3::EpcMmeApplication::GetTypeId(), ns3::TbfQueueDisc::GetTypeId(), ns3::EpcUeNas::GetTypeId(), ns3::EpcSgwApplication::GetTypeId(), ns3::UanPhyPerGenDefault::GetTypeId(), ns3::LteFrNoOpAlgorithm::GetTypeId(), ns3::SimulatorImpl::GetTypeId(), ns3::OcbWifiMac::GetTypeId(), ns3::MpduAggregator::GetTypeId(), ns3::LteRlcSduStatusTag::GetTypeId(), ns3::WifiPhy::GetTypeId(), ns3::ServiceFlowManager::GetTypeId(), ns3::MobilityBuildingInfo::GetTypeId(), ns3::Ipv6PmtuCache::GetTypeId(), ns3::UplinkSchedulerSimple::GetTypeId(), ns3::MeshPointDevice::GetTypeId(), ns3::TcpHighSpeed::GetTypeId(), ns3::TcpHtcp::GetTypeId(), anonymous_namespace{sequence-number-test-suite.cc}::SequenceNumberTestObj::GetTypeId(), ns3::TcpOptionSack::GetTypeId(), ns3::MultiUserScheduler::GetTypeId(), ns3::PropagationLossModel::GetTypeId(), ns3::LrWpanNetDevice::GetTypeId(), ns3::V4TraceRoute::GetTypeId(), ns3::CtrlBAckRequestHeader::GetTypeId(), ns3::RegularWifiMac::GetTypeId(), ns3::Ipv6PacketInfoTag::GetTypeId(), ns3::Ipv6PacketProbe::GetTypeId(), BenchHeader< N >::GetTypeId(), ns3::MeshWifiInterfaceMac::GetTypeId(), ns3::ThreeGppV2vUrbanChannelConditionModel::GetTypeId(), anonymous_namespace{packet-test-suite.cc}::ATestTagBase::GetTypeId(), ns3::LteTestRrc::GetTypeId(), ns3::TcpOptionWinScale::GetTypeId(), ns3::PointToPointChannel::GetTypeId(), ns3::Cost231PropagationLossModel::GetTypeId(), ns3::Synchronizer::GetTypeId(), ns3::DataCollector::GetTypeId(), ns3::HeFrameExchangeManager::GetTypeId(), ns3::UanMac::GetTypeId(), ns3::UanMacCw::GetTypeId(), ns3::UanNoiseModelDefault::GetTypeId(), ns3::FrameExchangeManager::GetTypeId(), ns3::HtFrameExchangeManager::GetTypeId(), ns3::ApplicationPacketProbe::GetTypeId(), ns3::LteUeMac::GetTypeId(), ns3::Ipv6Interface::GetTypeId(), ns3::LteSimpleHelper::GetTypeId(), ns3::LteSimpleSpectrumPhy::GetTypeId(), ns3::dot11s::PeerManagementProtocol::GetTypeId(), ns3::NdiscCache::GetTypeId(), ns3::TcpCongestionOps::GetTypeId(), ns3::NullMessageMpiInterface::GetTypeId(), ns3::NullMessageSimulatorImpl::GetTypeId(), ns3::RemoteChannelBundle::GetTypeId(), ns3::UplinkScheduler::GetTypeId(), ns3::PacketSocketClient::GetTypeId(), ns3::QueueBase::GetTypeId(), ns3::FlowProbe::GetTypeId(), ns3::TcpSocketMsgBase::GetTypeId(), ns3::SpectrumAnalyzer::GetTypeId(), ns3::EmuEpcHelper::GetTypeId(), ns3::RadioEnvironmentMapHelper::GetTypeId(), ns3::InetTopologyReader::GetTypeId(), ns3::PieQueueDisc::GetTypeId(), ns3::EpcPgwApplication::GetTypeId(), ns3::UanNetDevice::GetTypeId(), ns3::Icmpv6L4Protocol::GetTypeId(), ns3::BSSchedulerSimple::GetTypeId(), ns3::BSScheduler::GetTypeId(), ns3::LteFfrSimple::GetTypeId(), ns3::LteTestUePhy::GetTypeId(), ns3::RandomWaypointMobilityModel::GetTypeId(), ns3::NonCommunicatingNetDevice::GetTypeId(), ns3::ArpL3Protocol::GetTypeId(), ns3::Ipv4Interface::GetTypeId(), ns3::WifiNetDevice::GetTypeId(), ns3::HybridBuildingsPropagationLossModel::GetTypeId(), ns3::dsdv::RoutingProtocol::GetTypeId(), ns3::NscTcpSocketImpl::GetTypeId(), ns3::YansErrorRateModel::GetTypeId(), ns3::SimpleNetDevice::GetTypeId(), Ipv4FqPieTestPacketFilter::GetTypeId(), ns3::UanChannel::GetTypeId(), ns3::UanHeaderRcData::GetTypeId(), ns3::WaveBsmStats::GetTypeId(), ns3::BuildingsPropagationLossModel::GetTypeId(), ns3::HePpdu::HeSigHeader::GetTypeId(), ns3::RrcAsn1Header::GetTypeId(), ns3::LteUeComponentCarrierManager::GetTypeId(), ns3::BandwidthManager::GetTypeId(), ns3::SimpleOfdmWimaxChannel::GetTypeId(), ns3::JakesProcess::GetTypeId(), ns3::aodv::RoutingProtocol::GetTypeId(), ns3::Ipv6Extension::GetTypeId(), ns3::VhtPpdu::VhtSigHeader::GetTypeId(), ns3::NoOpComponentCarrierManager::GetTypeId(), ns3::SteadyStateRandomWaypointMobilityModel::GetTypeId(), ns3::HtPpdu::HtSigHeader::GetTypeId(), ns3::LlcSnapHeader::GetTypeId(), ns3::EpcEnbApplication::GetTypeId(), ns3::RealtimeSimulatorImpl::GetTypeId(), ns3::Ipv4RoutingProtocol::GetTypeId(), ns3::DsssPpdu::DsssSigHeader::GetTypeId(), ns3::LteRlc::GetTypeId(), ns3::LteEnbNetDevice::GetTypeId(), ns3::Node::GetTypeId(), ns3::NetDeviceQueue::GetTypeId(), ns3::WaveformGenerator::GetTypeId(), ns3::NoBackhaulEpcHelper::GetTypeId(), ns3::SpectrumWifiPhy::GetTypeId(), ns3::LteUeRrcProtocolIdeal::GetTypeId(), ns3::LteUeNetDevice::GetTypeId(), ns3::RandomWalk2dOutdoorMobilityModel::GetTypeId(), ns3::RemSpectrumPhy::GetTypeId(), ns3::HierarchicalMobilityModel::GetTypeId(), ns3::LrWpanCsmaCa::GetTypeId(), ns3::OfdmPpdu::LSigHeader::GetTypeId(), ns3::BsServiceFlowManager::GetTypeId(), ns3::LteUePowerControl::GetTypeId(), ns3::RraaWifiManager::GetTypeId(), ns3::ThreeGppHttpHeader::GetTypeId(), ns3::MacStatsCalculator::GetTypeId(), ns3::CobaltQueueDisc::GetTypeId(), ns3::WifiMacQueue::GetTypeId(), ns3::SimpleOfdmWimaxPhy::GetTypeId(), ns3::CsmaNetDevice::GetTypeId(), ns3::Ipv6RoutingProtocol::GetTypeId(), ns3::SeqTsHeader::GetTypeId(), ns3::TcpLedbat::GetTypeId(), ns3::TcpRecoveryOps::GetTypeId(), ns3::UdpL4Protocol::GetTypeId(), ns3::PppHeader::GetTypeId(), ns3::CcHelper::GetTypeId(), ns3::ThreeGppChannelModel::GetTypeId(), ns3::TvSpectrumTransmitter::GetTypeId(), ns3::UdpTraceClient::GetTypeId(), ns3::UanMacRcGw::GetTypeId(), ns3::VirtualNetDevice::GetTypeId(), ns3::IpL4Protocol::GetTypeId(), ns3::LteFfrAlgorithm::GetTypeId(), TestMultiUserScheduler::GetTypeId(), ns3::SsServiceFlowManager::GetTypeId(), ns3::tests::ConfigTestObject::GetTypeId(), ns3::Application::GetTypeId(), ns3::TcpOptionNOP::GetTypeId(), ns3::EpcHelper::GetTypeId(), ns3::PhyRxStatsCalculator::GetTypeId(), ns3::LteSignalingRadioBearerInfo::GetTypeId(), ns3::PhyTxStatsCalculator::GetTypeId(), ns3::MapScheduler::GetTypeId(), ns3::ChannelManager::GetTypeId(), ns3::CoDelQueueDisc::GetTypeId(), ns3::AcousticModemEnergyModel::GetTypeId(), ns3::UplinkSchedulerRtps::GetTypeId(), ns3::dot11s::HwmpProtocol::GetTypeId(), ns3::Ipv6L3Protocol::GetTypeId(), ns3::DynamicQueueLimits::GetTypeId(), ns3::PointToPointNetDevice::GetTypeId(), ns3::aodv::TypeHeader::GetTypeId(), ns3::SpectrumChannel::GetTypeId(), ns3::Ipv6RawSocketFactory::GetTypeId(), ns3::Ipv6StaticRouting::GetTypeId(), ns3::ListScheduler::GetTypeId(), ns3::TcpScalable::GetTypeId(), ns3::Ipv4NixVectorRouting::GetTypeId(), ns3::PriorityQueueScheduler::GetTypeId(), ns3::ThreeGppSpectrumPropagationLossModel::GetTypeId(), ns3::UanPhyCalcSinr::GetTypeId(), ns3::TcpVegas::GetTypeId(), ns3::ChannelCondition::GetTypeId(), IPv4TestTag::GetTypeId(), ns3::Ipv4StaticRouting::GetTypeId(), ns3::LteUeRrcProtocolReal::GetTypeId(), ns3::WifiPhyStateHelper::GetTypeId(), ns3::dot11s::PeerLinkOpenStart::GetTypeId(), ns3::ArpCache::GetTypeId(), ns3::BaseStationNetDevice::GetTypeId(), ns3::PyVizPacketTag::GetTypeId(), ns3::LteEnbPhy::GetTypeId(), ns3::Ipv6RawSocketImpl::GetTypeId(), ns3::Socket::GetTypeId(), ns3::TcpWestwood::GetTypeId(), ns3::dsdv::DsdvHeader::GetTypeId(), ns3::BSSchedulerRtps::GetTypeId(), ns3::flame::FlameTag::GetTypeId(), ns3::LtePhy::GetTypeId(), ns3::PhyStatsCalculator::GetTypeId(), ns3::LteEnbMac::GetTypeId(), EpsBearerTagUdpClient::GetTypeId(), ns3::tests::AlternateTestObject::GetTypeId(), ns3::dsdv::DeferredRouteOutputTag::GetTypeId(), Receiver::GetTypeId(), ns3::LiIonEnergySource::GetTypeId(), MyApp::GetTypeId(), ns3::UdpSocketImpl::GetTypeId(), ns3::AlohaNoackNetDevice::GetTypeId(), ns3::LteHandoverAlgorithm::GetTypeId(), ns3::A3RsrpHandoverAlgorithm::GetTypeId(), ns3::WallClockSynchronizer::GetTypeId(), ns3::TcpCubic::GetTypeId(), ns3::MacHeaderType::GetTypeId(), ns3::ChannelCoordinator::GetTypeId(), ns3::TcpVeno::GetTypeId(), ns3::Txop::GetTypeId(), ns3::BridgeNetDevice::GetTypeId(), ns3::Ipv4GlobalRouting::GetTypeId(), anonymous_namespace{object-test-suite.cc}::DerivedA::GetTypeId(), ns3::PacketSink::GetTypeId(), ns3::ListPositionAllocator::GetTypeId(), ns3::TcpYeah::GetTypeId(), ns3::aodv::DeferredRouteOutputTag::GetTypeId(), ns3::WifiMac::GetTypeId(), ns3::dsr::DsrGraReply::GetTypeId(), ns3::HeapScheduler::GetTypeId(), ns3::TcpRxBuffer::GetTypeId(), ns3::ThreeGppHttpVariables::GetTypeId(), ns3::RrFfMacScheduler::GetTypeId(), ns3::WimaxPhy::GetTypeId(), ns3::RrpaaWifiManager::GetTypeId(), ns3::dsr::DsrOptions::GetTypeId(), ns3::QosTxop::GetTypeId(), IPv6TestTag::GetTypeId(), ns3::BulkSendApplication::GetTypeId(), ns3::FfMacScheduler::GetTypeId(), ns3::Ipv4::GetTypeId(), ns3::EnergySource::GetTypeId(), ns3::SubscriberStationNetDevice::GetTypeId(), ns3::SixLowPanNetDevice::GetTypeId(), ns3::SllHeader::GetTypeId(), ns3::dot11s::HwmpRtable::GetTypeId(), ns3::RandomPropagationDelayModel::GetTypeId(), ns3::TtaFfMacScheduler::GetTypeId(), ns3::TdMtFfMacScheduler::GetTypeId(), ns3::ConfigStore::GetTypeId(), ns3::UplinkSchedulerMBQoS::GetTypeId(), ns3::UanHeaderCommon::GetTypeId(), ns3::RedQueueDisc::GetTypeId(), ns3::UanPhyPerUmodem::GetTypeId(), ns3::LtePdcpHeader::GetTypeId(), ns3::flame::FlameRtable::GetTypeId(), ns3::Icmpv4Header::GetTypeId(), ns3::TcpL4Protocol::GetTypeId(), ns3::LteDataRadioBearerInfo::GetTypeId(), ns3::ManagementMessageType::GetTypeId(), ns3::Ipv4L3Protocol::GetTypeId(), ns3::GaussMarkovMobilityModel::GetTypeId(), ns3::DhcpHeader::GetTypeId(), ns3::BlockAckManager::GetTypeId(), ns3::LteEnbComponentCarrierManager::GetTypeId(), ns3::Ipv6::GetTypeId(), ns3::TcpBic::GetTypeId(), ns3::ThreeGppHttpServer::GetTypeId(), ns3::TcpSeqErrorModel::GetTypeId(), ns3::ShannonSpectrumErrorModel::GetTypeId(), ns3::FdMtFfMacScheduler::GetTypeId(), SimpleSource::GetTypeId(), ns3::OutdoorPositionAllocator::GetTypeId(), ns3::PacketSizeMinMaxAvgTotalCalculator::GetTypeId(), ns3::FdNetDevice::GetTypeId(), DummyCongControl::GetTypeId(), ns3::WimaxNetDevice::GetTypeId(), ns3::LinearWifiTxCurrentModel::GetTypeId(), ns3::LteUePhy::GetTypeId(), ns3::TcpOptionMSS::GetTypeId(), ns3::A2A4RsrqHandoverAlgorithm::GetTypeId(), ns3::PfFfMacScheduler::GetTypeId(), ns3::UanPhyDual::GetTypeId(), ns3::WaypointMobilityModel::GetTypeId(), ns3::Object::GetTypeId(), ns3::FdBetFfMacScheduler::GetTypeId(), ns3::TdBetFfMacScheduler::GetTypeId(), ns3::olsr::RoutingProtocol::GetTypeId(), ns3::LteAnr::GetTypeId(), ns3::RadioBearerStatsCalculator::GetTypeId(), ns3::flame::FlameProtocol::GetTypeId(), ns3::TrafficControlLayer::GetTypeId(), ns3::EthernetTrailer::GetTypeId(), ns3::Ipv4PacketInfoTag::GetTypeId(), ns3::EpsBearer::GetTypeId(), ns3::CsmaChannel::GetTypeId(), ns3::TcpSocketCongestedRouter::GetTypeId(), ns3::HalfDuplexIdealPhy::GetTypeId(), ns3::ProbabilisticV2vHighwayChannelConditionModel::GetTypeId(), ns3::CalendarScheduler::GetTypeId(), ns3::PacketSocket::GetTypeId(), ns3::dot11s::HwmpTag::GetTypeId(), ns3::ArpHeader::GetTypeId(), ns3::TdTbfqFfMacScheduler::GetTypeId(), ns3::GrantedTimeWindowMpiInterface::GetTypeId(), ns3::PssFfMacScheduler::GetTypeId(), ns3::OnOffApplication::GetTypeId(), ns3::AthstatsWifiTraceSink::GetTypeId(), ns3::CqaFfMacScheduler::GetTypeId(), ns3::NetDevice::GetTypeId(), ns3::dsr::DsrRouting::GetTypeId(), ns3::RandomVariableStream::GetTypeId(), ns3::FdTbfqFfMacScheduler::GetTypeId(), ns3::Ipv6Header::GetTypeId(), TimestampTag::GetTypeId(), ns3::Ipv6OptionPad1::GetTypeId(), anonymous_namespace{object-test-suite.cc}::BaseB::GetTypeId(), ns3::ConstantSpeedPropagationDelayModel::GetTypeId(), ns3::Tlv::GetTypeId(), ns3::LteHelper::GetTypeId(), ns3::EthernetHeader::GetTypeId(), ns3::TapBridge::GetTypeId(), ns3::DistributedSimulatorImpl::GetTypeId(), ns3::TcpIllinois::GetTypeId(), ns3::MultiModelSpectrumChannel::GetTypeId(), ns3::FqCoDelQueueDisc::GetTypeId(), ns3::ThreeGppV2vHighwayChannelConditionModel::GetTypeId(), ns3::StaWifiMac::GetTypeId(), ns3::EpcX2::GetTypeId(), ns3::DataCalculator::GetTypeId(), ns3::Icmpv6Header::GetTypeId(), ns3::UdpHeader::GetTypeId(), ns3::WifiMacHeader::GetTypeId(), ns3::ErrorModel::GetTypeId(), ns3::EpcX2HandoverRequestHeader::GetTypeId(), ns3::WifiRemoteStationManager::GetTypeId(), ns3::ThreeGppHttpClient::GetTypeId(), ns3::FqPieQueueDisc::GetTypeId(), ns3::FqCobaltQueueDisc::GetTypeId(), ns3::LteRlcHeader::GetTypeId(), ns3::olsr::PacketHeader::GetTypeId(), ns3::VsaManager::GetTypeId(), ns3::UeManager::GetTypeId(), ns3::UanPhyPer::GetTypeId(), ns3::TcpTxBuffer::GetTypeId(), ns3::RttMeanDeviation::GetTypeId(), OfdmaSpectrumWifiPhy::GetTypeId(), ns3::TcpOptionUnknown::GetTypeId(), ns3::GridPositionAllocator::GetTypeId(), anonymous_namespace{object-test-suite.cc}::DerivedB::GetTypeId(), TracedValueCallbackTestCase::CheckTvCb< T >::GetTypeId(), ns3::TcpFlagErrorModel::GetTypeId(), ns3::ChannelScheduler::GetTypeId(), ns3::UanPhyPerCommonModes::GetTypeId(), ns3::CommandPayloadHeader::GetTypeId(), ns3::UanHeaderRcRts::GetTypeId(), ns3::RandomRoomPositionAllocator::GetTypeId(), ns3::NetmapNetDevice::GetTypeId(), ns3::ThreeGppV2vHighwayPropagationLossModel::GetTypeId(), ns3::dot11s::PeerLinkCloseStart::GetTypeId(), ns3::FlowMonitor::GetTypeId(), ns3::UanTransducer::GetTypeId(), ns3::LteUeRrc::GetTypeId(), ns3::TopologyReader::GetTypeId(), ns3::OfdmDownlinkFramePrefix::GetTypeId(), ns3::Icmpv4Echo::GetTypeId(), ns3::MgtAssocRequestHeader::GetTypeId(), ns3::aodv::RreqHeader::GetTypeId(), ns3::RipNgHeader::GetTypeId(), ns3::Ipv6OptionPadn::GetTypeId(), ns3::RandomPropagationLossModel::GetTypeId(), ns3::Scheduler::GetTypeId(), BenchTag< N >::GetTypeId(), ns3::MinstrelWifiManager::GetTypeId(), ns3::TcpClassicRecovery::GetTypeId(), ns3::RipHeader::GetTypeId(), ns3::WaveNetDevice::GetTypeId(), anonymous_namespace{packet-test-suite.cc}::ALargeTestTag::GetTypeId(), ns3::SixLowPanHc1::GetTypeId(), ns3::LteSpectrumPhy::GetTypeId(), ns3::TcpSocketSmallAcks::GetTypeId(), ns3::RrComponentCarrierManager::GetTypeId(), ns3::ComponentCarrierBaseStation::GetTypeId(), MimicCongControl::GetTypeId(), ns3::LteEnbRrcProtocolIdeal::GetTypeId(), ns3::UanPhyCalcSinrDefault::GetTypeId(), ns3::Ipv6ExtensionHopByHop::GetTypeId(), ns3::UanMacRc::GetTypeId(), ns3::Rip::GetTypeId(), ns3::dsr::DsrNetworkQueue::GetTypeId(), ns3::RipNg::GetTypeId(), ns3::SameRoomPositionAllocator::GetTypeId(), ns3::VendorSpecificActionHeader::GetTypeId(), ns3::LteTestPdcp::GetTypeId(), anonymous_namespace{packet-metadata-test.cc}::HistoryTrailerBase::GetTypeId(), ns3::TcpRateLinux::GetTypeId(), ns3::RateErrorModel::GetTypeId(), ns3::Icmpv4DestinationUnreachable::GetTypeId(), TcpDctcpCongestedRouter::GetTypeId(), ns3::tests::DerivedConfigTestObject::GetTypeId(), ns3::Ipv6OptionJumbogram::GetTypeId(), ns3::GenericMacHeader::GetTypeId(), ns3::LteEnbRrcProtocolReal::GetTypeId(), ns3::dsr::DsrRreqTable::GetTypeId(), ns3::LteRlcSm::GetTypeId(), ns3::ChannelConditionModel::GetTypeId(), ns3::CtrlBAckResponseHeader::GetTypeId(), ns3::dot11s::PeerLinkConfirmStart::GetTypeId(), TcpDropRatioErrorModel::GetTypeId(), anonymous_namespace{packet-test-suite.cc}::ATestHeaderBase::GetTypeId(), ns3::TcpNewReno::GetTypeId(), ns3::TcpSocketBase::GetTypeId(), DeprecatedAttribute::GetTypeId(), ns3::Ipv6ExtensionDestination::GetTypeId(), ns3::tests::BaseConfigObject::GetTypeId(), ns3::MinstrelHtWifiManager::GetTypeId(), ns3::WifiRadioEnergyModel::GetTypeId(), ns3::FixedRoomPositionAllocator::GetTypeId(), ns3::Ipv4Header::GetTypeId(), ns3::RandomRectanglePositionAllocator::GetTypeId(), ns3::NetDeviceQueueInterface::GetTypeId(), ns3::UanPhyCalcSinrFhFsk::GetTypeId(), ns3::GtpcCreateSessionRequestMessage::GetTypeId(), ns3::UniformRandomVariable::GetTypeId(), ns3::Icmpv6OptionHeader::GetTypeId(), ns3::EpcX2HandoverRequestAckHeader::GetTypeId(), ns3::PacketSocketTag::GetTypeId(), ns3::Ipv6OptionRouterAlert::GetTypeId(), ns3::LteRlcAmHeader::GetTypeId(), ns3::LteTestMac::GetTypeId(), ns3::LrWpanPhy::GetTypeId(), ns3::UanHeaderRcCtsGlobal::GetTypeId(), ns3::Queue< ns3::Packet >::GetTypeId(), ns3::ThreeGppRmaPropagationLossModel::GetTypeId(), ns3::dsr::DsrPassiveBuffer::GetTypeId(), ns3::FriisPropagationLossModel::GetTypeId(), ns3::tests::DerivedConfigObject::GetTypeId(), ns3::AlwaysLosChannelConditionModel::GetTypeId(), ns3::Ipv6ExtensionFragment::GetTypeId(), ns3::RngRsp::GetTypeId(), ns3::QueueDisc::GetTypeId(), ns3::RandomBoxPositionAllocator::GetTypeId(), ns3::CounterCalculator<>::GetTypeId(), ns3::UanPhyGen::GetTypeId(), ns3::Icmpv4TimeExceeded::GetTypeId(), ns3::GtpcCreateSessionResponseMessage::GetTypeId(), ns3::DeviceNameTag::GetTypeId(), ns3::dsr::DsrOptionPad1::GetTypeId(), ns3::olsr::MessageHeader::GetTypeId(), ns3::MgtReassocRequestHeader::GetTypeId(), ns3::UanPropModel::GetTypeId(), ns3::TcpHeader::GetTypeId(), ns3::BurstErrorModel::GetTypeId(), anonymous_namespace{packet-test-suite.cc}::ATestTrailerBase::GetTypeId(), ns3::dsr::DsrOptionPadn::GetTypeId(), ns3::RandomDiscPositionAllocator::GetTypeId(), ns3::ConstantRandomVariable::GetTypeId(), ns3::GtpcModifyBearerRequestMessage::GetTypeId(), ns3::NeverLosChannelConditionModel::GetTypeId(), ns3::EpcX2HandoverPreparationFailureHeader::GetTypeId(), ns3::BandwidthRequestHeader::GetTypeId(), ns3::dsr::DsrOptionRreq::GetTypeId(), ns3::Icmpv6NS::GetTypeId(), ns3::aodv::RrepHeader::GetTypeId(), ns3::UanHeaderRcCts::GetTypeId(), ns3::ThreeGppUmaPropagationLossModel::GetTypeId(), ns3::GtpcModifyBearerResponseMessage::GetTypeId(), RoutingHelper::GetTypeId(), ns3::TwoRayGroundPropagationLossModel::GetTypeId(), ns3::SixLowPanFrag1::GetTypeId(), ns3::dsr::DsrOptionRrep::GetTypeId(), ns3::ListErrorModel::GetTypeId(), ns3::UniformDiscPositionAllocator::GetTypeId(), ns3::dsr::DsrRouteCache::GetTypeId(), ns3::NeverLosVehicleChannelConditionModel::GetTypeId(), ns3::LrWpanMacHeader::GetTypeId(), ns3::GtpcDeleteBearerCommandMessage::GetTypeId(), ns3::SequentialRandomVariable::GetTypeId(), ns3::EpcX2SnStatusTransferHeader::GetTypeId(), ns3::Dcd::GetTypeId(), ns3::Ucd::GetTypeId(), ns3::GrantManagementSubheader::GetTypeId(), ns3::dsr::DsrOptionSR::GetTypeId(), ns3::GtpcDeleteBearerRequestMessage::GetTypeId(), ns3::DsaReq::GetTypeId(), ns3::EpcTestRrc::GetTypeId(), ns3::ReceiveListErrorModel::GetTypeId(), ns3::Icmpv6NA::GetTypeId(), ns3::GtpcDeleteBearerResponseMessage::GetTypeId(), ns3::ThreeGppChannelConditionModel::GetTypeId(), ns3::LrWpanMac::GetTypeId(), ns3::dsr::DsrOptionRerr::GetTypeId(), ns3::SixLowPanFragN::GetTypeId(), ns3::ThreeGppUmiStreetCanyonPropagationLossModel::GetTypeId(), ns3::UanHeaderRcAck::GetTypeId(), ns3::BinaryErrorModel::GetTypeId(), ns3::IdealHandoverPreparationInfoHeader::GetTypeId(), ns3::EpcX2UeContextReleaseHeader::GetTypeId(), ns3::MgtAssocResponseHeader::GetTypeId(), ns3::Ipv6ExtensionRouting::GetTypeId(), ns3::FragmentationSubheader::GetTypeId(), ns3::LogDistancePropagationLossModel::GetTypeId(), ns3::UanPhy::GetTypeId(), ns3::dsr::DsrOptionAckReq::GetTypeId(), ns3::aodv::RrepAckHeader::GetTypeId(), ns3::RrcConnectionRequestHeader::GetTypeId(), ns3::DsaRsp::GetTypeId(), ns3::Ipv6ExtensionRoutingDemux::GetTypeId(), ns3::EpcX2LoadInformationHeader::GetTypeId(), ns3::ExponentialRandomVariable::GetTypeId(), ns3::dsr::DsrOptionAck::GetTypeId(), ns3::SixLowPanIpv6::GetTypeId(), ns3::ThreeGppIndoorOfficePropagationLossModel::GetTypeId(), ns3::aodv::RerrHeader::GetTypeId(), ns3::ThreeGppRmaChannelConditionModel::GetTypeId(), ns3::Icmpv6RA::GetTypeId(), ns3::DlMap::GetTypeId(), ns3::ThreeLogDistancePropagationLossModel::GetTypeId(), ns3::EpcX2ResourceStatusUpdateHeader::GetTypeId(), ns3::GlobalRouter::GetTypeId(), ns3::MgtProbeRequestHeader::GetTypeId(), ns3::IdealHandoverCommandHeader::GetTypeId(), ns3::DsaAck::GetTypeId(), ns3::Ipv6ExtensionLooseRouting::GetTypeId(), ns3::ThreeGppUmaChannelConditionModel::GetTypeId(), ns3::UlMap::GetTypeId(), ns3::PbbPacket::GetTypeId(), ns3::ParetoRandomVariable::GetTypeId(), ns3::Ipv6ExtensionESP::GetTypeId(), ns3::ThreeGppUmiStreetCanyonChannelConditionModel::GetTypeId(), ns3::NakagamiPropagationLossModel::GetTypeId(), ns3::SixLowPanIphc::GetTypeId(), ns3::LteEnbRrc::GetTypeId(), ns3::RngReq::GetTypeId(), ns3::ThreeGppIndoorMixedOfficeChannelConditionModel::GetTypeId(), ns3::Ipv6ExtensionAH::GetTypeId(), WifiPhyStats::GetTypeId(), ns3::FixedRssLossModel::GetTypeId(), ns3::ThreeGppIndoorOpenOfficeChannelConditionModel::GetTypeId(), ns3::MatrixPropagationLossModel::GetTypeId(), ns3::Icmpv6RS::GetTypeId(), ns3::MgtProbeResponseHeader::GetTypeId(), ns3::RangePropagationLossModel::GetTypeId(), ns3::MgtBeaconHeader::GetTypeId(), ns3::Icmpv6Redirection::GetTypeId(), ns3::WeibullRandomVariable::GetTypeId(), ns3::CtrlTriggerHeader::GetTypeId(), ns3::Icmpv6Echo::GetTypeId(), ns3::WifiActionHeader::GetTypeId(), ns3::SixLowPanNhcExtension::GetTypeId(), ns3::MgtAddBaRequestHeader::GetTypeId(), ns3::NormalRandomVariable::GetTypeId(), ns3::Icmpv6DestinationUnreachable::GetTypeId(), ns3::SixLowPanUdpNhcExtension::GetTypeId(), ns3::Icmpv6TooBig::GetTypeId(), ns3::MgtAddBaResponseHeader::GetTypeId(), ns3::SocketIpTtlTag::GetTypeId(), ns3::SocketIpv6HopLimitTag::GetTypeId(), ns3::Icmpv6TimeExceeded::GetTypeId(), ns3::SocketSetDontFragmentTag::GetTypeId(), ns3::SixLowPanBc0::GetTypeId(), ns3::MgtDelBaHeader::GetTypeId(), ns3::SocketIpTosTag::GetTypeId(), ns3::Icmpv6ParameterError::GetTypeId(), ns3::LogNormalRandomVariable::GetTypeId(), ns3::SixLowPanMesh::GetTypeId(), ns3::SocketPriorityTag::GetTypeId(), ns3::SocketIpv6TclassTag::GetTypeId(), ns3::Icmpv6OptionMtu::GetTypeId(), ns3::Icmpv6OptionPrefixInformation::GetTypeId(), LengthValueTestCase::TestObject::GetTypeId(), ns3::AnimByteTag::GetTypeId(), ns3::GammaRandomVariable::GetTypeId(), ns3::Icmpv6OptionLinkLayerAddress::GetTypeId(), ns3::ErlangRandomVariable::GetTypeId(), ns3::Icmpv6OptionRedirected::GetTypeId(), ns3::TriangularRandomVariable::GetTypeId(), ns3::ZipfRandomVariable::GetTypeId(), ns3::ZetaRandomVariable::GetTypeId(), ns3::DeterministicRandomVariable::GetTypeId(), and ns3::EmpiricalRandomVariable::GetTypeId().

+ Here is the call graph for this function:

◆ SetParent() [2/2]

template<typename T >
TypeId ns3::TypeId::SetParent ( void  )

Set the parent TypeId.

Template Parameters
T[explicit] The parent TypeID type.
Returns
This TypeId instance.

Record in this TypeId which TypeId is the TypeId of the base class of the subclass.

Definition at line 631 of file type-id.h.

◆ SetSize()

TypeId ns3::TypeId::SetSize ( std::size_t  size)

Set the size of this type.

Call this way:

SetSize (sizeof (<typename>));

This is done automatically by NS_LOG_ENSURE_REGISTERED() A ridiculously large reported size is a symptom that the type hasn't been registered.

Parameters
[in]sizeThe size of the object, in bytes.
Returns
This TypeId instance.

Definition at line 937 of file type-id.cc.

References ns3::Singleton< IidManager >::Get(), m_tid, NS_LOG_FUNCTION, and ns3::IidManager::SetSize().

+ Here is the call graph for this function:

◆ SetUid()

void ns3::TypeId::SetUid ( uint16_t  uid)

Set the internal id of this TypeId.

Parameters
[in]uidThe internal integer which uniquely identifies this TypeId. This TypeId should already have been registered.

Typically this is used in serialization/deserialization.

This method is even more internal than GetUid(). Use at your own risk and don't be surprised that it eats raw babies on full-moon nights.

Definition at line 1191 of file type-id.cc.

References m_tid, and NS_LOG_FUNCTION.

Referenced by ns3::PacketMetadata::GetSerializedSize(), ns3::ByteTagList::Iterator::Next(), ns3::PacketMetadata::ItemIterator::Next(), and ns3::PacketMetadata::Serialize().

+ Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator!=

bool operator!= ( TypeId  a,
TypeId  b
)
friend

Comparison operator.

Parameters
[in]aOne value.
[in]bThe other value.
Returns
The result of the comparison.

Definition at line 619 of file type-id.h.

◆ operator<

bool operator< ( TypeId  a,
TypeId  b
)
friend

Comparison operator.

Parameters
[in]aOne value.
[in]bThe other value.
Returns
The result of the comparison.

Definition at line 1229 of file type-id.cc.

◆ operator<<()

std::ostream & operator<< ( std::ostream &  os,
TypeId  tid
)
related

Output streamer.

Parameters
[in,out]osThe output stream.
[in]tidThe TypeId.
Returns
The output stream.

Definition at line 1203 of file type-id.cc.

◆ operator==

bool operator== ( TypeId  a,
TypeId  b
)
friend

Comparison operator.

Parameters
[in]aOne value.
[in]bThe other value.
Returns
The result of the comparison.

Definition at line 614 of file type-id.h.

◆ operator>>()

std::istream & operator>> ( std::istream &  is,
TypeId tid
)
related

Input Streamer.

Parameters
[in,out]isThe input stream.
[out]tidThe TypeId to set from the stream.
Returns
The input stream.

Definition at line 1214 of file type-id.cc.

Member Data Documentation

◆ m_tid


The documentation for this class was generated from the following files:
