Base classes which provide memory management and object aggregation. More...

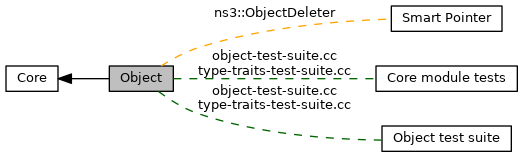

Collaboration diagram for Object:

Files
file	attribute-construction-list.cc
	ns3::AttributeConstructionList implementation.

file	attribute-construction-list.h
	ns3::AttributeConstructionList declaration.

file	object-base.cc
	ns3::ObjectBase class implementation.

file	object-base.h
	ns3::ObjectBase declaration and NS_OBJECT_ENSURE_REGISTERED() madro definition.

file	object-factory.cc
	ns3::ObjectFactory class implementation.

file	object-factory.h
	ns3::ObjectFactory class declaration.

file	object-test-suite.cc
	Object test suite.

file	object.cc
	ns3::Object class implementation.

file	object.h
	ns3::Object class declaration, which is the root of the Object hierarchy and Aggregation.

file	type-id.cc
	ns3::TypeId and ns3::IidManager implementations.

file	type-id.h
	ns3::TypeId declaration; inline and template implementations.

file	type-traits-test-suite.cc
	TypeTraits test suite.

file	type-traits.h
	ns3::TypeTraits introspection declaration and template implementation.

Classes
class	ns3::AttributeConstructionList
	List of Attribute name, value and checker triples used to construct Objects. More...

class	ns3::IidManager
	TypeId information manager. More...

class	ns3::Object
	A base class which provides memory management and object aggregation. More...

class	ns3::ObjectBase
	Anchor the ns-3 type and attribute system. More...

struct	ns3::ObjectDeleter
	Standard Object deleter, used by SimpleRefCount to delete an Object when the reference count drops to zero. More...

class	ns3::ObjectFactory
	Instantiate subclasses of ns3::Object. More...

class	ns3::TypeId
	a unique identifier for an interface. More...

struct	ns3::TypeTraits< T >
	Inspect a type to deduce its features. More...

Macros
#define	IID "IidManager"

#define	IIDL IID << ": "

#define	NS_OBJECT_ENSURE_REGISTERED(type)
	Register an Object subclass with the TypeId system. More...

#define	NS_OBJECT_TEMPLATE_CLASS_DEFINE(type, param)
	Explicitly instantiate a template class and register the resulting instance with the TypeId system. More...

Functions
template<typename T , typename... Args>
Ptr< T >	ns3::CreateObjectWithAttributes (Args... args)
	Allocate an Object on the heap and initialize with a set of attributes. More...

template<typename T , typename... Args>
Ptr< T >	ns3::CreateObject (Args &&... args)
	Create an object by type, with varying number of constructor parameters. More...

Detailed Description

Base classes which provide memory management and object aggregation.

Macro Definition Documentation

◆ IID

#define IID "IidManager"

Internal:: IidManager shorthand for use in NS_LOG

Definition at line 375 of file type-id.cc.

◆ IIDL

#define IIDL IID << ": "

◆ NS_OBJECT_ENSURE_REGISTERED

#define NS_OBJECT_ENSURE_REGISTERED ( type )

Value:

static struct Object ## type ## RegistrationClass     \
  {                                                     \
    Object ## type ## RegistrationClass () {            \
      ns3::TypeId tid = type::GetTypeId ();             \
      tid.SetSize (sizeof (type));                      \
      tid.GetParent ();                                 \
    }                                                   \
  } Object ## type ## RegistrationVariable

Register an Object subclass with the TypeId system.

This macro should be invoked once for every class which defines a new GetTypeId method.

If the class is in a namespace, then the macro call should also be in the namespace.

Definition at line 45 of file object-base.h.

◆ NS_OBJECT_TEMPLATE_CLASS_DEFINE

#define NS_OBJECT_TEMPLATE_CLASS_DEFINE	(	type,
		param
	)

Value:

template class type<param>;                                          \
  template <> std::string DoGetTypeParamName<type<param> > ()          \
  {                                                                    \
    return #param;                                                     \
  }                                                                    \
  static struct Object ## type ## param ## RegistrationClass           \
  {                                                                    \
    Object ## type ## param ## RegistrationClass () {                  \
      ns3::TypeId tid = type<param>::GetTypeId ();                     \
      tid.SetSize (sizeof (type<param>));                              \
      tid.GetParent ();                                                \
    }                                                                  \
  } Object ## type ## param ## RegistrationVariable

Explicitly instantiate a template class and register the resulting instance with the TypeId system.

This macro should be invoked once for every required instance of a template class which derives from the Object class and defines a new GetTypeId method.

If the template class is in a namespace, then the macro call should also be in the namespace.

Definition at line 67 of file object-base.h.

Function Documentation

◆ CreateObject()

template<typename T , typename... Args>

Ptr<T> ns3::CreateObject ( Args &&... args )

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	[explicit] The type of the derived object to construct.

Parameters

[in] args Arguments to pass to the constructor.

Returns: The derived object.

Definition at line 576 of file object.h.

References ns3::CompleteConstruct().

Referenced by ns3::Ipv6L3Protocol::AddInterface(), ns3::Ipv4L3Protocol::AddInterface(), TestChildQueueDisc::CheckConfig(), Ipv4L3ProtocolTestCase::DoRun(), Ipv6L3ProtocolTestCase::DoRun(), PointToPointTest::DoRun(), ns3::Ipv4L3Protocol::SetupLoopback(), and ns3::Ipv6L3Protocol::SetupLoopback().

Here is the call graph for this function:

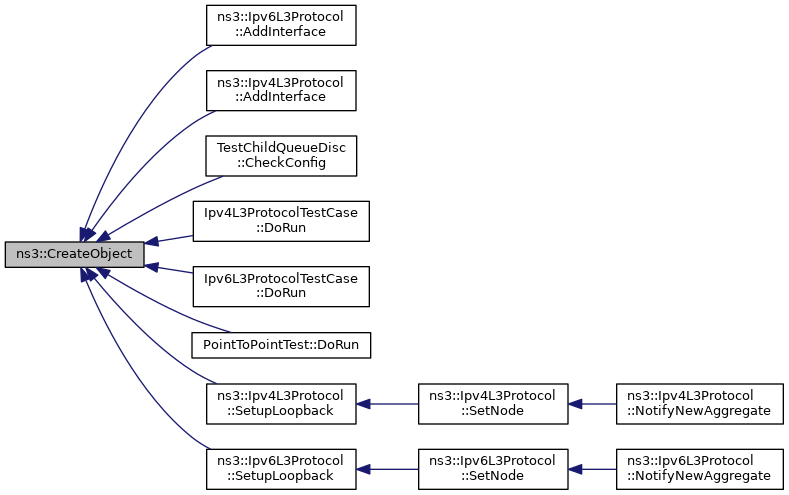

Here is the caller graph for this function:

◆ CreateObjectWithAttributes()

template<typename T , typename... Args>

Ptr< T > ns3::CreateObjectWithAttributes ( Args... args )

Allocate an Object on the heap and initialize with a set of attributes.

Template Parameters

T	[explicit] The requested Object type.
Args	[deduced] The type of the sequence of name-value pairs.

Parameters

[in] args A sequence of name-value pairs of the attributes to set.

Returns: A pointer to a newly allocated object.

The args sequence can be made of any number of pairs, each consisting of a name (of std::string type) followed by a value (of const AttributeValue & type).

Definition at line 231 of file object-factory.h.

References ns3::ObjectFactory::Create(), ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by ns3::FifoQueueDisc::CheckConfig(), ns3::PieQueueDisc::CheckConfig(), ns3::CoDelQueueDisc::CheckConfig(), ns3::CobaltQueueDisc::CheckConfig(), and ns3::RedQueueDisc::CheckConfig().
