Helper class for UAN CW MAC example. More...

#include "uan-cw-example.h"

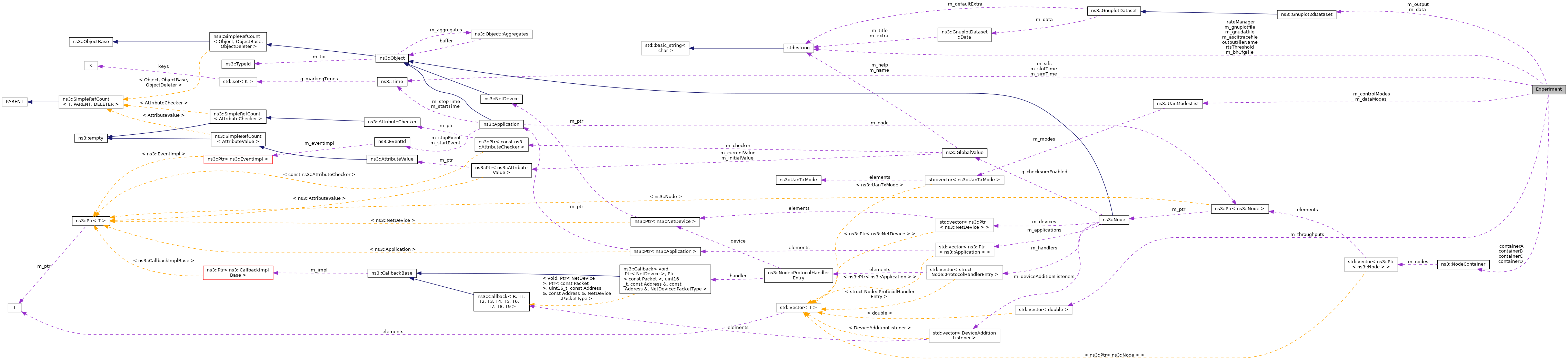

Collaboration diagram for Experiment:

Public Member Functions
	Experiment ()

	Experiment (std::string name)

	Experiment ()

	Experiment (std::string name)

	Experiment ()

	Experiment (std::string name)

	Experiment ()

	Experiment ()
	Default constructor. More...

	Experiment ()
	Default constructor. More...

	Experiment ()

bool	CommandSetup (int argc, char **argv)

void	CreateDualModes (uint32_t fc)
	Create m_numRates matching control and data modes. More...

UanTxMode	CreateMode (uint32_t kass, uint32_t fc, bool upperblock, std::string name)
	Create a UanTxMode. More...

std::string	GetOutputFileName ()

std::string	GetRateManager ()

std::string	GetRtsThreshold ()

uint32_t	GetScenario ()

void	IncrementCw (uint32_t cw)
	Compute average throughput for a set of runs, then increment CW. More...

bool	IsMobility ()

bool	IsRouting ()

void	ReceivePacket (Ptr< Socket > socket)
	Receive all available packets from a socket. More...

void	ReceivePacket (Ptr< Socket > socket)
	Callback to receive a packet. More...

void	ResetData ()
	Save the throughput from a single run. More...

uint32_t	Run (const WifiHelper &wifi, const YansWifiPhyHelper &wifiPhy, const WifiMacHelper &wifiMac, const YansWifiChannelHelper &wifiChannel)

Gnuplot2dDataset	Run (const WifiHelper &wifi, const YansWifiPhyHelper &wifiPhy, const WifiMacHelper &wifiMac, const YansWifiChannelHelper &wifiChannel)

Gnuplot2dDataset	Run (UanHelper &uan)
	Run an experiment across a range of congestion window values. More...

Gnuplot2dDataset	Run (const WifiHelper &wifi, const YansWifiPhyHelper &wifiPhy, const WifiMacHelper &wifiMac, const YansWifiChannelHelper &wifiChannel, const MobilityHelper &mobility)

double	Run (Parameters params)

uint32_t	Run (uint32_t param)
	Run a parametrized experiment. More...

int	Run (const WifiHelper &wifi, const YansWifiPhyHelper &wifiPhy, const WifiMacHelper &wifiMac, const YansWifiChannelHelper &wifiChannel, uint32_t trialNumber, uint32_t networkSize, Time duration, bool pcap, bool infra, uint16_t guardIntervalNs, double distanceM, double apTxPowerDbm, double staTxPowerDbm, Time pktInterval)
	Configure and run the experiment. More...

void	UpdatePositions (NodeContainer &nodes)
	Assign new random positions to a set of nodes. More...

Public Attributes
std::string	m_asciitracefile
	Name for ascii trace file, default uan-cw-example.asc. More...

uint32_t	m_avgs
	Number of topologies to test for each cw point. More...

std::string	m_bhCfgFile
	(Unused) More...

double	m_boundary
	Size of boundary in meters. More...

UanModesList	m_controlModes
	List of UanTxModes used for control channels. More...

uint32_t	m_cwMax
	Max CW to simulate. More...

uint32_t	m_cwMin
	Min CW to simulate. More...

uint32_t	m_cwStep
	CW step size, default 10. More...

Gnuplot2dDataset	m_data
	Container for the simulation data. More...

UanModesList	m_dataModes
	List of UanTxModes used for data channels. More...

uint32_t	m_dataRate
	DataRate in bps. More...

double	m_depth
	Depth of transmitting and sink nodes. More...

bool	m_doNode
	1 for do max nodes simulation (invalidates AMin and AMax values). More...

std::string	m_gnudatfile
	Name for GNU Plot output, default uan-cw-example.gpl. More...

std::string	m_gnuplotfile
	Filename for GnuPlot. More...

uint32_t	m_maxRange
	Maximum range between gateway and acoustic node. More...

uint32_t	m_numNodes
	Number of transmitting nodes. More...

uint32_t	m_numRates
	Number of divided rates ( (NumberRates+1)TotalRate should be 0). More...

uint32_t	m_packetSize
	Generated packet size in bytes. More...

uint32_t	m_pktSize
	Packet size in bytes. More...

Time	m_sifs
	SIFS time duration. More...

uint32_t	m_simMax
	Maximum parameter to test. More...

uint32_t	m_simMin
	Minimum parameter to test. More...

uint32_t	m_simStep
	Amount to increment param per trial. More...

Time	m_simTime
	Simulation run time, default 1000 s. More...

Time	m_slotTime
	Slot time duration. More...

std::vector< double >	m_throughputs
	Throughput for each run. More...

uint32_t	m_totalRate
	Total channel capacity. More...

Private Member Functions
void	AdvancePosition (Ptr< Node > node)

void	ApplicationSetup (Ptr< Node > client, Ptr< Node > server, double start, double stop)

void	AssignNeighbors (NodeContainer c)
	Take the grid map, divide it into 4 quadrants Assign all nodes from each quadrant to a specific container. More...

void	CheckThroughput ()

NodeContainer	GenerateNeighbors (NodeContainer c, uint32_t senderId)
	Generate 1-hop and 2-hop neighbors of a node in grid topology. More...

void	GenerateTraffic (Ptr< Socket > socket, uint32_t pktSize, uint32_t pktCount, Time pktInterval)

Vector	GetPosition (Ptr< Node > node)

Vector	GetPosition (Ptr< Node > node)

void	ReceivePacket (Ptr< Socket > socket)

void	ReceivePacket (Ptr< Socket > socket)

void	ReceivePacket (Ptr< Socket > socket)

void	SelectSrcDest (NodeContainer c)
	Sources and destinations are randomly selected such that a node may be the source for multiple destinations and a node maybe a destination for multiple sources. More...

void	SendMultiDestinations (Ptr< Node > sender, NodeContainer c)
	A sender node will set up a flow to each of the its neighbors in its quadrant randomly. More...

void	SetPosition (Ptr< Node > node, Vector position)

void	SetPosition (Ptr< Node > node, Vector position)

Ptr< Socket >	SetupPacketReceive (Ptr< Node > node)

Ptr< Socket >	SetupPacketReceive (Ptr< Node > node)

Ptr< Socket >	SetupPacketReceive (Ptr< Node > node)

Private Attributes
uint32_t	bytesTotal

NodeContainer	containerA

NodeContainer	containerB

NodeContainer	containerC

NodeContainer	containerD

bool	enableFlowMon

bool	enableMobility

bool	enablePcap

bool	enableRouting

bool	enableTracing

double	expMean

uint32_t	gridSize

uint32_t	m_bytesTotal
	Total bytes received. More...

Gnuplot2dDataset	m_output

uint32_t	m_pktsTotal

uint32_t	nodeDistance

std::string	outputFileName

uint32_t	packetSize

uint32_t	port

std::string	rateManager

std::string	rtsThreshold

double	samplingPeriod

uint32_t	scenario

double	totalTime

Detailed Description

Helper class for UAN CW MAC example.

Container for the parameters describing a single experiment.

An experiment measures the average throughput for a series of CW values.

See also: uan-cw-example.cc

An experiment samples a range of parameter values. The parameter controls the number of nodes (if m_doNode is true), or the UanMacRcGw MaxReservations attribute.

See also: uan-rc-example.cc

Definition at line 40 of file wifi-adhoc.cc.

Constructor & Destructor Documentation

◆ Experiment() [1/10]

Experiment::Experiment ( )

Definition at line 58 of file wifi-adhoc.cc.

◆ Experiment() [2/10]

Experiment::Experiment ( std::string name )

Definition at line 62 of file wifi-adhoc.cc.

References m_output, and ns3::Gnuplot2dDataset::SetStyle().

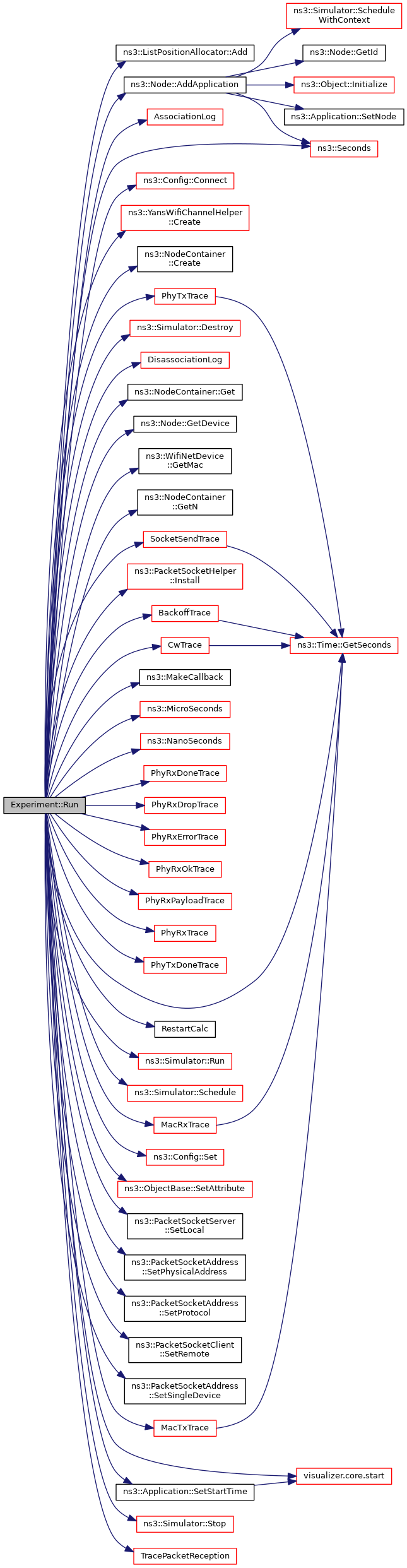

Here is the call graph for this function:

◆ Experiment() [3/10]

Experiment::Experiment ( )

◆ Experiment() [4/10]

Experiment::Experiment ( std::string name )

◆ Experiment() [5/10]

Experiment::Experiment ( )

◆ Experiment() [6/10]

Experiment::Experiment ( )

◆ Experiment() [7/10]

Experiment::Experiment ( std::string name )

◆ Experiment() [8/10]

Experiment::Experiment ( )

Default constructor.

◆ Experiment() [9/10]

Experiment::Experiment ( )

Default constructor.

◆ Experiment() [10/10]

Experiment::Experiment ( )

Member Function Documentation

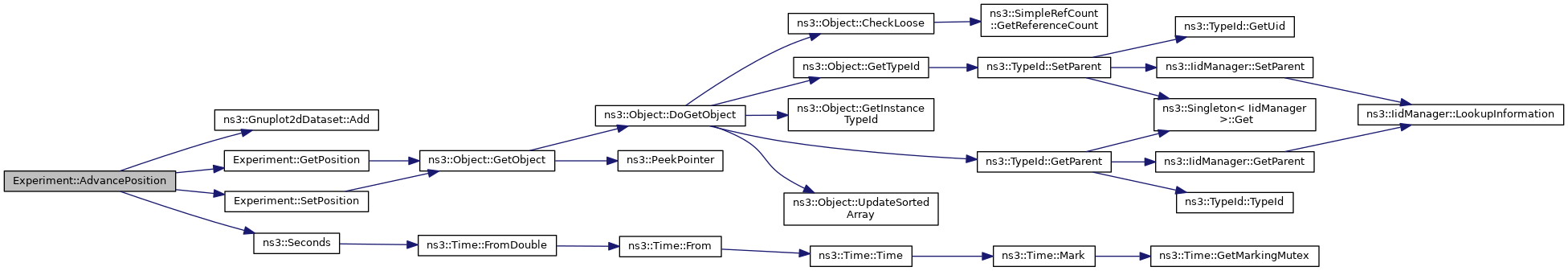

◆ AdvancePosition()

void Experiment::AdvancePosition ( Ptr< Node > node )

private

Definition at line 83 of file wifi-adhoc.cc.

References ns3::Gnuplot2dDataset::Add(), GetPosition(), m_bytesTotal, m_output, ns3::Seconds(), and SetPosition().

Referenced by Run().

Here is the call graph for this function:

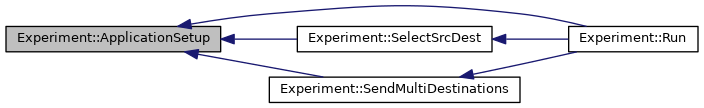

Here is the caller graph for this function:

◆ ApplicationSetup()

void Experiment::ApplicationSetup	(	Ptr< Node >	client,
		Ptr< Node >	server,
		double	start,
		double	stop
	)

private

Definition at line 375 of file wifi-multirate.cc.

References ns3::Ipv4::GetAddress(), ns3::Object::GetObject(), ns3::OnOffHelper::Install(), NS_LOG_DEBUG, packetSize, port, PrintPosition(), ns3::Seconds(), ns3::OnOffHelper::SetAttribute(), ns3::OnOffHelper::SetConstantRate(), SetupPacketReceive(), sink, ns3::ApplicationContainer::Start(), visualizer.core::start(), and ns3::ApplicationContainer::Stop().

Referenced by Run(), SelectSrcDest(), and SendMultiDestinations().

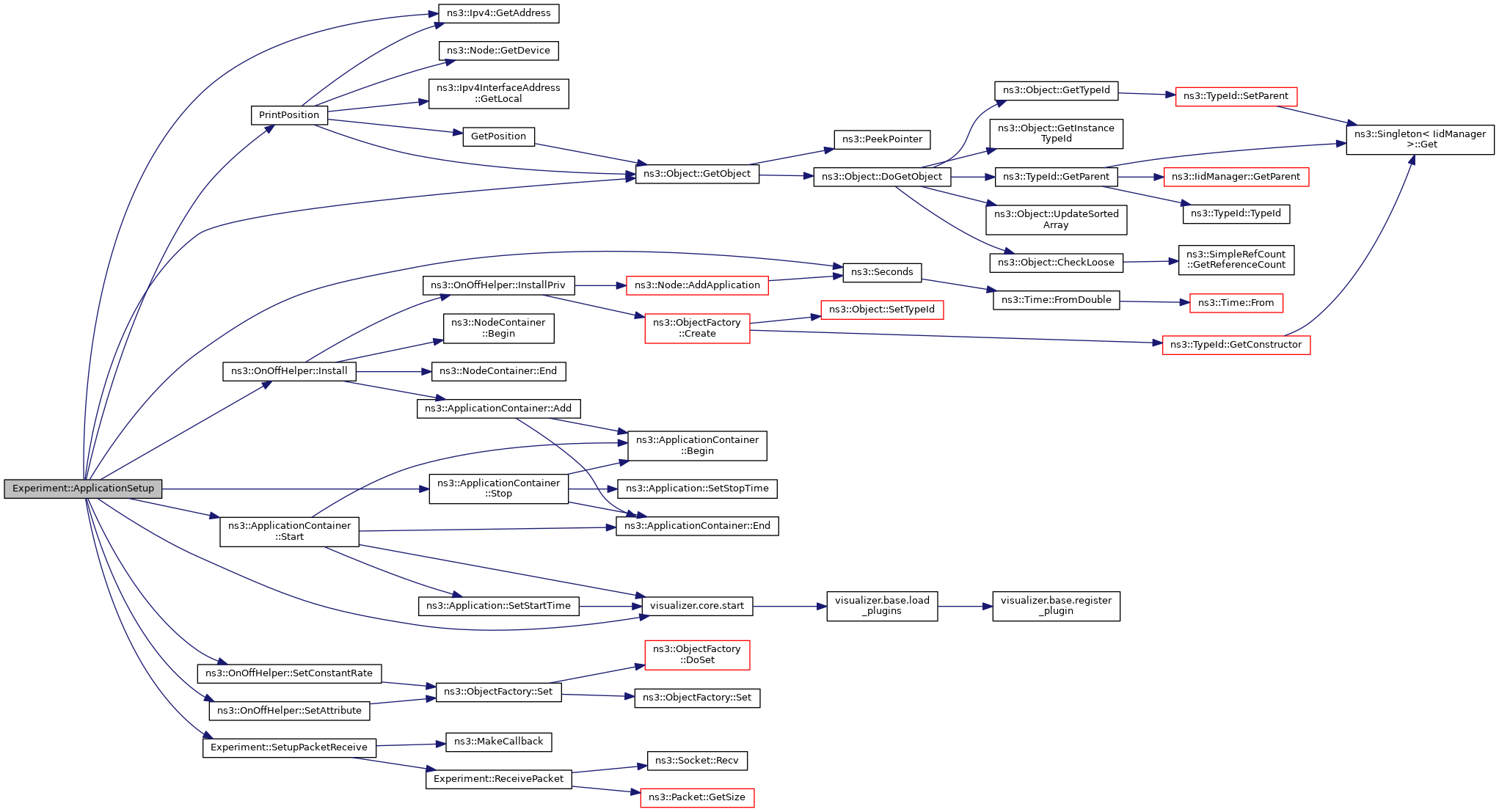

Here is the call graph for this function:

Here is the caller graph for this function:

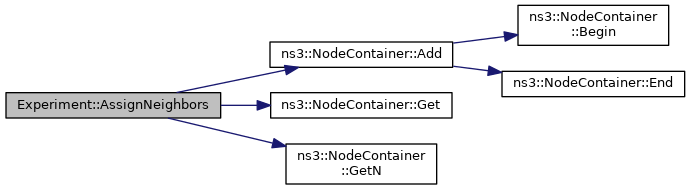

◆ AssignNeighbors()

void Experiment::AssignNeighbors ( NodeContainer c )

private

Take the grid map, divide it into 4 quadrants Assign all nodes from each quadrant to a specific container.

Definition at line 216 of file wifi-multirate.cc.

References ns3::NodeContainer::Add(), containerA, containerB, containerC, containerD, ns3::NodeContainer::Get(), ns3::NodeContainer::GetN(), and gridSize.

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

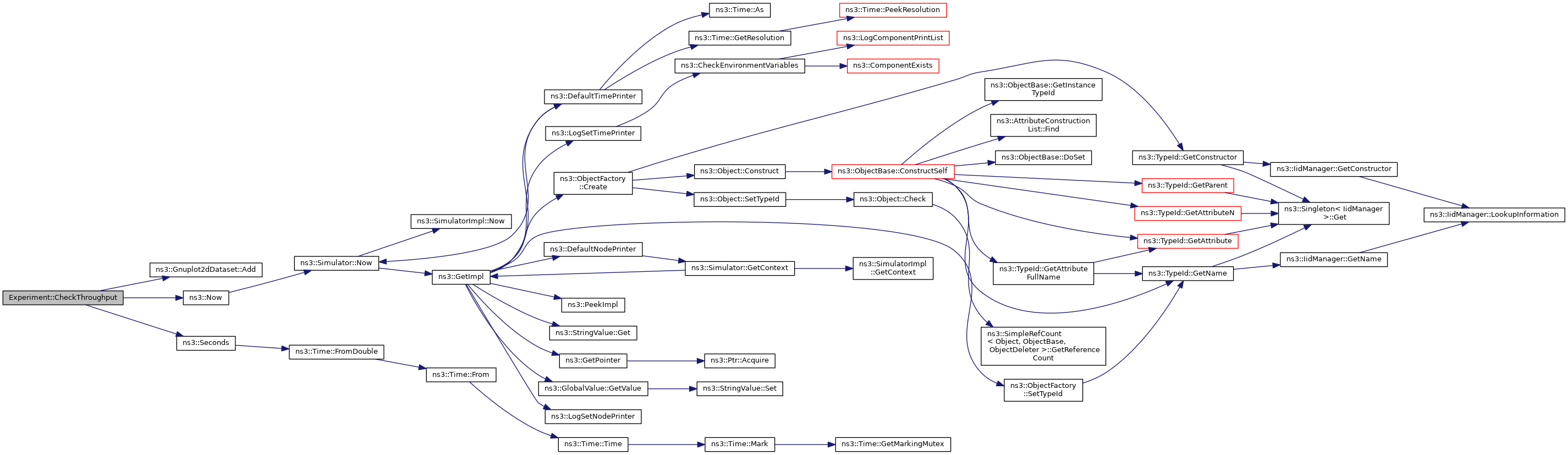

◆ CheckThroughput()

void Experiment::CheckThroughput ( )

private

Definition at line 199 of file wifi-multirate.cc.

References ns3::Gnuplot2dDataset::Add(), bytesTotal, m_output, ns3::Now(), samplingPeriod, and ns3::Seconds().

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CommandSetup()

bool Experiment::CommandSetup	(	int	argc,
		char **	argv
	)

Definition at line 555 of file wifi-multirate.cc.

References second::cmd, enableMobility, enableRouting, outputFileName, packetSize, rateManager, rtsThreshold, samplingPeriod, scenario, and totalTime.

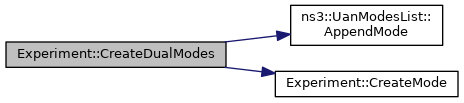

◆ CreateDualModes()

void Experiment::CreateDualModes ( uint32_t fc )

Create m_numRates matching control and data modes.

Parameters

fc	Mode center frequency offset.

Definition at line 132 of file uan-rc-example.cc.

References ns3::UanModesList::AppendMode(), CreateMode(), m_controlModes, m_dataModes, and m_numRates.

Here is the call graph for this function:

◆ CreateMode()

UanTxMode Experiment::CreateMode	(	uint32_t	kass,
		uint32_t	fc,
		bool	upperblock,
		std::string	name
	)

Create a UanTxMode.

The mode physical rate is set equal to m_totalRate. The data rate and bandwidth are set to

${\rm{rate, bandwidth}} = {\rm{kass}}\frac{{{\rm{m\_totalRate}}}}{{{\rm{m\_numRates}} + 1}}$

The center frequency is set to

${f_{center}} = {\rm{fc}} + \frac{{ \pm {\rm{m\_totalRate}} \mp {\rm{rate}}}}{2}$

where the upper sign is taken if upperblock is true.

Parameters

kass	Fraction of total bandwidth assigned to mode.
fc	Mode center frequency offset.
upperblock	Sign choice in setting the center frequency.
name	Mode name.

Returns: The new mode.

Definition at line 98 of file uan-rc-example.cc.

References m_numRates, and m_totalRate.

Referenced by CreateDualModes().

Here is the caller graph for this function:

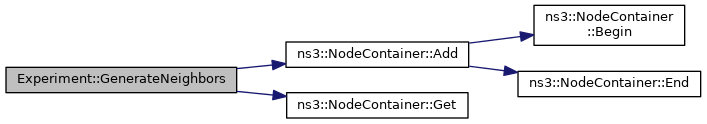

◆ GenerateNeighbors()

NodeContainer Experiment::GenerateNeighbors	(	NodeContainer	c,
		uint32_t	senderId
	)

private

Generate 1-hop and 2-hop neighbors of a node in grid topology.

Definition at line 257 of file wifi-multirate.cc.

References ns3::NodeContainer::Add(), and ns3::NodeContainer::Get().

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GenerateTraffic()

void Experiment::GenerateTraffic	(	Ptr< Socket >	socket,
		uint32_t	pktSize,
		uint32_t	pktCount,
		Time	pktInterval
	)

private

Definition at line 103 of file wifi-clear-channel-cmu.cc.

References ns3::Socket::Close(), pktSize, and ns3::Socket::Send().

Here is the call graph for this function:

◆ GetOutputFileName()

std::string Experiment::GetOutputFileName ( )

inline

Definition at line 103 of file wifi-multirate.cc.

Referenced by Run().

Here is the caller graph for this function:

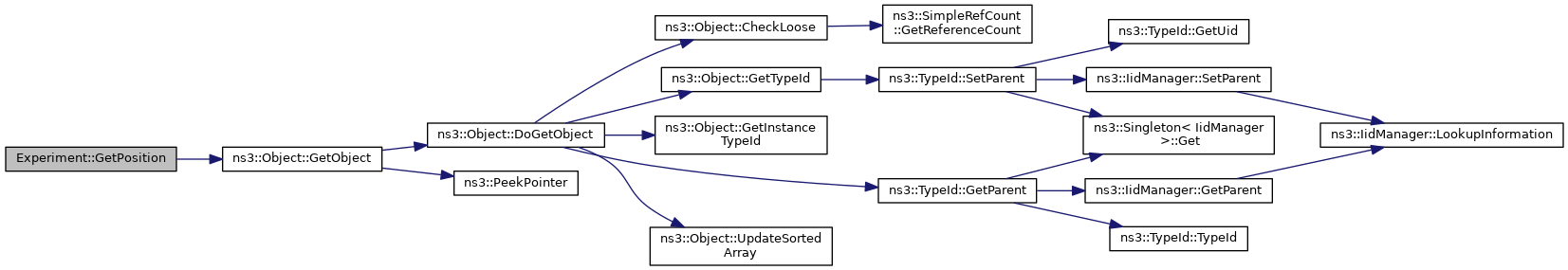

◆ GetPosition() [1/2]

Vector Experiment::GetPosition ( Ptr< Node > node )

private

◆ GetPosition() [2/2]

Vector Experiment::GetPosition ( Ptr< Node > node )

private

Definition at line 76 of file wifi-adhoc.cc.

References ns3::Object::GetObject(), and third::mobility.

Referenced by AdvancePosition(), and Run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetRateManager()

std::string Experiment::GetRateManager ( )

inline

Definition at line 107 of file wifi-multirate.cc.

◆ GetRtsThreshold()

std::string Experiment::GetRtsThreshold ( )

inline

Definition at line 99 of file wifi-multirate.cc.

◆ GetScenario()

uint32_t Experiment::GetScenario ( )

inline

Definition at line 94 of file wifi-multirate.cc.

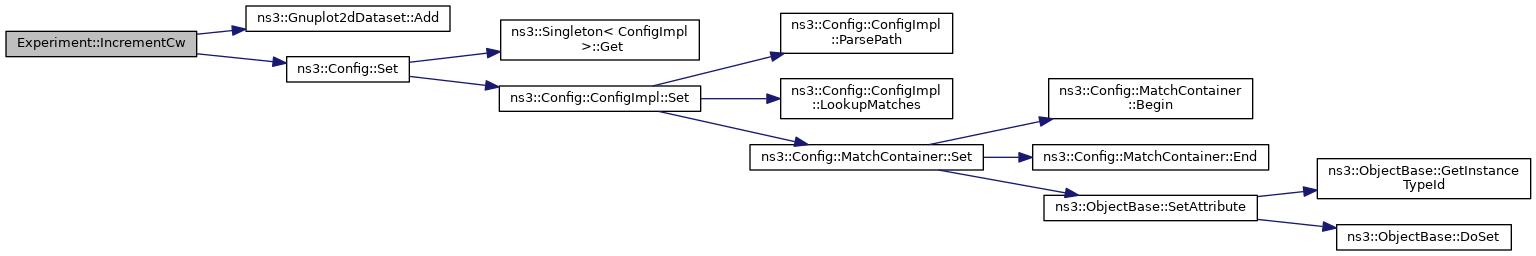

◆ IncrementCw()

void Experiment::IncrementCw ( uint32_t cw )

Compute average throughput for a set of runs, then increment CW.

Parameters

cw	CW value for completed runs.

Definition at line 86 of file uan-cw-example.cc.

References ns3::Gnuplot2dDataset::Add(), m_avgs, m_cwStep, m_data, m_throughputs, NS_ASSERT, NS_LOG_DEBUG, and ns3::Config::Set().

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsMobility()

bool Experiment::IsMobility ( )

inline

Definition at line 89 of file wifi-multirate.cc.

◆ IsRouting()

bool Experiment::IsRouting ( )

inline

Definition at line 85 of file wifi-multirate.cc.

◆ ReceivePacket() [1/5]

void Experiment::ReceivePacket ( Ptr< Socket > socket )

private

◆ ReceivePacket() [2/5]

void Experiment::ReceivePacket ( Ptr< Socket > socket )

private

Definition at line 99 of file wifi-adhoc.cc.

References ns3::Packet::GetSize(), m_bytesTotal, and ns3::Socket::Recv().

Referenced by Run(), and SetupPacketReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReceivePacket() [3/5]

void Experiment::ReceivePacket ( Ptr< Socket > socket )

Receive all available packets from a socket.

Parameters

socket The receive socket.

◆ ReceivePacket() [4/5]

void Experiment::ReceivePacket ( Ptr< Socket > socket )

Callback to receive a packet.

Parameters

socket The socket receiving packets.

◆ ReceivePacket() [5/5]

void Experiment::ReceivePacket ( Ptr< Socket > socket )

private

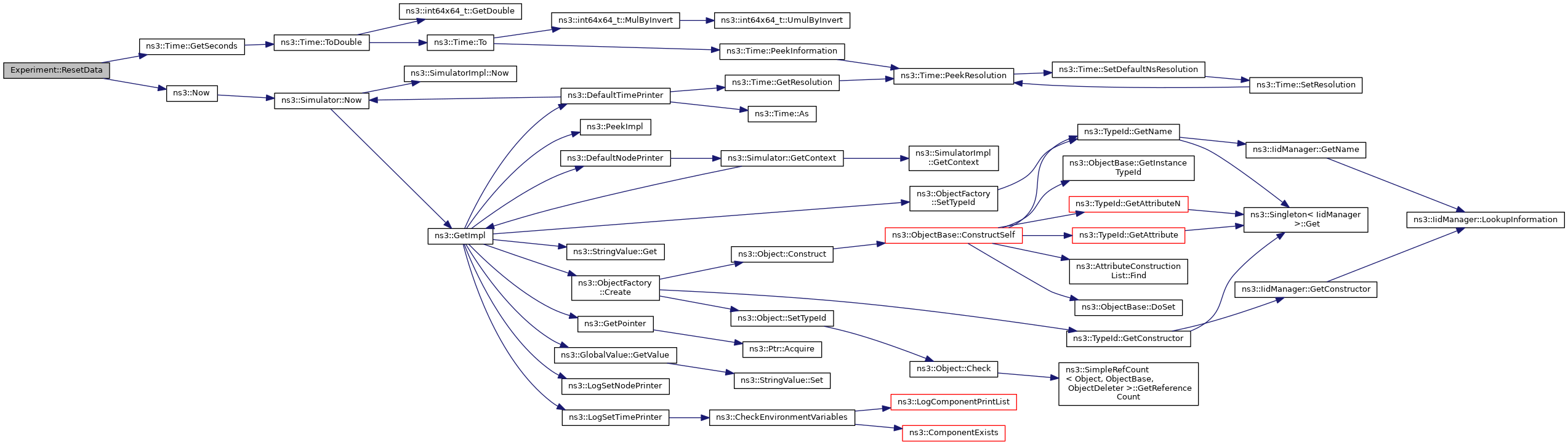

◆ ResetData()

void Experiment::ResetData ( )

Save the throughput from a single run.

Definition at line 78 of file uan-cw-example.cc.

References ns3::Time::GetSeconds(), m_bytesTotal, m_simTime, m_throughputs, ns3::Now(), and NS_LOG_DEBUG.

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Run() [1/7]

uint32_t Experiment::Run	(	const WifiHelper &	wifi,
		const YansWifiPhyHelper &	wifiPhy,
		const WifiMacHelper &	wifiMac,
		const YansWifiChannelHelper &	wifiChannel
	)

◆ Run() [2/7]

uint32_t Experiment::Run	(	const WifiHelper &	wifi,
		const YansWifiPhyHelper &	wifiPhy,
		const WifiMacHelper &	wifiMac,
		const YansWifiChannelHelper &	wifiChannel
	)

◆ Run() [3/7]

Gnuplot2dDataset Experiment::Run ( UanHelper & uan )

Run an experiment across a range of congestion window values.

Parameters

uan	The Uan stack helper to configure nodes in the model.

Returns: The data set of CW values and measured throughput

Definition at line 132 of file uan-cw-example.cc.

References ns3::ListPositionAllocator::Add(), ns3::Object::AggregateObject(), ns3::Socket::Bind(), third::channel, ns3::NodeContainer::Create(), first::devices, ns3::UanHelper::EnableAsciiAll(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::NetDeviceContainer::GetN(), ns3::NodeContainer::GetN(), ns3::Object::GetObject(), GetPosition(), ns3::UniformRandomVariable::GetValue(), IncrementCw(), ns3::PacketSocketHelper::Install(), ns3::OnOffHelper::Install(), ns3::UanHelper::Install(), m_asciitracefile, m_avgs, m_boundary, m_bytesTotal, m_cwMax, m_cwMin, m_cwStep, m_data, m_dataRate, m_depth, m_numNodes, m_packetSize, m_simTime, m_slotTime, ns3::MakeCallback(), min, third::mobility, NS_FATAL_ERROR, NS_LOG_DEBUG, ReceivePacket(), ResetData(), ns3::Seconds(), ns3::OnOffHelper::SetAttribute(), ns3::UanHelper::SetMac(), ns3::PacketSocketAddress::SetPhysicalAddress(), ns3::PacketSocketAddress::SetProtocol(), ns3::Socket::SetRecvCallback(), ns3::PacketSocketAddress::SetSingleDevice(), sink, ns3::ApplicationContainer::Start(), ns3::ApplicationContainer::Stop(), UpdatePositions(), and sample-rng-plot::x.

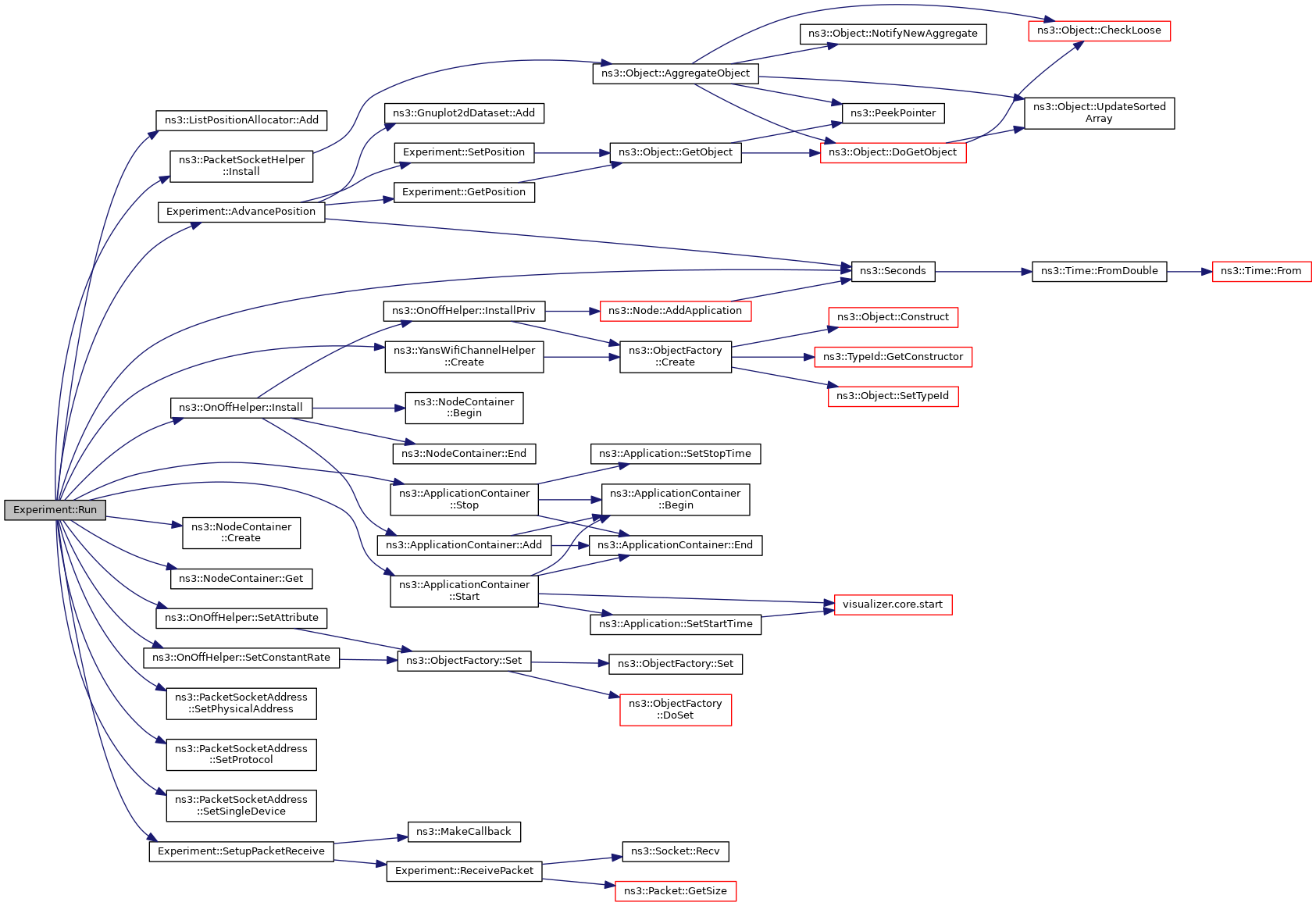

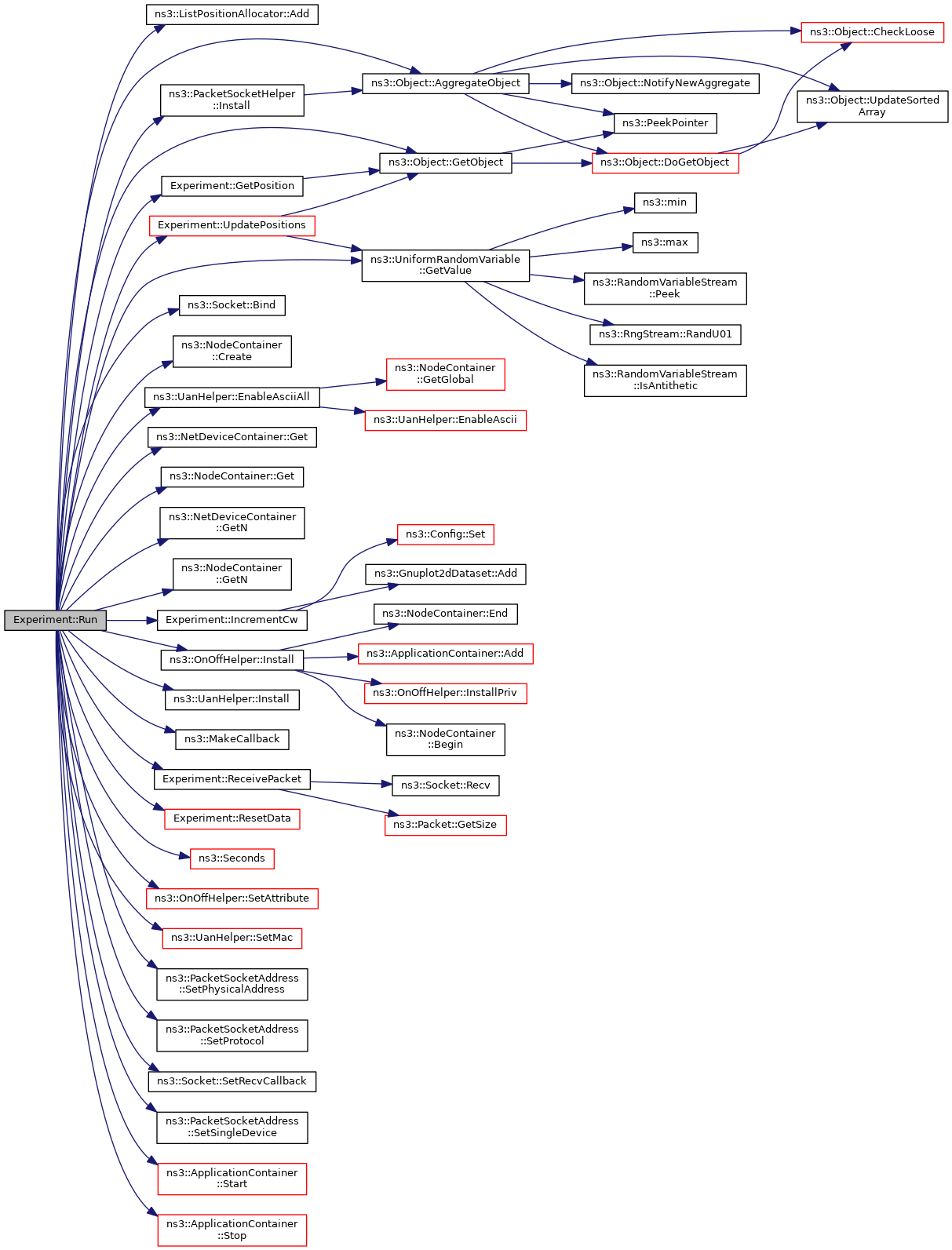

Here is the call graph for this function:

◆ Run() [4/7]

Gnuplot2dDataset Experiment::Run	(	const WifiHelper &	wifi,
		const YansWifiPhyHelper &	wifiPhy,
		const WifiMacHelper &	wifiMac,
		const YansWifiChannelHelper &	wifiChannel,
		const MobilityHelper &	mobility
	)

Definition at line 399 of file wifi-multirate.cc.

References first::address, ApplicationSetup(), AssignNeighbors(), CheckThroughput(), containerA, containerB, containerC, containerD, ns3::YansWifiChannelHelper::Create(), ns3::NodeContainer::Create(), ns3::AsciiTraceHelper::CreateFileStream(), first::devices, enableFlowMon, enableMobility, enablePcap, enableRouting, enableTracing, GenerateNeighbors(), ns3::NodeContainer::Get(), GetOutputFileName(), gridSize, ns3::InternetStackHelper::Install(), ns3::MobilityHelper::Install(), ns3::FlowMonitorHelper::InstallAll(), list, m_output, third::mac, third::mobility, nodeDistance, NS_LOG_DEBUG, third::phy, scenario, ns3::Seconds(), SelectSrcDest(), SendMultiDestinations(), ns3::FlowMonitorHelper::SerializeToXmlFile(), ns3::MobilityHelper::SetMobilityModel(), ns3::MobilityHelper::SetPositionAllocator(), ns3::InternetStackHelper::SetRoutingHelper(), totalTime, and third::wifi.

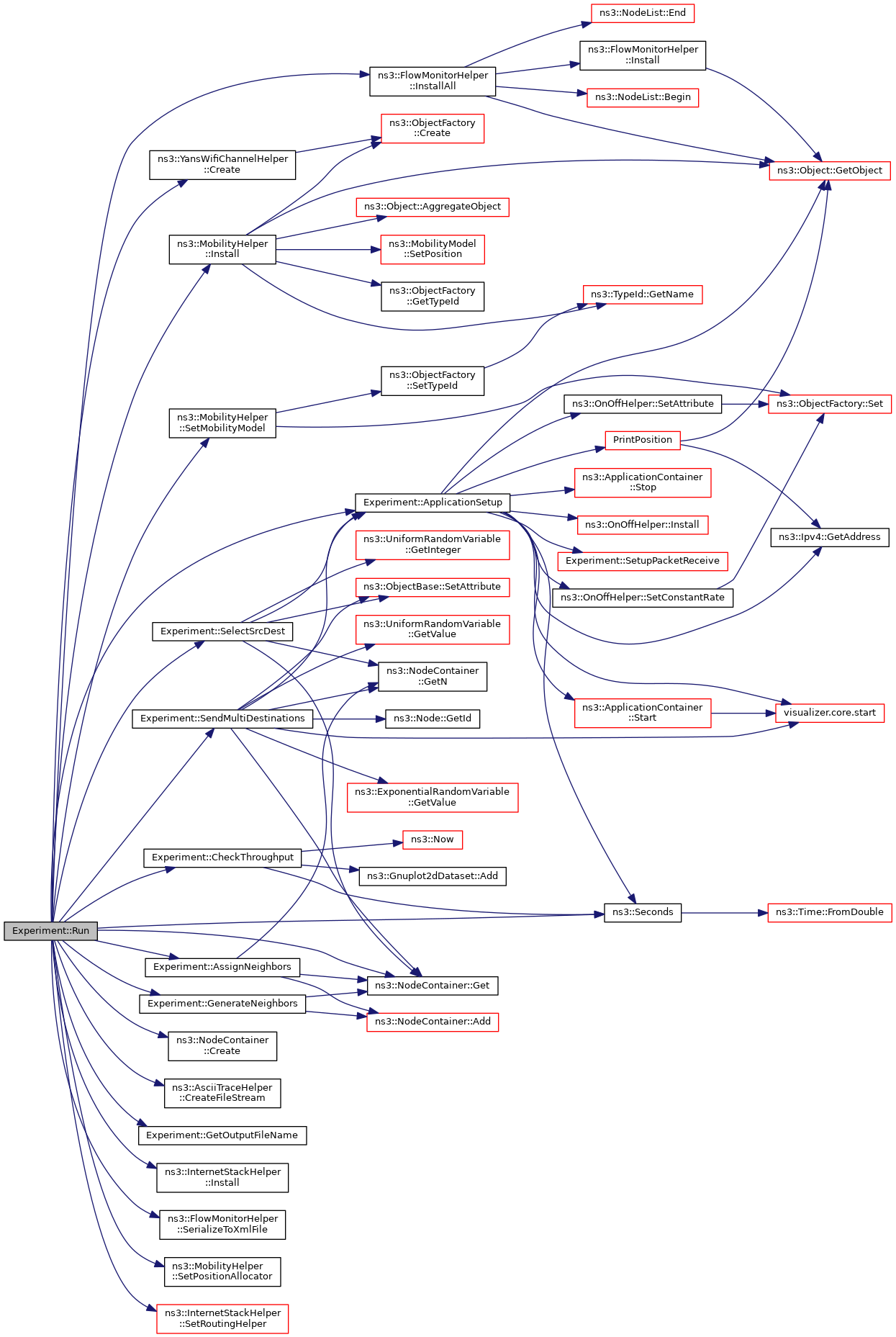

Here is the call graph for this function:

◆ Run() [5/7]

double Experiment::Run ( Parameters params )

Definition at line 95 of file wifi-mixed-network.cc.

References ns3::ListPositionAllocator::Add(), first::address, Parameters::apType, Parameters::bHasTraffic, third::channel, first::clientApps, ns3::NodeContainer::Create(), ns3::YansWifiChannelHelper::Default(), ns3::Simulator::Destroy(), Parameters::enableErpProtection, Parameters::enableShortPhyPreamble, Parameters::enableShortSlotTime, Parameters::erpProtectionMode, ns3::PointerValue::Get(), ns3::ApplicationContainer::Get(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::Ipv4Address::GetAny(), ns3::Node::GetDevice(), ns3::WifiNetDevice::GetMac(), Parameters::gHasTraffic, ns3::PacketSinkHelper::Install(), ns3::UdpServerHelper::Install(), ns3::OnOffHelper::Install(), Parameters::isUdp, third::mac, ns3::MicroSeconds(), third::mobility, Parameters::nHasTraffic, Parameters::nWifiB, Parameters::nWifiG, Parameters::nWifiN, Parameters::payloadSize, third::phy, port, ns3::Simulator::Run(), ns3::Seconds(), ns3::Config::Set(), ns3::OnOffHelper::SetAttribute(), ns3::UdpClientHelper::SetAttribute(), ns3::Config::SetDefault(), ns3::Txop::SetTxopLimit(), Parameters::simulationTime, third::ssid, first::stack, ns3::ApplicationContainer::Start(), ns3::Simulator::Stop(), ns3::ApplicationContainer::Stop(), Parameters::testName, third::wifi, ns3::WIFI_STANDARD_80211b, ns3::WIFI_STANDARD_80211g, ns3::WIFI_STANDARD_80211n_2_4GHZ, and third::wifiApNode.

Here is the call graph for this function:

◆ Run() [6/7]

uint32_t Experiment::Run ( uint32_t param )

Run a parametrized experiment.

The parameter sets either the number of nodes (if m_doNode is true) or the "a" parameter, which controls the UanMacRcGw MaxReservations attribute.

Parameters

param The parameter value.

Returns: The total number of bytes delivered.

Definition at line 147 of file uan-rc-example.cc.

References ns3::ListPositionAllocator::Add(), ns3::Socket::Bind(), first::devices, ns3::NetDeviceContainer::Get(), ns3::PacketSocketHelper::Install(), ns3::OnOffHelper::Install(), ns3::UanHelper::Install(), m_bytesTotal, m_controlModes, m_dataModes, m_doNode, m_maxRange, m_numNodes, m_numRates, m_pktSize, m_sifs, m_simTime, m_totalRate, ns3::MakeCallback(), third::mobility, first::nodes, ReceivePacket(), ns3::Seconds(), ns3::OnOffHelper::SetAttribute(), ns3::UanHelper::SetMac(), ns3::UanHelper::SetPhy(), ns3::PacketSocketAddress::SetPhysicalAddress(), ns3::PacketSocketAddress::SetProtocol(), ns3::Socket::SetRecvCallback(), ns3::PacketSocketAddress::SetSingleDevice(), sink, ns3::ApplicationContainer::Start(), ns3::ApplicationContainer::Stop(), and sample-rng-plot::x.

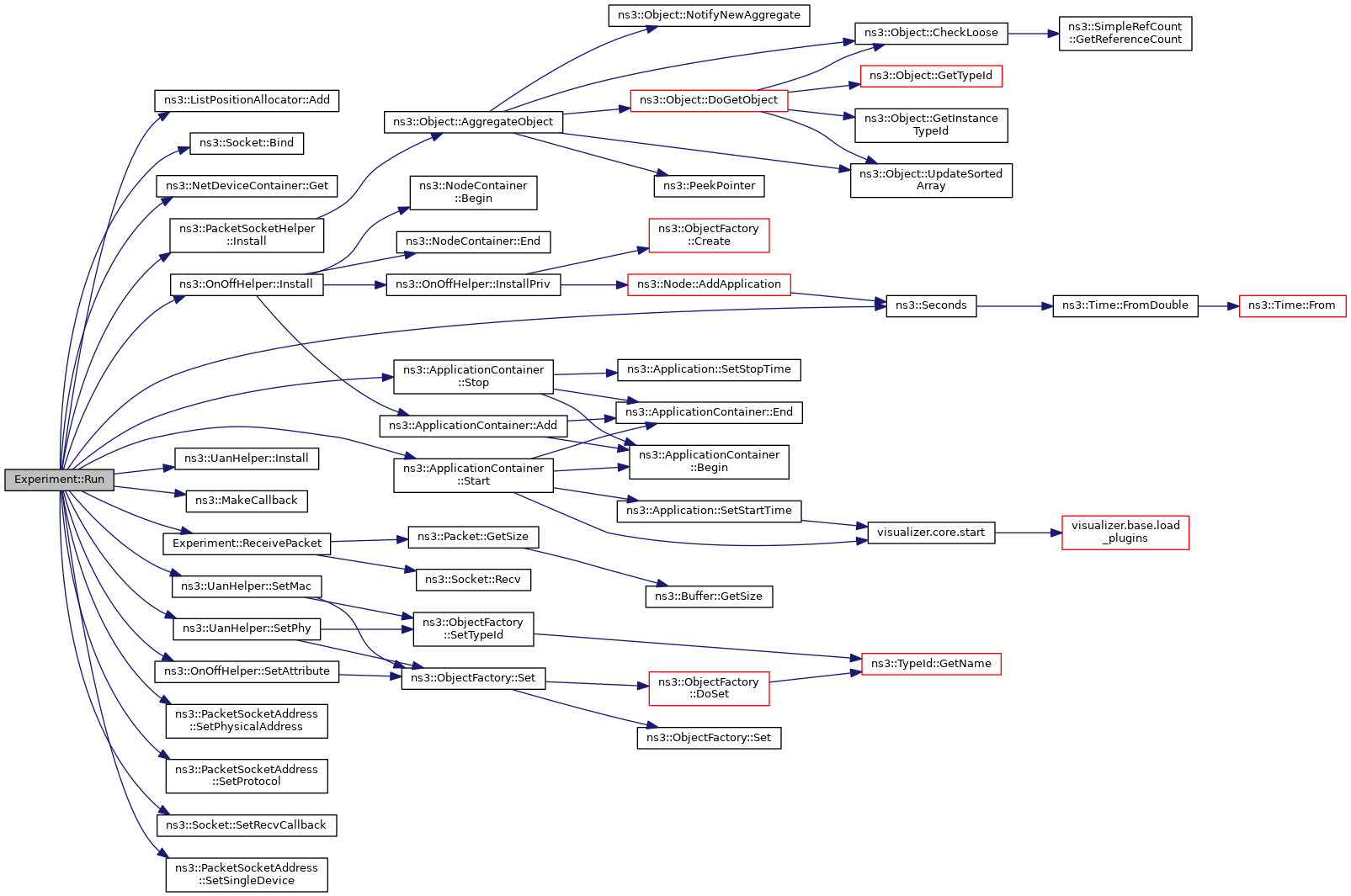

Here is the call graph for this function:

◆ Run() [7/7]

int Experiment::Run	(	const WifiHelper &	wifi,
		const YansWifiPhyHelper &	wifiPhy,
		const WifiMacHelper &	wifiMac,
		const YansWifiChannelHelper &	wifiChannel,
		uint32_t	trialNumber,
		uint32_t	networkSize,
		Time	duration,
		bool	pcap,
		bool	infra,
		uint16_t	guardIntervalNs,
		double	distanceM,
		double	apTxPowerDbm,
		double	staTxPowerDbm,
		Time	pktInterval
	)

Configure and run the experiment.

Parameters

wifi	the pre-configured WifiHelper
wifiPhy	the pre-configured YansWifiPhyHelper
wifiMac	the pre-configured WifiMacHelper
wifiChannel	the pre-configured YansWifiChannelHelper
trialNumber	the trial index
networkSize	the number of stations
duration	the duration of each simulation run
pcap	flag to enable/disable PCAP files generation
infra	flag to enable infrastructure model, ring adhoc network if not set
guardIntervalNs	the guard interval in ns
distanceM	the distance in meters
apTxPowerDbm	the AP transmit power in dBm
staTxPowerDbm	the STA transmit power in dBm
pktInterval	the packet interval

Returns: 0 if all went well

Definition at line 876 of file wifi-bianchi.cc.

References ns3::ListPositionAllocator::Add(), ns3::Node::AddApplication(), AssociationLog(), BackoffTrace(), backoffTraceFile, ns3::Config::Connect(), ns3::YansWifiChannelHelper::Create(), ns3::NodeContainer::Create(), CwTrace(), cwTraceFile, ns3::Simulator::Destroy(), first::devices, DisassociationLog(), ns3::WifiPhyHelper::DLT_IEEE802_11_RADIO, ns3::NodeContainer::Get(), ns3::Node::GetDevice(), ns3::WifiNetDevice::GetMac(), ns3::NodeContainer::GetN(), ns3::Time::GetSeconds(), ns3::PacketSocketHelper::Install(), third::mac, MacRxTrace(), macRxTraceFile, MacTxTrace(), macTxTraceFile, ns3::MakeCallback(), max, maxMpdus, ns3::MicroSeconds(), third::mobility, ns3::NanoSeconds(), NS_LOG_DEBUG, third::phy, PhyRxDoneTrace(), PhyRxDropTrace(), PhyRxErrorTrace(), PhyRxOkTrace(), PhyRxPayloadTrace(), PhyRxTrace(), PhyTxDoneTrace(), PhyTxTrace(), phyTxTraceFile, PI, pktSize, RestartCalc(), ns3::Simulator::Run(), ns3::Simulator::Schedule(), ns3::Seconds(), ns3::Config::Set(), ns3::ObjectBase::SetAttribute(), ns3::PacketSocketServer::SetLocal(), ns3::PacketSocketAddress::SetPhysicalAddress(), ns3::PacketSocketAddress::SetProtocol(), ns3::PacketSocketClient::SetRemote(), ns3::PacketSocketAddress::SetSingleDevice(), ns3::Application::SetStartTime(), SocketSendTrace(), socketSendTraceFile, third::ssid, visualizer.core::start(), startTime, ns3::Simulator::Stop(), TracePacketReception(), tracing, and third::wifi.

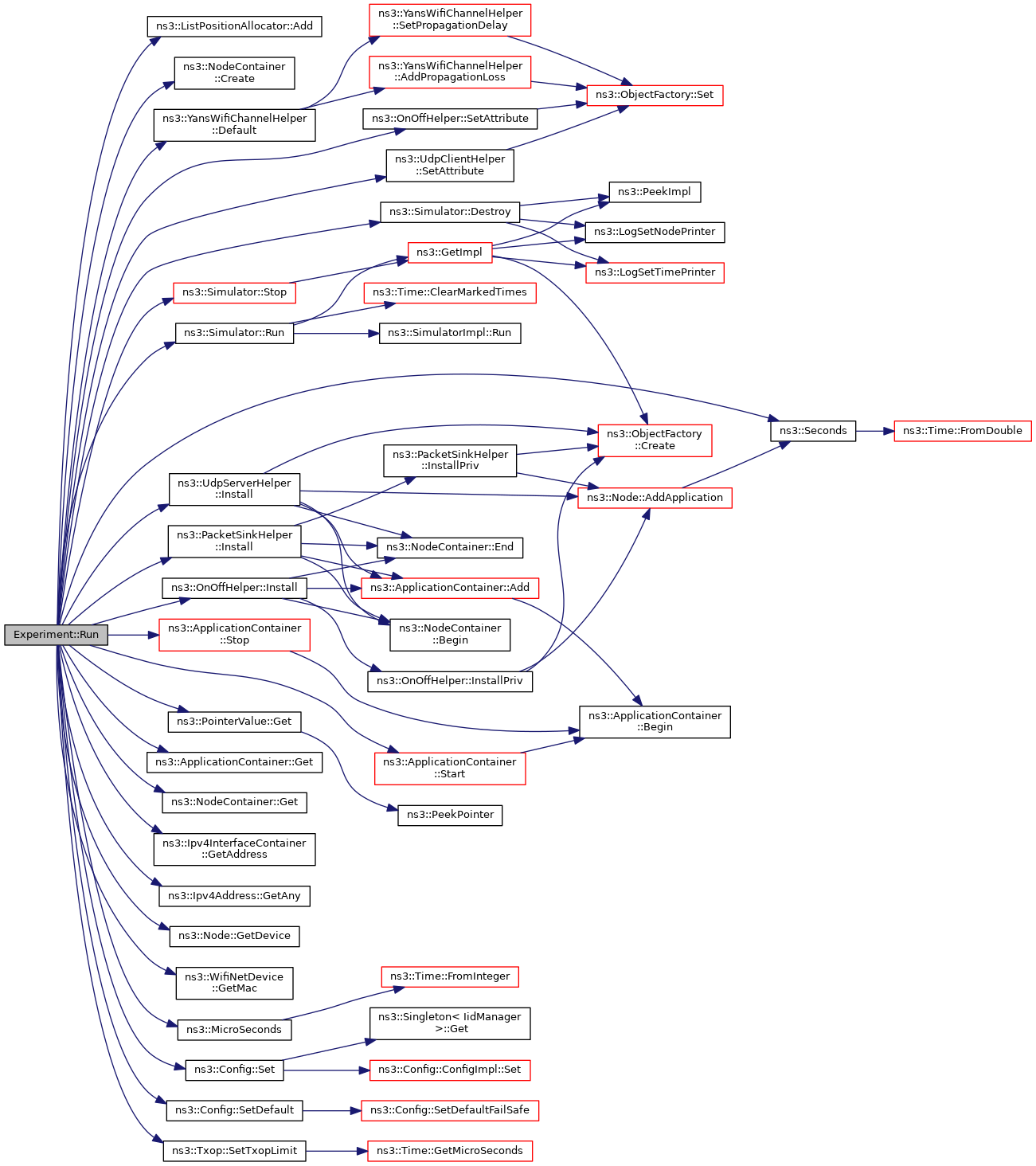

Here is the call graph for this function:

◆ SelectSrcDest()

void Experiment::SelectSrcDest ( NodeContainer c )

private

Sources and destinations are randomly selected such that a node may be the source for multiple destinations and a node maybe a destination for multiple sources.

Definition at line 279 of file wifi-multirate.cc.

References ApplicationSetup(), ns3::NodeContainer::Get(), ns3::UniformRandomVariable::GetInteger(), ns3::NodeContainer::GetN(), ns3::ObjectBase::SetAttribute(), and totalTime.

Referenced by Run().

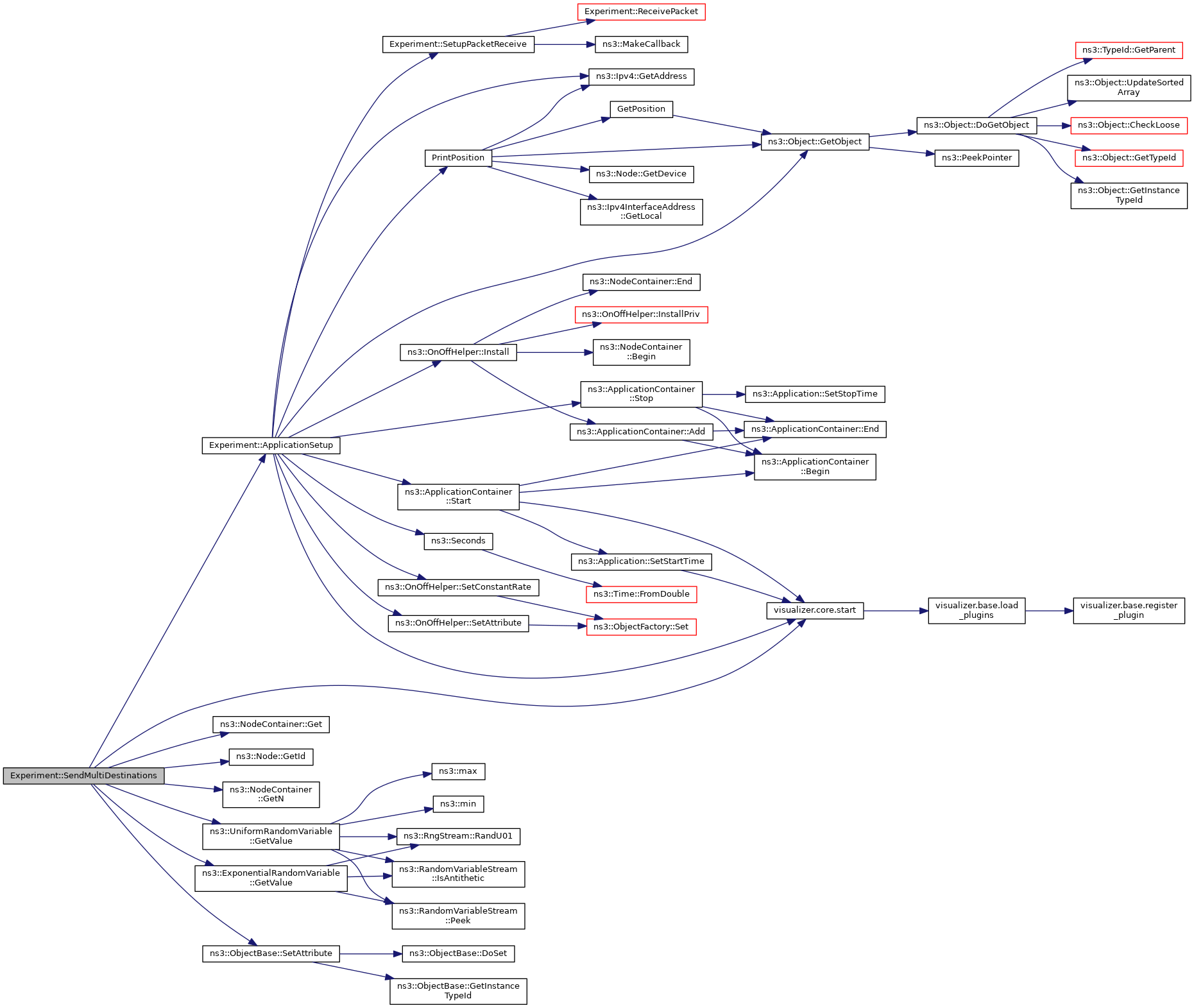

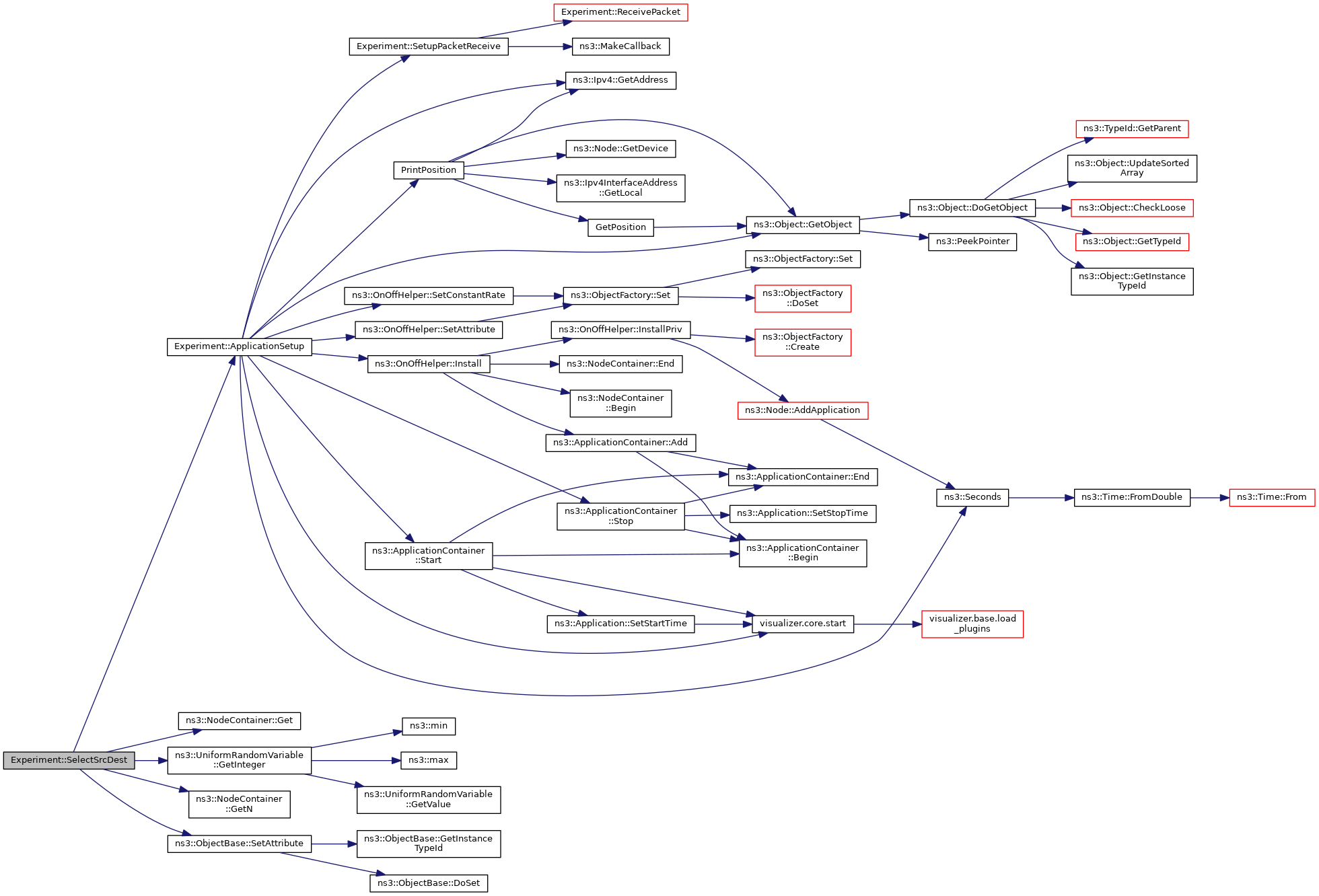

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendMultiDestinations()

void Experiment::SendMultiDestinations	(	Ptr< Node >	sender,
		NodeContainer	c
	)

private

A sender node will set up a flow to each of the its neighbors in its quadrant randomly.

All the flows are exponentially distributed

Definition at line 302 of file wifi-multirate.cc.

References ApplicationSetup(), expMean, ns3::NodeContainer::Get(), ns3::Node::GetId(), ns3::NodeContainer::GetN(), ns3::UniformRandomVariable::GetValue(), ns3::ExponentialRandomVariable::GetValue(), NS_LOG_DEBUG, ns3::ObjectBase::SetAttribute(), visualizer.core::start(), and totalTime.

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetPosition() [1/2]

void Experiment::SetPosition	(	Ptr< Node >	node,
		Vector	position
	)

private

◆ SetPosition() [2/2]

void Experiment::SetPosition	(	Ptr< Node >	node,
		Vector	position
	)

private

Definition at line 69 of file wifi-adhoc.cc.

References ns3::Object::GetObject(), and third::mobility.

Referenced by AdvancePosition().

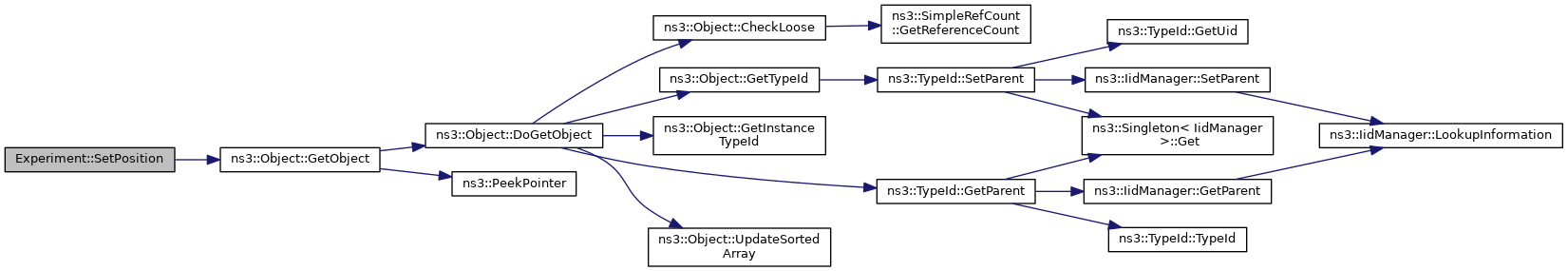

Here is the call graph for this function:

Here is the caller graph for this function:

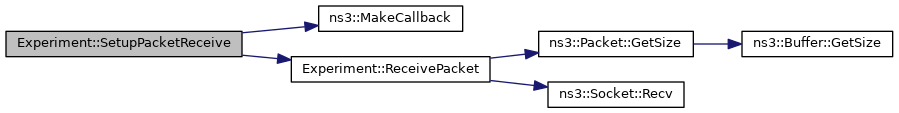

◆ SetupPacketReceive() [1/3]

Ptr<Socket> Experiment::SetupPacketReceive ( Ptr< Node > node )

private

◆ SetupPacketReceive() [2/3]

Ptr< Socket > Experiment::SetupPacketReceive ( Ptr< Node > node )

private

Definition at line 109 of file wifi-adhoc.cc.

References ns3::MakeCallback(), ReceivePacket(), and sink.

Referenced by ApplicationSetup(), and Run().

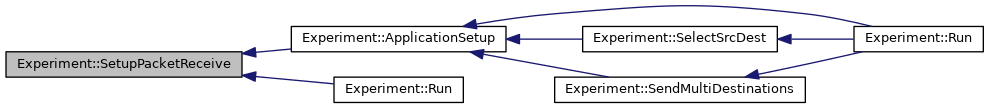

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetupPacketReceive() [3/3]

Ptr<Socket> Experiment::SetupPacketReceive ( Ptr< Node > node )

private

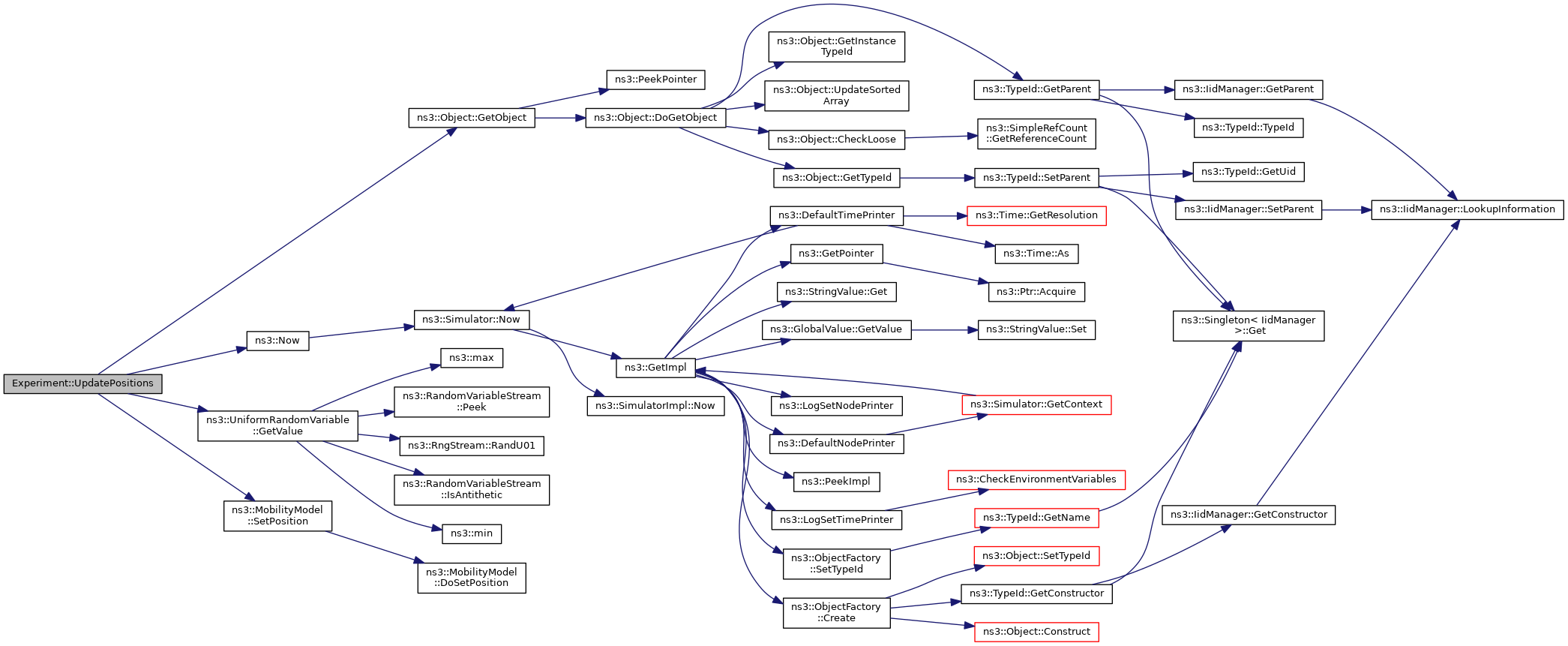

◆ UpdatePositions()

void Experiment::UpdatePositions ( NodeContainer & nodes )

Assign new random positions to a set of nodes.

New positions are randomly assigned within the bounding box.

Parameters

nodes The nodes to reposition.

Definition at line 106 of file uan-cw-example.cc.

References ns3::Object::GetObject(), ns3::UniformRandomVariable::GetValue(), m_boundary, first::nodes, ns3::Now(), NS_LOG_DEBUG, and ns3::MobilityModel::SetPosition().

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ bytesTotal

uint32_t Experiment::bytesTotal

private

Definition at line 129 of file wifi-multirate.cc.

Referenced by CheckThroughput().

◆ containerA

NodeContainer Experiment::containerA

private

Definition at line 142 of file wifi-multirate.cc.

Referenced by AssignNeighbors(), and Run().

◆ containerB

NodeContainer Experiment::containerB

private

Definition at line 142 of file wifi-multirate.cc.

Referenced by AssignNeighbors(), and Run().

◆ containerC

NodeContainer Experiment::containerC

private

Definition at line 142 of file wifi-multirate.cc.

Referenced by AssignNeighbors(), and Run().

◆ containerD

NodeContainer Experiment::containerD

private

Definition at line 142 of file wifi-multirate.cc.

Referenced by AssignNeighbors(), and Run().

◆ enableFlowMon

bool Experiment::enableFlowMon

private

Definition at line 138 of file wifi-multirate.cc.

Referenced by Run().

◆ enableMobility

bool Experiment::enableMobility

private

Definition at line 140 of file wifi-multirate.cc.

Referenced by CommandSetup(), and Run().

◆ enablePcap

bool Experiment::enablePcap

private

Definition at line 136 of file wifi-multirate.cc.

Referenced by Run().

◆ enableRouting

bool Experiment::enableRouting

private

Definition at line 139 of file wifi-multirate.cc.

Referenced by CommandSetup(), and Run().

◆ enableTracing

bool Experiment::enableTracing

private

Definition at line 137 of file wifi-multirate.cc.

Referenced by Run().

◆ expMean

double Experiment::expMean

private

Definition at line 126 of file wifi-multirate.cc.

Referenced by SendMultiDestinations().

◆ gridSize

uint32_t Experiment::gridSize

private

Definition at line 131 of file wifi-multirate.cc.

Referenced by AssignNeighbors(), and Run().

◆ m_asciitracefile

std::string Experiment::m_asciitracefile

Name for ascii trace file, default uan-cw-example.asc.

Definition at line 85 of file uan-cw-example.h.

Referenced by Run().

◆ m_avgs

uint32_t Experiment::m_avgs

Number of topologies to test for each cw point.

Definition at line 79 of file uan-cw-example.h.

Referenced by IncrementCw(), and Run().

◆ m_bhCfgFile

std::string Experiment::m_bhCfgFile

(Unused)

Definition at line 86 of file uan-cw-example.h.

◆ m_boundary

double Experiment::m_boundary

Size of boundary in meters.

Definition at line 73 of file uan-cw-example.h.

Referenced by Run(), and UpdatePositions().

◆ m_bytesTotal

uint32_t Experiment::m_bytesTotal

private

Total bytes received.

Total number of bytes received in a simulation run.

Definition at line 54 of file wifi-adhoc.cc.

Referenced by AdvancePosition(), ReceivePacket(), ResetData(), and Run().

◆ m_controlModes

UanModesList Experiment::m_controlModes

List of UanTxModes used for control channels.

Definition at line 62 of file uan-rc-example.h.

Referenced by CreateDualModes(), and Run().

◆ m_cwMax

uint32_t Experiment::m_cwMax

Max CW to simulate.

Definition at line 77 of file uan-cw-example.h.

Referenced by Run().

◆ m_cwMin

uint32_t Experiment::m_cwMin

Min CW to simulate.

Definition at line 76 of file uan-cw-example.h.

Referenced by Run().

◆ m_cwStep

uint32_t Experiment::m_cwStep

CW step size, default 10.

Definition at line 78 of file uan-cw-example.h.

Referenced by IncrementCw(), and Run().

◆ m_data

Gnuplot2dDataset Experiment::m_data

Container for the simulation data.

Definition at line 88 of file uan-cw-example.h.

Referenced by IncrementCw(), and Run().

◆ m_dataModes

UanModesList Experiment::m_dataModes

List of UanTxModes used for data channels.

Definition at line 61 of file uan-rc-example.h.

Referenced by CreateDualModes(), and Run().

◆ m_dataRate

uint32_t Experiment::m_dataRate

DataRate in bps.

Definition at line 71 of file uan-cw-example.h.

Referenced by Run().

◆ m_depth

double Experiment::m_depth

Depth of transmitting and sink nodes.

Definition at line 72 of file uan-cw-example.h.

Referenced by Run().

◆ m_doNode

bool Experiment::m_doNode

1 for do max nodes simulation (invalidates AMin and AMax values).

Definition at line 53 of file uan-rc-example.h.

Referenced by Run().

◆ m_gnudatfile

std::string Experiment::m_gnudatfile

Name for GNU Plot output, default uan-cw-example.gpl.

Definition at line 84 of file uan-cw-example.h.

◆ m_gnuplotfile

std::string Experiment::m_gnuplotfile

Filename for GnuPlot.

Definition at line 57 of file uan-rc-example.h.

◆ m_maxRange

uint32_t Experiment::m_maxRange

Maximum range between gateway and acoustic node.

Definition at line 50 of file uan-rc-example.h.

Referenced by Run().

◆ m_numNodes

uint32_t Experiment::m_numNodes

Number of transmitting nodes.

Number of nodes (invalid for m_doNode true).

Definition at line 70 of file uan-cw-example.h.

Referenced by Run().

◆ m_numRates

uint32_t Experiment::m_numRates

Number of divided rates ( (NumberRates+1)TotalRate should be 0).

Definition at line 48 of file uan-rc-example.h.

Referenced by CreateDualModes(), CreateMode(), and Run().

◆ m_output

Gnuplot2dDataset Experiment::m_output

private

Definition at line 55 of file wifi-adhoc.cc.

Referenced by AdvancePosition(), CheckThroughput(), Experiment(), and Run().

◆ m_packetSize

uint32_t Experiment::m_packetSize

Generated packet size in bytes.

Definition at line 74 of file uan-cw-example.h.

Referenced by Run().

◆ m_pktSize

uint32_t Experiment::m_pktSize

Packet size in bytes.

Definition at line 52 of file uan-rc-example.h.

Referenced by Run().

◆ m_pktsTotal

uint32_t Experiment::m_pktsTotal

private

Definition at line 53 of file wifi-clear-channel-cmu.cc.

◆ m_sifs

Time Experiment::m_sifs

SIFS time duration.

Definition at line 54 of file uan-rc-example.h.

Referenced by Run().

◆ m_simMax

uint32_t Experiment::m_simMax

Maximum parameter to test.

Definition at line 46 of file uan-rc-example.h.

◆ m_simMin

uint32_t Experiment::m_simMin

Minimum parameter to test.

Definition at line 45 of file uan-rc-example.h.

◆ m_simStep

uint32_t Experiment::m_simStep

Amount to increment param per trial.

Definition at line 47 of file uan-rc-example.h.

◆ m_simTime

Time Experiment::m_simTime

Simulation run time, default 1000 s.

Simulation time per trial.

Definition at line 82 of file uan-cw-example.h.

Referenced by ResetData(), and Run().

◆ m_slotTime

Time Experiment::m_slotTime

Slot time duration.

Definition at line 81 of file uan-cw-example.h.

Referenced by Run().

◆ m_throughputs

std::vector<double> Experiment::m_throughputs

Throughput for each run.

Definition at line 89 of file uan-cw-example.h.

Referenced by IncrementCw(), and ResetData().

◆ m_totalRate

uint32_t Experiment::m_totalRate

Total channel capacity.

Definition at line 49 of file uan-rc-example.h.

Referenced by CreateMode(), and Run().

◆ nodeDistance

uint32_t Experiment::nodeDistance

private

Definition at line 132 of file wifi-multirate.cc.

Referenced by Run().

◆ outputFileName

std::string Experiment::outputFileName

private

Definition at line 143 of file wifi-multirate.cc.

Referenced by CommandSetup().

◆ packetSize

uint32_t Experiment::packetSize

private

Definition at line 130 of file wifi-multirate.cc.

Referenced by ApplicationSetup(), and CommandSetup().

◆ port

uint32_t Experiment::port

private

Definition at line 133 of file wifi-multirate.cc.

Referenced by ApplicationSetup().

◆ rateManager

std::string Experiment::rateManager

private

Definition at line 143 of file wifi-multirate.cc.

Referenced by CommandSetup().

◆ rtsThreshold

std::string Experiment::rtsThreshold

private

Definition at line 143 of file wifi-multirate.cc.

Referenced by CommandSetup().

◆ samplingPeriod

double Experiment::samplingPeriod

private

Definition at line 127 of file wifi-multirate.cc.

Referenced by CheckThroughput(), and CommandSetup().

◆ scenario

uint32_t Experiment::scenario

private

Definition at line 134 of file wifi-multirate.cc.

Referenced by CommandSetup(), and Run().

◆ totalTime

double Experiment::totalTime

private

Definition at line 125 of file wifi-multirate.cc.

Referenced by CommandSetup(), Run(), SelectSrcDest(), and SendMultiDestinations().

The documentation for this class was generated from the following files:

examples/wireless/wifi-adhoc.cc
examples/wireless/wifi-clear-channel-cmu.cc
examples/wireless/wifi-multirate.cc
src/uan/examples/uan-cw-example.h
src/uan/examples/uan-rc-example.h
examples/wireless/wifi-mixed-network.cc
src/wifi/examples/wifi-bianchi.cc
src/uan/examples/uan-cw-example.cc
src/uan/examples/uan-rc-example.cc

Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Experiment() [1/10]

◆ Experiment() [2/10]

◆ Experiment() [3/10]

◆ Experiment() [4/10]

◆ Experiment() [5/10]

◆ Experiment() [6/10]

◆ Experiment() [7/10]

◆ Experiment() [8/10]

◆ Experiment() [9/10]

◆ Experiment() [10/10]

Member Function Documentation

◆ AdvancePosition()

◆ ApplicationSetup()

◆ AssignNeighbors()

◆ CheckThroughput()

◆ CommandSetup()

◆ CreateDualModes()

◆ CreateMode()

◆ GenerateNeighbors()

◆ GenerateTraffic()

◆ GetOutputFileName()

◆ GetPosition() [1/2]

◆ GetPosition() [2/2]

◆ GetRateManager()

◆ GetRtsThreshold()

◆ GetScenario()

◆ IncrementCw()

◆ IsMobility()

◆ IsRouting()

◆ ReceivePacket() [1/5]

◆ ReceivePacket() [2/5]

◆ ReceivePacket() [3/5]

◆ ReceivePacket() [4/5]

◆ ReceivePacket() [5/5]

◆ ResetData()

◆ Run() [1/7]

◆ Run() [2/7]

◆ Run() [3/7]

◆ Run() [4/7]

◆ Run() [5/7]

◆ Run() [6/7]

◆ Run() [7/7]

◆ SelectSrcDest()

◆ SendMultiDestinations()

◆ SetPosition() [1/2]

◆ SetPosition() [2/2]

◆ SetupPacketReceive() [1/3]

◆ SetupPacketReceive() [2/3]

◆ SetupPacketReceive() [3/3]

◆ UpdatePositions()

Member Data Documentation

◆ bytesTotal

◆ containerA

◆ containerB

◆ containerC

◆ containerD

◆ enableFlowMon

◆ enableMobility

◆ enablePcap

◆ enableRouting

◆ enableTracing

◆ expMean

◆ gridSize

◆ m_asciitracefile

◆ m_avgs

◆ m_bhCfgFile

◆ m_boundary

◆ m_bytesTotal

◆ m_controlModes

◆ m_cwMax

◆ m_cwMin

◆ m_cwStep

◆ m_data

◆ m_dataModes
