Maintains information for a block ack agreement. More...

#include "block-ack-agreement.h"

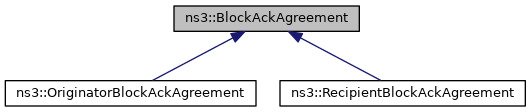

Inheritance diagram for ns3::BlockAckAgreement:

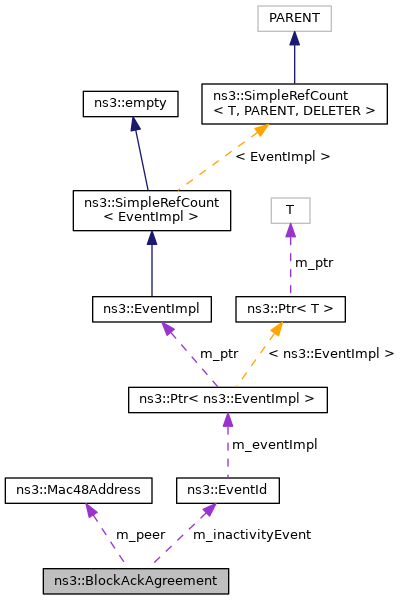

Collaboration diagram for ns3::BlockAckAgreement:

Public Member Functions
	BlockAckAgreement (Mac48Address peer, uint8_t tid)
	Constructor for BlockAckAgreement with given peer and TID. More...

virtual	~BlockAckAgreement ()

BlockAckReqType	GetBlockAckReqType (void) const
	Get the type of the Block Ack Requests sent by the originator of this agreement. More...

BlockAckType	GetBlockAckType (void) const
	Get the type of the Block Acks sent by the recipient of this agreement. More...

uint16_t	GetBufferSize (void) const
	Return the buffer size. More...

Mac48Address	GetPeer (void) const
	Return the peer address. More...

virtual uint16_t	GetStartingSequence (void) const
	Return the starting sequence number. More...

uint16_t	GetStartingSequenceControl (void) const
	Return the starting sequence control. More...

uint8_t	GetTid (void) const
	Return the Traffic ID (TID). More...

uint16_t	GetTimeout (void) const
	Return the timeout. More...

uint16_t	GetWinEnd (void) const
	Return the last sequence number covered by the ack window. More...

bool	IsAmsduSupported (void) const
	Check whether A-MSDU is supported. More...

bool	IsHtSupported (void) const
	Check whether HT is supported. More...

bool	IsImmediateBlockAck (void) const
	Check whether the current ack policy is immediate BlockAck. More...

void	SetAmsduSupport (bool supported)
	Enable or disable A-MSDU support. More...

void	SetBufferSize (uint16_t bufferSize)
	Set buffer size. More...

void	SetDelayedBlockAck (void)
	Set block ack policy to delayed Ack. More...

void	SetHtSupported (bool htSupported)
	Enable or disable HT support. More...

void	SetImmediateBlockAck (void)
	Set block ack policy to immediate Ack. More...

void	SetStartingSequence (uint16_t seq)
	Set starting sequence number. More...

void	SetStartingSequenceControl (uint16_t seq)
	Set starting sequence control. More...

void	SetTimeout (uint16_t timeout)
	Set timeout. More...

Static Public Member Functions
static std::size_t	GetDistance (uint16_t seqNumber, uint16_t startingSeqNumber)
	Get the distance between the given starting sequence number and the given sequence number. More...

Protected Attributes
uint8_t	m_amsduSupported
	Flag whether MSDU aggregation is supported. More...

uint8_t	m_blockAckPolicy
	Type of block ack: immediate or delayed. More...

uint16_t	m_bufferSize
	Buffer size. More...

uint8_t	m_htSupported
	Flag whether HT is supported. More...

EventId	m_inactivityEvent
	inactivity event More...

Mac48Address	m_peer
	Peer address. More...

uint16_t	m_startingSeq
	Starting sequence control. More...

uint8_t	m_tid
	Traffic ID. More...

uint16_t	m_timeout
	Timeout. More...

uint16_t	m_winEnd
	Ending sequence number. More...

Friends
class	HtFrameExchangeManager

class	MacLow
	Provide access to MacLow class. More...

Detailed Description

Maintains information for a block ack agreement.

Definition at line 33 of file block-ack-agreement.h.

Constructor & Destructor Documentation

◆ BlockAckAgreement()

ns3::BlockAckAgreement::BlockAckAgreement	(	Mac48Address	peer,
		uint8_t	tid
	)

Constructor for BlockAckAgreement with given peer and TID.

Parameters

peer	the peer station
tid	the TID

Definition at line 29 of file block-ack-agreement.cc.

References NS_LOG_FUNCTION.

◆ ~BlockAckAgreement()

ns3::BlockAckAgreement::~BlockAckAgreement ( )

virtual

Definition at line 40 of file block-ack-agreement.cc.

References ns3::EventId::Cancel(), m_inactivityEvent, and NS_LOG_FUNCTION.

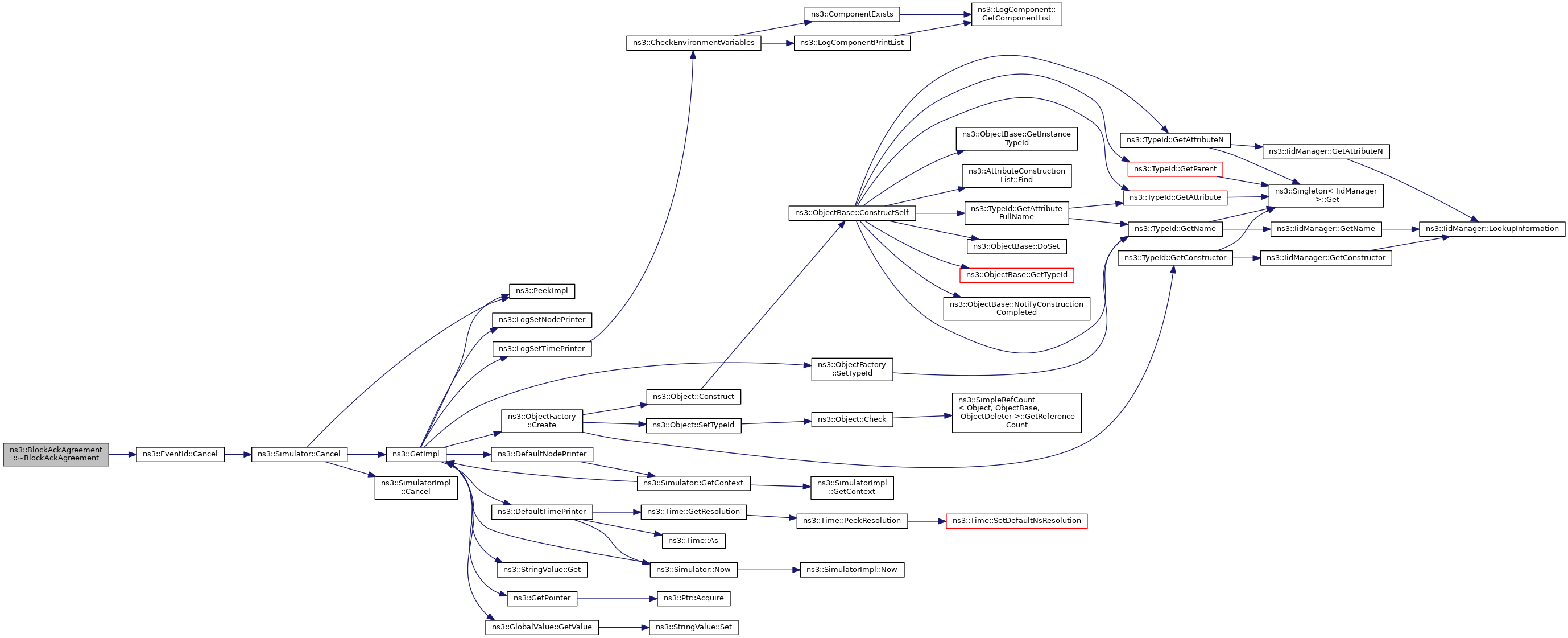

Here is the call graph for this function:

Member Function Documentation

◆ GetBlockAckReqType()

BlockAckReqType ns3::BlockAckAgreement::GetBlockAckReqType ( void ) const

Get the type of the Block Ack Requests sent by the originator of this agreement.

Returns: the type of the Block Ack Requests sent by the originator of this agreement

Definition at line 184 of file block-ack-agreement.cc.

References ns3::BlockAckReqType::BASIC, ns3::BlockAckReqType::COMPRESSED, and m_htSupported.

◆ GetBlockAckType()

BlockAckType ns3::BlockAckAgreement::GetBlockAckType ( void ) const

Get the type of the Block Acks sent by the recipient of this agreement.

Returns: the type of the Block Acks sent by the recipient of this agreement

Definition at line 169 of file block-ack-agreement.cc.

References ns3::BlockAckType::BASIC, ns3::BlockAckType::COMPRESSED, m_bufferSize, and m_htSupported.

Referenced by ns3::HtFrameExchangeManager::SendBlockAck().

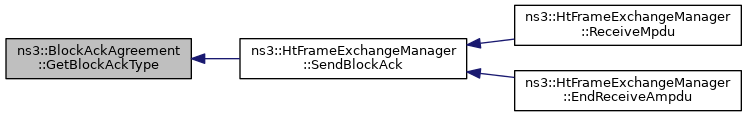

Here is the caller graph for this function:

◆ GetBufferSize()

uint16_t ns3::BlockAckAgreement::GetBufferSize ( void ) const

Return the buffer size.

Returns: the buffer size (in number of MPDUs)

Definition at line 113 of file block-ack-agreement.cc.

References m_bufferSize.

Referenced by GetWinEnd().

Here is the caller graph for this function:

◆ GetDistance()

std::size_t ns3::BlockAckAgreement::GetDistance	(	uint16_t	seqNumber,
		uint16_t	startingSeqNumber
	)

static

Get the distance between the given starting sequence number and the given sequence number.

Parameters

seqNumber	the given sequence number
startingSeqNumber	the given starting sequence number

Returns: the distance of the given sequence number from the given starting sequence number

Definition at line 195 of file block-ack-agreement.cc.

References NS_ASSERT, and ns3::SEQNO_SPACE_SIZE.

Referenced by ns3::OriginatorBlockAckAgreement::GetDistance(), ns3::RecipientBlockAckAgreement::NotifyReceivedBar(), ns3::RecipientBlockAckAgreement::NotifyReceivedMpdu(), ns3::RecipientBlockAckAgreement::PassBufferedMpdusUntilFirstLost(), ns3::RecipientBlockAckAgreement::PassBufferedMpdusWithSeqNumberLessThan(), and ns3::HtFrameExchangeManager::RetransmitMpduAfterMissedCts().

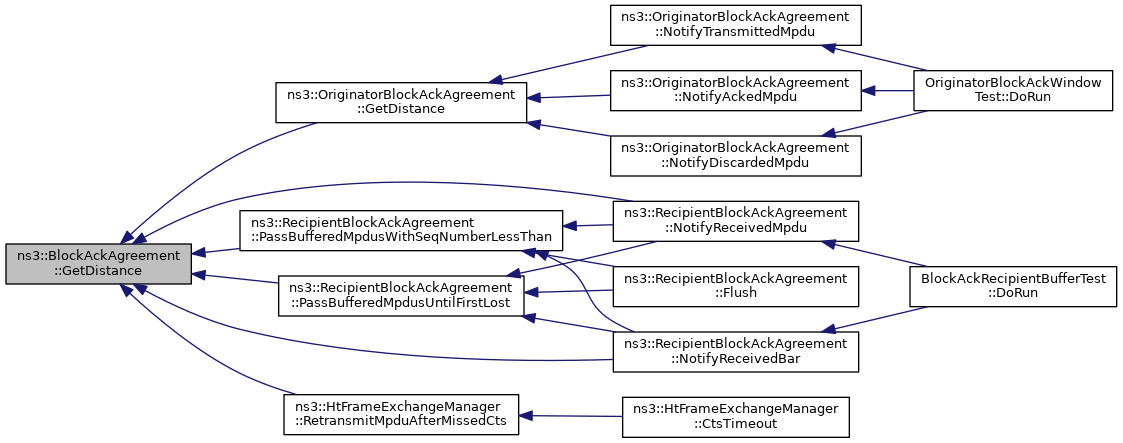

Here is the caller graph for this function:

◆ GetPeer()

Mac48Address ns3::BlockAckAgreement::GetPeer ( void ) const

Return the peer address.

Returns: the peer MAC address

Definition at line 106 of file block-ack-agreement.cc.

References m_peer, and NS_LOG_FUNCTION.

Referenced by ns3::HtFrameExchangeManager::SendBlockAck().

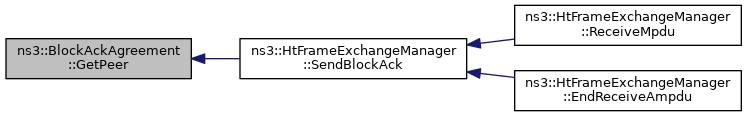

Here is the caller graph for this function:

◆ GetStartingSequence()

uint16_t ns3::BlockAckAgreement::GetStartingSequence ( void ) const

virtual

Return the starting sequence number.

Returns: starting sequence number

Reimplemented in ns3::OriginatorBlockAckAgreement.

Definition at line 125 of file block-ack-agreement.cc.

References m_startingSeq.

Referenced by GetWinEnd().

Here is the caller graph for this function:

◆ GetStartingSequenceControl()

uint16_t ns3::BlockAckAgreement::GetStartingSequenceControl ( void ) const

Return the starting sequence control.

Returns: starting sequence control

Definition at line 131 of file block-ack-agreement.cc.

References m_startingSeq.

◆ GetTid()

uint8_t ns3::BlockAckAgreement::GetTid ( void ) const

Return the Traffic ID (TID).

Returns: TID

Definition at line 100 of file block-ack-agreement.cc.

References m_tid.

Referenced by ns3::HtFrameExchangeManager::SendBlockAck().

Here is the caller graph for this function:

◆ GetTimeout()

uint16_t ns3::BlockAckAgreement::GetTimeout ( void ) const

Return the timeout.

Returns: the timeout

Definition at line 119 of file block-ack-agreement.cc.

References m_timeout.

Referenced by ns3::BlockAckManager::UpdateAgreement().

Here is the caller graph for this function:

◆ GetWinEnd()

uint16_t ns3::BlockAckAgreement::GetWinEnd ( void ) const

Return the last sequence number covered by the ack window.

Returns: ending sequence number

Definition at line 150 of file block-ack-agreement.cc.

References GetBufferSize(), GetStartingSequence(), and ns3::SEQNO_SPACE_SIZE.

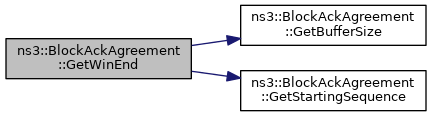

Here is the call graph for this function:

◆ IsAmsduSupported()

bool ns3::BlockAckAgreement::IsAmsduSupported ( void ) const

Check whether A-MSDU is supported.

Returns: true if A-MSDU is supported, false otherwise

Definition at line 144 of file block-ack-agreement.cc.

References m_amsduSupported.

◆ IsHtSupported()

bool ns3::BlockAckAgreement::IsHtSupported ( void ) const

Check whether HT is supported.

Returns: true if HT is supported, false otherwise

Definition at line 163 of file block-ack-agreement.cc.

References m_htSupported.

◆ IsImmediateBlockAck()

bool ns3::BlockAckAgreement::IsImmediateBlockAck ( void ) const

Check whether the current ack policy is immediate BlockAck.

Returns: true if the current ack policy is immediate BlockAck, false otherwise

Definition at line 138 of file block-ack-agreement.cc.

References m_blockAckPolicy.

◆ SetAmsduSupport()

void ns3::BlockAckAgreement::SetAmsduSupport ( bool supported )

Enable or disable A-MSDU support.

Parameters

supported enable or disable A-MSDU support

Definition at line 93 of file block-ack-agreement.cc.

References m_amsduSupported, and NS_LOG_FUNCTION.

Referenced by ns3::BlockAckManager::UpdateAgreement().

Here is the caller graph for this function:

◆ SetBufferSize()

void ns3::BlockAckAgreement::SetBufferSize ( uint16_t bufferSize )

Set buffer size.

Parameters

bufferSize the buffer size (in number of MPDUs)

Definition at line 47 of file block-ack-agreement.cc.

References m_bufferSize, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by OriginatorBlockAckWindowTest::DoRun(), and ns3::BlockAckManager::UpdateAgreement().

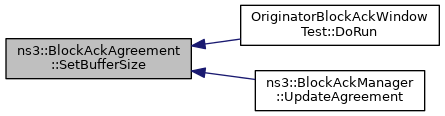

Here is the caller graph for this function:

◆ SetDelayedBlockAck()

void ns3::BlockAckAgreement::SetDelayedBlockAck ( void )

Set block ack policy to delayed Ack.

Definition at line 86 of file block-ack-agreement.cc.

References m_blockAckPolicy, and NS_LOG_FUNCTION.

Referenced by ns3::BlockAckManager::UpdateAgreement().

Here is the caller graph for this function:

◆ SetHtSupported()

void ns3::BlockAckAgreement::SetHtSupported ( bool htSupported )

Enable or disable HT support.

Parameters

htSupported enable or disable HT support

Definition at line 156 of file block-ack-agreement.cc.

References m_htSupported, and NS_LOG_FUNCTION.

◆ SetImmediateBlockAck()

void ns3::BlockAckAgreement::SetImmediateBlockAck ( void )

Set block ack policy to immediate Ack.

Definition at line 79 of file block-ack-agreement.cc.

References m_blockAckPolicy, and NS_LOG_FUNCTION.

Referenced by ns3::BlockAckManager::UpdateAgreement().

Here is the caller graph for this function:

◆ SetStartingSequence()

void ns3::BlockAckAgreement::SetStartingSequence ( uint16_t seq )

Set starting sequence number.

Parameters

seq	the starting sequence number

Definition at line 63 of file block-ack-agreement.cc.

References m_startingSeq, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::BlockAckManager::CreateAgreement(), OriginatorBlockAckWindowTest::DoRun(), and ns3::BlockAckManager::UpdateAgreement().

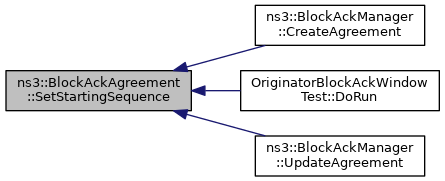

Here is the caller graph for this function:

◆ SetStartingSequenceControl()

void ns3::BlockAckAgreement::SetStartingSequenceControl ( uint16_t seq )

Set starting sequence control.

Parameters

seq	the starting sequence control

Definition at line 71 of file block-ack-agreement.cc.

References m_startingSeq, NS_ASSERT, and NS_LOG_FUNCTION.

◆ SetTimeout()

void ns3::BlockAckAgreement::SetTimeout ( uint16_t timeout )

Set timeout.

Parameters

timeout the timeout value

Definition at line 56 of file block-ack-agreement.cc.

References m_timeout, NS_LOG_FUNCTION, and timeout.

Referenced by ns3::BlockAckManager::UpdateAgreement().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ HtFrameExchangeManager

friend class HtFrameExchangeManager

friend

Definition at line 37 of file block-ack-agreement.h.

◆ MacLow

friend class MacLow

friend

Provide access to MacLow class.

Definition at line 36 of file block-ack-agreement.h.

Member Data Documentation

◆ m_amsduSupported

uint8_t ns3::BlockAckAgreement::m_amsduSupported

protected

Flag whether MSDU aggregation is supported.

Definition at line 180 of file block-ack-agreement.h.

Referenced by IsAmsduSupported(), ns3::RecipientBlockAckAgreement::RecipientBlockAckAgreement(), and SetAmsduSupport().

◆ m_blockAckPolicy

uint8_t ns3::BlockAckAgreement::m_blockAckPolicy

protected

Type of block ack: immediate or delayed.

Definition at line 181 of file block-ack-agreement.h.

Referenced by IsImmediateBlockAck(), SetDelayedBlockAck(), and SetImmediateBlockAck().

◆ m_bufferSize

uint16_t ns3::BlockAckAgreement::m_bufferSize

protected

Buffer size.

Definition at line 183 of file block-ack-agreement.h.

Referenced by GetBlockAckType(), GetBufferSize(), ns3::OriginatorBlockAckAgreement::InitTxWindow(), ns3::RecipientBlockAckAgreement::RecipientBlockAckAgreement(), and SetBufferSize().

◆ m_htSupported

uint8_t ns3::BlockAckAgreement::m_htSupported

protected

Flag whether HT is supported.

Definition at line 187 of file block-ack-agreement.h.

Referenced by GetBlockAckReqType(), GetBlockAckType(), IsHtSupported(), ns3::RecipientBlockAckAgreement::RecipientBlockAckAgreement(), and SetHtSupported().

◆ m_inactivityEvent

EventId ns3::BlockAckAgreement::m_inactivityEvent

protected

inactivity event

Definition at line 188 of file block-ack-agreement.h.

Referenced by ns3::BlockAckManager::UpdateAgreement(), and ~BlockAckAgreement().

◆ m_peer

Mac48Address ns3::BlockAckAgreement::m_peer

protected

Peer address.

Definition at line 179 of file block-ack-agreement.h.

Referenced by GetPeer().

◆ m_startingSeq

uint16_t ns3::BlockAckAgreement::m_startingSeq

protected

Starting sequence control.

Definition at line 185 of file block-ack-agreement.h.

Referenced by GetStartingSequence(), ns3::OriginatorBlockAckAgreement::GetStartingSequence(), GetStartingSequenceControl(), ns3::OriginatorBlockAckAgreement::InitTxWindow(), ns3::RecipientBlockAckAgreement::RecipientBlockAckAgreement(), SetStartingSequence(), and SetStartingSequenceControl().

◆ m_tid

uint8_t ns3::BlockAckAgreement::m_tid

protected

Traffic ID.

Definition at line 182 of file block-ack-agreement.h.

Referenced by GetTid().

◆ m_timeout

uint16_t ns3::BlockAckAgreement::m_timeout

protected

Timeout.

Definition at line 184 of file block-ack-agreement.h.

Referenced by GetTimeout(), ns3::RecipientBlockAckAgreement::RecipientBlockAckAgreement(), and SetTimeout().

◆ m_winEnd

uint16_t ns3::BlockAckAgreement::m_winEnd

protected

Ending sequence number.

Definition at line 186 of file block-ack-agreement.h.

The documentation for this class was generated from the following files:

src/wifi/model/block-ack-agreement.h
src/wifi/model/block-ack-agreement.cc

Public Member Functions

Static Public Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ BlockAckAgreement()

◆ ~BlockAckAgreement()

Member Function Documentation

◆ GetBlockAckReqType()

◆ GetBlockAckType()

◆ GetBufferSize()

◆ GetDistance()

◆ GetPeer()

◆ GetStartingSequence()

◆ GetStartingSequenceControl()

◆ GetTid()

◆ GetTimeout()

◆ GetWinEnd()

◆ IsAmsduSupported()

◆ IsHtSupported()

◆ IsImmediateBlockAck()

◆ SetAmsduSupport()

◆ SetBufferSize()

◆ SetDelayedBlockAck()

◆ SetHtSupported()

◆ SetImmediateBlockAck()

◆ SetStartingSequence()

◆ SetStartingSequenceControl()

◆ SetTimeout()

Friends And Related Function Documentation

◆ HtFrameExchangeManager

◆ MacLow

Member Data Documentation

◆ m_amsduSupported

◆ m_blockAckPolicy

◆ m_bufferSize

◆ m_htSupported

◆ m_inactivityEvent

◆ m_peer

◆ m_startingSeq

◆ m_tid

◆ m_timeout

◆ m_winEnd
