ns3::EventId Class Reference

An identifier for simulation events. More...

#include "event-id.h"

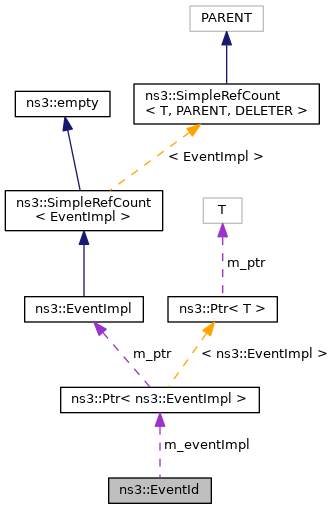

+ Collaboration diagram for ns3::EventId:

Public Member Functions

 EventId ()
 Default constructor. More...

 EventId (const Ptr< EventImpl > &impl, uint64_t ts, uint32_t context, uint32_t uid)
 Construct a real event. More...

void Cancel (void)
 This method is syntactic sugar for the ns3::Simulator::Cancel method. More...

bool IsExpired (void) const
 This method is syntactic sugar for the ns3::Simulator::IsExpired method. More...

bool IsRunning (void) const
 This method is syntactic sugar for !IsExpired(). More...

void Remove (void)
 This method is syntactic sugar for the ns3::Simulator::Remove method. More...

Scheduler Helpers.

These methods are normally invoked only by subclasses of the Scheduler base class.

EventImplPeekEventImpl (void) const

uint64_t GetTs (void) const

uint32_t GetContext (void) const

uint32_t GetUid (void) const


Private Attributes

uint32_t m_context
 The context. More...

Ptr< EventImplm_eventImpl
 The underlying event implementation. More...

uint64_t m_ts
 The virtual time stamp. More...

uint32_t m_uid
 The unique id. More...


Friends

bool operator!= (const EventId &a, const EventId &b)
 Test if two EventId's are not equal. More...

bool operator< (const EventId &a, const EventId &b)
 Less than operator for two EventId's, based on time stamps. More...

bool operator== (const EventId &a, const EventId &b)
 Test if two EventId's are equal. More...


Detailed Description

An identifier for simulation events.

Each EventId identifies a unique event scheduled with one of the many Simulator::Schedule() methods. This EventId can be used to cancel or remove events after they are scheduled with Cancel(), Remove(), or Simulator::Cancel() or Simulator::Remove().

The important thing to remember about this class is that every variable of this type is always in a valid state, even when it has not been assigned an EventId coming from a Simulator::Schedule() method: calling Simulator::Cancel(), IsRunning(), IsExpired() or passing around instances of this object will not result in crashes or memory leaks.

Definition at line 53 of file event-id.h.

Constructor & Destructor Documentation

◆ EventId() [1/2]

ns3::EventId::EventId ( )

Default constructor.

This EventId does nothing.

Definition at line 35 of file event-id.cc.

References NS_LOG_FUNCTION.

◆ EventId() [2/2]

ns3::EventId::EventId ( const Ptr< EventImpl > &  impl,
uint64_t  ts,
uint32_t  context,
uint32_t  uid
)

Construct a real event.

Parameters
[in]implThe implementation of this event.
[in]tsThe virtual time stamp this event should occur.
[in]contextThe execution context for this event.
[in]uidThe unique id for this EventId.

Definition at line 44 of file event-id.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Cancel()

void ns3::EventId::Cancel ( void  )

This method is syntactic sugar for the ns3::Simulator::Cancel method.

Definition at line 53 of file event-id.cc.

References ns3::Simulator::Cancel(), and NS_LOG_FUNCTION.

Referenced by ns3::WifiPhy::AbortCurrentReception(), ns3::HalfDuplexIdealPhy::AbortRx(), ns3::DhcpClient::AcceptAck(), ns3::DefaultChannelScheduler::AssignContinuousAccess(), ns3::DefaultChannelScheduler::AssignExtendedAccess(), ns3::RandomDirection2dMobilityModel::BeginPause(), ns3::RandomWaypointMobilityModel::BeginWalk(), ns3::WifiTxTimer::Cancel(), ns3::Timer::Cancel(), ns3::LrWpanCsmaCa::Cancel(), ns3::TcpSocketBase::CancelAllTimers(), ns3::LrWpanPhy::CancelEd(), ns3::UeManager::CancelPendingEvents(), ns3::QosFrameExchangeManager::CancelPifsRecovery(), ns3::WifiRadioEnergyModel::ChangeState(), ns3::UanTransducerHd::Clear(), ns3::UanMacCw::Clear(), ns3::UanMacRc::Clear(), ns3::dot11s::PeerLink::ClearConfirmTimer(), ns3::dot11s::PeerLink::ClearHoldingTimer(), ns3::dot11s::PeerLink::ClearRetryTimer(), ns3::TcpSocketBase::CloseAndNotify(), ns3::WifiPhy::DoChannelSwitch(), ns3::LteRlcUm::DoDispose(), ns3::LteRlcAm::DoDispose(), ns3::LteRlcTm::DoDispose(), ns3::dot11s::PeerLink::DoDispose(), ns3::DefaultChannelScheduler::DoDispose(), ns3::dot11s::HwmpProtocol::DoDispose(), ns3::DhcpClient::DoDispose(), ns3::HeFrameExchangeManager::DoDispose(), ns3::QosFrameExchangeManager::DoDispose(), ns3::PieQueueDisc::DoDispose(), ns3::WaveformGenerator::DoDispose(), ns3::SimpleNetDevice::DoDispose(), ns3::Application::DoDispose(), ns3::MeshWifiInterfaceMac::DoDispose(), ns3::SixLowPanNetDevice::DoDispose(), ns3::Rip::DoDispose(), ns3::RipNg::DoDispose(), ns3::Ipv4L3Protocol::DoDispose(), ns3::ApWifiMac::DoDispose(), ns3::Ipv6ExtensionFragment::DoDispose(), ns3::ArpCache::DoDispose(), ns3::LrWpanPhy::DoDispose(), ns3::LrWpanMac::DoDispose(), ns3::WifiPhy::DoDispose(), ns3::TcpSocketBase::DoForwardUp(), ns3::MeshWifiInterfaceMac::DoInitialize(), ns3::ApWifiMac::DoInitialize(), ns3::LteRlcUm::DoNotifyTxOpportunity(), ns3::LteRlcAm::DoNotifyTxOpportunity(), ns3::LteRlcTm::DoNotifyTxOpportunity(), ns3::LteRlcUm::DoReceivePdu(), ns3::LteRlcAm::DoReceivePdu(), ns3::LteUeRrc::DoRecvRrcConnectionReject(), ns3::LteUeRrc::DoRecvRrcConnectionSetup(), ns3::LteUeMac::DoReset(), ns3::LteUePhy::DoReset(), ns3::ChannelAccessManager::DoRestartAccessTimeoutIfNeeded(), SimulatorEventsTestCase::DoRun(), ns3::RandomWaypointMobilityModel::DoSetPosition(), ns3::RandomDirection2dMobilityModel::DoSetPosition(), ns3::RandomWalk2dMobilityModel::DoSetPosition(), ns3::SteadyStateRandomWaypointMobilityModel::DoSetPosition(), ns3::GaussMarkovMobilityModel::DoSetPosition(), ns3::LteRlcUm::DoTransmitPdcpPdu(), ns3::LteRlcAm::DoTransmitPdcpPdu(), ns3::LteRlcTm::DoTransmitPdcpPdu(), ns3::RandomWalk2dMobilityModel::DoWalk(), ns3::RandomWalk2dOutdoorMobilityModel::DoWalk(), ns3::PhyEntity::EndPreambleDetectionPeriod(), ns3::ArpCache::Flush(), ns3::WifiRadioEnergyModel::HandleEnergyChanged(), ns3::TcpSocketBase::LastAckTimeout(), ns3::DhcpClient::LinkStateHandler(), ns3::StaWifiMac::MissedBeacons(), ns3::LrWpanMac::MlmeSyncRequest(), ns3::DhcpClient::NetHandler(), ns3::TcpSocketBase::NewAck(), TcpNewRenoCongAvoidNormalTest::NormalClose(), TcpPacingTest::NormalClose(), ns3::WifiRadioEnergyModelPhyListener::NotifyMaybeCcaBusyStart(), ns3::WifiRadioEnergyModelPhyListener::NotifyOff(), ns3::ChannelAccessManager::NotifyOffNow(), ns3::WifiRadioEnergyModelPhyListener::NotifyRxStart(), ns3::WifiRadioEnergyModelPhyListener::NotifySleep(), ns3::ChannelAccessManager::NotifySleepNow(), ns3::WifiRadioEnergyModelPhyListener::NotifySwitchingStart(), ns3::ChannelAccessManager::NotifySwitchingStartNow(), ns3::WifiRadioEnergyModelPhyListener::NotifyTxStart(), ns3::DhcpClient::OfferHandler(), ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanMac::PdDataIndication(), ns3::TcpWestwood::PktsAcked(), ns3::LrWpanPhy::PlmeSetAttributeRequest(), ns3::LrWpanPhy::PlmeSetTRXStateRequest(), ns3::TcpSocketBase::ProcessSynRcvd(), ns3::TcpSocketBase::ProcessSynSent(), ns3::V4TraceRoute::Receive(), ns3::StaWifiMac::Receive(), ns3::TcpSocketBase::ReceivedData(), ns3::LteUeMac::RecvRaResponse(), ns3::UeManager::RecvRrcConnectionReconfigurationCompleted(), ns3::UeManager::RecvRrcConnectionReestablishmentRequest(), ns3::UeManager::RecvRrcConnectionRequest(), ns3::UeManager::RecvRrcConnectionSetupCompleted(), ns3::UeManager::RecvUeContextRelease(), ns3::DefaultChannelScheduler::ReleaseAccess(), ns3::DhcpClient::RemoveAndStart(), ns3::WifiTxTimer::Reschedule(), ns3::RadioBearerStatsCalculator::RescheduleEndEpoch(), ns3::TrickleTimer::Reset(), ns3::LteSpectrumPhy::Reset(), ns3::FrameExchangeManager::Reset(), ns3::LteUeRrc::ResetRlfParams(), ns3::FrameExchangeManager::RxStartIndication(), ns3::UanMacRc::ScheduleData(), ns3::WifiPhy::Send(), ns3::StaWifiMac::SendAssociationRequest(), ns3::TcpSocketCongestedRouter::SendDataPacket(), TcpDctcpCongestedRouter::SendDataPacket(), ns3::TcpSocketBase::SendDataPacket(), ns3::TcpSocketSmallAcks::SendEmptyPacket(), ns3::TcpSocketBase::SendEmptyPacket(), ns3::Rip::SendUnsolicitedRouteUpdate(), ns3::RipNg::SendUnsolicitedRouteUpdate(), ns3::ApWifiMac::SetBeaconGeneration(), ns3::dot11s::PeerLink::SetBeaconInformation(), ns3::RandomDirection2dMobilityModel::SetDirectionAndSpeed(), ns3::WifiRadioEnergyModel::SetEnergySource(), ns3::WifiPhy::SetOffMode(), ns3::StaWifiMac::StartScanning(), ns3::LteTestRrc::Stop(), ns3::WaveformGenerator::Stop(), ns3::TrickleTimer::Stop(), ns3::V4TraceRoute::StopApplication(), ns3::V4Ping::StopApplication(), ns3::DhcpServer::StopApplication(), ns3::DhcpClient::StopApplication(), ns3::ChannelCoordinator::StopChannelCoordination(), ns3::Timer::Suspend(), ns3::UanTransducerHd::Transmit(), ns3::dot11s::HwmpProtocol::UnsetRoot(), ns3::RvBatteryModel::UpdateEnergySource(), ns3::LiIonEnergySource::UpdateEnergySource(), ns3::BasicEnergyHarvester::UpdateHarvestedPower(), ns3::BlockAckAgreement::~BlockAckAgreement(), ns3::Timer::~Timer(), ns3::TrickleTimer::~TrickleTimer(), ns3::Watchdog::~Watchdog(), and ns3::WifiTxTimer::~WifiTxTimer().

+ Here is the call graph for this function:

◆ GetContext()

uint32_t ns3::EventId::GetContext ( void  ) const
Returns
The event context.

Definition at line 89 of file event-id.cc.

References m_context, and NS_LOG_FUNCTION.

◆ GetTs()

uint64_t ns3::EventId::GetTs ( void  ) const
Returns
The virtual time stamp.

Definition at line 83 of file event-id.cc.

References m_ts, and NS_LOG_FUNCTION.

Referenced by ns3::operator<().

+ Here is the caller graph for this function:

◆ GetUid()

uint32_t ns3::EventId::GetUid ( void  ) const
Returns
The unique id.

Definition at line 95 of file event-id.cc.

References m_uid, and NS_LOG_FUNCTION.

Referenced by ns3::dsdv::RoutingProtocol::RecvDsdv().

+ Here is the caller graph for this function:

◆ IsExpired()

bool ns3::EventId::IsExpired ( void  ) const

This method is syntactic sugar for the ns3::Simulator::IsExpired method.

Returns
true if the event has expired, false otherwise.

Definition at line 65 of file event-id.cc.

References ns3::Simulator::IsExpired(), and NS_LOG_FUNCTION.

Referenced by ns3::DefaultChannelScheduler::AssignContinuousAccess(), ns3::DefaultChannelScheduler::AssignExtendedAccess(), ns3::LrWpanPhy::CancelEd(), ns3::dsdv::RoutingTable::DeleteIpv4Event(), SimulatorEventsTestCase::destroy(), ns3::TbfQueueDisc::DoDequeue(), ns3::DefaultChannelScheduler::DoDispose(), ns3::TcpSocketBase::DoForwardUp(), ns3::ChannelAccessManager::DoRestartAccessTimeoutIfNeeded(), SimulatorEventsTestCase::DoRun(), ns3::PhyEntity::EndPreambleDetectionPeriod(), ns3::PhyEntity::EndReceiveField(), ns3::LrWpanPhy::EndRx(), ns3::Timer::IsExpired(), IsRunning(), ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanPhy::PlmeSetTRXStateRequest(), ns3::TcpSocketBase::ReceivedData(), ns3::DefaultChannelScheduler::ReleaseAccess(), ns3::StaWifiMac::RestartBeaconWatchdog(), ns3::UdpClient::Send(), ns3::PacketSocketClient::Send(), EpsBearerTagUdpClient::Send(), ns3::Ping6::Send(), ns3::UdpTraceClient::Send(), ns3::UdpEchoClient::Send(), ns3::WifiPhy::Send(), ns3::TcpSocketCongestedRouter::SendDataPacket(), TcpDctcpCongestedRouter::SendDataPacket(), ns3::TcpSocketBase::SendDataPacket(), ns3::TcpSocketSmallAcks::SendEmptyPacket(), ns3::TcpSocketBase::SendEmptyPacket(), ns3::OnOffApplication::SendPacket(), ns3::PhyEntity::StartReceiveField(), ns3::PhyEntity::StartReceivePayload(), ns3::LrWpanPhy::StartRx(), ns3::ChannelCoordinator::StopChannelCoordination(), and ns3::BasicEnergySource::UpdateEnergySource().

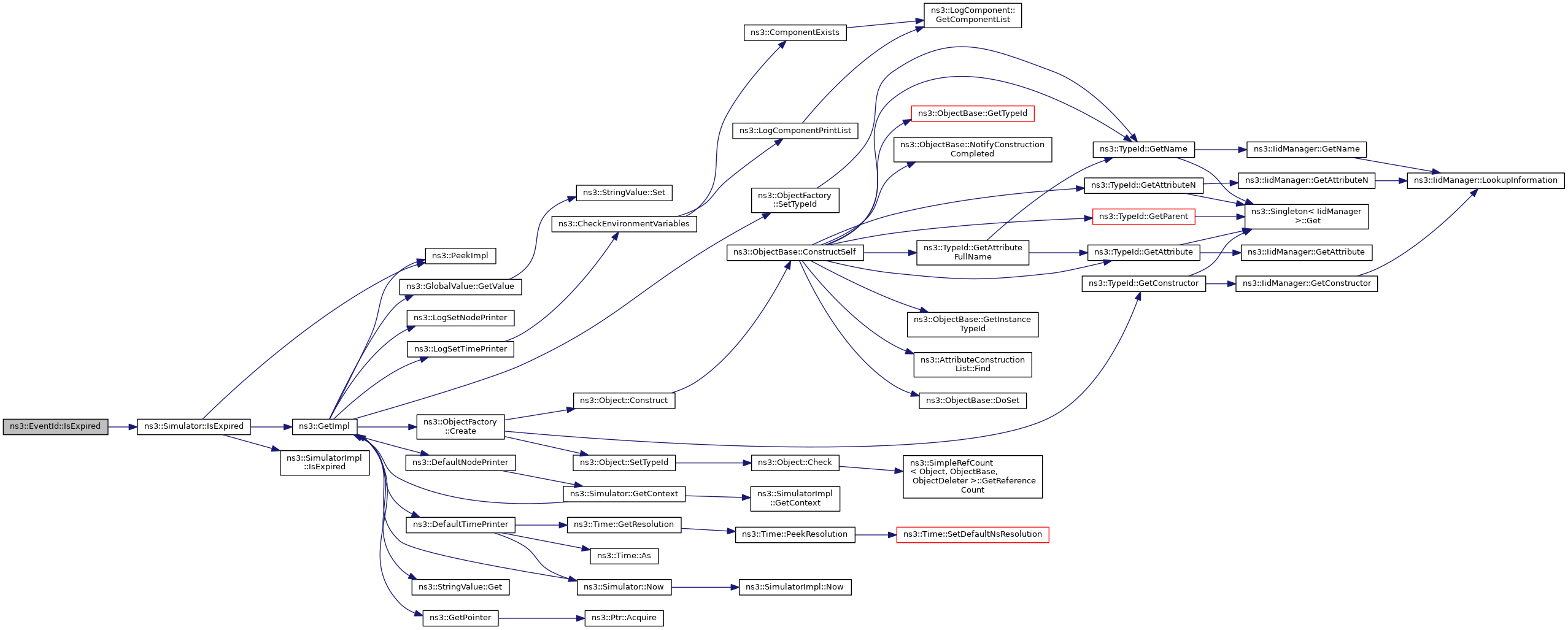

+ Here is the call graph for this function:

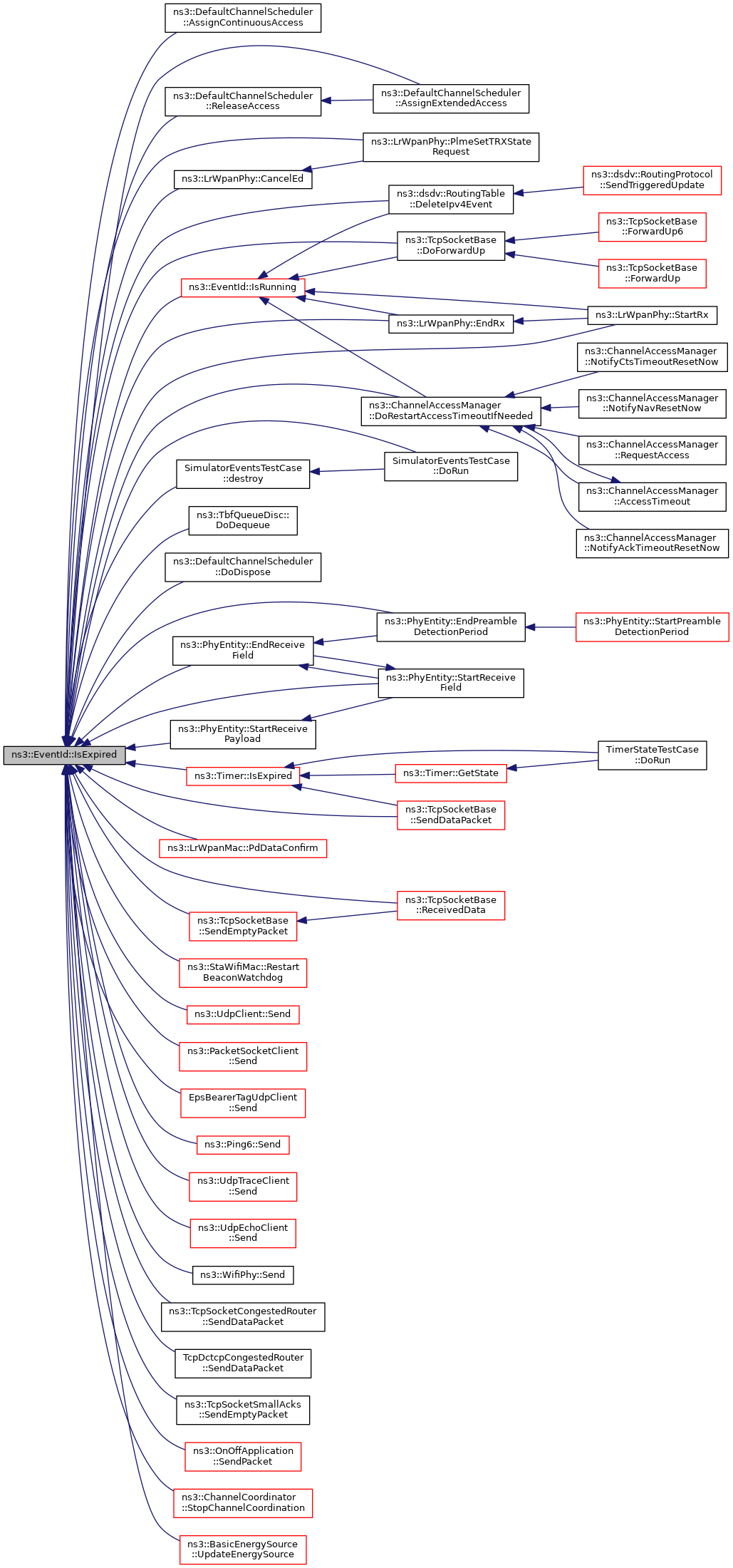

+ Here is the caller graph for this function:

◆ IsRunning()

bool ns3::EventId::IsRunning ( void  ) const

This method is syntactic sugar for !IsExpired().

Returns
true if the event has not expired, false otherwise.

Definition at line 71 of file event-id.cc.

References IsExpired(), and NS_LOG_FUNCTION.

Referenced by ns3::WifiPhy::AbortCurrentReception(), ns3::dsdv::RoutingTable::AnyRunningEvent(), ns3::UanMacRc::Associate(), ns3::UanMacRc::AssociateTimeout(), ns3::OnOffApplication::CancelEvents(), ns3::QosFrameExchangeManager::CancelPifsRecovery(), ns3::LrWpanMac::CheckQueue(), ns3::TcpSocketBase::CloseAndNotify(), TcpNewRenoCongAvoidNormalTest::CWndTrace(), ns3::dsdv::RoutingTable::DeleteIpv4Event(), ns3::V4TraceRoute::DoDispose(), ns3::V4Ping::DoDispose(), ns3::WaveformGenerator::DoDispose(), ns3::SimpleNetDevice::DoDispose(), ns3::SixLowPanNetDevice::DoDispose(), ns3::Ipv4L3Protocol::DoDispose(), ns3::Ipv6ExtensionFragment::DoDispose(), ns3::ArpCache::DoDispose(), ns3::TcpSocketBase::DoForwardUp(), ns3::MeshWifiInterfaceMac::DoInitialize(), ns3::SteadyStateRandomWaypointMobilityModel::DoInitializePrivate(), ns3::LteUeRrc::DoNotifyOutOfSync(), ns3::LteRlcAm::DoNotifyTxOpportunity(), ns3::SubscriberStationNetDevice::DoReceive(), ns3::LteRlcUm::DoReceivePdu(), ns3::LteRlcAm::DoReceivePdu(), ns3::LteRlcAm::DoReportBufferStatus(), ns3::ChannelAccessManager::DoRestartAccessTimeoutIfNeeded(), ns3::LrWpanPhy::EndRx(), ns3::LrWpanPhy::EndTx(), ns3::UanPhyGen::EnergyDepletionHandler(), ns3::UanMacRc::Enqueue(), ns3::ArpCache::Flush(), ns3::MeshWifiInterfaceMac::GetBeaconGeneration(), ns3::TrickleTimer::GetDelayLeft(), ns3::TrickleTimer::GetIntervalLeft(), ns3::WifiTxTimer::IsRunning(), ns3::Timer::IsRunning(), ns3::StaWifiMac::MissedBeacons(), ns3::LrWpanMac::MlmeSyncRequest(), ns3::ChannelAccessManager::NotifyOffNow(), ns3::ChannelAccessManager::NotifySleepNow(), ns3::ChannelAccessManager::NotifySwitchingStartNow(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanPhy::PdDataRequest(), ns3::SSLinkManager::PerformRanging(), ns3::Watchdog::Ping(), TcpZeroWindowTest::ProcessedAck(), ns3::StaWifiMac::Receive(), ns3::WifiTxTimer::Reschedule(), ns3::FrameExchangeManager::Reset(), ns3::UanMacRc::RtsTimeout(), ns3::FrameExchangeManager::RxStartIndication(), ns3::Timer::Schedule(), ns3::UanMacRc::ScheduleData(), ns3::SsServiceFlowManager::ScheduleDsaReq(), ns3::BsServiceFlowManager::ScheduleDsaRsp(), ns3::TcpSocketBase::Send(), ns3::StaWifiMac::SendAssociationRequest(), ns3::MeshWifiInterfaceMac::SendBeacon(), ns3::SimpleNetDevice::SendFrom(), ns3::dot11s::HwmpProtocolMac::SendMyPerr(), ns3::dot11s::HwmpProtocolMac::SendMyPreq(), ns3::UanMacRc::SendRts(), ns3::Rip::SendTriggeredRouteUpdate(), ns3::RipNg::SendTriggeredRouteUpdate(), ns3::Rip::SendUnsolicitedRouteUpdate(), ns3::RipNg::SendUnsolicitedRouteUpdate(), ns3::FdReader::Start(), ns3::WaveformGenerator::Start(), ns3::LrWpanPhy::StartRx(), ns3::StaWifiMac::StartScanning(), ns3::QosFrameExchangeManager::StartTransmission(), ns3::SimpleNetDevice::StartTransmission(), ns3::V4TraceRoute::StartWaitReplyTimer(), ns3::ArpCache::StartWaitReplyTimer(), ns3::WaveformGenerator::Stop(), ns3::V4TraceRoute::StopApplication(), MyApp::StopApplication(), ns3::V4Ping::StopApplication(), SimpleSource::StopApplication(), ns3::QosFrameExchangeManager::TransmissionFailed(), ns3::Ipv4L3Protocol::UpdateDuplicate(), and ns3::Timer::~Timer().

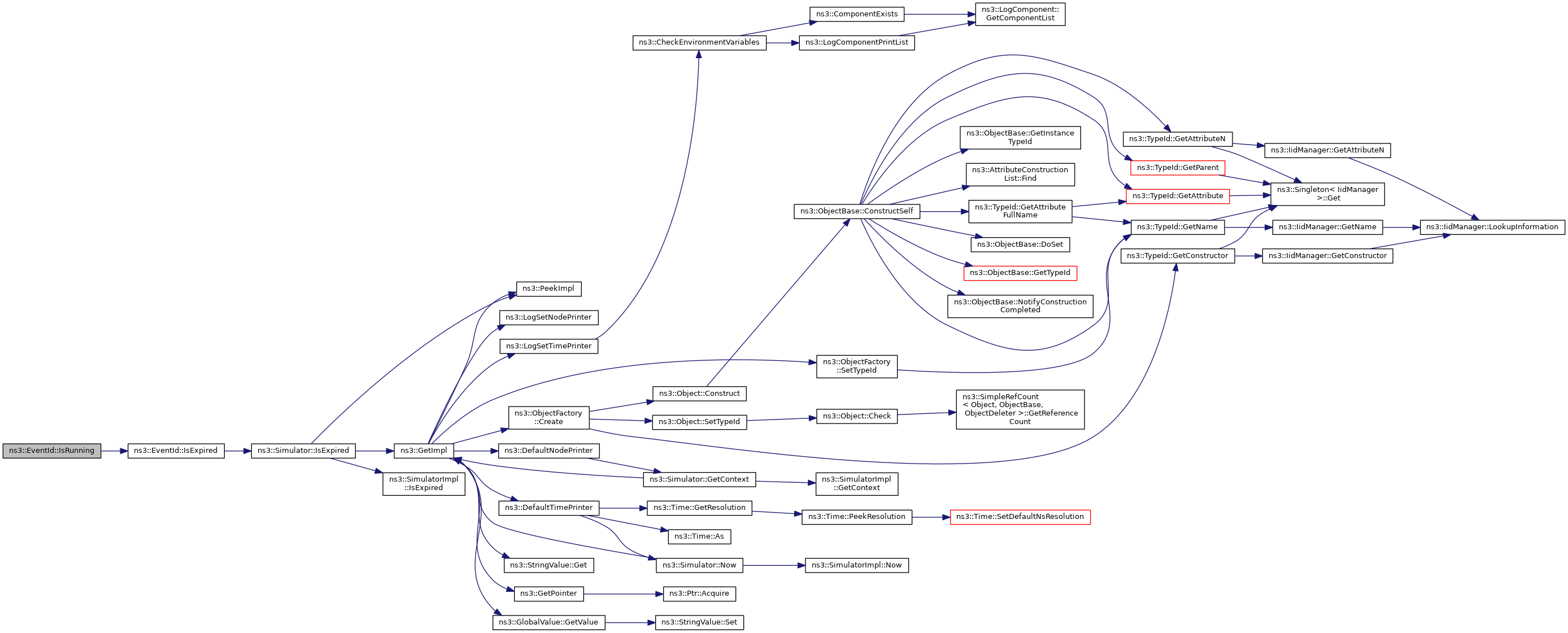

+ Here is the call graph for this function:

◆ PeekEventImpl()

EventImpl * ns3::EventId::PeekEventImpl ( void  ) const
Returns
The underlying EventImpl pointer.

Definition at line 77 of file event-id.cc.

References m_eventImpl, NS_LOG_FUNCTION, and ns3::PeekPointer().

+ Here is the call graph for this function:

◆ Remove()

void ns3::EventId::Remove ( void  )

This method is syntactic sugar for the ns3::Simulator::Remove method.

Definition at line 59 of file event-id.cc.

References NS_LOG_FUNCTION, and ns3::Simulator::Remove().

Referenced by ns3::Timer::Remove(), ns3::Timer::Suspend(), and ns3::Timer::~Timer().

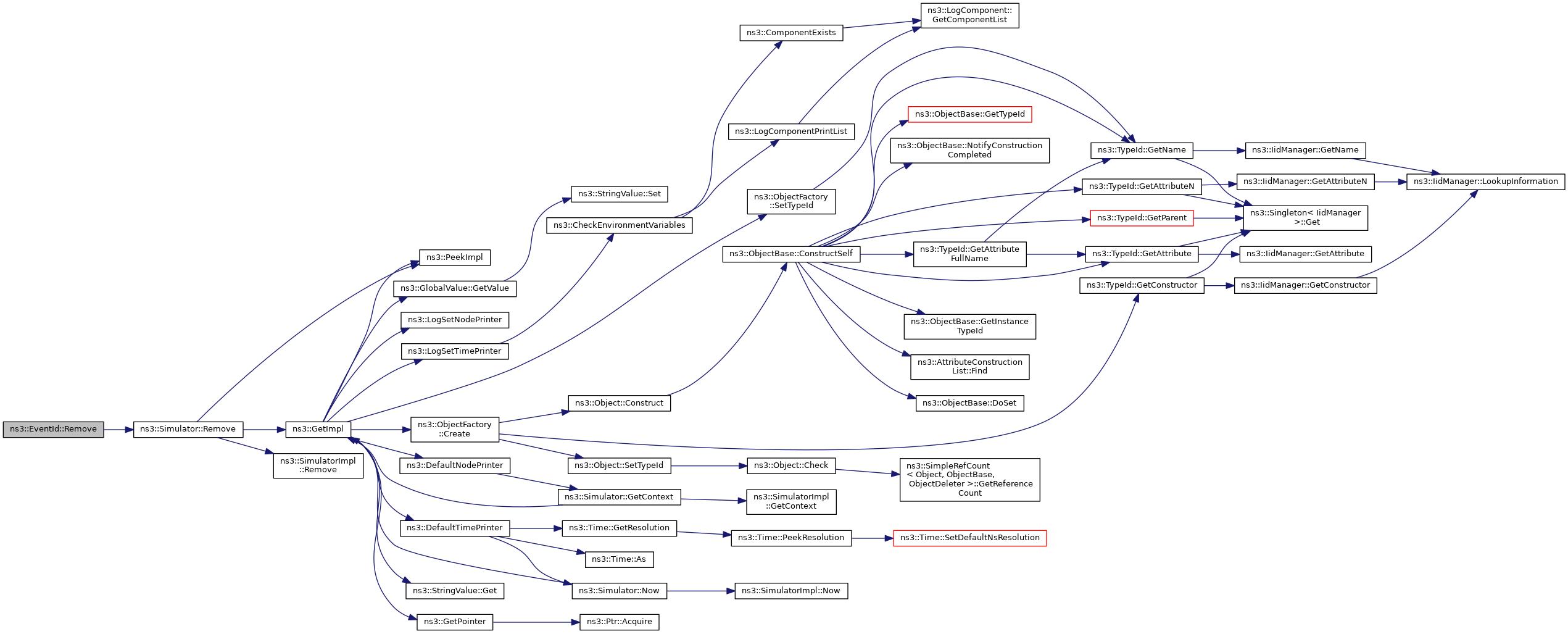

+ Here is the call graph for this function:

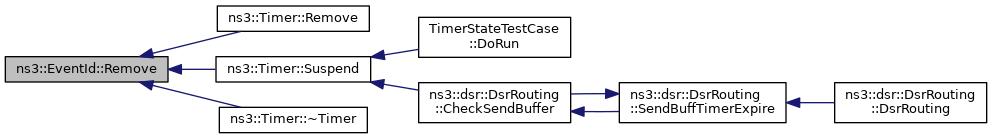

+ Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator!=

bool operator!= ( const EventId a,
const EventId b
)
friend

Test if two EventId's are not equal.

Parameters
[in]aThe first EventId.
[in]bThe second EventId.
Returns
true if the a and b are not the same event.

Definition at line 153 of file event-id.h.

◆ operator<

bool operator< ( const EventId a,
const EventId b
)
friend

Less than operator for two EventId's, based on time stamps.

Parameters
[in]aThe first EventId.
[in]bThe second EventId.
Returns
true if a occurs before b.

Definition at line 160 of file event-id.h.

◆ operator==

bool operator== ( const EventId a,
const EventId b
)
friend

Test if two EventId's are equal.

Parameters
[in]aThe first EventId.
[in]bThe second EventId.
Returns
true if the a and b represent the same event.

Definition at line 142 of file event-id.h.

Member Data Documentation

◆ m_context

uint32_t ns3::EventId::m_context
private

The context.

Definition at line 132 of file event-id.h.

Referenced by GetContext(), and ns3::operator==().

◆ m_eventImpl

Ptr<EventImpl> ns3::EventId::m_eventImpl
private

The underlying event implementation.

Definition at line 130 of file event-id.h.

Referenced by ns3::operator==(), and PeekEventImpl().

◆ m_ts

uint64_t ns3::EventId::m_ts
private

The virtual time stamp.

Definition at line 131 of file event-id.h.

Referenced by GetTs(), and ns3::operator==().

◆ m_uid

uint32_t ns3::EventId::m_uid
private

The unique id.

Definition at line 133 of file event-id.h.

Referenced by GetUid(), and ns3::operator==().


The documentation for this class was generated from the following files:
