ns3::ConstantObssPdAlgorithm Class Reference

Constant OBSS PD algorithmThis constant OBSS_PD algorithm is a simple OBSS_PD algorithm which evaluates if a receiving signal should be accepted or rejected based on a constant threshold. More...

#include "constant-obss-pd-algorithm.h"

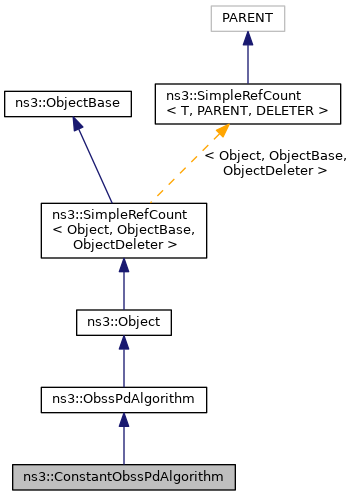

+ Inheritance diagram for ns3::ConstantObssPdAlgorithm:

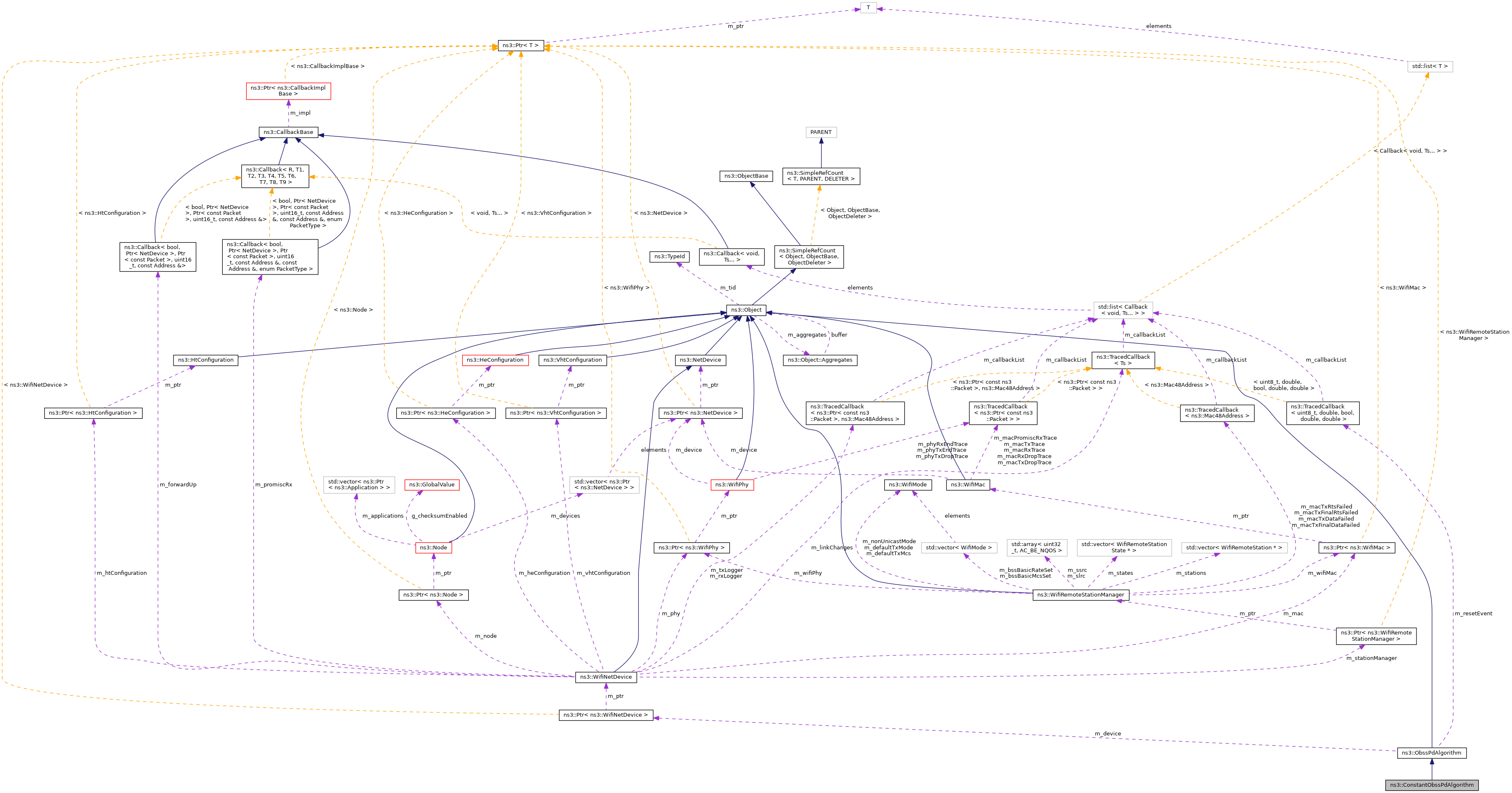

+ Collaboration diagram for ns3::ConstantObssPdAlgorithm:

Public Member Functions

 ConstantObssPdAlgorithm ()

void ConnectWifiNetDevice (const Ptr< WifiNetDevice > device) override
 Connect the WifiNetDevice and setup eventual callbacks. More...

void ReceiveHeSigA (HeSigAParameters params) override

- Public Member Functions inherited from ns3::ObssPdAlgorithm
void ResetPhy (HeSigAParameters params)
 Reset PHY to IDLE. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObssPdAlgorithm
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Additional Inherited Members

- Public Types inherited from ns3::ObssPdAlgorithm
typedef void(* ResetTracedCallback) (uint8_t bssColor, double rssiDbm, bool powerRestricted, double txPowerMaxDbmSiso, double txPowerMaxDbmMimo)
 TracedCallback signature for OBSS_PD reset events. More...

- Protected Member Functions inherited from ns3::ObssPdAlgorithm
void DoDispose (void) override
 Destructor implementation. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...

- Protected Attributes inherited from ns3::ObssPdAlgorithm
Ptr< WifiNetDevicem_device
 Pointer to the WifiNetDevice. More...

double m_obssPdLevel
 Current OBSS PD level (dBm) More...


Detailed Description

Constant OBSS PD algorithm

This constant OBSS_PD algorithm is a simple OBSS_PD algorithm which evaluates if a receiving signal should be accepted or rejected based on a constant threshold.


Introspection did not find any typical Config paths.

Once a HE-SIG-A has been received by the PHY, the ReceiveHeSigA method is triggered. The algorithm then checks whether this is an OBSS frame by comparing its own BSS color with the BSS color of the received preamble. If this is an OBSS frame, it compares the received RSSI with its configured OBSS_PD level value. The PHY then gets reset to IDLE state in case the received RSSI is lower than that constant OBSS PD level value, and is informed about TX power restrictions that might be applied to the next transmission.


No Attributes are defined for this type.

Attributes defined in parent class ns3::ObssPdAlgorithm

  • ObssPdLevel: The current OBSS PD level (dBm).
    • Set with class: ns3::DoubleValue
    • Underlying type: double -101:-62
    • Initial value: -82
    • Flags: construct write read
  • ObssPdLevelMin: Minimum value (dBm) of OBSS PD level.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -101:-62
    • Initial value: -82
    • Flags: construct write read
  • ObssPdLevelMax: Maximum value (dBm) of OBSS PD level.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -101:-62
    • Initial value: -62
    • Flags: construct write read
  • TxPowerRefSiso: The SISO reference TX power level (dBm).
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 21
    • Flags: construct write read
  • TxPowerRefMimo: The MIMO reference TX power level (dBm).
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 25
    • Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::ObssPdAlgorithm

Size of this type is 96 bytes (on a 64-bit architecture).

Definition at line 42 of file constant-obss-pd-algorithm.h.

Constructor & Destructor Documentation

◆ ConstantObssPdAlgorithm()

ns3::ConstantObssPdAlgorithm::ConstantObssPdAlgorithm ( )

Definition at line 38 of file constant-obss-pd-algorithm.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ ConnectWifiNetDevice()

void ns3::ConstantObssPdAlgorithm::ConnectWifiNetDevice ( const Ptr< WifiNetDevice device)
overridevirtual

Connect the WifiNetDevice and setup eventual callbacks.

Parameters
devicethe WifiNetDevice

Reimplemented from ns3::ObssPdAlgorithm.

Definition at line 56 of file constant-obss-pd-algorithm.cc.

References ns3::ObssPdAlgorithm::ConnectWifiNetDevice(), ns3::WifiNetDevice::GetPhy(), ns3::MakeCallback(), NS_ASSERT, third::phy, ReceiveHeSigA(), and ns3::WIFI_MOD_CLASS_HE.

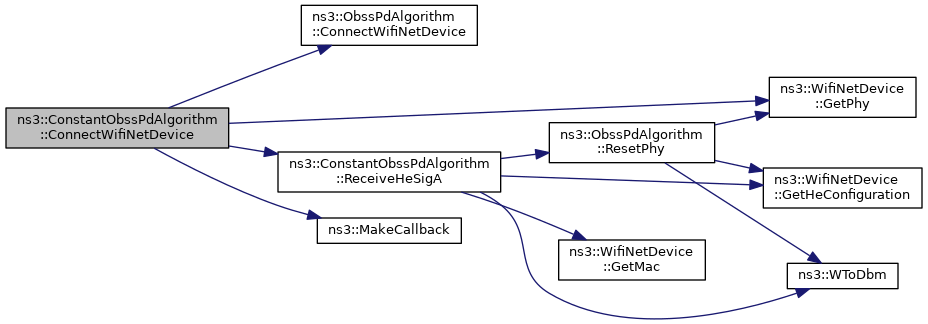

+ Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::ConstantObssPdAlgorithm::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 45 of file constant-obss-pd-algorithm.cc.

References ns3::TypeId::SetParent().

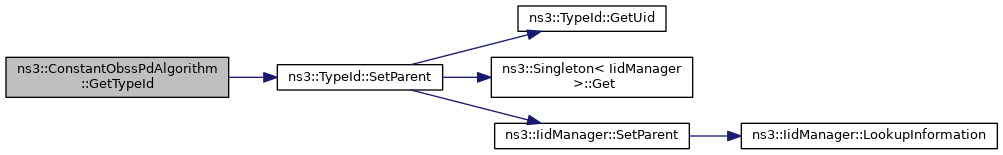

+ Here is the call graph for this function:

◆ ReceiveHeSigA()

void ns3::ConstantObssPdAlgorithm::ReceiveHeSigA ( HeSigAParameters  params)
overridevirtual
Parameters
paramsthe HE-SIG-A parameters

Evaluate the receipt of HE-SIG-A.

Implements ns3::ObssPdAlgorithm.

Definition at line 66 of file constant-obss-pd-algorithm.cc.

References ns3::HeSigAParameters::bssColor, ns3::WifiNetDevice::GetHeConfiguration(), ns3::WifiNetDevice::GetMac(), ns3::ObssPdAlgorithm::m_device, ns3::ObssPdAlgorithm::m_obssPdLevel, third::mac, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::ObssPdAlgorithm::ResetPhy(), ns3::HeSigAParameters::rssiW, and ns3::WToDbm().

Referenced by ConnectWifiNetDevice().

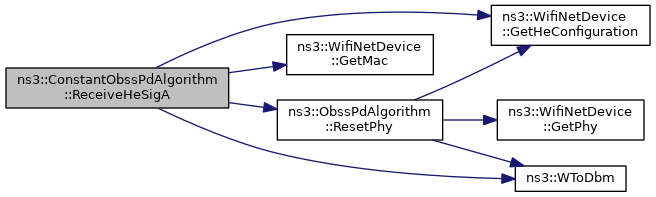

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

The documentation for this class was generated from the following files:
