ns3::DsaRsp Class Reference


This class implements the DSA-RSP message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.11 DSA-RSP message, page 63 More...

#include "mac-messages.h"

+ Inheritance diagram for ns3::DsaRsp:

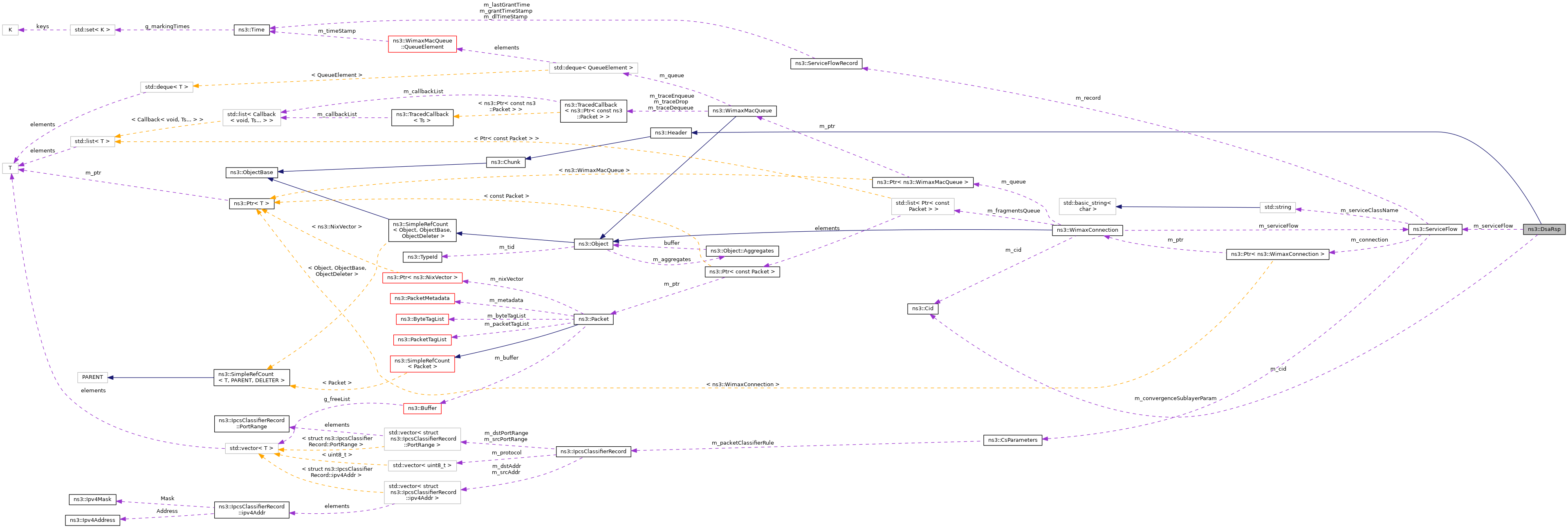

+ Collaboration diagram for ns3::DsaRsp:

Public Member Functions

 DsaRsp (void)

 ~DsaRsp (void)

uint32_t Deserialize (Buffer::Iterator start)

Cid GetCid (void) const

uint16_t GetConfirmationCode (void) const

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

std::string GetName (void) const

uint32_t GetSerializedSize (void) const

ServiceFlow GetServiceFlow (void) const

uint32_t GetSfid (void) const

uint16_t GetTransactionId (void) const

void Print (std::ostream &os) const

void Serialize (Buffer::Iterator start) const

void SetCid (Cid cid)
 set the connection identifier More...

void SetConfirmationCode (uint16_t confirmationCode)
 set the confirmation code More...

void SetServiceFlow (ServiceFlow sf)
 specify a service flow to be requested by this message More...

void SetSfid (uint32_t sfid)
 set the service flow identifier More...

void SetTransactionId (uint16_t transactionId)
 set the transaction ID More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Cid m_cid
 CID. More...

uint8_t m_confirmationCode
 confirmation code More...

ServiceFlow m_serviceFlow
 service flow More...

uint32_t m_sfid
 SFID. More...

uint16_t m_transactionId
 transaction ID More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description


This class implements the DSA-RSP message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.11 DSA-RSP message, page 63


Introspection did not find any typical Config paths.

*   0             7             15            23
*  +-------------+-------------+-------------+
*  |Mngt msg type|       Transaction ID      |
*  +-------------+-------------+-------------+
*  | Conf Code   | Service Flow TLV          |
*  +~~~~~~~~~~~~~+~~~~~~~~~~~~~+~~~~~~~~~~~~~+
*


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 288 bytes (on a 64-bit architecture).

Definition at line 474 of file mac-messages.h.

Constructor & Destructor Documentation

◆ DsaRsp()

ns3::DsaRsp::DsaRsp ( void  )

Definition at line 643 of file mac-messages.cc.

◆ ~DsaRsp()

ns3::DsaRsp::~DsaRsp ( void  )

Definition at line 651 of file mac-messages.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::DsaRsp::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 763 of file mac-messages.cc.

References ns3::Tlv::Deserialize(), m_confirmationCode, m_serviceFlow, m_transactionId, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

+ Here is the call graph for this function:

◆ GetCid()

Cid ns3::DsaRsp::GetCid ( void  ) const
Returns
the connection identifier

Definition at line 710 of file mac-messages.cc.

References m_cid.

◆ GetConfirmationCode()

uint16_t ns3::DsaRsp::GetConfirmationCode ( void  ) const
Returns
the confirmation code

Definition at line 686 of file mac-messages.cc.

References m_confirmationCode.

◆ GetInstanceTypeId()

TypeId ns3::DsaRsp::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 733 of file mac-messages.cc.

References GetTypeId().

+ Here is the call graph for this function:

◆ GetName()

std::string ns3::DsaRsp::GetName ( void  ) const
Returns
the service name

Definition at line 716 of file mac-messages.cc.

◆ GetSerializedSize()

uint32_t ns3::DsaRsp::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 746 of file mac-messages.cc.

References ns3::Tlv::GetSerializedSize(), m_serviceFlow, and ns3::ServiceFlow::ToTlv().

+ Here is the call graph for this function:

◆ GetServiceFlow()

ServiceFlow ns3::DsaRsp::GetServiceFlow ( void  ) const
Returns
the service flow requested by this message

Definition at line 668 of file mac-messages.cc.

References m_serviceFlow.

Referenced by ns3::SsServiceFlowManager::ProcessDsaRsp().

+ Here is the caller graph for this function:

◆ GetSfid()

uint32_t ns3::DsaRsp::GetSfid ( void  ) const
Returns
the service flow identifier

Definition at line 698 of file mac-messages.cc.

References m_sfid.

◆ GetTransactionId()

uint16_t ns3::DsaRsp::GetTransactionId ( void  ) const
Returns
the transaction ID

Definition at line 662 of file mac-messages.cc.

References m_transactionId.

Referenced by ns3::SsServiceFlowManager::ProcessDsaRsp().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::DsaRsp::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 722 of file mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

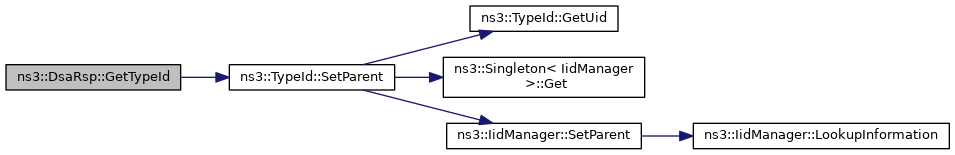

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::DsaRsp::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 739 of file mac-messages.cc.

References m_cid, m_confirmationCode, m_sfid, and m_transactionId.

◆ Serialize()

void ns3::DsaRsp::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 753 of file mac-messages.cc.

References m_confirmationCode, m_serviceFlow, m_transactionId, ns3::Tlv::Serialize(), visualizer.core::start(), ns3::ServiceFlow::ToTlv(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

+ Here is the call graph for this function:

◆ SetCid()

void ns3::DsaRsp::SetCid ( Cid  cid)

set the connection identifier

Parameters
cidthe connection identifier

Definition at line 704 of file mac-messages.cc.

References m_cid.

◆ SetConfirmationCode()

void ns3::DsaRsp::SetConfirmationCode ( uint16_t  confirmationCode)

set the confirmation code

Parameters
confirmationCode

Definition at line 680 of file mac-messages.cc.

References m_confirmationCode.

Referenced by ns3::BsServiceFlowManager::CreateDsaRsp().

+ Here is the caller graph for this function:

◆ SetServiceFlow()

void ns3::DsaRsp::SetServiceFlow ( ServiceFlow  sf)

specify a service flow to be requested by this message

Parameters
sfthe service flow

Definition at line 674 of file mac-messages.cc.

References m_serviceFlow.

Referenced by ns3::BsServiceFlowManager::CreateDsaRsp().

+ Here is the caller graph for this function:

◆ SetSfid()

void ns3::DsaRsp::SetSfid ( uint32_t  sfid)

set the service flow identifier

Parameters
sfidthe service flow identifier

Definition at line 692 of file mac-messages.cc.

References m_sfid.

◆ SetTransactionId()

void ns3::DsaRsp::SetTransactionId ( uint16_t  transactionId)

set the transaction ID

Parameters
transactionId

Definition at line 656 of file mac-messages.cc.

References m_transactionId.

Referenced by ns3::BsServiceFlowManager::CreateDsaRsp().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_cid

Cid ns3::DsaRsp::m_cid
private

CID.

Definition at line 547 of file mac-messages.h.

Referenced by GetCid(), Print(), and SetCid().

◆ m_confirmationCode

uint8_t ns3::DsaRsp::m_confirmationCode
private

confirmation code

Definition at line 543 of file mac-messages.h.

Referenced by Deserialize(), GetConfirmationCode(), Print(), Serialize(), and SetConfirmationCode().

◆ m_serviceFlow

ServiceFlow ns3::DsaRsp::m_serviceFlow
private

service flow

Definition at line 545 of file mac-messages.h.

Referenced by Deserialize(), GetSerializedSize(), GetServiceFlow(), Serialize(), and SetServiceFlow().

◆ m_sfid

uint32_t ns3::DsaRsp::m_sfid
private

SFID.

Definition at line 546 of file mac-messages.h.

Referenced by GetSfid(), Print(), and SetSfid().

◆ m_transactionId

uint16_t ns3::DsaRsp::m_transactionId
private

transaction ID

Definition at line 542 of file mac-messages.h.

Referenced by Deserialize(), GetTransactionId(), Print(), Serialize(), and SetTransactionId().


The documentation for this class was generated from the following files:
