ns3::EpcX2HandoverRequestHeader Class Reference

EpcX2HandoverRequestHeader. More...

#include "epc-x2-header.h"

+ Inheritance diagram for ns3::EpcX2HandoverRequestHeader:

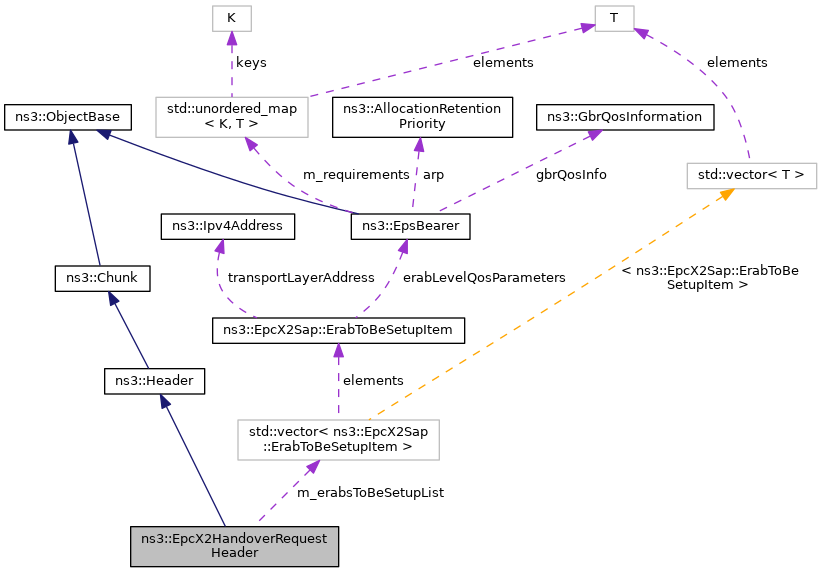

+ Collaboration diagram for ns3::EpcX2HandoverRequestHeader:

Public Member Functions

 EpcX2HandoverRequestHeader ()

virtual ~EpcX2HandoverRequestHeader ()

virtual uint32_t Deserialize (Buffer::Iterator start)

std::vector< EpcX2Sap::ErabToBeSetupItemGetBearers () const
 Get bearers function. More...

uint16_t GetCause () const
 Get cause function. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

uint32_t GetLengthOfIes () const
 Get length of IEs. More...

uint32_t GetMmeUeS1apId () const
 Get MME UE S1 AP ID function. More...

uint32_t GetNumberOfIes () const
 Get number of IEs. More...

uint16_t GetOldEnbUeX2apId () const
 Get old ENB X2 AP ID function. More...

virtual uint32_t GetSerializedSize (void) const

uint16_t GetTargetCellId () const
 Get target cell id function. More...

uint64_t GetUeAggregateMaxBitRateDownlink () const
 Get UE Aggregate Max Bit Rate Downlink function. More...

uint64_t GetUeAggregateMaxBitRateUplink () const
 Get UE Aggregrate Max Bit Rate Uplik function. More...

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const

void SetBearers (std::vector< EpcX2Sap::ErabToBeSetupItem > bearers)
 Set bearers function. More...

void SetCause (uint16_t cause)
 Set cause function. More...

void SetMmeUeS1apId (uint32_t mmeUeS1apId)
 Set MME UE S1 AP ID function. More...

void SetOldEnbUeX2apId (uint16_t x2apId)
 Set old ENB X2 AP ID function. More...

void SetTargetCellId (uint16_t targetCellId)
 Set target cell id function. More...

void SetUeAggregateMaxBitRateDownlink (uint64_t bitRate)
 Set UE Aggregrate Max Bit Rate Downlink function. More...

void SetUeAggregateMaxBitRateUplink (uint64_t bitRate)
 Set UE Aggregrate Max Bit Rate Uplik function. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint16_t m_cause
 cause More...

std::vector< EpcX2Sap::ErabToBeSetupItemm_erabsToBeSetupList
 ERAB to be setup list. More...

uint32_t m_headerLength
 header length More...

uint32_t m_mmeUeS1apId
 MME UE S1 AP ID. More...

uint32_t m_numberOfIes
 number of IEs More...

uint16_t m_oldEnbUeX2apId
 old ENB UE X1 AP ID More...

uint16_t m_targetCellId
 target cell ID More...

uint64_t m_ueAggregateMaxBitRateDownlink
 aggregate max bit rate downlink More...

uint64_t m_ueAggregateMaxBitRateUplink
 aggregate max bit rate uplink More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

EpcX2HandoverRequestHeader.


Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 72 bytes (on a 64-bit architecture).

Definition at line 113 of file epc-x2-header.h.

Constructor & Destructor Documentation

◆ EpcX2HandoverRequestHeader()

ns3::EpcX2HandoverRequestHeader::EpcX2HandoverRequestHeader ( )

Definition at line 150 of file epc-x2-header.cc.

References m_erabsToBeSetupList.

◆ ~EpcX2HandoverRequestHeader()

ns3::EpcX2HandoverRequestHeader::~EpcX2HandoverRequestHeader ( )
virtual

Member Function Documentation

◆ Deserialize()

uint32_t ns3::EpcX2HandoverRequestHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 244 of file epc-x2-header.cc.

References ns3::EpsBearer::arp, ns3::EpcX2Sap::ErabToBeSetupItem::dlForwarding, ns3::EpcX2Sap::ErabToBeSetupItem::erabId, ns3::EpcX2Sap::ErabToBeSetupItem::erabLevelQosParameters, ns3::GbrQosInformation::gbrDl, ns3::EpsBearer::gbrQosInfo, ns3::GbrQosInformation::gbrUl, GetSerializedSize(), ns3::EpcX2Sap::ErabToBeSetupItem::gtpTeid, m_cause, m_erabsToBeSetupList, m_headerLength, m_mmeUeS1apId, m_numberOfIes, m_oldEnbUeX2apId, m_targetCellId, m_ueAggregateMaxBitRateDownlink, m_ueAggregateMaxBitRateUplink, ns3::GbrQosInformation::mbrDl, ns3::GbrQosInformation::mbrUl, ns3::AllocationRetentionPriority::preemptionCapability, ns3::AllocationRetentionPriority::preemptionVulnerability, ns3::AllocationRetentionPriority::priorityLevel, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadNtohU64(), ns3::Buffer::Iterator::ReadU8(), visualizer.core::start(), and ns3::EpcX2Sap::ErabToBeSetupItem::transportLayerAddress.

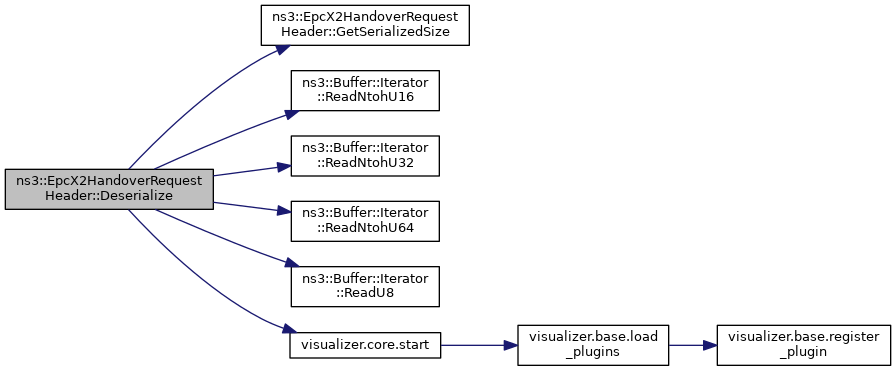

+ Here is the call graph for this function:

◆ GetBearers()

std::vector< EpcX2Sap::ErabToBeSetupItem > ns3::EpcX2HandoverRequestHeader::GetBearers ( ) const

Get bearers function.

Returns
<EpcX2Sap::ErabToBeSetupItem>

Definition at line 387 of file epc-x2-header.cc.

References m_erabsToBeSetupList.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

◆ GetCause()

uint16_t ns3::EpcX2HandoverRequestHeader::GetCause ( ) const

Get cause function.

Returns
the cause

Definition at line 351 of file epc-x2-header.cc.

References m_cause.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::EpcX2HandoverRequestHeader::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 184 of file epc-x2-header.cc.

References GetTypeId().

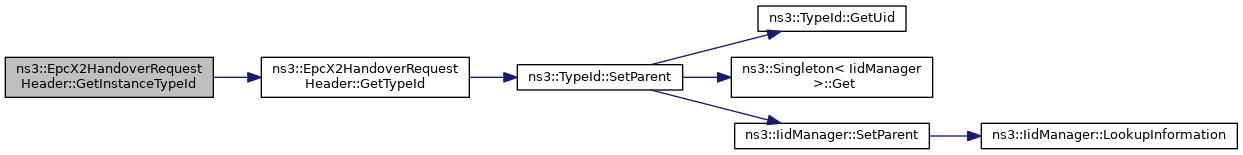

+ Here is the call graph for this function:

◆ GetLengthOfIes()

uint32_t ns3::EpcX2HandoverRequestHeader::GetLengthOfIes ( ) const

Get length of IEs.

Returns
the length of IEs

Definition at line 424 of file epc-x2-header.cc.

References m_headerLength.

Referenced by ns3::EpcX2::DoSendHandoverRequest().

+ Here is the caller graph for this function:

◆ GetMmeUeS1apId()

uint32_t ns3::EpcX2HandoverRequestHeader::GetMmeUeS1apId ( ) const

Get MME UE S1 AP ID function.

Returns
the MME UE S1 AP ID

Definition at line 375 of file epc-x2-header.cc.

References m_mmeUeS1apId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

◆ GetNumberOfIes()

uint32_t ns3::EpcX2HandoverRequestHeader::GetNumberOfIes ( ) const

Get number of IEs.

Returns
the number of IEs

Definition at line 430 of file epc-x2-header.cc.

References m_numberOfIes.

Referenced by ns3::EpcX2::DoSendHandoverRequest().

+ Here is the caller graph for this function:

◆ GetOldEnbUeX2apId()

uint16_t ns3::EpcX2HandoverRequestHeader::GetOldEnbUeX2apId ( ) const

Get old ENB X2 AP ID function.

Returns
the old ENB UE X2 AP ID

Definition at line 339 of file epc-x2-header.cc.

References m_oldEnbUeX2apId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::EpcX2HandoverRequestHeader::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 190 of file epc-x2-header.cc.

References m_headerLength.

Referenced by Deserialize().

+ Here is the caller graph for this function:

◆ GetTargetCellId()

uint16_t ns3::EpcX2HandoverRequestHeader::GetTargetCellId ( ) const

Get target cell id function.

Returns
the target cell ID

Definition at line 363 of file epc-x2-header.cc.

References m_targetCellId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::EpcX2HandoverRequestHeader::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 173 of file epc-x2-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

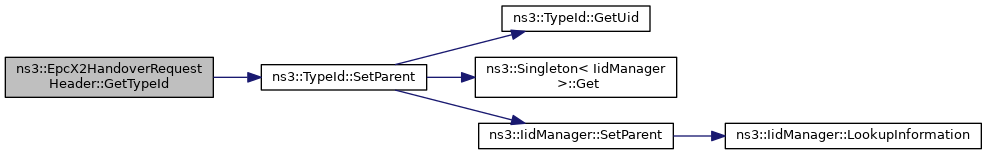

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetUeAggregateMaxBitRateDownlink()

uint64_t ns3::EpcX2HandoverRequestHeader::GetUeAggregateMaxBitRateDownlink ( ) const

Get UE Aggregate Max Bit Rate Downlink function.

Returns
the UE aggregate max bit rate downlink

Definition at line 400 of file epc-x2-header.cc.

References m_ueAggregateMaxBitRateDownlink.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

◆ GetUeAggregateMaxBitRateUplink()

uint64_t ns3::EpcX2HandoverRequestHeader::GetUeAggregateMaxBitRateUplink ( ) const

Get UE Aggregrate Max Bit Rate Uplik function.

Returns
the UE aggregate max bit rate uplink

Definition at line 412 of file epc-x2-header.cc.

References m_ueAggregateMaxBitRateUplink.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

◆ Print()

void ns3::EpcX2HandoverRequestHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 309 of file epc-x2-header.cc.

References m_cause, m_erabsToBeSetupList, m_mmeUeS1apId, m_oldEnbUeX2apId, m_targetCellId, m_ueAggregateMaxBitRateDownlink, and m_ueAggregateMaxBitRateUplink.

◆ Serialize()

void ns3::EpcX2HandoverRequestHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 196 of file epc-x2-header.cc.

References m_cause, m_erabsToBeSetupList, m_mmeUeS1apId, m_oldEnbUeX2apId, m_targetCellId, m_ueAggregateMaxBitRateDownlink, m_ueAggregateMaxBitRateUplink, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), ns3::Buffer::Iterator::WriteHtonU64(), and ns3::Buffer::Iterator::WriteU8().

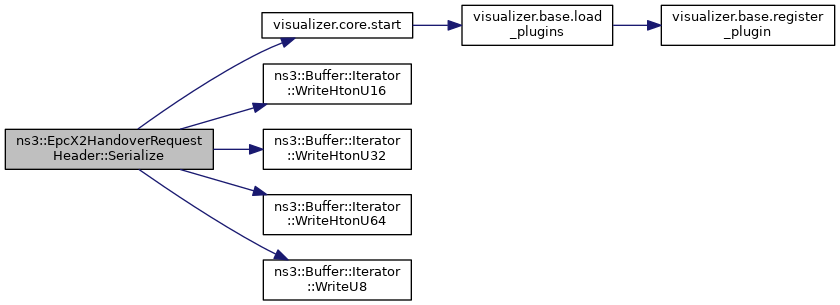

+ Here is the call graph for this function:

◆ SetBearers()

void ns3::EpcX2HandoverRequestHeader::SetBearers ( std::vector< EpcX2Sap::ErabToBeSetupItem bearers)

Set bearers function.

Parameters
bearersstd::vector <EpcX2Sap::ErabToBeSetupItem>

Definition at line 393 of file epc-x2-header.cc.

References m_erabsToBeSetupList, and m_headerLength.

Referenced by ns3::EpcX2::DoSendHandoverRequest().

+ Here is the caller graph for this function:

◆ SetCause()

void ns3::EpcX2HandoverRequestHeader::SetCause ( uint16_t  cause)

Set cause function.

Parameters
cause

Definition at line 357 of file epc-x2-header.cc.

References m_cause.

Referenced by ns3::EpcX2::DoSendHandoverRequest().

+ Here is the caller graph for this function:

◆ SetMmeUeS1apId()

void ns3::EpcX2HandoverRequestHeader::SetMmeUeS1apId ( uint32_t  mmeUeS1apId)

Set MME UE S1 AP ID function.

Parameters
mmeUeS1apIdthe MME UE S1 AP ID

Definition at line 381 of file epc-x2-header.cc.

References m_mmeUeS1apId.

Referenced by ns3::EpcX2::DoSendHandoverRequest().

+ Here is the caller graph for this function:

◆ SetOldEnbUeX2apId()

void ns3::EpcX2HandoverRequestHeader::SetOldEnbUeX2apId ( uint16_t  x2apId)

Set old ENB X2 AP ID function.

Parameters
x2apIdthe X2 AP ID

Definition at line 345 of file epc-x2-header.cc.

References m_oldEnbUeX2apId.

Referenced by ns3::EpcX2::DoSendHandoverRequest().

+ Here is the caller graph for this function:

◆ SetTargetCellId()

void ns3::EpcX2HandoverRequestHeader::SetTargetCellId ( uint16_t  targetCellId)

Set target cell id function.

Parameters
targetCellIdthe target cell ID

Definition at line 369 of file epc-x2-header.cc.

References m_targetCellId.

Referenced by ns3::EpcX2::DoSendHandoverRequest().

+ Here is the caller graph for this function:

◆ SetUeAggregateMaxBitRateDownlink()

void ns3::EpcX2HandoverRequestHeader::SetUeAggregateMaxBitRateDownlink ( uint64_t  bitRate)

Set UE Aggregrate Max Bit Rate Downlink function.

Parameters
bitRatethe bit rate

Definition at line 406 of file epc-x2-header.cc.

References m_ueAggregateMaxBitRateDownlink.

Referenced by ns3::EpcX2::DoSendHandoverRequest().

+ Here is the caller graph for this function:

◆ SetUeAggregateMaxBitRateUplink()

void ns3::EpcX2HandoverRequestHeader::SetUeAggregateMaxBitRateUplink ( uint64_t  bitRate)

Set UE Aggregrate Max Bit Rate Uplik function.

Parameters
bitRatethe bit rate

Definition at line 418 of file epc-x2-header.cc.

References m_ueAggregateMaxBitRateUplink.

Referenced by ns3::EpcX2::DoSendHandoverRequest().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_cause

uint16_t ns3::EpcX2HandoverRequestHeader::m_cause
private

cause

Definition at line 224 of file epc-x2-header.h.

Referenced by Deserialize(), GetCause(), Print(), Serialize(), SetCause(), and ~EpcX2HandoverRequestHeader().

◆ m_erabsToBeSetupList

std::vector<EpcX2Sap::ErabToBeSetupItem> ns3::EpcX2HandoverRequestHeader::m_erabsToBeSetupList
private

◆ m_headerLength

uint32_t ns3::EpcX2HandoverRequestHeader::m_headerLength
private

header length

Definition at line 221 of file epc-x2-header.h.

Referenced by Deserialize(), GetLengthOfIes(), GetSerializedSize(), SetBearers(), and ~EpcX2HandoverRequestHeader().

◆ m_mmeUeS1apId

uint32_t ns3::EpcX2HandoverRequestHeader::m_mmeUeS1apId
private

MME UE S1 AP ID.

Definition at line 226 of file epc-x2-header.h.

Referenced by Deserialize(), GetMmeUeS1apId(), Print(), Serialize(), SetMmeUeS1apId(), and ~EpcX2HandoverRequestHeader().

◆ m_numberOfIes

uint32_t ns3::EpcX2HandoverRequestHeader::m_numberOfIes
private

number of IEs

Definition at line 220 of file epc-x2-header.h.

Referenced by Deserialize(), GetNumberOfIes(), and ~EpcX2HandoverRequestHeader().

◆ m_oldEnbUeX2apId

uint16_t ns3::EpcX2HandoverRequestHeader::m_oldEnbUeX2apId
private

old ENB UE X1 AP ID

Definition at line 223 of file epc-x2-header.h.

Referenced by Deserialize(), GetOldEnbUeX2apId(), Print(), Serialize(), SetOldEnbUeX2apId(), and ~EpcX2HandoverRequestHeader().

◆ m_targetCellId

uint16_t ns3::EpcX2HandoverRequestHeader::m_targetCellId
private

target cell ID

Definition at line 225 of file epc-x2-header.h.

Referenced by Deserialize(), GetTargetCellId(), Print(), Serialize(), SetTargetCellId(), and ~EpcX2HandoverRequestHeader().

◆ m_ueAggregateMaxBitRateDownlink

uint64_t ns3::EpcX2HandoverRequestHeader::m_ueAggregateMaxBitRateDownlink
private

aggregate max bit rate downlink

Definition at line 227 of file epc-x2-header.h.

Referenced by Deserialize(), GetUeAggregateMaxBitRateDownlink(), Print(), Serialize(), and SetUeAggregateMaxBitRateDownlink().

◆ m_ueAggregateMaxBitRateUplink

uint64_t ns3::EpcX2HandoverRequestHeader::m_ueAggregateMaxBitRateUplink
private

aggregate max bit rate uplink

Definition at line 228 of file epc-x2-header.h.

Referenced by Deserialize(), GetUeAggregateMaxBitRateUplink(), Print(), Serialize(), and SetUeAggregateMaxBitRateUplink().


The documentation for this class was generated from the following files:
