ns3::Icmpv6OptionRedirected Class Reference

ICMPv6 redirected option. More...

#include "icmpv6-header.h"

+ Inheritance diagram for ns3::Icmpv6OptionRedirected:

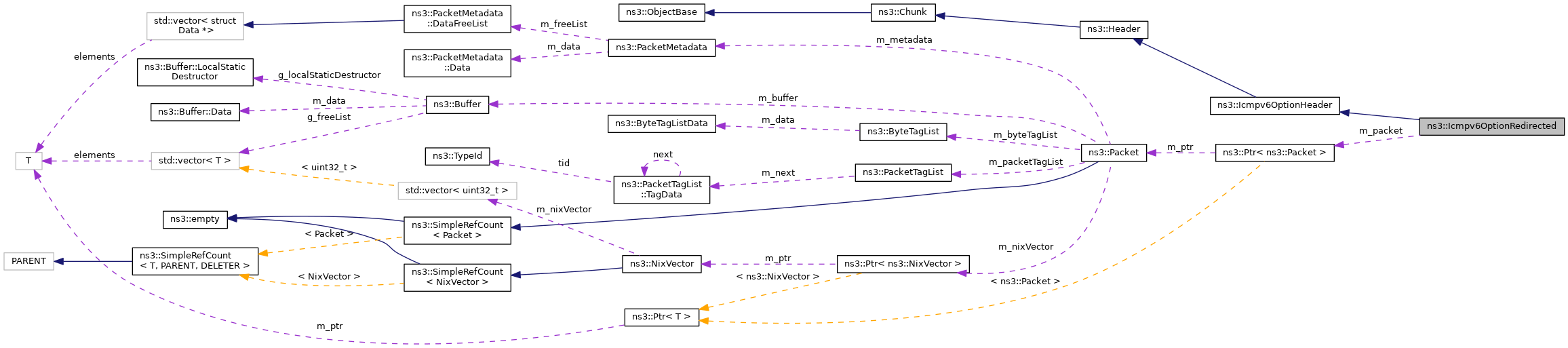

+ Collaboration diagram for ns3::Icmpv6OptionRedirected:

Public Member Functions

 Icmpv6OptionRedirected ()
 Constructor. More...

virtual ~Icmpv6OptionRedirected ()
 Destructor. More...

virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet. More...

virtual TypeId GetInstanceTypeId () const
 Get the instance type ID. More...

Ptr< PacketGetPacket () const
 Get the redirected packet. More...

virtual uint32_t GetSerializedSize () const
 Get the serialized size. More...

virtual void Print (std::ostream &os) const
 Print information. More...

virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet. More...

void SetPacket (Ptr< Packet > packet)
 Set the redirected packet. More...

- Public Member Functions inherited from ns3::Icmpv6OptionHeader
 Icmpv6OptionHeader ()
 Constructor. More...

virtual ~Icmpv6OptionHeader ()
 Destructor. More...

uint8_t GetLength () const
 Get the length of the option in 8 bytes unit. More...

uint8_t GetType () const
 Get the type of the option. More...

void SetLength (uint8_t len)
 Set the length of the option. More...

void SetType (uint8_t type)
 Set the type of the option. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the UID of this class. More...

- Static Public Member Functions inherited from ns3::Icmpv6OptionHeader
static TypeId GetTypeId ()
 Get the UID of this class. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Ptr< Packetm_packet
 The redirected packet. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

ICMPv6 redirected option.


Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).

Definition at line 1732 of file icmpv6-header.h.

Constructor & Destructor Documentation

◆ Icmpv6OptionRedirected()

ns3::Icmpv6OptionRedirected::Icmpv6OptionRedirected ( )

Constructor.

Definition at line 1939 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_OPT_REDIRECTED, NS_LOG_FUNCTION, and ns3::Icmpv6OptionHeader::SetType().

+ Here is the call graph for this function:

◆ ~Icmpv6OptionRedirected()

ns3::Icmpv6OptionRedirected::~Icmpv6OptionRedirected ( )
virtual

Destructor.

Definition at line 1946 of file icmpv6-header.cc.

References m_packet, and NS_LOG_FUNCTION.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::Icmpv6OptionRedirected::Deserialize ( Buffer::Iterator  start)
virtual

◆ GetInstanceTypeId()

TypeId ns3::Icmpv6OptionRedirected::GetInstanceTypeId ( void  ) const
virtual

Get the instance type ID.

Returns
instance type ID

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1933 of file icmpv6-header.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

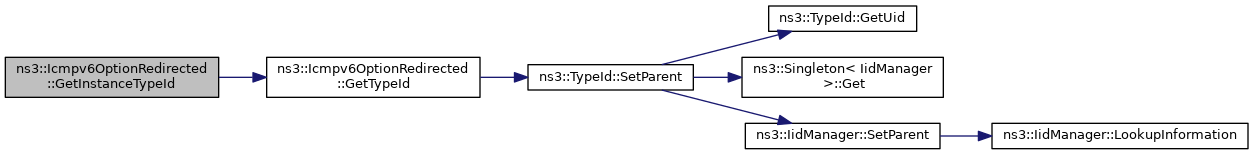

+ Here is the call graph for this function:

◆ GetPacket()

Ptr< Packet > ns3::Icmpv6OptionRedirected::GetPacket ( ) const

Get the redirected packet.

Returns
the redirected packet

Definition at line 1952 of file icmpv6-header.cc.

References m_packet, and NS_LOG_FUNCTION.

◆ GetSerializedSize()

uint32_t ns3::Icmpv6OptionRedirected::GetSerializedSize ( void  ) const
virtual

Get the serialized size.

Returns
serialized size

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1972 of file icmpv6-header.cc.

References ns3::Packet::GetSize(), m_packet, and NS_LOG_FUNCTION.

Referenced by Deserialize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Icmpv6OptionRedirected::GetTypeId ( void  )
static

Get the UID of this class.

Returns
UID

Definition at line 1923 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

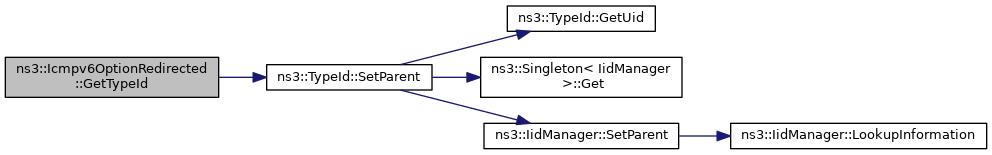

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::Icmpv6OptionRedirected::Print ( std::ostream &  os) const
virtual

Print information.

Parameters
osoutput stream

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1966 of file icmpv6-header.cc.

References ns3::Icmpv6OptionHeader::GetLength(), ns3::Icmpv6OptionHeader::GetType(), and NS_LOG_FUNCTION.

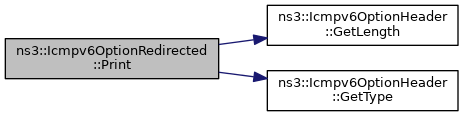

+ Here is the call graph for this function:

◆ Serialize()

void ns3::Icmpv6OptionRedirected::Serialize ( Buffer::Iterator  start) const
virtual

◆ SetPacket()

void ns3::Icmpv6OptionRedirected::SetPacket ( Ptr< Packet packet)

Set the redirected packet.

Parameters
packetthe redirected packet

Definition at line 1958 of file icmpv6-header.cc.

References ns3::Packet::GetSize(), m_packet, NS_ASSERT, NS_LOG_FUNCTION, and ns3::Icmpv6OptionHeader::SetLength().

Referenced by ns3::Icmpv6L4Protocol::SendRedirection().

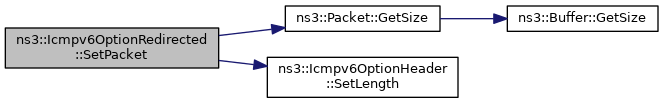

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Member Data Documentation

◆ m_packet

Ptr<Packet> ns3::Icmpv6OptionRedirected::m_packet
private

The redirected packet.

Definition at line 1798 of file icmpv6-header.h.

Referenced by Deserialize(), GetPacket(), GetSerializedSize(), Serialize(), SetPacket(), and ~Icmpv6OptionRedirected().


The documentation for this class was generated from the following files:
