ns3::Ipv4FlowProbeTag Class Reference

Tag used to allow a fast identification of the packet. More...

+ Inheritance diagram for ns3::Ipv4FlowProbeTag:
+ Collaboration diagram for ns3::Ipv4FlowProbeTag:

Public Member Functions

 Ipv4FlowProbeTag ()

 Ipv4FlowProbeTag (uint32_t flowId, uint32_t packetId, uint32_t packetSize, Ipv4Address src, Ipv4Address dst)
 Consructor. More...

virtual void Deserialize (TagBuffer buf)

uint32_t GetFlowId (void) const
 Set the flow identifier. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

uint32_t GetPacketId (void) const
 Set the packet identifier. More...

uint32_t GetPacketSize (void) const
 Get the packet size. More...

virtual uint32_t GetSerializedSize (void) const

bool IsSrcDstValid (Ipv4Address src, Ipv4Address dst) const
 Checks if the addresses stored in tag are matching the arguments. More...

virtual void Print (std::ostream &os) const

virtual void Serialize (TagBuffer buf) const

void SetFlowId (uint32_t flowId)
 Set the flow identifier. More...

void SetPacketId (uint32_t packetId)
 Set the packet identifier. More...

void SetPacketSize (uint32_t packetSize)
 Set the packet size. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Tag
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Ipv4Address m_dst
 IP destination. More...

uint32_t m_flowId
 flow identifier More...

uint32_t m_packetId
 packet identifier More...

uint32_t m_packetSize
 packet size More...

Ipv4Address m_src
 IP source. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Tag used to allow a fast identification of the packet.

This tag is added by FlowMonitor when a packet is seen for the first time, and it is then used to classify the packet in the following hops.

Definition at line 48 of file ipv4-flow-probe.cc.

Constructor & Destructor Documentation

◆ Ipv4FlowProbeTag() [1/2]

ns3::Ipv4FlowProbeTag::Ipv4FlowProbeTag ( )

Definition at line 173 of file ipv4-flow-probe.cc.

◆ Ipv4FlowProbeTag() [2/2]

ns3::Ipv4FlowProbeTag::Ipv4FlowProbeTag ( uint32_t  flowId,
uint32_t  packetId,
uint32_t  packetSize,
Ipv4Address  src,
Ipv4Address  dst
)

Consructor.

Parameters
flowIdthe flow identifier
packetIdthe packet identifier
packetSizethe packet size
srcpacket source address
dstpacket destination address

Definition at line 178 of file ipv4-flow-probe.cc.

Member Function Documentation

◆ Deserialize()

void ns3::Ipv4FlowProbeTag::Deserialize ( TagBuffer  i)
virtual
Parameters
ithe buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 154 of file ipv4-flow-probe.cc.

References ns3::Ipv4Address::Deserialize(), m_dst, m_flowId, m_packetId, m_packetSize, m_src, ns3::TagBuffer::Read(), and ns3::TagBuffer::ReadU32().

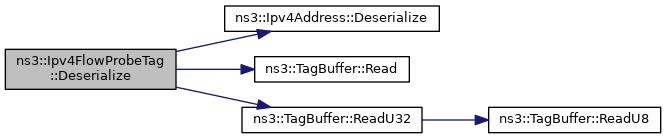

+ Here is the call graph for this function:

◆ GetFlowId()

uint32_t ns3::Ipv4FlowProbeTag::GetFlowId ( void  ) const

Set the flow identifier.

Returns
the flow identifier

Definition at line 199 of file ipv4-flow-probe.cc.

References m_flowId.

Referenced by ns3::Ipv4FlowProbe::DropLogger(), ns3::Ipv4FlowProbe::ForwardLogger(), ns3::Ipv4FlowProbe::ForwardUpLogger(), ns3::Ipv4FlowProbe::QueueDiscDropLogger(), and ns3::Ipv4FlowProbe::QueueDropLogger().

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::Ipv4FlowProbeTag::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 131 of file ipv4-flow-probe.cc.

References GetTypeId().

+ Here is the call graph for this function:

◆ GetPacketId()

uint32_t ns3::Ipv4FlowProbeTag::GetPacketId ( void  ) const

Set the packet identifier.

Returns
the packet identifier

Definition at line 204 of file ipv4-flow-probe.cc.

References m_packetId.

Referenced by ns3::Ipv4FlowProbe::DropLogger(), ns3::Ipv4FlowProbe::ForwardLogger(), ns3::Ipv4FlowProbe::ForwardUpLogger(), ns3::Ipv4FlowProbe::QueueDiscDropLogger(), and ns3::Ipv4FlowProbe::QueueDropLogger().

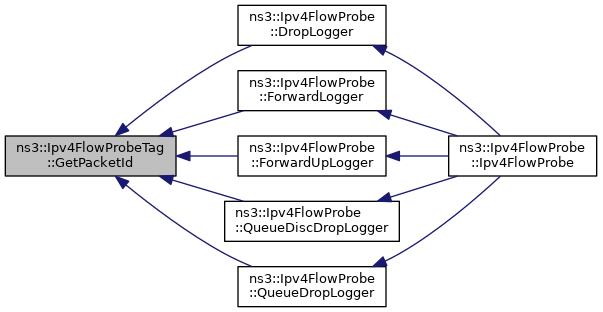

+ Here is the caller graph for this function:

◆ GetPacketSize()

uint32_t ns3::Ipv4FlowProbeTag::GetPacketSize ( void  ) const

Get the packet size.

Returns
the packet size

Definition at line 209 of file ipv4-flow-probe.cc.

References m_packetSize.

Referenced by ns3::Ipv4FlowProbe::QueueDiscDropLogger(), and ns3::Ipv4FlowProbe::QueueDropLogger().

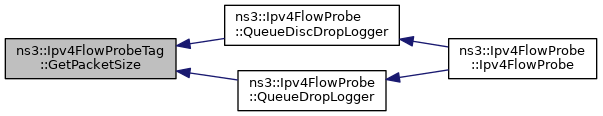

+ Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::Ipv4FlowProbeTag::GetSerializedSize ( void  ) const
virtual
Returns
the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 136 of file ipv4-flow-probe.cc.

◆ GetTypeId()

TypeId ns3::Ipv4FlowProbeTag::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 121 of file ipv4-flow-probe.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ IsSrcDstValid()

bool ns3::Ipv4FlowProbeTag::IsSrcDstValid ( Ipv4Address  src,
Ipv4Address  dst
) const

Checks if the addresses stored in tag are matching the arguments.

This check is important for IP over IP encapsulation.

Parameters
srcSource address.
dstDestination address.
Returns
True if the addresses are matching.

Definition at line 214 of file ipv4-flow-probe.cc.

References m_dst, and m_src.

Referenced by ns3::Ipv4FlowProbe::ForwardLogger(), and ns3::Ipv4FlowProbe::ForwardUpLogger().

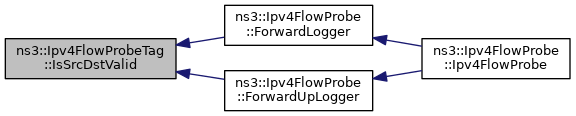

+ Here is the caller graph for this function:

◆ Print()

void ns3::Ipv4FlowProbeTag::Print ( std::ostream &  os) const
virtual
Parameters
osthe stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 167 of file ipv4-flow-probe.cc.

References m_flowId, m_packetId, and m_packetSize.

◆ Serialize()

void ns3::Ipv4FlowProbeTag::Serialize ( TagBuffer  i) const
virtual
Parameters
ithe buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 141 of file ipv4-flow-probe.cc.

References m_dst, m_flowId, m_packetId, m_packetSize, m_src, ns3::Ipv4Address::Serialize(), ns3::TagBuffer::Write(), and ns3::TagBuffer::WriteU32().

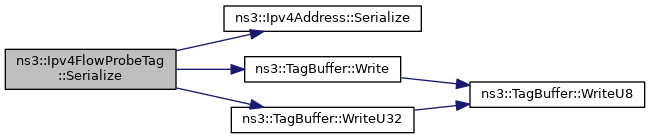

+ Here is the call graph for this function:

◆ SetFlowId()

void ns3::Ipv4FlowProbeTag::SetFlowId ( uint32_t  flowId)

Set the flow identifier.

Parameters
flowIdthe flow identifier

Definition at line 184 of file ipv4-flow-probe.cc.

References m_flowId.

◆ SetPacketId()

void ns3::Ipv4FlowProbeTag::SetPacketId ( uint32_t  packetId)

Set the packet identifier.

Parameters
packetIdthe packet identifier

Definition at line 189 of file ipv4-flow-probe.cc.

References m_packetId.

◆ SetPacketSize()

void ns3::Ipv4FlowProbeTag::SetPacketSize ( uint32_t  packetSize)

Set the packet size.

Parameters
packetSizethe packet size

Definition at line 194 of file ipv4-flow-probe.cc.

References m_packetSize.

Member Data Documentation

◆ m_dst

Ipv4Address ns3::Ipv4FlowProbeTag::m_dst
private

IP destination.

Definition at line 117 of file ipv4-flow-probe.cc.

Referenced by Deserialize(), IsSrcDstValid(), and Serialize().

◆ m_flowId

uint32_t ns3::Ipv4FlowProbeTag::m_flowId
private

flow identifier

Definition at line 113 of file ipv4-flow-probe.cc.

Referenced by Deserialize(), GetFlowId(), Print(), Serialize(), and SetFlowId().

◆ m_packetId

uint32_t ns3::Ipv4FlowProbeTag::m_packetId
private

packet identifier

Definition at line 114 of file ipv4-flow-probe.cc.

Referenced by Deserialize(), GetPacketId(), Print(), Serialize(), and SetPacketId().

◆ m_packetSize

uint32_t ns3::Ipv4FlowProbeTag::m_packetSize
private

packet size

Definition at line 115 of file ipv4-flow-probe.cc.

Referenced by Deserialize(), GetPacketSize(), Print(), Serialize(), and SetPacketSize().

◆ m_src

Ipv4Address ns3::Ipv4FlowProbeTag::m_src
private

IP source.

Definition at line 116 of file ipv4-flow-probe.cc.

Referenced by Deserialize(), IsSrcDstValid(), and Serialize().


The documentation for this class was generated from the following file:
