This helper class allows to easily create a topology with eNBs grouped in three-sector sites laid out on an hexagonal grid. More...

#include "lte-hex-grid-enb-topology-helper.h"

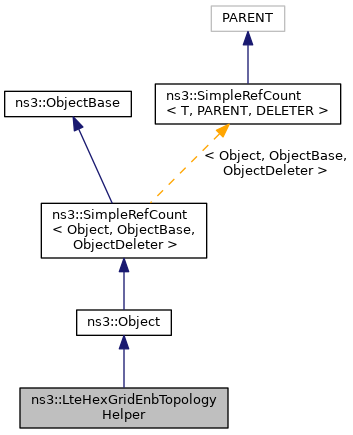

Inheritance diagram for ns3::LteHexGridEnbTopologyHelper:

Collaboration diagram for ns3::LteHexGridEnbTopologyHelper:

Public Member Functions
	LteHexGridEnbTopologyHelper (void)

virtual	~LteHexGridEnbTopologyHelper (void)

virtual void	DoDispose (void)
	Destructor implementation. More...

void	SetLteHelper (Ptr< LteHelper > h)
	Set the LteHelper to be used to actually create the EnbNetDevices. More...

NetDeviceContainer	SetPositionAndInstallEnbDevice (NodeContainer c)
	Position the nodes on a hex grid and install the corresponding EnbNetDevices with antenna boresight configured properly. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
double	m_d
	The distance [m] between nearby sites. More...

uint32_t	m_gridWidth
	The number of sites in even rows (odd rows will have one additional site) More...

Ptr< LteHelper >	m_lteHelper
	Pointer to LteHelper object. More...

double	m_offset
	The offset [m] in the position for the node of each sector with respect to the center of the three-sector site. More...

uint32_t	m_siteHeight
	The height [m] of each site. More...

double	m_xMin
	The x coordinate where the hex grid starts. More...

double	m_yMin
	The y coordinate where the hex grid starts. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This helper class allows to easily create a topology with eNBs grouped in three-sector sites laid out on an hexagonal grid.

Introspection did not find any typical Config paths.

The layout is done row-wise.

Attributes

InterSiteDistance: The distance [m] between nearby sites
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 500
- Flags: construct write read
SectorOffset: The offset [m] in the position for the node of each sector with respect to the center of the three-sector site
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.5
- Flags: construct write read
SiteHeight: The height [m] of each site
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 30
- Flags: construct write read
MinX: The x coordinate where the hex grid starts.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
MinY: The y coordinate where the hex grid starts.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
GridWidth: The number of sites in even rows (odd rows will have one additional site).
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 80 bytes (on a 64-bit architecture).

Definition at line 36 of file lte-hex-grid-enb-topology-helper.h.

Constructor & Destructor Documentation

◆ LteHexGridEnbTopologyHelper()

ns3::LteHexGridEnbTopologyHelper::LteHexGridEnbTopologyHelper ( void )

Definition at line 37 of file lte-hex-grid-enb-topology-helper.cc.

References NS_LOG_FUNCTION.

◆ ~LteHexGridEnbTopologyHelper()

ns3::LteHexGridEnbTopologyHelper::~LteHexGridEnbTopologyHelper ( void )

virtual

Definition at line 42 of file lte-hex-grid-enb-topology-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::LteHexGridEnbTopologyHelper::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 87 of file lte-hex-grid-enb-topology-helper.cc.

References ns3::Object::DoDispose(), and NS_LOG_FUNCTION.

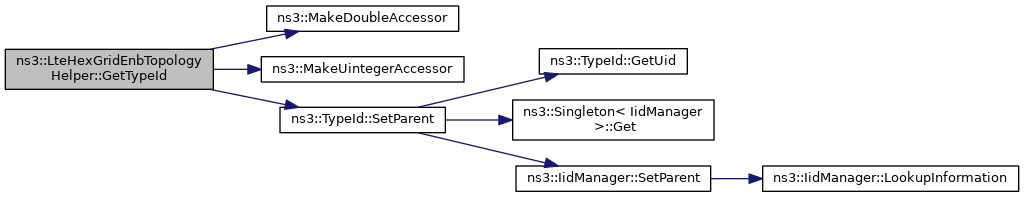

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::LteHexGridEnbTopologyHelper::GetTypeId ( void )

static

Register this type.

Returns: The object TypeId.

Definition at line 47 of file lte-hex-grid-enb-topology-helper.cc.

References m_d, m_gridWidth, m_offset, m_siteHeight, m_xMin, m_yMin, ns3::MakeDoubleAccessor(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ SetLteHelper()

void ns3::LteHexGridEnbTopologyHelper::SetLteHelper ( Ptr< LteHelper > h )

Set the LteHelper to be used to actually create the EnbNetDevices.

Note: if no EpcHelper is ever set, then LteHexGridEnbTopologyHelper will default to creating an LTE-only simulation with no EPC, using LteRlcSm as the RLC model, and without supporting any IP networking. In other words, it will be a radio-level simulation involving only LTE PHY and MAC and the FF Scheduler, with a saturation traffic model for the RLC.

Parameters
