a NetDevice to read/write network traffic from/into a netmap file descriptor. More...

#include "netmap-net-device.h"

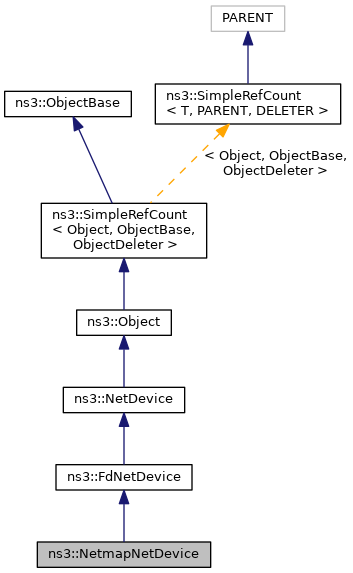

Inheritance diagram for ns3::NetmapNetDevice:

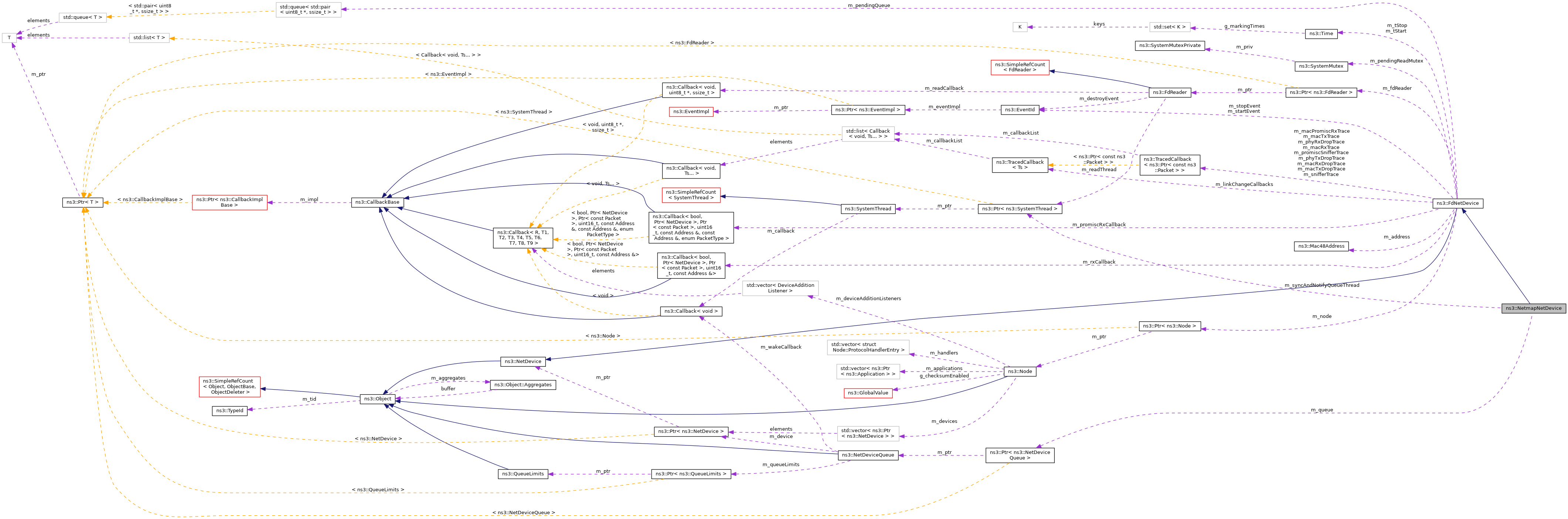

Collaboration diagram for ns3::NetmapNetDevice:

Public Member Functions
	NetmapNetDevice ()

virtual	~NetmapNetDevice ()

uint32_t	GetBytesInNetmapTxRing ()
	Get the number of bytes currently in the netmap transmission ring. More...

int	GetSpaceInNetmapTxRing () const
	Get the number of slots currently available in the netmap transmission ring. More...

void	SetNetDeviceQueue (Ptr< NetDeviceQueue > queue)
	Set the NetDeviceQueue. More...

void	SetNetmapInterfaceRepresentation (struct netmap_if *nifp)
	Set the netmap interface representation. More...

void	SetRxRingsInfo (uint32_t nRxRings, uint32_t nRxRingsSlots)
	Set the netmap receiver rings info. More...

void	SetTxRingsInfo (uint32_t nTxRings, uint32_t nTxRingsSlots)
	Set the netmap transmission rings info. More...

virtual ssize_t	Write (uint8_t *buffer, size_t length)
	The function Writes a packet into the netmap transmission ring. More...

Public Member Functions inherited from ns3::FdNetDevice
	FdNetDevice ()
	Constructor for the FdNetDevice. More...

virtual	~FdNetDevice ()
	Destructor for the FdNetDevice. More...

virtual void	AddLinkChangeCallback (Callback< void > callback)

virtual Address	GetAddress (void) const

virtual Address	GetBroadcast (void) const

virtual Ptr< Channel >	GetChannel (void) const

FdNetDevice::EncapsulationMode	GetEncapsulationMode (void) const
	Get the link layer encapsulation mode of this device. More...

virtual uint32_t	GetIfIndex (void) const

virtual uint16_t	GetMtu (void) const

virtual Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group. More...

virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

virtual Ptr< Node >	GetNode (void) const

virtual bool	IsBridge (void) const
	Return true if the net device is acting as a bridge. More...

virtual bool	IsBroadcast (void) const

virtual bool	IsLinkUp (void) const

virtual bool	IsMulticast (void) const

virtual bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link. More...

virtual bool	NeedsArp (void) const

virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

virtual void	SetAddress (Address address)
	Set the address of this interface. More...

void	SetEncapsulationMode (FdNetDevice::EncapsulationMode mode)
	Set the link layer encapsulation mode of this device. More...

void	SetFileDescriptor (int fd)
	Set the associated file descriptor. More...

virtual void	SetIfIndex (const uint32_t index)

virtual void	SetIsBroadcast (bool broadcast)
	Set if the NetDevice is able to send Broadcast messages. More...

virtual void	SetIsMulticast (bool multicast)
	Set if the NetDevice is able to send Multicast messages. More...

virtual bool	SetMtu (const uint16_t mtu)

virtual void	SetNode (Ptr< Node > node)

virtual void	SetPromiscReceiveCallback (NetDevice::PromiscReceiveCallback cb)

virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)

void	Start (Time tStart)
	Set a start time for the device. More...

void	Stop (Time tStop)
	Set a stop time for the device. More...

virtual bool	SupportsSendFrom () const

Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

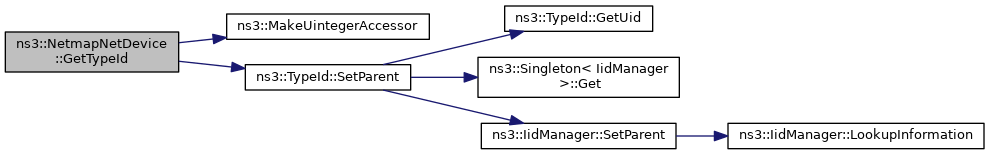

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::FdNetDevice
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
Ptr< FdReader >	DoCreateFdReader (void)
	Create the FdReader object. More...

void	DoFinishStartingDevice (void)
	Complete additional actions, if any, to spin up down the device. More...

void	DoFinishStoppingDevice (void)
	Complete additional actions, if any, to tear down the device. More...

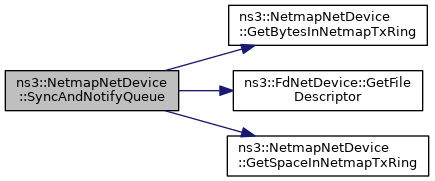

virtual void	SyncAndNotifyQueue ()
	This function syncs netmap ring and notifies netdevice queue. More...

Private Attributes
struct netmap_if *	m_nifp
	Netmap interface representation. More...

uint32_t	m_nRxRings
	Number of receiver rings. More...

uint32_t	m_nRxRingsSlots
	Number of slots in the receiver rings. More...

uint32_t	m_nTxRings
	Number of transmission rings. More...

uint32_t	m_nTxRingsSlots
	Number of slots in the transmission rings. More...

Ptr< NetDeviceQueue >	m_queue
	NetDevice queue. More...

uint8_t	m_syncAndNotifyQueuePeriod
	The period of time in us after which the device syncs the netmap ring and notifies queue status. More...

Ptr< SystemThread >	m_syncAndNotifyQueueThread
	Thread used to perform the flow control. More...

std::atomic< bool >	m_syncAndNotifyQueueThreadRun
	Running flag of the flow control thread. More...

uint32_t	m_totalQueuedBytes
	Total queued bytes. More...

Additional Inherited Members
Public Types inherited from ns3::FdNetDevice
enum	EncapsulationMode { DIX, LLC, DIXPI }
	Enumeration of the types of frames supported in the class. More...

Public Types inherited from ns3::NetDevice
typedef void(*	LinkChangeTracedCallback) (void)
	TracedCallback signature for link changed event. More...

enum	PacketType { PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST, PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &>	ReceiveCallback

Protected Member Functions inherited from ns3::FdNetDevice
virtual uint8_t *	AllocateBuffer (size_t len)
	Allocate packet buffer. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Method Initialization for start and stop attributes. More...

virtual void	FreeBuffer (uint8_t *buf)
	Free the given packet buffer. More...

int	GetFileDescriptor (void) const
	Get the associated file descriptor. More...

void	ReceiveCallback (uint8_t *buf, ssize_t len)
	Callback to invoke when a new frame is received. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::FdNetDevice
std::queue< std::pair< uint8_t *, ssize_t > >	m_pendingQueue
	Number of packets that were received and scheduled for read but not yet read. More...

SystemMutex	m_pendingReadMutex
	Mutex to increase pending read counter. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

a NetDevice to read/write network traffic from/into a netmap file descriptor.

A NetmapNetDevice object will read and write packets from/to a netmap file descriptor.

Definition at line 137 of file netmap-net-device.h.

Constructor & Destructor Documentation

◆ NetmapNetDevice()

ns3::NetmapNetDevice::NetmapNetDevice ( )

Definition at line 184 of file netmap-net-device.cc.

References m_nifp, m_nRxRings, m_nRxRingsSlots, m_nTxRings, m_nTxRingsSlots, m_queue, m_syncAndNotifyQueueThread, m_syncAndNotifyQueueThreadRun, m_totalQueuedBytes, and NS_LOG_FUNCTION.

◆ ~NetmapNetDevice()

ns3::NetmapNetDevice::~NetmapNetDevice ( )

virtual

Definition at line 198 of file netmap-net-device.cc.

References m_nifp, m_queue, and NS_LOG_FUNCTION.

Member Function Documentation

◆ DoCreateFdReader()

Ptr< FdReader > ns3::NetmapNetDevice::DoCreateFdReader ( void )

privatevirtual

Create the FdReader object.

Returns: the created FdReader object

Reimplemented from ns3::FdNetDevice.

Definition at line 206 of file netmap-net-device.cc.

References ns3::FdNetDevice::GetMtu(), m_nifp, and NS_LOG_FUNCTION.

Here is the call graph for this function:

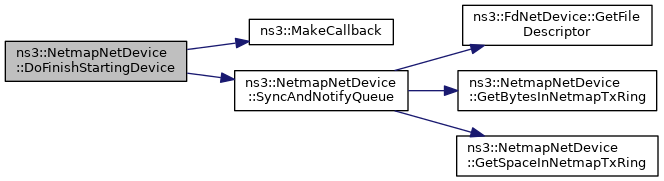

◆ DoFinishStartingDevice()

void ns3::NetmapNetDevice::DoFinishStartingDevice ( void )

privatevirtual

Complete additional actions, if any, to spin up down the device.

Reimplemented from ns3::FdNetDevice.

Definition at line 218 of file netmap-net-device.cc.

References m_syncAndNotifyQueueThread, m_syncAndNotifyQueueThreadRun, ns3::MakeCallback(), NS_LOG_FUNCTION, and SyncAndNotifyQueue().

Here is the call graph for this function:

◆ DoFinishStoppingDevice()

void ns3::NetmapNetDevice::DoFinishStoppingDevice ( void )

privatevirtual

Complete additional actions, if any, to tear down the device.

Reimplemented from ns3::FdNetDevice.

Definition at line 229 of file netmap-net-device.cc.

References m_queue, m_syncAndNotifyQueueThread, m_syncAndNotifyQueueThreadRun, and NS_LOG_FUNCTION.

◆ GetBytesInNetmapTxRing()

uint32_t ns3::NetmapNetDevice::GetBytesInNetmapTxRing ( )

Get the number of bytes currently in the netmap transmission ring.

Returns: the number of bytes in the netmap transmission ring.

Definition at line 241 of file netmap-net-device.cc.

References m_nifp, m_nTxRingsSlots, and NS_LOG_FUNCTION.

Referenced by SyncAndNotifyQueue().

Here is the caller graph for this function:

◆ GetSpaceInNetmapTxRing()

int ns3::NetmapNetDevice::GetSpaceInNetmapTxRing ( ) const

Get the number of slots currently available in the netmap transmission ring.

Returns: the number of slots currently available in the netmap transmission ring.

Definition at line 300 of file netmap-net-device.cc.

References m_nifp, and NS_LOG_FUNCTION.

Referenced by SyncAndNotifyQueue().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::NetmapNetDevice::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 170 of file netmap-net-device.cc.

References m_syncAndNotifyQueuePeriod, ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ SetNetDeviceQueue()

void ns3::NetmapNetDevice::SetNetDeviceQueue ( Ptr< NetDeviceQueue > queue )

Set the NetDeviceQueue.

Parameters

queue the NetDeviceQueue

Definition at line 266 of file netmap-net-device.cc.

References m_queue, and NS_LOG_FUNCTION.

◆ SetNetmapInterfaceRepresentation()

void ns3::NetmapNetDevice::SetNetmapInterfaceRepresentation ( struct netmap_if * nifp )

Set the netmap interface representation.

Parameters

nifp	the pointer to netmap interface representation

Definition at line 274 of file netmap-net-device.cc.

References m_nifp, and NS_LOG_FUNCTION.

◆ SetRxRingsInfo()

void ns3::NetmapNetDevice::SetRxRingsInfo	(	uint32_t	nRxRings,
		uint32_t	nRxRingsSlots
	)

Set the netmap receiver rings info.

Parameters

nTxRings	the number of receiver rings
nTxRingsSlots	the number of slots for each receiver ring

Definition at line 291 of file netmap-net-device.cc.

References m_nRxRings, m_nRxRingsSlots, and NS_LOG_FUNCTION.

◆ SetTxRingsInfo()

void ns3::NetmapNetDevice::SetTxRingsInfo	(	uint32_t	nTxRings,
		uint32_t	nTxRingsSlots
	)

Set the netmap transmission rings info.

Parameters

nTxRings	the number of transmission rings
nTxRingsSlots	the number of slots for each transmission ring

Definition at line 282 of file netmap-net-device.cc.

References m_nTxRings, m_nTxRingsSlots, and NS_LOG_FUNCTION.

◆ SyncAndNotifyQueue()

void ns3::NetmapNetDevice::SyncAndNotifyQueue ( )

privatevirtual

This function syncs netmap ring and notifies netdevice queue.

This function runs in a separate thread.

Definition at line 312 of file netmap-net-device.cc.

References GetBytesInNetmapTxRing(), ns3::FdNetDevice::GetFileDescriptor(), GetSpaceInNetmapTxRing(), m_nifp, m_queue, m_syncAndNotifyQueuePeriod, m_syncAndNotifyQueueThreadRun, m_totalQueuedBytes, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by DoFinishStartingDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Write()

ssize_t ns3::NetmapNetDevice::Write	(	uint8_t *	buffer,
		size_t	length
	)

virtual

The function Writes a packet into the netmap transmission ring.

Parameters

buffer	the pointer to packet
lenght	the packet lenght

Returns: the number of written bytes

Reimplemented from ns3::FdNetDevice.

Definition at line 354 of file netmap-net-device.cc.

References m_nifp, m_queue, m_totalQueuedBytes, and NS_LOG_FUNCTION.

Member Data Documentation

◆ m_nifp

struct netmap_if* ns3::NetmapNetDevice::m_nifp

private

Netmap interface representation.

Definition at line 206 of file netmap-net-device.h.

Referenced by DoCreateFdReader(), GetBytesInNetmapTxRing(), GetSpaceInNetmapTxRing(), NetmapNetDevice(), SetNetmapInterfaceRepresentation(), SyncAndNotifyQueue(), Write(), and ~NetmapNetDevice().

◆ m_nRxRings

uint32_t ns3::NetmapNetDevice::m_nRxRings

private

Number of receiver rings.

Definition at line 209 of file netmap-net-device.h.

Referenced by NetmapNetDevice(), and SetRxRingsInfo().

◆ m_nRxRingsSlots

uint32_t ns3::NetmapNetDevice::m_nRxRingsSlots

private

Number of slots in the receiver rings.

Definition at line 210 of file netmap-net-device.h.

Referenced by NetmapNetDevice(), and SetRxRingsInfo().

◆ m_nTxRings

uint32_t ns3::NetmapNetDevice::m_nTxRings

private

Number of transmission rings.

Definition at line 207 of file netmap-net-device.h.

Referenced by NetmapNetDevice(), and SetTxRingsInfo().

◆ m_nTxRingsSlots

uint32_t ns3::NetmapNetDevice::m_nTxRingsSlots

private

Number of slots in the transmission rings.

Definition at line 208 of file netmap-net-device.h.

Referenced by GetBytesInNetmapTxRing(), NetmapNetDevice(), and SetTxRingsInfo().

◆ m_queue

Ptr<NetDeviceQueue> ns3::NetmapNetDevice::m_queue

private

NetDevice queue.

Definition at line 211 of file netmap-net-device.h.

Referenced by DoFinishStoppingDevice(), NetmapNetDevice(), SetNetDeviceQueue(), SyncAndNotifyQueue(), Write(), and ~NetmapNetDevice().

◆ m_syncAndNotifyQueuePeriod

uint8_t ns3::NetmapNetDevice::m_syncAndNotifyQueuePeriod

private

The period of time in us after which the device syncs the netmap ring and notifies queue status.

Definition at line 215 of file netmap-net-device.h.

Referenced by GetTypeId(), and SyncAndNotifyQueue().

◆ m_syncAndNotifyQueueThread

Ptr<SystemThread> ns3::NetmapNetDevice::m_syncAndNotifyQueueThread

private

Thread used to perform the flow control.

Definition at line 213 of file netmap-net-device.h.

Referenced by DoFinishStartingDevice(), DoFinishStoppingDevice(), and NetmapNetDevice().

◆ m_syncAndNotifyQueueThreadRun

std::atomic<bool> ns3::NetmapNetDevice::m_syncAndNotifyQueueThreadRun

private

Running flag of the flow control thread.

Definition at line 214 of file netmap-net-device.h.

Referenced by DoFinishStartingDevice(), DoFinishStoppingDevice(), NetmapNetDevice(), and SyncAndNotifyQueue().

◆ m_totalQueuedBytes

uint32_t ns3::NetmapNetDevice::m_totalQueuedBytes

private

Total queued bytes.

Definition at line 212 of file netmap-net-device.h.

Referenced by NetmapNetDevice(), SyncAndNotifyQueue(), and Write().

The documentation for this class was generated from the following files:

src/fd-net-device/model/netmap-net-device.h
src/fd-net-device/model/netmap-net-device.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ NetmapNetDevice()

◆ ~NetmapNetDevice()

Member Function Documentation

◆ DoCreateFdReader()

◆ DoFinishStartingDevice()

◆ DoFinishStoppingDevice()

◆ GetBytesInNetmapTxRing()

◆ GetSpaceInNetmapTxRing()

◆ GetTypeId()

◆ SetNetDeviceQueue()

◆ SetNetmapInterfaceRepresentation()

◆ SetRxRingsInfo()

◆ SetTxRingsInfo()

◆ SyncAndNotifyQueue()

◆ Write()

Member Data Documentation

◆ m_nifp

◆ m_nRxRings

◆ m_nRxRingsSlots

◆ m_nTxRings

◆ m_nTxRingsSlots

◆ m_queue

◆ m_syncAndNotifyQueuePeriod

◆ m_syncAndNotifyQueueThread

◆ m_syncAndNotifyQueueThreadRun

◆ m_totalQueuedBytes
