ns3::RngRsp Class Reference

This class implements the ranging response message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.6 Ranging response (RNG-RSP) message, page 50. More...

#include "mac-messages.h"

+ Inheritance diagram for ns3::RngRsp:

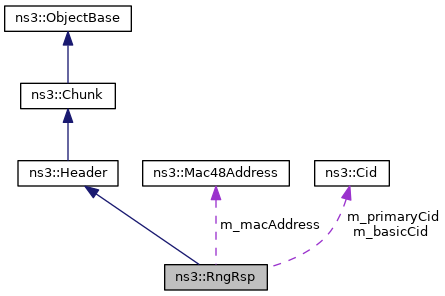

+ Collaboration diagram for ns3::RngRsp:

Public Member Functions

 RngRsp (void)

virtual ~RngRsp (void)

uint32_t Deserialize (Buffer::Iterator start)

uint8_t GetAasBdcastPermission (void) const

Cid GetBasicCid (void) const

uint32_t GetDlFreqOverride (void) const

uint16_t GetDlOperBurstProfile (void) const

uint32_t GetFrameNumber (void) const

uint8_t GetInitRangOppNumber (void) const

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

Mac48Address GetMacAddress (void) const

std::string GetName (void) const

uint32_t GetOffsetFreqAdjust (void) const

uint8_t GetPowerLevelAdjust (void) const

Cid GetPrimaryCid (void) const

uint8_t GetRangStatus (void) const

uint8_t GetRangSubchnl (void) const

uint32_t GetSerializedSize (void) const

uint32_t GetTimingAdjust (void) const

uint8_t GetUlChnlIdOverride (void) const

void Print (std::ostream &os) const

void Serialize (Buffer::Iterator start) const

void SetAasBdcastPermission (uint8_t aasBdcastPermission)
 set AAS broadcast permission. More...

void SetBasicCid (Cid basicCid)
 set basic CID. More...

void SetDlFreqOverride (uint32_t dlFreqOverride)
 set the Center frequency, in kHz, of new downlink channel where the SS should redo initial ranging. More...

void SetDlOperBurstProfile (uint16_t dlOperBurstProfile)
 set the DL oper burst profile More...

void SetFrameNumber (uint32_t frameNumber)
 set frame number. More...

void SetInitRangOppNumber (uint8_t initRangOppNumber)
 set initial range opp number. More...

void SetMacAddress (Mac48Address macAddress)
 set the MAC address More...

void SetOffsetFreqAdjust (uint32_t offsetFreqAdjust)
 set the relative change in transmission frequency that the SS should take in order to better match the BS. More...

void SetPowerLevelAdjust (uint8_t powerLevelAdjust)
 set the relative change in transmission power level that the SS should make in order that transmissions arrive at the BS at the desired power. More...

void SetPrimaryCid (Cid primaryCid)
 set primary CID. More...

void SetRangStatus (uint8_t rangStatus)
 set the range status. More...

void SetRangSubchnl (uint8_t rangSubchnl)
 set range sub channel. More...

void SetTimingAdjust (uint32_t timingAdjust)
 set the Tx timing offset adjustment (signed 32-bit). More...

void SetUlChnlIdOverride (uint8_t ulChnlIdOverride)
 set the identifier of the uplink channel with which the SS is to redo initial ranging More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint8_t m_aasBdcastPermission
 AAS broadcast permission. More...

Cid m_basicCid
 basic CID More...

uint32_t m_dlFreqOverride
 Center frequency, in kHz, of new downlink channel where the SS should redo initial ranging. More...

uint16_t m_dlOperBurstProfile
 This parameter is sent in response to the RNG-REQ Requested Downlink Burst Profile parameter. More...

uint32_t m_frameNumber
 Frame number where the associated RNG_REQ message was detected by the BS. More...

uint8_t m_initRangOppNumber
 Initial Ranging opportunity (1–255) in which the associated RNG_REQ message was detected by the BS. More...

Mac48Address m_macAddress
 MAC address. More...

uint32_t m_offsetFreqAdjust
 Specifies the relative change in transmission frequency that the SS is to make in order to better match the BS. More...

uint8_t m_powerLevelAdjust
 Specifies the relative change in transmission power level that the SS is to make in order that transmissions arrive at the BS at the desired power. More...

Cid m_primaryCid
 primary CID More...

uint8_t m_rangStatus
 range status. More...

uint8_t m_rangSubchnl
 Used to indicate the OFDM subchannel reference that was used to transmit the initial ranging message (OFDM with subchannelization). More...

uint8_t m_reserved
 changed as per the amendment 802.16e-2005 More...

uint32_t m_timingAdjust
 Tx timing offset adjustment (signed 32-bit). More...

uint8_t m_ulChnlIdOverride
 Licensed bands: The identifier of the uplink channel with which the SS is to redo initial ranging (not used with PHYs without channelized uplinks). More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

This class implements the ranging response message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.6 Ranging response (RNG-RSP) message, page 50.


Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 121 of file mac-messages.h.

Constructor & Destructor Documentation

◆ RngRsp()

ns3::RngRsp::RngRsp ( void  )

Definition at line 234 of file mac-messages.cc.

◆ ~RngRsp()

ns3::RngRsp::~RngRsp ( void  )
virtual

Definition at line 253 of file mac-messages.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::RngRsp::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 489 of file mac-messages.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_aasBdcastPermission, m_basicCid, m_dlFreqOverride, m_dlOperBurstProfile, m_frameNumber, m_initRangOppNumber, m_macAddress, m_offsetFreqAdjust, m_powerLevelAdjust, m_primaryCid, m_rangStatus, m_rangSubchnl, m_reserved, m_timingAdjust, m_ulChnlIdOverride, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

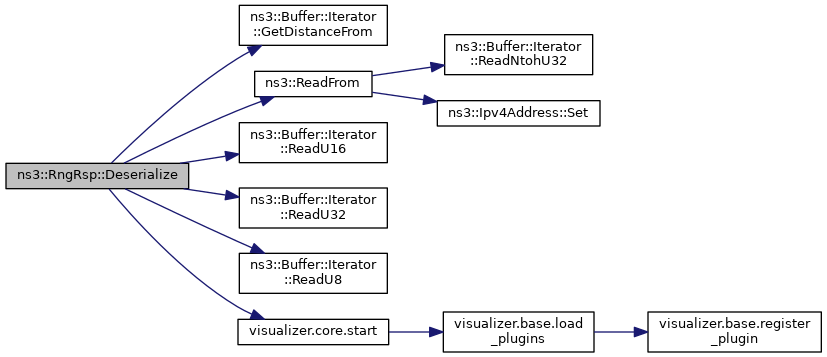

+ Here is the call graph for this function:

◆ GetAasBdcastPermission()

uint8_t ns3::RngRsp::GetAasBdcastPermission ( void  ) const
Returns
AAS broadcast permission

Definition at line 402 of file mac-messages.cc.

References m_aasBdcastPermission.

◆ GetBasicCid()

Cid ns3::RngRsp::GetBasicCid ( void  ) const
Returns
basic CID

Definition at line 390 of file mac-messages.cc.

References m_basicCid.

Referenced by ns3::SSLinkManager::PerformRanging().

+ Here is the caller graph for this function:

◆ GetDlFreqOverride()

uint32_t ns3::RngRsp::GetDlFreqOverride ( void  ) const
Returns
Center frequency, in kHz, of new downlink channel where the SS should redo initial ranging.

Definition at line 366 of file mac-messages.cc.

References m_dlFreqOverride.

Referenced by ns3::SSLinkManager::PerformRanging().

+ Here is the caller graph for this function:

◆ GetDlOperBurstProfile()

uint16_t ns3::RngRsp::GetDlOperBurstProfile ( void  ) const
Returns
DlOperBurstProfile: This parameter is sent in response to the RNG-REQ Requested Downlink Burst Profile parameter

Definition at line 378 of file mac-messages.cc.

References m_dlOperBurstProfile.

◆ GetFrameNumber()

uint32_t ns3::RngRsp::GetFrameNumber ( void  ) const
Returns
frame number

Definition at line 408 of file mac-messages.cc.

References m_frameNumber.

Referenced by ns3::SSLinkManager::PerformRanging().

+ Here is the caller graph for this function:

◆ GetInitRangOppNumber()

uint8_t ns3::RngRsp::GetInitRangOppNumber ( void  ) const
Returns
initial range opp number

Definition at line 414 of file mac-messages.cc.

References m_initRangOppNumber.

Referenced by ns3::SSLinkManager::PerformRanging().

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::RngRsp::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 443 of file mac-messages.cc.

References GetTypeId().

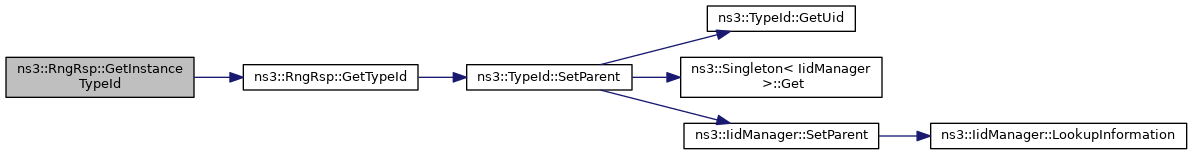

+ Here is the call graph for this function:

◆ GetMacAddress()

Mac48Address ns3::RngRsp::GetMacAddress ( void  ) const
Returns
MAC address

Definition at line 384 of file mac-messages.cc.

References m_macAddress.

Referenced by ns3::SSLinkManager::PerformRanging().

+ Here is the caller graph for this function:

◆ GetName()

std::string ns3::RngRsp::GetName ( void  ) const
Returns
name string

Definition at line 426 of file mac-messages.cc.

◆ GetOffsetFreqAdjust()

uint32_t ns3::RngRsp::GetOffsetFreqAdjust ( void  ) const
Returns
the relative change in transmission frequency that the SS should take in order to better match the BS. This is fine-frequency adjustment within a channel, not reassignment to a different channel.

Definition at line 354 of file mac-messages.cc.

References m_offsetFreqAdjust.

Referenced by ns3::SSLinkManager::AdjustRangingParameters().

+ Here is the caller graph for this function:

◆ GetPowerLevelAdjust()

uint8_t ns3::RngRsp::GetPowerLevelAdjust ( void  ) const
Returns
the relative change in transmission power level that the SS should take in order that transmissions arrive at the BS at the desired power. When subchannelization is employed, the subscriber shall interpret the power offset adjustment as a required change to the transmitted power density.

Definition at line 348 of file mac-messages.cc.

References m_powerLevelAdjust.

Referenced by ns3::SSLinkManager::AdjustRangingParameters().

+ Here is the caller graph for this function:

◆ GetPrimaryCid()

Cid ns3::RngRsp::GetPrimaryCid ( void  ) const
Returns
primary CID

Definition at line 396 of file mac-messages.cc.

References m_primaryCid.

Referenced by ns3::SSLinkManager::PerformRanging().

+ Here is the caller graph for this function:

◆ GetRangStatus()

uint8_t ns3::RngRsp::GetRangStatus ( void  ) const
Returns
the range status.

Definition at line 360 of file mac-messages.cc.

References m_rangStatus.

Referenced by ns3::SSLinkManager::PerformRanging(), and ns3::BSLinkManager::ScheduleRngRspMessage().

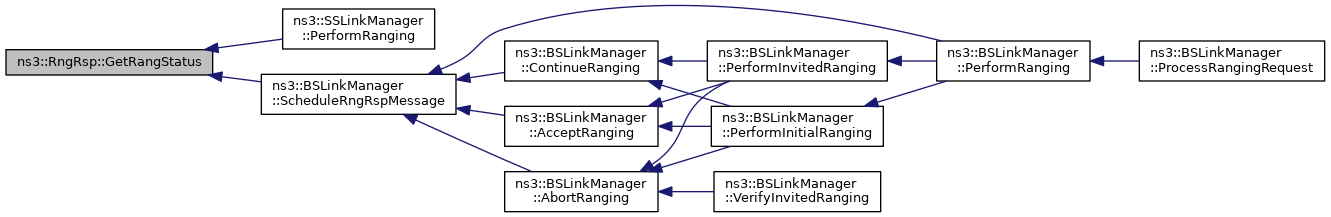

+ Here is the caller graph for this function:

◆ GetRangSubchnl()

uint8_t ns3::RngRsp::GetRangSubchnl ( void  ) const
Returns
range sub channel

Definition at line 420 of file mac-messages.cc.

References m_rangSubchnl.

◆ GetSerializedSize()

uint32_t ns3::RngRsp::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 462 of file mac-messages.cc.

◆ GetTimingAdjust()

uint32_t ns3::RngRsp::GetTimingAdjust ( void  ) const
Returns
Tx timing offset adjustment (signed 32-bit). The time required to advance SS transmission so frames arrive at the expected time instance at the BS.

Definition at line 342 of file mac-messages.cc.

References m_timingAdjust.

Referenced by ns3::SSLinkManager::AdjustRangingParameters().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::RngRsp::GetTypeId ( void  )
static

Register this type.

Returns
The TypeId.

Definition at line 432 of file mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

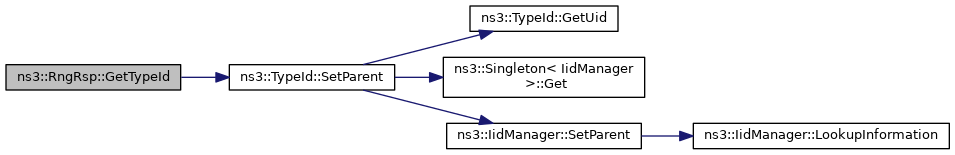

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetUlChnlIdOverride()

uint8_t ns3::RngRsp::GetUlChnlIdOverride ( void  ) const
Returns
The identifier of the uplink channel with which the SS is to redo initial ranging

Definition at line 372 of file mac-messages.cc.

References m_ulChnlIdOverride.

◆ Print()

void ns3::RngRsp::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 449 of file mac-messages.cc.

References m_aasBdcastPermission, m_basicCid, m_dlFreqOverride, m_dlOperBurstProfile, m_frameNumber, m_initRangOppNumber, m_macAddress, m_offsetFreqAdjust, m_powerLevelAdjust, m_primaryCid, m_rangStatus, m_rangSubchnl, m_timingAdjust, and m_ulChnlIdOverride.

◆ Serialize()

void ns3::RngRsp::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 468 of file mac-messages.cc.

References ns3::Cid::GetIdentifier(), m_aasBdcastPermission, m_basicCid, m_dlFreqOverride, m_dlOperBurstProfile, m_frameNumber, m_initRangOppNumber, m_macAddress, m_offsetFreqAdjust, m_powerLevelAdjust, m_primaryCid, m_rangStatus, m_rangSubchnl, m_reserved, m_timingAdjust, m_ulChnlIdOverride, visualizer.core::start(), ns3::WriteTo(), ns3::Buffer::Iterator::WriteU16(), ns3::Buffer::Iterator::WriteU32(), and ns3::Buffer::Iterator::WriteU8().

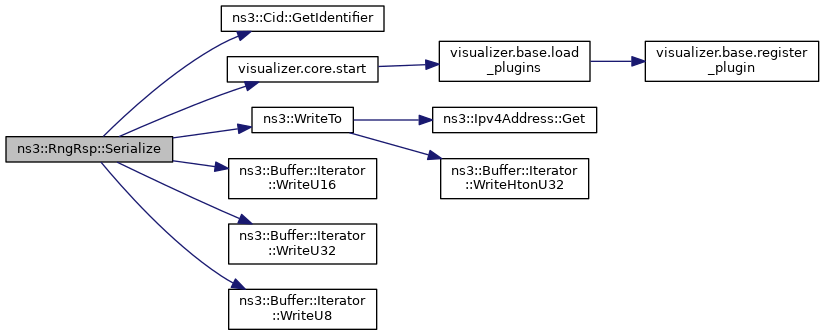

+ Here is the call graph for this function:

◆ SetAasBdcastPermission()

void ns3::RngRsp::SetAasBdcastPermission ( uint8_t  aasBdcastPermission)

set AAS broadcast permission.

Parameters
aasBdcastPermission

Definition at line 318 of file mac-messages.cc.

References m_aasBdcastPermission.

◆ SetBasicCid()

void ns3::RngRsp::SetBasicCid ( Cid  basicCid)

set basic CID.

Parameters
basicCid

Definition at line 306 of file mac-messages.cc.

References m_basicCid.

Referenced by ns3::ConnectionManager::AllocateManagementConnections().

+ Here is the caller graph for this function:

◆ SetDlFreqOverride()

void ns3::RngRsp::SetDlFreqOverride ( uint32_t  dlFreqOverride)

set the Center frequency, in kHz, of new downlink channel where the SS should redo initial ranging.

Parameters
dlFreqOverridethe Center frequency in kHz

Definition at line 282 of file mac-messages.cc.

References m_dlFreqOverride.

Referenced by ns3::BSLinkManager::PerformInitialRanging().

+ Here is the caller graph for this function:

◆ SetDlOperBurstProfile()

void ns3::RngRsp::SetDlOperBurstProfile ( uint16_t  dlOperBurstProfile)

set the DL oper burst profile

Parameters
dlOperBurstProfilethe oper burt profile

Definition at line 294 of file mac-messages.cc.

References m_dlOperBurstProfile.

Referenced by ns3::BSLinkManager::PerformInitialRanging().

+ Here is the caller graph for this function:

◆ SetFrameNumber()

void ns3::RngRsp::SetFrameNumber ( uint32_t  frameNumber)

set frame number.

Parameters
frameNumber

Definition at line 324 of file mac-messages.cc.

References m_frameNumber.

Referenced by ns3::BSLinkManager::PerformRanging().

+ Here is the caller graph for this function:

◆ SetInitRangOppNumber()

void ns3::RngRsp::SetInitRangOppNumber ( uint8_t  initRangOppNumber)

set initial range opp number.

Parameters
initRangOppNumber

Definition at line 330 of file mac-messages.cc.

References m_initRangOppNumber.

Referenced by ns3::BSLinkManager::PerformRanging().

+ Here is the caller graph for this function:

◆ SetMacAddress()

void ns3::RngRsp::SetMacAddress ( Mac48Address  macAddress)

set the MAC address

Parameters
macAddressthe MAC address

Definition at line 300 of file mac-messages.cc.

References m_macAddress.

Referenced by ns3::BSLinkManager::PerformInitialRanging().

+ Here is the caller graph for this function:

◆ SetOffsetFreqAdjust()

void ns3::RngRsp::SetOffsetFreqAdjust ( uint32_t  offsetFreqAdjust)

set the relative change in transmission frequency that the SS should take in order to better match the BS.

This is fine-frequency adjustment within a channel, not reassignment to a different channel

Parameters
offsetFreqAdjust

Definition at line 270 of file mac-messages.cc.

References m_offsetFreqAdjust.

Referenced by ns3::BSLinkManager::SetParametersToAdjust().

+ Here is the caller graph for this function:

◆ SetPowerLevelAdjust()

void ns3::RngRsp::SetPowerLevelAdjust ( uint8_t  powerLevelAdjust)

set the relative change in transmission power level that the SS should make in order that transmissions arrive at the BS at the desired power.

When subchannelization is employed, the subscriber shall interpret the power offset adjustment as a required change to the transmitted power density.

Parameters
powerLevelAdjustthe relative change in transmission power level

Definition at line 264 of file mac-messages.cc.

References m_powerLevelAdjust.

Referenced by ns3::BSLinkManager::SetParametersToAdjust().

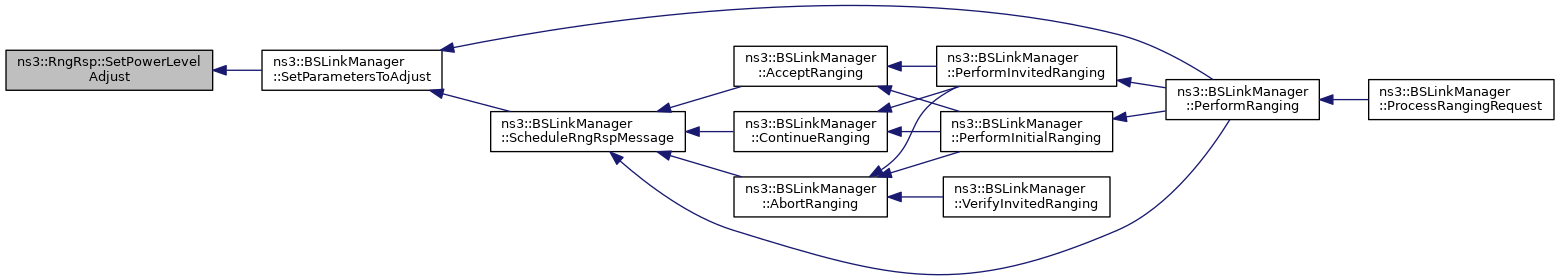

+ Here is the caller graph for this function:

◆ SetPrimaryCid()

void ns3::RngRsp::SetPrimaryCid ( Cid  primaryCid)

set primary CID.

Parameters
primaryCid

Definition at line 312 of file mac-messages.cc.

References m_primaryCid.

Referenced by ns3::ConnectionManager::AllocateManagementConnections().

+ Here is the caller graph for this function:

◆ SetRangStatus()

void ns3::RngRsp::SetRangStatus ( uint8_t  rangStatus)

set the range status.

Parameters
rangStatus

Definition at line 276 of file mac-messages.cc.

References m_rangStatus.

Referenced by ns3::BSLinkManager::AbortRanging(), ns3::BSLinkManager::AcceptRanging(), ns3::BSLinkManager::ContinueRanging(), and ns3::BSLinkManager::PerformRanging().

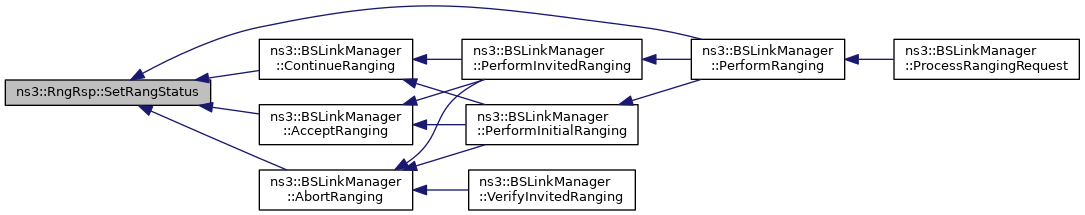

+ Here is the caller graph for this function:

◆ SetRangSubchnl()

void ns3::RngRsp::SetRangSubchnl ( uint8_t  rangSubchnl)

set range sub channel.

Parameters
rangSubchnl

Definition at line 336 of file mac-messages.cc.

References m_rangSubchnl.

◆ SetTimingAdjust()

void ns3::RngRsp::SetTimingAdjust ( uint32_t  timingAdjust)

set the Tx timing offset adjustment (signed 32-bit).

Parameters
timingAdjustThe time required to advance SS transmission so frames arrive at the expected time instance at the BS.

Definition at line 258 of file mac-messages.cc.

References m_timingAdjust.

Referenced by ns3::BSLinkManager::SetParametersToAdjust().

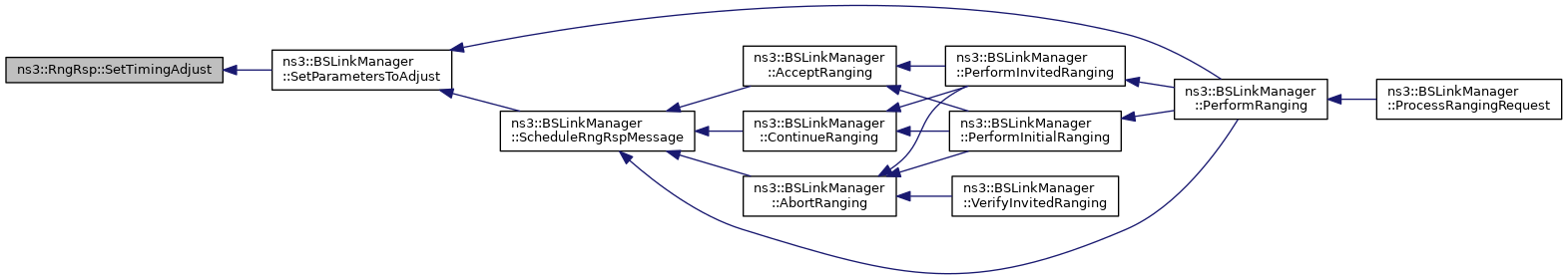

+ Here is the caller graph for this function:

◆ SetUlChnlIdOverride()

void ns3::RngRsp::SetUlChnlIdOverride ( uint8_t  ulChnlIdOverride)

set the identifier of the uplink channel with which the SS is to redo initial ranging

Parameters
ulChnlIdOverridethe uplink channel index

Definition at line 288 of file mac-messages.cc.

References m_ulChnlIdOverride.

Member Data Documentation

◆ m_aasBdcastPermission

uint8_t ns3::RngRsp::m_aasBdcastPermission
private

AAS broadcast permission.

Definition at line 328 of file mac-messages.h.

Referenced by Deserialize(), GetAasBdcastPermission(), Print(), Serialize(), and SetAasBdcastPermission().

◆ m_basicCid

Cid ns3::RngRsp::m_basicCid
private

basic CID

Definition at line 326 of file mac-messages.h.

Referenced by Deserialize(), GetBasicCid(), Print(), Serialize(), and SetBasicCid().

◆ m_dlFreqOverride

uint32_t ns3::RngRsp::m_dlFreqOverride
private

Center frequency, in kHz, of new downlink channel where the SS should redo initial ranging.

Definition at line 310 of file mac-messages.h.

Referenced by Deserialize(), GetDlFreqOverride(), Print(), Serialize(), and SetDlFreqOverride().

◆ m_dlOperBurstProfile

uint16_t ns3::RngRsp::m_dlOperBurstProfile
private

This parameter is sent in response to the RNG-REQ Requested Downlink Burst Profile parameter.

Byte 0: Specifies the least robust DIUC that may be used by the BS for transmissions to the SS. Byte 1: Configuration Change Count value of DCD defining the burst profile associated with DIUC.

Definition at line 323 of file mac-messages.h.

Referenced by Deserialize(), GetDlOperBurstProfile(), Print(), Serialize(), and SetDlOperBurstProfile().

◆ m_frameNumber

uint32_t ns3::RngRsp::m_frameNumber
private

Frame number where the associated RNG_REQ message was detected by the BS.

Usage is mutually exclusive with SS MAC Address

Definition at line 334 of file mac-messages.h.

Referenced by Deserialize(), GetFrameNumber(), Print(), Serialize(), and SetFrameNumber().

◆ m_initRangOppNumber

uint8_t ns3::RngRsp::m_initRangOppNumber
private

Initial Ranging opportunity (1–255) in which the associated RNG_REQ message was detected by the BS.

Usage is mutually exclusive with SS MAC Address

Definition at line 340 of file mac-messages.h.

Referenced by Deserialize(), GetInitRangOppNumber(), Print(), Serialize(), and SetInitRangOppNumber().

◆ m_macAddress

Mac48Address ns3::RngRsp::m_macAddress
private

MAC address.

Definition at line 325 of file mac-messages.h.

Referenced by Deserialize(), GetMacAddress(), Print(), Serialize(), and SetMacAddress().

◆ m_offsetFreqAdjust

uint32_t ns3::RngRsp::m_offsetFreqAdjust
private

Specifies the relative change in transmission frequency that the SS is to make in order to better match the BS.

This is fine-frequency adjustment within a channel, not reassignment to a different channel.

Definition at line 302 of file mac-messages.h.

Referenced by Deserialize(), GetOffsetFreqAdjust(), Print(), Serialize(), and SetOffsetFreqAdjust().

◆ m_powerLevelAdjust

uint8_t ns3::RngRsp::m_powerLevelAdjust
private

Specifies the relative change in transmission power level that the SS is to make in order that transmissions arrive at the BS at the desired power.

When subchannelization is employed, the subscriber shall interpret the power offset adjustment as a required change to the transmitted power density.

Definition at line 296 of file mac-messages.h.

Referenced by Deserialize(), GetPowerLevelAdjust(), Print(), Serialize(), and SetPowerLevelAdjust().

◆ m_primaryCid

Cid ns3::RngRsp::m_primaryCid
private

primary CID

Definition at line 327 of file mac-messages.h.

Referenced by Deserialize(), GetPrimaryCid(), Print(), Serialize(), and SetPrimaryCid().

◆ m_rangStatus

uint8_t ns3::RngRsp::m_rangStatus
private

range status.

Definition at line 307 of file mac-messages.h.

Referenced by Deserialize(), GetRangStatus(), Print(), Serialize(), and SetRangStatus().

◆ m_rangSubchnl

uint8_t ns3::RngRsp::m_rangSubchnl
private

Used to indicate the OFDM subchannel reference that was used to transmit the initial ranging message (OFDM with subchannelization).

Definition at line 346 of file mac-messages.h.

Referenced by Deserialize(), GetRangSubchnl(), Print(), Serialize(), and SetRangSubchnl().

◆ m_reserved

uint8_t ns3::RngRsp::m_reserved
private

changed as per the amendment 802.16e-2005

Definition at line 280 of file mac-messages.h.

Referenced by Deserialize(), and Serialize().

◆ m_timingAdjust

uint32_t ns3::RngRsp::m_timingAdjust
private

Tx timing offset adjustment (signed 32-bit).

The time required to advance SS transmission so frames arrive at the expected time instance at the BS.

Definition at line 288 of file mac-messages.h.

Referenced by Deserialize(), GetTimingAdjust(), Print(), Serialize(), and SetTimingAdjust().

◆ m_ulChnlIdOverride

uint8_t ns3::RngRsp::m_ulChnlIdOverride
private

Licensed bands: The identifier of the uplink channel with which the SS is to redo initial ranging (not used with PHYs without channelized uplinks).

Definition at line 316 of file mac-messages.h.

Referenced by Deserialize(), GetUlChnlIdOverride(), Print(), Serialize(), and SetUlChnlIdOverride().


The documentation for this class was generated from the following files:
