Header with a sequence, a timestamp, and a "size" attribute. More...

#include "seq-ts-size-header.h"

Inheritance diagram for ns3::SeqTsSizeHeader:

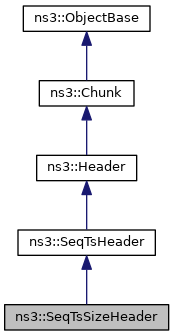

Collaboration diagram for ns3::SeqTsSizeHeader:

Public Member Functions
	SeqTsSizeHeader ()
	constructor More...

virtual uint32_t	Deserialize (Buffer::Iterator start) override

virtual TypeId	GetInstanceTypeId (void) const override
	Get the most derived TypeId for this Object. More...

virtual uint32_t	GetSerializedSize (void) const override

uint64_t	GetSize (void) const
	Get the size information that the header is carrying. More...

virtual void	Print (std::ostream &os) const override

virtual void	Serialize (Buffer::Iterator start) const override

void	SetSize (uint64_t size)
	Set the size information that the header will carry. More...

Public Member Functions inherited from ns3::SeqTsHeader
	SeqTsHeader ()

uint32_t	GetSeq (void) const

Time	GetTs (void) const

void	SetSeq (uint32_t seq)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::SeqTsHeader
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint64_t	m_size {0}
	The 'size' information that the header is carrying. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Header with a sequence, a timestamp, and a "size" attribute.

Introspection did not find any typical Config paths.

This header adds a size attribute to the sequence number and timestamp of class SeqTsHeader. The size attribute can be used to track application data units for stream-based sockets such as TCP.

See also: ns3::SeqTsHeader

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 37 of file seq-ts-size-header.h.

Constructor & Destructor Documentation

◆ SeqTsSizeHeader()

ns3::SeqTsSizeHeader::SeqTsSizeHeader ( )

constructor

Definition at line 31 of file seq-ts-size-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::SeqTsSizeHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Reimplemented from ns3::SeqTsHeader.

Definition at line 90 of file seq-ts-size-header.cc.

References ns3::SeqTsHeader::Deserialize(), GetSerializedSize(), m_size, NS_LOG_FUNCTION, ns3::Buffer::Iterator::ReadNtohU64(), and visualizer.core::start().

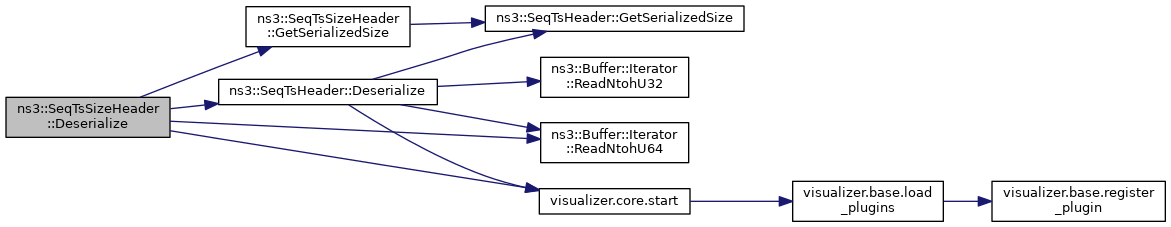

Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SeqTsSizeHeader::GetInstanceTypeId ( void ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Reimplemented from ns3::SeqTsHeader.

Definition at line 49 of file seq-ts-size-header.cc.

References GetTypeId().

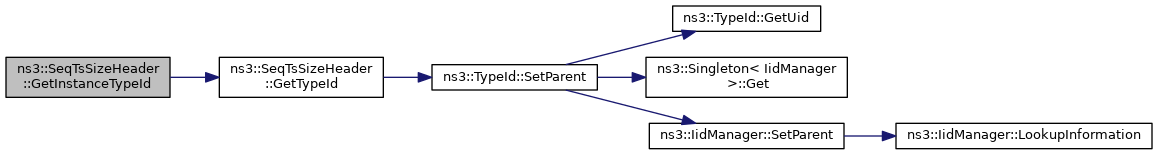

Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::SeqTsSizeHeader::GetSerializedSize ( void ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Reimplemented from ns3::SeqTsHeader.

Definition at line 75 of file seq-ts-size-header.cc.

References ns3::SeqTsHeader::GetSerializedSize().

Referenced by Deserialize(), ns3::PacketSink::PacketReceived(), BulkSendSeqTsSizeTestCase::ReceiveRx(), ns3::BulkSendApplication::SendData(), ns3::OnOffApplication::SendPacket(), and BulkSendSeqTsSizeTestCase::SendTx().

Here is the call graph for this function:

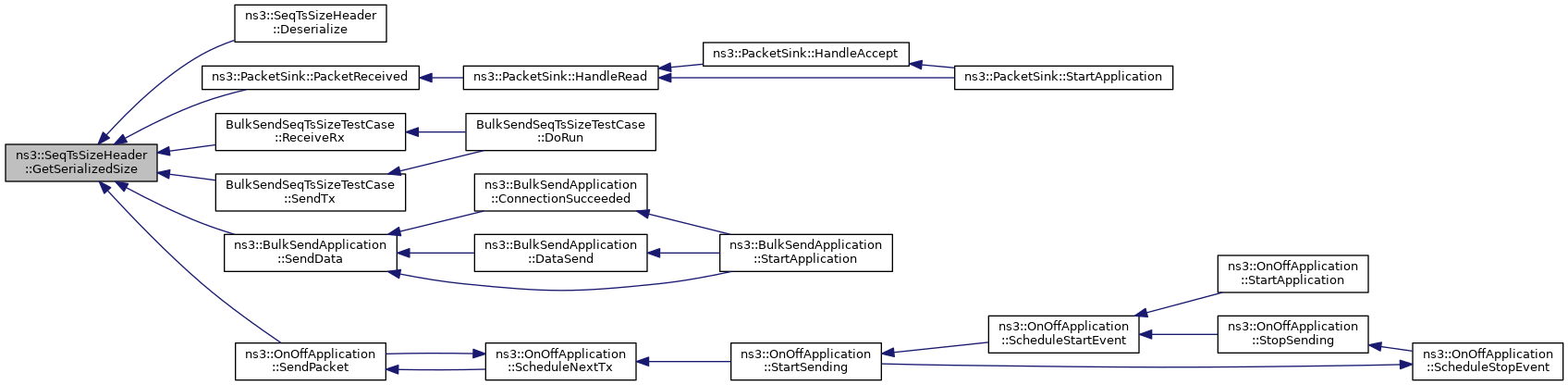

Here is the caller graph for this function:

◆ GetSize()

uint64_t ns3::SeqTsSizeHeader::GetSize ( void ) const

Get the size information that the header is carrying.

Returns: the size

Definition at line 61 of file seq-ts-size-header.cc.

References m_size.

Referenced by ns3::PacketSink::PacketReceived().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SeqTsSizeHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 38 of file seq-ts-size-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::SeqTsSizeHeader::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Reimplemented from ns3::SeqTsHeader.

Definition at line 67 of file seq-ts-size-header.cc.

References m_size, NS_LOG_FUNCTION, and ns3::SeqTsHeader::Print().

Here is the call graph for this function:

◆ Serialize()

void ns3::SeqTsSizeHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Reimplemented from ns3::SeqTsHeader.

Definition at line 81 of file seq-ts-size-header.cc.

References m_size, NS_LOG_FUNCTION, ns3::SeqTsHeader::Serialize(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtonU64().

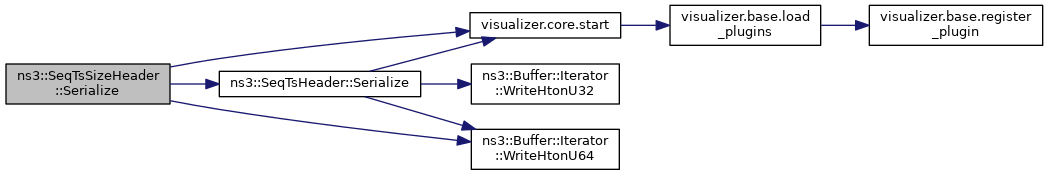

Here is the call graph for this function:

◆ SetSize()

void ns3::SeqTsSizeHeader::SetSize ( uint64_t size )

Set the size information that the header will carry.

Parameters

size the size

Definition at line 55 of file seq-ts-size-header.cc.

References m_size.

Referenced by ns3::BulkSendApplication::SendData(), and ns3::OnOffApplication::SendPacket().

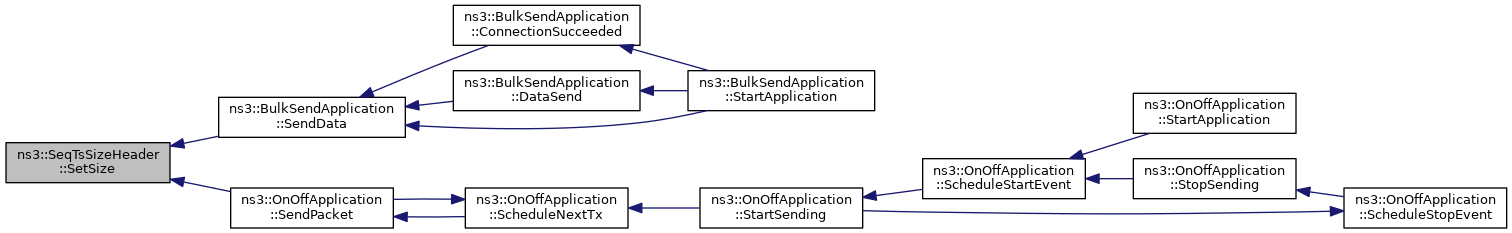

Here is the caller graph for this function:

Member Data Documentation

◆ m_size

uint64_t ns3::SeqTsSizeHeader::m_size {0}

private

The 'size' information that the header is carrying.

Definition at line 71 of file seq-ts-size-header.h.

Referenced by Deserialize(), GetSize(), Print(), Serialize(), and SetSize().

The documentation for this class was generated from the following files:

src/applications/model/seq-ts-size-header.h
src/applications/model/seq-ts-size-header.cc
