6LoWPAN BC0 header - see RFC 4944. More...

#include "sixlowpan-header.h"

Inheritance diagram for ns3::SixLowPanBc0:

Collaboration diagram for ns3::SixLowPanBc0:

Public Member Functions
	SixLowPanBc0 (void)

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

virtual TypeId	GetInstanceTypeId (void) const
	Return the instance type identifier. More...

uint8_t	GetSequenceNumber (void) const
	Get the "Sequence Number" field. More...

virtual uint32_t	GetSerializedSize (void) const
	Get the serialized size of the packet. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetSequenceNumber (uint8_t seqNumber)
	Set the "Sequence Number" field. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_seqNumber
	Sequence number. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

6LoWPAN BC0 header - see RFC 4944.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 1234 of file sixlowpan-header.h.

Constructor & Destructor Documentation

◆ SixLowPanBc0()

ns3::SixLowPanBc0::SixLowPanBc0 ( void )

Definition at line 1761 of file sixlowpan-header.cc.

References m_seqNumber.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::SixLowPanBc0::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

[in] start Buffer iterator.

Returns: Size of the packet.

Implements ns3::Header.

Definition at line 1798 of file sixlowpan-header.cc.

References GetSerializedSize(), m_seqNumber, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

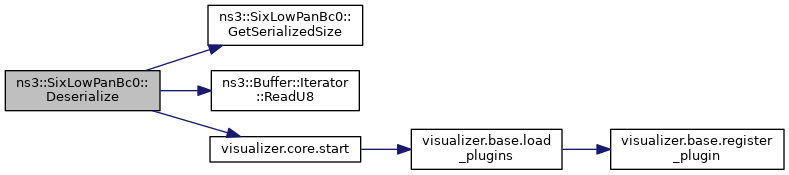

Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SixLowPanBc0::GetInstanceTypeId ( void ) const

virtual

Return the instance type identifier.

Returns: Instance type ID.

Implements ns3::ObjectBase.

Definition at line 1775 of file sixlowpan-header.cc.

References GetTypeId().

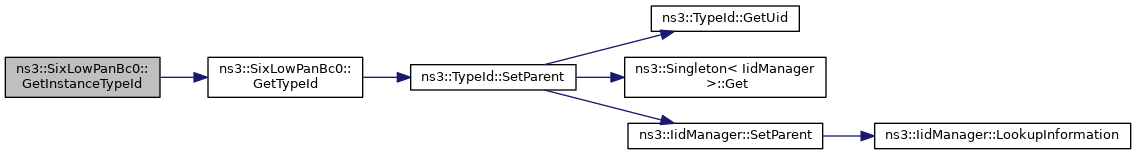

Here is the call graph for this function:

◆ GetSequenceNumber()

uint8_t ns3::SixLowPanBc0::GetSequenceNumber ( void ) const

Get the "Sequence Number" field.

Returns: The sequence number value.

Definition at line 1818 of file sixlowpan-header.cc.

References m_seqNumber.

Referenced by ns3::SixLowPanNetDevice::ReceiveFromDevice().

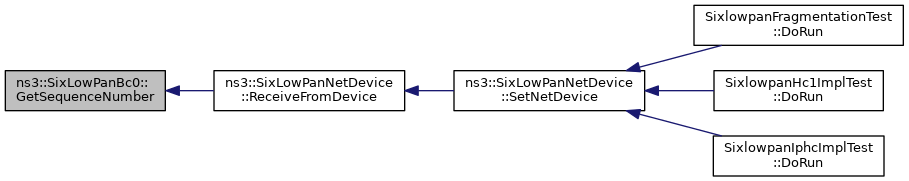

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::SixLowPanBc0::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: Size.

Implements ns3::Header.

Definition at line 1785 of file sixlowpan-header.cc.

Referenced by Deserialize(), and ns3::SixLowPanNetDevice::DoSend().

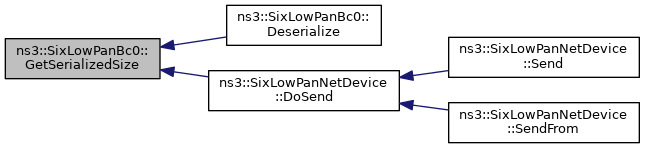

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SixLowPanBc0::GetTypeId ( void )

static

Get the type ID.

Returns: The object TypeId.

Definition at line 1766 of file sixlowpan-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

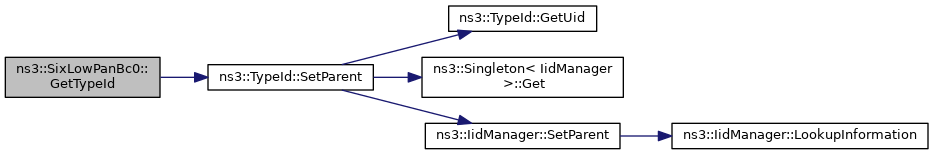

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::SixLowPanBc0::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 1780 of file sixlowpan-header.cc.

References m_seqNumber.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

◆ Serialize()

void ns3::SixLowPanBc0::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

[in] start Buffer iterator.

Implements ns3::Header.

Definition at line 1790 of file sixlowpan-header.cc.

References m_seqNumber, visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

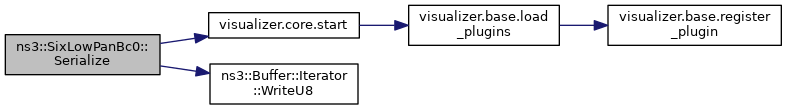

Here is the call graph for this function:

◆ SetSequenceNumber()

void ns3::SixLowPanBc0::SetSequenceNumber ( uint8_t seqNumber )

Set the "Sequence Number" field.

Parameters

[in] seqNumber The sequence number value.

Definition at line 1813 of file sixlowpan-header.cc.

References m_seqNumber.

Referenced by ns3::SixLowPanNetDevice::DoSend().

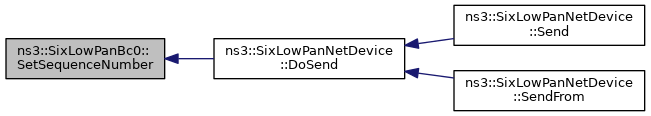

Here is the caller graph for this function:

Member Data Documentation

◆ m_seqNumber

uint8_t ns3::SixLowPanBc0::m_seqNumber

private

Sequence number.

Definition at line 1285 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSequenceNumber(), Print(), Serialize(), SetSequenceNumber(), and SixLowPanBc0().

The documentation for this class was generated from the following files:

src/sixlowpan/model/sixlowpan-header.h
src/sixlowpan/model/sixlowpan-header.cc
