A Discrete-Event Network Simulator
API
ns3::SixLowPanHc1 Class Reference

6LoWPAN HC1 header - see RFC 4944. More...

#include "sixlowpan-header.h"

+ Inheritance diagram for ns3::SixLowPanHc1:
+ Collaboration diagram for ns3::SixLowPanHc1:

Public Types

enum  LowPanHc1Addr_e { HC1_PIII = 0x00, HC1_PIIC = 0x01, HC1_PCII = 0x02, HC1_PCIC = 0x03 }
 Kind of address compression. More...

enum  LowPanHc1NextHeader_e { HC1_NC = 0x00, HC1_UDP = 0x01, HC1_ICMP = 0x02, HC1_TCP = 0x03 }
 Next header information. More...


Public Member Functions

 SixLowPanHc1 (void)

virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet. More...

LowPanHc1Addr_e GetDstCompression () const
 Get Destination Compression type. More...

const uint8_t * GetDstInterface () const
 Get the destination interface. More...

const uint8_t * GetDstPrefix () const
 Get the destination prefix. More...

uint32_t GetFlowLabel () const
 Get the Flow Label value. More...

uint8_t GetHopLimit (void) const
 Get the "Hop limit" field (TTL). More...

virtual TypeId GetInstanceTypeId (void) const
 Return the instance type identifier. More...

uint8_t GetNextHeader () const
 Get the Next Header value. More...

virtual uint32_t GetSerializedSize (void) const
 Get the serialized size of the packet. More...

LowPanHc1Addr_e GetSrcCompression () const
 Get Source Compression type. More...

const uint8_t * GetSrcInterface () const
 Get the source interface. More...

const uint8_t * GetSrcPrefix () const
 Get the source prefix. More...

uint8_t GetTrafficClass () const
 Get the Traffic Class value. More...

bool IsHc2HeaderPresent () const
 Check if there is a HC2 compressed header. More...

bool IsTcflCompression () const
 Check if the Traffic Class and Flow Labels are compressed. More...

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet. More...

void SetDstCompression (LowPanHc1Addr_e dstCompression)
 Set Destination Compression type. More...

void SetDstInterface (const uint8_t *dstInterface)
 Set the destination interface. More...

void SetDstPrefix (const uint8_t *dstPrefix)
 Set the destination prefix. More...

void SetFlowLabel (uint32_t flowLabel)
 Set the Flow Label value. More...

void SetHc2HeaderPresent (bool hc2HeaderPresent)
 Set the next header a HC2 compressed header. More...

void SetHopLimit (uint8_t limit)
 Set the "Hop limit" field (TTL). More...

void SetNextHeader (uint8_t nextHeader)
 Set the Next Header value. More...

void SetSrcCompression (LowPanHc1Addr_e srcCompression)
 Set Source Compression type. More...

void SetSrcInterface (const uint8_t *srcInterface)
 Set the source interface. More...

void SetSrcPrefix (const uint8_t *srcPrefix)
 Set the source prefix. More...

void SetTcflCompression (bool tcflCompression)
 Set the Traffic Class and Flow Labels as compressed. More...

void SetTrafficClass (uint8_t trafficClass)
 Set the Traffic Class value. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

LowPanHc1Addr_e m_dstCompression
 Destination compression type. More...

uint8_t m_dstInterface [8]
 Destination interface. More...

uint8_t m_dstPrefix [8]
 Destination prefix. More...

uint32_t m_flowLabel
 Flow Label. More...

bool m_hc2HeaderPresent
 Is next header HC2 compressed. More...

uint8_t m_hopLimit
 Hop Limit. More...

uint8_t m_nextHeader
 Next header. More...

LowPanHc1NextHeader_e m_nextHeaderCompression
 Next header compression. More...

LowPanHc1Addr_e m_srcCompression
 Source compression type. More...

uint8_t m_srcInterface [8]
 Source interface. More...

uint8_t m_srcPrefix [8]
 Source prefix. More...

bool m_tcflCompression
 Is TC and FL compressed. More...

uint8_t m_trafficClass
 Traffic Class. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

6LoWPAN HC1 header - see RFC 4944.


Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 72 bytes (on a 64-bit architecture).

Definition at line 131 of file sixlowpan-header.h.

Member Enumeration Documentation

◆ LowPanHc1Addr_e

Kind of address compression.

The address compression is handled in 4 bits and might mean: PI: Prefix inline, PC: Prefix Compressed, II: Interface Identifier, Inline, IC: Interface Identifier Compressed.

Enumerator
HC1_PIII
HC1_PIIC
HC1_PCII
HC1_PCIC

Definition at line 141 of file sixlowpan-header.h.

◆ LowPanHc1NextHeader_e

Next header information.

The Next header compression is handled in 4 bits and might mean: NC: Not Compressed, UDP, ICMP or TCP.

Enumerator
HC1_NC
HC1_UDP
HC1_ICMP
HC1_TCP

Definition at line 155 of file sixlowpan-header.h.

Constructor & Destructor Documentation

◆ SixLowPanHc1()

ns3::SixLowPanHc1::SixLowPanHc1 ( void  )

Definition at line 102 of file sixlowpan-header.cc.

Member Function Documentation

◆ Deserialize()

◆ GetDstCompression()

SixLowPanHc1::LowPanHc1Addr_e ns3::SixLowPanHc1::GetDstCompression ( ) const

Get Destination Compression type.

Returns
The kind of address compression.

Definition at line 398 of file sixlowpan-header.cc.

References m_dstCompression.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

◆ GetDstInterface()

const uint8_t * ns3::SixLowPanHc1::GetDstInterface ( ) const

Get the destination interface.

Returns
The destination interface.

Definition at line 403 of file sixlowpan-header.cc.

References m_dstInterface.

◆ GetDstPrefix()

const uint8_t * ns3::SixLowPanHc1::GetDstPrefix ( ) const

Get the destination prefix.

Returns
The destination prefix.

Definition at line 408 of file sixlowpan-header.cc.

References m_dstPrefix.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

◆ GetFlowLabel()

uint32_t ns3::SixLowPanHc1::GetFlowLabel ( void  ) const

Get the Flow Label value.

Returns
The Flow Label.

Definition at line 413 of file sixlowpan-header.cc.

References m_flowLabel.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

◆ GetHopLimit()

uint8_t ns3::SixLowPanHc1::GetHopLimit ( void  ) const

Get the "Hop limit" field (TTL).

Returns
The hop limit value.

Definition at line 393 of file sixlowpan-header.cc.

References m_hopLimit.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SixLowPanHc1::GetInstanceTypeId ( void  ) const
virtual

Return the instance type identifier.

Returns
Instance type ID.

Implements ns3::ObjectBase.

Definition at line 116 of file sixlowpan-header.cc.

References GetTypeId().

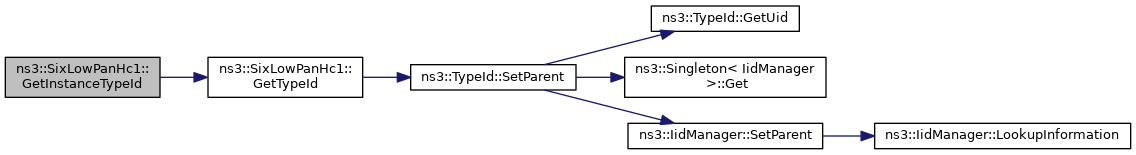

+ Here is the call graph for this function:

◆ GetNextHeader()

uint8_t ns3::SixLowPanHc1::GetNextHeader ( void  ) const

Get the Next Header value.

Returns
The Next Header value.

Definition at line 418 of file sixlowpan-header.cc.

References m_nextHeader.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::SixLowPanHc1::GetSerializedSize ( void  ) const
virtual

Get the serialized size of the packet.

Returns
Size.

Implements ns3::Header.

Definition at line 137 of file sixlowpan-header.cc.

References HC1_NC, HC1_PCIC, HC1_PCII, HC1_PIIC, HC1_PIII, m_dstCompression, m_nextHeaderCompression, m_srcCompression, and m_tcflCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1(), and Deserialize().

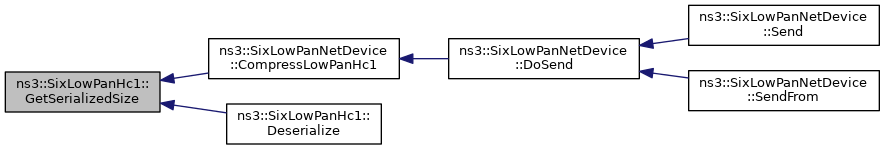

+ Here is the caller graph for this function:

◆ GetSrcCompression()

SixLowPanHc1::LowPanHc1Addr_e ns3::SixLowPanHc1::GetSrcCompression ( ) const

Get Source Compression type.

Returns
The kind of address compression.

Definition at line 423 of file sixlowpan-header.cc.

References m_srcCompression.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

◆ GetSrcInterface()

const uint8_t * ns3::SixLowPanHc1::GetSrcInterface ( ) const

Get the source interface.

Returns
The source interface.

Definition at line 428 of file sixlowpan-header.cc.

References m_srcInterface.

◆ GetSrcPrefix()

const uint8_t * ns3::SixLowPanHc1::GetSrcPrefix ( ) const

Get the source prefix.

Returns
The source prefix.

Definition at line 433 of file sixlowpan-header.cc.

References m_srcPrefix.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

◆ GetTrafficClass()

uint8_t ns3::SixLowPanHc1::GetTrafficClass ( void  ) const

Get the Traffic Class value.

Returns
The Traffic Class value.

Definition at line 438 of file sixlowpan-header.cc.

References m_trafficClass.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

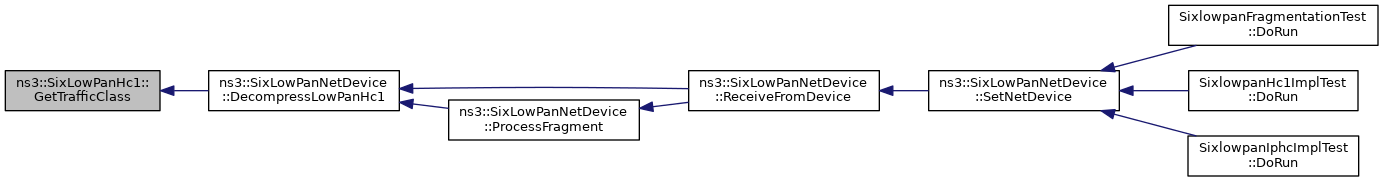

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SixLowPanHc1::GetTypeId ( void  )
static

Get the type ID.

Returns
The object TypeId.

Definition at line 107 of file sixlowpan-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ IsHc2HeaderPresent()

bool ns3::SixLowPanHc1::IsHc2HeaderPresent ( ) const

Check if there is a HC2 compressed header.

Returns
True if next header is HC2 compressed.

Definition at line 448 of file sixlowpan-header.cc.

References m_hc2HeaderPresent.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

◆ IsTcflCompression()

bool ns3::SixLowPanHc1::IsTcflCompression ( ) const

Check if the Traffic Class and Flow Labels are compressed.

Returns
True if TC and FL are compressed.

Definition at line 443 of file sixlowpan-header.cc.

References m_tcflCompression.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

◆ Print()

void ns3::SixLowPanHc1::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 121 of file sixlowpan-header.cc.

References m_dstCompression, m_hc2HeaderPresent, m_hopLimit, m_nextHeaderCompression, m_srcCompression, and m_tcflCompression.

Referenced by ns3::operator<<().

+ Here is the caller graph for this function:

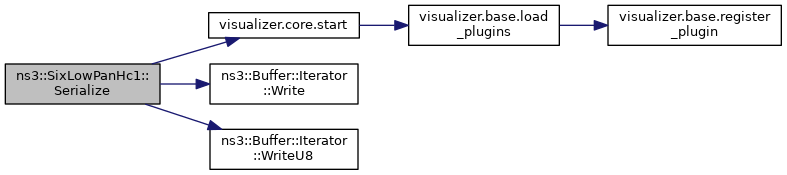

◆ Serialize()

◆ SetDstCompression()

void ns3::SixLowPanHc1::SetDstCompression ( LowPanHc1Addr_e  dstCompression)

Set Destination Compression type.

Parameters
[in]dstCompressionThe kind of address compression.

Definition at line 453 of file sixlowpan-header.cc.

References m_dstCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

◆ SetDstInterface()

void ns3::SixLowPanHc1::SetDstInterface ( const uint8_t *  dstInterface)

Set the destination interface.

Parameters
[in]dstInterfaceThe destination interface.

Definition at line 458 of file sixlowpan-header.cc.

References m_dstInterface.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

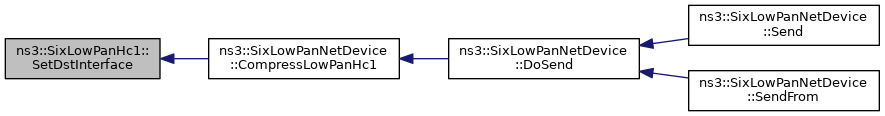

+ Here is the caller graph for this function:

◆ SetDstPrefix()

void ns3::SixLowPanHc1::SetDstPrefix ( const uint8_t *  dstPrefix)

Set the destination prefix.

Parameters
[in]dstPrefixThe destination prefix.

Definition at line 466 of file sixlowpan-header.cc.

References m_dstPrefix.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

◆ SetFlowLabel()

void ns3::SixLowPanHc1::SetFlowLabel ( uint32_t  flowLabel)

Set the Flow Label value.

Parameters
[in]flowLabelThe Flow Label.

Definition at line 474 of file sixlowpan-header.cc.

References m_flowLabel.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

◆ SetHc2HeaderPresent()

void ns3::SixLowPanHc1::SetHc2HeaderPresent ( bool  hc2HeaderPresent)

Set the next header a HC2 compressed header.

Parameters
[in]hc2HeaderPresentTrue if next header is HC2 compressed.

Definition at line 532 of file sixlowpan-header.cc.

References m_hc2HeaderPresent.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

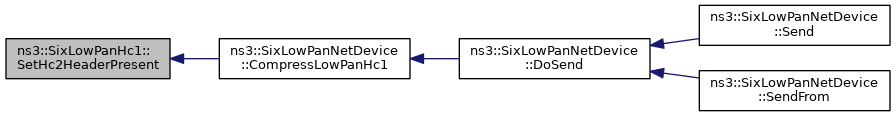

+ Here is the caller graph for this function:

◆ SetHopLimit()

void ns3::SixLowPanHc1::SetHopLimit ( uint8_t  limit)

Set the "Hop limit" field (TTL).

Parameters
[in]limitThe hop limit value.

Definition at line 388 of file sixlowpan-header.cc.

References m_hopLimit.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

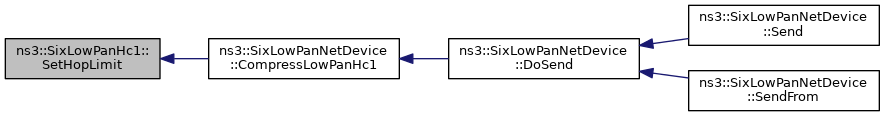

+ Here is the caller graph for this function:

◆ SetNextHeader()

void ns3::SixLowPanHc1::SetNextHeader ( uint8_t  nextHeader)

Set the Next Header value.

Parameters
[in]nextHeaderThe Next Header value.

Definition at line 479 of file sixlowpan-header.cc.

References HC1_ICMP, HC1_NC, HC1_TCP, HC1_UDP, ns3::Ipv6Header::IPV6_ICMPV6, ns3::Ipv6Header::IPV6_TCP, ns3::Ipv6Header::IPV6_UDP, m_nextHeader, and m_nextHeaderCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

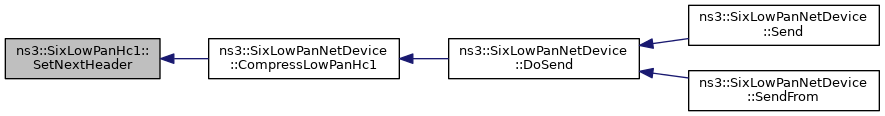

+ Here is the caller graph for this function:

◆ SetSrcCompression()

void ns3::SixLowPanHc1::SetSrcCompression ( LowPanHc1Addr_e  srcCompression)

Set Source Compression type.

Parameters
[in]srcCompressionThe kind of address compression.

Definition at line 500 of file sixlowpan-header.cc.

References m_srcCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

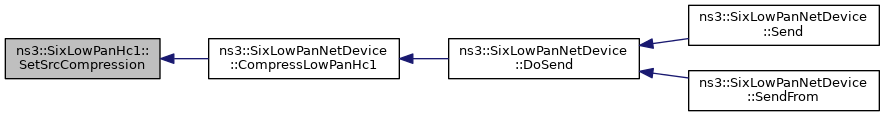

+ Here is the caller graph for this function:

◆ SetSrcInterface()

void ns3::SixLowPanHc1::SetSrcInterface ( const uint8_t *  srcInterface)

Set the source interface.

Parameters
[in]srcInterfaceThe source interface.

Definition at line 505 of file sixlowpan-header.cc.

References m_srcInterface.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

◆ SetSrcPrefix()

void ns3::SixLowPanHc1::SetSrcPrefix ( const uint8_t *  srcPrefix)

Set the source prefix.

Parameters
[in]srcPrefixThe source prefix.

Definition at line 513 of file sixlowpan-header.cc.

References m_srcPrefix.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

◆ SetTcflCompression()

void ns3::SixLowPanHc1::SetTcflCompression ( bool  tcflCompression)

Set the Traffic Class and Flow Labels as compressed.

Parameters
[in]tcflCompressionTrue if TC and FL are compressed.

Definition at line 521 of file sixlowpan-header.cc.

References m_tcflCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

◆ SetTrafficClass()

void ns3::SixLowPanHc1::SetTrafficClass ( uint8_t  trafficClass)

Set the Traffic Class value.

Parameters
[in]trafficClassThe Traffic Class value.

Definition at line 526 of file sixlowpan-header.cc.

References m_trafficClass.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_dstCompression

LowPanHc1Addr_e ns3::SixLowPanHc1::m_dstCompression
private

Destination compression type.

Definition at line 353 of file sixlowpan-header.h.

Referenced by Deserialize(), GetDstCompression(), GetSerializedSize(), Print(), Serialize(), and SetDstCompression().

◆ m_dstInterface

uint8_t ns3::SixLowPanHc1::m_dstInterface[8]
private

Destination interface.

Definition at line 348 of file sixlowpan-header.h.

Referenced by Deserialize(), GetDstInterface(), Serialize(), and SetDstInterface().

◆ m_dstPrefix

uint8_t ns3::SixLowPanHc1::m_dstPrefix[8]
private

Destination prefix.

Definition at line 347 of file sixlowpan-header.h.

Referenced by Deserialize(), GetDstPrefix(), Serialize(), and SetDstPrefix().

◆ m_flowLabel

uint32_t ns3::SixLowPanHc1::m_flowLabel
private

Flow Label.

Definition at line 350 of file sixlowpan-header.h.

Referenced by Deserialize(), GetFlowLabel(), Serialize(), and SetFlowLabel().

◆ m_hc2HeaderPresent

bool ns3::SixLowPanHc1::m_hc2HeaderPresent
private

Is next header HC2 compressed.

Definition at line 356 of file sixlowpan-header.h.

Referenced by Deserialize(), IsHc2HeaderPresent(), Print(), Serialize(), and SetHc2HeaderPresent().

◆ m_hopLimit

uint8_t ns3::SixLowPanHc1::m_hopLimit
private

Hop Limit.

Definition at line 344 of file sixlowpan-header.h.

Referenced by Deserialize(), GetHopLimit(), Print(), Serialize(), and SetHopLimit().

◆ m_nextHeader

uint8_t ns3::SixLowPanHc1::m_nextHeader
private

Next header.

Definition at line 351 of file sixlowpan-header.h.

Referenced by Deserialize(), GetNextHeader(), Serialize(), and SetNextHeader().

◆ m_nextHeaderCompression

LowPanHc1NextHeader_e ns3::SixLowPanHc1::m_nextHeaderCompression
private

Next header compression.

Definition at line 355 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSerializedSize(), Print(), Serialize(), and SetNextHeader().

◆ m_srcCompression

LowPanHc1Addr_e ns3::SixLowPanHc1::m_srcCompression
private

Source compression type.

Definition at line 352 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSerializedSize(), GetSrcCompression(), Print(), Serialize(), and SetSrcCompression().

◆ m_srcInterface

uint8_t ns3::SixLowPanHc1::m_srcInterface[8]
private

Source interface.

Definition at line 346 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSrcInterface(), Serialize(), and SetSrcInterface().

◆ m_srcPrefix

uint8_t ns3::SixLowPanHc1::m_srcPrefix[8]
private

Source prefix.

Definition at line 345 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSrcPrefix(), Serialize(), and SetSrcPrefix().

◆ m_tcflCompression

bool ns3::SixLowPanHc1::m_tcflCompression
private

Is TC and FL compressed.

Definition at line 354 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSerializedSize(), IsTcflCompression(), Print(), Serialize(), and SetTcflCompression().

◆ m_trafficClass

uint8_t ns3::SixLowPanHc1::m_trafficClass
private

Traffic Class.

Definition at line 349 of file sixlowpan-header.h.

Referenced by Deserialize(), GetTrafficClass(), Serialize(), and SetTrafficClass().


The documentation for this class was generated from the following files:
