Defines the TCP option of kind 4 (selective acknowledgment permitted option) as in RFC 2018 More...

#include "tcp-option-sack-permitted.h"

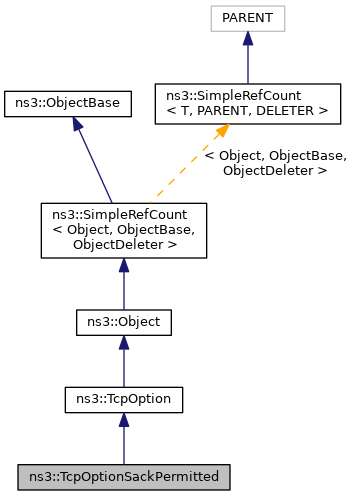

Inheritance diagram for ns3::TcpOptionSackPermitted:

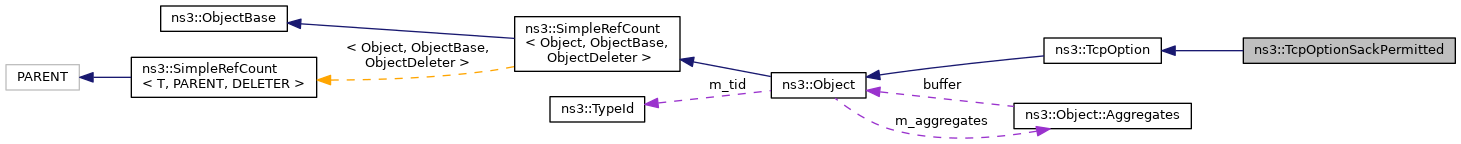

Collaboration diagram for ns3::TcpOptionSackPermitted:

Public Member Functions
	TcpOptionSackPermitted ()

virtual	~TcpOptionSackPermitted ()

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the Option from a buffer iterator. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

virtual uint8_t	GetKind (void) const
	Get the ‘kind’ (as in RFC 793) of this option. More...

virtual uint32_t	GetSerializedSize (void) const
	Returns number of bytes required for Option serialization. More...

virtual void	Print (std::ostream &os) const
	Print the Option contents. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the Option to a buffer iterator. More...

Public Member Functions inherited from ns3::TcpOption
	TcpOption ()

virtual	~TcpOption ()

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::TcpOption
static Ptr< TcpOption >	CreateOption (uint8_t kind)
	Creates an option. More...

static TypeId	GetTypeId (void)
	Get the type ID. More...

static bool	IsKindKnown (uint8_t kind)
	Check if the option is implemented. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Additional Inherited Members
Public Types inherited from ns3::TcpOption
enum	Kind { END = 0, NOP = 1, MSS = 2, WINSCALE = 3, SACKPERMITTED = 4, SACK = 5, TS = 8, UNKNOWN = 255 }
	The option Kind, as defined in the respective RFCs. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Defines the TCP option of kind 4 (selective acknowledgment permitted option) as in RFC 2018

Introspection did not find any typical Config paths.

TCP Sack-Permitted Option is 2-byte in length and sent in a SYN segment by a TCP host that can recognize and process SACK option during the lifetime of a connection.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 42 of file tcp-option-sack-permitted.h.

Constructor & Destructor Documentation

◆ TcpOptionSackPermitted()

ns3::TcpOptionSackPermitted::TcpOptionSackPermitted ( )

Definition at line 35 of file tcp-option-sack-permitted.cc.

◆ ~TcpOptionSackPermitted()

ns3::TcpOptionSackPermitted::~TcpOptionSackPermitted ( )

virtual

Definition at line 40 of file tcp-option-sack-permitted.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::TcpOptionSackPermitted::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the Option from a buffer iterator.

Parameters

start the buffer iterator

Returns: the number of deserialized bytes

Implements ns3::TcpOption.

Definition at line 82 of file tcp-option-sack-permitted.cc.

References GetKind(), GetSerializedSize(), NS_LOG_WARN, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

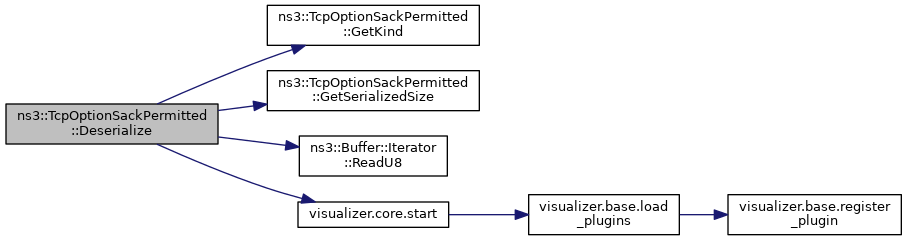

Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::TcpOptionSackPermitted::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
