ns3::UanPacketArrival Class Reference

Class consisting of packet arrival information (Time, RxPower, mode, PDP). More...

#include "uan-transducer.h"

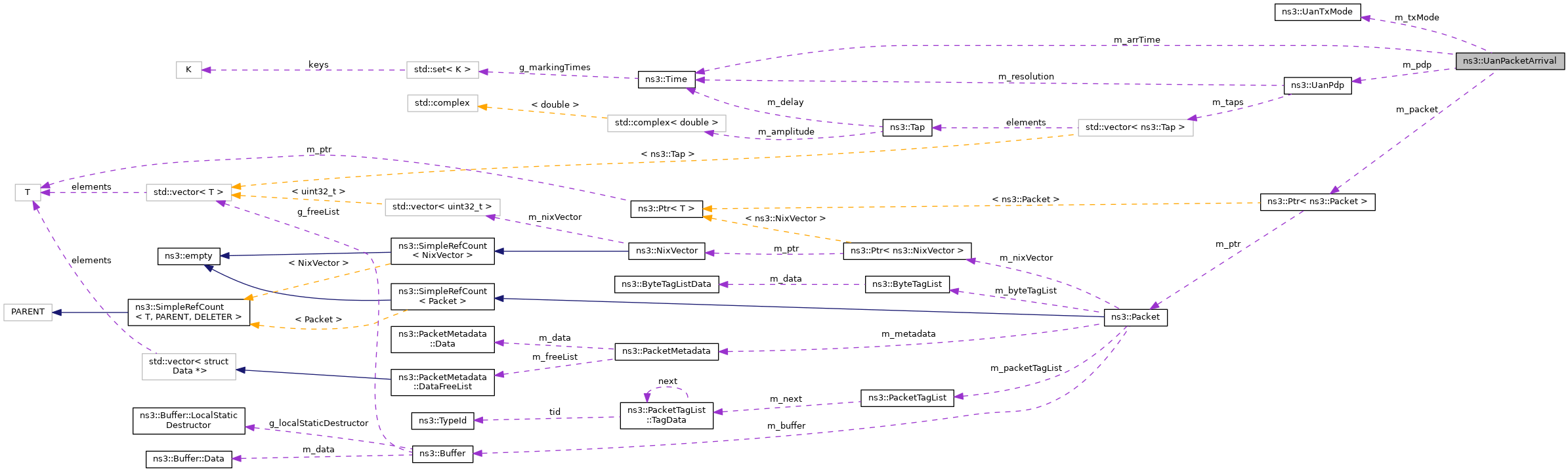

Collaboration diagram for ns3::UanPacketArrival:

Public Member Functions
	UanPacketArrival ()
	Default constructor. More...
	UanPacketArrival (Ptr< Packet > packet, double rxPowerDb, UanTxMode txMode, UanPdp pdp, Time arrTime)
	Constructor. More...
	~UanPacketArrival ()
	Destructor. More...
Time	GetArrivalTime (void) const
	Get the packet arrival time. More...
Ptr< Packet >	GetPacket (void) const
	Get the arriving packet. More...
UanPdp	GetPdp (void) const
	Get the propagation delay profile. More...
double	GetRxPowerDb (void) const
	Get the received signal strength. More...
const UanTxMode &	GetTxMode (void) const
	Get the transmission mode of the packet. More...

Private Attributes
Time	m_arrTime
	The arrival time. More...
Ptr< Packet >	m_packet
	The arrived packet. More...
UanPdp	m_pdp
	The propagation delay profile. More...
double	m_rxPowerDb
	The received power, in dB. More...
UanTxMode	m_txMode
	The transmission mode. More...

Detailed Description

Class consisting of packet arrival information (Time, RxPower, mode, PDP).

Definition at line 42 of file uan-transducer.h.

Constructor & Destructor Documentation

UanPacketArrival() [1/2]

ns3::UanPacketArrival::UanPacketArrival ( )

inline

Default constructor.

Definition at line 47 of file uan-transducer.h.

UanPacketArrival() [2/2]

ns3::UanPacketArrival::UanPacketArrival ( Ptr< Packet >  packet, double  rxPowerDb, UanTxMode  txMode, UanPdp  pdp, Time  arrTime  )

inline

Constructor.

Parameters

packet	Packet arriving.
rxPowerDb	RX signal power in dB of arriving packet.
txMode	TX mode of arriving packet.
pdp	Power delay profile of arriving packet.
arrTime	Arrival time of packet.

Definition at line 60 of file uan-transducer.h.

~UanPacketArrival()

ns3::UanPacketArrival::~UanPacketArrival ( )

inline

Destructor.

Definition at line 70 of file uan-transducer.h.

References m_packet.

Member Function Documentation

GetArrivalTime()

Time ns3::UanPacketArrival::GetArrivalTime ( void  ) const

inline

Get the packet arrival time.

Returns

Arrival time.

Definition at line 107 of file uan-transducer.h.

References m_arrTime.

GetPacket()

Ptr<Packet> ns3::UanPacketArrival::GetPacket ( void  ) const

inline

Get the arriving packet.

Returns

Pointer to packet.

Definition at line 80 of file uan-transducer.h.

References m_packet.

Referenced by ns3::UanTransducerHd::RemoveArrival().

Here is the caller graph for this function:

GetPdp()

UanPdp ns3::UanPacketArrival::GetPdp ( void  ) const

inline

Get the propagation delay profile.

Returns

PDP of arriving signal.

Definition at line 116 of file uan-transducer.h.

References m_pdp.

GetRxPowerDb()

double ns3::UanPacketArrival::GetRxPowerDb ( void  ) const

inline

Get the received signal strength.

Returns

Received signal strength in dB re 1uPa

Definition at line 89 of file uan-transducer.h.

References m_rxPowerDb.

GetTxMode()

const UanTxMode& ns3::UanPacketArrival::GetTxMode ( void  ) const

inline

Get the transmission mode of the packet.

Returns

UanTxMode.

Definition at line 98 of file uan-transducer.h.

References m_txMode.

Member Data Documentation

m_arrTime

Time ns3::UanPacketArrival::m_arrTime

private

The arrival time.

Definition at line 125 of file uan-transducer.h.

Referenced by GetArrivalTime().

m_packet

Ptr<Packet> ns3::UanPacketArrival::m_packet

private

The arrived packet.

Definition at line 121 of file uan-transducer.h.

Referenced by GetPacket(), and ~UanPacketArrival().

m_pdp

UanPdp ns3::UanPacketArrival::m_pdp

private

The propagation delay profile.

Definition at line 124 of file uan-transducer.h.

Referenced by GetPdp().

m_rxPowerDb

double ns3::UanPacketArrival::m_rxPowerDb

private

The received power, in dB.

Definition at line 122 of file uan-transducer.h.

Referenced by GetRxPowerDb().

m_txMode

UanTxMode ns3::UanPacketArrival::m_txMode

private

The transmission mode.

Definition at line 123 of file uan-transducer.h.

Referenced by GetTxMode().

---

The documentation for this class was generated from the following file:

• src/uan/model/uan-transducer.h
