ns3::V4TraceRouteHelper Class Reference

Create a IPv4 traceroute application and associate it to a node. More...

#include "v4traceroute-helper.h"

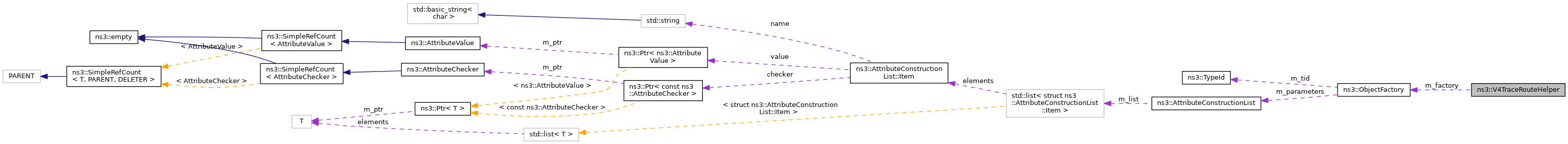

Collaboration diagram for ns3::V4TraceRouteHelper:

Public Member Functions
	V4TraceRouteHelper (Ipv4Address remote)
	Create a V4TraceRouteHelper which is used to make life easier for people wanting to use TraceRoute. More...
ApplicationContainer	Install (NodeContainer nodes) const
	Install a TraceRoute application on each Node in the provided NodeContainer. More...
ApplicationContainer	Install (Ptr< Node > node) const
	Install a TraceRoute application on the provided Node. More...
ApplicationContainer	Install (std::string nodeName) const
	Install a TraceRoute application on the provided Node. More...
void	SetAttribute (std::string name, const AttributeValue &value)
	Configure traceRoute applications attribute. More...

Static Public Member Functions
static void	PrintTraceRouteAt (Ptr< Node > node, Ptr< OutputStreamWrapper > stream)
	Print the resulting trace routes from given node. More...

Private Member Functions
Ptr< Application >	InstallPriv (Ptr< Node > node) const
	Do the actual application installation in the node. More...

Private Attributes
ObjectFactory	m_factory
	Object factory. More...

Detailed Description

Create a IPv4 traceroute application and associate it to a node.

This class creates one or multiple instances of ns3::V4TraceRoute and associates it/them to one/multiple node(s).

Definition at line 40 of file v4traceroute-helper.h.

Constructor & Destructor Documentation

V4TraceRouteHelper()

ns3::V4TraceRouteHelper::V4TraceRouteHelper

(

Ipv4Address

remote

)

Create a V4TraceRouteHelper which is used to make life easier for people wanting to use TraceRoute.

Parameters

remote

The address which should be traced

Definition at line 30 of file v4traceroute-helper.cc.

References m_factory, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

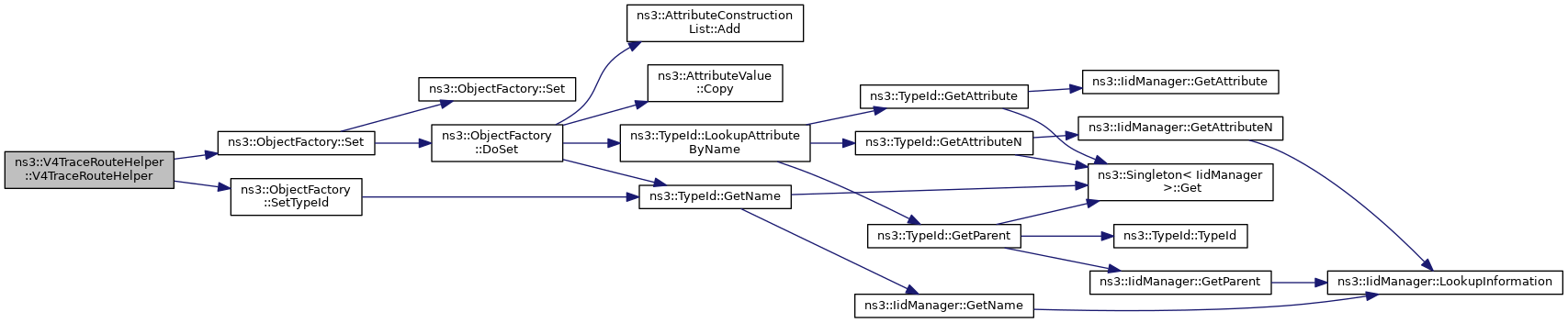

Here is the call graph for this function:

Member Function Documentation

Install() [1/3]

ApplicationContainer ns3::V4TraceRouteHelper::Install

(

NodeContainer

nodes

)

const

Install a TraceRoute application on each Node in the provided NodeContainer.

Parameters

nodes

The NodeContainer containing all of the nodes to get a V4TraceRoute application.

Returns

A list of TraceRoute applications, one for each input node

Definition at line 56 of file v4traceroute-helper.cc.

References ns3::ApplicationContainer::Add(), ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), and InstallPriv().

Referenced by TracerouteExample::InstallApplications().

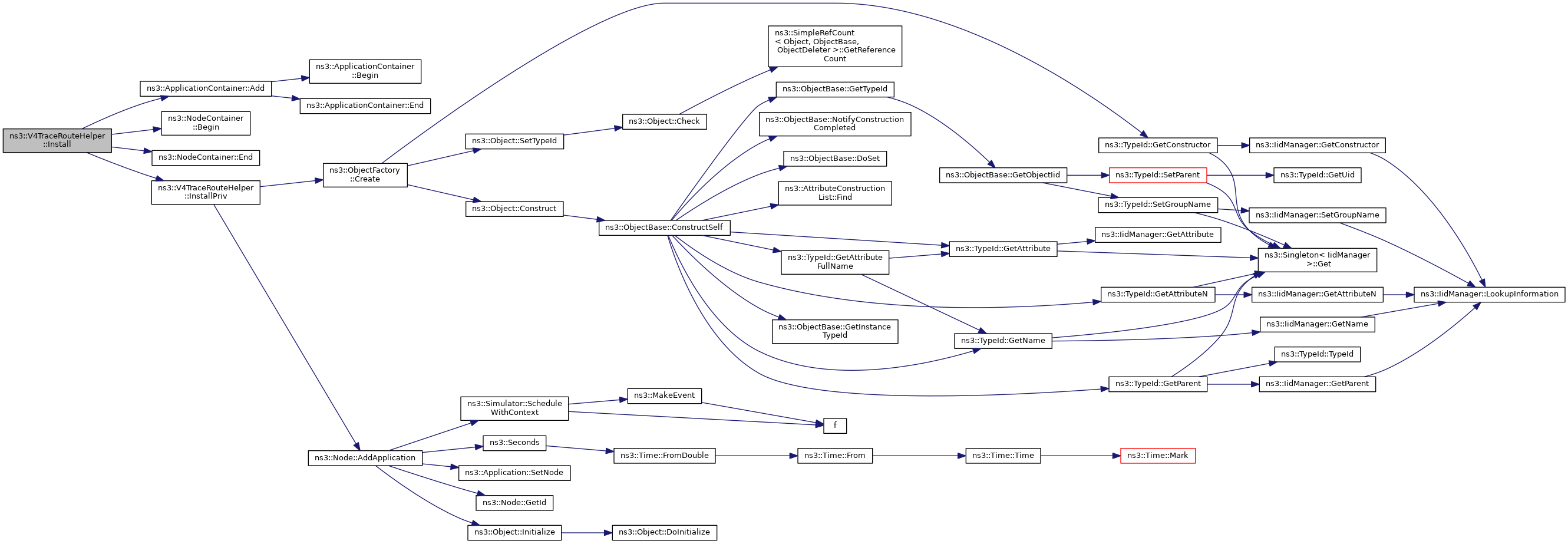

Here is the call graph for this function:

Here is the caller graph for this function:

Install() [2/3]

ApplicationContainer ns3::V4TraceRouteHelper::Install

(

Ptr< Node >

node

)

const

Install a TraceRoute application on the provided Node.

The Node is specified directly by a Ptr<Node>

Parameters

node	The node to install the V4TraceRouteApplication on.

Returns

An ApplicationContainer holding the TraceRoute application created.

Definition at line 43 of file v4traceroute-helper.cc.

References InstallPriv().

Here is the call graph for this function:

Install() [3/3]

ApplicationContainer ns3::V4TraceRouteHelper::Install

(

std::string

nodeName

)

const

Install a TraceRoute application on the provided Node.

The Node is specified by a string that must have previously been associated with a Node using the Object Name Service.

Parameters

nodeName

The node to install the V4TraceRouteApplication on.

Returns

An ApplicationContainer holding the TraceRoute application created.

Definition at line 49 of file v4traceroute-helper.cc.

References InstallPriv().

Here is the call graph for this function:

InstallPriv()

Ptr< Application > ns3::V4TraceRouteHelper::InstallPriv ( Ptr< Node >  node ) const

private

Do the actual application installation in the node.

Parameters

node

the node

Returns

a Smart pointer to the installed application

Definition at line 68 of file v4traceroute-helper.cc.

References ns3::Node::AddApplication(), ns3::ObjectFactory::Create(), and m_factory.

Referenced by Install().

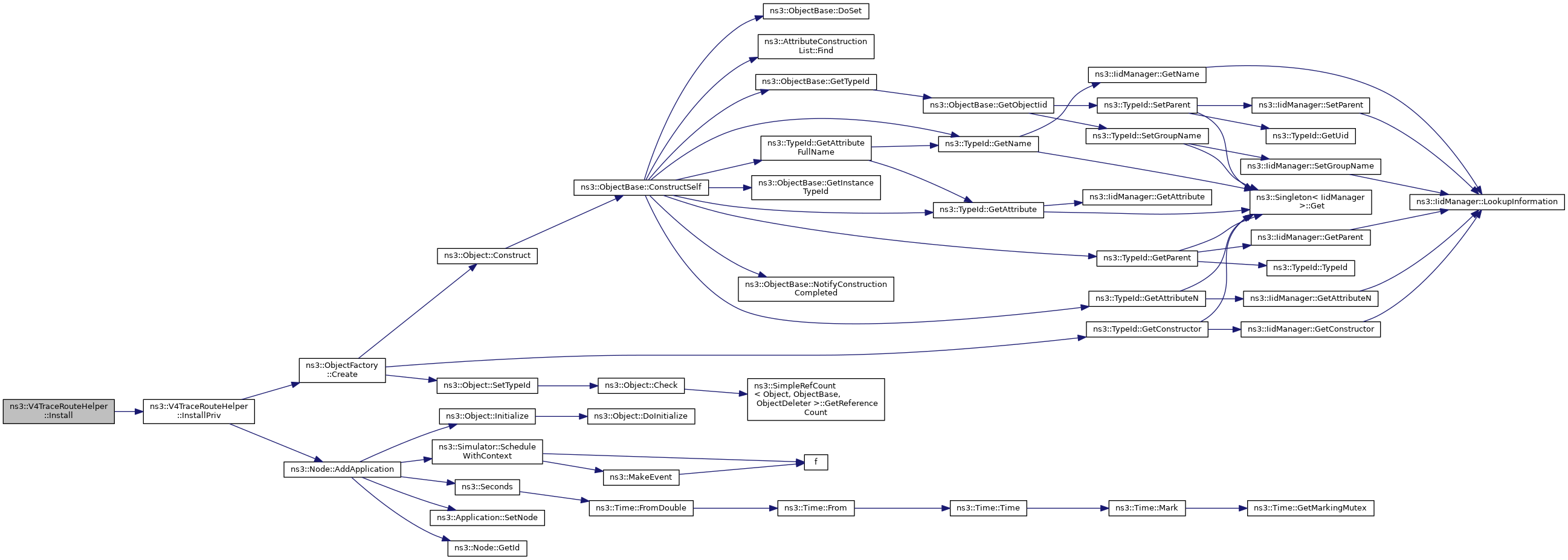

Here is the call graph for this function:

Here is the caller graph for this function:

PrintTraceRouteAt()

void ns3::V4TraceRouteHelper::PrintTraceRouteAt ( Ptr< Node >  node, Ptr< OutputStreamWrapper >  stream  )

static

Print the resulting trace routes from given node.

Parameters

node	The origin node where the traceroute is initiated.
stream	The outputstream used to print the resulting traced routes.

Definition at line 77 of file v4traceroute-helper.cc.

References ns3::Node::GetApplication(), ns3::Node::GetId(), ns3::Node::GetNApplications(), ns3::Object::GetObject(), ns3::OutputStreamWrapper::GetStream(), and NS_ASSERT_MSG.

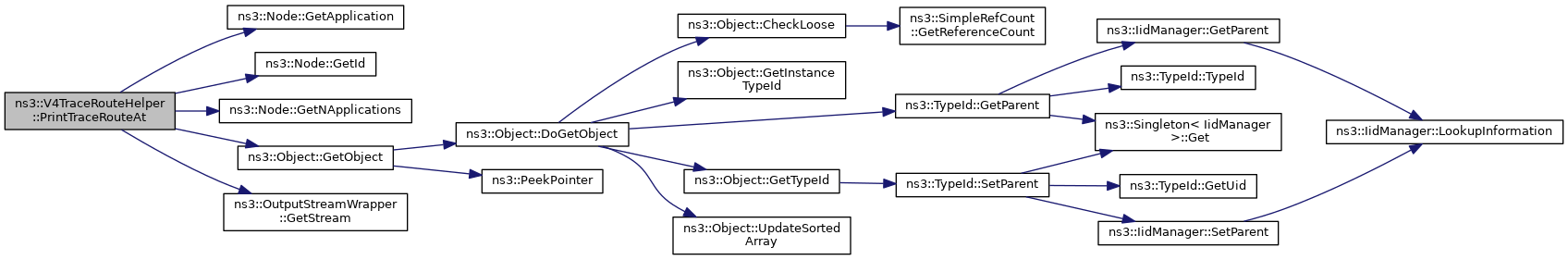

Here is the call graph for this function:

SetAttribute()

void ns3::V4TraceRouteHelper::SetAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Configure traceRoute applications attribute.

Parameters

name	attribute's name
value	attribute's value

Definition at line 37 of file v4traceroute-helper.cc.

References m_factory, and ns3::ObjectFactory::Set().

Referenced by TracerouteExample::InstallApplications().

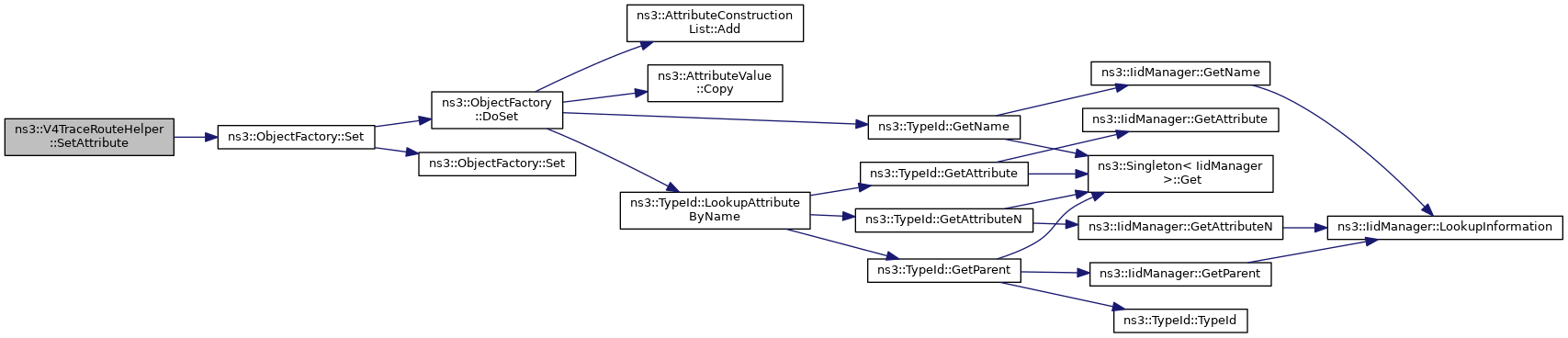

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_factory

ObjectFactory ns3::V4TraceRouteHelper::m_factory

private

Object factory.

Definition at line 104 of file v4traceroute-helper.h.

Referenced by InstallPriv(), SetAttribute(), and V4TraceRouteHelper().

---

The documentation for this class was generated from the following files:

• src/internet-apps/helper/v4traceroute-helper.h
• src/internet-apps/helper/v4traceroute-helper.cc
