Information element vectorImplements a vector of WifiInformationElements. More...

#include "wifi-information-element-vector.h"

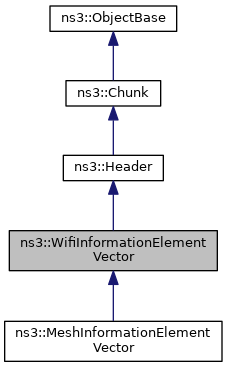

Inheritance diagram for ns3::WifiInformationElementVector:

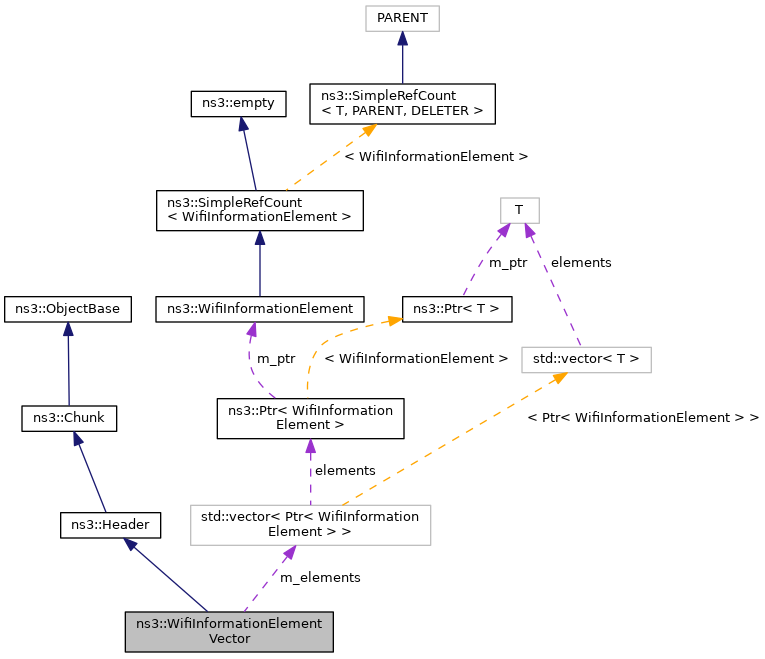

Collaboration diagram for ns3::WifiInformationElementVector:

Public Types
typedef std::vector< Ptr< WifiInformationElement > >::iterator	Iterator
	As soon as this is a vector, we define an Iterator. More...

Public Member Functions
	WifiInformationElementVector ()

virtual	~WifiInformationElementVector ()

bool	AddInformationElement (Ptr< WifiInformationElement > element)
	add an IE, if maxSize has exceeded, returns false More...

Iterator	Begin ()
	Returns Begin of the vector. More...

uint32_t	Deserialize (Buffer::Iterator start) override

uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end) override
	Deserialize a number of WifiInformationElements. More...

virtual uint32_t	DeserializeSingleIe (Buffer::Iterator start)
	Needed when you try to deserialize a lonely IE inside other header. More...

Iterator	End ()
	Returns End of the vector. More...

Ptr< WifiInformationElement >	FindFirst (WifiInformationElementId id) const
	vector of pointers to information elements is the body of IeVector More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

uint32_t	GetSerializedSize () const override

virtual bool	operator== (const WifiInformationElementVector &a) const
	Check if the given WifiInformationElementVectors are equivalent. More...

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Types
typedef std::vector< Ptr< WifiInformationElement > >	IE_VECTOR
	typedef for a vector of WifiInformationElements. More...

Protected Member Functions
uint32_t	GetSize () const
	Current number of bytes. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
IE_VECTOR	m_elements
	Information element vector. More...

uint16_t	m_maxSize
	Size in bytes (actually, max packet length) More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Information element vector

Implements a vector of WifiInformationElements.

Introspection did not find any typical Config paths.

Information elements typically come in groups, and the WifiInformationElementVector class provides a representation of a series of IEs, and the facility for serialisation to and deserialisation from the over-the-air format.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 39 of file wifi-information-element-vector.h.

Member Typedef Documentation

◆ IE_VECTOR

typedef std::vector<Ptr<WifiInformationElement> > ns3::WifiInformationElementVector::IE_VECTOR

protected

typedef for a vector of WifiInformationElements.

Definition at line 124 of file wifi-information-element-vector.h.

◆ Iterator

typedef std::vector<Ptr<WifiInformationElement> >::iterator ns3::WifiInformationElementVector::Iterator

As soon as this is a vector, we define an Iterator.

Definition at line 83 of file wifi-information-element-vector.h.

Constructor & Destructor Documentation

◆ WifiInformationElementVector()

ns3::WifiInformationElementVector::WifiInformationElementVector ( )

Definition at line 27 of file wifi-information-element-vector.cc.

◆ ~WifiInformationElementVector()

ns3::WifiInformationElementVector::~WifiInformationElementVector ( )

virtual

Definition at line 32 of file wifi-information-element-vector.cc.

References m_elements.

Member Function Documentation

◆ AddInformationElement()

bool ns3::WifiInformationElementVector::AddInformationElement ( Ptr< WifiInformationElement > element )

add an IE, if maxSize has exceeded, returns false

Parameters

element wifi information element to add

Returns: true is added

Definition at line 147 of file wifi-information-element-vector.cc.

References ns3::WifiInformationElement::GetInformationFieldSize(), GetSize(), m_elements, and m_maxSize.

Referenced by ns3::MeshWifiBeacon::AddInformationElement(), MeshInformationElementVectorBist::DoRun(), ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), ns3::dot11s::HwmpProtocolMac::SendPrep(), and ns3::dot11s::HwmpProtocolMac::SendPreq().

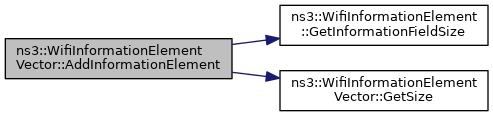

Here is the call graph for this function:

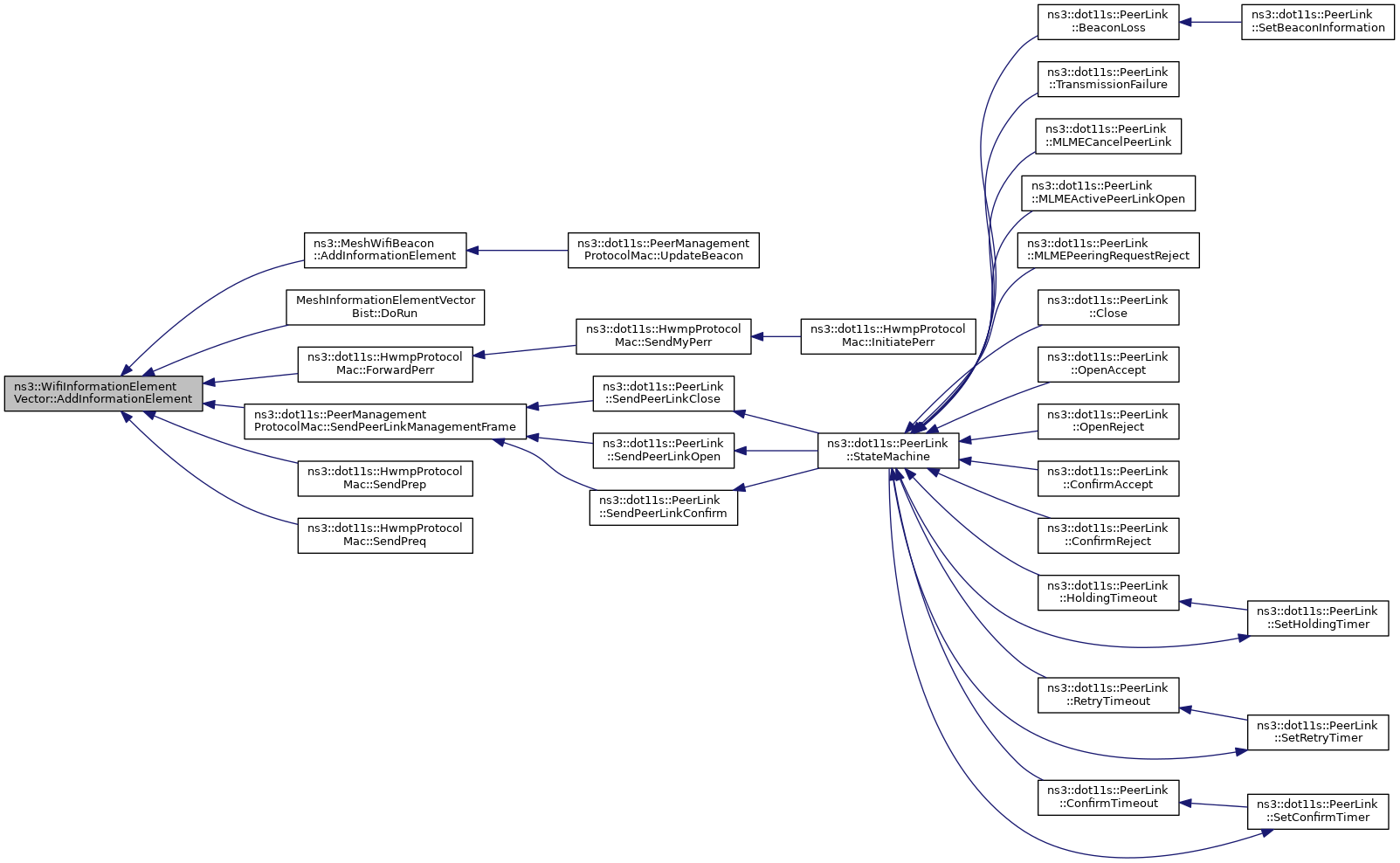

Here is the caller graph for this function:

◆ Begin()

WifiInformationElementVector::Iterator ns3::WifiInformationElementVector::Begin ( void )

Returns Begin of the vector.

Returns: the begin of the vector

Definition at line 135 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by ns3::dot11s::HwmpProtocolMac::ReceiveAction().

Here is the caller graph for this function:

◆ Deserialize() [1/2]

uint32_t ns3::WifiInformationElementVector::Deserialize ( Buffer::Iterator start )

overridevirtual

Attention: This variant should not be used but is implemented due to backward compatibility reasons

Parameters

start buffer location to start deserializing from

Returns: number of bytes deserialized

Implements ns3::Header.

Definition at line 73 of file wifi-information-element-vector.cc.

References NS_FATAL_ERROR.

◆ Deserialize() [2/2]

uint32_t ns3::WifiInformationElementVector::Deserialize	(	Buffer::Iterator	start,
		Buffer::Iterator	end
	)

overridevirtual

Deserialize a number of WifiInformationElements.

The size of this Header should equal start.GetDistanceFrom (end).

Parameters

start	starting buffer location
end	ending buffer location

Returns: number of bytes deserialized

Reimplemented from ns3::Chunk.

Definition at line 80 of file wifi-information-element-vector.cc.

References DeserializeSingleIe(), NS_ASSERT, NS_ASSERT_MSG, and visualizer.core::start().

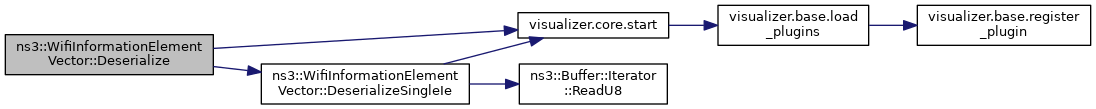

Here is the call graph for this function:

◆ DeserializeSingleIe()

uint32_t ns3::WifiInformationElementVector::DeserializeSingleIe ( Buffer::Iterator start )

virtual

Needed when you try to deserialize a lonely IE inside other header.

Parameters

start is the start of the buffer

Returns: deserialized bytes

Reimplemented in ns3::MeshInformationElementVector.

Definition at line 96 of file wifi-information-element-vector.cc.

References NS_FATAL_ERROR, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Referenced by Deserialize(), and ns3::MeshInformationElementVector::DeserializeSingleIe().

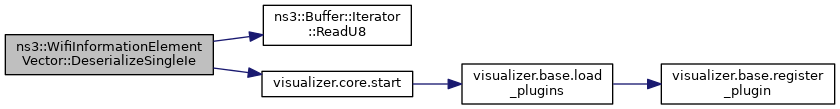

Here is the call graph for this function:

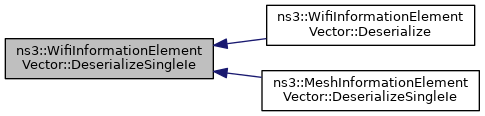

Here is the caller graph for this function:

◆ End()

WifiInformationElementVector::Iterator ns3::WifiInformationElementVector::End ( void )

Returns End of the vector.

Returns: the end of the vector

Definition at line 141 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by ns3::dot11s::HwmpProtocolMac::ReceiveAction().

Here is the caller graph for this function:

◆ FindFirst()

Ptr< WifiInformationElement > ns3::WifiInformationElementVector::FindFirst ( WifiInformationElementId id ) const

vector of pointers to information elements is the body of IeVector

Parameters

id	the element id to find

Returns: the information element

Definition at line 158 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by ns3::dot11s::PeerManagementProtocolMac::Receive().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::WifiInformationElementVector::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 52 of file wifi-information-element-vector.cc.

References GetTypeId().

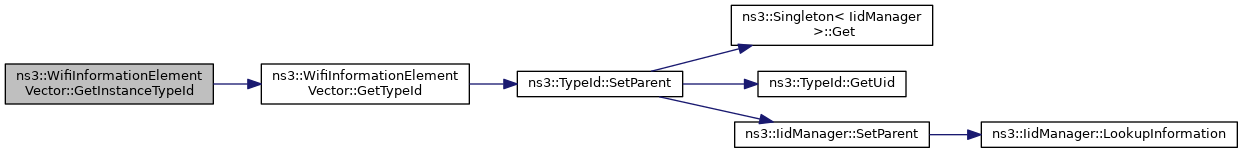

Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::WifiInformationElementVector::GetSerializedSize ( ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 58 of file wifi-information-element-vector.cc.

References GetSize().

Referenced by MeshInformationElementVectorBist::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSize()

uint32_t ns3::WifiInformationElementVector::GetSize ( void ) const

protected

Current number of bytes.

Returns: the number of bytes

Definition at line 171 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by AddInformationElement(), ns3::MeshInformationElementVector::DeserializeSingleIe(), and GetSerializedSize().

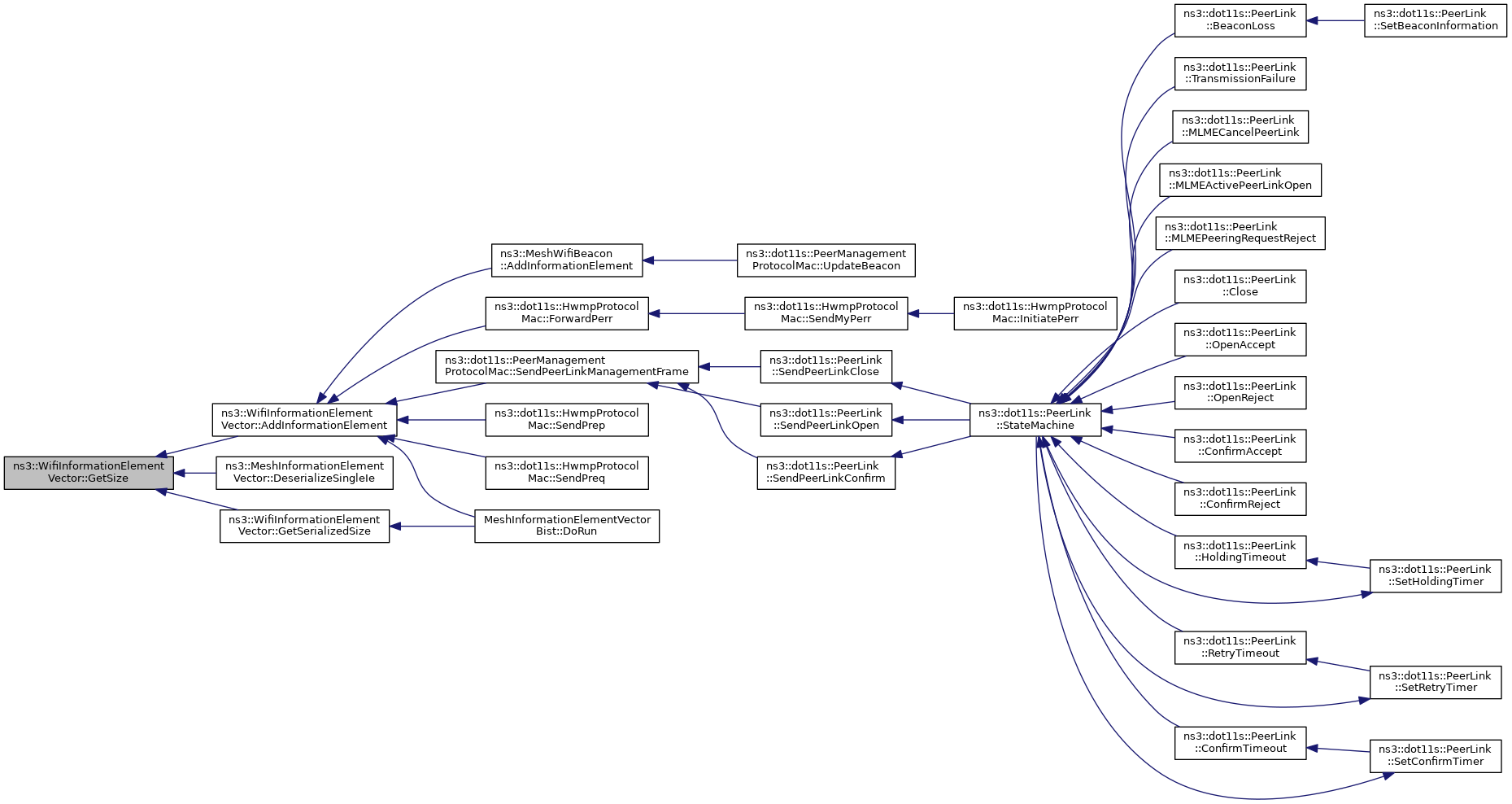

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::WifiInformationElementVector::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 42 of file wifi-information-element-vector.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator==()

bool ns3::WifiInformationElementVector::operator== ( const WifiInformationElementVector & a ) const

virtual

Check if the given WifiInformationElementVectors are equivalent.

Parameters

a	another WifiInformationElementVector

Returns: true if the given WifiInformationElementVectors are equivalent, false otherwise

Definition at line 182 of file wifi-information-element-vector.cc.

References m_elements, and NS_ASSERT.

◆ Print()

void ns3::WifiInformationElementVector::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 124 of file wifi-information-element-vector.cc.

References m_elements.

◆ Serialize()

void ns3::WifiInformationElementVector::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 64 of file wifi-information-element-vector.cc.

References m_elements, and visualizer.core::start().

Here is the call graph for this function:
