ns3::WifiPhyHelper Class Reference

create PHY objects More...

#include "wifi-helper.h"

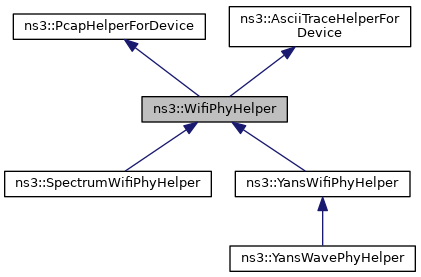

Inheritance diagram for ns3::WifiPhyHelper:

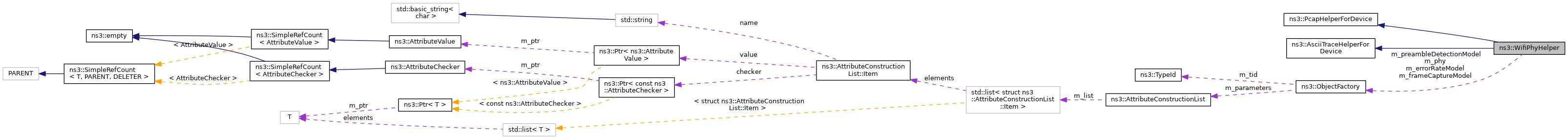

Collaboration diagram for ns3::WifiPhyHelper:

Public Types
enum	SupportedPcapDataLinkTypes { DLT_IEEE802_11 = PcapHelper::DLT_IEEE802_11, DLT_PRISM_HEADER = PcapHelper::DLT_PRISM_HEADER, DLT_IEEE802_11_RADIO = PcapHelper::DLT_IEEE802_11_RADIO }
	An enumeration of the pcap data link types (DLTs) which this helper supports. More...

Public Member Functions
	WifiPhyHelper ()
virtual	~WifiPhyHelper ()
virtual Ptr< WifiPhy >	Create (Ptr< Node > node, Ptr< NetDevice > device) const =0
void	DisablePreambleDetectionModel ()
	Disable the preamble detection model. More...
PcapHelper::DataLinkType	GetPcapDataLinkType (void) const
	Get the data link type of PCAP traces to be used. More...
void	Set (std::string name, const AttributeValue &v)
void	SetErrorRateModel (std::string name, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())
void	SetFrameCaptureModel (std::string name, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())
void	SetPcapDataLinkType (SupportedPcapDataLinkTypes dlt)
	Set the data link type of PCAP traces to be used. More...
void	SetPreambleDetectionModel (std::string name, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())
Public Member Functions inherited from ns3::PcapHelperForDevice
	PcapHelperForDevice ()
	Construct a PcapHelperForDevice. More...
virtual	~PcapHelperForDevice ()
	Destroy a PcapHelperForDevice. More...
void	EnablePcap (std::string prefix, Ptr< NetDevice > nd, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device. More...
void	EnablePcap (std::string prefix, std::string ndName, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device using a device previously named using the ns-3 object name service. More...
void	EnablePcap (std::string prefix, NetDeviceContainer d, bool promiscuous=false)
	Enable pcap output on each device in the container which is of the appropriate type. More...
void	EnablePcap (std::string prefix, NodeContainer n, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the nodes provided in the container. More...
void	EnablePcap (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool promiscuous=false)
	Enable pcap output on the device specified by a global node-id (of a previously created node) and associated device-id. More...
void	EnablePcapAll (std::string prefix, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...
Public Member Functions inherited from ns3::AsciiTraceHelperForDevice
	AsciiTraceHelperForDevice ()
	Construct an AsciiTraceHelperForDevice. More...
virtual	~AsciiTraceHelperForDevice ()
	Destroy an AsciiTraceHelperForDevice. More...
void	EnableAscii (std::string prefix, Ptr< NetDevice > nd, bool explicitFilename=false)
	Enable ascii trace output on the indicated net device. More...
void	EnableAscii (Ptr< OutputStreamWrapper > stream, Ptr< NetDevice > nd)
	Enable ascii trace output on the indicated net device. More...
void	EnableAscii (std::string prefix, std::string ndName, bool explicitFilename=false)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...
void	EnableAscii (Ptr< OutputStreamWrapper > stream, std::string ndName)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...
void	EnableAscii (std::string prefix, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...
void	EnableAscii (Ptr< OutputStreamWrapper > stream, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...
void	EnableAscii (std::string prefix, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...
void	EnableAscii (Ptr< OutputStreamWrapper > stream, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...
void	EnableAscii (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...
void	EnableAscii (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t deviceid)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...
void	EnableAsciiAll (std::string prefix)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...
void	EnableAsciiAll (Ptr< OutputStreamWrapper > stream)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

Static Protected Member Functions
static void	PcapSniffRxEvent (Ptr< PcapFileWrapper > file, Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, SignalNoiseDbm signalNoise, uint16_t staId=SU_STA_ID)
static void	PcapSniffTxEvent (Ptr< PcapFileWrapper > file, Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, uint16_t staId=SU_STA_ID)

Protected Attributes
ObjectFactory	m_errorRateModel
	error rate model More...
ObjectFactory	m_frameCaptureModel
	frame capture model More...
ObjectFactory	m_phy
	PHY object. More...
ObjectFactory	m_preambleDetectionModel
	preamble detection model More...

Private Member Functions
virtual void	EnableAsciiInternal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< NetDevice > nd, bool explicitFilename) override
	Enable ASCII trace output on the indicated net device. More...
virtual void	EnablePcapInternal (std::string prefix, Ptr< NetDevice > nd, bool promiscuous, bool explicitFilename) override
	Enable pcap output the indicated net device. More...

Static Private Member Functions
static void	GetRadiotapHeader (RadiotapHeader &header, Ptr< Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, uint16_t staId)
	Get the Radiotap header for a transmitted packet. More...
static void	GetRadiotapHeader (RadiotapHeader &header, Ptr< Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, uint16_t staId, SignalNoiseDbm signalNoise)
	Get the Radiotap header for a received packet. More...

Private Attributes
PcapHelper::DataLinkType	m_pcapDlt
	PCAP data link type. More...

Detailed Description

create PHY objects

This base class must be implemented by new PHY implementation which wish to integrate with the ns3::WifiHelper class.

Definition at line 46 of file wifi-helper.h.

Member Enumeration Documentation

SupportedPcapDataLinkTypes

enum ns3::WifiPhyHelper::SupportedPcapDataLinkTypes

An enumeration of the pcap data link types (DLTs) which this helper supports.

See http://wiki.wireshark.org/Development/LibpcapFileFormat for more information on these formats.

Enumerator
DLT_IEEE802_11	IEEE 802.11 Wireless LAN headers on packets.
DLT_PRISM_HEADER	Include Prism monitor mode information.
DLT_IEEE802_11_RADIO	Include Radiotap link layer information.

Definition at line 176 of file wifi-helper.h.

Constructor & Destructor Documentation

WifiPhyHelper()

ns3::WifiPhyHelper::WifiPhyHelper

(

)

Definition at line 129 of file wifi-helper.cc.

References SetPreambleDetectionModel().

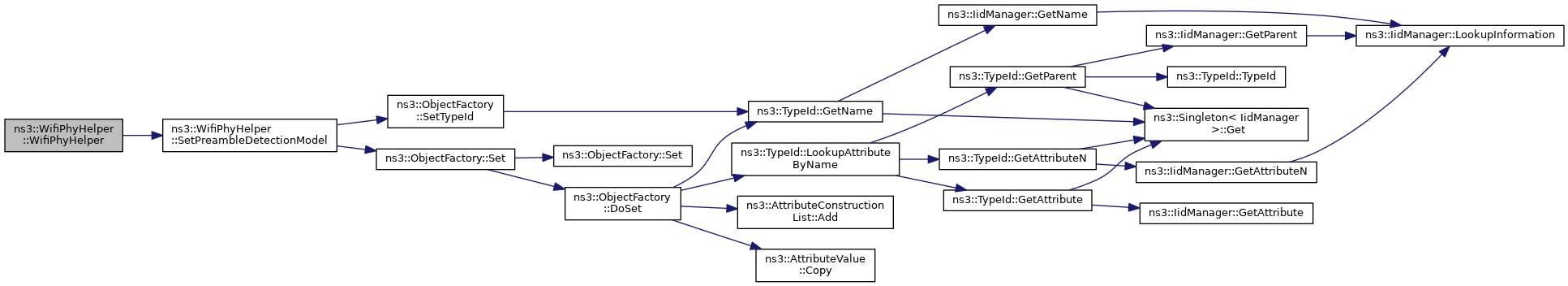

Here is the call graph for this function:

~WifiPhyHelper()

ns3::WifiPhyHelper::~WifiPhyHelper ( )

virtual

Definition at line 135 of file wifi-helper.cc.

Member Function Documentation

Create()

virtual Ptr<WifiPhy> ns3::WifiPhyHelper::Create ( Ptr< Node >  node, Ptr< NetDevice >  device  ) const

pure virtual

Parameters

node	the node on which the PHY object will reside
device	the device within which the PHY object will reside

Returns

a new PHY object.

Subclasses must implement this method to allow the ns3::WifiHelper class to create PHY objects from ns3::WifiHelper::Install.

Typically the device type will be of class WifiNetDevice but the type of the pointer is generalized so that this method may be used by other Wifi device variants such as WaveNetDevice.

Implemented in ns3::YansWifiPhyHelper, and ns3::SpectrumWifiPhyHelper.

Referenced by ns3::MeshHelper::CreateInterface(), ns3::WaveHelper::Install(), and ns3::WifiHelper::Install().

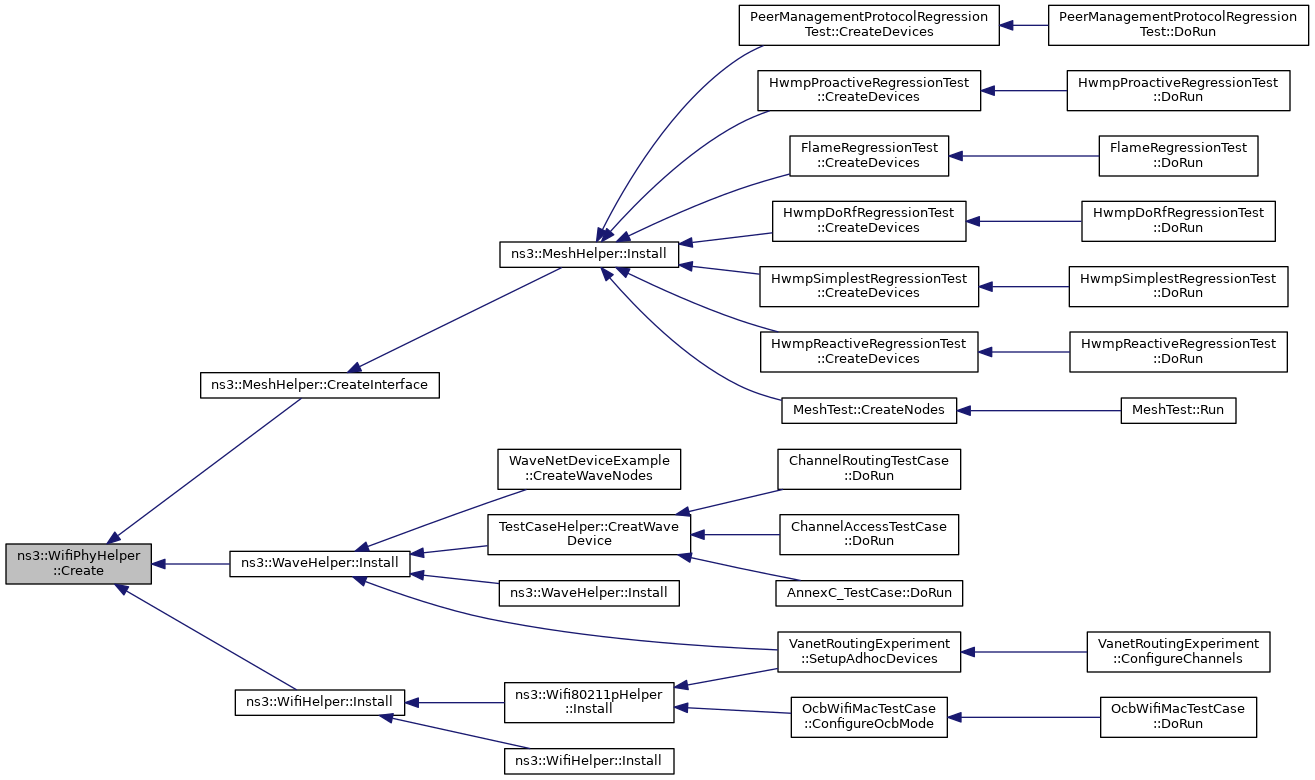

Here is the caller graph for this function:

DisablePreambleDetectionModel()

void ns3::WifiPhyHelper::DisablePreambleDetectionModel

(

)

Disable the preamble detection model.

Definition at line 215 of file wifi-helper.cc.

References m_preambleDetectionModel, and ns3::ObjectFactory::SetTypeId().

Referenced by Bug772ChainTest::CreateDevices().

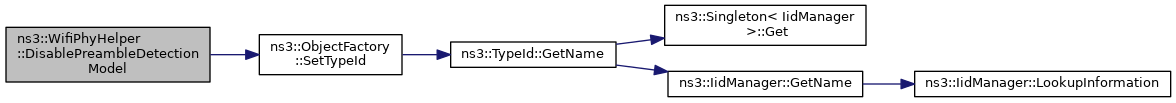

Here is the call graph for this function:

Here is the caller graph for this function:

EnableAsciiInternal()

void ns3::WifiPhyHelper::EnableAsciiInternal ( Ptr< OutputStreamWrapper >  stream, std::string  prefix, Ptr< NetDevice >  nd, bool  explicitFilename  )

overrideprivatevirtual

Enable ASCII trace output on the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters

stream	The output stream object to use when logging ASCII traces.
prefix	Filename prefix to use for ASCII trace files.
nd	Net device for which you want to enable tracing.
explicitFilename	Treat the prefix as an explicit filename if true

Implements ns3::AsciiTraceHelperForDevice.

Reimplemented in ns3::YansWavePhyHelper.

Definition at line 634 of file wifi-helper.cc.

References ns3::AsciiPhyReceiveSinkWithContext(), ns3::AsciiPhyReceiveSinkWithoutContext(), ns3::AsciiPhyTransmitSinkWithContext(), ns3::AsciiPhyTransmitSinkWithoutContext(), ns3::Config::Connect(), ns3::Config::ConnectWithoutContext(), ns3::AsciiTraceHelper::CreateFileStream(), ns3::Packet::EnablePrinting(), ns3::AsciiTraceHelper::GetFilenameFromDevice(), ns3::MakeBoundCallback(), and NS_LOG_INFO.

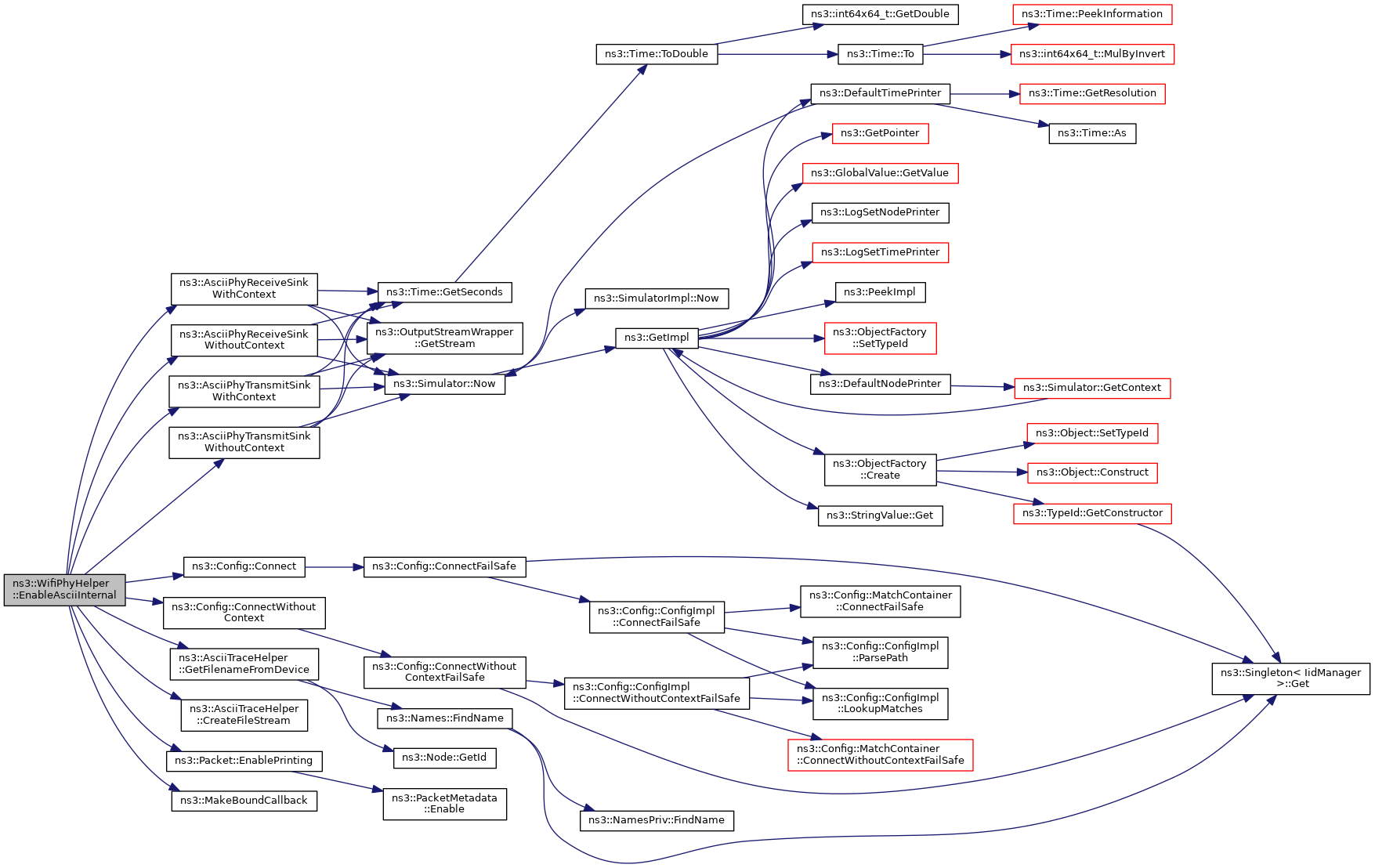

Here is the call graph for this function:

EnablePcapInternal()

void ns3::WifiPhyHelper::EnablePcapInternal ( std::string  prefix, Ptr< NetDevice >  nd, bool  promiscuous, bool  explicitFilename  )

overrideprivatevirtual

Enable pcap output the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters

prefix	Filename prefix to use for pcap files.
nd	Net device for which you want to enable tracing.
promiscuous	If true capture all possible packets available at the device.
explicitFilename	Treat the prefix as an explicit filename if true

Implements ns3::PcapHelperForDevice.

Reimplemented in ns3::YansWavePhyHelper.

Definition at line 598 of file wifi-helper.cc.

References ns3::PcapHelper::CreateFile(), create-module::file, ns3::PcapHelper::GetFilenameFromDevice(), ns3::WifiNetDevice::GetPhy(), m_pcapDlt, ns3::MakeBoundCallback(), NS_ABORT_MSG_IF, NS_LOG_FUNCTION, NS_LOG_INFO, PcapSniffRxEvent(), PcapSniffTxEvent(), and third::phy.

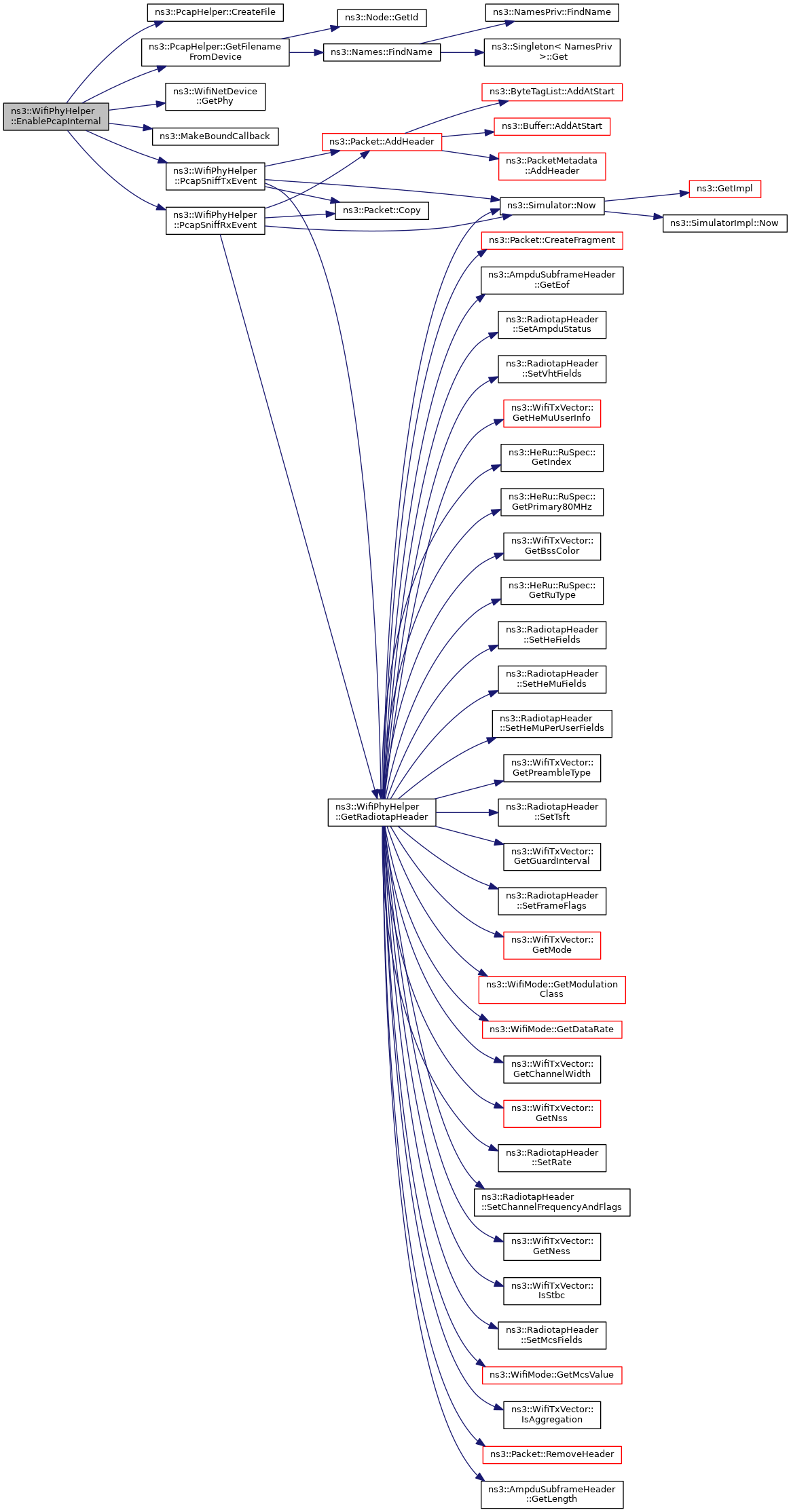

Here is the call graph for this function:

GetPcapDataLinkType()

PcapHelper::DataLinkType ns3::WifiPhyHelper::GetPcapDataLinkType

(

void

)

const

Get the data link type of PCAP traces to be used.

See also

SupportedPcapDataLinkTypes

Returns

The data link type of the pcap file (and packets) to be used

Definition at line 592 of file wifi-helper.cc.

References m_pcapDlt.

Referenced by ns3::YansWavePhyHelper::EnablePcapInternal().

Here is the caller graph for this function:

GetRadiotapHeader() [1/2]

void ns3::WifiPhyHelper::GetRadiotapHeader ( RadiotapHeader &  header, Ptr< Packet >  packet, uint16_t  channelFreqMhz, WifiTxVector  txVector, MpduInfo  aMpdu, uint16_t  staId  )

staticprivate

Get the Radiotap header for a transmitted packet.

Parameters

header	the radiotap header to be filled in
packet	the packet
channelFreqMhz	the channel frequency
txVector	the TXVECTOR
aMpdu	the A-MPDU information
staId	the STA-ID

Definition at line 305 of file wifi-helper.cc.

References ns3::RadiotapHeader::A_MPDU_STATUS_LAST, ns3::RadiotapHeader::A_MPDU_STATUS_LAST_KNOWN, ns3::RadiotapHeader::A_MPDU_STATUS_NONE, ns3::RadiotapHeader::CHANNEL_FLAG_CCK, ns3::RadiotapHeader::CHANNEL_FLAG_OFDM, ns3::RadiotapHeader::CHANNEL_FLAG_SPECTRUM_2GHZ, ns3::RadiotapHeader::CHANNEL_FLAG_SPECTRUM_5GHZ, ns3::Packet::CreateFragment(), ns3::RadiotapHeader::FRAME_FLAG_FCS_INCLUDED, ns3::RadiotapHeader::FRAME_FLAG_NONE, ns3::RadiotapHeader::FRAME_FLAG_SHORT_GUARD, ns3::RadiotapHeader::FRAME_FLAG_SHORT_PREAMBLE, ns3::WifiTxVector::GetBssColor(), ns3::WifiTxVector::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::AmpduSubframeHeader::GetEof(), ns3::WifiTxVector::GetGuardInterval(), ns3::WifiTxVector::GetHeMuUserInfo(), ns3::HeRu::RuSpec::GetIndex(), ns3::AmpduSubframeHeader::GetLength(), ns3::WifiMode::GetMcsValue(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::WifiTxVector::GetNess(), ns3::WifiTxVector::GetNss(), ns3::WifiTxVector::GetPreambleType(), ns3::HeRu::RuSpec::GetPrimary80MHz(), ns3::HeRu::RuSpec::GetRuType(), ns3::RadiotapHeader::HE_DATA1_BSS_COLOR_KNOWN, ns3::RadiotapHeader::HE_DATA1_BW_RU_ALLOC_KNOWN, ns3::RadiotapHeader::HE_DATA1_DATA_MCS_KNOWN, ns3::RadiotapHeader::HE_DATA1_FORMAT_EXT_SU, ns3::RadiotapHeader::HE_DATA1_FORMAT_MU, ns3::RadiotapHeader::HE_DATA1_FORMAT_TRIG, ns3::RadiotapHeader::HE_DATA1_SPTL_REUSE2_KNOWN, ns3::RadiotapHeader::HE_DATA2_GI_KNOWN, ns3::RadiotapHeader::HE_DATA2_RU_OFFSET_KNOWN, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_106T, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_160MHZ, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_242T, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_26T, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_2x996T, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_40MHZ, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_484T, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_52T, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_80MHZ, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_996T, ns3::RadiotapHeader::HE_DATA5_GI_1_6, ns3::RadiotapHeader::HE_DATA5_GI_3_2, ns3::WifiTxVector::IsAggregation(), ns3::WifiTxVector::IsStbc(), ns3::LAST_MPDU_IN_AGGREGATE, ns3::RadiotapHeader::MCS_FLAGS_BANDWIDTH_40, ns3::RadiotapHeader::MCS_FLAGS_GUARD_INTERVAL, ns3::RadiotapHeader::MCS_FLAGS_NESS_BIT_0, ns3::RadiotapHeader::MCS_FLAGS_NONE, ns3::RadiotapHeader::MCS_FLAGS_STBC_STREAMS, ns3::RadiotapHeader::MCS_KNOWN_BANDWIDTH, ns3::RadiotapHeader::MCS_KNOWN_FEC_TYPE, ns3::RadiotapHeader::MCS_KNOWN_GUARD_INTERVAL, ns3::RadiotapHeader::MCS_KNOWN_HT_FORMAT, ns3::RadiotapHeader::MCS_KNOWN_INDEX, ns3::RadiotapHeader::MCS_KNOWN_NESS, ns3::RadiotapHeader::MCS_KNOWN_NESS_BIT_1, ns3::RadiotapHeader::MCS_KNOWN_NONE, ns3::RadiotapHeader::MCS_KNOWN_STBC, ns3::MpduInfo::mpduRefNumber, ns3::Simulator::Now(), NS_ABORT_MSG, ns3::Packet::RemoveHeader(), ns3::HeMuUserInfo::ru, ns3::HeRu::RU_106_TONE, ns3::HeRu::RU_242_TONE, ns3::HeRu::RU_26_TONE, ns3::HeRu::RU_2x996_TONE, ns3::HeRu::RU_484_TONE, ns3::HeRu::RU_52_TONE, ns3::HeRu::RU_996_TONE, ns3::RadiotapHeader::SetAmpduStatus(), ns3::RadiotapHeader::SetChannelFrequencyAndFlags(), ns3::RadiotapHeader::SetFrameFlags(), ns3::RadiotapHeader::SetHeFields(), ns3::RadiotapHeader::SetHeMuFields(), ns3::RadiotapHeader::SetHeMuPerUserFields(), ns3::RadiotapHeader::SetMcsFields(), ns3::RadiotapHeader::SetRate(), ns3::RadiotapHeader::SetTsft(), ns3::RadiotapHeader::SetVhtFields(), ns3::MpduInfo::type, ns3::RadiotapHeader::VHT_FLAGS_GUARD_INTERVAL, ns3::RadiotapHeader::VHT_FLAGS_NONE, ns3::RadiotapHeader::VHT_FLAGS_STBC, ns3::RadiotapHeader::VHT_KNOWN_BANDWIDTH, ns3::RadiotapHeader::VHT_KNOWN_BEAMFORMED, ns3::RadiotapHeader::VHT_KNOWN_GUARD_INTERVAL, ns3::RadiotapHeader::VHT_KNOWN_NONE, ns3::RadiotapHeader::VHT_KNOWN_STBC, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_VHT, ns3::WIFI_PREAMBLE_HE_ER_SU, ns3::WIFI_PREAMBLE_HE_MU, ns3::WIFI_PREAMBLE_HE_TB, and ns3::WIFI_PREAMBLE_SHORT.

Referenced by GetRadiotapHeader(), PcapSniffRxEvent(), and PcapSniffTxEvent().

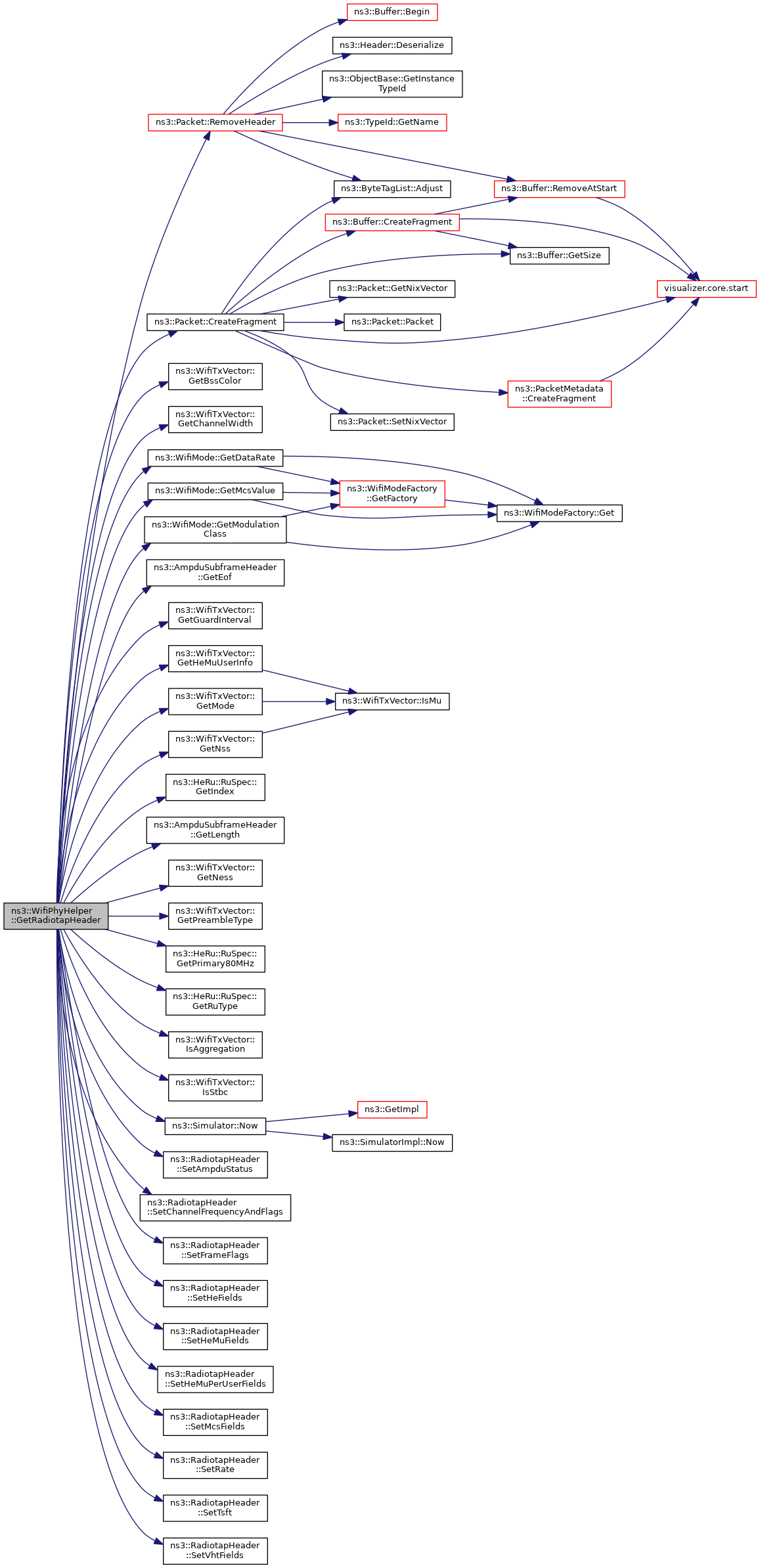

Here is the call graph for this function:

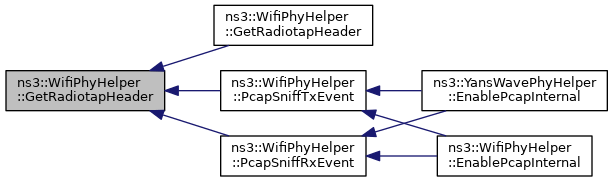

Here is the caller graph for this function:

GetRadiotapHeader() [2/2]

void ns3::WifiPhyHelper::GetRadiotapHeader ( RadiotapHeader &  header, Ptr< Packet >  packet, uint16_t  channelFreqMhz, WifiTxVector  txVector, MpduInfo  aMpdu, uint16_t  staId, SignalNoiseDbm  signalNoise  )

staticprivate

Get the Radiotap header for a received packet.

Parameters

header	the radiotap header to be filled in
packet	the packet
channelFreqMhz	the channel frequency
txVector	the TXVECTOR
aMpdu	the A-MPDU information
staId	the STA-ID
signalNoise	the rx signal and noise information

Definition at line 290 of file wifi-helper.cc.

References GetRadiotapHeader(), ns3::SignalNoiseDbm::noise, ns3::RadiotapHeader::SetAntennaNoisePower(), ns3::RadiotapHeader::SetAntennaSignalPower(), and ns3::SignalNoiseDbm::signal.

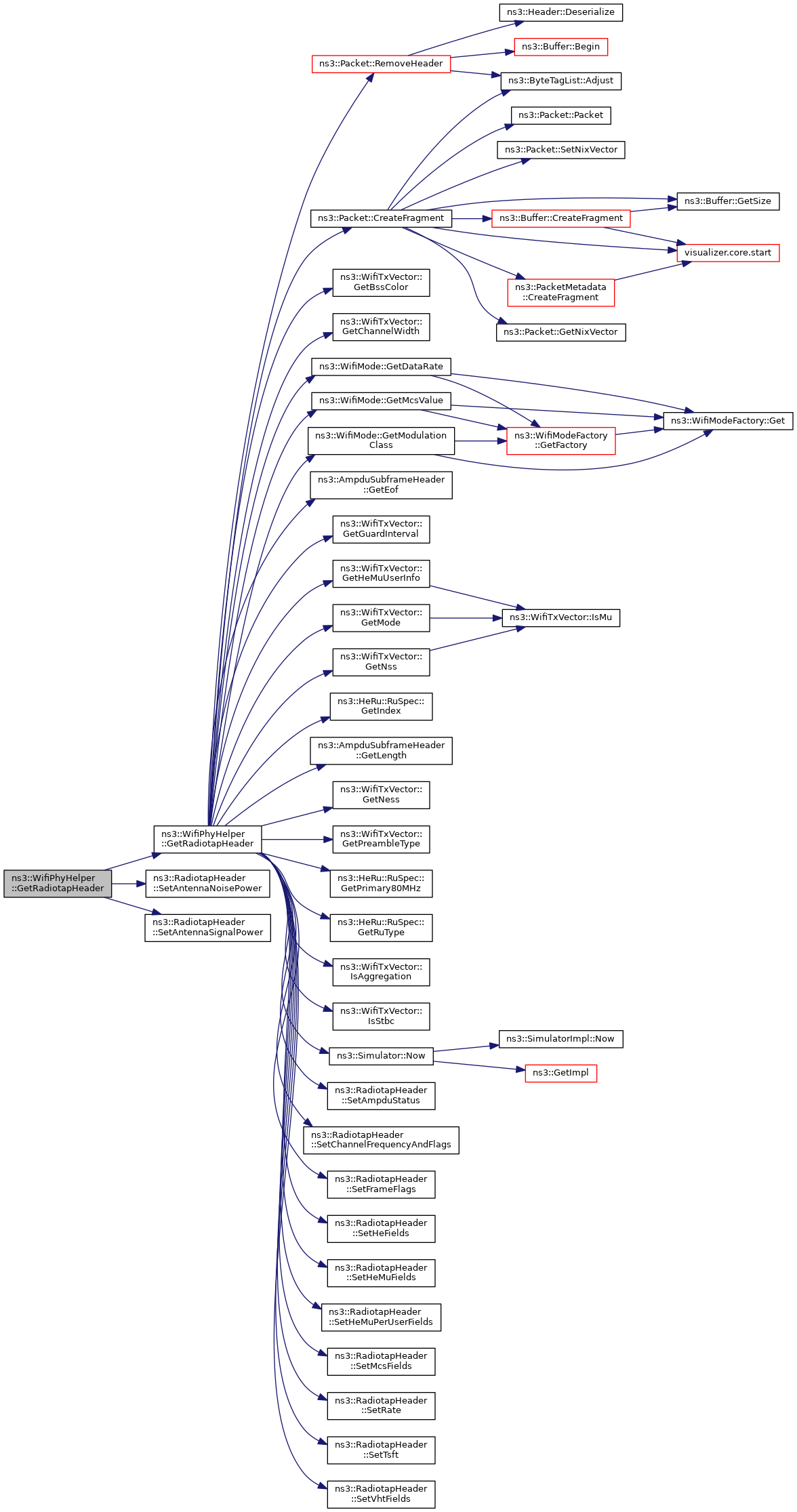

Here is the call graph for this function:

PcapSniffRxEvent()

void ns3::WifiPhyHelper::PcapSniffRxEvent ( Ptr< PcapFileWrapper >  file, Ptr< const Packet >  packet, uint16_t  channelFreqMhz, WifiTxVector  txVector, MpduInfo  aMpdu, SignalNoiseDbm  signalNoise, uint16_t  staId = SU_STA_ID  )

staticprotected

Parameters

file	the pcap file wrapper
packet	the packet
channelFreqMhz	the channel frequency
txVector	the TXVECTOR
aMpdu	the A-MPDU information
signalNoise	the RX signal and noise information
staId	the STA-ID (only used for MU)

Handle RX pcap.

Definition at line 255 of file wifi-helper.cc.

References ns3::Packet::AddHeader(), ns3::Packet::Copy(), ns3::PcapHelper::DLT_IEEE802_11, ns3::PcapHelper::DLT_IEEE802_11_RADIO, ns3::PcapHelper::DLT_PRISM_HEADER, create-module::file, GetRadiotapHeader(), ns3::Simulator::Now(), NS_ABORT_MSG, and NS_FATAL_ERROR.

Referenced by ns3::YansWavePhyHelper::EnablePcapInternal(), and EnablePcapInternal().

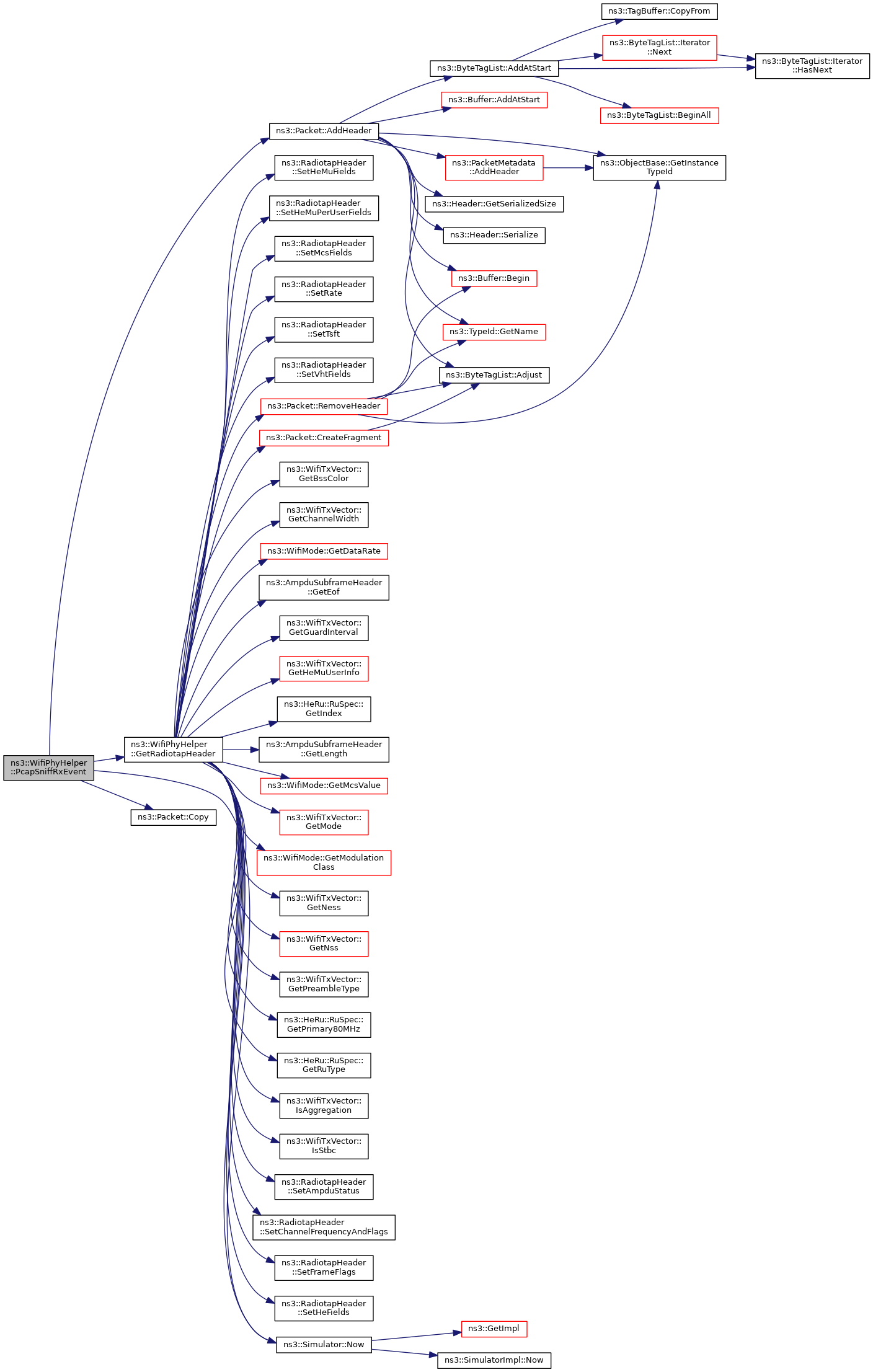

Here is the call graph for this function:

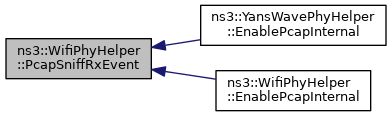

Here is the caller graph for this function:

PcapSniffTxEvent()

void ns3::WifiPhyHelper::PcapSniffTxEvent ( Ptr< PcapFileWrapper >  file, Ptr< const Packet >  packet, uint16_t  channelFreqMhz, WifiTxVector  txVector, MpduInfo  aMpdu, uint16_t  staId = SU_STA_ID  )

staticprotected

Parameters

file	the pcap file wrapper
packet	the packet
channelFreqMhz	the channel frequency
txVector	the TXVECTOR
aMpdu	the A-MPDU information
staId	the STA-ID (only used for MU)

Handle TX pcap.

Definition at line 221 of file wifi-helper.cc.

References ns3::Packet::AddHeader(), ns3::Packet::Copy(), ns3::PcapHelper::DLT_IEEE802_11, ns3::PcapHelper::DLT_IEEE802_11_RADIO, ns3::PcapHelper::DLT_PRISM_HEADER, create-module::file, GetRadiotapHeader(), ns3::Simulator::Now(), NS_ABORT_MSG, and NS_FATAL_ERROR.

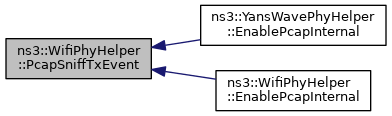

Referenced by ns3::YansWavePhyHelper::EnablePcapInternal(), and EnablePcapInternal().

Here is the call graph for this function:

Here is the caller graph for this function:

Set()

void ns3::WifiPhyHelper::Set	(	std::string	name,
		const AttributeValue &	v
	)

Parameters

name	the name of the attribute to set
v	the value of the attribute

Set an attribute of the underlying PHY object.

Definition at line 140 of file wifi-helper.cc.

References m_phy, and ns3::ObjectFactory::Set().

Referenced by BatteryLifetimeTest::ConstantLoadTest(), Bug772ChainTest::CreateDevices(), BasicEnergyDepletionTest::DepletionTestCase(), Bug2843TestCase::DoRun(), TestUlOfdmaPowerControl::DoSetup(), RoutingExperiment::Run(), VanetRoutingExperiment::SetupAdhocDevices(), and BatteryLifetimeTest::VariableLoadTest().

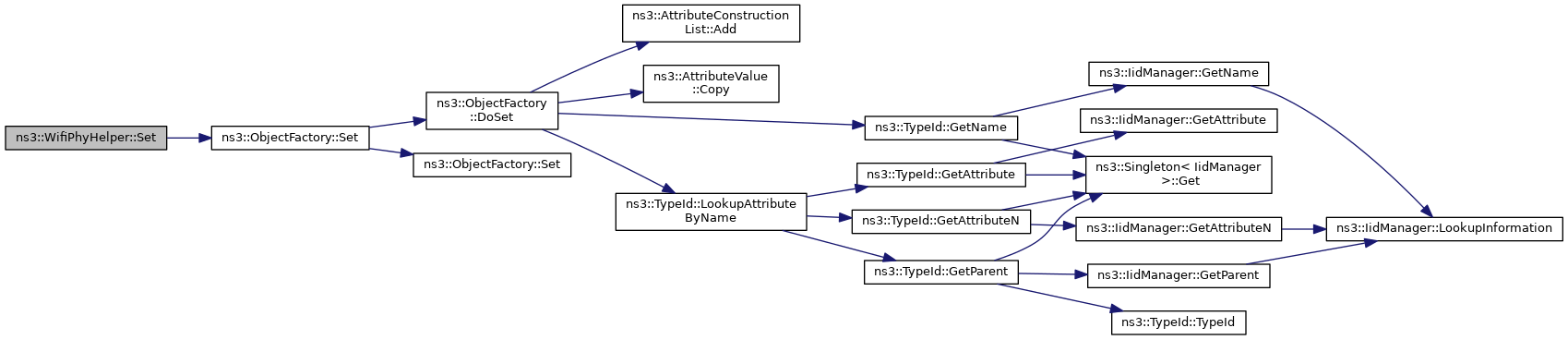

Here is the call graph for this function:

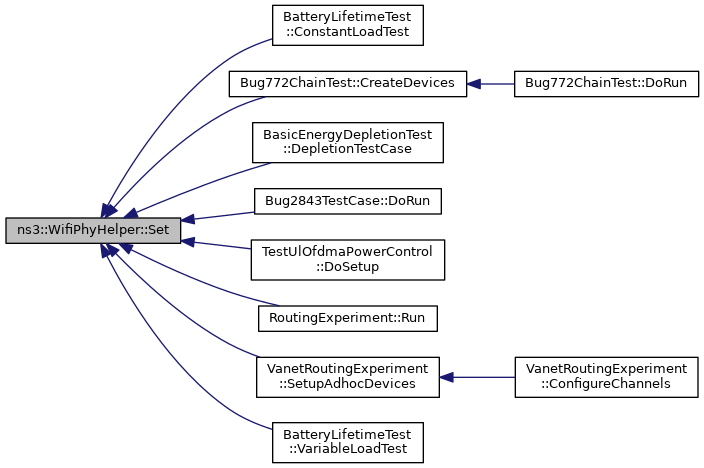

Here is the caller graph for this function:

SetErrorRateModel()

void ns3::WifiPhyHelper::SetErrorRateModel	(	std::string	name,
		std::string	n0 = "",
		const AttributeValue &	v0 = EmptyAttributeValue (),
		std::string	n1 = "",
		const AttributeValue &	v1 = EmptyAttributeValue (),
		std::string	n2 = "",
		const AttributeValue &	v2 = EmptyAttributeValue (),
		std::string	n3 = "",
		const AttributeValue &	v3 = EmptyAttributeValue (),
		std::string	n4 = "",
		const AttributeValue &	v4 = EmptyAttributeValue (),
		std::string	n5 = "",
		const AttributeValue &	v5 = EmptyAttributeValue (),
		std::string	n6 = "",
		const AttributeValue &	v6 = EmptyAttributeValue (),
		std::string	n7 = "",
		const AttributeValue &	v7 = EmptyAttributeValue ()
	)

Parameters

name	the name of the error rate model to set.
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set

Set the error rate model and its attributes to use when Install is called.

Definition at line 146 of file wifi-helper.cc.

References m_errorRateModel, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by Bug772ChainTest::CreateDevices(), HwmpProactiveRegressionTest::CreateDevices(), FlameRegressionTest::CreateDevices(), HwmpDoRfRegressionTest::CreateDevices(), HwmpReactiveRegressionTest::CreateDevices(), ChainRegressionTest::CreateDevices(), ns3::YansWavePhyHelper::Default(), Bug2843TestCase::DoRun(), TestUlOfdmaPowerControl::DoSetup(), ns3::SpectrumWifiPhyHelper::SpectrumWifiPhyHelper(), and ns3::YansWifiPhyHelper::YansWifiPhyHelper().

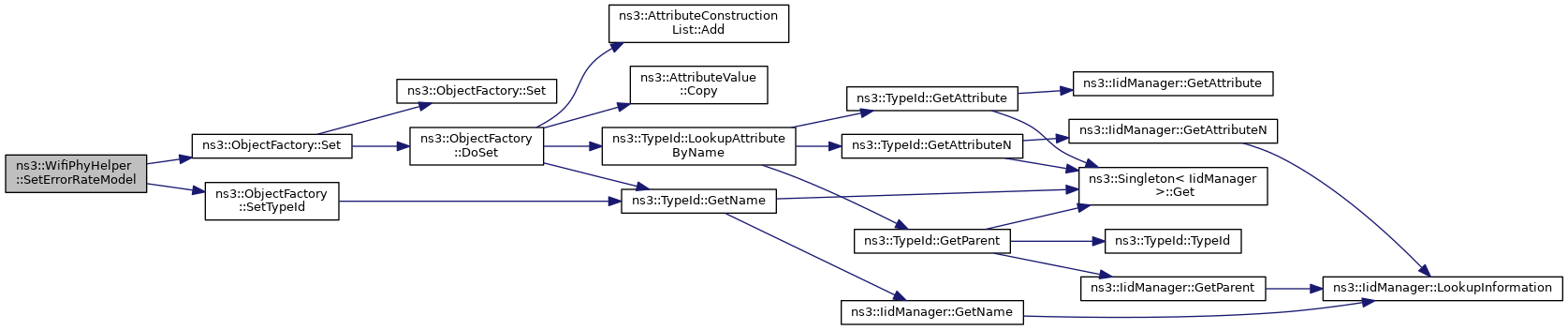

Here is the call graph for this function:

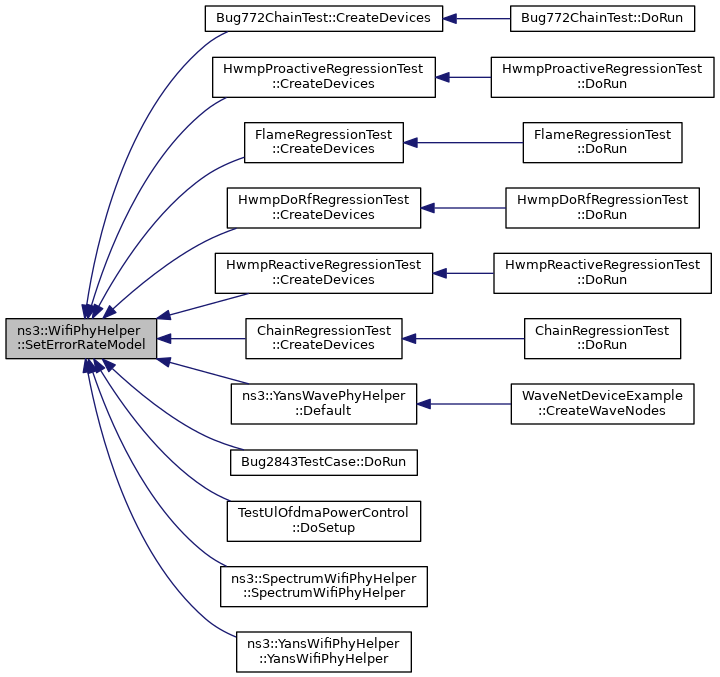

Here is the caller graph for this function:

SetFrameCaptureModel()

void ns3::WifiPhyHelper::SetFrameCaptureModel	(	std::string	name,
		std::string	n0 = "",
		const AttributeValue &	v0 = EmptyAttributeValue (),
		std::string	n1 = "",
		const AttributeValue &	v1 = EmptyAttributeValue (),
		std::string	n2 = "",
		const AttributeValue &	v2 = EmptyAttributeValue (),
		std::string	n3 = "",
		const AttributeValue &	v3 = EmptyAttributeValue (),
		std::string	n4 = "",
		const AttributeValue &	v4 = EmptyAttributeValue (),
		std::string	n5 = "",
		const AttributeValue &	v5 = EmptyAttributeValue (),
		std::string	n6 = "",
		const AttributeValue &	v6 = EmptyAttributeValue (),
		std::string	n7 = "",
		const AttributeValue &	v7 = EmptyAttributeValue ()
	)

Parameters

name	the name of the frame capture model to set.
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set

Set the frame capture model and its attributes to use when Install is called.

Definition at line 169 of file wifi-helper.cc.

References m_frameCaptureModel, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

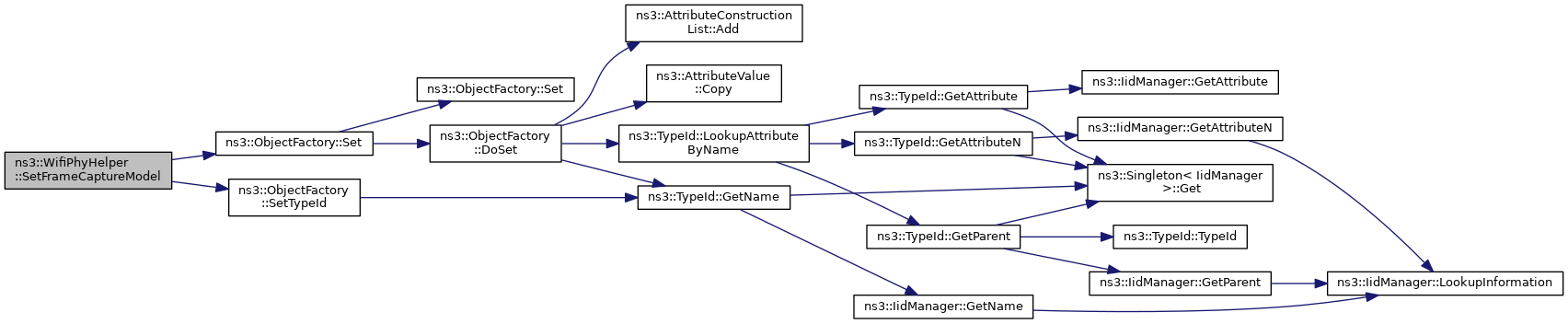

Here is the call graph for this function:

SetPcapDataLinkType()

void ns3::WifiPhyHelper::SetPcapDataLinkType

(

SupportedPcapDataLinkTypes

dlt

)

Set the data link type of PCAP traces to be used.

This function has to be called before EnablePcap(), so that the header of the pcap file can be written correctly.

See also

SupportedPcapDataLinkTypes

Parameters

dlt	The data link type of the pcap file (and packets) to be used

Definition at line 573 of file wifi-helper.cc.

References ns3::PcapHelper::DLT_IEEE802_11, DLT_IEEE802_11, ns3::PcapHelper::DLT_IEEE802_11_RADIO, DLT_IEEE802_11_RADIO, ns3::PcapHelper::DLT_PRISM_HEADER, DLT_PRISM_HEADER, m_pcapDlt, and NS_ABORT_MSG.

Referenced by BatteryLifetimeTest::ConstantLoadTest(), WaveNetDeviceExample::CreateWaveNodes(), BasicEnergyDepletionTest::DepletionTestCase(), WifiMsduAggregatorThroughputTest::DoRun(), VanetRoutingExperiment::SetupAdhocDevices(), and BatteryLifetimeTest::VariableLoadTest().

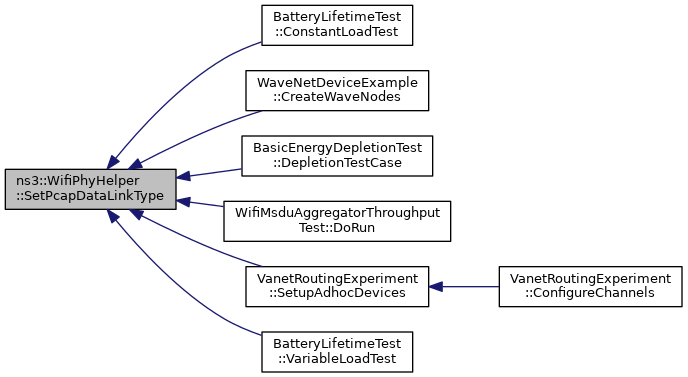

Here is the caller graph for this function:

SetPreambleDetectionModel()

void ns3::WifiPhyHelper::SetPreambleDetectionModel	(	std::string	name,
		std::string	n0 = "",
		const AttributeValue &	v0 = EmptyAttributeValue (),
		std::string	n1 = "",
		const AttributeValue &	v1 = EmptyAttributeValue (),
		std::string	n2 = "",
		const AttributeValue &	v2 = EmptyAttributeValue (),
		std::string	n3 = "",
		const AttributeValue &	v3 = EmptyAttributeValue (),
		std::string	n4 = "",
		const AttributeValue &	v4 = EmptyAttributeValue (),
		std::string	n5 = "",
		const AttributeValue &	v5 = EmptyAttributeValue (),
		std::string	n6 = "",
		const AttributeValue &	v6 = EmptyAttributeValue (),
		std::string	n7 = "",
		const AttributeValue &	v7 = EmptyAttributeValue ()
	)

Parameters

name	the name of the preamble detection model to set.
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set

Set the preamble detection model and its attributes to use when Install is called.

Definition at line 192 of file wifi-helper.cc.

References m_preambleDetectionModel, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by WifiPhyHelper().

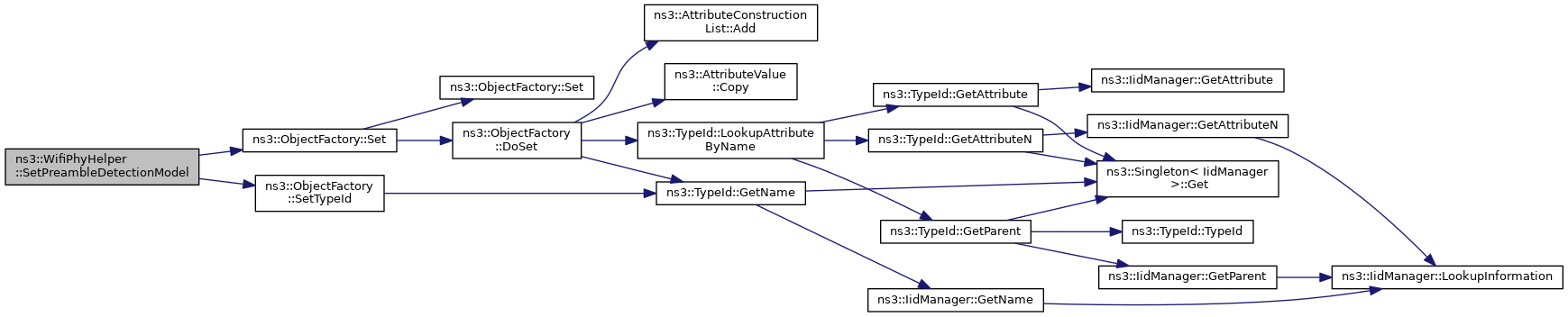

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_errorRateModel

ObjectFactory ns3::WifiPhyHelper::m_errorRateModel

protected

error rate model

Definition at line 241 of file wifi-helper.h.

Referenced by ns3::SpectrumWifiPhyHelper::Create(), ns3::YansWifiPhyHelper::Create(), and SetErrorRateModel().

m_frameCaptureModel

ObjectFactory ns3::WifiPhyHelper::m_frameCaptureModel

protected

frame capture model

Definition at line 242 of file wifi-helper.h.

Referenced by ns3::SpectrumWifiPhyHelper::Create(), ns3::YansWifiPhyHelper::Create(), and SetFrameCaptureModel().

m_pcapDlt

PcapHelper::DataLinkType ns3::WifiPhyHelper::m_pcapDlt

private

PCAP data link type.

Definition at line 315 of file wifi-helper.h.

Referenced by EnablePcapInternal(), GetPcapDataLinkType(), and SetPcapDataLinkType().

m_phy

ObjectFactory ns3::WifiPhyHelper::m_phy

protected

PHY object.

Definition at line 240 of file wifi-helper.h.

Referenced by ns3::SpectrumWifiPhyHelper::Create(), ns3::YansWifiPhyHelper::Create(), Set(), ns3::SpectrumWifiPhyHelper::SpectrumWifiPhyHelper(), and ns3::YansWifiPhyHelper::YansWifiPhyHelper().

m_preambleDetectionModel

ObjectFactory ns3::WifiPhyHelper::m_preambleDetectionModel

protected

preamble detection model

Definition at line 243 of file wifi-helper.h.

Referenced by ns3::SpectrumWifiPhyHelper::Create(), ns3::YansWifiPhyHelper::Create(), DisablePreambleDetectionModel(), and SetPreambleDetectionModel().

---

The documentation for this class was generated from the following files:

• src/wifi/helper/wifi-helper.h
• src/wifi/helper/wifi-helper.cc
