wifi-mode.h File Reference

#include "wifi-phy-common.h"
#include "ns3/attribute-helper.h"
#include "ns3/callback.h"
#include <vector>

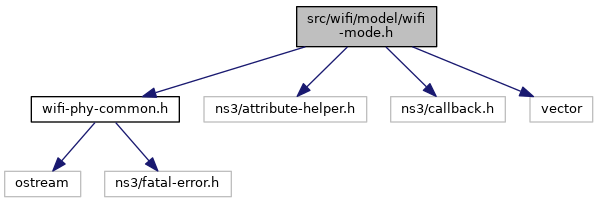

Include dependency graph for wifi-mode.h:

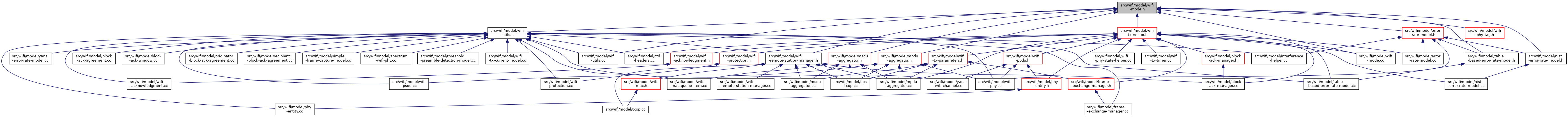

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	ns3::WifiMode
	represent a single transmission modeA WifiMode is implemented by a single integer which is used to lookup in a global array the characteristics of the associated transmission mode. More...
class	ns3::WifiModeChecker
	AttributeChecker implementation for WifiModeValue. More...
class	ns3::WifiModeFactory
	create WifiMode class instances and keep track of them. More...
struct	ns3::WifiModeFactory::WifiModeItem
	This is the data associated to a unique WifiMode. More...
class	ns3::WifiModeValue
	AttributeValue implementation for WifiMode. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Macros
#define	SU_STA_ID   65535

Typedefs
typedef std::vector< WifiMode >	ns3::WifiModeList
	In various parts of the code, folk are interested in maintaining a list of transmission modes. More...
typedef WifiModeList::const_iterator	ns3::WifiModeListIterator
	An iterator for WifiModeList vector. More...

Functions
template<typename T1 >
Ptr< const AttributeAccessor >	ns3::MakeWifiModeAccessor (T1 a1)
	Create an AttributeAccessor for a class data member, or a lone class get functor or set method. More...
template<typename T1 , typename T2 >
Ptr< const AttributeAccessor >	ns3::MakeWifiModeAccessor (T1 a1, T2 a2)
	Create an AttributeAccessor using a pair of get functor and set methods from a class. More...
Ptr< const AttributeChecker >	ns3::MakeWifiModeChecker (void)
	More...
bool	ns3::operator!= (const WifiMode &a, const WifiMode &b)
	Check if the two WifiModes are different. More...
bool	ns3::operator< (const WifiMode &a, const WifiMode &b)
	Compare two WifiModes. More...
std::ostream &	ns3::operator<< (std::ostream &os, const WifiMode &mode)
	Serialize WifiMode to ostream (human-readable). More...
bool	ns3::operator== (const WifiMode &a, const WifiMode &b)
	Check if the two WifiModes are identical. More...
std::istream &	ns3::operator>> (std::istream &is, WifiMode &mode)
	Serialize WifiMode from istream (human-readable). More...

Macro Definition Documentation

SU_STA_ID

#define SU_STA_ID   65535

Definition at line 32 of file wifi-mode.h.

Referenced by OfdmaAckSequenceTest::CheckResults(), TxDurationTest::CheckTxDuration(), ns3::YansErrorRateModel::DoGetChunkSuccessRate(), ns3::ApWifiMac::GetAssociationId(), ns3::HePpdu::GetPsdu(), ns3::WifiPpdu::GetStaId(), ns3::PhyEntity::GetStaId(), ns3::WifiRemoteStationManager::GetStaId(), ns3::HePpdu::GetTransmissionChannelWidth(), ns3::PhyEntity::GetWifiConstPsduMap(), ns3::HePhy::GetWifiConstPsduMap(), PreservePacketsInAmpdus::NotifyPsduForwardedDown(), ns3::HePpdu::PrintPayload(), WifiPrimaryChannelsTest::SendDlSuPpdu(), TestUlOfdmaPhyTransmission::SendHeSuPpdu(), TestUlOfdmaPowerControl::SendMuBar(), SpectrumWifiPhyFilterTest::SendPpdu(), TestUlOfdmaPpduUid::SendSuPpdu(), ns3::HeFrameExchangeManager::StartFrameExchange(), ns3::HeFrameExchangeManager::TbPpduTimeout(), WifiTxopTest::Transmit(), WifiPrimaryChannelsTest::Transmit(), and ns3::WifiPpdu::WifiPpdu().
