WifiProtectionManager is an abstract base class. More...

#include "wifi-protection-manager.h"

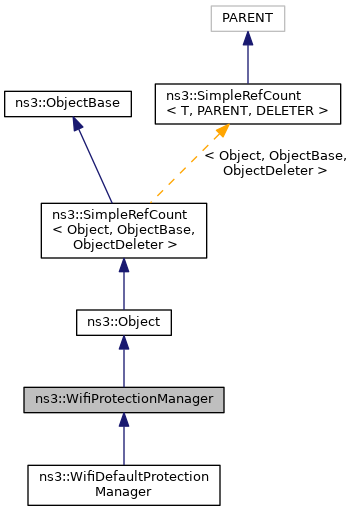

Inheritance diagram for ns3::WifiProtectionManager:

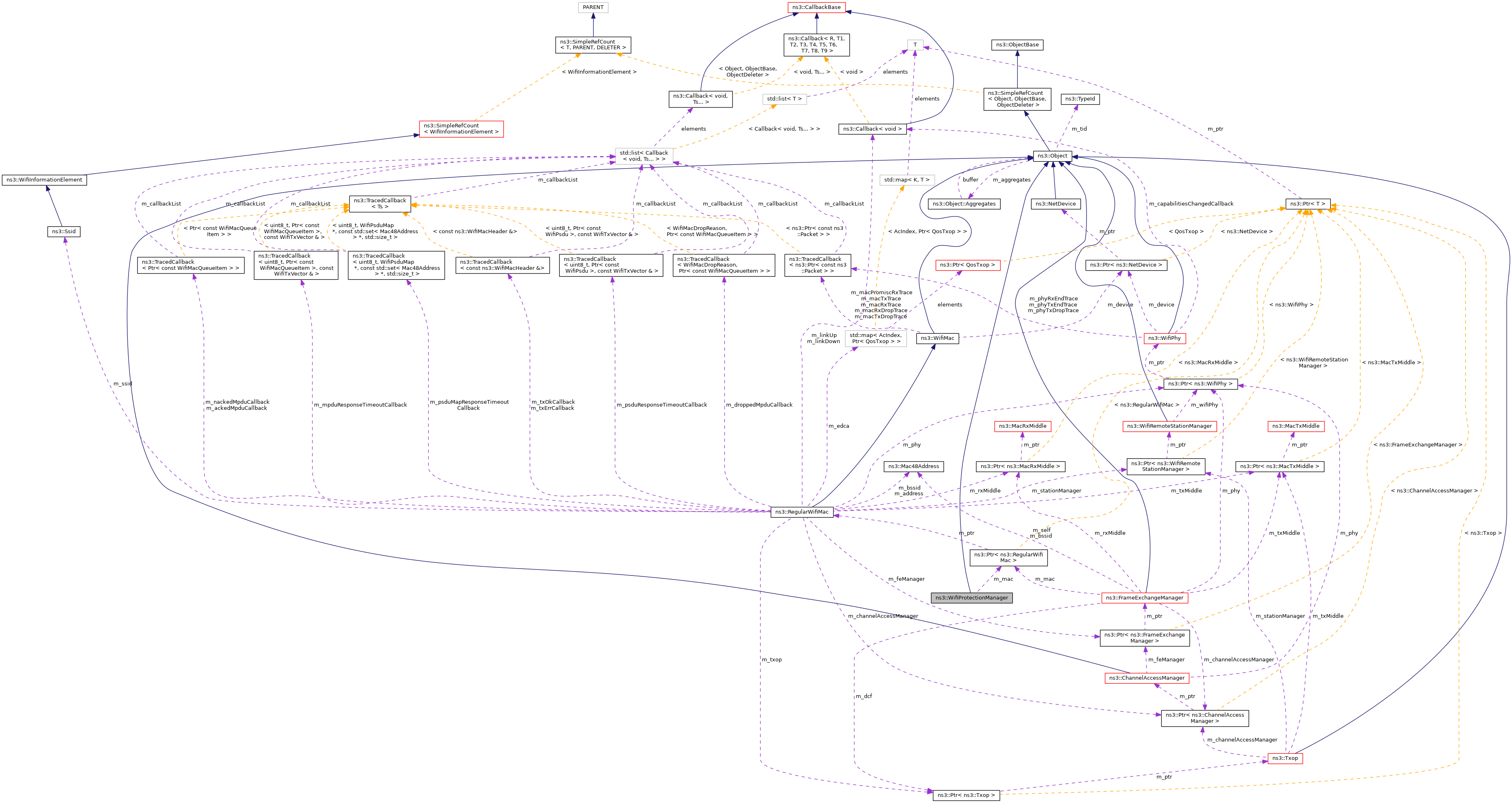

Collaboration diagram for ns3::WifiProtectionManager:

Public Member Functions
virtual	~WifiProtectionManager ()

void	SetWifiMac (Ptr< RegularWifiMac > mac)
	Set the MAC which is using this Protection Manager. More...

virtual std::unique_ptr< WifiProtection >	TryAddMpdu (Ptr< const WifiMacQueueItem > mpdu, const WifiTxParameters &txParams)=0
	Determine the protection method to use if the given MPDU is added to the current frame. More...

virtual std::unique_ptr< WifiProtection >	TryAggregateMsdu (Ptr< const WifiMacQueueItem > msdu, const WifiTxParameters &txParams)=0
	Determine the protection method to use if the given MSDU is aggregated to the current frame. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
Ptr< RegularWifiMac >	m_mac
	MAC which is using this Protection Manager. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

WifiProtectionManager is an abstract base class.

Introspection did not find any typical Config paths.

Each subclass defines a logic to select the protection method for a given frame.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 41 of file wifi-protection-manager.h.

Constructor & Destructor Documentation

◆ ~WifiProtectionManager()

ns3::WifiProtectionManager::~WifiProtectionManager ( )

virtual

Definition at line 42 of file wifi-protection-manager.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

◆ DoDispose()

void ns3::WifiProtectionManager::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 48 of file wifi-protection-manager.cc.

References ns3::Object::DoDispose(), m_mac, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::WifiProtectionManager::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 33 of file wifi-protection-manager.cc.

References ns3::TypeId::SetParent().

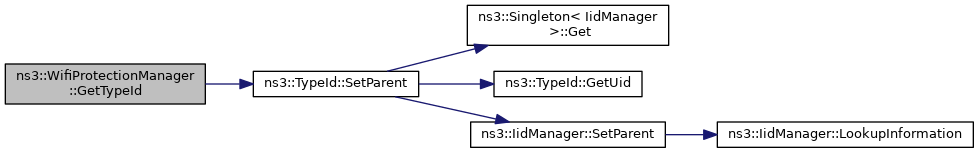

Here is the call graph for this function:

◆ SetWifiMac()

void ns3::WifiProtectionManager::SetWifiMac ( Ptr< RegularWifiMac > mac )

Set the MAC which is using this Protection Manager.

Parameters

mac	a pointer to the MAC

Definition at line 56 of file wifi-protection-manager.cc.

References m_mac, third::mac, and NS_LOG_FUNCTION.

Referenced by PowerRateAdaptationTest::ConfigureNode(), WifiTest::CreateOne(), InterferenceHelperSequenceTest::CreateOne(), AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), DcfImmediateAccessBroadcastTestCase::DoRun(), Bug2831TestCase::DoRun(), and HeAggregationTest::DoRunSubTest().

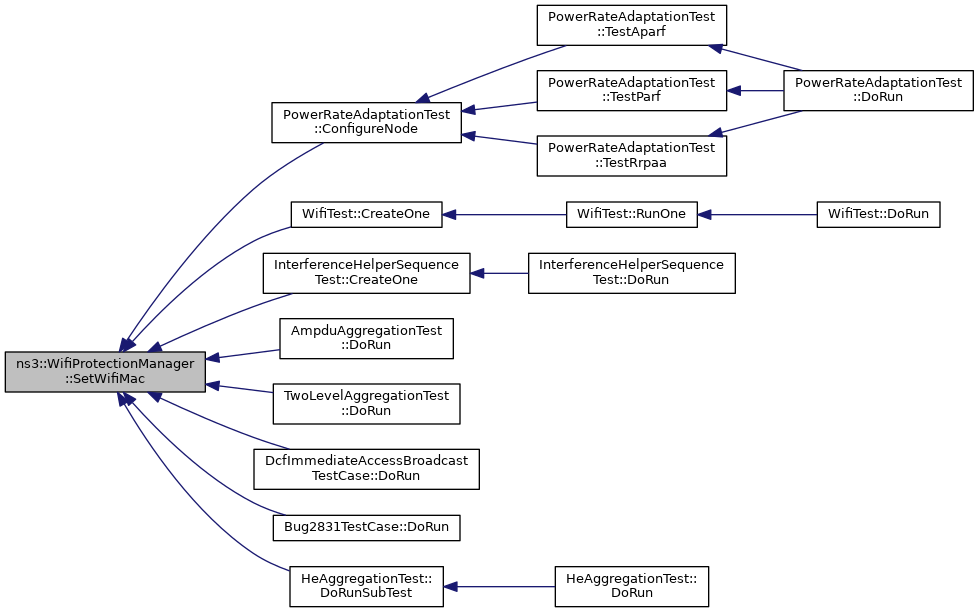

Here is the caller graph for this function:

◆ TryAddMpdu()

virtual std::unique_ptr<WifiProtection> ns3::WifiProtectionManager::TryAddMpdu	(	Ptr< const WifiMacQueueItem >	mpdu,
		const WifiTxParameters &	txParams
	)

pure virtual

Determine the protection method to use if the given MPDU is added to the current frame.

Return a null pointer if the protection method is unchanged or the new protection method otherwise.

Parameters

mpdu	the MPDU to be added to the current frame
txParams	the current TX parameters for the current frame

Returns: a null pointer if the protection method is unchanged or the new protection method otherwise

Implemented in ns3::WifiDefaultProtectionManager.

◆ TryAggregateMsdu()

virtual std::unique_ptr<WifiProtection> ns3::WifiProtectionManager::TryAggregateMsdu	(	Ptr< const WifiMacQueueItem >	msdu,
		const WifiTxParameters &	txParams
	)

pure virtual

Determine the protection method to use if the given MSDU is aggregated to the current frame.

Return a null pointer if the protection method is unchanged or the new protection method otherwise.

Parameters

msdu	the MSDU to be aggregated to the current frame
txParams	the current TX parameters for the current frame

Returns: a null pointer if the protection method is unchanged or the new protection method otherwise

Implemented in ns3::WifiDefaultProtectionManager.

Member Data Documentation

◆ m_mac

Ptr<RegularWifiMac> ns3::WifiProtectionManager::m_mac

protected

MAC which is using this Protection Manager.

Definition at line 87 of file wifi-protection-manager.h.

Referenced by DoDispose(), ns3::WifiDefaultProtectionManager::GetPsduProtection(), and SetWifiMac().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-protection-manager.h
src/wifi/model/wifi-protection-manager.cc
