ns-3: NixVectorRoutingTest Class Reference

A Discrete-Event Network Simulator

API

The topology is of the form: More...

Inheritance diagram for NixVectorRoutingTest:

Collaboration diagram for NixVectorRoutingTest:

Public Member Functions
	NixVectorRoutingTest ()

virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

void	ReceivePkt (Ptr< Socket > socket)
	Receive data. More...

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Public Attributes
std::vector< uint32_t >	m_receivedPacketSizes
	Received packet sizes. More...

Private Member Functions
void	DoSendDatav4 (Ptr< Socket > socket, Ipv4Address to)
	Send data immediately after being called. More...

void	DoSendDatav6 (Ptr< Socket > socket, Ipv6Address to)
	Send data immediately after being called. More...

void	SendData (Time delay, Ptr< Socket > socket, Ipv4Address to)
	Schedules the DoSendData () function to send the data. More...

void	SendData (Time delay, Ptr< Socket > socket, Ipv6Address to)
	Schedules the DoSendData () function to send the data. More...

Private Attributes
Ptr< Packet >	m_receivedPacket
	Received packet. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

The topology is of the form:

           __________
          /          \
 nSrc -- nA -- nB -- nC -- nDst

Following are the tests in this test case:

Test the routing from nSrc to nDst.
Test if the path taken is the shortest path. (Set down the interface of nA on nA-nC channel.)
Test if the NixCache and Ipv4RouteCache are empty.
Test the routing from nSrc to nDst again.
Test if the new shortest path is taken. (Set down the interface of nC on nB-nC channel.)
Test that routing is not possible from nSrc to nDst.

IPv4 Nix-Vector Routing Test

Definition at line 66 of file nix-test.cc.

Constructor & Destructor Documentation

◆ NixVectorRoutingTest()

NixVectorRoutingTest::NixVectorRoutingTest ( )

Definition at line 113 of file nix-test.cc.

Member Function Documentation

◆ DoRun()

void NixVectorRoutingTest::DoRun ( void )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 160 of file nix-test.cc.

References ns3::NodeContainer::Add(), ns3::Ipv4AddressHelper::Assign(), ns3::Ipv6AddressHelper::Assign(), ns3::Socket::Bind(), ns3::NodeContainer::Create(), ns3::SocketFactory::CreateSocket(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Ipv6InterfaceContainer::GetAddress(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::Ipv4::GetInterfaceForDevice(), ns3::Ipv6::GetInterfaceForDevice(), ns3::Object::GetObject(), ns3::SimpleNetDeviceHelper::Install(), m_receivedPacketSizes, ns3::MakeCallback(), NS_TEST_EXPECT_MSG_EQ, ns3::NixVectorHelper< T >::PrintRoutingPathAt(), ReceivePkt(), ns3::Seconds(), SendData(), ns3::Socket::SetAllowBroadcast(), ns3::Ipv4AddressHelper::SetBase(), ns3::Ipv6AddressHelper::SetBase(), ns3::SimpleNetDeviceHelper::SetNetDevicePointToPointMode(), ns3::Socket::SetRecvCallback(), and first::stack.

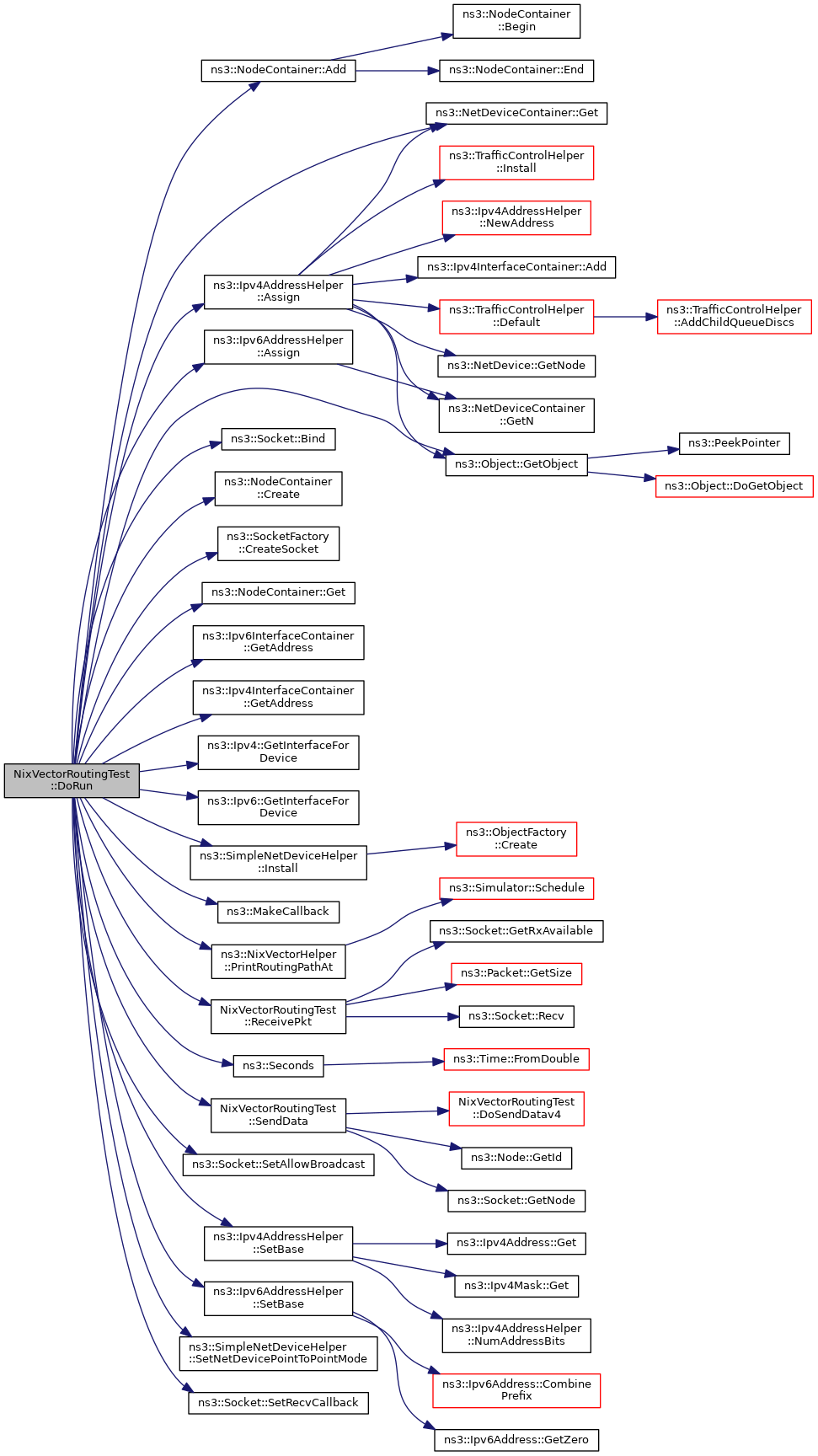

Here is the call graph for this function:

◆ DoSendDatav4()

void NixVectorRoutingTest::DoSendDatav4	(	Ptr< Socket >	socket,
		Ipv4Address	to
	)

private

Send data immediately after being called.

Parameters

socket	The sending socket.
to	IPv4 Destination address.

Definition at line 130 of file nix-test.cc.

References ns3::Socket::SendTo().

Referenced by SendData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoSendDatav6()

void NixVectorRoutingTest::DoSendDatav6	(	Ptr< Socket >	socket,
		Ipv6Address	to
	)

private

Send data immediately after being called.

Parameters

socket	The sending socket.
to	IPv6 Destination address.

Definition at line 137 of file nix-test.cc.

References ns3::Socket::SendTo().

Referenced by SendData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReceivePkt()

void NixVectorRoutingTest::ReceivePkt ( Ptr< Socket > socket )

Receive data.

Parameters

socket The receiving socket.

Definition at line 118 of file nix-test.cc.

References ns3::Socket::GetRxAvailable(), ns3::Packet::GetSize(), m_receivedPacket, m_receivedPacketSizes, max, NS_TEST_ASSERT_MSG_EQ, NS_UNUSED, and ns3::Socket::Recv().

Referenced by DoRun().

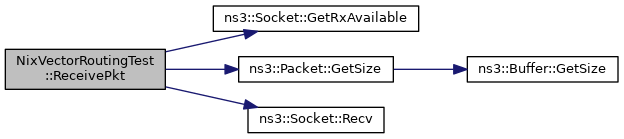

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendData() [1/2]

void NixVectorRoutingTest::SendData	(	Time	delay,
		Ptr< Socket >	socket,
		Ipv4Address	to
	)

private

Schedules the DoSendData () function to send the data.

Parameters

delay	The scheduled time to send data.
socket	The sending socket.
to	IPv4 Destination address.

Definition at line 144 of file nix-test.cc.

References DoSendDatav4(), ns3::Node::GetId(), ns3::Socket::GetNode(), and m_receivedPacket.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendData() [2/2]

void NixVectorRoutingTest::SendData	(	Time	delay,
		Ptr< Socket >	socket,
		Ipv6Address	to
	)

private

Schedules the DoSendData () function to send the data.

Parameters

delay	The scheduled time to send data.
socket	The sending socket.
to	IPv6 Destination address.

Definition at line 152 of file nix-test.cc.

References DoSendDatav6(), ns3::Node::GetId(), ns3::Socket::GetNode(), and m_receivedPacket.

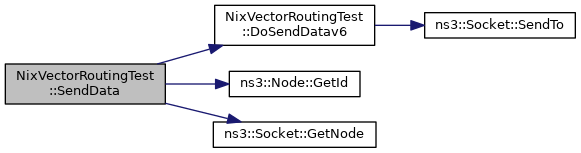

Here is the call graph for this function:

Member Data Documentation

◆ m_receivedPacket

Ptr<Packet> NixVectorRoutingTest::m_receivedPacket

private

Received packet.

Definition at line 68 of file nix-test.cc.

Referenced by ReceivePkt(), and SendData().

◆ m_receivedPacketSizes

std::vector<uint32_t> NixVectorRoutingTest::m_receivedPacketSizes

Received packet sizes.

Definition at line 110 of file nix-test.cc.

Referenced by DoRun(), and ReceivePkt().

The documentation for this class was generated from the following file:

src/nix-vector-routing/test/nix-test.cc
