Dummy Multi User Scheduler used to test OFDMA ack sequences. More...

Inheritance diagram for TestMultiUserScheduler:

Collaboration diagram for TestMultiUserScheduler:

Public Member Functions
	TestMultiUserScheduler ()

virtual	~TestMultiUserScheduler ()

Public Member Functions inherited from ns3::MultiUserScheduler
	MultiUserScheduler ()

virtual	~MultiUserScheduler ()

DlMuInfo &	GetDlMuInfo (void)
	Get the information required to perform a DL MU transmission. More...

UlMuInfo &	GetUlMuInfo (void)
	Get the information required to solicit an UL MU transmission. More...

TxFormat	NotifyAccessGranted (Ptr< QosTxop > edca, Time availableTime, bool initialFrame)
	Notify the Multi-user Scheduler that the given AC of the AP gained channel access. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

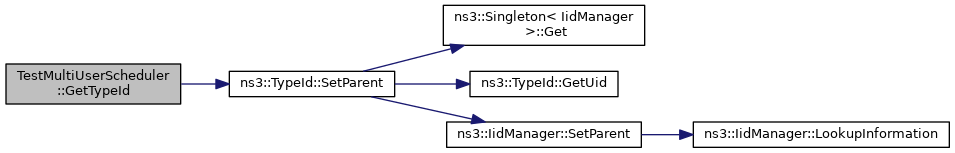

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::MultiUserScheduler
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
DlMuInfo	ComputeDlMuInfo (void) override
	Compute the information required to perform a DL MU transmission. More...

UlMuInfo	ComputeUlMuInfo (void) override
	Prepare the information required to solicit an UL MU transmission. More...

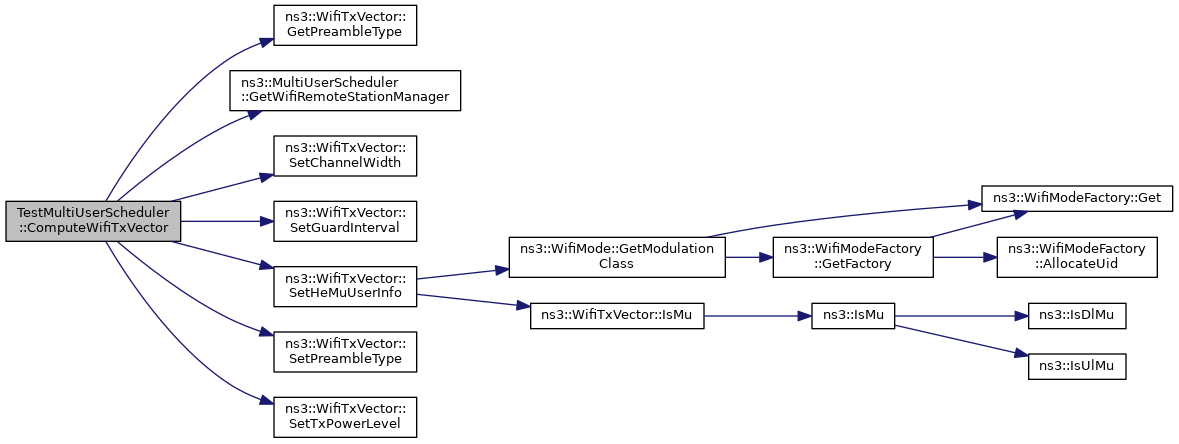

void	ComputeWifiTxVector (void)
	Compute the TX vector to use for MU PPDUs. More...

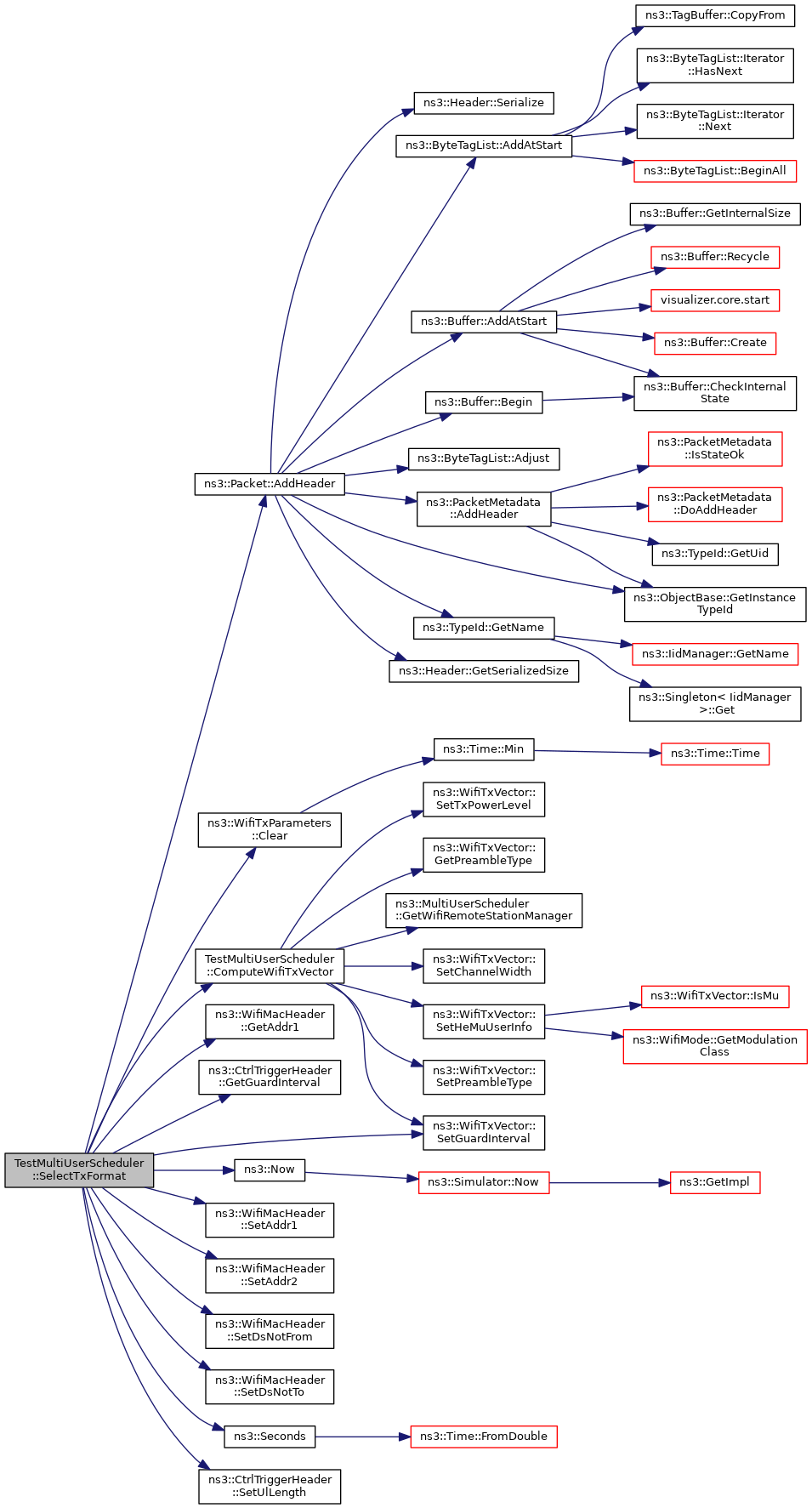

TxFormat	SelectTxFormat (void) override
	Select the format of the next transmission. More...

Private Attributes
WifiPsduMap	m_psduMap
	the DL MU PPDU to transmit More...

Time	m_tbPpduDuration
	Duration of the solicited TB PPDUs. More...

Ptr< WifiMacQueueItem >	m_trigger
	Trigger Frame to send. More...

TxFormat	m_txFormat
	the format of next transmission More...

WifiTxParameters	m_txParams
	TX parameters. More...

WifiTxVector	m_txVector
	the TX vector for MU PPDUs More...

TriggerFrameType	m_ulTriggerType
	Trigger Frame type for UL MU. More...

Additional Inherited Members
Public Types inherited from ns3::MultiUserScheduler
enum	TxFormat { NO_TX = 0, SU_TX, DL_MU_TX, UL_MU_TX }
	Enumeration of the possible transmission formats. More...

Protected Member Functions inherited from ns3::MultiUserScheduler
void	DoDispose (void) override
	Destructor implementation. More...

void	DoInitialize (void) override
	Initialize() implementation. More...

TxFormat	GetLastTxFormat (void) const
	Get the format of the last transmission, as determined by the last call to NotifyAccessGranted that did not return NO_TX. More...

Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager (void) const
	Get the station manager attached to the AP. More...

void	NotifyNewAggregate (void) override
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::MultiUserScheduler
Ptr< ApWifiMac >	m_apMac
	the AP wifi MAC More...

Time	m_availableTime
	the time available for frame exchange More...

Ptr< QosTxop >	m_edca
	the AC that gained channel access More...

Ptr< HeFrameExchangeManager >	m_heFem
	HE Frame Exchange Manager. More...

bool	m_initialFrame
	true if a TXOP is being started More...

uint32_t	m_sizeOf8QosNull
	size in bytes of 8 QoS Null frames More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Dummy Multi User Scheduler used to test OFDMA ack sequences.

This Multi User Scheduler returns SU_TX until the simulation time reaches 1.5 seconds (when all BA agreements have been established). Afterwards, it cycles through UL_MU_TX (with a BSRP Trigger Frame), UL_MU_TX (with a Basic Trigger Frame) and DL_MU_TX. This scheduler requires that 4 stations are associated with the AP.

Definition at line 60 of file wifi-mac-ofdma-test.cc.
