ns3::UdpTraceClient Class Reference
Applications » UdpClientServer

Default trace to send. More...

#include "udp-trace-client.h"

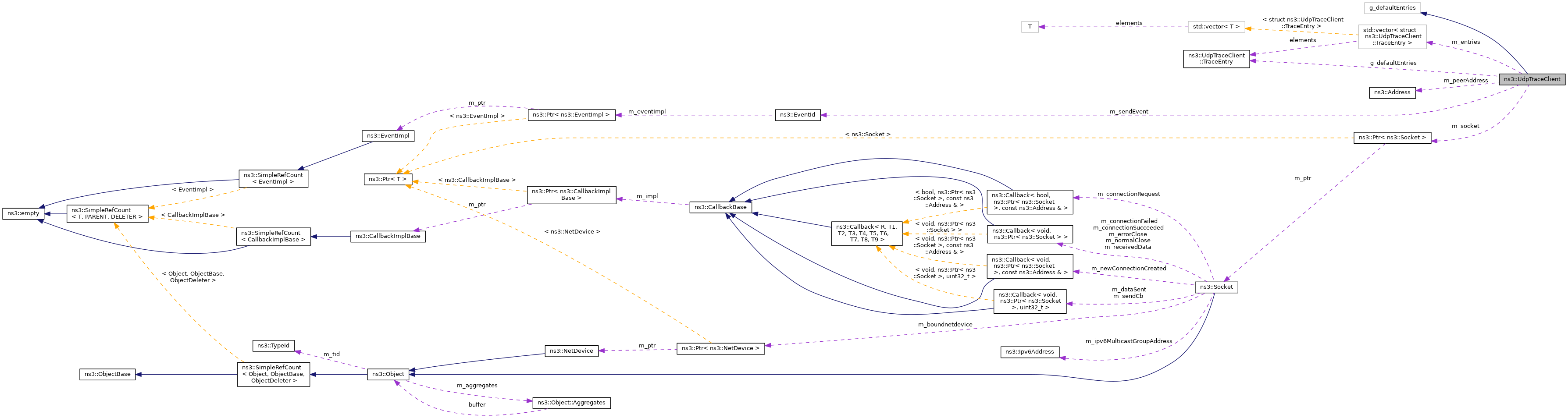

+ Inheritance diagram for ns3::UdpTraceClient:
+ Collaboration diagram for ns3::UdpTraceClient:

Classes

struct  TraceEntry
 Entry to send. More...


Public Member Functions

 UdpTraceClient ()

 UdpTraceClient (Ipv4Address ip, uint16_t port, char *traceFile)
 Creates a traceBasedStreamer application. More...

 ~UdpTraceClient ()

uint16_t GetMaxPacketSize (void)
 Return the maximum packet size. More...

void SetMaxPacketSize (uint16_t maxPacketSize)
 Set the maximum packet size. More...

void SetRemote (Address addr)
 set the remote address More...

void SetRemote (Address ip, uint16_t port)
 set the remote address and port More...

void SetTraceFile (std::string filename)
 Set the trace file to be used by the application. More...

void SetTraceLoop (bool traceLoop)
 Set the trace loop flag. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

virtual void DoDispose (void)


Private Member Functions

void LoadDefaultTrace (void)
 Load the default trace. More...

void LoadTrace (std::string filename)
 Load a trace file. More...

void Send (void)
 Send a packet. More...

void SendPacket (uint32_t size)
 Send a packet of a given size. More...

virtual void StartApplication (void)

virtual void StopApplication (void)


Private Attributes

uint32_t m_currentEntry
 Current entry index. More...

std::vector< struct TraceEntry > m_entries
 Entries in the trace to send. More...

uint16_t m_maxPacketSize
 Maximum packet size to send (including the SeqTsHeader) More...

Address m_peerAddress
 Remote peer address. More...

uint16_t m_peerPort
 Remote peer port. More...

EventId m_sendEvent
 Event to send the next packet. More...

uint32_t m_sent
 Counter for sent packets. More...

Ptr< Socket > m_socket
 Socket. More...

bool m_traceLoop
 Loop through the trace file. More...


Static Private Attributes

static struct TraceEntry g_defaultEntries []
 Default trace to send. More...


Detailed Description

Default trace to send.

A trace based streamer.

Sends UDP packets based on a trace file of an MPEG4 stream trace files could be downloaded form: http://www2.tkn.tu-berlin.de/research/trace/ltvt.html (the 2 first lines of the file should be removed) A valid trace file is a file with 4 columns:

  • -1- the first one represents the frame index
  • -2- the second one indicates the type of the frame: I, P or B
  • -3- the third one indicates the time on which the frame was generated by the encoder (integer, milliseconds)
  • -4- the fourth one indicates the frame size in byte

If no valid MPEG4 trace file is provided to the application the trace from g_defaultEntries array will be loaded.

Also note that:

  • -1- consecutive 'B' frames are sent together,
  • -2- any trace file is (by default) read again once finished (loop).

The latter behavior can be changed through the "TraceLoop" attribute.

Config Paths

ns3::UdpTraceClient is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/ApplicationList/[i]/$ns3::UdpTraceClient"

Attributes

  • RemoteAddress: The destination Address of the outbound packets
    • Set with class: AddressValue
    • Underlying type: Address
    • Initial value: 00-00-00
    • Flags: construct write read
  • RemotePort: The destination port of the outbound packets
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 100
    • Flags: construct write read
  • MaxPacketSize: The maximum size of a packet (including the SeqTsHeader, 12 bytes).
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 1024
    • Flags: construct write read
  • TraceFilename: Name of file to load a trace from. By default, uses a hardcoded trace.
    • Set with class: StringValue
    • Underlying type:
    • Initial value:
    • Flags: construct write
  • TraceLoop: Loops through the trace file, starting again once it is over.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write

Attributes defined in parent class ns3::Application

  • StartTime: Time at which the application will start
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: construct write read
  • StopTime: Time at which the application will stop
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 200 bytes (on a 64-bit architecture).

Definition at line 48 of file udp-trace-client.cc.

Constructor & Destructor Documentation

◆ UdpTraceClient() [1/2]

ns3::UdpTraceClient::UdpTraceClient ( )

Definition at line 98 of file udp-trace-client.cc.

References m_maxPacketSize, m_sendEvent, m_sent, m_socket, and NS_LOG_FUNCTION.

◆ UdpTraceClient() [2/2]

ns3::UdpTraceClient::UdpTraceClient ( Ipv4Address  ip,
uint16_t  port,
char *  traceFile
)

Creates a traceBasedStreamer application.

Parameters
ipthe destination ip address to which the stream will be sent
portthe destination udp port to which the stream will be sent
traceFilea path to an MPEG4 trace file formatted as follows: FrameNo Frametype Time[ms] Length [byte] FrameNo Frametype Time[ms] Length [byte] ...

Definition at line 107 of file udp-trace-client.cc.

References m_currentEntry, m_maxPacketSize, m_peerAddress, m_peerPort, m_sendEvent, m_sent, m_socket, NS_LOG_FUNCTION, port, and SetTraceFile().

+ Here is the call graph for this function:

◆ ~UdpTraceClient()

ns3::UdpTraceClient::~UdpTraceClient ( )

Definition at line 124 of file udp-trace-client.cc.

References m_entries, and NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::UdpTraceClient::DoDispose ( void  )
protectedvirtual

Definition at line 177 of file udp-trace-client.cc.

References ns3::Application::DoDispose(), and NS_LOG_FUNCTION.

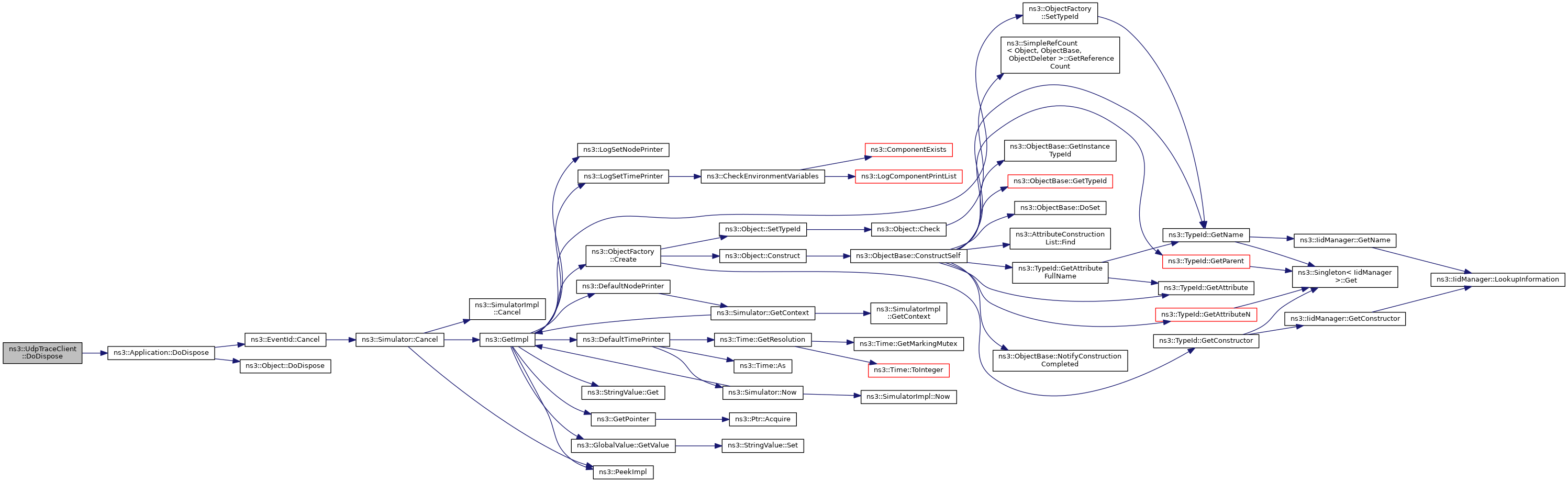

+ Here is the call graph for this function:

◆ GetMaxPacketSize()

uint16_t ns3::UdpTraceClient::GetMaxPacketSize ( void  )

Return the maximum packet size.

Returns
the maximum packet size

Definition at line 169 of file udp-trace-client.cc.

References m_maxPacketSize, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::UdpTraceClient::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 62 of file udp-trace-client.cc.

References m_maxPacketSize, m_peerAddress, m_peerPort, ns3::MakeAddressAccessor(), ns3::MakeAddressChecker(), ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeStringAccessor(), ns3::MakeStringChecker(), ns3::MakeUintegerAccessor(), ns3::TypeId::SetParent(), SetTraceFile(), and SetTraceLoop().

Referenced by ns3::UdpTraceClientHelper::UdpTraceClientHelper().

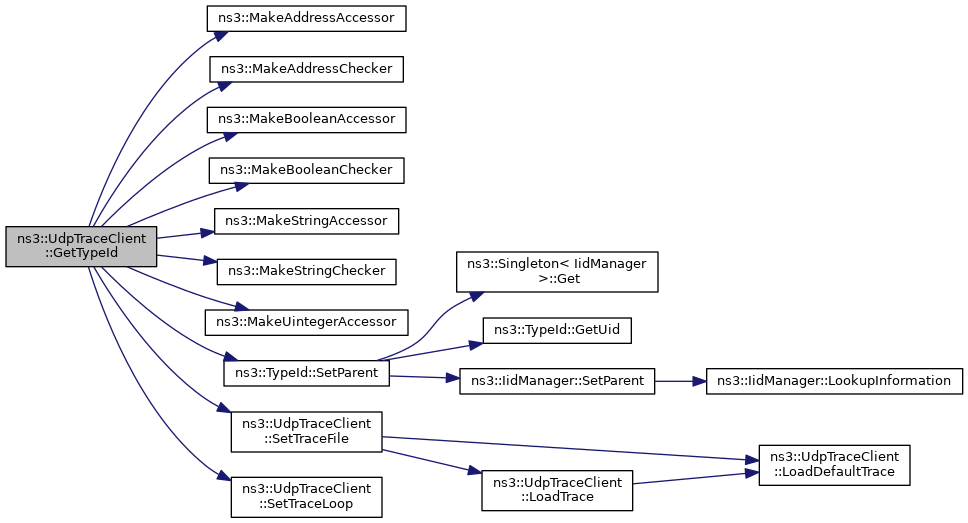

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ LoadDefaultTrace()

void ns3::UdpTraceClient::LoadDefaultTrace ( void  )
private

Load the default trace.

Definition at line 228 of file udp-trace-client.cc.

References ns3::UdpTraceClient::TraceEntry::frameType, g_defaultEntries, m_currentEntry, m_entries, NS_LOG_FUNCTION, prevTime, and ns3::UdpTraceClient::TraceEntry::timeToSend.

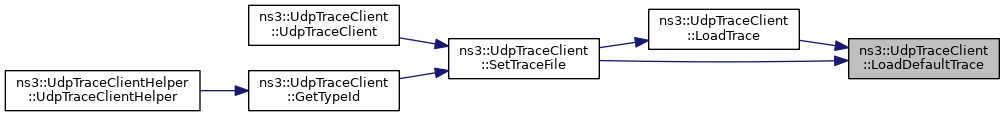

Referenced by LoadTrace(), and SetTraceFile().

+ Here is the caller graph for this function:

◆ LoadTrace()

void ns3::UdpTraceClient::LoadTrace ( std::string  filename)
private

Load a trace file.

Parameters
filenamethe trace file path

Definition at line 184 of file udp-trace-client.cc.

References ns3::UdpTraceClient::TraceEntry::frameType, LoadDefaultTrace(), m_currentEntry, m_entries, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::UdpTraceClient::TraceEntry::packetSize, prevTime, and ns3::UdpTraceClient::TraceEntry::timeToSend.

Referenced by SetTraceFile().

+ Here is the call graph for this function:

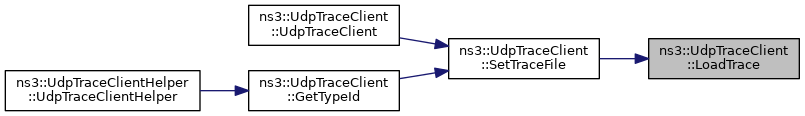

+ Here is the caller graph for this function:

◆ Send()

void ns3::UdpTraceClient::Send ( void  )
private

Send a packet.

Definition at line 355 of file udp-trace-client.cc.

References ns3::EventId::IsExpired(), m_currentEntry, m_entries, m_maxPacketSize, m_sendEvent, m_traceLoop, ns3::MilliSeconds(), NS_ASSERT, NS_LOG_FUNCTION, ns3::UdpTraceClient::TraceEntry::packetSize, ns3::Simulator::Schedule(), SendPacket(), and ns3::UdpTraceClient::TraceEntry::timeToSend.

Referenced by StartApplication().

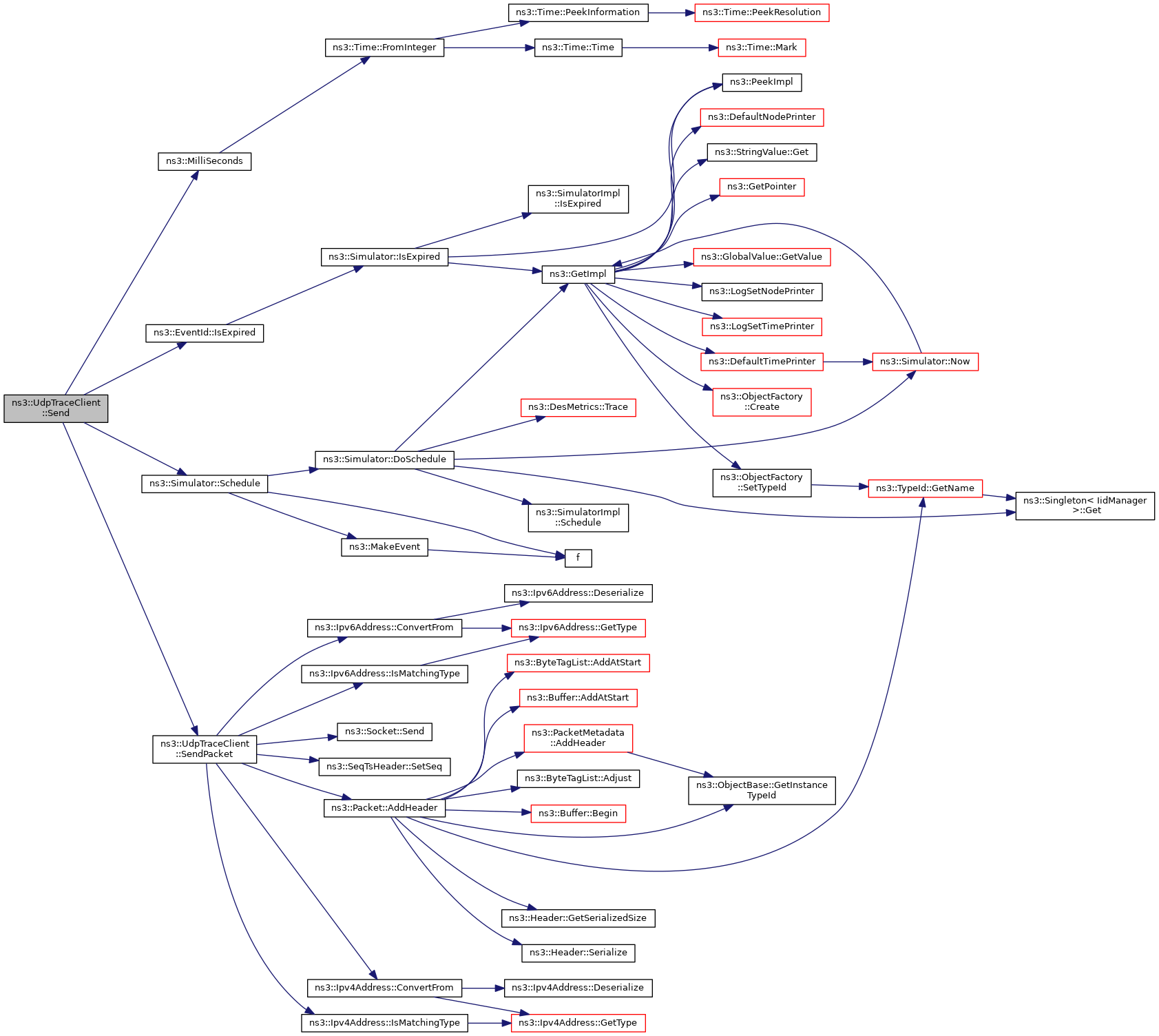

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SendPacket()

void ns3::UdpTraceClient::SendPacket ( uint32_t  size)
private

Send a packet of a given size.

Parameters
sizethe packet size

Definition at line 309 of file udp-trace-client.cc.

References ns3::Packet::AddHeader(), ns3::Ipv4Address::ConvertFrom(), ns3::Ipv6Address::ConvertFrom(), ns3::Ipv4Address::IsMatchingType(), ns3::Ipv6Address::IsMatchingType(), m_peerAddress, m_sent, m_socket, NS_LOG_FUNCTION, NS_LOG_INFO, packetSize, ns3::Socket::Send(), and ns3::SeqTsHeader::SetSeq().

Referenced by Send().

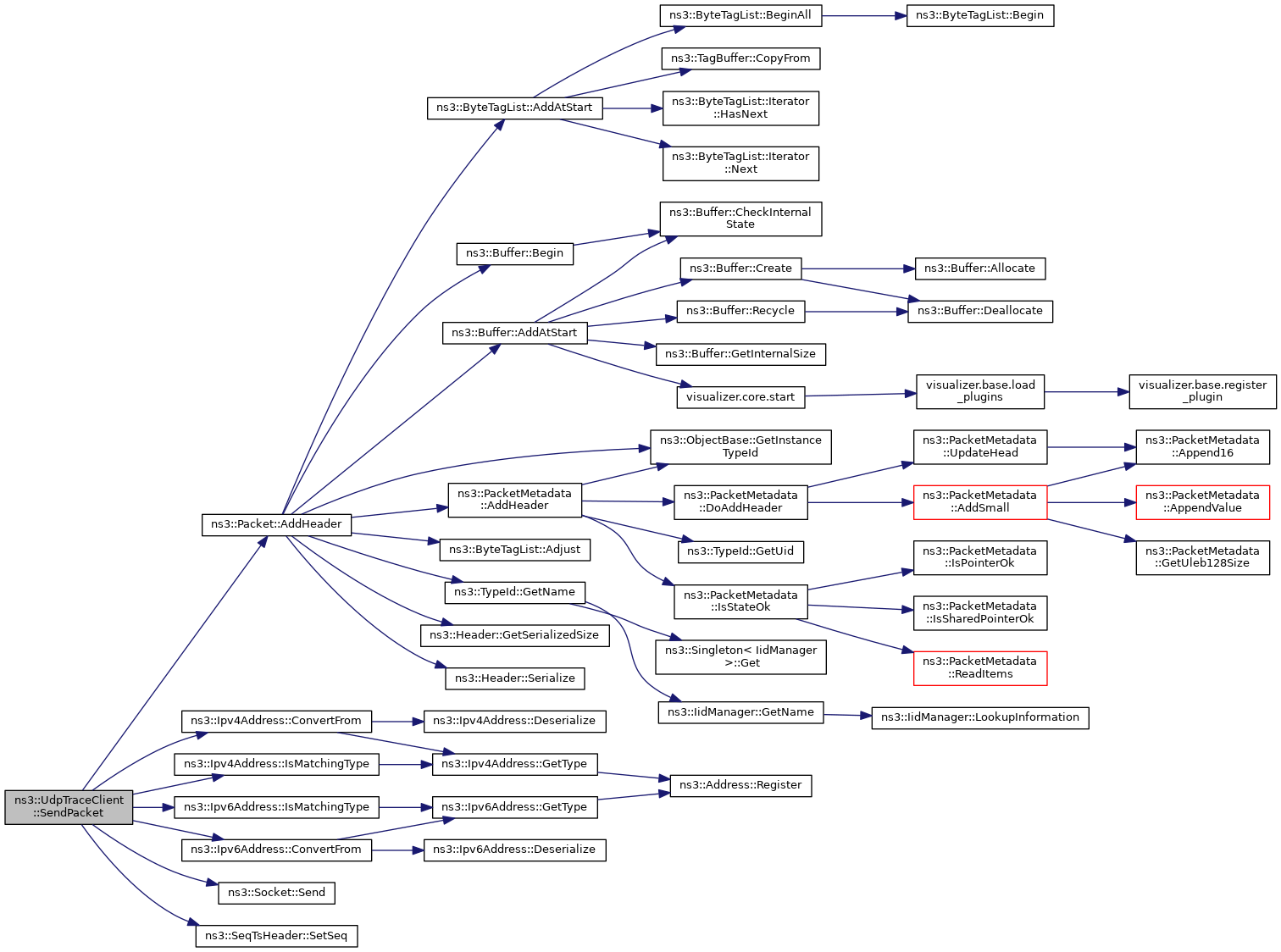

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetMaxPacketSize()

void ns3::UdpTraceClient::SetMaxPacketSize ( uint16_t  maxPacketSize)

Set the maximum packet size.

Parameters
maxPacketSizeThe maximum packet size

Definition at line 162 of file udp-trace-client.cc.

References m_maxPacketSize, and NS_LOG_FUNCTION.

◆ SetRemote() [1/2]

void ns3::UdpTraceClient::SetRemote ( Address  addr)

set the remote address

Parameters
addrremote address

Definition at line 140 of file udp-trace-client.cc.

References m_entries, m_peerAddress, and NS_LOG_FUNCTION.

◆ SetRemote() [2/2]

void ns3::UdpTraceClient::SetRemote ( Address  ip,
uint16_t  port
)

set the remote address and port

Parameters
ipremote IP address
portremote port

Definition at line 131 of file udp-trace-client.cc.

References m_entries, m_peerAddress, m_peerPort, NS_LOG_FUNCTION, and port.

◆ SetTraceFile()

void ns3::UdpTraceClient::SetTraceFile ( std::string  filename)

Set the trace file to be used by the application.

Parameters
filenamea path to an MPEG4 trace file formatted as follows: Frame No Frametype Time[ms] Length [byte] Frame No Frametype Time[ms] Length [byte] ...

Definition at line 148 of file udp-trace-client.cc.

References LoadDefaultTrace(), LoadTrace(), and NS_LOG_FUNCTION.

Referenced by UdpTraceClient(), and GetTypeId().

+ Here is the call graph for this function:

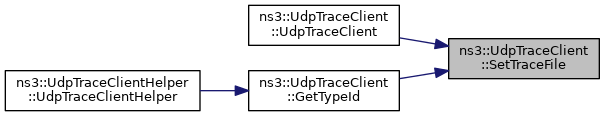

+ Here is the caller graph for this function:

◆ SetTraceLoop()

void ns3::UdpTraceClient::SetTraceLoop ( bool  traceLoop)

Set the trace loop flag.

Parameters
traceLooptrue if the trace should be re-used

Definition at line 391 of file udp-trace-client.cc.

References m_traceLoop.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

◆ StartApplication()

void ns3::UdpTraceClient::StartApplication ( void  )
privatevirtual

Definition at line 251 of file udp-trace-client.cc.

References ns3::Socket::Bind(), ns3::Socket::Bind6(), ns3::Socket::Connect(), ns3::Ipv4Address::ConvertFrom(), ns3::Ipv6Address::ConvertFrom(), ns3::Socket::CreateSocket(), ns3::Inet6SocketAddress::IsMatchingType(), ns3::InetSocketAddress::IsMatchingType(), ns3::Ipv4Address::IsMatchingType(), ns3::Ipv6Address::IsMatchingType(), ns3::TypeId::LookupByName(), m_peerAddress, m_peerPort, m_sendEvent, m_socket, ns3::MakeNullCallback(), NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), ns3::Seconds(), Send(), ns3::Socket::SetAllowBroadcast(), and ns3::Socket::SetRecvCallback().

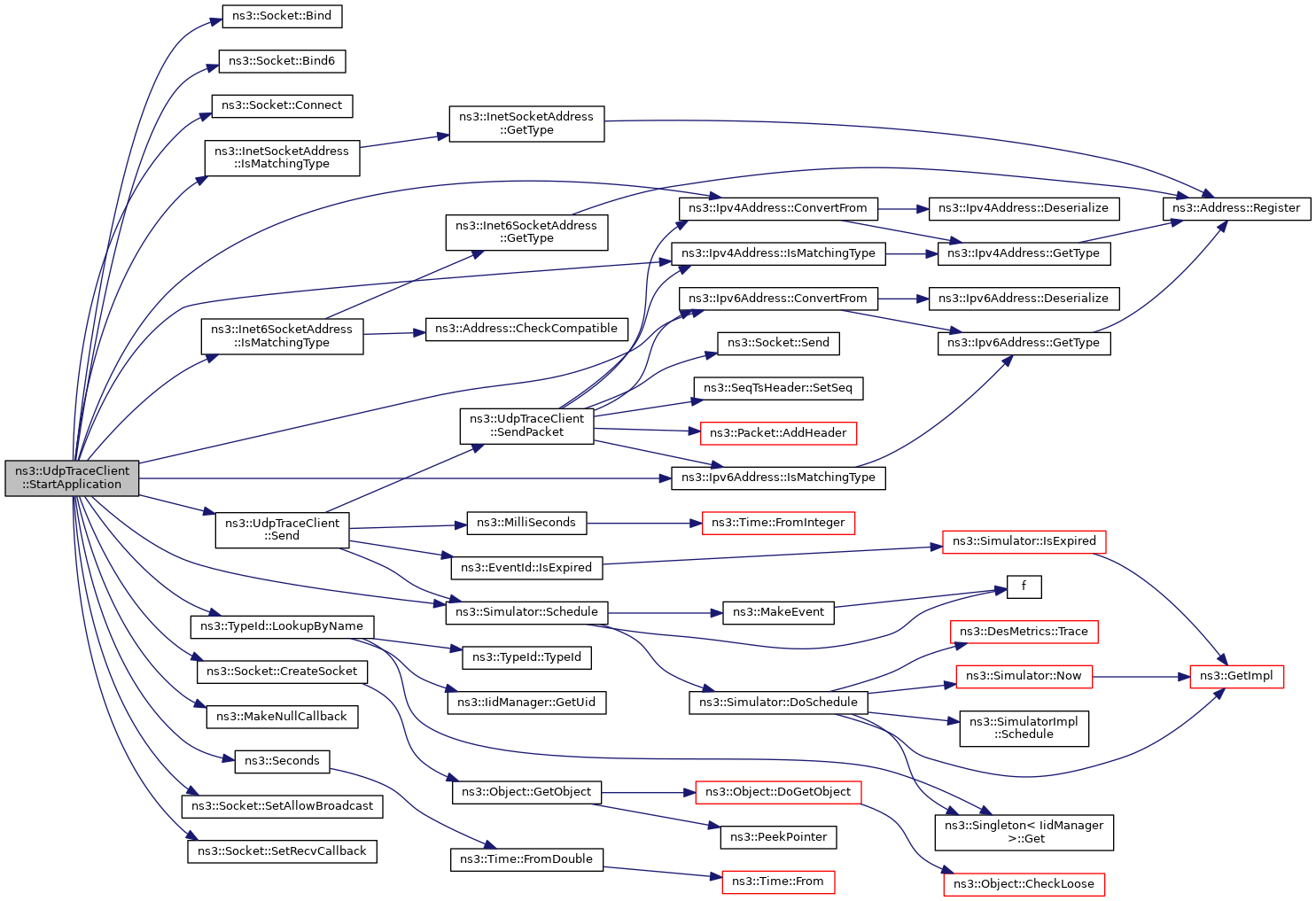

+ Here is the call graph for this function:

◆ StopApplication()

void ns3::UdpTraceClient::StopApplication ( void  )
privatevirtual

Definition at line 302 of file udp-trace-client.cc.

References ns3::Simulator::Cancel(), m_sendEvent, and NS_LOG_FUNCTION.

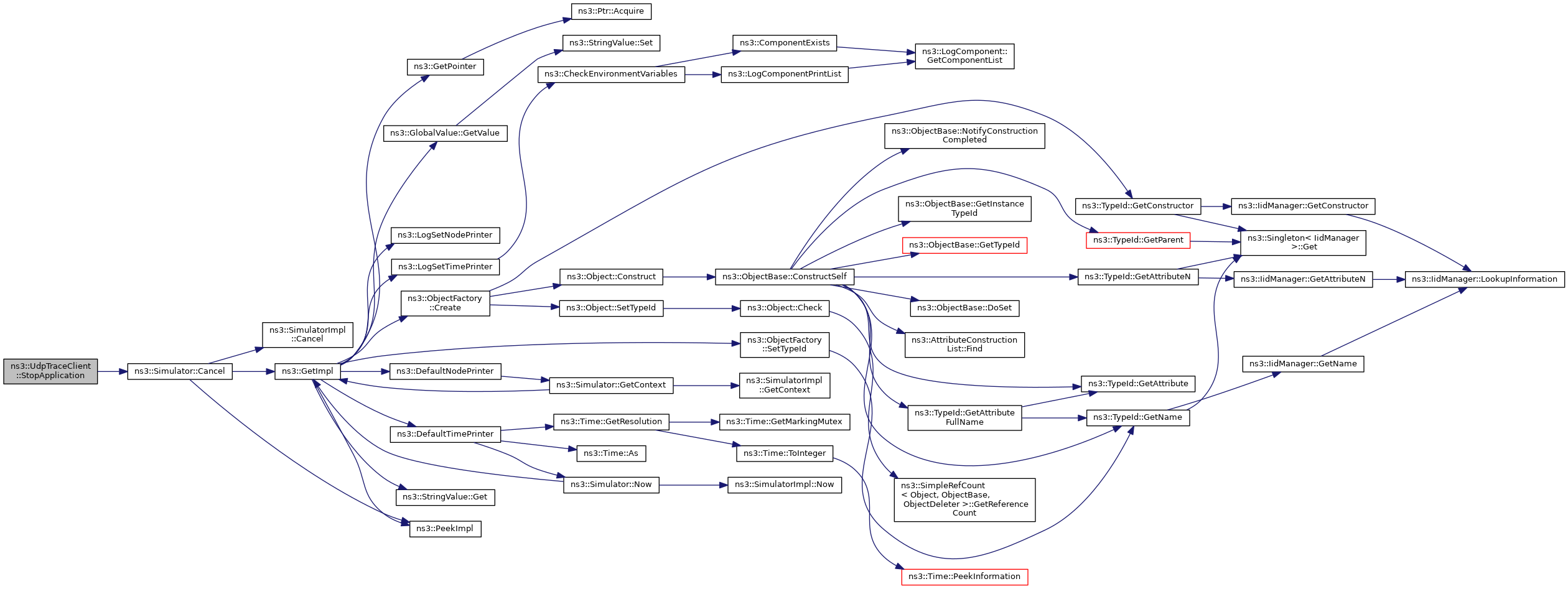

+ Here is the call graph for this function:

Member Data Documentation

◆ g_defaultEntries

struct TraceEntry ns3::UdpTraceClient::g_defaultEntries[]
staticprivate

Default trace to send.

Definition at line 169 of file udp-trace-client.h.

Referenced by LoadDefaultTrace().

◆ m_currentEntry

uint32_t ns3::UdpTraceClient::m_currentEntry
private

Current entry index.

Definition at line 169 of file udp-trace-client.h.

Referenced by UdpTraceClient(), LoadDefaultTrace(), LoadTrace(), and Send().

◆ m_entries

std::vector<struct TraceEntry> ns3::UdpTraceClient::m_entries
private

Entries in the trace to send.

Definition at line 168 of file udp-trace-client.h.

Referenced by ~UdpTraceClient(), LoadDefaultTrace(), LoadTrace(), Send(), and SetRemote().

◆ m_maxPacketSize

uint16_t ns3::UdpTraceClient::m_maxPacketSize
private

Maximum packet size to send (including the SeqTsHeader)

Definition at line 171 of file udp-trace-client.h.

Referenced by UdpTraceClient(), GetMaxPacketSize(), GetTypeId(), Send(), and SetMaxPacketSize().

◆ m_peerAddress

Address ns3::UdpTraceClient::m_peerAddress
private

Remote peer address.

Definition at line 164 of file udp-trace-client.h.

Referenced by UdpTraceClient(), GetTypeId(), SendPacket(), SetRemote(), and StartApplication().

◆ m_peerPort

uint16_t ns3::UdpTraceClient::m_peerPort
private

Remote peer port.

Definition at line 165 of file udp-trace-client.h.

Referenced by UdpTraceClient(), GetTypeId(), SetRemote(), and StartApplication().

◆ m_sendEvent

EventId ns3::UdpTraceClient::m_sendEvent
private

Event to send the next packet.

Definition at line 166 of file udp-trace-client.h.

Referenced by UdpTraceClient(), Send(), StartApplication(), and StopApplication().

◆ m_sent

uint32_t ns3::UdpTraceClient::m_sent
private

Counter for sent packets.

Definition at line 162 of file udp-trace-client.h.

Referenced by UdpTraceClient(), and SendPacket().

◆ m_socket

Ptr<Socket> ns3::UdpTraceClient::m_socket
private

Socket.

Definition at line 163 of file udp-trace-client.h.

Referenced by UdpTraceClient(), SendPacket(), and StartApplication().

◆ m_traceLoop

bool ns3::UdpTraceClient::m_traceLoop
private

Loop through the trace file.

Definition at line 172 of file udp-trace-client.h.

Referenced by Send(), and SetTraceLoop().

The documentation for this class was generated from the following files:
