A class used for addressing MAC8 MAC's. More...

#include "mac8-address.h"

Collaboration diagram for ns3::Mac8Address:

Public Member Functions
	Mac8Address ()
	Constructor. More...

	Mac8Address (uint8_t addr)
	Create Mac8Address object with address addr. More...

virtual	~Mac8Address ()
	Destructor. More...

void	CopyFrom (const uint8_t *pBuffer)
	Sets address to address stored in parameter. More...

void	CopyTo (uint8_t *pBuffer) const
	Writes address to buffer parameter. More...

	operator Address () const
	Create a generic Address. More...

Static Public Member Functions
static Mac8Address	Allocate ()
	Allocates Mac8Address from 0-254. More...

static Mac8Address	ConvertFrom (const Address &address)
	Convert a generic address to a Mac8Address. More...

static Mac8Address	GetBroadcast (void)
	Get the broadcast address (255). More...

static bool	IsMatchingType (const Address &address)
	Check that a generic Address is compatible with Mac8Address. More...

Private Member Functions
Address	ConvertTo (void) const
	Convert to a generic Address. More...

Static Private Member Functions
static uint8_t	GetType (void)
	Get the Mac8Address type. More...

Private Attributes
uint8_t	m_address
	The address. More...

Friends
bool	operator!= (const Mac8Address &a, const Mac8Address &b)
	Address comparison, unequal. More...

bool	operator< (const Mac8Address &a, const Mac8Address &b)
	Address comparison, less than. More...

std::ostream &	operator<< (std::ostream &os, const Mac8Address &address)
	Write address to stream os as 8 bit integer. More...

bool	operator== (const Mac8Address &a, const Mac8Address &b)
	Address comparison, equalit. More...

std::istream &	operator>> (std::istream &is, Mac8Address &address)
	Read address from stream is as 8 bit integer. More...

Detailed Description

A class used for addressing MAC8 MAC's.

This implementation uses a simple 8 bit flat addressing scheme. It is unlikely that perceived underwater networks will soon exceed 200 nodes (or the overlapping of two underwater networks

the ocean is big), so this should provide adequate addressing for most applications.

Definition at line 42 of file mac8-address.h.

Constructor & Destructor Documentation

◆ Mac8Address() [1/2]

ns3::Mac8Address::Mac8Address ( )

Constructor.

Definition at line 26 of file mac8-address.cc.

References m_address.

Referenced by Allocate(), and GetBroadcast().

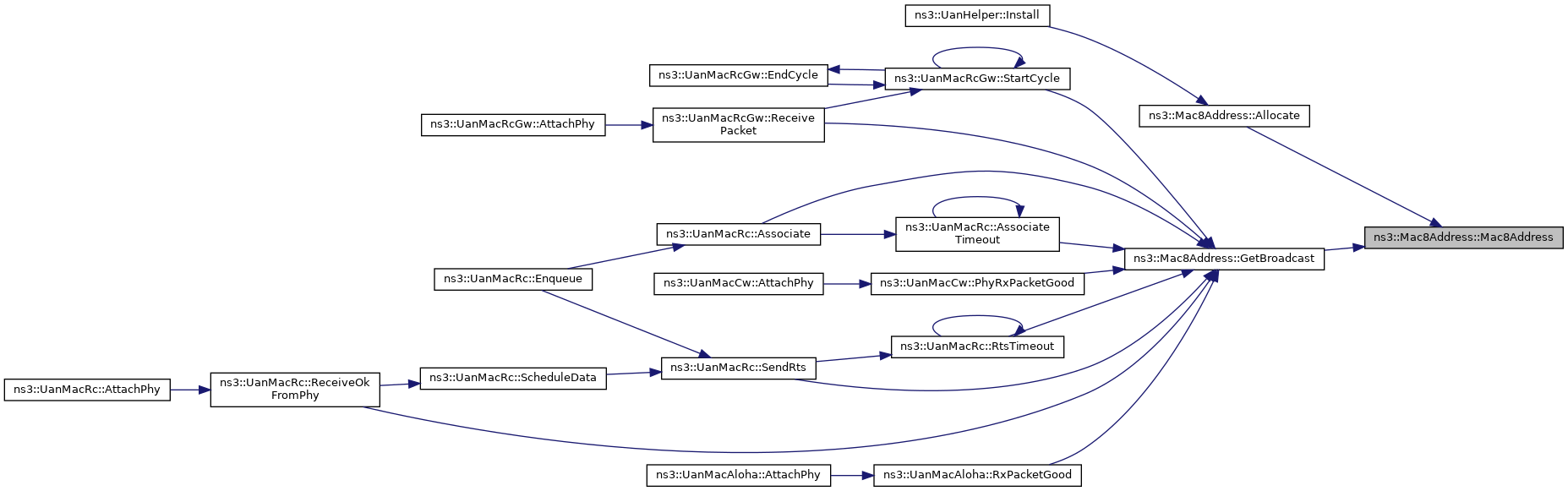

Here is the caller graph for this function:

◆ Mac8Address() [2/2]

ns3::Mac8Address::Mac8Address ( uint8_t addr )

Create Mac8Address object with address addr.

Parameters

addr	Byte address to assign to this address.

Definition at line 31 of file mac8-address.cc.

◆ ~Mac8Address()

ns3::Mac8Address::~Mac8Address ( )

virtual

Destructor.

Definition at line 36 of file mac8-address.cc.

Member Function Documentation

◆ Allocate()

Mac8Address ns3::Mac8Address::Allocate ( void )

static

Allocates Mac8Address from 0-254.

Will wrap back to 0 if more than 254 are allocated. Excludes the broadcast address.

Returns: The next sequential Mac8Address.

Definition at line 92 of file mac8-address.cc.

References Mac8Address(), and first::address.

Referenced by ns3::UanHelper::Install().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConvertFrom()

Mac8Address ns3::Mac8Address::ConvertFrom ( const Address & address )

static

Convert a generic address to a Mac8Address.

Parameters

address Address to convert to Mac8Address address.

Returns: Mac8Address from Address.

Definition at line 54 of file mac8-address.cc.

References first::address, IsMatchingType(), m_address, and NS_ASSERT.

Referenced by ns3::UanMacRc::Associate(), ns3::UanMacRc::AssociateTimeout(), ns3::UanMacRcGw::EndCycle(), ns3::UanMacAloha::Enqueue(), ns3::UanMacCw::Enqueue(), ns3::UanMacRc::Enqueue(), ns3::UanMacRc::IsPhy1Ok(), ns3::Ipv6Address::MakeAutoconfiguredAddress(), ns3::Ipv6Address::MakeAutoconfiguredLinkLocalAddress(), ns3::Ipv6AddressHelper::NewAddress(), ns3::UanMacCw::PhyRxPacketGood(), ns3::UanMacRc::ProcessAck(), ns3::UanMacRc::ReceiveOkFromPhy(), ns3::UanMacRcGw::ReceivePacket(), ns3::UanMacRc::RtsTimeout(), ns3::UanMacAloha::RxPacketError(), ns3::UanMacRc::ScheduleData(), ns3::UanMacRc::SendPacket(), ns3::UanMacRc::SendRts(), ns3::UanNetDevice::SetAddress(), and ns3::UanMacRcGw::StartCycle().

Here is the call graph for this function:

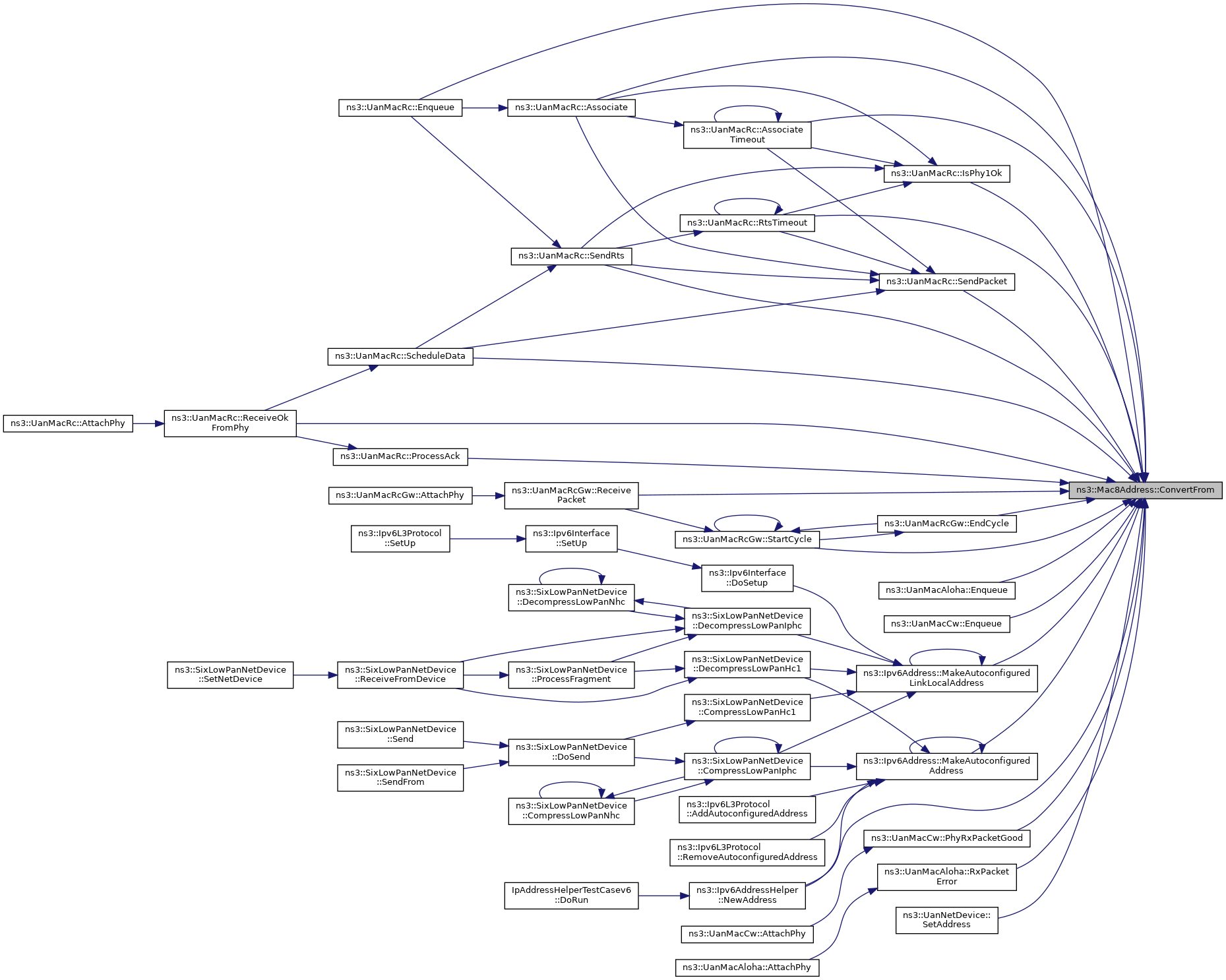

Here is the caller graph for this function:

◆ ConvertTo()

Address ns3::Mac8Address::ConvertTo ( void ) const

private

Convert to a generic Address.

Returns: The Address value.

Definition at line 48 of file mac8-address.cc.

References GetType(), and m_address.

Here is the call graph for this function:

◆ CopyFrom()

void ns3::Mac8Address::CopyFrom ( const uint8_t * pBuffer )

Sets address to address stored in parameter.

Parameters

pBuffer Buffer to extract address from.

Definition at line 74 of file mac8-address.cc.

References m_address.

◆ CopyTo()

void ns3::Mac8Address::CopyTo ( uint8_t * pBuffer ) const

Writes address to buffer parameter.

Parameters

pBuffer

Definition at line 80 of file mac8-address.cc.

References m_address.

Referenced by ns3::Ipv6Address::MakeAutoconfiguredAddress(), ns3::Ipv6Address::MakeAutoconfiguredLinkLocalAddress(), ns3::UanHeaderCommon::Serialize(), and ns3::UanHeaderRcCts::Serialize().

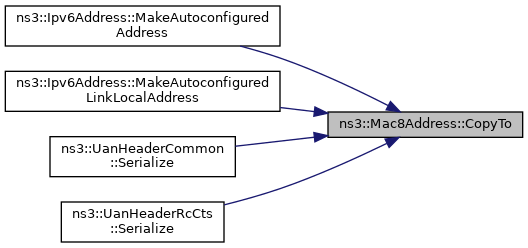

Here is the caller graph for this function:

◆ GetBroadcast()

Mac8Address ns3::Mac8Address::GetBroadcast ( void )

static

Get the broadcast address (255).

Returns: Broadcast address.

Definition at line 87 of file mac8-address.cc.

References Mac8Address().

Referenced by ns3::UanMacRc::Associate(), ns3::UanMacRc::AssociateTimeout(), ns3::UanMacCw::PhyRxPacketGood(), ns3::UanMacRc::ReceiveOkFromPhy(), ns3::UanMacRcGw::ReceivePacket(), ns3::UanMacRc::RtsTimeout(), ns3::UanMacAloha::RxPacketGood(), ns3::UanMacRc::SendRts(), and ns3::UanMacRcGw::StartCycle().

Here is the call graph for this function:

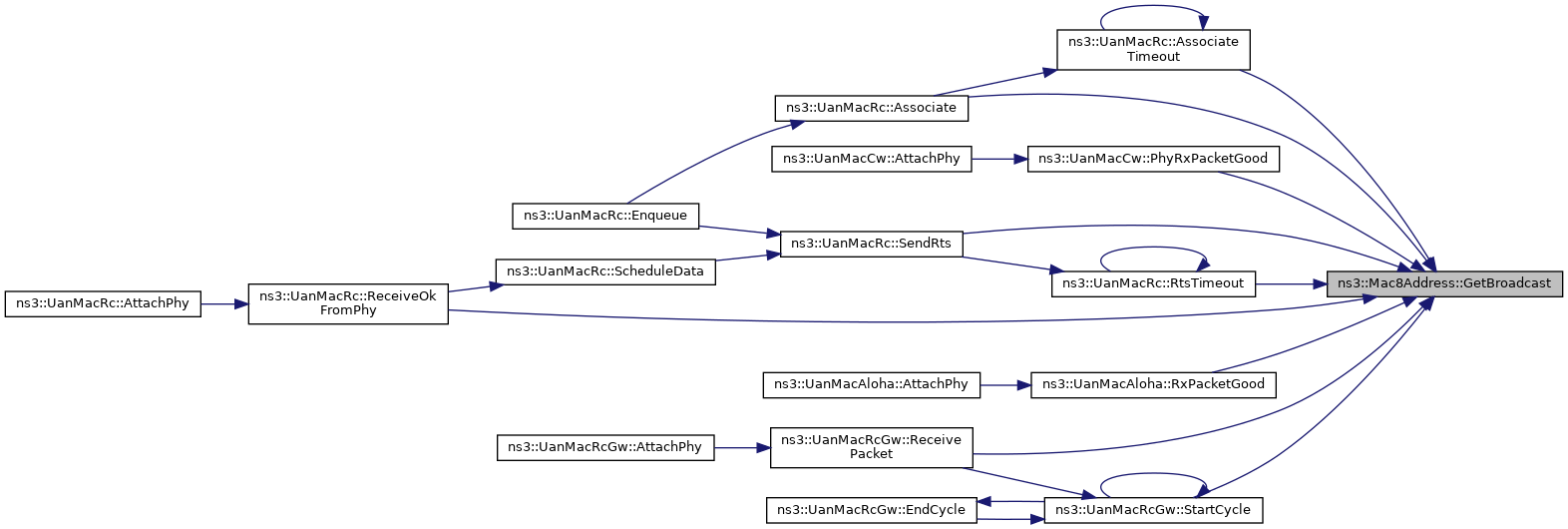

Here is the caller graph for this function:

◆ GetType()

uint8_t ns3::Mac8Address::GetType ( void )

staticprivate

Get the Mac8Address type.

Returns: The type value.

Definition at line 41 of file mac8-address.cc.

References ns3::Address::Register().

Referenced by ConvertTo(), and IsMatchingType().

Here is the call graph for this function:

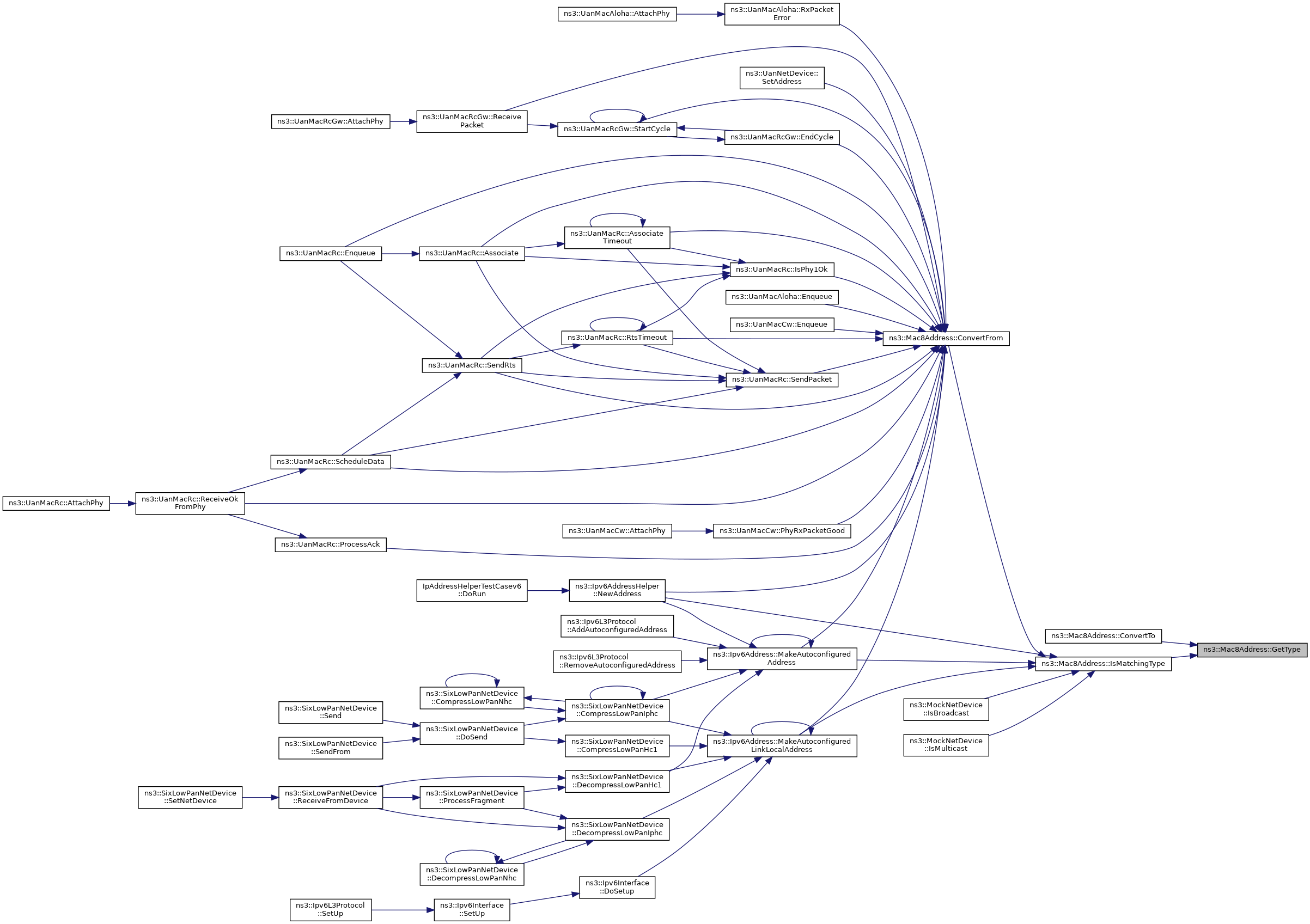

Here is the caller graph for this function:

◆ IsMatchingType()

bool ns3::Mac8Address::IsMatchingType ( const Address & address )

static

Check that a generic Address is compatible with Mac8Address.

Parameters

address Address to test.

Returns: True if address given is consistent with Mac8Address.

Definition at line 63 of file mac8-address.cc.

References first::address, and GetType().

Referenced by ConvertFrom(), ns3::MockNetDevice::IsBroadcast(), ns3::MockNetDevice::IsMulticast(), ns3::Ipv6Address::MakeAutoconfiguredAddress(), ns3::Ipv6Address::MakeAutoconfiguredLinkLocalAddress(), and ns3::Ipv6AddressHelper::NewAddress().

Here is the call graph for this function:

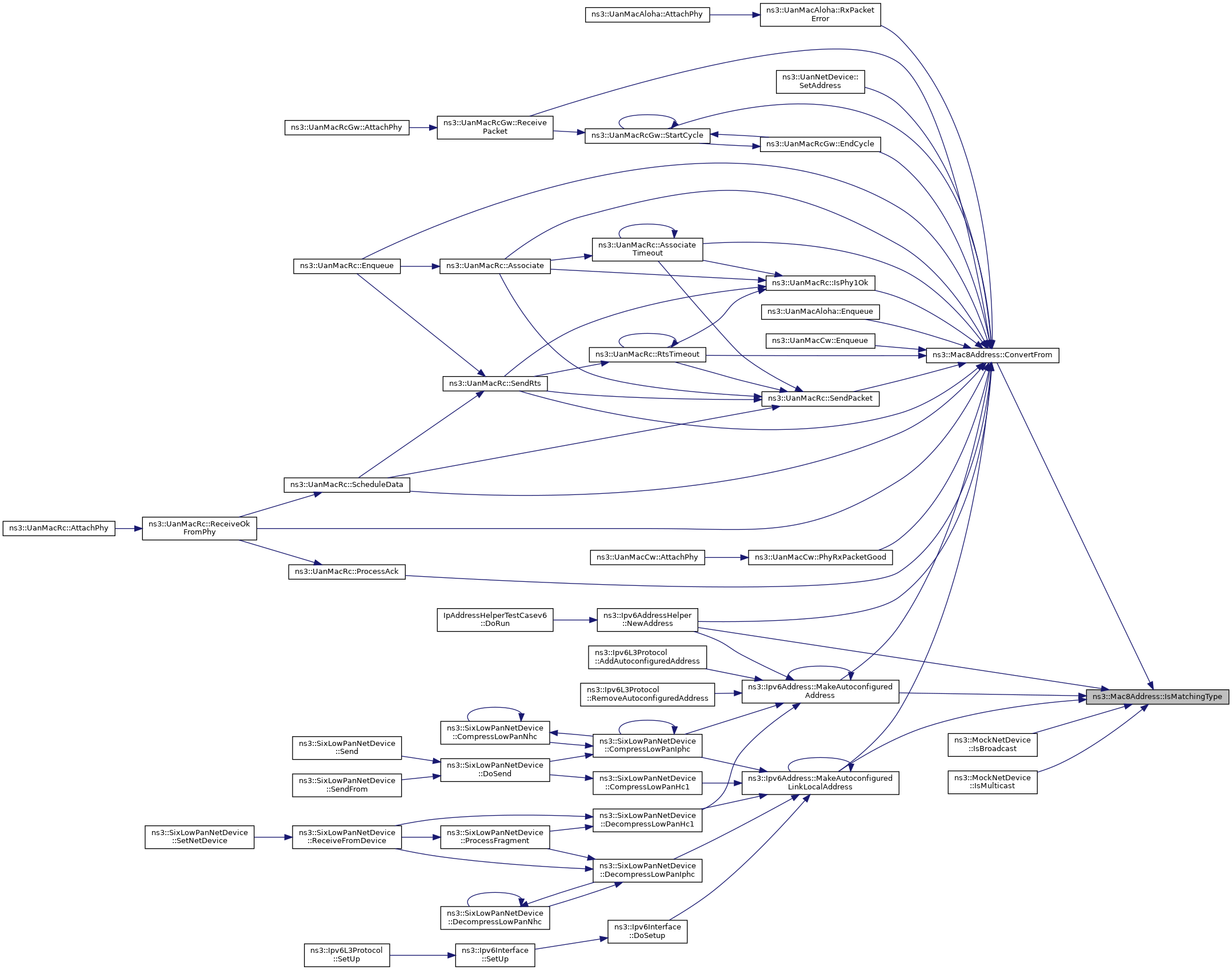

Here is the caller graph for this function:

◆ operator Address()

ns3::Mac8Address::operator Address ( ) const

Create a generic Address.

Returns: The Address.

Definition at line 68 of file mac8-address.cc.

Friends And Related Function Documentation

◆ operator!=

bool operator!=	(	const Mac8Address &	a,
		const Mac8Address &	b
	)

friend

Address comparison, unequal.

Parameters

a	First address to compare.
b	Second address to compare.

Returns: True if a != b.

Definition at line 118 of file mac8-address.cc.

◆ operator<

bool operator<	(	const Mac8Address &	a,
		const Mac8Address &	b
	)

friend

Address comparison, less than.

Parameters

a	First address to compare.
b	Second address to compare.

Returns: True if a < b.

Definition at line 105 of file mac8-address.cc.

◆ operator<<

std::ostream & operator<<	(	std::ostream &	os,
		const Mac8Address &	address
	)

friend

Write address to stream os as 8 bit integer.

Parameters

os	The output stream.
address	The address

Returns: The output stream.

Definition at line 123 of file mac8-address.cc.

◆ operator==

bool operator==	(	const Mac8Address &	a,
		const Mac8Address &	b
	)

friend

Address comparison, equalit.

Parameters

a	First address to compare.
b	Second address to compare.

Returns: True if a == b.

Definition at line 112 of file mac8-address.cc.

◆ operator>>

std::istream & operator>>	(	std::istream &	is,
		Mac8Address &	address
	)

friend

Read address from stream is as 8 bit integer.

Parameters

is	The input stream.
address	The address variable to set.

Returns: The input stream.

Definition at line 130 of file mac8-address.cc.

Member Data Documentation

◆ m_address

uint8_t ns3::Mac8Address::m_address

private

The address.

Definition at line 112 of file mac8-address.h.

Referenced by Mac8Address(), ConvertFrom(), ConvertTo(), CopyFrom(), and CopyTo().

The documentation for this class was generated from the following files:

src/network/utils/mac8-address.h
src/network/utils/mac8-address.cc
