Test Multi-Link Discovery & Setup. More...

Inheritance diagram for MultiLinkSetupTest:

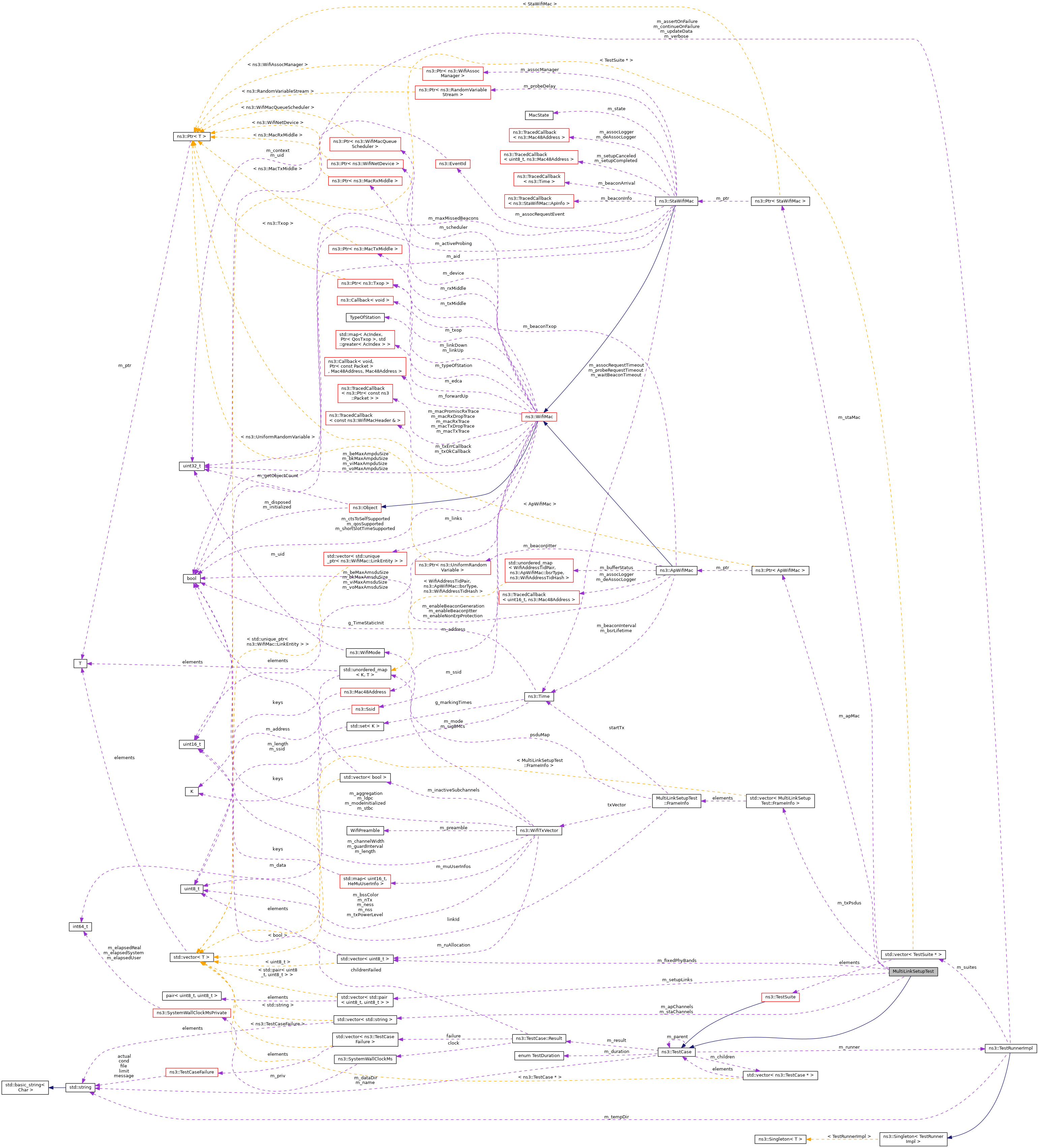

Collaboration diagram for MultiLinkSetupTest:

Classes
struct	FrameInfo
	Information about transmitted frames. More...

Public Member Functions
	MultiLinkSetupTest (std::initializer_list< std::string > staChannels, std::initializer_list< std::string > apChannels, std::initializer_list< std::pair< uint8_t, uint8_t > > setupLinks, std::initializer_list< uint8_t > fixedPhyBands={})
	Constructor. More...

	~MultiLinkSetupTest () override

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	CheckAssocRequest (Ptr< WifiMpdu > mpdu, uint8_t linkId)
	Check correctness of the given Association Request frame. More...

void	CheckAssocResponse (Ptr< WifiMpdu > mpdu, uint8_t linkId)
	Check correctness of the given Association Response frame. More...

void	CheckBeacon (Ptr< WifiMpdu > mpdu, uint8_t linkId)
	Check correctness of the given Beacon frame. More...

void	CheckDisabledLinks ()
	Check that links that are not setup on the non-AP MLD are disabled. More...

void	CheckMlSetup ()
	Check correctness of Multi-Link Setup procedure. More...

void	DoRun () override
	Implementation to actually run this TestCase. More...

WifiPhyBand	GetPhyBandFromChannelStr (const std::string &str)

void	SetChannels (SpectrumWifiPhyHelper &helper, const std::vector< std::string > &channels, const std::map< WifiPhyBand, Ptr< MultiModelSpectrumChannel > > &channelMap)
	Reset the given PHY helper, use the given strings to set the ChannelSettings attribute of the PHY objects to create, and attach them to the given spectrum channels appropriately. More...

void	Transmit (uint8_t linkId, std::string context, WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW)
	Callback invoked when a FEM passes PSDUs to the PHY. More...

Private Attributes
std::vector< std::string >	m_apChannels
	strings specifying channels for AP More...

Ptr< ApWifiMac >	m_apMac
	AP wifi MAC. More...

std::vector< uint8_t >	m_fixedPhyBands
	links on non-AP MLD with fixed PHY band More...

std::vector< std::pair< uint8_t, uint8_t > >	m_setupLinks
	expected links to setup (STA link ID, AP link ID) More...

std::vector< std::string >	m_staChannels
	strings specifying channels for STA More...

Ptr< StaWifiMac >	m_staMac
	STA wifi MAC. More...

std::vector< FrameInfo >	m_txPsdus
	transmitted PSDUs More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure () const
	Check if any tests failed. More...

bool	IsStatusSuccess () const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test Multi-Link Discovery & Setup.

Three spectrum channels are created, one for each band (2.4 GHz, 5 GHz and 6 GHz). Each PHY object is attached to the spectrum channel corresponding to the PHY band in which it is operating.

Definition at line 195 of file wifi-mlo-test.cc.

Constructor & Destructor Documentation

◆ MultiLinkSetupTest()

MultiLinkSetupTest::MultiLinkSetupTest	(	std::initializer_list< std::string >	staChannels,
		std::initializer_list< std::string >	apChannels,
		std::initializer_list< std::pair< uint8_t, uint8_t > >	setupLinks,
		std::initializer_list< uint8_t >	fixedPhyBands = `{}`
	)

Constructor.

Parameters

staChannels	the strings specifying the operating channels for the STA
apChannels	the strings specifying the operating channels for the AP
setupLinks	a list of links (STA link ID, AP link ID) that are expected to be setup
fixedPhyBands	list of IDs of STA links that cannot switch PHY band

Definition at line 301 of file wifi-mlo-test.cc.

◆ ~MultiLinkSetupTest()

MultiLinkSetupTest::~MultiLinkSetupTest ( )

override

Definition at line 314 of file wifi-mlo-test.cc.

Member Function Documentation

◆ CheckAssocRequest()

void MultiLinkSetupTest::CheckAssocRequest	(	Ptr< WifiMpdu >	mpdu,
		uint8_t	linkId
	)

private

Check correctness of the given Association Request frame.

Parameters

mpdu	the given Association Request frame
linkId	the ID of the link on which the Association Request frame was transmitted

Definition at line 557 of file wifi-mlo-test.cc.

References ns3::WifiMac::GetAddress(), ns3::WifiMac::GetFrameExchangeManager(), ns3::WifiMac::GetLinkIdByAddress(), ns3::MgtAssocRequestHeader::GetMultiLinkElement(), ns3::WifiMac::GetNLinks(), m_apMac, m_setupLinks, m_staMac, NS_ABORT_IF, NS_TEST_EXPECT_MSG_EQ, NS_TEST_EXPECT_MSG_NE, and ns3::WIFI_MAC_MGT_ASSOCIATION_REQUEST.

Referenced by DoRun().

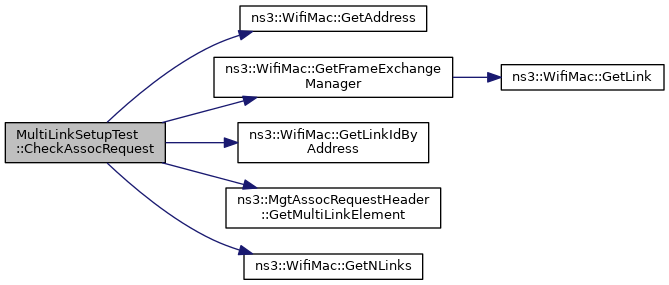

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckAssocResponse()

void MultiLinkSetupTest::CheckAssocResponse	(	Ptr< WifiMpdu >	mpdu,
		uint8_t	linkId
	)

private

Check correctness of the given Association Response frame.

Parameters

mpdu	the given Association Response frame
linkId	the ID of the link on which the Association Response frame was transmitted

Definition at line 617 of file wifi-mlo-test.cc.

References ns3::WifiMac::GetAddress(), ns3::WifiMac::GetFrameExchangeManager(), ns3::WifiMac::GetLinkIdByAddress(), ns3::MgtAssocResponseHeader::GetMultiLinkElement(), ns3::WifiMac::GetNLinks(), m_apMac, m_setupLinks, m_staMac, NS_ABORT_IF, NS_TEST_EXPECT_MSG_EQ, NS_TEST_EXPECT_MSG_NE, and ns3::WIFI_MAC_MGT_ASSOCIATION_RESPONSE.

Referenced by DoRun().

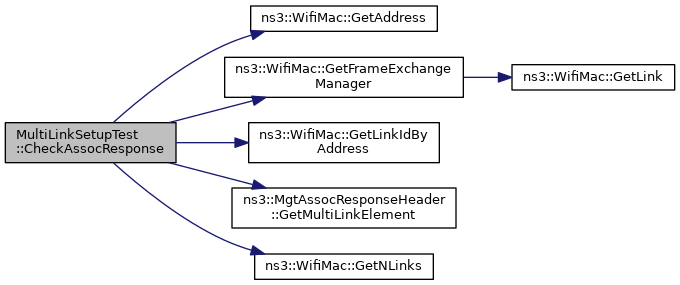

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckBeacon()

void MultiLinkSetupTest::CheckBeacon	(	Ptr< WifiMpdu >	mpdu,
		uint8_t	linkId
	)

private

Check correctness of the given Beacon frame.

Parameters

mpdu	the given Beacon frame
linkId	the ID of the link on which the Beacon frame was transmitted

Definition at line 501 of file wifi-mlo-test.cc.

References ns3::WifiMac::GetAddress(), ns3::WifiMac::GetFrameExchangeManager(), ns3::MgtProbeResponseHeader::GetMultiLinkElement(), ns3::WifiMac::GetNLinks(), ns3::MgtProbeResponseHeader::GetReducedNeighborReport(), m_apMac, NS_ABORT_IF, NS_TEST_EXPECT_MSG_EQ, and ns3::WIFI_MAC_MGT_BEACON.

Referenced by DoRun().

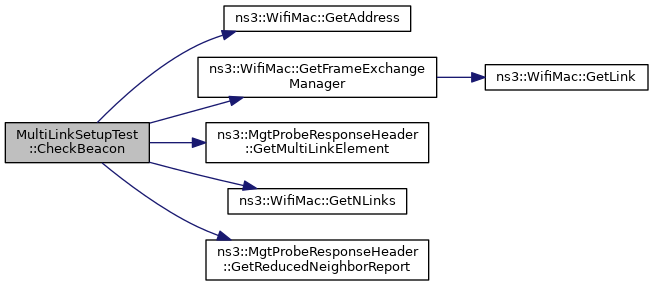

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckDisabledLinks()

void MultiLinkSetupTest::CheckDisabledLinks ( )

private

Check that links that are not setup on the non-AP MLD are disabled.

Definition at line 750 of file wifi-mlo-test.cc.

References GetPhyBandFromChannelStr(), ns3::WifiPhy::GetState(), ns3::WifiMac::GetWifiPhy(), m_apChannels, m_setupLinks, m_staChannels, m_staMac, and NS_TEST_EXPECT_MSG_EQ.

Referenced by DoRun().

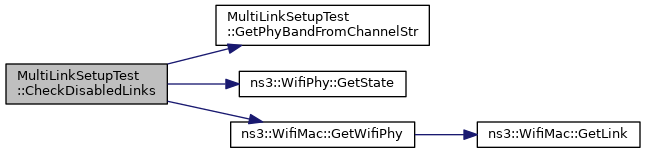

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckMlSetup()

void MultiLinkSetupTest::CheckMlSetup ( )

private

Check correctness of Multi-Link Setup procedure.

Check outcome of Multi-Link Setup

Definition at line 677 of file wifi-mlo-test.cc.

References ns3::WifiMac::GetAddress(), ns3::ApWifiMac::GetAssociationId(), ns3::WifiMac::GetFrameExchangeManager(), ns3::WifiPhyOperatingChannel::GetFrequency(), ns3::WifiMac::GetNLinks(), ns3::WifiPhyOperatingChannel::GetNumber(), ns3::WifiPhy::GetOperatingChannel(), ns3::WifiPhyOperatingChannel::GetPhyBand(), ns3::WifiPhyOperatingChannel::GetPrimaryChannelIndex(), ns3::ApWifiMac::GetStaList(), ns3::WifiPhyOperatingChannel::GetWidth(), ns3::WifiMac::GetWifiPhy(), ns3::WifiMac::GetWifiRemoteStationManager(), ns3::StaWifiMac::IsAssociated(), m_apMac, m_setupLinks, m_staMac, and NS_TEST_EXPECT_MSG_EQ.

Referenced by DoRun().

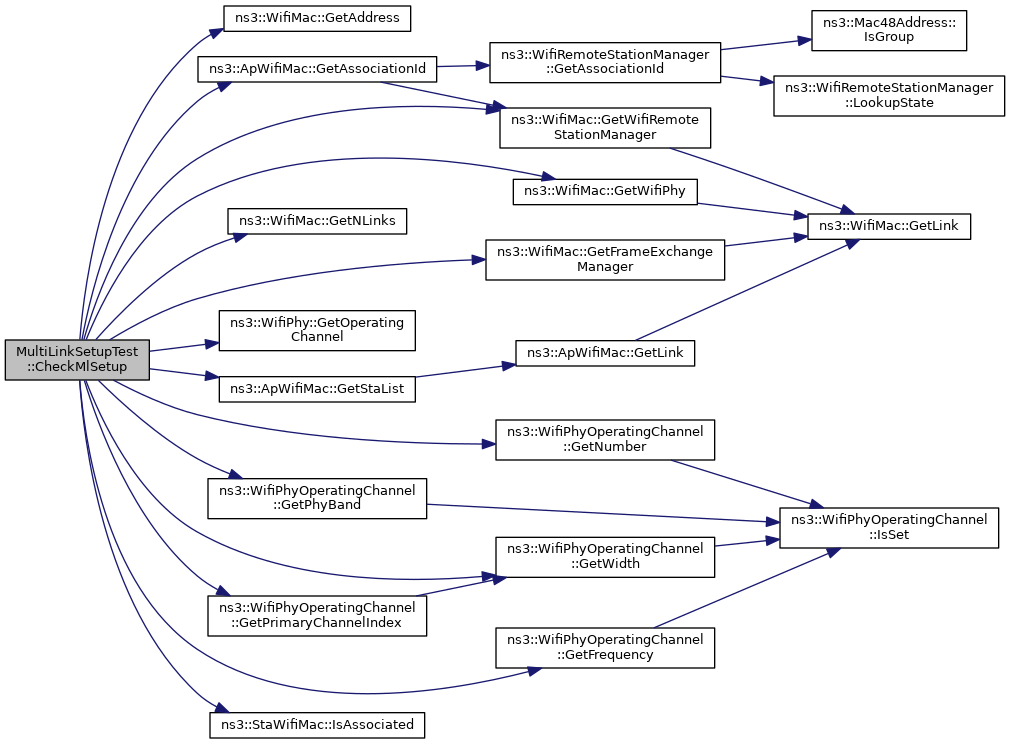

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRun()

void MultiLinkSetupTest::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Check content of management frames

Implements ns3::TestCase.

Definition at line 381 of file wifi-mlo-test.cc.

References third::apDevices, CheckAssocRequest(), CheckAssocResponse(), CheckBeacon(), CheckDisabledLinks(), CheckMlSetup(), ns3::Config::Connect(), ns3::NodeContainer::Create(), m_apChannels, m_apMac, m_fixedPhyBands, m_staChannels, m_staMac, m_txPsdus, third::mac, ns3::MakeCallback(), ns3::MilliSeconds(), third::mobility, ns3::Seconds(), ns3::WifiPhyHelper::Set(), SetChannels(), third::ssid, third::staDevices, Transmit(), third::wifi, ns3::WIFI_MAC_MGT_ASSOCIATION_REQUEST, ns3::WIFI_MAC_MGT_ASSOCIATION_RESPONSE, ns3::WIFI_MAC_MGT_BEACON, ns3::WIFI_PHY_BAND_2_4GHZ, ns3::WIFI_PHY_BAND_5GHZ, ns3::WIFI_PHY_BAND_6GHZ, ns3::WIFI_STANDARD_80211be, and third::wifiApNode.

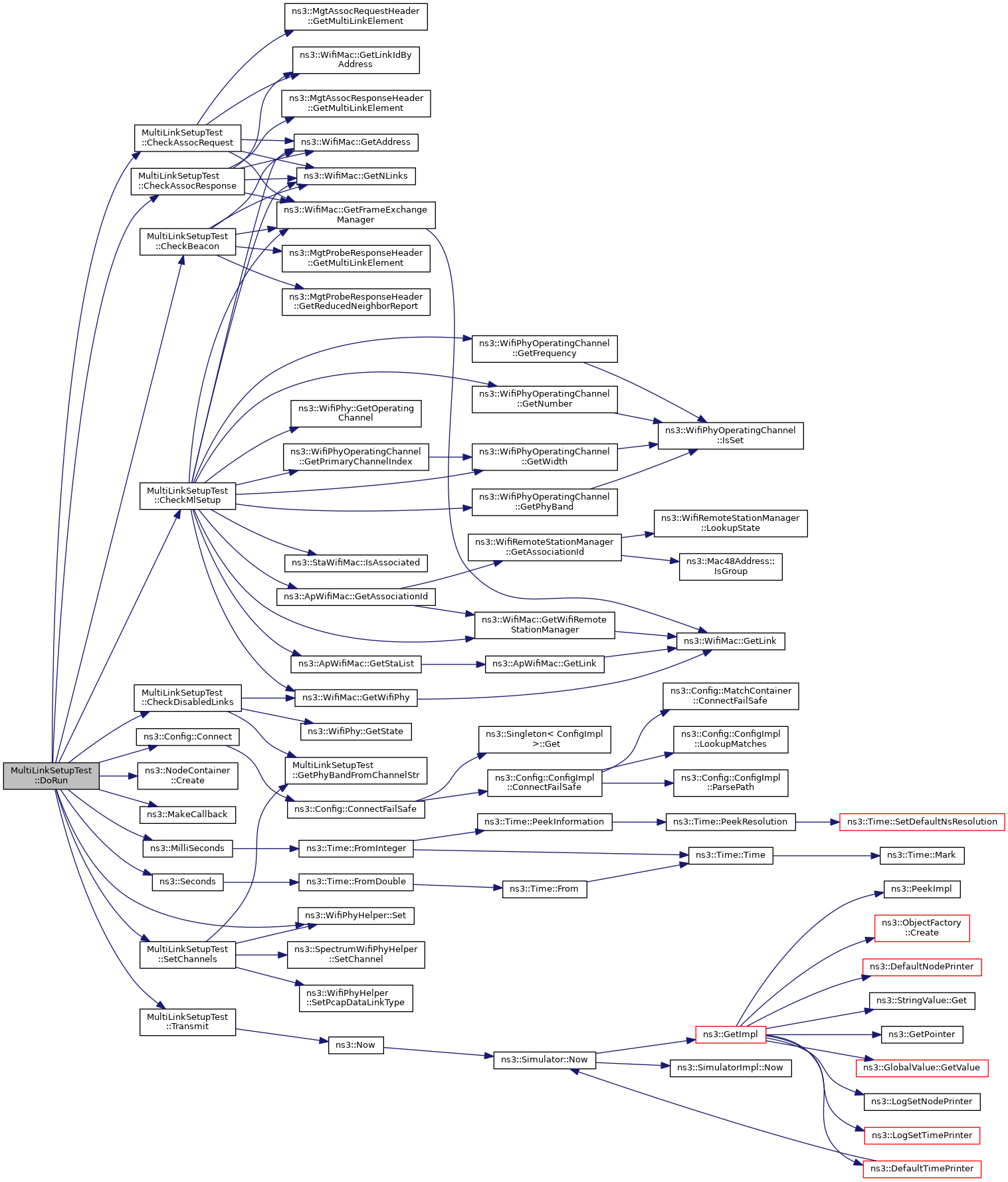

Here is the call graph for this function:

◆ GetPhyBandFromChannelStr()

WifiPhyBand MultiLinkSetupTest::GetPhyBandFromChannelStr ( const std::string & str )

private

Parameters

str	the given channel string

Returns: the PHY band specified in the given channel string

Definition at line 362 of file wifi-mlo-test.cc.

References NS_ABORT_MSG, ns3::WIFI_PHY_BAND_2_4GHZ, ns3::WIFI_PHY_BAND_5GHZ, ns3::WIFI_PHY_BAND_6GHZ, and ns3::WIFI_PHY_BAND_UNSPECIFIED.

Referenced by CheckDisabledLinks(), and SetChannels().

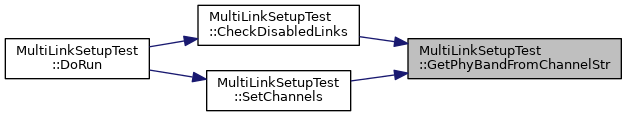

Here is the caller graph for this function:

◆ SetChannels()

void MultiLinkSetupTest::SetChannels	(	SpectrumWifiPhyHelper &	helper,
		const std::vector< std::string > &	channels,
		const std::map< WifiPhyBand, Ptr< MultiModelSpectrumChannel > > &	channelMap
	)

private

Reset the given PHY helper, use the given strings to set the ChannelSettings attribute of the PHY objects to create, and attach them to the given spectrum channels appropriately.

Parameters

helper	the given PHY helper
channels	the strings specifying the operating channels to configure
channelMap	the created spectrum channels

Definition at line 343 of file wifi-mlo-test.cc.

References GetPhyBandFromChannelStr(), ns3::WifiPhyHelper::Set(), ns3::SpectrumWifiPhyHelper::SetChannel(), and ns3::WifiPhyHelper::SetPcapDataLinkType().

Referenced by DoRun().

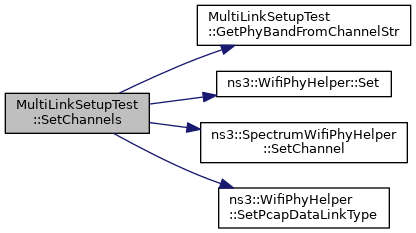

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Transmit()

void MultiLinkSetupTest::Transmit	(	uint8_t	linkId,
		std::string	context,
		WifiConstPsduMap	psduMap,
		WifiTxVector	txVector,
		double	txPowerW
	)

private

Callback invoked when a FEM passes PSDUs to the PHY.

Parameters

linkId	the ID of the link transmitting the PSDUs
context	the context
psduMap	the PSDU map
txVector	the TX vector
txPowerW	the tx power in Watts

Definition at line 319 of file wifi-mlo-test.cc.

References m_txPsdus, ns3::Now(), and NS_LOG_INFO.

Referenced by DoRun().

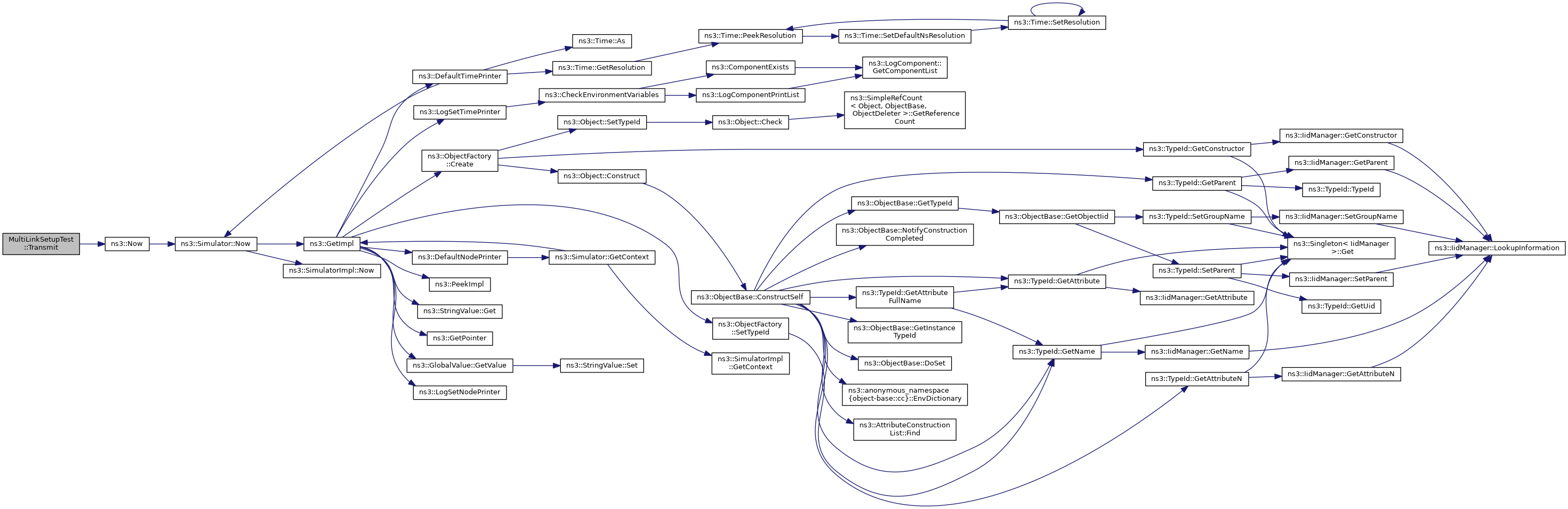

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_apChannels

std::vector<std::string> MultiLinkSetupTest::m_apChannels

private

strings specifying channels for AP

Definition at line 293 of file wifi-mlo-test.cc.

Referenced by CheckDisabledLinks(), and DoRun().

◆ m_apMac

Ptr<ApWifiMac> MultiLinkSetupTest::m_apMac

private

AP wifi MAC.

Definition at line 297 of file wifi-mlo-test.cc.

Referenced by CheckAssocRequest(), CheckAssocResponse(), CheckBeacon(), CheckMlSetup(), and DoRun().

◆ m_fixedPhyBands

std::vector<uint8_t> MultiLinkSetupTest::m_fixedPhyBands

private

links on non-AP MLD with fixed PHY band

Definition at line 296 of file wifi-mlo-test.cc.

Referenced by DoRun().

◆ m_setupLinks

std::vector<std::pair<uint8_t, uint8_t> > MultiLinkSetupTest::m_setupLinks

private

expected links to setup (STA link ID, AP link ID)

Definition at line 295 of file wifi-mlo-test.cc.

Referenced by CheckAssocRequest(), CheckAssocResponse(), CheckDisabledLinks(), and CheckMlSetup().

◆ m_staChannels

std::vector<std::string> MultiLinkSetupTest::m_staChannels

private

strings specifying channels for STA

Definition at line 292 of file wifi-mlo-test.cc.

Referenced by CheckDisabledLinks(), and DoRun().

◆ m_staMac

Ptr<StaWifiMac> MultiLinkSetupTest::m_staMac

private

STA wifi MAC.

Definition at line 298 of file wifi-mlo-test.cc.

Referenced by CheckAssocRequest(), CheckAssocResponse(), CheckDisabledLinks(), CheckMlSetup(), and DoRun().

◆ m_txPsdus

std::vector<FrameInfo> MultiLinkSetupTest::m_txPsdus

private

transmitted PSDUs

Definition at line 291 of file wifi-mlo-test.cc.

Referenced by DoRun(), and Transmit().

The documentation for this class was generated from the following file:

src/wifi/test/wifi-mlo-test.cc
