ns3::MlmeScanConfirmParams Struct Reference

MLME-SCAN.confirm params. More...

#include "lr-wpan-mac.h"

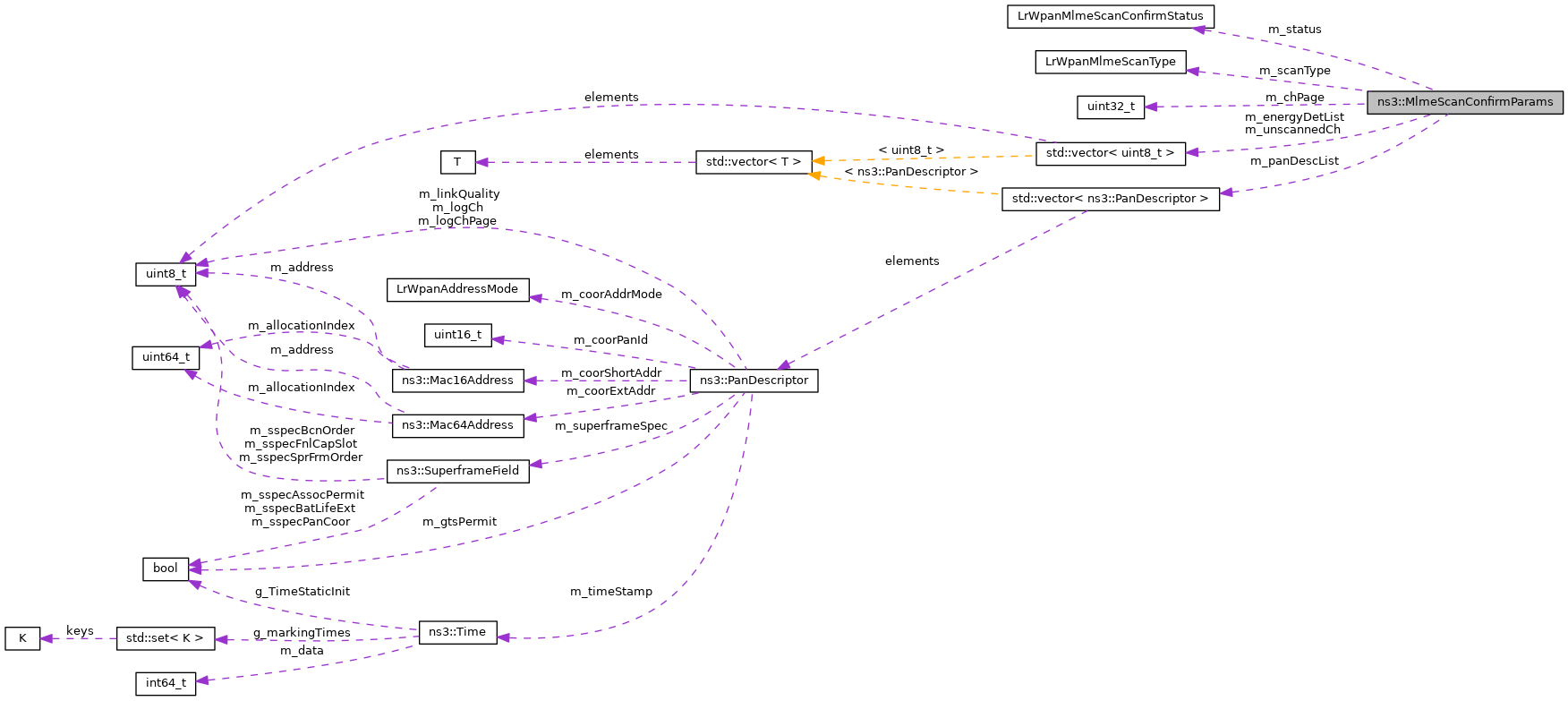

Collaboration diagram for ns3::MlmeScanConfirmParams:

Public Attributes
uint32_t	m_chPage {0}
	The channel page on which the scan was performed. More...
std::vector< uint8_t >	m_energyDetList
	A list of energy measurements, one for each channel searched during ED scan (Not valid for Active, Passive or Orphan Scans) More...
std::vector< PanDescriptor >	m_panDescList
	A list of PAN descriptor, one for each beacon found (Not valid for ED and Orphan scans). More...
LrWpanMlmeScanType	m_scanType
	Indicates the type of scan performed (ED,ACTIVE,PASSIVE,ORPHAN). More...
LrWpanMlmeScanConfirmStatus	m_status
	The status of the scan request. More...
std::vector< uint8_t >	m_unscannedCh
	A list of channels given in the request which were not scanned (Not valid for ED scans). More...

Detailed Description

MLME-SCAN.confirm params.

See IEEE 802.15.4-2011 Section 6.2.10.2

Definition at line 482 of file lr-wpan-mac.h.

Member Data Documentation

m_chPage

uint32_t ns3::MlmeScanConfirmParams::m_chPage {0}

The channel page on which the scan was performed.

Definition at line 488 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EndChannelEnergyScan(), ns3::LrWpanMac::EndChannelScan(), ns3::LrWpanMac::MlmeScanRequest(), ns3::LrWpanMac::PlmeSetAttributeConfirm(), and ScanConfirm().

m_energyDetList

std::vector<uint8_t> ns3::MlmeScanConfirmParams::m_energyDetList

A list of energy measurements, one for each channel searched during ED scan (Not valid for Active, Passive or Orphan Scans)

Definition at line 492 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EndChannelEnergyScan(), ns3::LrWpanMac::EndChannelScan(), and ScanConfirm().

m_panDescList

std::vector<PanDescriptor> ns3::MlmeScanConfirmParams::m_panDescList

A list of PAN descriptor, one for each beacon found (Not valid for ED and Orphan scans).

Definition at line 494 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EndChannelScan(), TestActiveScanPanDescriptors::ScanConfirm(), and ScanConfirm().

m_scanType

LrWpanMlmeScanType ns3::MlmeScanConfirmParams::m_scanType

Initial value:

{
        MLMESCAN_PASSIVE}

Indicates the type of scan performed (ED,ACTIVE,PASSIVE,ORPHAN).

Definition at line 486 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EndChannelEnergyScan(), ns3::LrWpanMac::EndChannelScan(), ns3::LrWpanMac::MlmeScanRequest(), ns3::LrWpanMac::PlmeSetAttributeConfirm(), and ScanConfirm().

m_status

LrWpanMlmeScanConfirmStatus ns3::MlmeScanConfirmParams::m_status

Initial value:

{
        MLMESCAN_INVALID_PARAMETER}

The status of the scan request.

Definition at line 484 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EndChannelEnergyScan(), ns3::LrWpanMac::EndChannelScan(), ns3::LrWpanMac::MlmeScanRequest(), ns3::LrWpanMac::PlmeSetAttributeConfirm(), TestActiveScanPanDescriptors::ScanConfirm(), and ScanConfirm().

m_unscannedCh

std::vector<uint8_t> ns3::MlmeScanConfirmParams::m_unscannedCh

A list of channels given in the request which were not scanned (Not valid for ED scans).

Definition at line 489 of file lr-wpan-mac.h.

---

The documentation for this struct was generated from the following file:

• src/lr-wpan/model/lr-wpan-mac.h
