ns3::Bar Struct Reference

BlockAckRequest frame information. More...

#include "block-ack-manager.h"

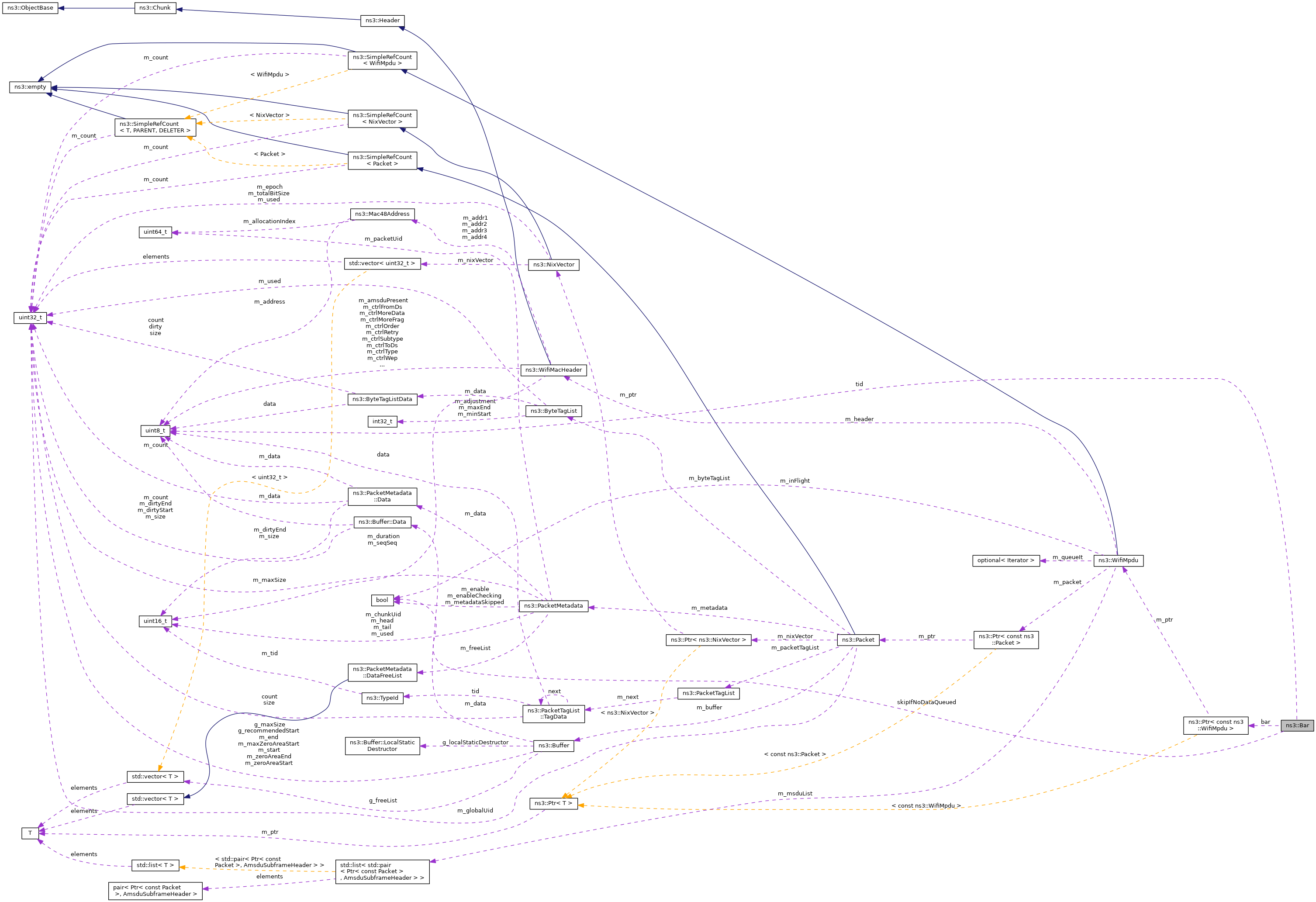

Collaboration diagram for ns3::Bar:

Public Member Functions
	Bar ()
	Bar (Ptr< const WifiMpdu > bar, uint8_t tid, bool skipIfNoDataQueued=false)
	Store a BlockAckRequest along with the corresponding TID or a MU-BAR Trigger Frame. More...

Public Attributes
Ptr< const WifiMpdu >	bar
	BlockAckRequest or MU-BAR Trigger Frame. More...
bool	skipIfNoDataQueued
	do not send if there is no data queued (unused if MU-BAR) More...
uint8_t	tid
	TID (unused if MU-BAR) More...

Detailed Description

BlockAckRequest frame information.

Definition at line 51 of file block-ack-manager.h.

Constructor & Destructor Documentation

Bar() [1/2]

ns3::Bar::Bar

(

)

Definition at line 39 of file block-ack-manager.cc.

References NS_LOG_FUNCTION.

Bar() [2/2]

ns3::Bar::Bar	(	Ptr< const WifiMpdu >	bar,
		uint8_t	tid,
		bool	skipIfNoDataQueued = false
	)

Store a BlockAckRequest along with the corresponding TID or a MU-BAR Trigger Frame.

Parameters

bar	the BAR
tid	the Traffic ID
skipIfNoDataQueued	true to hold this BAR if there is no data queued

Definition at line 44 of file block-ack-manager.cc.

References bar, NS_LOG_FUNCTION, skipIfNoDataQueued, and tid.

Member Data Documentation

bar

Ptr<const WifiMpdu> ns3::Bar::bar

BlockAckRequest or MU-BAR Trigger Frame.

Definition at line 62 of file block-ack-manager.h.

Referenced by Bar().

skipIfNoDataQueued

bool ns3::Bar::skipIfNoDataQueued

do not send if there is no data queued (unused if MU-BAR)

Definition at line 64 of file block-ack-manager.h.

Referenced by Bar().

tid

uint8_t ns3::Bar::tid

TID (unused if MU-BAR)

Definition at line 63 of file block-ack-manager.h.

Referenced by Bar().

---

The documentation for this struct was generated from the following files:

• src/wifi/model/block-ack-manager.h
• src/wifi/model/block-ack-manager.cc
