To trace WaveNetDevice, we have to overwrite the trace functions of class YansWifiPhyHelper. More...

#include "wave-helper.h"

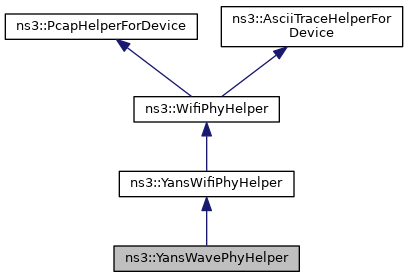

Inheritance diagram for ns3::YansWavePhyHelper:

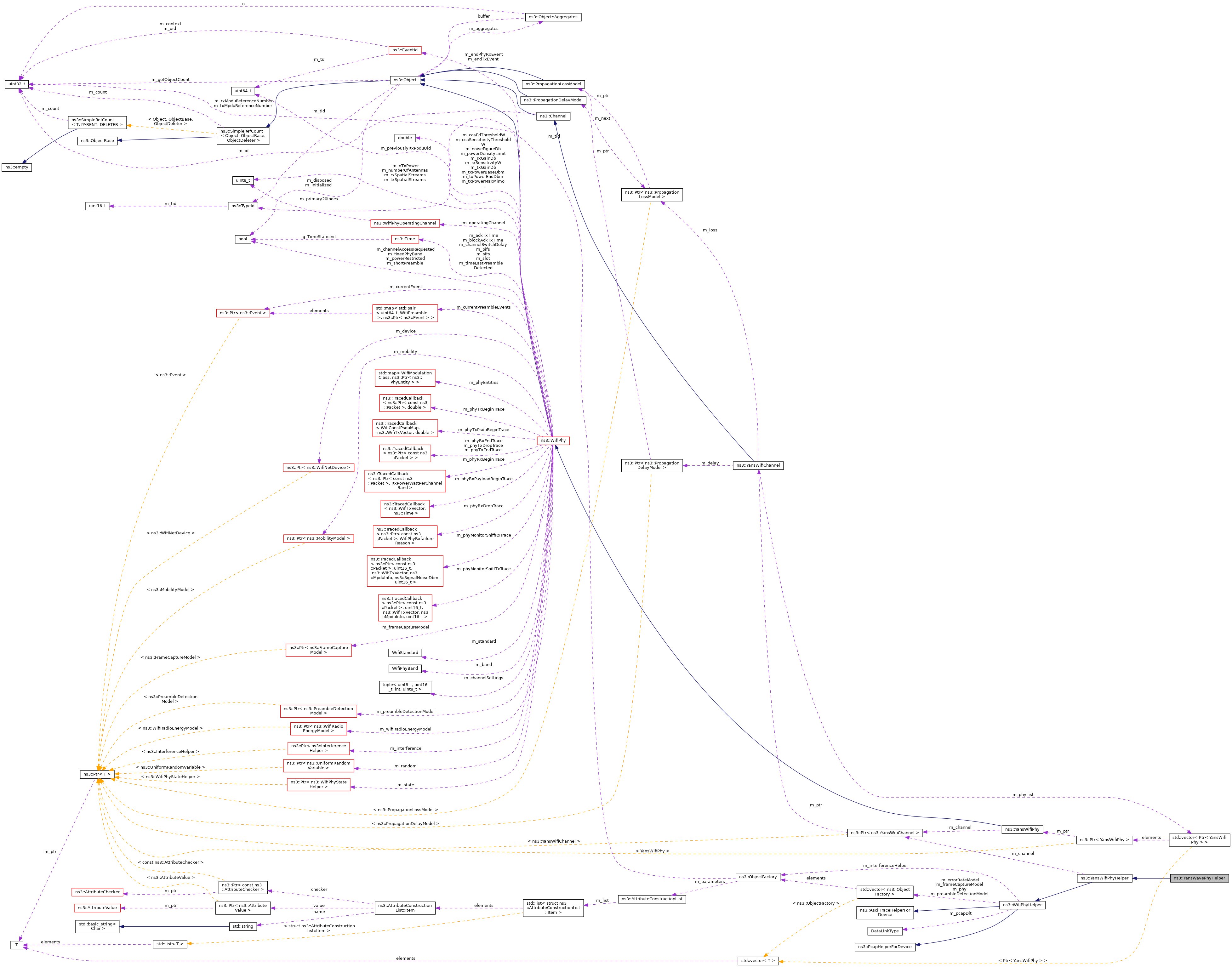

Collaboration diagram for ns3::YansWavePhyHelper:

Static Public Member Functions
static YansWavePhyHelper	Default ()
	Create a phy helper in a default working state. More...

Private Member Functions
void	EnableAsciiInternal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< NetDevice > nd, bool explicitFilename) override
	Enable ascii trace output on the indicated net device. More...

void	EnablePcapInternal (std::string prefix, Ptr< NetDevice > nd, bool promiscuous, bool explicitFilename) override
	Enable pcap output the indicated net device. More...

Additional Inherited Members
Public Types inherited from ns3::WifiPhyHelper
enum	SupportedPcapDataLinkTypes { DLT_IEEE802_11 , DLT_PRISM_HEADER , DLT_IEEE802_11_RADIO }
	An enumeration of the pcap data link types (DLTs) which this helper supports. More...

Public Member Functions inherited from ns3::YansWifiPhyHelper
	YansWifiPhyHelper ()
	Create a PHY helper. More...

void	SetChannel (Ptr< YansWifiChannel > channel)

void	SetChannel (std::string channelName)

Public Member Functions inherited from ns3::WifiPhyHelper
	WifiPhyHelper (uint8_t nLinks=1)
	Constructor. More...

	~WifiPhyHelper () override

virtual std::vector< Ptr< WifiPhy > >	Create (Ptr< Node > node, Ptr< WifiNetDevice > device) const =0

void	DisablePreambleDetectionModel ()
	Disable the preamble detection model on all links. More...

PcapHelper::DataLinkType	GetPcapDataLinkType () const
	Get the data link type of PCAP traces to be used. More...

void	Set (std::string name, const AttributeValue &v)

void	Set (uint8_t linkId, std::string name, const AttributeValue &v)

template<typename... Args>
void	SetErrorRateModel (std::string type, Args &&... args)
	Helper function used to set the error rate model. More...

template<typename... Args>
void	SetErrorRateModel (uint8_t linkId, std::string type, Args &&... args)

template<typename... Args>
void	SetFrameCaptureModel (std::string type, Args &&... args)
	Helper function used to set the frame capture model. More...

template<typename... Args>
void	SetFrameCaptureModel (uint8_t linkId, std::string type, Args &&... args)

template<typename... Args>
void	SetInterferenceHelper (std::string type, Args &&... args)
	Helper function used to set the interference helper. More...

void	SetPcapDataLinkType (SupportedPcapDataLinkTypes dlt)
	Set the data link type of PCAP traces to be used. More...

template<typename... Args>
void	SetPreambleDetectionModel (std::string type, Args &&... args)
	Helper function used to set the preamble detection model. More...

template<typename... Args>
void	SetPreambleDetectionModel (uint8_t linkId, std::string type, Args &&... args)

Public Member Functions inherited from ns3::PcapHelperForDevice
	PcapHelperForDevice ()
	Construct a PcapHelperForDevice. More...

virtual	~PcapHelperForDevice ()
	Destroy a PcapHelperForDevice. More...

void	EnablePcap (std::string prefix, NetDeviceContainer d, bool promiscuous=false)
	Enable pcap output on each device in the container which is of the appropriate type. More...

void	EnablePcap (std::string prefix, NodeContainer n, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnablePcap (std::string prefix, Ptr< NetDevice > nd, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device. More...

void	EnablePcap (std::string prefix, std::string ndName, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnablePcap (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool promiscuous=false)
	Enable pcap output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnablePcapAll (std::string prefix, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

virtual void	EnablePcapInternal (std::string prefix, Ptr< NetDevice > nd, bool promiscuous, bool explicitFilename)=0
	Enable pcap output the indicated net device. More...

Public Member Functions inherited from ns3::AsciiTraceHelperForDevice
	AsciiTraceHelperForDevice ()
	Construct an AsciiTraceHelperForDevice. More...

virtual	~AsciiTraceHelperForDevice ()
	Destroy an AsciiTraceHelperForDevice. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, Ptr< NetDevice > nd)
	Enable ascii trace output on the indicated net device. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, std::string ndName)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t deviceid)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnableAscii (std::string prefix, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...

void	EnableAscii (std::string prefix, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnableAscii (std::string prefix, Ptr< NetDevice > nd, bool explicitFilename=false)
	Enable ascii trace output on the indicated net device. More...

void	EnableAscii (std::string prefix, std::string ndName, bool explicitFilename=false)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnableAscii (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnableAsciiAll (Ptr< OutputStreamWrapper > stream)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

void	EnableAsciiAll (std::string prefix)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

virtual void	EnableAsciiInternal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< NetDevice > nd, bool explicitFilename)=0
	Enable ascii trace output on the indicated net device. More...

Static Protected Member Functions inherited from ns3::WifiPhyHelper
static void	PcapSniffRxEvent (Ptr< PcapFileWrapper > file, Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, SignalNoiseDbm signalNoise, uint16_t staId=SU_STA_ID)

static void	PcapSniffTxEvent (Ptr< PcapFileWrapper > file, Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, uint16_t staId=SU_STA_ID)

Protected Attributes inherited from ns3::WifiPhyHelper
std::vector< ObjectFactory >	m_errorRateModel
	error rate model More...

std::vector< ObjectFactory >	m_frameCaptureModel
	frame capture model More...

ObjectFactory	m_interferenceHelper
	interference helper More...

std::vector< ObjectFactory >	m_phy
	PHY object. More...

std::vector< ObjectFactory >	m_preambleDetectionModel
	preamble detection model More...

Detailed Description

To trace WaveNetDevice, we have to overwrite the trace functions of class YansWifiPhyHelper.

The source code is very similar with YansWifiPhy, only with some adaptation.

Definition at line 41 of file wave-helper.h.

Member Function Documentation

◆ Default()

YansWavePhyHelper ns3::YansWavePhyHelper::Default ( )

static

Create a phy helper in a default working state.

Returns: A phy helper

Definition at line 122 of file wave-helper.cc.

References ns3::WifiPhyHelper::SetErrorRateModel().

Here is the call graph for this function:

◆ EnableAsciiInternal()

void ns3::YansWavePhyHelper::EnableAsciiInternal	(	Ptr< OutputStreamWrapper >	stream,
		std::string	prefix,
		Ptr< NetDevice >	nd,
		bool	explicitFilename
	)

overrideprivatevirtual

Enable ascii trace output on the indicated net device.

Internal:

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters

stream	The output stream object to use when logging ascii traces.
prefix	Filename prefix to use for ascii trace files.
nd	Net device for which you want to enable tracing.
explicitFilename	Treat the prefix as an explicit filename if true

Implements ns3::AsciiTraceHelperForDevice.

Definition at line 181 of file wave-helper.cc.

References ns3::AsciiPhyReceiveSinkWithContext(), ns3::AsciiPhyReceiveSinkWithoutContext(), ns3::AsciiPhyTransmitSinkWithContext(), ns3::AsciiPhyTransmitSinkWithoutContext(), ns3::Config::Connect(), ns3::Config::ConnectWithoutContext(), ns3::AsciiTraceHelper::CreateFileStream(), ns3::Packet::EnablePrinting(), ns3::AsciiTraceHelper::GetFilenameFromDevice(), ns3::MakeBoundCallback(), and NS_LOG_INFO.

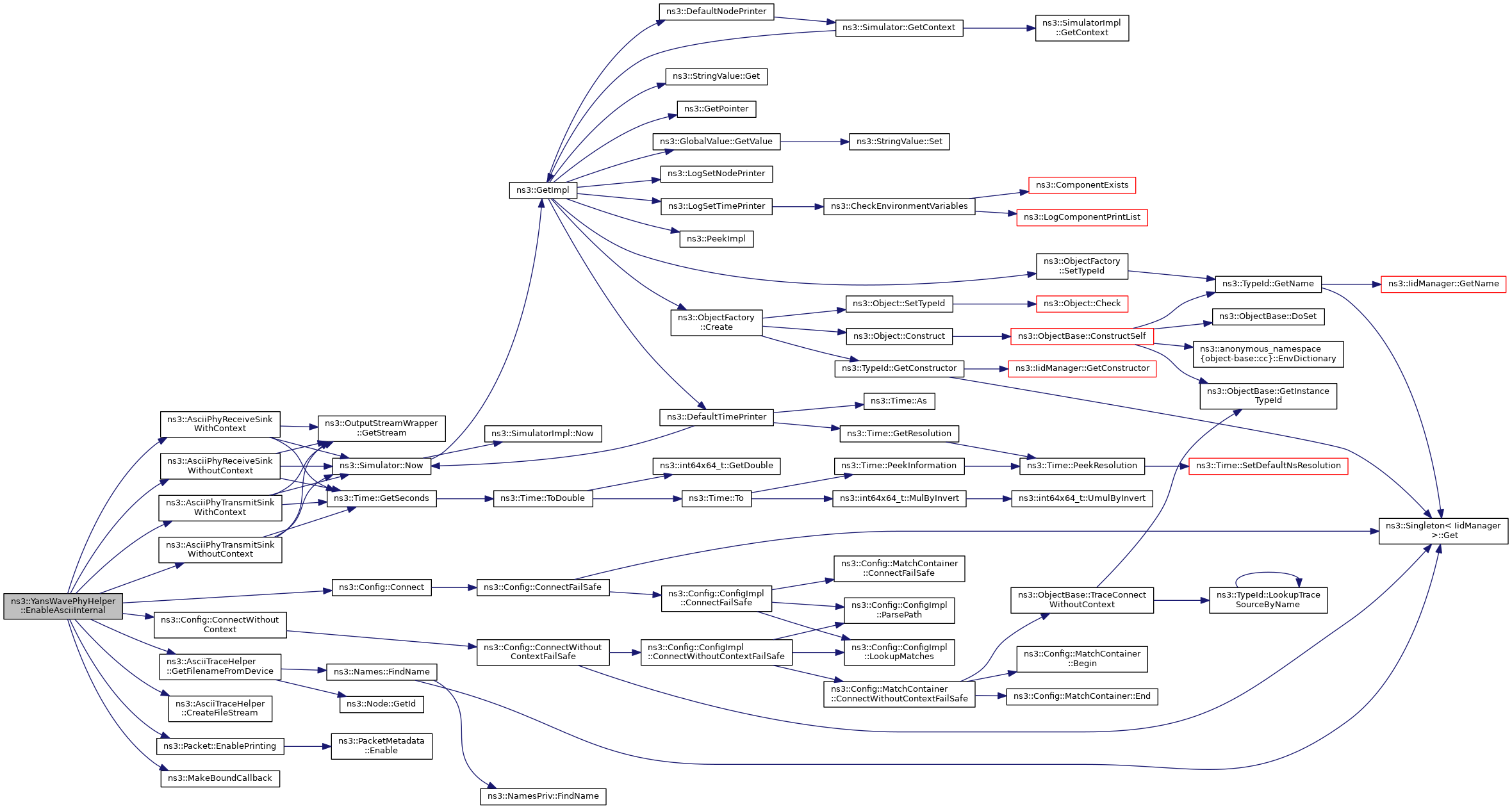

Here is the call graph for this function:

◆ EnablePcapInternal()

void ns3::YansWavePhyHelper::EnablePcapInternal	(	std::string	prefix,
		Ptr< NetDevice >	nd,
		bool	promiscuous,
		bool	explicitFilename
	)

overrideprivatevirtual

Enable pcap output the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters

prefix	Filename prefix to use for pcap files.
nd	Net device for which you want to enable tracing.
promiscuous	If true capture all possible packets available at the device.
explicitFilename	Treat the prefix as an explicit filename if true

Implements ns3::PcapHelperForDevice.

Definition at line 130 of file wave-helper.cc.

References ns3::PcapHelper::CreateFile(), create-module::file, ns3::PcapHelper::GetFilenameFromDevice(), ns3::WifiPhyHelper::GetPcapDataLinkType(), ns3::WaveNetDevice::GetPhys(), ns3::MakeBoundCallback(), NS_ABORT_MSG_IF, NS_LOG_INFO, ns3::WifiPhyHelper::PcapSniffRxEvent(), ns3::WifiPhyHelper::PcapSniffTxEvent(), and third::phy.

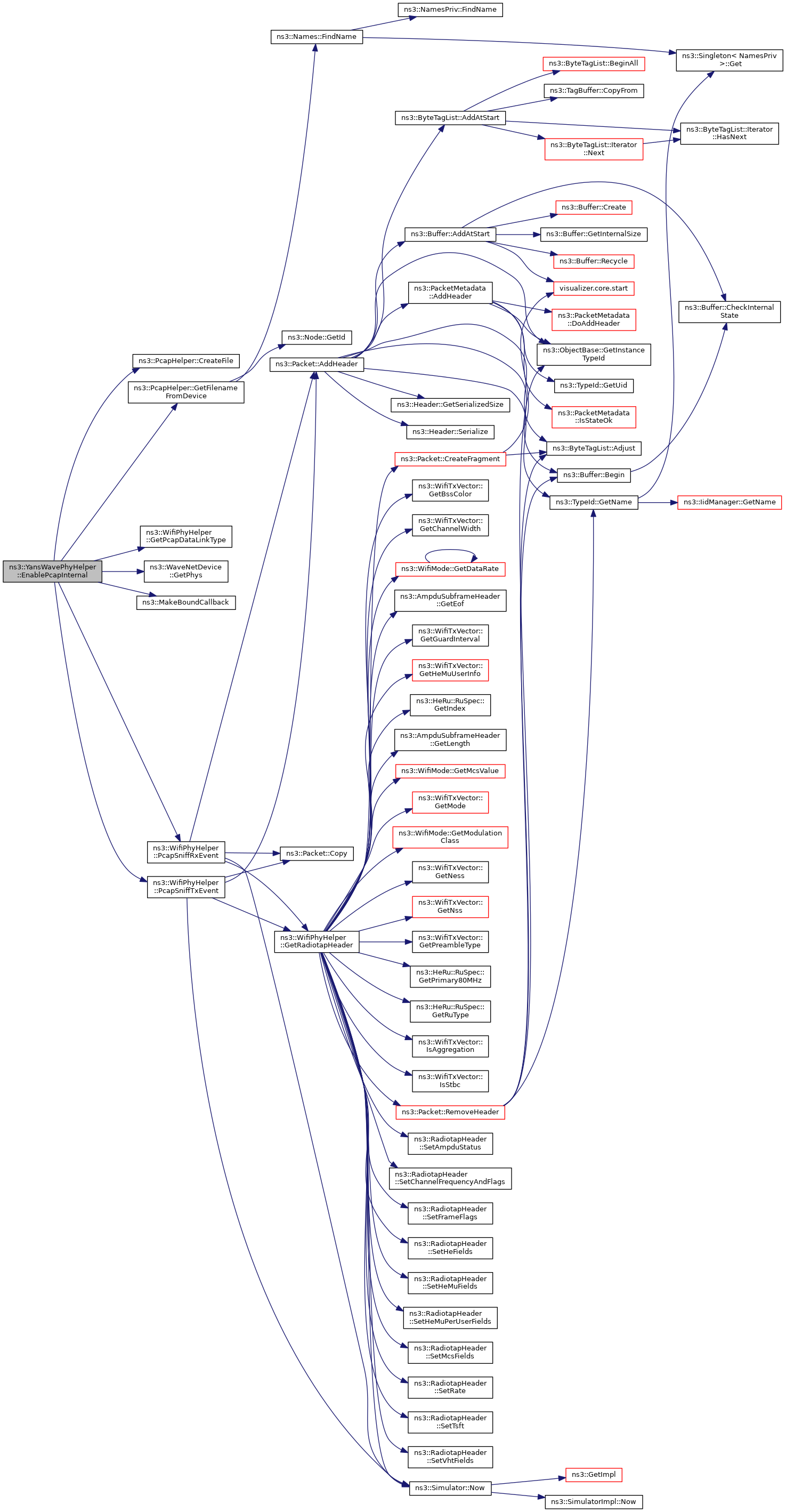

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/wave/helper/wave-helper.h
src/wave/helper/wave-helper.cc
