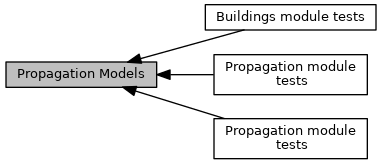

Collaboration diagram for Propagation Models:Modules | |
| Buildings module tests | |
| Propagation module tests | |
| Propagation module tests | |
Classes | |
| class | ns3::AlwaysLosChannelConditionModel |
| Models an always in-LoS condition model. More... | |
| class | ns3::BuildingsPropagationLossModel |
| This model provides means for simulating the following propagation phenomena in the presence of buildings: More... | |
| class | ns3::ChannelCondition |
| Carries information about the LOS/NLOS channel state. More... | |
| class | ns3::ChannelConditionModel |
| Models the channel condition. More... | |
| class | ns3::ConstantSpeedPropagationDelayModel |
| the propagation speed is constant More... | |
| class | ns3::Cost231PropagationLossModel |
| The COST-Hata-Model is the most often cited of the COST 231 models. More... | |
| class | ns3::FixedRssLossModel |
| Return a constant received power level independent of the transmit power. More... | |
| class | ns3::FriisPropagationLossModel |
| a Friis propagation loss model More... | |
| class | ns3::HybridBuildingsPropagationLossModel |
| The HybridBuildingsPropagationModel is a compound of different models able to evaluate the pathloss from 200 to 2600 MHz, in different environments and with buildings (i.e., indoor and outdoor communications). More... | |
| class | ns3::ItuR1411LosPropagationLossModel |
| the ITU-R 1411 LOS propagation model More... | |
| class | ns3::ItuR1411NlosOverRooftopPropagationLossModel |
| the ITU-R 1411 NLOS over rooftop propagation model More... | |
| class | JakesPropagationExample |
| Constructs a JakesPropagationlossModel and print the loss value as a function of time into std::cout. More... | |
| class | ns3::JakesPropagationLossModel |
| a Jakes narrowband propagation model. More... | |
| class | ns3::Kun2600MhzPropagationLossModel |
| Empirical propagation model for the 2.6 GHz frequency. More... | |
| class | ns3::LogDistancePropagationLossModel |
| a log distance propagation model. More... | |
| class | ns3::MatrixPropagationLossModel |
| The propagation loss is fixed for each pair of nodes and doesn't depend on their actual positions. More... | |
| class | ns3::NakagamiPropagationLossModel |
| Nakagami-m fast fading propagation loss model. More... | |
| class | ns3::NeverLosChannelConditionModel |
| Models a never in-LoS condition model. More... | |
| class | ns3::NeverLosVehicleChannelConditionModel |
| Models a never in-LoS condition model caused by a blocking vehicle. More... | |
| class | ns3::OhBuildingsPropagationLossModel |
| this model combines the OkumuraHata model with the BuildingsPropagationLossModel More... | |
| class | ns3::OkumuraHataPropagationLossModel |
| this class implements the Okumura Hata propagation loss model More... | |
| class | ns3::ProbabilisticV2vHighwayChannelConditionModel |
| Computes the channel condition for the V2V Highway scenario. More... | |
| class | ns3::ProbabilisticV2vUrbanChannelConditionModel |
| Computes the channel condition for the V2V Urban scenario. More... | |
| class | ns3::PropagationCache< T > |
| Constructs a cache of objects, where each object is responsible for a single propagation path loss calculations. More... | |
| class | ns3::PropagationDelayModel |
| calculate a propagation delay. More... | |
| class | ns3::PropagationLossModel |
| Models the propagation loss through a transmission medium. More... | |
| class | ns3::RandomPropagationDelayModel |
| the propagation delay is random More... | |
| class | ns3::RandomPropagationLossModel |
| The propagation loss follows a random distribution. More... | |
| class | ns3::RangePropagationLossModel |
| The propagation loss depends only on the distance (range) between transmitter and receiver. More... | |
| class | ns3::BuildingsPropagationLossModel::ShadowingLoss |
| This model allows the computation of shadowing loss. More... | |
| class | ns3::ThreeGppChannelConditionModel |
| Base class for the 3GPP channel condition models. More... | |
| class | ns3::ThreeGppIndoorMixedOfficeChannelConditionModel |
| Computes the channel condition for the Indoor Mixed Office scenario. More... | |
| class | ns3::ThreeGppIndoorOfficePropagationLossModel |
| Implements the pathloss model defined in 3GPP TR 38.901, Table 7.4.1-1 for the Indoor Office scenario. More... | |
| class | ns3::ThreeGppIndoorOpenOfficeChannelConditionModel |
| Computes the channel condition for the Indoor Open Office scenario. More... | |
| class | ns3::ThreeGppPropagationLossModel |
| Base class for the 3GPP propagation models. More... | |
| class | ns3::ThreeGppRmaChannelConditionModel |
| Computes the channel condition for the RMa scenario. More... | |
| class | ns3::ThreeGppRmaPropagationLossModel |
| Implements the pathloss model defined in 3GPP TR 38.901, Table 7.4.1-1 for the RMa scenario. More... | |
| class | ns3::ThreeGppUmaChannelConditionModel |
| Computes the channel condition for the UMa scenario. More... | |
| class | ns3::ThreeGppUmaPropagationLossModel |
| Implements the pathloss model defined in 3GPP TR 38.901, Table 7.4.1-1 for the UMa scenario. More... | |
| class | ns3::ThreeGppUmiStreetCanyonChannelConditionModel |
| Computes the channel condition for the UMi-Street canyon scenario. More... | |
| class | ns3::ThreeGppUmiStreetCanyonPropagationLossModel |
| Implements the pathloss model defined in 3GPP TR 38.901, Table 7.4.1-1 for the UMi-Street Canyon scenario. More... | |
| class | ns3::ThreeGppV2vHighwayPropagationLossModel |
| Implements the pathloss model defined in 3GPP TR 37.885, Table 6.2.1-1 for the Highway scenario. More... | |
| class | ns3::ThreeGppV2vUrbanPropagationLossModel |
| Implements the pathloss model defined in 3GPP TR 37.885, Table 6.2.1-1 for the Urban scenario. More... | |
| class | ns3::ThreeLogDistancePropagationLossModel |
| A log distance path loss propagation model with three distance fields. More... | |
| class | ns3::TwoRayGroundPropagationLossModel |
| a Two-Ray Ground propagation loss model ported from NS2 More... | |
Enumerations | |
| enum | ns3::CitySize { ns3::SmallCity , ns3::MediumCity , ns3::LargeCity } |
| The size of the city in which propagation takes place. More... | |
| enum | ns3::EnvironmentType { ns3::UrbanEnvironment , ns3::SubUrbanEnvironment , ns3::OpenAreasEnvironment } |
| The type of propagation environment. More... | |
| enum ns3::CitySize |
The size of the city in which propagation takes place.
| Enumerator | |
|---|---|
| SmallCity | |
| MediumCity | |
| LargeCity | |
Definition at line 47 of file propagation-environment.h.
| enum ns3::EnvironmentType |
The type of propagation environment.
| Enumerator | |
|---|---|
| UrbanEnvironment | |
| SubUrbanEnvironment | |
| OpenAreasEnvironment | |
Definition at line 34 of file propagation-environment.h.
