ns3::McpsDataRequestParams Struct Reference

MCPS-DATA.request params. More...

#include "lr-wpan-mac.h"

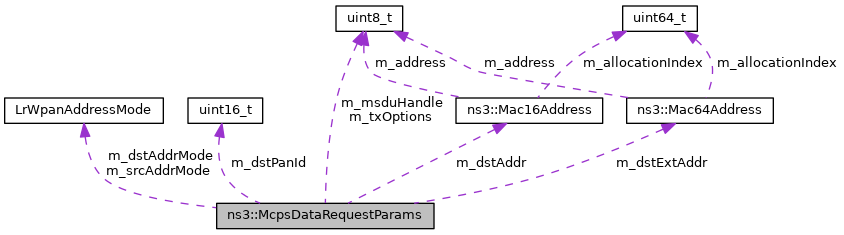

Collaboration diagram for ns3::McpsDataRequestParams:

Public Attributes
Mac16Address	m_dstAddr
	Destination address. More...
LrWpanAddressMode	m_dstAddrMode {SHORT_ADDR}
	Destination address mode. More...
Mac64Address	m_dstExtAddr
	Destination extended address. More...
uint16_t	m_dstPanId {0}
	Destination PAN identifier. More...
uint8_t	m_msduHandle {0}
	MSDU handle. More...
LrWpanAddressMode	m_srcAddrMode {SHORT_ADDR}
	Source address mode. More...
uint8_t	m_txOptions {0}
	Tx Options (bitfield) More...

Detailed Description

MCPS-DATA.request params.

See 7.1.1.1

Definition at line 383 of file lr-wpan-mac.h.

Member Data Documentation

m_dstAddr

Mac16Address ns3::McpsDataRequestParams::m_dstAddr

Destination address.

Definition at line 388 of file lr-wpan-mac.h.

Referenced by LrWpanAckTestCase::DataIndicationDev1(), LrWpanDataIfsTestCase::DataReceivedDev1(), LrWpanCcaTestCase::DoRun(), LrWpanSlottedCsmacaTestCase::DoRun(), and ns3::LrWpanNetDevice::Send().

m_dstAddrMode

LrWpanAddressMode ns3::McpsDataRequestParams::m_dstAddrMode {SHORT_ADDR}

Destination address mode.

Definition at line 386 of file lr-wpan-mac.h.

Referenced by LrWpanAckTestCase::DataIndicationDev1(), LrWpanDataIfsTestCase::DataReceivedDev1(), LrWpanCcaTestCase::DoRun(), LrWpanSlottedCsmacaTestCase::DoRun(), and ns3::LrWpanNetDevice::Send().

m_dstExtAddr

Mac64Address ns3::McpsDataRequestParams::m_dstExtAddr

Destination extended address.

Definition at line 389 of file lr-wpan-mac.h.

Referenced by LrWpanAckTestCase::DataIndicationDev1().

m_dstPanId

uint16_t ns3::McpsDataRequestParams::m_dstPanId {0}

Destination PAN identifier.

Definition at line 387 of file lr-wpan-mac.h.

Referenced by LrWpanAckTestCase::DataIndicationDev1(), LrWpanDataIfsTestCase::DataReceivedDev1(), LrWpanCcaTestCase::DoRun(), LrWpanSlottedCsmacaTestCase::DoRun(), and ns3::LrWpanNetDevice::Send().

m_msduHandle

uint8_t ns3::McpsDataRequestParams::m_msduHandle {0}

MSDU handle.

Definition at line 390 of file lr-wpan-mac.h.

Referenced by LrWpanAckTestCase::DataIndicationDev1(), LrWpanDataIfsTestCase::DataReceivedDev1(), LrWpanCcaTestCase::DoRun(), LrWpanSlottedCsmacaTestCase::DoRun(), and ns3::LrWpanNetDevice::Send().

m_srcAddrMode

LrWpanAddressMode ns3::McpsDataRequestParams::m_srcAddrMode {SHORT_ADDR}

Source address mode.

Definition at line 385 of file lr-wpan-mac.h.

Referenced by LrWpanAckTestCase::DataIndicationDev1(), LrWpanDataIfsTestCase::DataReceivedDev1(), LrWpanCcaTestCase::DoRun(), LrWpanSlottedCsmacaTestCase::DoRun(), and ns3::LrWpanNetDevice::Send().

m_txOptions

uint8_t ns3::McpsDataRequestParams::m_txOptions {0}

Tx Options (bitfield)

Definition at line 391 of file lr-wpan-mac.h.

Referenced by LrWpanAckTestCase::DataIndicationDev1(), LrWpanCcaTestCase::DoRun(), and ns3::LrWpanNetDevice::Send().

---

The documentation for this struct was generated from the following file:

• src/lr-wpan/model/lr-wpan-mac.h
