ns3::Ipv4Route Class Reference

IPv4 route cache entry (similar to Linux struct rtable) More...

#include "ipv4-route.h"

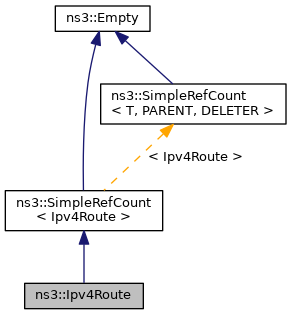

Inheritance diagram for ns3::Ipv4Route:

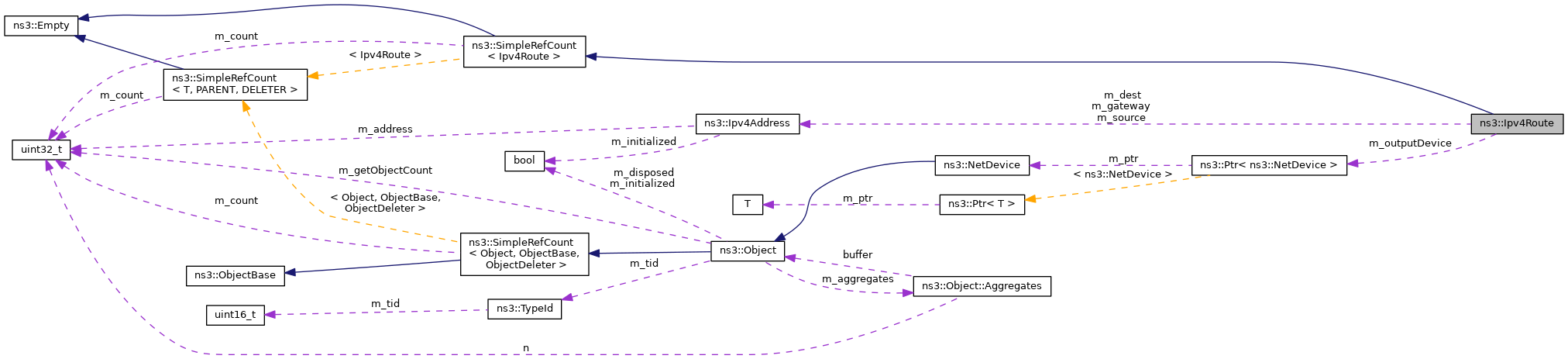

Collaboration diagram for ns3::Ipv4Route:

Public Member Functions
	Ipv4Route ()
Ipv4Address	GetDestination () const
Ipv4Address	GetGateway () const
Ptr< NetDevice >	GetOutputDevice () const
Ipv4Address	GetSource () const
void	SetDestination (Ipv4Address dest)
void	SetGateway (Ipv4Address gw)
void	SetOutputDevice (Ptr< NetDevice > outputDevice)
	Equivalent in Linux to dst_entry.dev. More...
void	SetSource (Ipv4Address src)
Public Member Functions inherited from ns3::SimpleRefCount< Ipv4Route >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...
void	Ref () const
	Increment the reference count. More...
void	Unref () const
	Decrement the reference count. More...

Private Attributes
Ipv4Address	m_dest
	Destination address. More...
Ipv4Address	m_gateway
	Gateway address. More...
Ptr< NetDevice >	m_outputDevice
	Output device. More...
Ipv4Address	m_source
	Source address. More...

Detailed Description

IPv4 route cache entry (similar to Linux struct rtable)

This is a reference counted object. In the future, we will add other entries from struct dst_entry, struct rtable, and struct dst_ops as needed.

Definition at line 41 of file ipv4-route.h.

Constructor & Destructor Documentation

Ipv4Route()

ns3::Ipv4Route::Ipv4Route

(

)

Definition at line 30 of file ipv4-route.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

GetDestination()

Ipv4Address ns3::Ipv4Route::GetDestination

(

)

const

Returns

Destination Ipv4Address of the route

Definition at line 43 of file ipv4-route.cc.

References m_dest, and NS_LOG_FUNCTION.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

GetGateway()

Ipv4Address ns3::Ipv4Route::GetGateway

(

)

const

Returns

Ipv4Address of the gateway (next hop)

Definition at line 71 of file ipv4-route.cc.

References m_gateway, and NS_LOG_FUNCTION.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

GetOutputDevice()

Ptr< NetDevice > ns3::Ipv4Route::GetOutputDevice

(

)

const

Returns

pointer to NetDevice for outgoing packets

Definition at line 85 of file ipv4-route.cc.

References m_outputDevice, and NS_LOG_FUNCTION.

GetSource()

Ipv4Address ns3::Ipv4Route::GetSource

(

)

const

Returns

Source Ipv4Address of the route

Definition at line 57 of file ipv4-route.cc.

References m_source, and NS_LOG_FUNCTION.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

SetDestination()

void ns3::Ipv4Route::SetDestination

(

Ipv4Address

dest

)

Parameters

dest	Destination Ipv4Address

Definition at line 36 of file ipv4-route.cc.

References m_dest, and NS_LOG_FUNCTION.

SetGateway()

void ns3::Ipv4Route::SetGateway

(

Ipv4Address

gw

)

Parameters

gw	Gateway (next hop) Ipv4Address

Definition at line 64 of file ipv4-route.cc.

References m_gateway, and NS_LOG_FUNCTION.

SetOutputDevice()

void ns3::Ipv4Route::SetOutputDevice

(

Ptr< NetDevice >

outputDevice

)

Equivalent in Linux to dst_entry.dev.

Parameters

outputDevice

pointer to NetDevice for outgoing packets

Definition at line 78 of file ipv4-route.cc.

References m_outputDevice, and NS_LOG_FUNCTION.

SetSource()

void ns3::Ipv4Route::SetSource

(

Ipv4Address

src

)

Parameters

src	Source Ipv4Address

Definition at line 50 of file ipv4-route.cc.

References m_source, and NS_LOG_FUNCTION.

Member Data Documentation

m_dest

Ipv4Address ns3::Ipv4Route::m_dest

private

Destination address.

Definition at line 91 of file ipv4-route.h.

Referenced by GetDestination(), and SetDestination().

m_gateway

Ipv4Address ns3::Ipv4Route::m_gateway

private

Gateway address.

Definition at line 93 of file ipv4-route.h.

Referenced by GetGateway(), and SetGateway().

m_outputDevice

Ptr<NetDevice> ns3::Ipv4Route::m_outputDevice

private

Output device.

Definition at line 94 of file ipv4-route.h.

Referenced by GetOutputDevice(), and SetOutputDevice().

m_source

Ipv4Address ns3::Ipv4Route::m_source

private

Source address.

Definition at line 92 of file ipv4-route.h.

Referenced by GetSource(), and SetSource().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv4-route.h
• src/internet/model/ipv4-route.cc
