ns3::MlmeScanRequestParams Struct Reference
LR-WPAN models

MLME-SCAN.request params. More...

#include "lr-wpan-mac.h"

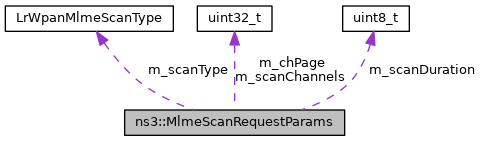

+ Collaboration diagram for ns3::MlmeScanRequestParams:

Public Attributes

uint32_t m_chPage {0}
 The channel page on which to perform scan. More...

uint32_t m_scanChannels {0x7FFFFFF}
 The channel numbers to be scanned. More...

uint8_t m_scanDuration {14}
 A value used to calculate the length of time to spend scanning [aBaseSuperframeDuration * (2^m_scanDuration +)]. More...

LrWpanMlmeScanType m_scanType {MLMESCAN_PASSIVE}
 Indicates the type of scan performed as described in IEEE 802.15.4-2011 (5.1.2.1). More...


Detailed Description

MLME-SCAN.request params.

See IEEE 802.15.4-2011 Section 6.2.10.1 Table 30

Definition at line 506 of file lr-wpan-mac.h.

Member Data Documentation

◆ m_chPage

uint32_t ns3::MlmeScanRequestParams::m_chPage {0}

The channel page on which to perform scan.

Definition at line 513 of file lr-wpan-mac.h.

Referenced by TestActiveScanPanDescriptors::DoRun(), ns3::LrWpanMac::EndChannelScan(), and ns3::LrWpanMac::PlmeSetAttributeConfirm().

◆ m_scanChannels

uint32_t ns3::MlmeScanRequestParams::m_scanChannels {0x7FFFFFF}

The channel numbers to be scanned.

Definition at line 510 of file lr-wpan-mac.h.

Referenced by TestActiveScanPanDescriptors::DoRun(), ns3::LrWpanMac::EndChannelEnergyScan(), ns3::LrWpanMac::EndChannelScan(), and ns3::LrWpanMac::PlmeSetAttributeConfirm().

◆ m_scanDuration

uint8_t ns3::MlmeScanRequestParams::m_scanDuration {14}

A value used to calculate the length of time to spend scanning [aBaseSuperframeDuration * (2^m_scanDuration +)].

Definition at line 511 of file lr-wpan-mac.h.

Referenced by TestActiveScanPanDescriptors::DoRun(), and ns3::LrWpanMac::PlmeSetAttributeConfirm().

◆ m_scanType

LrWpanMlmeScanType ns3::MlmeScanRequestParams::m_scanType {MLMESCAN_PASSIVE}

Indicates the type of scan performed as described in IEEE 802.15.4-2011 (5.1.2.1).

Definition at line 508 of file lr-wpan-mac.h.

Referenced by TestActiveScanPanDescriptors::DoRun(), ns3::LrWpanMac::EndChannelEnergyScan(), ns3::LrWpanMac::EndChannelScan(), and ns3::LrWpanMac::PlmeSetAttributeConfirm().

The documentation for this struct was generated from the following file:
