TcpAdvWindowOnLossTest Class Reference

Test the TCP's advertised window size when there is a loss of specific packets. More...

Inheritance diagram for TcpAdvWindowOnLossTest:

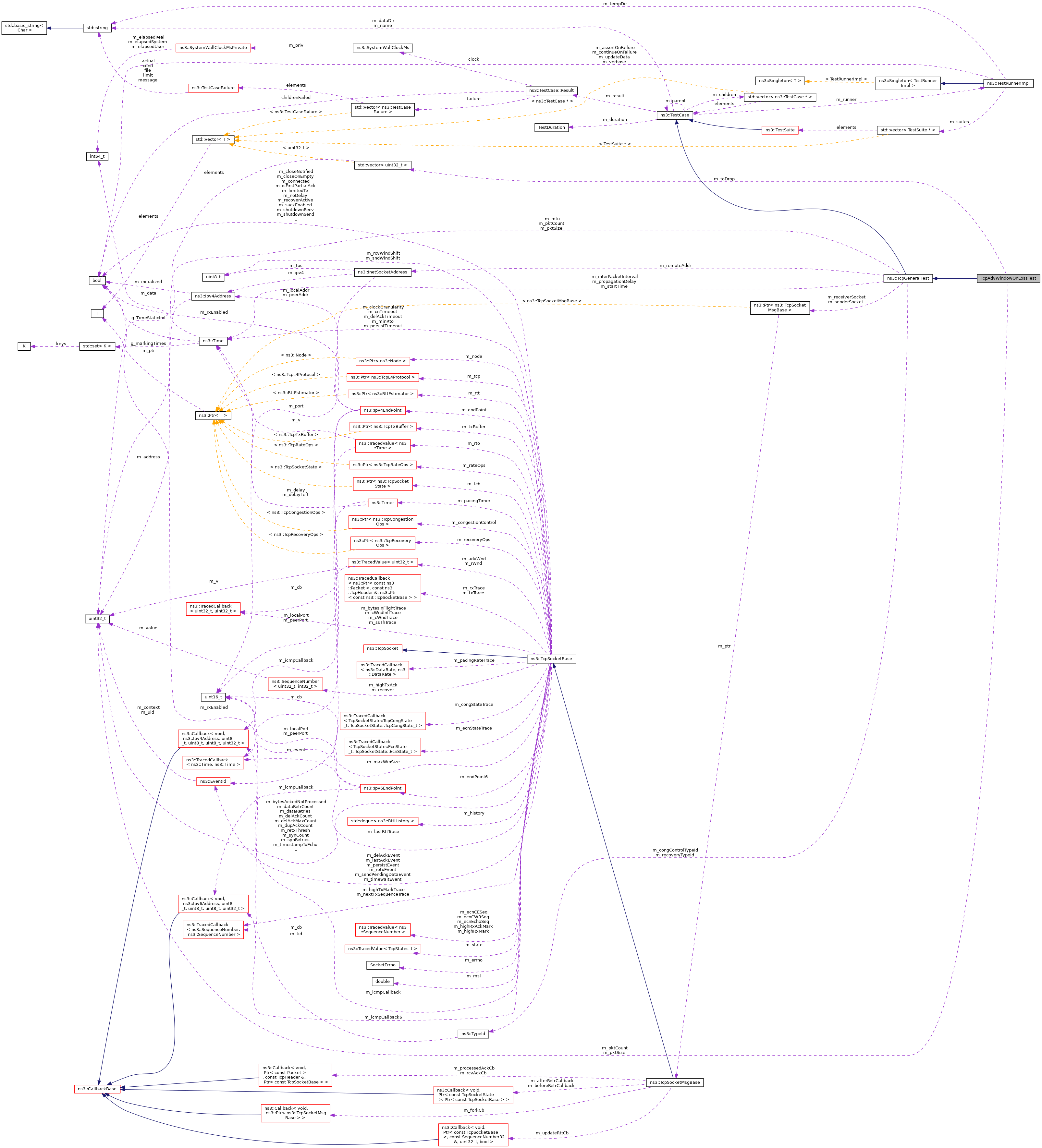

Collaboration diagram for TcpAdvWindowOnLossTest:

Public Member Functions
	TcpAdvWindowOnLossTest (const std::string &desc, uint32_t size, uint32_t packets, std::vector< uint32_t > &toDrop)
	Constructor. More...
Public Member Functions inherited from ns3::TcpGeneralTest
	TcpGeneralTest (const std::string &desc)
	TcpGeneralTest constructor. More...
	~TcpGeneralTest () override
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Protected Member Functions

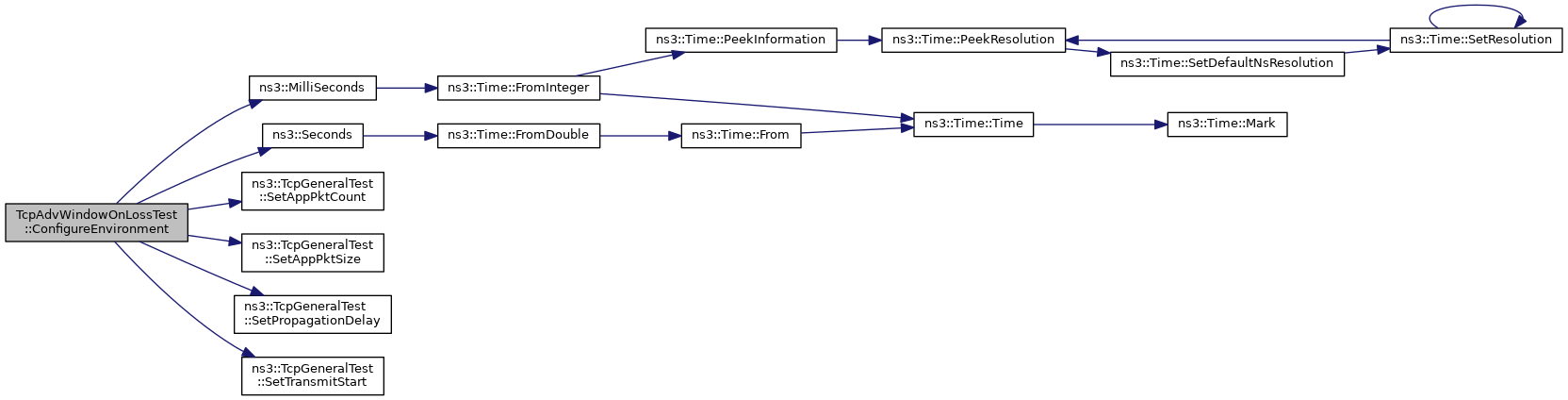

void	ConfigureEnvironment () override
	Change the configuration of the environment. More...
Ptr< ErrorModel >	CreateReceiverErrorModel () override
	Create and return the error model to install in the receiver node. More...

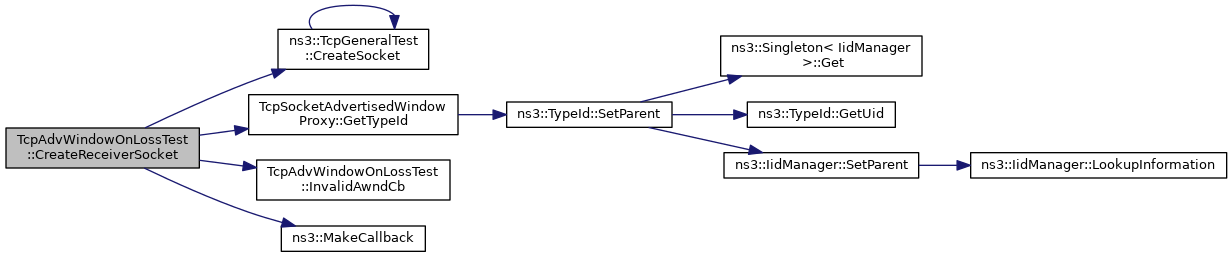

Ptr< TcpSocketMsgBase >	CreateReceiverSocket (Ptr< Node > node) override
	Create and install the socket to install on the receiver. More...
Ptr< TcpSocketMsgBase >	CreateSenderSocket (Ptr< Node > node) override
	Create and install the socket to install on the sender. More...
Protected Member Functions inherited from ns3::TcpGeneralTest
virtual void	AfterRTOExpired (const Ptr< const TcpSocketState > tcb, SocketWho who)
	Rto has expired. More...
virtual void	BeforeRTOExpired (const Ptr< const TcpSocketState > tcb, SocketWho who)
	Rto has expired. More...
virtual void	BytesInFlightTrace (uint32_t oldValue, uint32_t newValue)
	Bytes in flight changes. More...
virtual void	ConfigureEnvironment ()
	Change the configuration of the environment. More...
virtual void	ConfigureProperties ()
	Change the configuration of the socket properties. More...
virtual void	CongStateTrace (const TcpSocketState::TcpCongState_t oldValue, const TcpSocketState::TcpCongState_t newValue)
	State on Ack state machine changes. More...
virtual Ptr< SimpleChannel >	CreateChannel ()
	Create and return the channel installed between the two socket. More...
virtual Ptr< ErrorModel >	CreateReceiverErrorModel ()
	Create and return the error model to install in the receiver node. More...
virtual Ptr< TcpSocketMsgBase >	CreateReceiverSocket (Ptr< Node > node)
	Create and install the socket to install on the receiver. More...
virtual Ptr< ErrorModel >	CreateSenderErrorModel ()
	Create and return the error model to install in the sender node. More...
virtual Ptr< TcpSocketMsgBase >	CreateSenderSocket (Ptr< Node > node)
	Create and install the socket to install on the sender. More...
virtual Ptr< TcpSocketMsgBase >	CreateSocket (Ptr< Node > node, TypeId socketType, TypeId congControl)
	Create a socket. More...
virtual Ptr< TcpSocketMsgBase >	CreateSocket (Ptr< Node > node, TypeId socketType, TypeId congControl, TypeId recoveryAlgorithm)
	Create a socket. More...
virtual void	CWndInflTrace (uint32_t oldValue, uint32_t newValue)
	Tracks the inflated congestion window changes. More...
virtual void	CWndTrace (uint32_t oldValue, uint32_t newValue)
	Tracks the congestion window changes. More...
virtual void	DataSent (uint32_t size, SocketWho who)
	Notifying application for sent data. More...
void	DoConnect ()
	Scheduled at 0.0, SENDER starts the connection to RECEIVER. More...
void	DoRun () override
	Execute the tcp test. More...
void	DoTeardown () override
	Teardown the TCP test. More...
virtual void	ErrorClose (SocketWho who)
	Socket closed with an error. More...
virtual void	FinalChecks ()
	Performs the (eventual) final checks through test asserts. More...
Time	GetClockGranularity (SocketWho who)
	Get the clock granularity attribute. More...
Time	GetConnTimeout (SocketWho who)
	Get the retransmission time for the SYN segments. More...
uint32_t	GetDelAckCount (SocketWho who)
	Get the number of delayed ack (if present) More...
Time	GetDelAckTimeout (SocketWho who)
	Get the timeout of delayed ack (if present) More...
uint32_t	GetDupAckCount (SocketWho who)
	Get the number of dupack received. More...
SequenceNumber32	GetHighestTxMark (SocketWho who)
	Get the highest tx mark of the node specified. More...
uint32_t	GetInitialCwnd (SocketWho who)
	Get the initial congestion window. More...
uint32_t	GetInitialSsThresh (SocketWho who)
	Get the initial slow start threshold. More...
Time	GetMinRto (SocketWho who)
	Get the minimum RTO attribute. More...
uint32_t	GetMtu () const
	Get the MTU of the environment. More...
EventId	GetPersistentEvent (SocketWho who)
	Get the persistent event of the selected socket. More...
Time	GetPersistentTimeout (SocketWho who)
	Get the persistent timeout of the selected socket. More...
uint32_t	GetPktCount () const
	Get the number of application packets. More...
Time	GetPktInterval () const
	Get the interval to wait for each packet sent down from application to TCP. More...
uint32_t	GetPktSize () const
	Get the application packet size. More...
Time	GetPropagationDelay () const
	Get the channel Propagation Delay. More...
Ptr< TcpSocketMsgBase >	GetReceiverSocket ()
	Get the pointer to a previously created receiver socket. More...
uint32_t	GetReTxThreshold (SocketWho who)
	Get the retransmission threshold. More...
Time	GetRto (SocketWho who)
	Get the retransmission time. More...
Ptr< RttEstimator >	GetRttEstimator (SocketWho who)
	Get the Rtt estimator of the socket. More...
uint32_t	GetRWnd (SocketWho who)
	Get the rWnd of the selected socket. More...
Ptr< TcpRxBuffer >	GetRxBuffer (SocketWho who)
	Get the Rx buffer from selected socket. More...
uint32_t	GetSegSize (SocketWho who)
	Get the segment size of the node specified. More...
Ptr< TcpSocketMsgBase >	GetSenderSocket ()
	Get the pointer to a previously created sender socket. More...
Time	GetStartTime () const
	Get the data start time. More...
Ptr< TcpSocketState >	GetTcb (SocketWho who)
	Get the TCB from selected socket. More...
TcpSocket::TcpStates_t	GetTcpState (SocketWho who)
	Get the state of the TCP state machine. More...
Ptr< TcpTxBuffer >	GetTxBuffer (SocketWho who)
	Get the Tx buffer from selected socket. More...
virtual void	HighestTxSeqTrace (SequenceNumber32 oldValue, SequenceNumber32 newValue)
	Highest tx seq changes. More...
virtual void	NextTxSeqTrace (SequenceNumber32 oldValue, SequenceNumber32 newValue)
	Next tx seq changes. More...
virtual void	NormalClose (SocketWho who)
	Socket closed normally. More...
virtual void	PhyDrop (SocketWho who)
	Link drop. More...
virtual void	ProcessedAck (const Ptr< const TcpSocketState > tcb, const TcpHeader &h, SocketWho who)
	Processed ack. More...
virtual void	QueueDrop (SocketWho who)
	Drop on the queue. More...
virtual void	RateSampleUpdatedTrace (const TcpRateLinux::TcpRateSample &sample)
	Track the rate sample value of TcpRateLinux. More...
virtual void	RateUpdatedTrace (const TcpRateLinux::TcpRateConnection &rate)
	Track the rate value of TcpRateLinux. More...
virtual void	RcvAck (const Ptr< const TcpSocketState > tcb, const TcpHeader &h, SocketWho who)
	Received ack. More...
virtual void	ReceivePacket (Ptr< Socket > socket)
	Packet received. More...
virtual void	RtoTrace (Time oldValue, Time newValue)
	RTO changes. More...
virtual void	RttTrace (Time oldTime, Time newTime)
	Rtt changes. More...
virtual void	Rx (const Ptr< const Packet > p, const TcpHeader &h, SocketWho who)
	Packet received from IP layer. More...
void	SendPacket (Ptr< Socket > socket, uint32_t pktSize, uint32_t pktCount, Time pktInterval)
	Send packets to other endpoint. More...
void	SetAppPktCount (uint32_t pktCount)
	Set app packet count. More...
void	SetAppPktInterval (Time pktInterval)
	Interval between app-generated packet. More...
void	SetAppPktSize (uint32_t pktSize)
	Set app packet size. More...
void	SetCongestionControl (TypeId congControl)
	Congestion control of the sender socket. More...
void	SetDelAckMaxCount (SocketWho who, uint32_t count)
	Forcefully set the delayed acknowledgement count. More...
void	SetInitialCwnd (SocketWho who, uint32_t initialCwnd)
	Forcefully set the initial cwnd. More...
void	SetInitialSsThresh (SocketWho who, uint32_t initialSsThresh)
	Forcefully set the initial ssthresh. More...
void	SetMTU (uint32_t mtu)
	MTU of the bottleneck link. More...
void	SetPaceInitialWindow (SocketWho who, bool paceWindow)
	Enable or disable pacing of the initial window. More...
void	SetPacingStatus (SocketWho who, bool pacing)
	Enable or disable pacing in the TCP socket. More...
void	SetPropagationDelay (Time propDelay)
	Propagation delay of the bottleneck link. More...
void	SetRcvBufSize (SocketWho who, uint32_t size)
	Forcefully set a defined size for rx buffer. More...
void	SetRecoveryAlgorithm (TypeId recovery)
	recovery algorithm of the sender socket More...
void	SetSegmentSize (SocketWho who, uint32_t segmentSize)
	Forcefully set the segment size. More...
void	SetTransmitStart (Time startTime)
	Set the initial time at which the application sends the first data packet. More...
void	SetUseEcn (SocketWho who, TcpSocketState::UseEcn_t useEcn)
	Forcefully set the ECN mode of use. More...
virtual void	SsThreshTrace (uint32_t oldValue, uint32_t newValue)
	Slow start threshold changes. More...
virtual void	Tx (const Ptr< const Packet > p, const TcpHeader &h, SocketWho who)
	Packet transmitted down to IP layer. More...
virtual void	UpdatedRttHistory (const SequenceNumber32 &seq, uint32_t sz, bool isRetransmission, SocketWho who)
	Updated the Rtt history. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCase. More...
bool	IsStatusFailure () const
	Check if any tests failed. More...
bool	IsStatusSuccess () const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Private Member Functions
void	InvalidAwndCb (uint16_t oldAwnd, uint16_t newAwnd)
	Callback called for the update of the awnd. More...

Private Attributes
uint32_t	m_pktCount
	Pkt count. More...
uint32_t	m_pktSize
	Packet size. More...
std::vector< uint32_t >	m_toDrop
	Sequences to drop. More...

Additional Inherited Members
Public Types inherited from ns3::TcpGeneralTest
enum	SocketWho { SENDER , RECEIVER }
	Used as parameter of methods, specifies on what node the caller is interested (e.g. More...
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Attributes inherited from ns3::TcpGeneralTest
TypeId	m_congControlTypeId
	Congestion control. More...
TypeId	m_recoveryTypeId
	Recovery. More...

Detailed Description

Test the TCP's advertised window size when there is a loss of specific packets.

Definition at line 370 of file tcp-advertised-window-test.cc.

Constructor & Destructor Documentation

TcpAdvWindowOnLossTest()

TcpAdvWindowOnLossTest::TcpAdvWindowOnLossTest	(	const std::string &	desc,
		uint32_t	size,
		uint32_t	packets,
		std::vector< uint32_t > &	toDrop
	)

Constructor.

Parameters

desc	description
size	segment size
packets	number of packets to send
toDrop	packets to be dropped

Definition at line 402 of file tcp-advertised-window-test.cc.

Member Function Documentation

ConfigureEnvironment()

void TcpAdvWindowOnLossTest::ConfigureEnvironment ( )

overrideprotectedvirtual

Change the configuration of the environment.

Reimplemented from ns3::TcpGeneralTest.

Definition at line 414 of file tcp-advertised-window-test.cc.

References m_pktCount, m_pktSize, ns3::MilliSeconds(), ns3::Seconds(), ns3::TcpGeneralTest::SetAppPktCount(), ns3::TcpGeneralTest::SetAppPktSize(), ns3::TcpGeneralTest::SetPropagationDelay(), and ns3::TcpGeneralTest::SetTransmitStart().

Here is the call graph for this function:

CreateReceiverErrorModel()

Ptr< ErrorModel > TcpAdvWindowOnLossTest::CreateReceiverErrorModel ( )

overrideprotectedvirtual

Create and return the error model to install in the receiver node.

Returns

receiver error model

Reimplemented from ns3::TcpGeneralTest.

Definition at line 447 of file tcp-advertised-window-test.cc.

References ns3::TcpSeqErrorModel::AddSeqToKill(), and m_toDrop.

Here is the call graph for this function:

CreateReceiverSocket()

Ptr< TcpSocketMsgBase > TcpAdvWindowOnLossTest::CreateReceiverSocket ( Ptr< Node >  node )

overrideprotectedvirtual

Create and install the socket to install on the receiver.

Parameters

node	receiver node pointer

Returns

the socket to be installed in the receiver

Reimplemented from ns3::TcpGeneralTest.

Definition at line 424 of file tcp-advertised-window-test.cc.

References ns3::TcpGeneralTest::CreateSocket(), TcpSocketAdvertisedWindowProxy::GetTypeId(), InvalidAwndCb(), ns3::TcpGeneralTest::m_congControlTypeId, ns3::MakeCallback(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

CreateSenderSocket()

Ptr< TcpSocketMsgBase > TcpAdvWindowOnLossTest::CreateSenderSocket ( Ptr< Node >  node )

overrideprotectedvirtual

Create and install the socket to install on the sender.

Parameters

node	sender node pointer

Returns

the socket to be installed in the sender

Reimplemented from ns3::TcpGeneralTest.

Definition at line 438 of file tcp-advertised-window-test.cc.

References m_pktSize.

InvalidAwndCb()

void TcpAdvWindowOnLossTest::InvalidAwndCb ( uint16_t  oldAwnd, uint16_t  newAwnd  )

private

Callback called for the update of the awnd.

Parameters

oldAwnd	Old advertised window
newAwnd	new value

Definition at line 459 of file tcp-advertised-window-test.cc.

References NS_TEST_ASSERT_MSG_EQ.

Referenced by CreateReceiverSocket().

Here is the caller graph for this function:

Member Data Documentation

m_pktCount

uint32_t TcpAdvWindowOnLossTest::m_pktCount

private

Pkt count.

Definition at line 398 of file tcp-advertised-window-test.cc.

Referenced by ConfigureEnvironment().

m_pktSize

uint32_t TcpAdvWindowOnLossTest::m_pktSize

private

Packet size.

Definition at line 397 of file tcp-advertised-window-test.cc.

Referenced by ConfigureEnvironment(), and CreateSenderSocket().

m_toDrop

std::vector<uint32_t> TcpAdvWindowOnLossTest::m_toDrop

private

Sequences to drop.

Definition at line 399 of file tcp-advertised-window-test.cc.

Referenced by CreateReceiverErrorModel().

---

The documentation for this class was generated from the following file:

• src/internet/test/tcp-advertised-window-test.cc
