ns3::TcpLpToNewReno Class Reference

Testing the behaviour common to New Reno. More...

Inheritance diagram for ns3::TcpLpToNewReno:

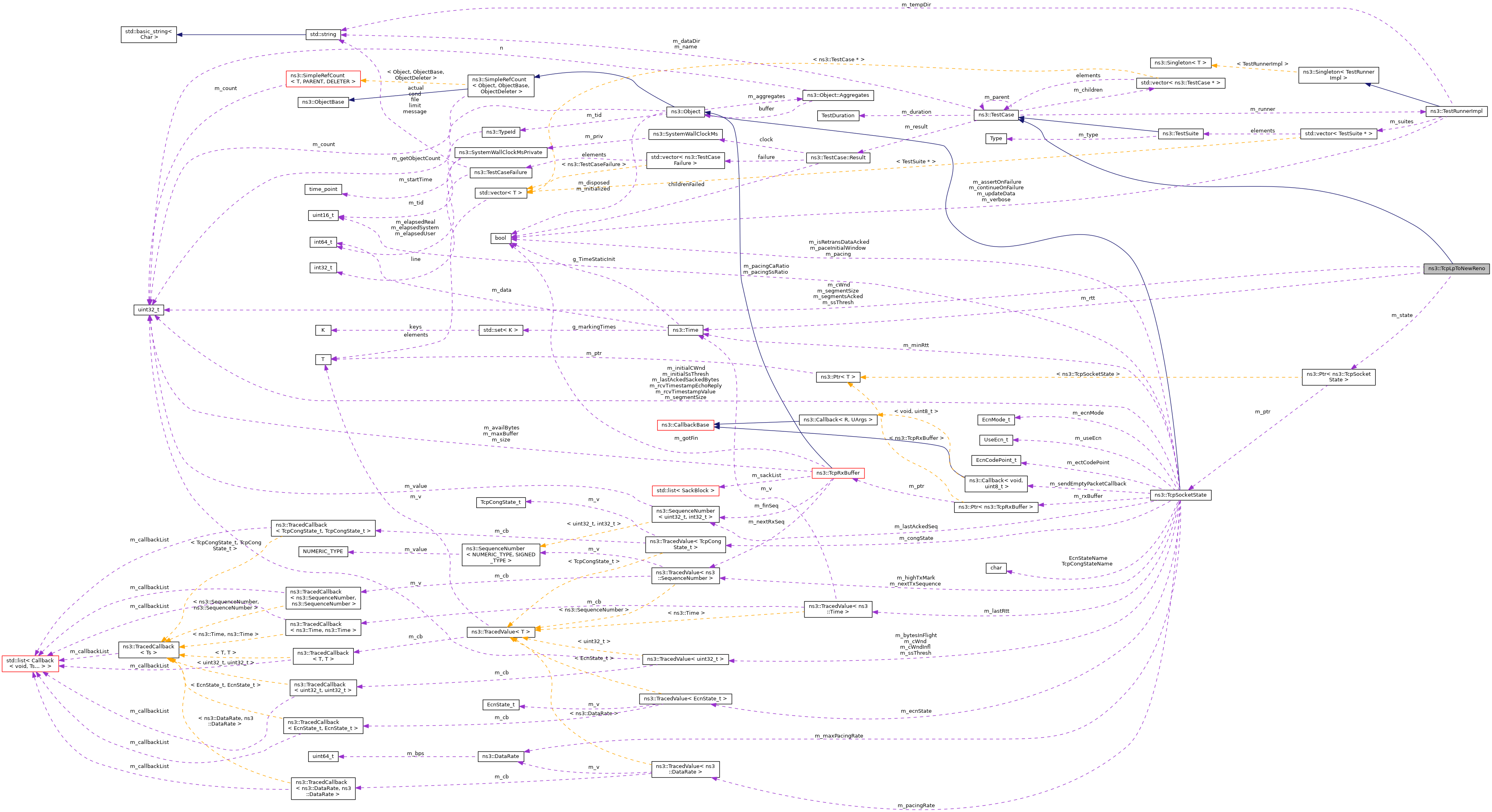

Collaboration diagram for ns3::TcpLpToNewReno:

Public Member Functions
	TcpLpToNewReno (uint32_t cWnd, uint32_t segmentSize, uint32_t segmentsAcked, uint32_t ssThresh, Time rtt, const std::string &name)
	Constructor. More...
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase. More...

Private Attributes
uint32_t	m_cWnd
	Congestion window size. More...
Time	m_rtt
	RTT. More...
uint32_t	m_segmentsAcked
	Segments acked. More...
uint32_t	m_segmentSize
	Segment size. More...
uint32_t	m_ssThresh
	Slow start threshold. More...
Ptr< TcpSocketState >	m_state
	TCP socket state. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCase. More...
bool	IsStatusFailure () const
	Check if any tests failed. More...
bool	IsStatusSuccess () const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Testing the behaviour common to New Reno.

Definition at line 39 of file tcp-lp-test.cc.

Constructor & Destructor Documentation

TcpLpToNewReno()

ns3::TcpLpToNewReno::TcpLpToNewReno	(	uint32_t	cWnd,
		uint32_t	segmentSize,
		uint32_t	segmentsAcked,
		uint32_t	ssThresh,
		Time	rtt,
		const std::string &	name
	)

Constructor.

Parameters

cWnd	Congestion window size
segmentSize	Segment size
segmentsAcked	Segments acked
ssThresh	Slow start threshold
rtt	RTT
name	Test case name

Definition at line 68 of file tcp-lp-test.cc.

Member Function Documentation

DoRun()

void ns3::TcpLpToNewReno::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 84 of file tcp-lp-test.cc.

References ns3::Simulator::Destroy(), ns3::TracedValue< T >::Get(), ns3::TcpSocketState::m_cWnd, m_cWnd, ns3::TcpSocketState::m_rcvTimestampEchoReply, ns3::TcpSocketState::m_rcvTimestampValue, m_rtt, m_segmentsAcked, ns3::TcpSocketState::m_segmentSize, m_segmentSize, ns3::TcpSocketState::m_ssThresh, m_ssThresh, m_state, NS_TEST_ASSERT_MSG_EQ, and ns3::Simulator::Run().

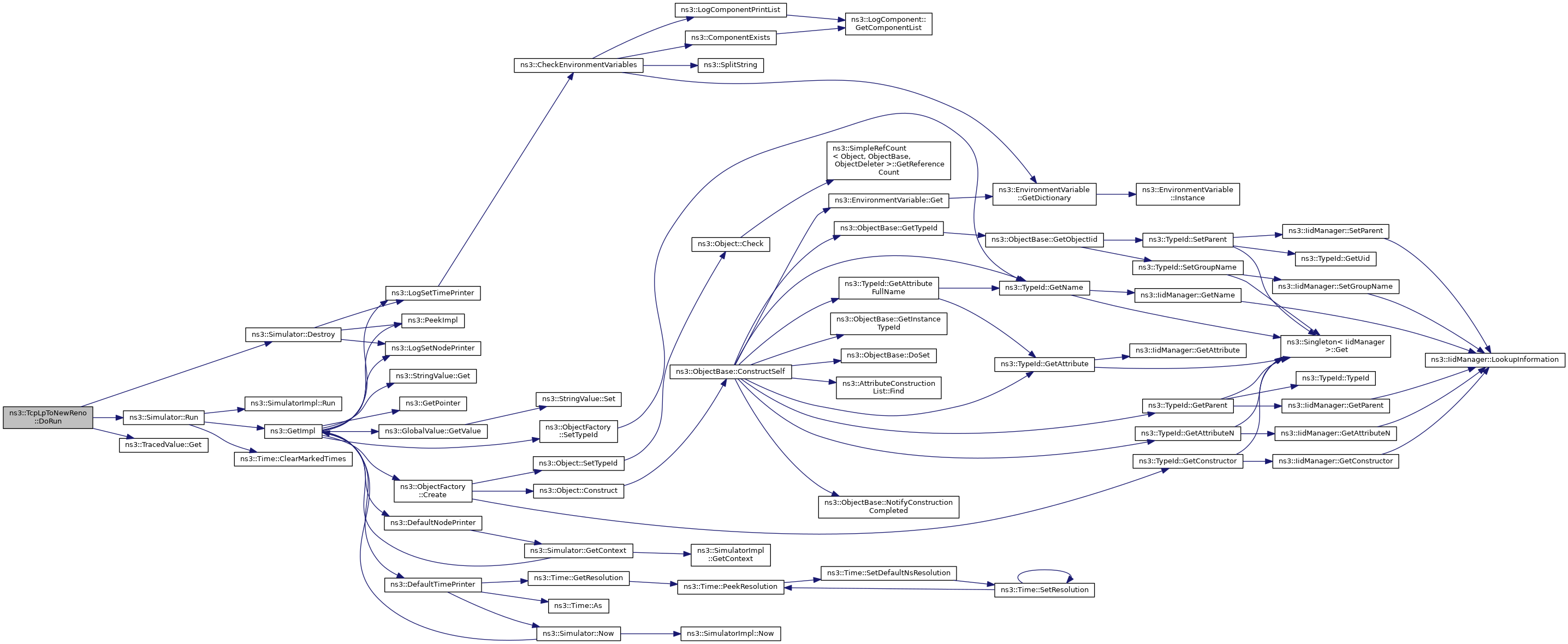

Here is the call graph for this function:

Member Data Documentation

m_cWnd

uint32_t ns3::TcpLpToNewReno::m_cWnd

private

Congestion window size.

Definition at line 60 of file tcp-lp-test.cc.

Referenced by DoRun().

m_rtt

Time ns3::TcpLpToNewReno::m_rtt

private

RTT.

Definition at line 64 of file tcp-lp-test.cc.

Referenced by DoRun().

m_segmentsAcked

uint32_t ns3::TcpLpToNewReno::m_segmentsAcked

private

Segments acked.

Definition at line 63 of file tcp-lp-test.cc.

Referenced by DoRun().

m_segmentSize

uint32_t ns3::TcpLpToNewReno::m_segmentSize

private

Segment size.

Definition at line 61 of file tcp-lp-test.cc.

Referenced by DoRun().

m_ssThresh

uint32_t ns3::TcpLpToNewReno::m_ssThresh

private

Slow start threshold.

Definition at line 62 of file tcp-lp-test.cc.

Referenced by DoRun().

m_state

Ptr<TcpSocketState> ns3::TcpLpToNewReno::m_state

private

TCP socket state.

Definition at line 65 of file tcp-lp-test.cc.

Referenced by DoRun().

---

The documentation for this class was generated from the following file:

• src/internet/test/tcp-lp-test.cc
