ns3::OfdmSendParams Class Reference

OfdmSendParams class. More...

#include "send-params.h"

Inheritance diagram for ns3::OfdmSendParams:

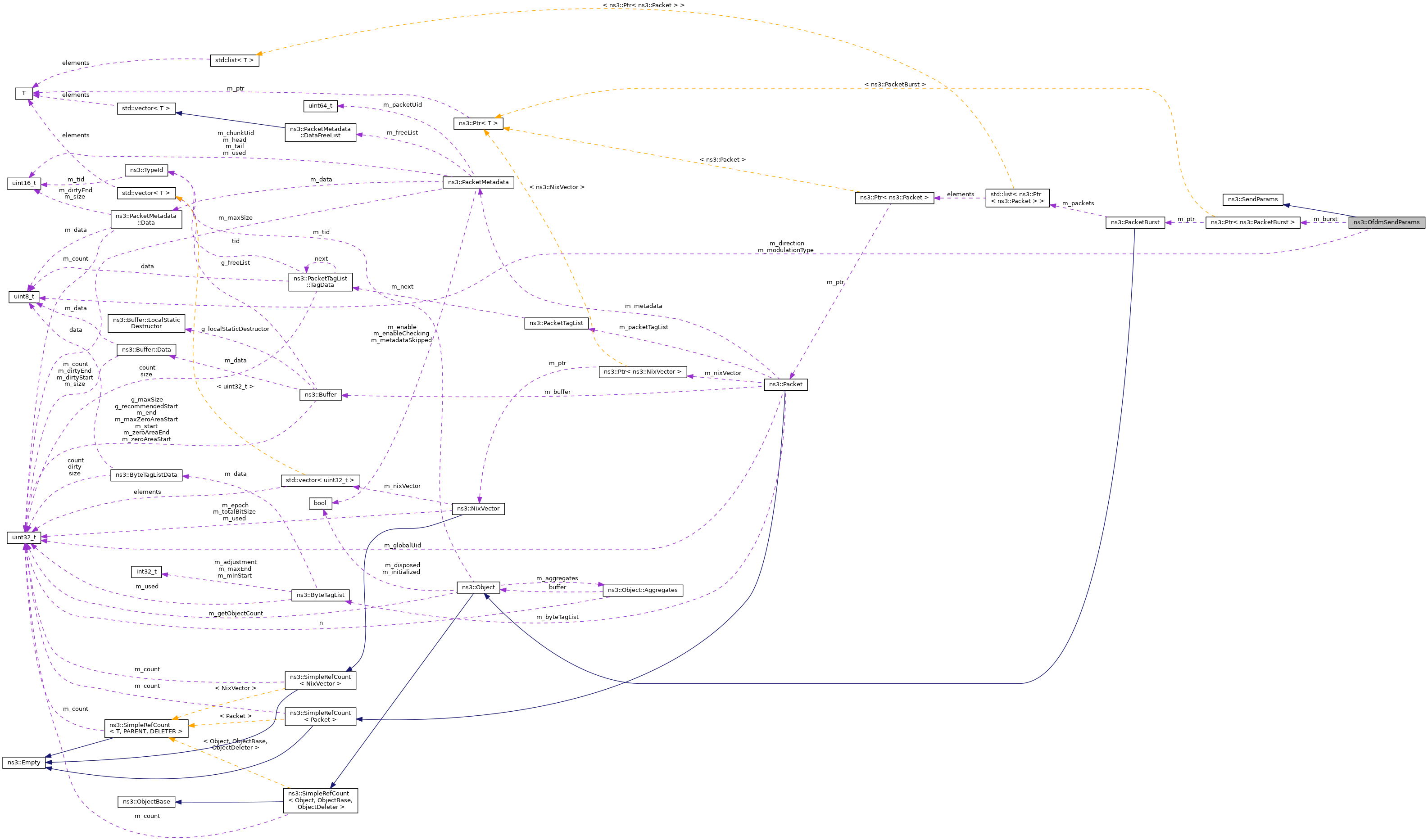

Collaboration diagram for ns3::OfdmSendParams:

Public Member Functions
	OfdmSendParams (Ptr< PacketBurst > burst, uint8_t modulationType, uint8_t direction)
	Constructor. More...
	~OfdmSendParams () override
Ptr< PacketBurst >	GetBurst () const
uint8_t	GetDirection () const
uint8_t	GetModulationType () const
Public Member Functions inherited from ns3::SendParams
	SendParams ()
virtual	~SendParams ()

Private Attributes
Ptr< PacketBurst >	m_burst
	packet burst More...
uint8_t	m_direction
	direction More...
uint8_t	m_modulationType
	modulation type More...

Detailed Description

OfdmSendParams class.

Definition at line 67 of file send-params.h.

Constructor & Destructor Documentation

OfdmSendParams()

ns3::OfdmSendParams::OfdmSendParams	(	Ptr< PacketBurst >	burst,
		uint8_t	modulationType,
		uint8_t	direction
	)

Constructor.

Parameters

burst	packet burst object
modulationType	modulation type
direction	the direction

Definition at line 37 of file send-params.cc.

~OfdmSendParams()

ns3::OfdmSendParams::~OfdmSendParams ( )

override

Definition at line 45 of file send-params.cc.

Member Function Documentation

GetBurst()

Ptr< PacketBurst > ns3::OfdmSendParams::GetBurst ( ) const

inline

Returns

the packet burst

Definition at line 83 of file send-params.h.

References m_burst.

Referenced by ns3::SimpleOfdmWimaxPhy::Send().

Here is the caller graph for this function:

GetDirection()

uint8_t ns3::OfdmSendParams::GetDirection ( ) const

inline

Returns

the direction

Definition at line 99 of file send-params.h.

References m_direction.

Referenced by ns3::SimpleOfdmWimaxPhy::Send().

Here is the caller graph for this function:

GetModulationType()

uint8_t ns3::OfdmSendParams::GetModulationType ( ) const

inline

Returns

the modulation type

Definition at line 91 of file send-params.h.

References m_modulationType.

Referenced by ns3::SimpleOfdmWimaxPhy::Send().

Here is the caller graph for this function:

Member Data Documentation

m_burst

Ptr<PacketBurst> ns3::OfdmSendParams::m_burst

private

packet burst

Definition at line 105 of file send-params.h.

Referenced by GetBurst().

m_direction

uint8_t ns3::OfdmSendParams::m_direction

private

direction

Definition at line 107 of file send-params.h.

Referenced by GetDirection().

m_modulationType

uint8_t ns3::OfdmSendParams::m_modulationType

private

modulation type

Definition at line 106 of file send-params.h.

Referenced by GetModulationType().

---

The documentation for this class was generated from the following files:

• src/wimax/model/send-params.h
• src/wimax/model/send-params.cc
