ns3::EhtMacCapabilities Struct Reference

EHT MAC Capabilities Info subfield. More...

#include "eht-capabilities.h"

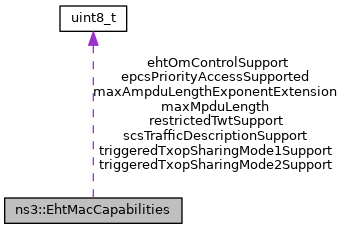

Collaboration diagram for ns3::EhtMacCapabilities:

Public Member Functions
uint16_t	Deserialize (Buffer::Iterator start)
	Deserialize the EHT MAC capabilities subfield. More...
uint16_t	GetSize () const
	Get the size of the serialized EHT MAC capabilities subfield. More...
void	Serialize (Buffer::Iterator &start) const
	Serialize the EHT MAC capabilities subfield. More...

Public Attributes
uint8_t	ehtOmControlSupport: 1
	EHT OM Control Support. More...
uint8_t	epcsPriorityAccessSupported: 1
	EPCS Priority Access Supported. More...
uint8_t	maxAmpduLengthExponentExtension: 1
	Maximum A-MPDU length exponent extension. More...
uint8_t	maxMpduLength: 2
	Maximum MPDU Length. More...
uint8_t	restrictedTwtSupport: 1
	Restricted TWT Support. More...
uint8_t	scsTrafficDescriptionSupport: 1
	SCS Traffic Description Support. More...
uint8_t	triggeredTxopSharingMode1Support: 1
	Triggered TXOP Sharing Mode 1 Support. More...
uint8_t	triggeredTxopSharingMode2Support: 1
	Triggered TXOP Sharing Mode 2 Support. More...

Detailed Description

EHT MAC Capabilities Info subfield.

See IEEE 802.11be D1.5 9.4.2.313.2 EHT MAC Capabilities Information subfield

Definition at line 39 of file eht-capabilities.h.

Member Function Documentation

Deserialize()

uint16_t ns3::EhtMacCapabilities::Deserialize

(

Buffer::Iterator

start

)

Deserialize the EHT MAC capabilities subfield.

Parameters

start

iterator pointing to where the EHT MAC capabilities subfield should be read from

Returns

the number of bytes read

Definition at line 46 of file eht-capabilities.cc.

References ehtOmControlSupport, epcsPriorityAccessSupported, maxAmpduLengthExponentExtension, maxMpduLength, ns3::Buffer::Iterator::ReadLsbtohU16(), restrictedTwtSupport, scsTrafficDescriptionSupport, two-ray-to-three-gpp-ch-calibration::start, triggeredTxopSharingMode1Support, and triggeredTxopSharingMode2Support.

Referenced by ns3::EhtCapabilities::DeserializeInformationField().

Here is the call graph for this function:

Here is the caller graph for this function:

GetSize()

uint16_t ns3::EhtMacCapabilities::GetSize

(

)

const

Get the size of the serialized EHT MAC capabilities subfield.

Returns

the size of the serialized EHT MAC capabilities subfield

Definition at line 29 of file eht-capabilities.cc.

Referenced by ns3::EhtCapabilities::GetInformationFieldSize().

Here is the caller graph for this function:

Serialize()

void ns3::EhtMacCapabilities::Serialize

(

Buffer::Iterator &

start

)

const

Serialize the EHT MAC capabilities subfield.

Parameters

start

iterator pointing to where the EHT MAC capabilities subfield should be written to

Definition at line 35 of file eht-capabilities.cc.

References ehtOmControlSupport, epcsPriorityAccessSupported, maxAmpduLengthExponentExtension, maxMpduLength, restrictedTwtSupport, scsTrafficDescriptionSupport, two-ray-to-three-gpp-ch-calibration::start, triggeredTxopSharingMode1Support, and triggeredTxopSharingMode2Support.

Referenced by ns3::EhtCapabilities::SerializeInformationField().

Here is the caller graph for this function:

Member Data Documentation

ehtOmControlSupport

uint8_t ns3::EhtMacCapabilities::ehtOmControlSupport

EHT OM Control Support.

Definition at line 42 of file eht-capabilities.h.

Referenced by Deserialize(), and Serialize().

epcsPriorityAccessSupported

uint8_t ns3::EhtMacCapabilities::epcsPriorityAccessSupported

EPCS Priority Access Supported.

Definition at line 41 of file eht-capabilities.h.

Referenced by Deserialize(), and Serialize().

maxAmpduLengthExponentExtension

uint8_t ns3::EhtMacCapabilities::maxAmpduLengthExponentExtension

Maximum A-MPDU length exponent extension.

Definition at line 48 of file eht-capabilities.h.

Referenced by Deserialize(), ns3::EhtCapabilities::GetMaxAmpduLength(), Serialize(), and ns3::EhtCapabilities::SetMaxAmpduLength().

maxMpduLength

uint8_t ns3::EhtMacCapabilities::maxMpduLength

Maximum MPDU Length.

Definition at line 47 of file eht-capabilities.h.

Referenced by Deserialize(), ns3::EhtCapabilities::GetMaxMpduLength(), Serialize(), and ns3::EhtCapabilities::SetMaxMpduLength().

restrictedTwtSupport

uint8_t ns3::EhtMacCapabilities::restrictedTwtSupport

Restricted TWT Support.

Definition at line 45 of file eht-capabilities.h.

Referenced by Deserialize(), and Serialize().

scsTrafficDescriptionSupport

uint8_t ns3::EhtMacCapabilities::scsTrafficDescriptionSupport

SCS Traffic Description Support.

Definition at line 46 of file eht-capabilities.h.

Referenced by Deserialize(), and Serialize().

triggeredTxopSharingMode1Support

uint8_t ns3::EhtMacCapabilities::triggeredTxopSharingMode1Support

Triggered TXOP Sharing Mode 1 Support.

Definition at line 43 of file eht-capabilities.h.

Referenced by Deserialize(), and Serialize().

triggeredTxopSharingMode2Support

uint8_t ns3::EhtMacCapabilities::triggeredTxopSharingMode2Support

Triggered TXOP Sharing Mode 2 Support.

Definition at line 44 of file eht-capabilities.h.

Referenced by Deserialize(), and Serialize().

---

The documentation for this struct was generated from the following files:

• src/wifi/model/eht/eht-capabilities.h
• src/wifi/model/eht/eht-capabilities.cc
