The triangular distribution Random Number Generator (RNG) that allows stream numbers to be set deterministically. More...
#include "random-variable-stream.h"

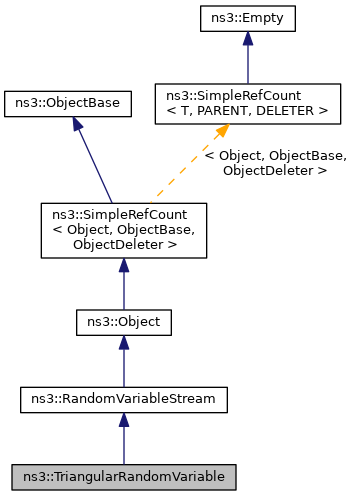

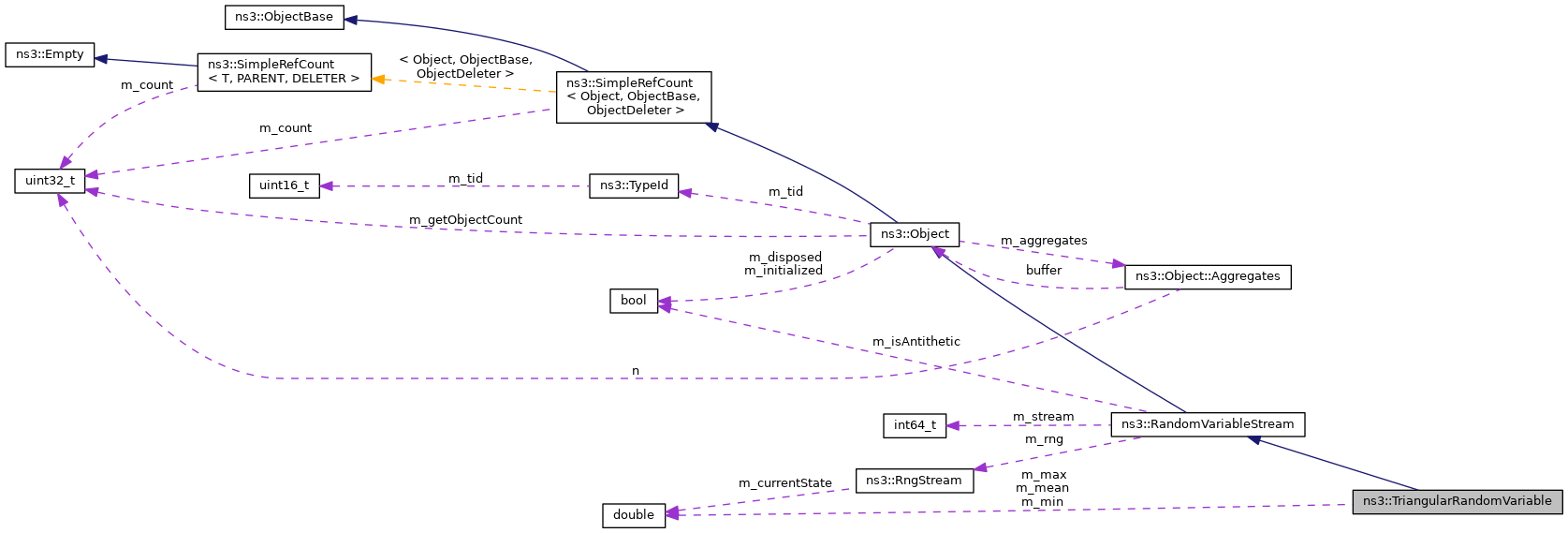

Inheritance diagram for ns3::TriangularRandomVariable: Collaboration diagram for ns3::TriangularRandomVariable:Public Member Functions | |
| TriangularRandomVariable () | |
| Creates a triangular distribution RNG with the default values for the mean, lower bound, and upper bound. More... | |
| virtual uint32_t | GetInteger () |
| Get the next random value drawn from the distribution. More... | |
| uint32_t | GetInteger (uint32_t mean, uint32_t min, uint32_t max) |
| Get the next random value drawn from the distribution. More... | |
| double | GetMax () const |
| Returns the upper bound on values that can be returned by this RNG stream. More... | |
| double | GetMean () const |
| Returns the mean value for the triangular distribution returned by this RNG stream. More... | |
| double | GetMin () const |
| Returns the lower bound for the triangular distribution returned by this RNG stream. More... | |
| double | GetValue () override |
| Get the next random value drawn from the distribution. More... | |
| double | GetValue (double mean, double min, double max) |
| Get the next random value drawn from the distribution. More... | |
| Public Member Functions inherited from ns3::RandomVariableStream | |
| RandomVariableStream () | |
| Default constructor. More... | |
| RandomVariableStream (const RandomVariableStream &)=delete | |
| ~RandomVariableStream () override | |
| Destructor. More... | |
| virtual uint32_t | GetInteger () |
| Get the next random value drawn from the distribution. More... | |
| int64_t | GetStream () const |
| Returns the stream number for the RngStream. More... | |
| virtual double | GetValue ()=0 |
| Get the next random value drawn from the distribution. More... | |
| bool | IsAntithetic () const |
| Check if antithetic values will be generated. More... | |
| RandomVariableStream & | operator= (const RandomVariableStream &)=delete |
| void | SetAntithetic (bool isAntithetic) |
| Specify whether antithetic values should be generated. More... | |
| void | SetStream (int64_t stream) |
| Specifies the stream number for the RngStream. More... | |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| Constructor. More... | |
| ~Object () override | |
| Destructor. More... | |
| void | AggregateObject (Ptr< Object > other) |
| Aggregate two Objects together. More... | |
| void | Dispose () |
| Dispose of this Object. More... | |
| AggregateIterator | GetAggregateIterator () const |
| Get an iterator to the Objects aggregated to this one. More... | |
| TypeId | GetInstanceTypeId () const override |
| Get the most derived TypeId for this Object. More... | |
| template<typename T > | |
| Ptr< T > | GetObject () const |
| Get a pointer to the requested aggregated Object. More... | |
| template<> | |
| Ptr< Object > | GetObject () const |
| Specialization of () for objects of type ns3::Object. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| Get a pointer to the requested aggregated Object by TypeId. More... | |
| template<> | |
| Ptr< Object > | GetObject (TypeId tid) const |
| Specialization of (TypeId tid) for objects of type ns3::Object. More... | |
| void | Initialize () |
| Invoke DoInitialize on all Objects aggregated to this one. More... | |
| bool | IsInitialized () const |
| Check if the object has been initialized. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Default constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount () const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment operator. More... | |
| void | Ref () const |
| Increment the reference count. More... | |
| void | Unref () const |
| Decrement the reference count. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising errors. More... | |
| virtual TypeId | GetInstanceTypeId () const =0 |
| Get the most derived TypeId for this Object. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId () |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::RandomVariableStream | |
| static TypeId | GetTypeId () |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId () |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId () |
| Get the type ID. More... | |
Private Attributes | |
| double | m_max |
| The upper bound on values that can be returned by this RNG stream. More... | |
| double | m_mean |
| The mean value for the triangular distribution returned by this RNG stream. More... | |
| double | m_min |
| The lower bound on values that can be returned by this RNG stream. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::RandomVariableStream | |
| RngStream * | Peek () const |
| Get the pointer to the underlying RngStream. More... | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| Copy an Object. More... | |
| virtual void | DoDispose () |
| Destructor implementation. More... | |
| virtual void | DoInitialize () |
| Initialize() implementation. More... | |
| virtual void | NotifyNewAggregate () |
| Notify all Objects aggregated to this one of a new Object being aggregated. More... | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted () |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid () |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
The triangular distribution Random Number Generator (RNG) that allows stream numbers to be set deterministically.
This class supports the creation of objects that return random numbers from a fixed triangular distribution. It also supports the generation of single random numbers from various triangular distributions.
The probability density depends on three parameters, the end points
= Min and
= Max, and the location of the peak or mode,
. For historical reasons this formulation uses the Mean,
instead of the mode. In terms of the Mean, the mode is
.
The probability is in the shape of a triangle defined on the interval ![$ x \in [a, b] $](../../form_97.png)
:
![\[ P(x; a, b, c) dx = \begin{array}{ll} 0 &\mbox{ for $x \le a$} \\ \frac{2(x - a)}{(b - a)(c - a)} dx &\mbox{ for $a \le x \le c$} \\ \frac{2}{b - 1} dx &\mbox{ for $x = c$} \\ \frac{2(b - x)}{(b - a)(b - c)} dx &\mbox{ for $c \le x \le b$} \\ 0 &\mbox{ for $b \le x$} \end{array} \]](../../form_98.png)
The triangle RNG
is generated by
![\[ x = \left\{ \begin{array}{rl} a + \sqrt{u (b - a) (c - a)} &\mbox{ if $u \le (c - a)/(b - a)$} \\ b - \sqrt{(1 - u) (b - a) (b - c) } &\mbox{ otherwise} \end{array} \right. \]](../../form_99.png)
where
is a uniform random variable on [0,1).
Here is an example of how to use this class:
If an instance of this RNG is configured to return antithetic values, the actual value returned,
, is generated as follows:
![\[ x = \left\{ \begin{array}{rl} a + \sqrt{(1 - u) (b - a) (c - a)} &\mbox{ if $(1 - u) \le (c - a)/(b - a)$} \\ b - \sqrt{u (b - a) (b - c) } &\mbox{ otherwise} \end{array} \right. \]](../../form_100.png)
which now involves the distance is from 1.
ns3::TriangularRandomVariable is accessible through the following paths with Config::Set and Config::Connect:
No TraceSources are defined for this type.
Size of this type is 80 bytes (on a 64-bit architecture).
Definition at line 1498 of file random-variable-stream.h.
| ns3::TriangularRandomVariable::TriangularRandomVariable | ( | ) |
Creates a triangular distribution RNG with the default values for the mean, lower bound, and upper bound.
Definition at line 1213 of file random-variable-stream.cc.
References NS_LOG_FUNCTION.
|
virtual |
Get the next random value drawn from the distribution.
Reimplemented from ns3::RandomVariableStream.
Definition at line 153 of file random-variable-stream.cc.
Get the next random value drawn from the distribution.
| [in] | mean | Mean value for the triangular distribution. |
| [in] | min | Low end of the range. |
| [in] | max | High end of the range. |
Definition at line 1267 of file random-variable-stream.cc.
References GetValue(), max, min, and NS_LOG_FUNCTION.
Here is the call graph for this function:| double ns3::TriangularRandomVariable::GetMax | ( | ) | const |
Returns the upper bound on values that can be returned by this RNG stream.
Definition at line 1235 of file random-variable-stream.cc.
References m_max, and NS_LOG_FUNCTION.
| double ns3::TriangularRandomVariable::GetMean | ( | ) | const |
Returns the mean value for the triangular distribution returned by this RNG stream.
Definition at line 1221 of file random-variable-stream.cc.
References m_mean, and NS_LOG_FUNCTION.
| double ns3::TriangularRandomVariable::GetMin | ( | ) | const |
Returns the lower bound for the triangular distribution returned by this RNG stream.
Definition at line 1228 of file random-variable-stream.cc.
References m_min, and NS_LOG_FUNCTION.
|
static |
Register this type.
Definition at line 1187 of file random-variable-stream.cc.
References m_max, m_mean, m_min, ns3::MakeDoubleAccessor(), and ns3::TypeId::SetParent().

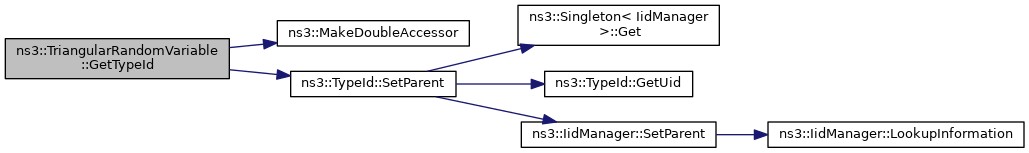

Here is the call graph for this function:
|
overridevirtual |
Get the next random value drawn from the distribution.
Implements ns3::RandomVariableStream.
Definition at line 1274 of file random-variable-stream.cc.
References GetValue(), m_max, m_mean, m_min, and NS_LOG_FUNCTION.
Referenced by GetInteger(), and GetValue().
Here is the call graph for this function: Here is the caller graph for this function:Get the next random value drawn from the distribution.
| [in] | mean | Mean value for the triangular distribution. |
| [in] | min | Low end of the range. |
| [in] | max | High end of the range. |
Definition at line 1242 of file random-variable-stream.cc.
References ns3::RandomVariableStream::IsAntithetic(), max, min, NS_LOG_FUNCTION, ns3::RandomVariableStream::Peek(), and ns3::RngStream::RandU01().

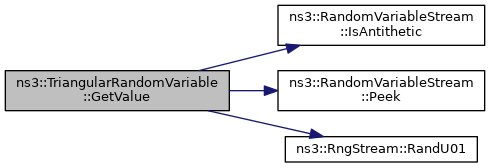

Here is the call graph for this function:
|
private |
The upper bound on values that can be returned by this RNG stream.
Definition at line 1554 of file random-variable-stream.h.
Referenced by GetMax(), GetTypeId(), and GetValue().
|
private |
The mean value for the triangular distribution returned by this RNG stream.
Definition at line 1548 of file random-variable-stream.h.
Referenced by GetMean(), GetTypeId(), and GetValue().
|
private |
The lower bound on values that can be returned by this RNG stream.
Definition at line 1551 of file random-variable-stream.h.
Referenced by GetMin(), GetTypeId(), and GetValue().
