Status code for association response. More...

#include "status-code.h"

Collaboration diagram for ns3::StatusCode:

Public Member Functions
	StatusCode ()

Buffer::Iterator	Deserialize (Buffer::Iterator start)

uint32_t	GetSerializedSize () const

bool	IsSuccess () const
	Return whether the status code is success. More...

Buffer::Iterator	Serialize (Buffer::Iterator start) const

void	SetFailure ()
	Set success bit to 1 (failure). More...

void	SetSuccess ()
	Set success bit to 0 (success). More...

Private Attributes
uint16_t	m_code
	status code More...

Detailed Description

Status code for association response.

Definition at line 31 of file status-code.h.

Constructor & Destructor Documentation

◆ StatusCode()

ns3::StatusCode::StatusCode ( )

Definition at line 25 of file status-code.cc.

Member Function Documentation

◆ Deserialize()

Buffer::Iterator ns3::StatusCode::Deserialize ( Buffer::Iterator start )

Parameters

start an iterator which points to where the status code should be read.

Returns: the number of bytes read.

This method is used to re-create a status code from the byte buffer. The data read is expected to match bit-for-bit the representation of this header in real networks.

Definition at line 61 of file status-code.cc.

References m_code, and two-ray-to-three-gpp-ch-calibration::start.

Referenced by ns3::MgtAssocResponseHeader::Deserialize(), and ns3::MgtAddBaResponseHeader::Deserialize().

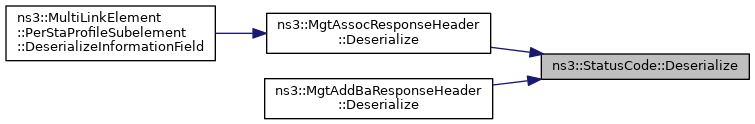

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::StatusCode::GetSerializedSize ( ) const

Returns: the expected size of the status code.

This method should return the number of bytes which are needed to store the status code data by Serialize.

Definition at line 48 of file status-code.cc.

Referenced by ns3::MgtAssocResponseHeader::GetSerializedSize(), and ns3::MgtAddBaResponseHeader::GetSerializedSize().

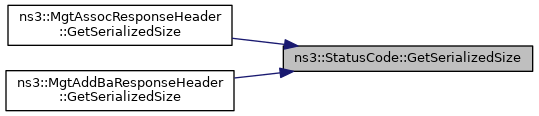

Here is the caller graph for this function:

◆ IsSuccess()

bool ns3::StatusCode::IsSuccess ( ) const

Return whether the status code is success.

Returns: true if success, false otherwise

Definition at line 42 of file status-code.cc.

References m_code.

Referenced by ns3::ApWifiMac::GetLinkIdStaAddrMap(), ns3::QosTxop::GotAddBaResponse(), ns3::operator<<(), ns3::StaWifiMac::ReceiveAssocResp(), and ns3::ApWifiMac::SetAid().

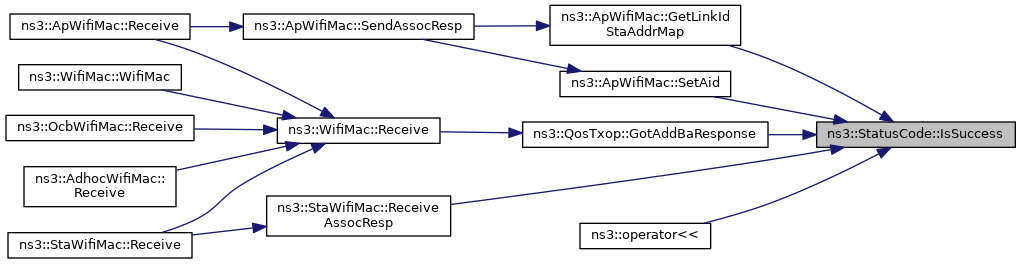

Here is the caller graph for this function:

◆ Serialize()

Buffer::Iterator ns3::StatusCode::Serialize ( Buffer::Iterator start ) const

Parameters

start an iterator which points to where the status code should be written

Returns: Buffer::Iterator

This method is used to store a status code into the byte buffer. The data written is expected to match bit-for-bit the representation of this header in a real network.

Definition at line 54 of file status-code.cc.

References m_code, and two-ray-to-three-gpp-ch-calibration::start.

Referenced by ns3::MgtAssocResponseHeader::Serialize(), and ns3::MgtAddBaResponseHeader::Serialize().

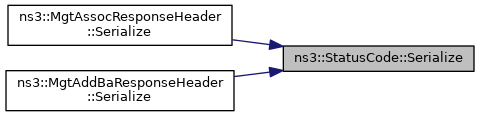

Here is the caller graph for this function:
